Selected variant
Specifications
| Approvals | UL |
|---|---|
| Bore | 6.4 mm |
| Cross-Section | 35 mm² |

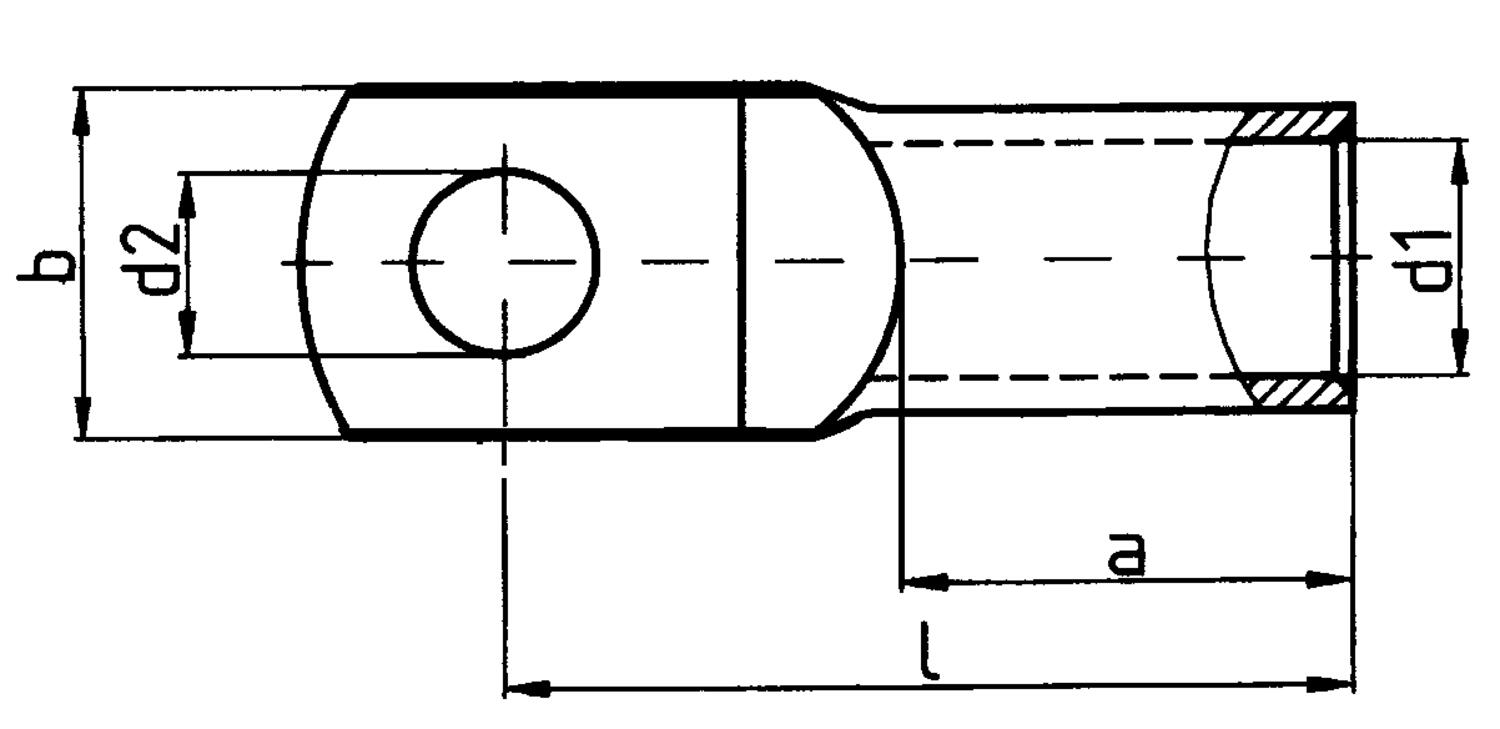

| Diameter d1 | 8.5 mm |
| Diameter d2 | 6.4 mm |
| Length a | 17 mm |
| Length l | 33 mm |
| Material | Tinned copper |
| Pack Size | 25 |
| Weight | 0.0193 kg |
| Approvals | UL |
|---|---|
| Bore | 6.4 mm |
| Cross-Section | 35 mm² |
| Diameter d1 | 8.5 mm |
| Diameter d2 | 6.4 mm |
| Length a | 17 mm |
| Length l | 33 mm |
| Material | Tinned copper |
| Pack Size | 25 |
| Weight | 0.0193 kg |
|
|
|
|
|
|
||
|---|---|---|---|---|---|---|
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
| Articles | Bore | Cross-Section | Diameter d1 | Diameter d2 | Length a | Length l | Pack Size | Weight | ||
|---|---|---|---|---|---|---|---|---|---|---|
Cable lug, narrow 35 mm² M6
Art:
W-18220
Copied
|
6.4 mm
|
35 mm²
|
8.5 mm
|
6.4 mm
|
17 mm
|
33 mm
|
25
|
0.0193 kg
|
| |
|
Cable lug, narrow 50 mm² M8
Art:
W-18225
Copied
|
8.4 mm
|
50 mm²
|
10 mm
|
8.4 mm
|
19 mm
|
39 mm
|
25
|
0.0279 kg
|
| |
|
Cable lug, narrow 70 mm² M10
Art:
W-18231
Copied
|
10.5 mm
|
70 mm²
|
11.8 mm
|
10.5 mm
|
21 mm
|
45 mm
|
25
|
0.044 kg
|
| |
|
Cable lug, narrow 95 mm² M10
Art:
W-18236
Copied
|
10.5 mm
|
95 mm²
|
13.5 mm
|
10.5 mm
|
23 mm
|
47 mm
|
25
|
0.051 kg
|
| |
|
Cable lug, narrow 120 mm² M10
Art:
W-18240
Copied
|
10.5 mm
|
120 mm²
|
14.7 mm
|
10.5 mm
|
26 mm
|
53 mm
|
10
|
0.067 kg
|
| |
|
Cable lug, narrow 150 mm² M10
Art:
W-18245
Copied
|
10.5 mm
|
150 mm²
|
16.3 mm
|
10.5 mm
|
29 mm
|
56 mm
|
10
|
0.0763 kg
|
| |
|
Cable lug, narrow 185 mm² M12
Art:
W-18250
Copied
|
13 mm
|
185 mm²
|
18.7 mm
|
13 mm
|
30 mm
|
59.5 mm
|
10
|
0.1027 kg
|
| |
|
Cable lug, narrow 240 mm² M12
Art:
W-18255
Copied
|
13 mm
|
240 mm²
|
21 mm
|
13 mm
|
35 mm
|
65 mm
|
5
|
0.1171 kg
|
|
Select a variant in the list
