FLEXA

US-M/US-P metal connector

US-M and US-P connectors are made from nickled brass, gasket material is either TPE or PFTE. O-ring is made of NBR, brass ferrule.



Available also in smaller quantities than listed below.





Read more
  • Nickeled brass
  • Waterproof and dust-tight
  • Metric or PG thread
  • IP40..IP65 rated

Selected variant

FLEXA.tif

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Diameter 10 mm
Thread M10x1,5 met. EN 60423
Pack Size 50
Temperature range from -40 °C
Temperature range to 125 °C
Weight kg / 100 ± 10% 1.5
Material Nickel-plated brass
Type US-M
Fits to SPR-PU-AS, SPR-PVC-AS

Downloads

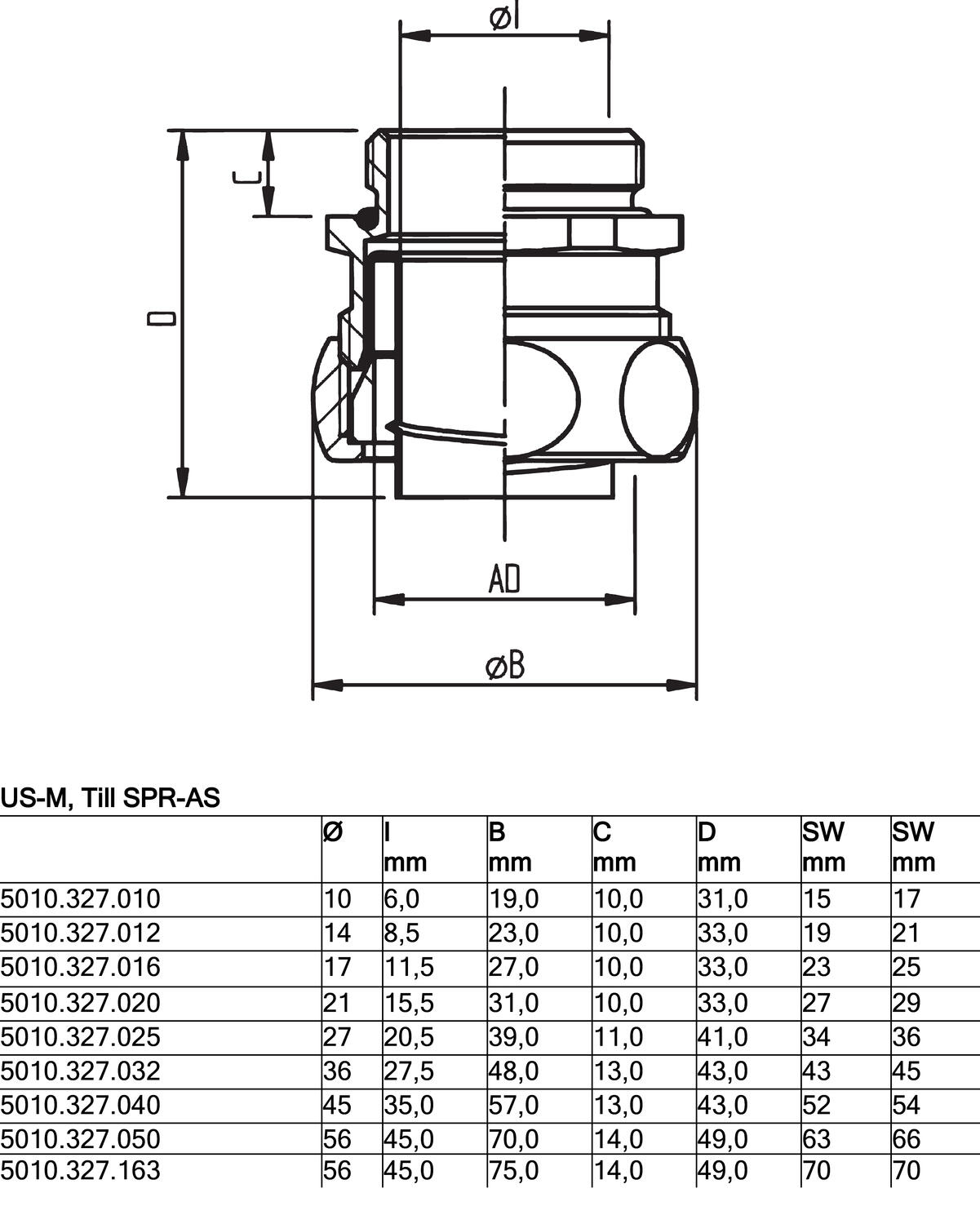

Measurements and connections

Product description

US-M and US-P connectors are made from nickled brass, gasket material is either TPE or PFTE. O-ring is made of NBR, brass ferrule.



Available also in smaller quantities than listed below.





Accessories

Related products

Related

Food cable
Product news

New cabling solutions for food and beverage industry applications

The food and beverage industries have placed high expectations on products and packages. OEM Automatic meets these expectations by expanding the range of its cable & connection technology product area with products developed especially for the needs of the food and beverage industry.

Harting PUSH-IN & ICC
Product news

New connectors products from Harting

HARTING has introduced a new Push-In connection technology that can reduce assembly times by up to 30% and improve installation flexibility. Read more!

Molex mPm valve connectors
Product news

Molex mPm valve connectors with WSOR cable

Molex mPm valve plug cables are now also available with WSOR cables. Read more!

spring and motor drums for moving installations
Product news

Spring and motor drums for moving installations

Our supplier Stemmann-Technik (Wabtec Corporation) offers customer-specific cable reels for various applications. The selection includes a wide range of spring and motor cable reels for different purposes. The reels are designed according to customer requirements.

Molex Junior Timer
Product news

Updated Molex MPM Junior Timer connector cable

Junior Timer connectors are a popular choice for magnet valve electrical quick connectors. Molex MPM Junior Timer connector cables have been on the market for a long time, but now Molex has also introduced the new Molex MPM Junior Timer connector.

TransTecno gear motors
Product news

Small but very efficient gear motors

Transtecno has developed the MiniTecno product range to better meet the needs of customers using small gear motors in a wide range of industries, up to 90 Nm.

Articles Diameter Thread Pack Size Temperature range from Temperature range to Weight kg / 100 ± 10% Material Type Fits to
270472_812.eps
US-M AD10 M10x1,0 connector
Art:
5010.328.010 Copied
10 mm
M10x1,5 met. EN 60423
50
-40 °C
125 °C
1.5
Nickel-plated brass
US-M
SPR-PU-AS, SPR-PVC-AS
270472_812.eps
US-M AD14 M12X1,5 connector
Art:
5010.328.012 Copied
14 mm
M12x1,5 met. EN 60423
50
-40 °C
125 °C
2.3
Nickel-plated brass
US-M
SPR-PU-AS, SPR-PVC-AS
270472_812.eps
US-M CONNECTOR AD17 M16x1,5
Art:
5010.328.016 Copied
17 mm
M16x1,5 met. EN 60423
50
-40 °C
125 °C
3.2
Nickel-plated brass
US-M
SPR-PU-AS, SPR-PVC-AS
270472_812.eps
US-M STRAIGHT CONNECTOR AD21 M20x1,5
Art:
5010.328.020 Copied
21 mm
M20x1,5 met. EN 60423
50
-40 °C
125 °C
4.2
Nickel-plated brass
US-M
SPR-PU-AS, SPR-PVC-AS
270472_812.eps
US-M OD27 CONNECTOR M25x1,5
Art:
5010.328.025 Copied
27 mm
M25x1,5 met. EN 60423
25
-40 °C
125 °C
7.9
Nickel-plated brass
US-M
SPR-PU-AS, SPR-PVC-AS
270472_812.eps
US-M AD36 M32x1,5 connector
Art:
5010.328.032 Copied
36 mm
M32x1,5 met. EN 60423
25
-40 °C
125 °C
11.6
Nickel-plated brass
US-M
SPR-PU-AS, SPR-PVC-AS
270472_812.eps
SPR-AS KOPPLING US-M M40x1,5
Art:
5010.327.040 Copied
45 mm
M40x1,5 met. EN 60423
20
-40 °C
125 °C
15.6
Nickel-plated brass
US-M
SPR-AS, SPR-PU-AS, SPR-PVC-AS
270472_812.eps
US-M AD56 M50x1,5 connector
Art:
5010.328.050 Copied
56 mm
M50x1,5 met. EN 60423
10
-40 °C
125 °C
24.5
Nickel-plated brass
US-M
SPR-PU-AS, SPR-PVC-AS
270472_812.eps
US-M AD56 M63x1,5 connector
Art:
5010.328.163 Copied
56 mm
M63x1,5 met. EN 60423
10
-40 °C
125 °C
29.9
Nickel-plated brass
US-M
SPR-PU-AS, SPR-PVC-AS
270472_812.eps
US-P AD14 PG9 connector
Art:
5010.128.009 Copied
14 mm
PG 9 DIN 40430
50
-40 °C
125 °C
2.3
Nickel-plated brass
US-P
SPR-PU-AS, SPR-PVC-AS
270472_812.eps
US-P AD17 PG11 connector
Art:
5010.128.011 Copied
17 mm
PG 11 DIN 40430
50
-40 °C
125 °C
3.1
Nickel-plated brass
US-P
SPR-PU-AS, SPR-PVC-AS
270472_812.eps
SPR-PVC-AS connector.US-P PG 13,5
Art:
5010.128.013 Copied
19 mm
PG 13,5 DIN 40430
50
-40 °C
125 °C
3.5
Nickel-plated brass
US-P
SPR-AS, SPR-PU-AS, SPR-PVC-AS
270472_812.eps
US-P AD21 PG16 connector
Art:
5010.128.016 Copied
21 mm
PG 16 DIN 40430
50
-40 °C
125 °C
4
Nickel-plated brass
US-P
SPR-PU-AS, SPR-PVC-AS
270472_812.eps
SPR-PVC-AS connector US-P PG 21
Art:
5010.128.021 Copied
27 mm
PG 21 DIN 40430
25
-40 °C
125 °C
7.9
Nickel-plated brass
US-P
SPR-PU-AS, SPR-PVC-AS
270472_812.eps
SPR-PVC-AS connector US-P PG 29
Art:
5010.128.029 Copied
36 mm
PG 29 DIN 40430
25
-40 °C
125 °C
10.9
Nickel-plated brass
US-P
SPR-PU-AS, SPR-PVC-AS
270472_812.eps
SPR-PVC-AS KOPPLING US-P PG 36
Art:
5010.128.036 Copied
45 mm
PG 36 DIN 40430
20
-40 °C
125 °C
13
Nickel-plated brass
US-P
SPR-PU-AS, SPR-PVC-AS
270472_812.eps
US-P AD56 PG48 connector
Art:
5010.128.048 Copied
56 mm
PG 48 DIN 40430
10
-40 °C
125 °C
21.7
Nickel-plated brass
US-P
SPR-PU-AS, SPR-PVC-AS
270472_812.eps
US-M CONNECTOR M10x1,5
Art:
5010.327.010 Copied
10 mm
M10x1,5 met. EN 60423
50
-40 °C
125 °C
1.52
Nickel-plated brass
US-M
SPR-AS, SPR-PU-AS, SPR-PVC-AS
270472_812.eps
US-M AD14 M12X1,5 connector
Art:
5010.327.012 Copied
14 mm
M12x1,5 met. EN 60423
50
-40 °C
125 °C
2.3
Nickel-plated brass
US-M
SPR-AS, SPR-PU-AS, SPR-PVC-AS
270472_812.eps
SPR-AS connector US-M M16x1,5
Art:
5010.327.016 Copied
17 mm
M16x1,5 met. EN 60423
50
-40 °C
125 °C
3.2
Nickel-plated brass
US-M
SPR-AS, SPR-PU-AS, SPR-PVC-AS
270472_812.eps
US-M, nickel-plated brass, AD21, M20x1,5
Art:
5010.327.020 Copied
21 mm
M20x1,5 met. EN 60423
50
-40 °C
125 °C
4.2
Nickel-plated brass
US-M
SPR-AS, SPR-PU-AS, SPR-PVC-AS
270472_812.eps
US-M AD27 M25x1,5 connector
Art:
5010.327.025 Copied
27 mm
M25x1,5 met. EN 60423
25
-40 °C
125 °C
7.9
Nickel-plated brass
US-M
SPR-AS, SPR-PU-AS, SPR-PVC-AS
270472_812.eps
SPR-AS KOPPLING US-M M32x1,5
Art:
5010.327.032 Copied
36 mm
M32x1,5 met. EN 60423
25
-40 °C
125 °C
11.6
Nickel-plated brass
US-M
SPR-AS, SPR-PU-AS, SPR-PVC-AS
270472_812.eps
US-M CONNECTOR AD45 M40x1,5
Art:
5010.328.040 Copied
45 mm
M40x1,5 met. EN 60423
20
-40 °C
125 °C
15.6
Nickel-plated brass
US-M
SPR-PU-AS, SPR-PVC-AS
270472_812.eps
US-M AD56 M50x1,5 connector
Art:
5010.327.050 Copied
56 mm
M50x1,5 met. EN 60423
10
-40 °C
125 °C
24.5
Nickel-plated brass
US-M
SPR-AS, SPR-PU-AS, SPR-PVC-AS
270472_812.eps
US-M AD56 M63x1,5 connector
Art:
5010.327.163 Copied
56 mm
M63x1,5 met. EN 60423
10
-40 °C
125 °C
29.9
Nickel-plated brass
US-M
SPR-AS, SPR-PU-AS, SPR-PVC-AS
