FLEXA

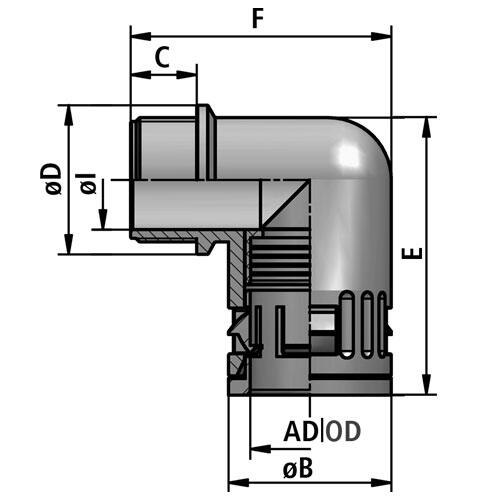

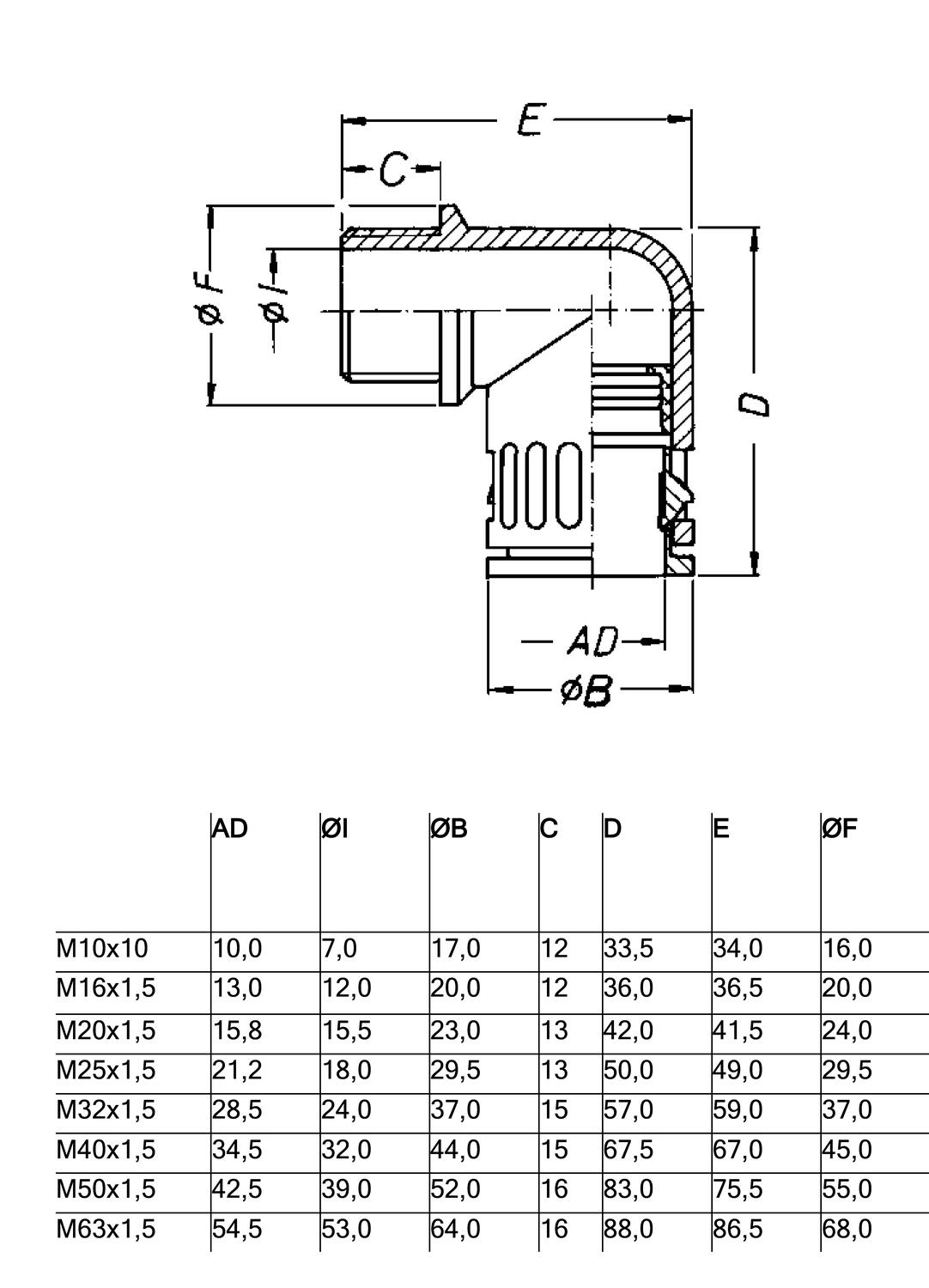

RQW 90º elbow, quick-type
RQW connectors are IP68 rated plastic quick-type connectors for ROHRflex conduits. The connector end has an integrated snap-in sleeve with sealing, metric thread on the other end.
RQW-1 connectors are rated IP66, conically sealed. Both types made of polyamide, also available in grey color.
- Metric
- Connector with 90º elbow
Selected variant
Specifications
| Hose Dimension AD | 10 |
|---|---|
| Thread | M10x1,0 |
| Pack Size | 50 |
| IP Class | IP66 |
| Approvals | CSA 22.2, cRUus, Lloyd´s, UL, VDE |
| Color | Black |
| Temperature range from | -40 °C |
| Temperature range to | 120 °C |
| Weight kg / 100 ± 10% | 0.4 |
| Material | Polyamide |
Downloads
Product description
RQW connectors are IP68 rated plastic quick-type connectors for ROHRflex conduits. The connector end has an integrated snap-in sleeve with sealing, metric thread on the other end.
RQW-1 connectors are rated IP66, conically sealed. Both types made of polyamide, also available in grey color.
