STEGO
Filter fan for outdoor use - Old Version
FF 018

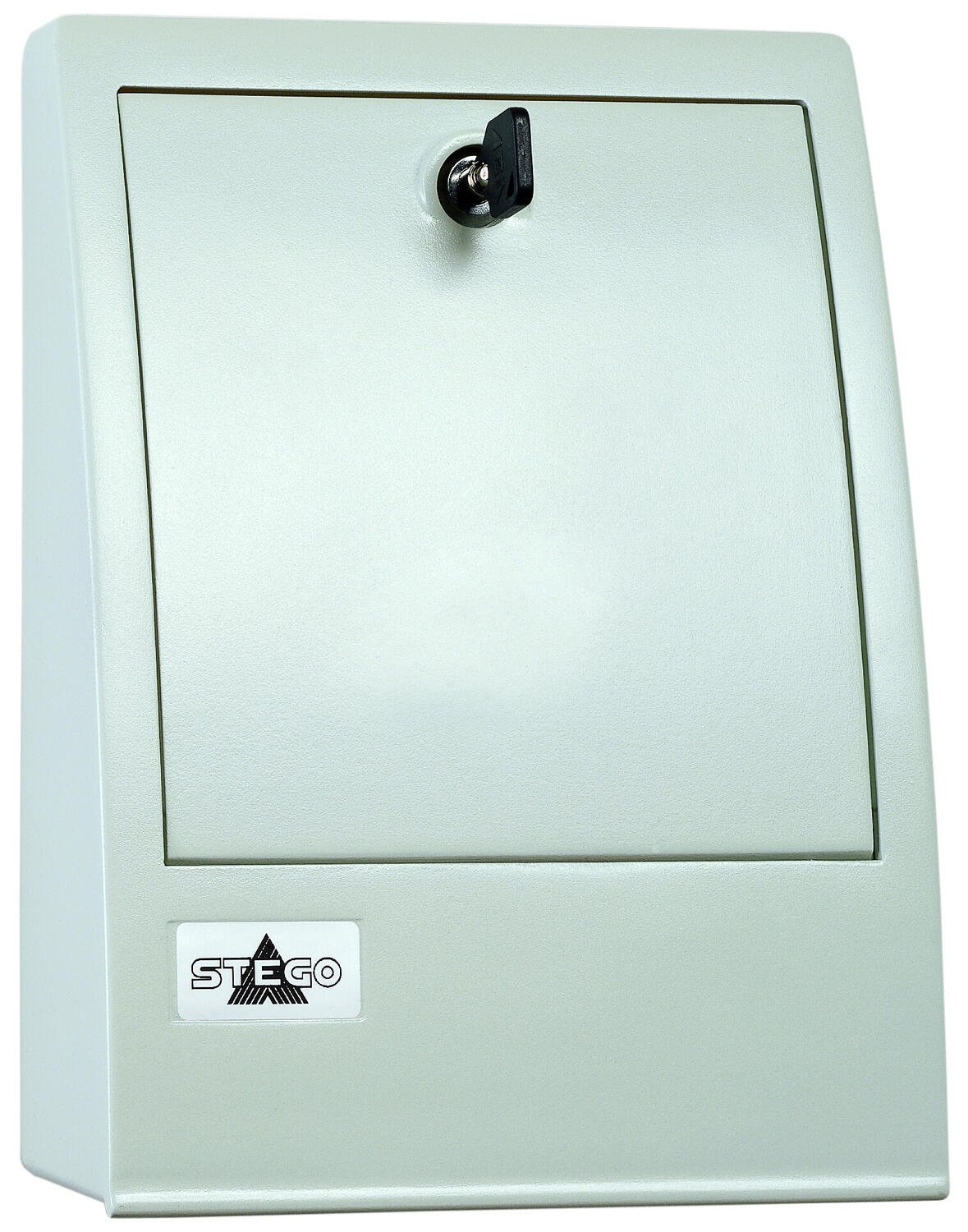

This filter fan FF018OUT / EF018OUT, is used mainly in outdoor outdoor appliances to ventilate excess heat. The hood is made of impact resistant plastic that is UV resistant and resistant to weather and wind.

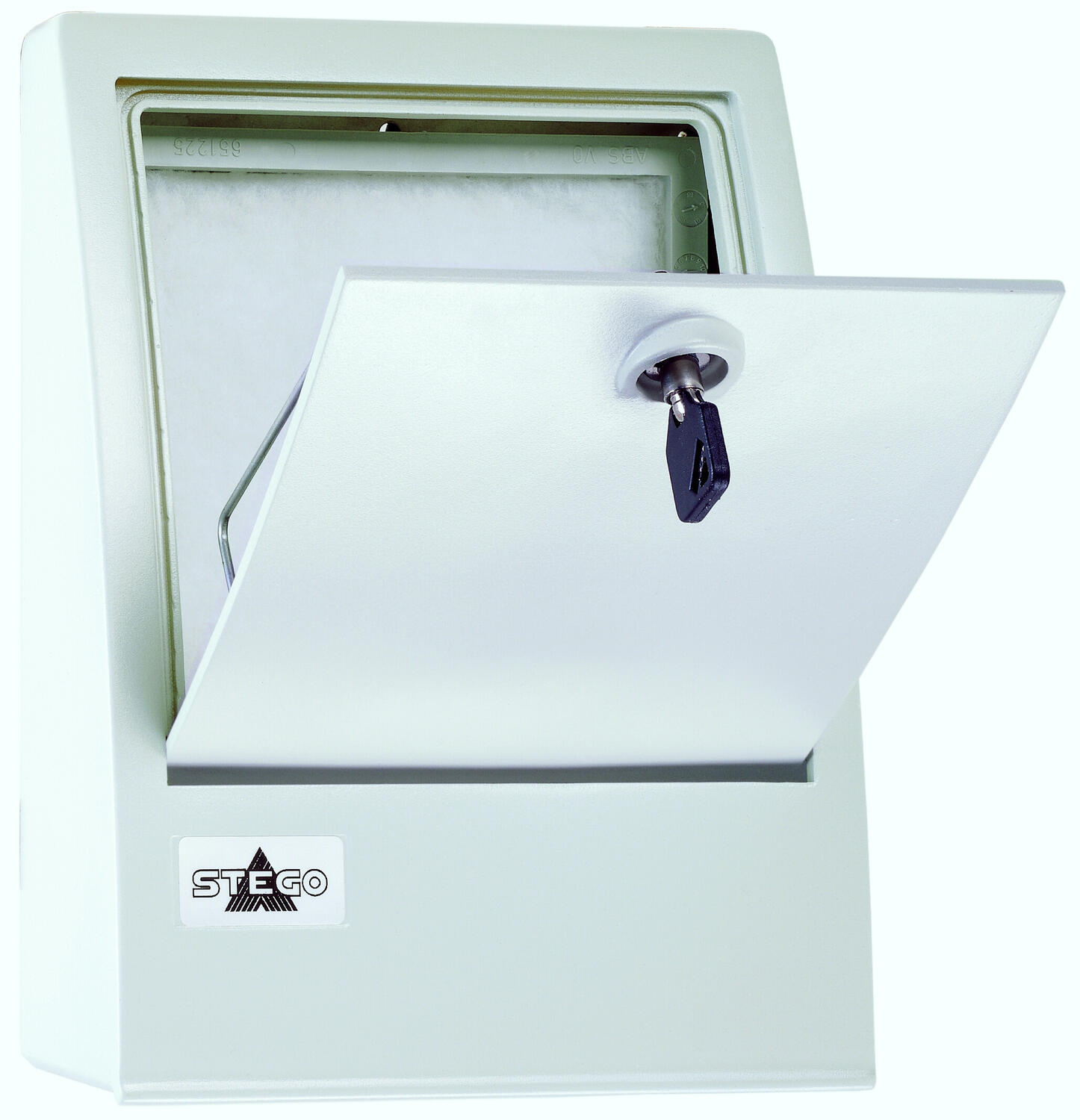

By opening the lockable cover, the filter is for cleaning or replacement, and the protection class is due to the filter quality and the hood's design IP55.
- Lockable lid
- Replaceable filter from the outside
- Protected against wind and weather
- IP55
Selected variant
Specifications
| Air Capacity | 20 m³/h |
|---|---|
| Air Volume Free Blowing | 20 m³/h |
| Air Volume Free Blowing With F5 Filter | 12 m³/h |
| Approvals | CE, cULus, EAC, RoHS, UL, UL E234324, UV - UL746C (f1), VDE |
| Color | Light Grey |

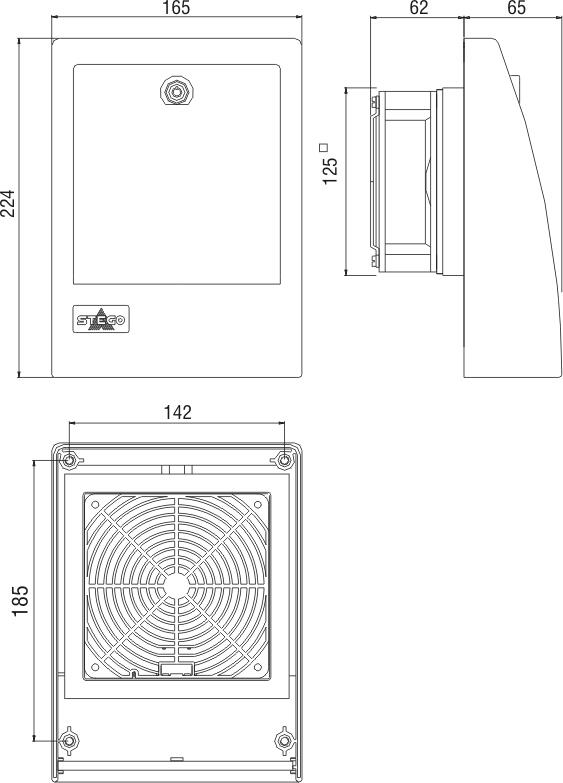

| Depth | 127 mm |
| Filtering degree | 98 % |
| Flamklass | UL94-V0 |
| Frequenze | 50 Hz |
| Height | 224 mm |
| Humidity Storage | <90% RH |
| IP Class | IP55 |
| Life span | 50000 h |
| Material fan | Aluminium |
| Material of rotor | Plastic |
| Material Plastic Housing | Plastic |
|---|---|
| Number of fans | 1 |
| Operating Humidity | < 90% RH |
| Operational Temperature | -10°C ... +70°C |
| Power Consumption | 15 W |
| Punching | 125x125 mm |
| Sound level | 40 dB |
| Storage temperature | -40°C ... +70°C |
| Structural Depth | 65 mm |
| Weight | 1.2 kg |
| Width | 165 mm |
| Voltage max | 230 V ac |
| Voltage min | 230 V ac |
Downloads
Product description
This filter fan FF018OUT / EF018OUT, is used mainly in outdoor outdoor appliances to ventilate excess heat. The hood is made of impact resistant plastic that is UV resistant and resistant to weather and wind.
By opening the lockable cover, the filter is for cleaning or replacement, and the protection class is due to the filter quality and the hood's design IP55.
