Selected variant
Specifications
| Electrical connection | Cable 2 m |
|---|---|
| IP Class | IP67 |
| LED | Yes |
| Load Max | 200 mA |
| Material of body | Nickel-plated brass |
| Mounting | Flush mounted |
| Output | PNP NO |
| Sensing | 1 mm |
| Sensor type | Inductive |
|---|---|

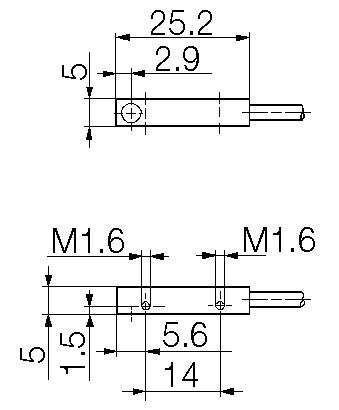

| Size | 5x5x25 |
| Temperature range from | -25 °C |
| Temperature range to | 70 °C |
| Voltage DC max | 30 V |
| Voltage DC min | 10 V |
