BERNSTEIN

Inductive sensor Ø3...M8

  • 2,0mm sensing range
  • M8 connector or 2m cable
  • LED indicator

Selected variant

bernstein.eps

Save as pdf

Technical data / Documents

Accessories & Related products

Selected variant

Specifications

Electrical connection Cable 2 m
IP Class IP67
LED Yes
Load Max 100 mA
Manufacturer Part No 6502999019
Material of body Stainless steel
Mounting Flush mounted
Output PNP NO
Sensing 0.6 mm
Sensor type Inductive
Size Ø3
Temperature range from -25 °C
Temperature range to 70 °C
Voltage DC max 30 V
Voltage DC min 10 V

Downloads

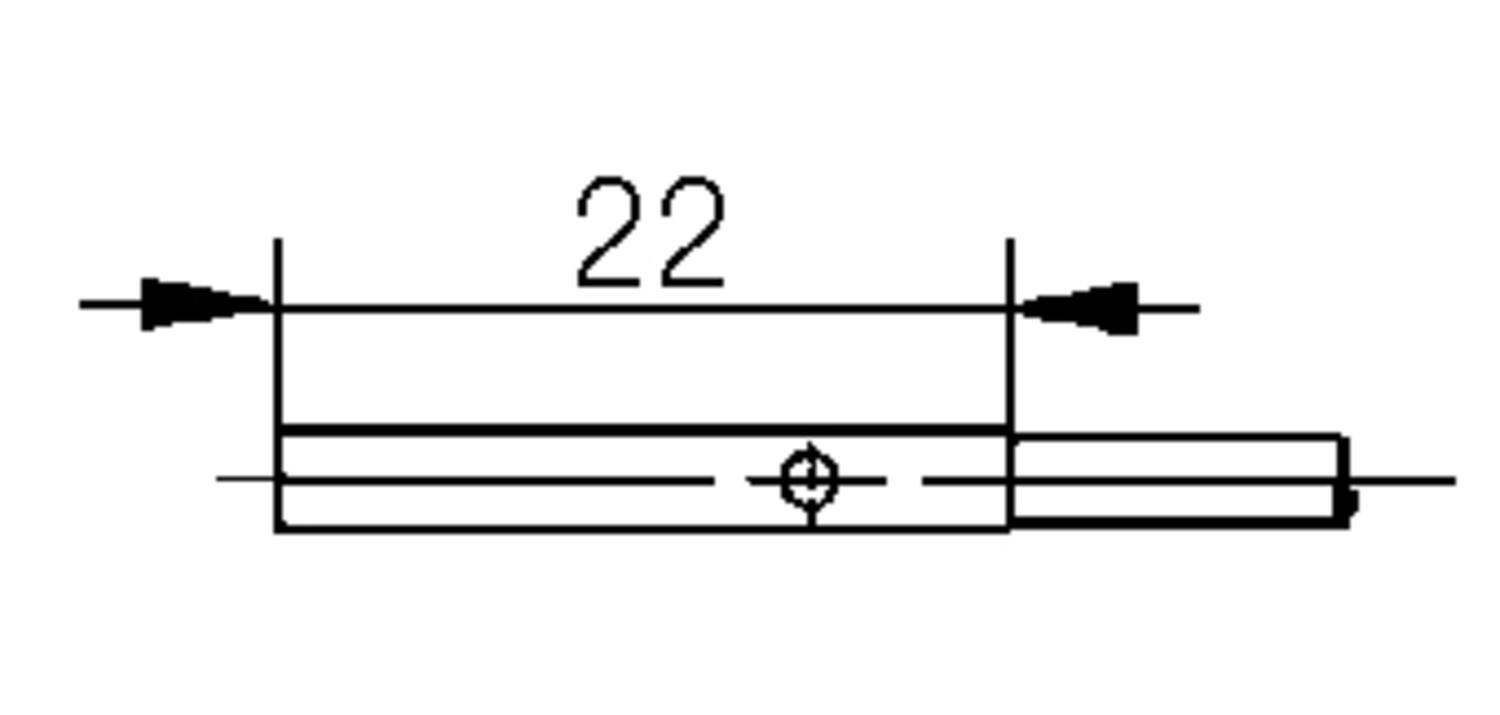

Measurements and connections

Accessories

Related

TransTecno gear motors
Product news

Small but very efficient gear motors

Transtecno has developed the MiniTecno product range to better meet the needs of customers using small gear motors in a wide range of industries, up to 90 Nm.

Harting PUSH-IN & ICC
Product news

New connectors products from Harting

HARTING has introduced a new Push-In connection technology that can reduce assembly times by up to 30% and improve installation flexibility. Read more!

Wika hygienic applications
Product news

Products for hygienic applications

WIKA's hygienic products take into account the high hygiene, cleaning, and durability requirements of the food and pharmaceutical industries. Read more!

TFT displays
Product news

TFT-displays for indoor and outdoor solutions

Constantly evolving applications place ever greater demands on user interfaces. A display for presenting information on the device itself is usually the most natural choice. Read more!

Bopla BoVersa IIoT
Product news

Bopla BoVersa: optimal enclosure for IIoT environments

Comprising three parts, BoVersa can be extensively customized in terms of materials, such as metal and plastic, and colors. It is also easy to integrate various stylish display and keyboard solutions.

Molex mPm valve connectors
Product news

Molex mPm valve connectors with WSOR cable

Molex mPm valve plug cables are now also available with WSOR cables. Read more!

Articles 12694_Output function Cable length Connector Electrical connection LED Load Max Manufacturer Part No Material of body Mounting Output Sensing Size Voltage DC max Voltage DC min
Ø4 to M8 with contact
IND R3 MF PNP NO
Art:
650.2999.019 Copied
Cable 2 m
Yes
100 mA
6502999019
Stainless steel
Flush mounted
PNP NO
0.6 mm
Ø3
30 V
10 V
Ø4 to M8 with contact
Inductive sensor, Ø3mm, flush mount, PNP, NC, cable
Art:
650.2799.007 Copied
Cable 2 m
Yes
100 mA
6502799007
Stainless steel
Flush mounted
PNP NC
0.6 mm
Ø3
30 V
10 V
Ø4 to M8 with contact
IND M4 MF PNP NO
Art:
650.2999.020 Copied
Cable 2 m
Yes
200 mA
6502999020
Nickel-plated brass
Flush mounted
PNP NO
0.6 mm
M4
30 V
10 V
Ø4 to M8 with contact
IND M4 MI NPN NO
Art:
650.2399.018 Copied
Cable 2 m
Yes
200 mA
6502399018
Nickel-plated brass
Flush mounted
NPN NO
0.6 mm
M4
30 V
10 V
Ø4 to M8 with contact
IND R4 MF PNP NO
Art:
650.2999.004 Copied
Cable 2 m
Yes
200 mA
6502999004
Stainless steel
Flush mounted
PNP NO
0.8 mm
Ø4
30 V
10 V
Ø4 to M8 with contact
IND R4 MI PNP NC
Art:
650.2799.002 Copied
Cable 2 m
Yes
200 mA
6502799002
Stainless steel
Flush mounted
PNP NC
0.8 mm
Ø4
30 V
10 V
Ø4 to M8 with contact
Inductive sensor, 4,0mm diameter, NPN, NO, flush mount
Art:
650.2399.004 Copied
Cable 2 m
Yes
200 mA
6502399004
Stainless steel
Flush mounted
NPN NO
0.8 mm
Ø4
30 V
10 V
Ø4 to M8 with contact
IND M5 MF PNP NO
Art:
650.2999.003 Copied
Cable 2 m
Yes
200 mA
6502999003
Nickel-plated brass
Flush mounted
PNP NO
1 mm
M5
30 V
10 V
Ø4 to M8 with contact
IND M5 MF PNP NC
Art:
650.2799.001 Copied
Cable 2 m
Yes
200 mA
6502799001
Nickel-plated brass
Flush mounted
PNP NC
1 mm
M5
30 V
10 V
Ø4 to M8 with contact
IND M5 MF NPN NO
Art:
650.2399.003 Copied
Cable 2 m
Yes
200 mA
6502399003
Nickel-plated brass
Flush mounted
NPN NO
1 mm
M5
30 V
10 V
Ø4 to M8 with contact
Inductive sensor, M5, NPN, NC, flush mount, cable
Art:
650.2199.001 Copied
Cable 2 m
Yes
200 mA
6502199001
Nickel-plated brass
Flush mounted
NPN NC
1 mm
M5
30 V
10 V
Ø4 to M8 with contact
IND R6.5 MF PNP NO
Art:
650.2999.010 Copied
NO
Cable 2 m
Yes
200 mA
6502999010
Stainless steel
Flush mounted
PNP
1.5 mm
Ø6,5
30 V
10 V
Ø4 to M8 with contact
IND.SEN 6.5DIA. FLUSH PNP N/C
Art:
650.2799.011 Copied
2 m
Cable 2 m
Yes
200 mA
6502799011
Stainless steel
Flush mounted
PNP NC
1.5 mm
Ø6,5
30 V
10 V
Ø4 to M8 with contact
Inductive sensor, Ø6,5mm, flush mount, NPN, NO, cable
Art:
650.2399.009 Copied
2 m
Cable 2 m
Yes
200 mA
6502399009
Stainless steel
Flush mounted
NPN NO
1.5 mm
Ø6,5
30 V
10 V
Ø4 to M8 with contact
IND R6.5 MF PNP NO L=18,3mm
Art:
650.2999.034 Copied
2 m
Cable 2 m
Yes
200 mA
6502999034
Stainless steel
Flush mounted
PNP NO
1.5 mm
Ø6,5
30 V
10 V
Ø4 to M8 with contact
IND M8 MF PNP NC
Art:
650.2701.001 Copied
NC
Cable 2 m
Yes
200 mA
6502701001
Stainless steel
Flush mounted
PNP
1.5 mm
M8
30 V
10 V
Ø4 to M8 with contact
IND M8 MF NPN NO
Art:
650.2301.003 Copied
Cable 2 m
Yes
200 mA
6502301003
Stainless steel
Flush mounted
NPN NO
1.5 mm
M8
30 V
10 V
Ø4 to M8 with contact
Inductive sensor, M8, flush mount, NPN, NC, cable
Art:
650.2101.001 Copied
Cable 2 m
Yes
200 mA
6502101001
Stainless steel
Flush mounted
NPN NC
1.5 mm
M8
30 V
10 V
Ø4 to M8 with contact
IND M8 MN PNP NO
Art:
650.2916.003 Copied
NO
Cable 2 m
Yes
200 mA
6502916003
Stainless steel
Non flush
PNP
2 mm
M8
30 V
10 V
Ø4 to M8 with contact
IND M8 MN NPN NO
Art:
650.2316.003 Copied
Cable 2 m
Yes
200 mA
6502316003
Stainless steel
Non flush
NPN NO
2 mm
M8
30 V
10 V
Ø4 to M8 with contact
IND M5 MF PNP NO CM8/S
Art:
650.2999.018 Copied
M8 3 pole connector
Yes
200 mA
6502999018
Nickel-plated brass
Flush mounted
PNP NO
1 mm
M5
30 V
10 V
Ø4 to M8 with contact
IND M5 MF PNP NC CM8/S
Art:
650.2799.019 Copied
M8 3 pole connector
Yes
200 mA
6502799019
Nickel-plated brass
Flush mounted
PNP NC
1 mm
M5
30 V
10 V
Ø4 to M8 with contact
IND R6.5 MF PNP NO CM8/S
Art:
650.2999.012 Copied
NO
M8 3 pole connector
Yes
200 mA
6502999012
Stainless steel
Flush mounted
PNP
1.5 mm
Ø6,5
30 V
10 V
Ø4 to M8 with contact
Inductive sensor, Ø6,5mm, flush mount, PNP, NC, connector
Art:
650.2799.017 Copied
M8 3 pole connector
Yes
200 mA
6502799017
Stainless steel
Flush mounted
PNP NC
1.5 mm
Ø6,5
30 V
10 V
Ø4 to M8 with contact
Inductive sensor, Ø6,5mm, non-flush mount, PNP, NO, connector
Art:
650.2999.013 Copied
M8 3 pole
M8 3 pole connector
Yes
200 mA
6502999013
Stainless steel
Non flush
PNP NO
2 mm
Ø6,5
30 V
10 V
Ø4 to M8 with contact
IND M8 MF PNP NO CM8/S
Art:
693.2942.001 Copied
M8 3 pole connector
Yes
200 mA
6932942001
Stainless steel
Flush mounted
PNP NO
1.5 mm
M8
30 V
10 V
Ø4 to M8 with contact
IND M8 MF PNP NC CM8/S
Art:
650.2742.001 Copied
NC
M8 3 pole connector
Yes
200 mA
6502742001
Stainless steel
Flush mounted
PNP
1.5 mm
M8
30 V
10 V
Ø4 to M8 with contact
IND M8 MF NPN NO CM8/S
Art:
693.2342.001 Copied
M8 3 pole connector
Yes
200 mA
6932342001
Stainless steel
Flush mounted
NPN NO
1.5 mm
M8
30 V
10 V
Ø4 to M8 with contact
IND M8 MN PNP NO CM8/S
Art:
650.2942.006 Copied
NO
M8 3 pole connector
Yes
200 mA
6502942006
Stainless steel
Non flush
PNP
2 mm
M8
30 V
10 V
Ø4 to M8 with contact
Inductive sensor, M8, non-flush mount, NPN, NO, connector
Art:
650.2342.004 Copied
2 m
M8 3 pole connector
Yes
200 mA
6502342004
Stainless steel
Non flush
NPN NO
2 mm
M8
30 V
10 V
Ø4 to M8 with contact
IND M8 MF PNP NO CM12
Art:
650.2942.007 Copied
M12 4 pole connector
200 mA
6502942007
Stainless steel
Flush mounted
PNP NO
1.5 mm
M8
30 V
10 V
Ø4 to M8 with contact
Inductive sensor, M8, non-flush mount, PNP, NO, connector
Art:
650.2942.008 Copied
M12 4 pole connector
200 mA
6502942008
Stainless steel
Non flush
PNP NO
2 mm
M8
30 V
10 V
Ø4 to M8 with contact
Inductive sensor, M5, flush mount, namur, cable
Art:
650.1699.008 Copied
Cable 2 m
6501699008
Nickel-plated brass
Flush mounted
NAMUR
1 mm
M5
25 V
5 V
Ø4 to M8 with contact
IND M8 MF NAMUR
Art:
650.1601.003 Copied
Cable 2 m
6501601003
Stainless steel
Flush mounted
NAMUR
1.5 mm
M8
25 V
5 V
Ø4 to M8 with contact
IND M8 MN NAMUR
Art:
650.1601.005 Copied
Cable 2 m
6501601005
Stainless steel
Non flush
NAMUR
2 mm
M8
25 V
5 V
