Datalogic - S7 - Fibre optic amplifier
The S7 high resolution amplifiers are suggested for the detection of small objects through the use of a fibre optic cable. They are best used in confined spaces or hard to reach applications. They can also be used in presence of high temperature, with the sensor mounted inside the application and the amp outside.
- The first fibre amplifier produced in Europe
- Small size - only 10 mm wide
- Down to 50μs response time
- Easy to use
Selected variant
Specifications
| Approvals | CE, UL |
|---|---|

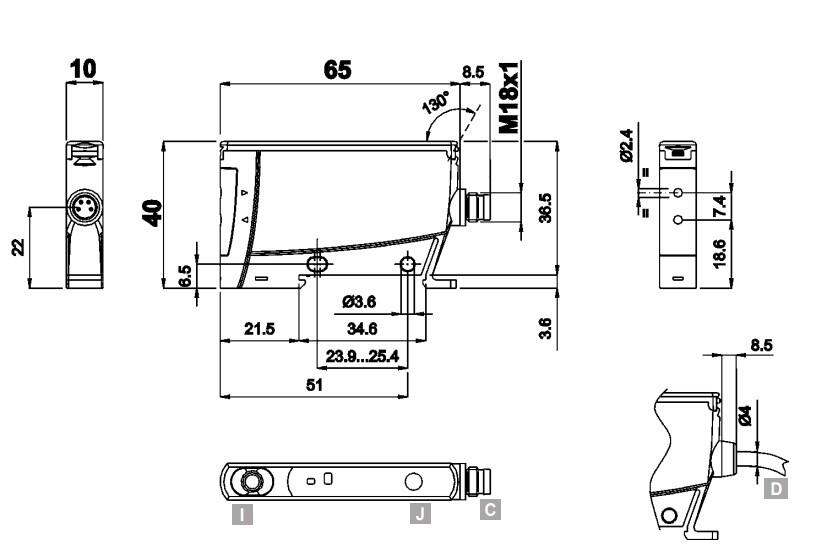

| Dimension (mm) | 10 x 65 x 40 |

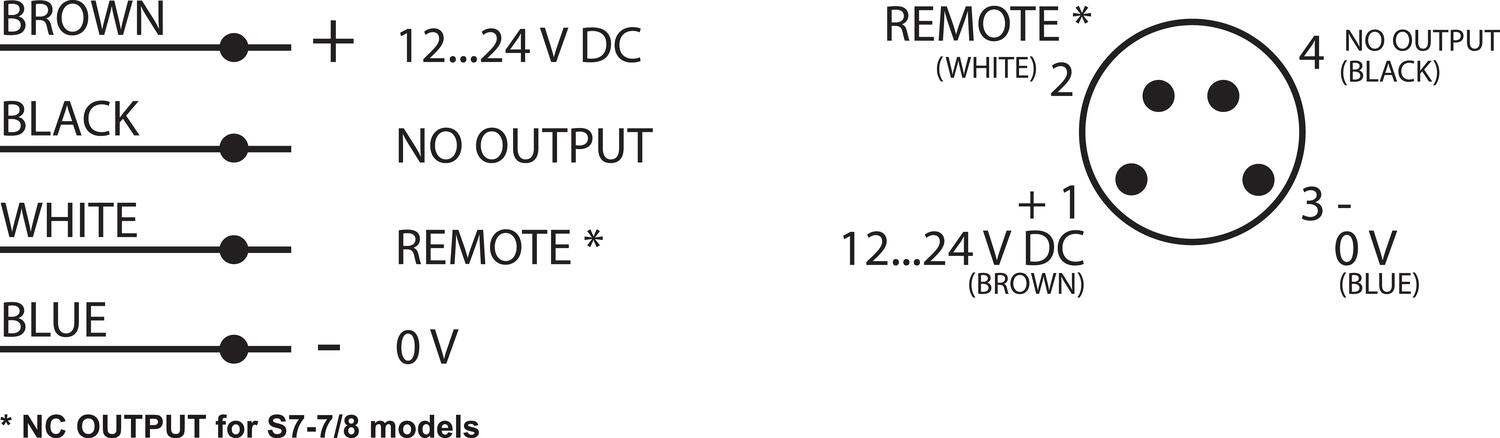

| Electrical connection | M8 4 pole connector |
| IP Class | IP65 |

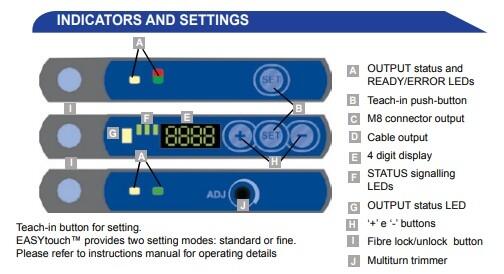

| LED indicator | Yes |
| Light type | White LED |
| Material of body | ABS plastic |
| Output | PNP |
| Output current max | 0.1 A |
| Photocell technology | Fiber amblified |
| Power consumption max | 0.05 A |
| Reaction time | 0.05 ms |
|---|---|
| Sensitivity setting | Yes |
| Supply voltage | 12-24 V DC |
| Temperature range bearing, from | -25 °C |
| Temperature range bearing, to | 70 °C |
| Temperature range from | -10 °C |
| Temperature range to | 55 °C |
| Type of light | LED |
| Weight | 30 g |
Product description
The S7 high resolution amplifiers are suggested for the detection of small objects through the use of a fibre optic cable. They are best used in confined spaces or hard to reach applications. They can also be used in presence of high temperature, with the sensor mounted inside the application and the amp outside.
