TAKEX
Takex - SSCT cross ray photoelectric sensor

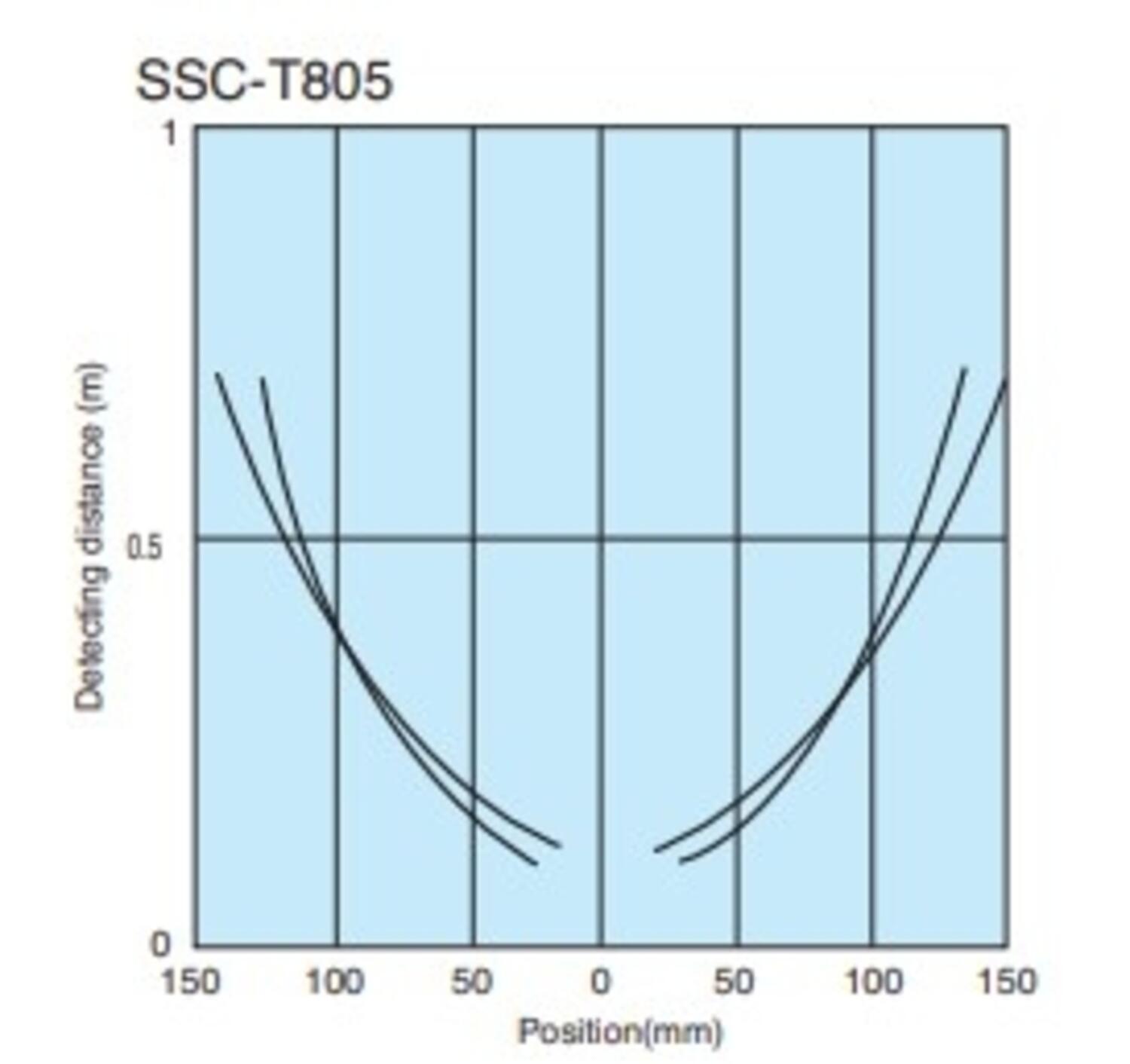

- Detection -“width” 50, 100 and 150 mm

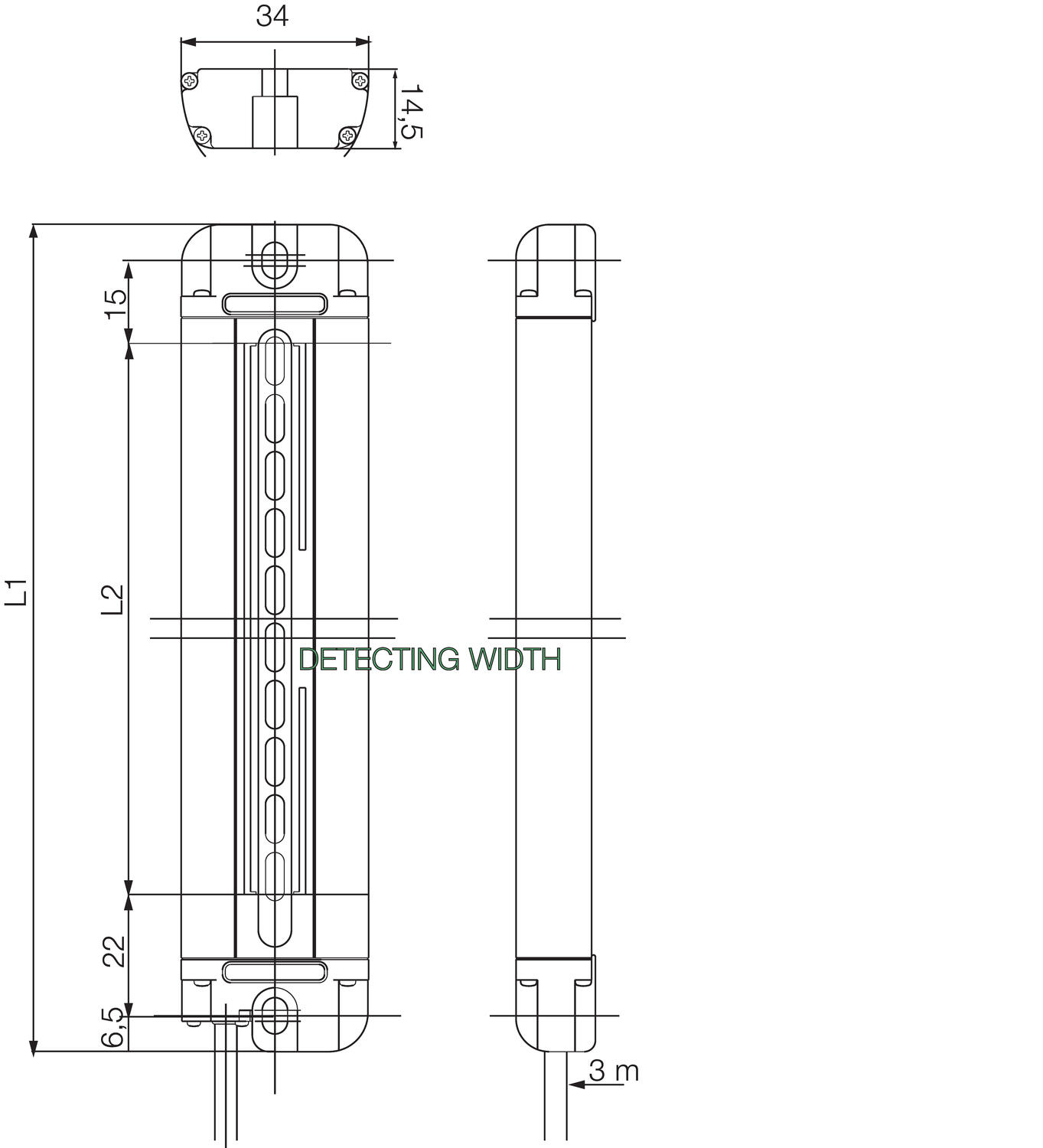

- Curtain enclosure is built only on a depth of 14.5 mm
- Perfect for detecting wooden lipping, etc.
- IP67
Selected variant
Specifications
| Approvals | CE |
|---|---|
| Detection Height | 50 mm |
| Distance Max | 500 mm |
| Distance Min | 100 mm |
| Electrical connection | Casting cable 3 m |
| Function | Light On |
| IP Class | IP67 |
| Lens material | Acrylic |
| Light / Dark Switching | No |
| Light type | IR LED |
| Material of body | Aluminium, PBT |
| Number of bulbs | 5 |
|---|---|
| Output | PNP |
| Output current max | 0.1 A |
| Photocell technology | Curtain photocell |
| Power consumption max | 0.115 A |
| Reaction time | 3 ms |
| Temperature range from | -10 °C |
| Temperature range to | 55 °C |
| Voltage DC max | 24 V |
| Voltage DC min | 12 V |
