BEI SENSORS
GHU9 incremental encoder, for demanding environment
- Diameter 90mm, 30mm bore
- Resolution max. 10 000 P/R
- IP65, IP67 available

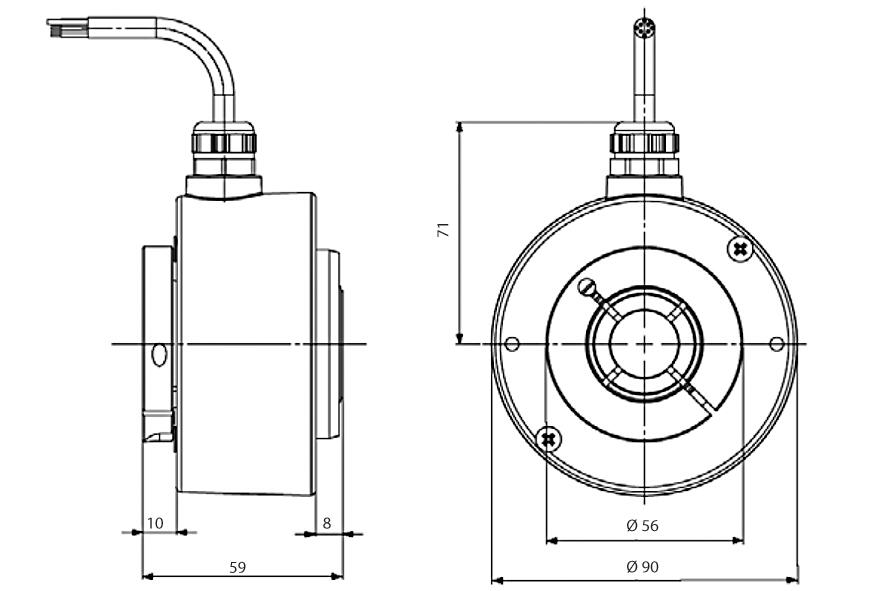

- Equipped with 2m connecting cable or connector
- Optional overspeed switch function
Selected variant
Specifications
| Sensor type | Incremental |
|---|---|
| Housing diametre | 90 mm |
| Shaft Diameter | 30 mm |
| Pulse Max | 10000 |
| Connection Thread | Cable, M23 contact |
| IP Class | IP66, IP67 |
| Speed max. | 6000 rpm |
| Supply Voltage DC Min | 5 V DC |
|---|---|
| Supply Voltage DC Max | 30 V DC |
| Temperature range from | -40 °C |
| Temperature range to | 100 °C |

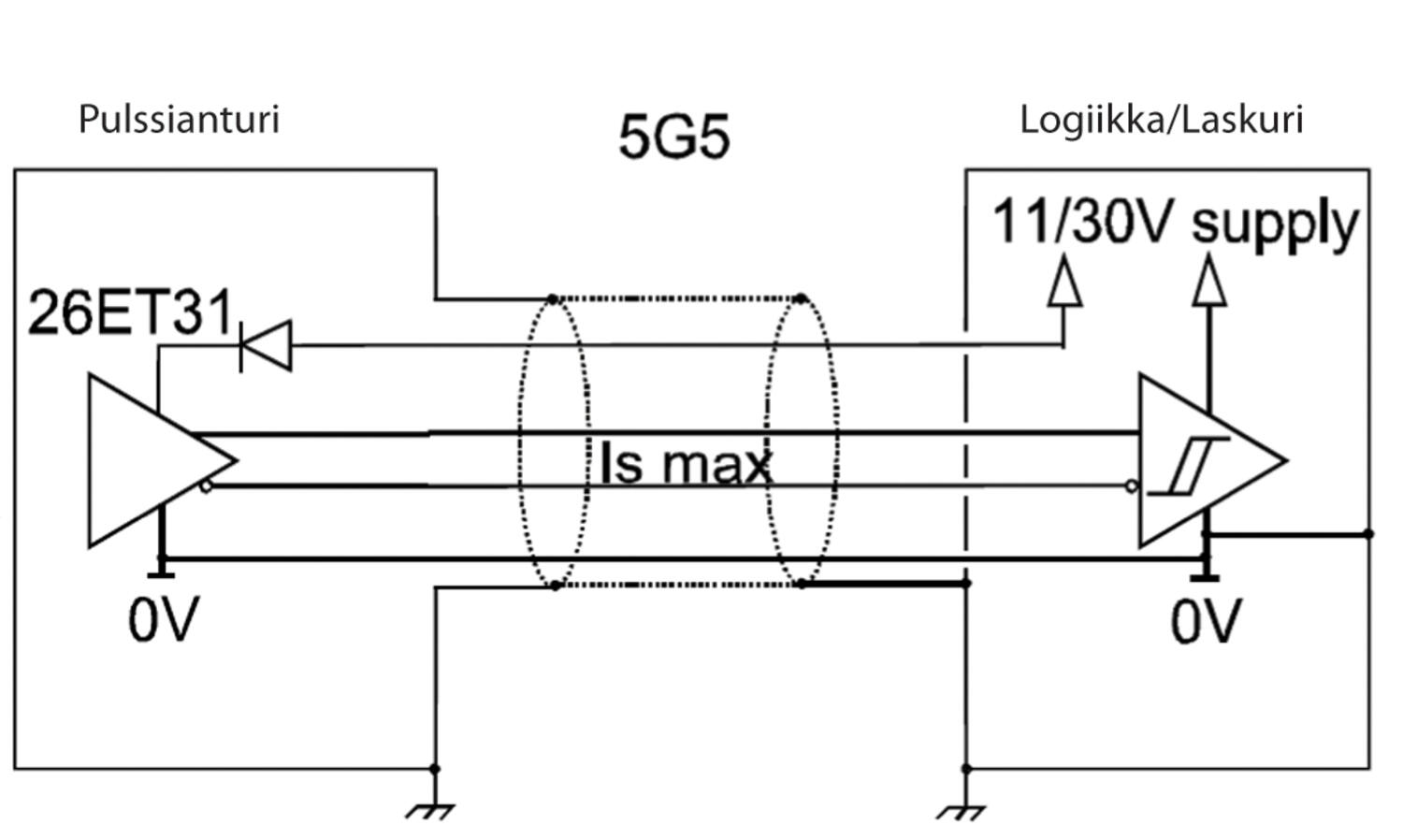

| Output | Push/Pull |
