3D laser scanner
YVT series
New 3D laser scanner from Hokuyo with 35 m detection distance Scanning angle 210 degrees horizontally and 40 degrees vertically. Ethernet interface with M12 connector.

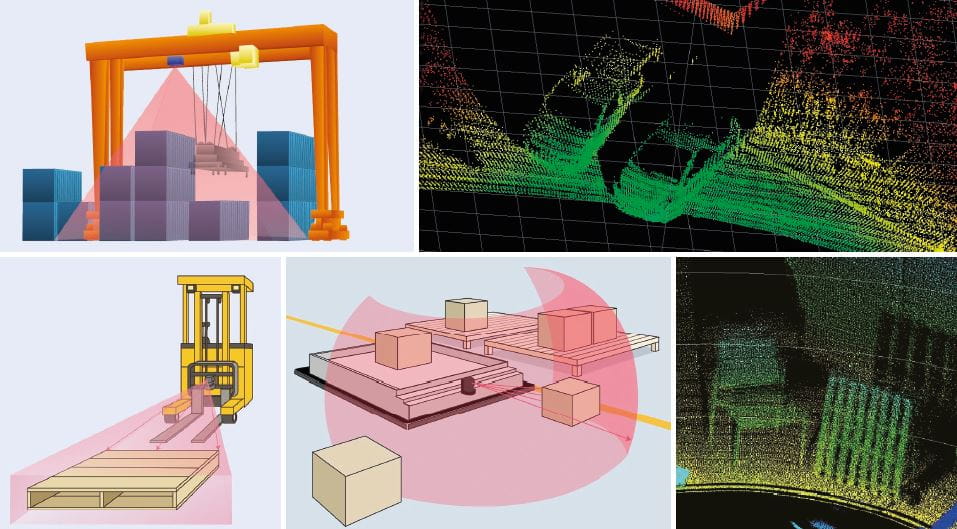

The ultra-compact and lightweight scanner can be installed almost anywhere. Also usable outdoors owing to the scanner’s multi-echo system.
- Detection distance 35 m
- Scanning angle 210° horizontally and 40° vertically
- Data points (resolution):
- 2590 points (none interlace mode, 25 fps)
- 518000 points (interlace HD mode, 0.1 fps)
- Ethernet interface
- Size 70x106x95 mm
- Enclosure class IP67
- Weight 650 g
