Fully assembled safety edges
With the help of our technical department, we can offer efficient and comprehensive delivery of safety edges, ready for plug-and-play installation. By utilizing our further processing, we eliminate time-consuming work steps so that you can use our products quickly and effortlessly.
Knowledge
SAFETY EDGES TAILORED TO YOUR NEEDS
Our range of safety edging is designed to meet a variety of needs, from small projects to large-scale applications. The unique design of the safety edging makes it suitable for many environments and
applications.
Our high-quality safety rails can be delivered by the meter, and our technical department can also customize every detail to your exact requirements. This ensures that you get the right length and shape of safety rail for easy and hassle-free installation.
On the adjacent page, you can see an example of how a safety edge is assembled in our technical department. Thanks to its simple design, the safety edge can be ordered in parts and assembled yourself, or we can offer you a ready-made plug-and-play solution.
STEP-BY-STEP ASSEMBLY OF SAFETY EDGES:
Mittaamme ja leikkaamme turvareunan haluttuun pituuteen. Sen jälkeen teemme merkinnät molempiin päihin noin 1 cm:n etäisyydelle reunasta.

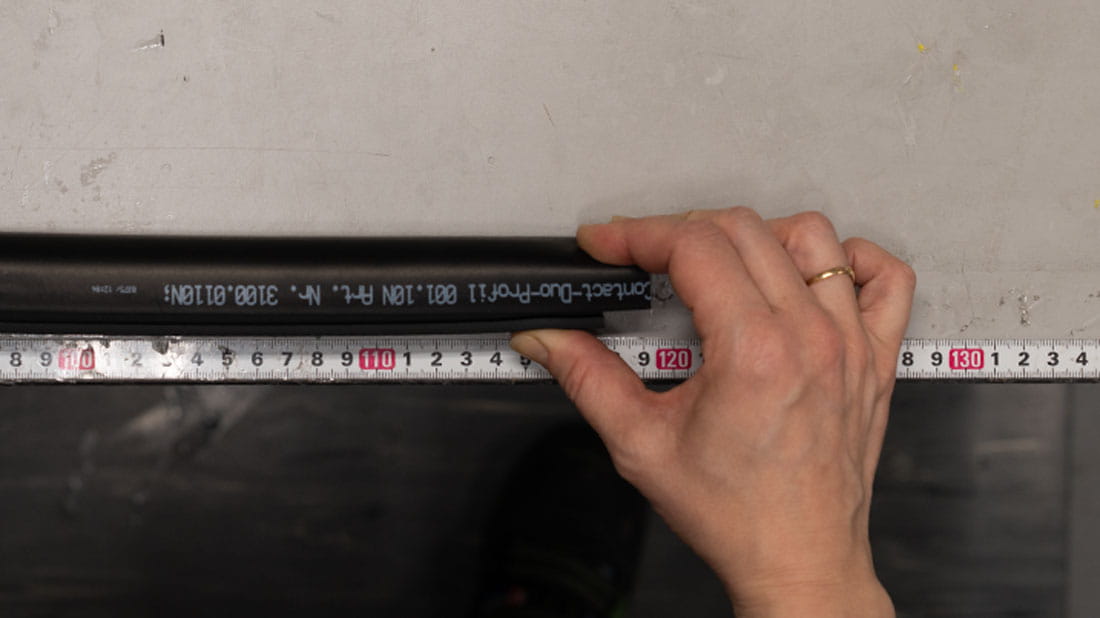

STEP 1
We measure and cut the safety edge to the desired length. Then we make markings on both ends approximately 1 cm from the edge.
Päät karhennetaan hiekkapaperilla, jotta päätytulpat voidaan myöhemmin kiinnittää helposti ja liimata tiiviisti paikoilleen.

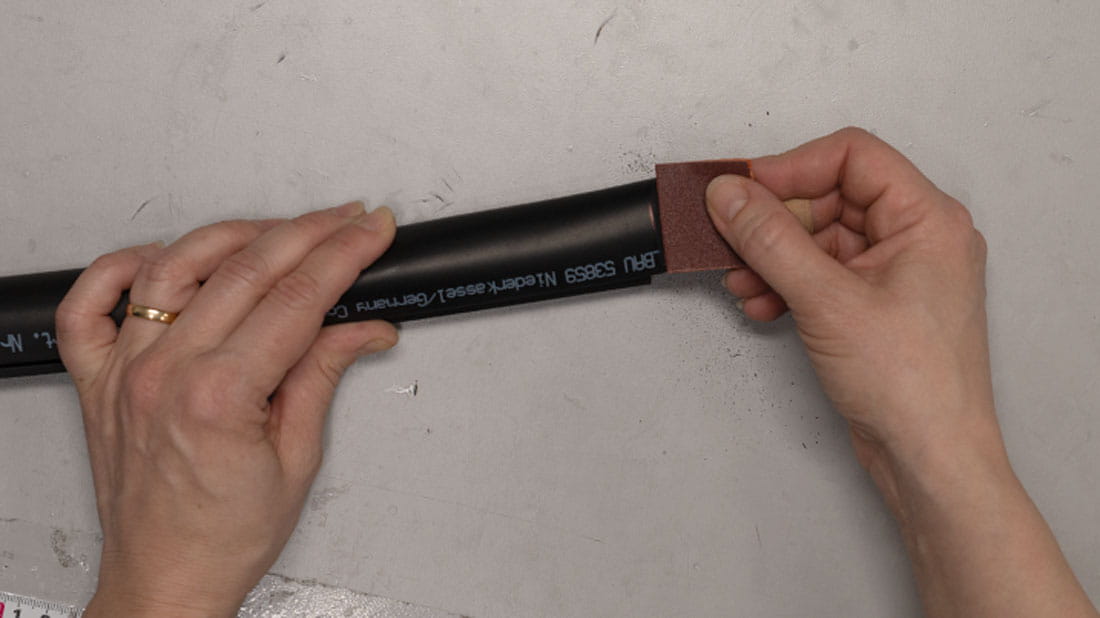

STEP 2
The ends are roughened with sandpaper so that the end plugs can be easily attached and glued tightly in place later.
Toiseen päähän asetetaan vastus.

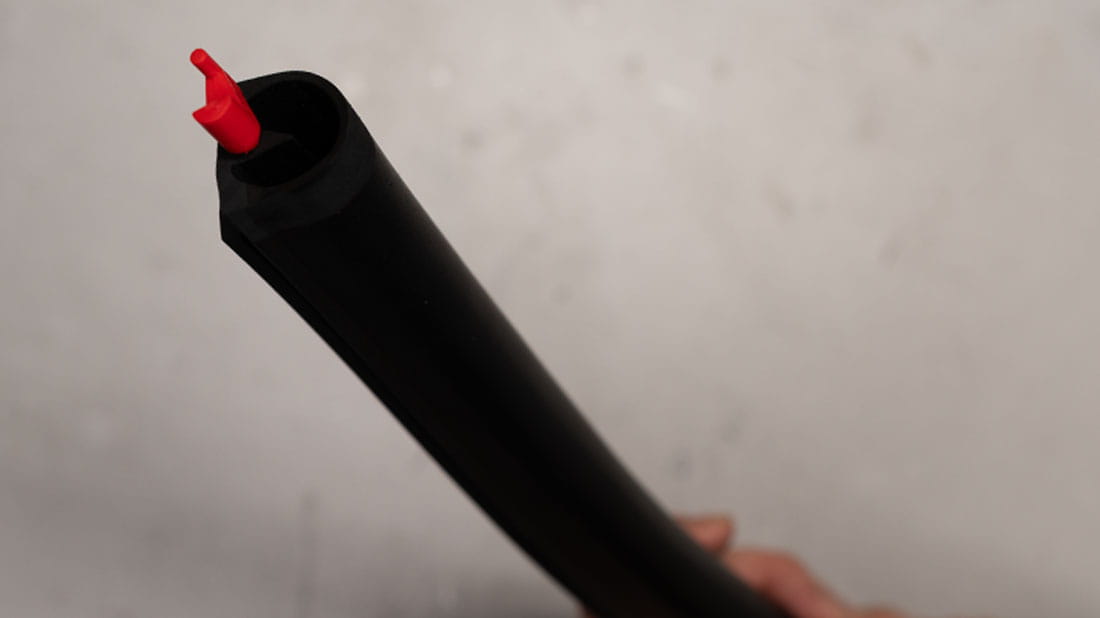

STEP 3
A resistor is placed at the other end.
Toiseen päätytulppaan tehdään reikä, jonka kautta liitäntäkaapeli voidaan viedä ulos ja kytkeä haluttuun sovellukseen.

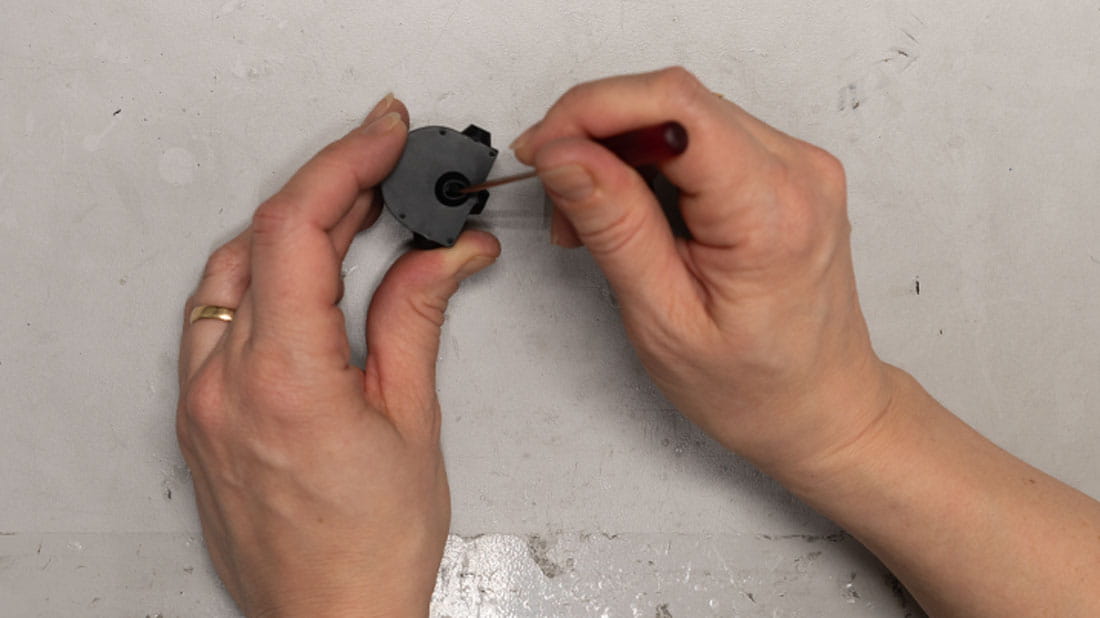

STEP 4
A hole is made in the other end cap through which the connection cable can be fed out.
Liitäntäkaapeli viedään päätytulpan läpi.

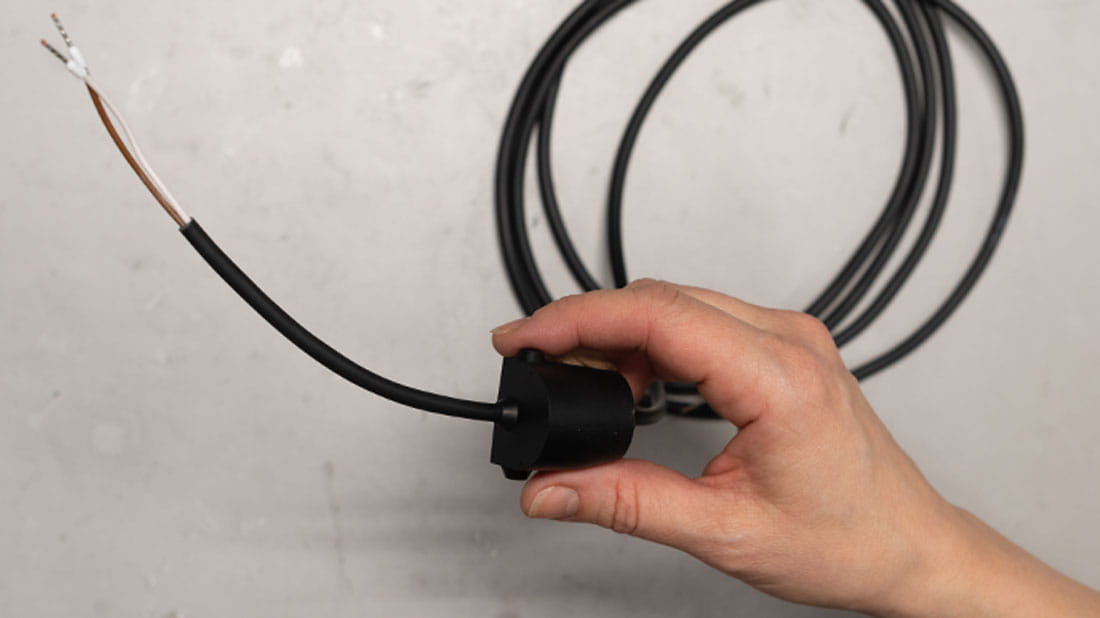

STEP 5
The connection cable is fed through the end plug.
Liitäntäkaapeli kytketään puristelistan johdotuksiin, jolloin lista saa sähkönsä.

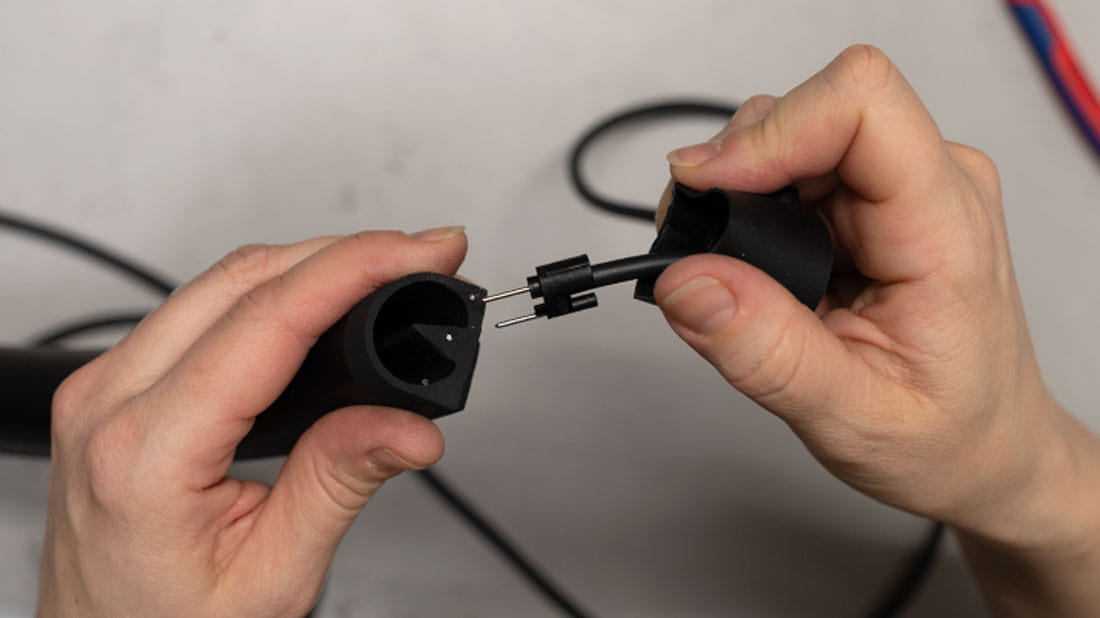

STEP 6
The connection cable is connected to the safety edge wiring.
Puristelista testataan Gelbaun ohjausyksiköllä sen toimivuuden varmistamiseksi. Kun lista puristetaan yhteen, ohjausyksikön valo syttyy ja kytkeytyy pois päältä.

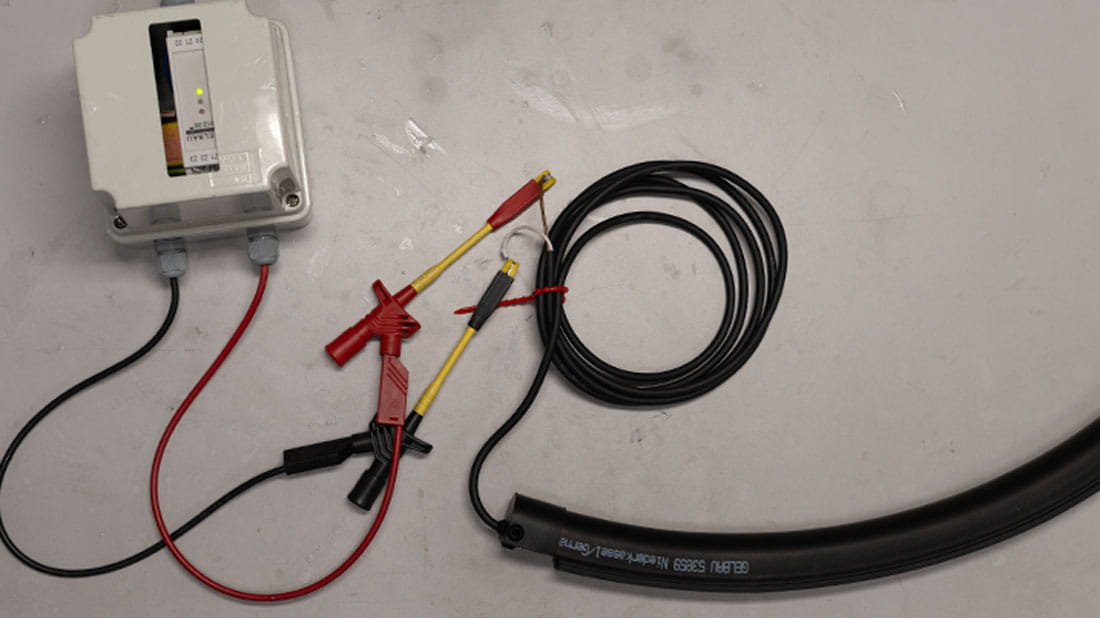

STEP 7
The safety edge is tested with the Gelbau control unit to ensure that it functions correctly.
Puristelistan molemmat päät suljetaan kokonaan liimaamalla ne Gelbaun liimalla. Samalla liimataan myös vaiheessa 4 tehty reikä umpeen.

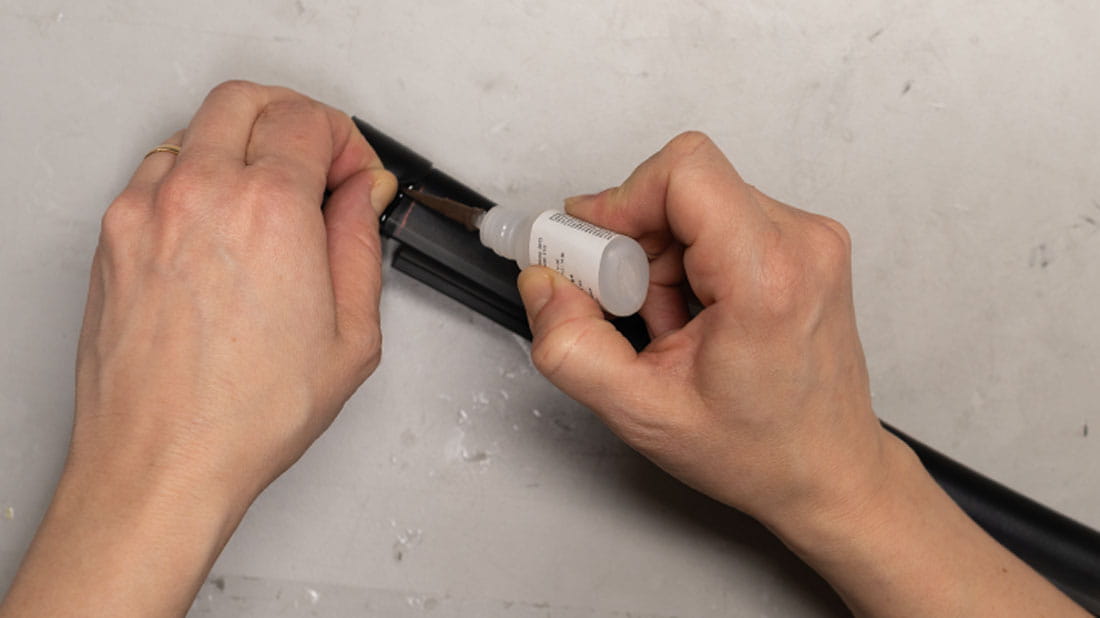

STEP 8
Both ends of the safety edge are sealed completely by gluing them with Gelbau adhesive. At the same time, the hole made in step 4 is also sealed.
Käyttövalmis tuote toimitetaan asiakkaalle.

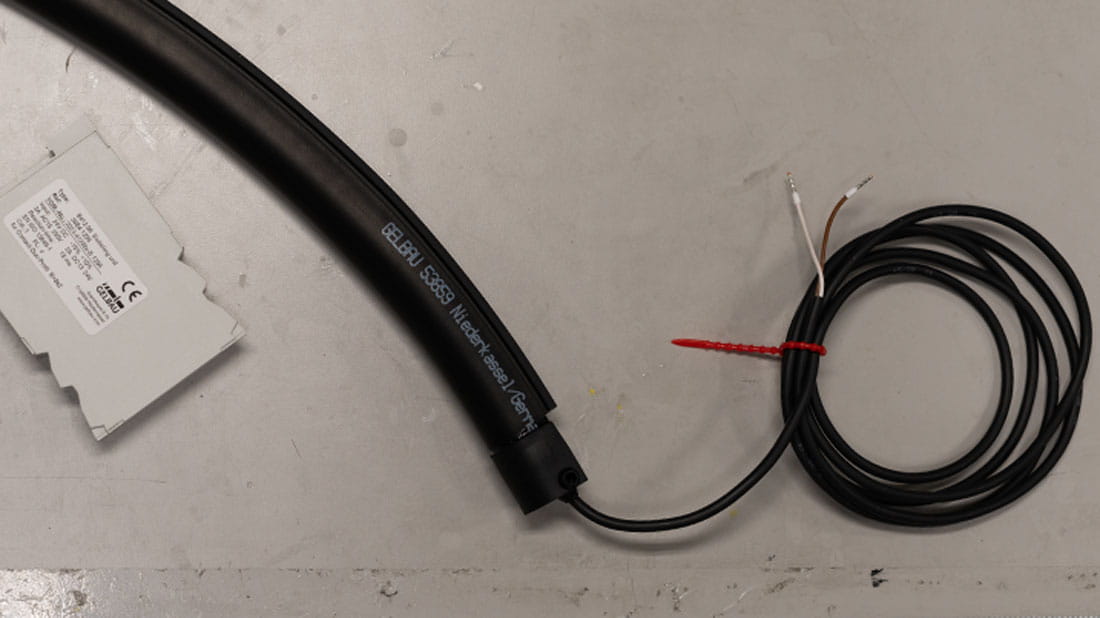

STEP 9
The ready-to-use product is delivered to the customer.See the products

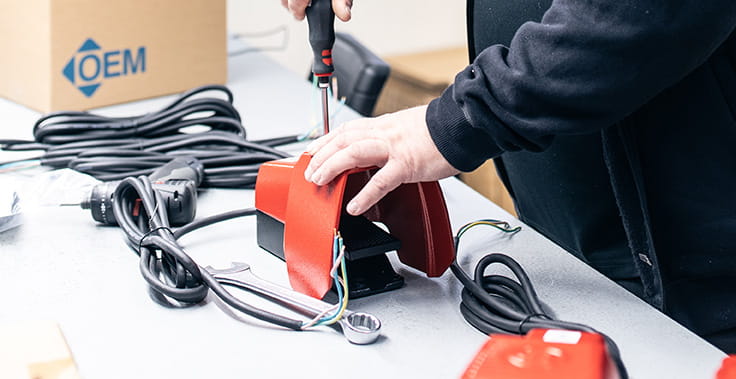

OUR TECHNICAL DEPARTMENT HANDLES
VARIOUS CONFIGURATIONS
Our technical department takes your needs into account in their entirety and is happy to deliver a complete solution. By customising, refining and assembling different components, we simplify and streamline your operations. We want to help our customers find the most cost-effective solution with our products!
Our processing department handles approximately 4,100 orders annually, which means approximately 7,800 units are assembled each year.
