INTERCABLE TOOLS

Cable lugs, standard

  • DIN 46234
  • Made from tinned copper
  • Up to 240 mm²

Selected variant

Intercable Logo_red_1913x279.png

Save as pdf

Technical data / Documents

Accessories & Related products

Selected variant

Specifications

Bore 4.3 mm
Cross-Section Max 2.5 mm²
Diameter d1 2.3 mm
Diameter d2 4.3 mm
Lead area min 1.5 mm²
Length a 5 mm
Length l 12 mm
Material Tinned copper
Pack Size 100
Weight 0.0008 kg
Width d3 8 mm

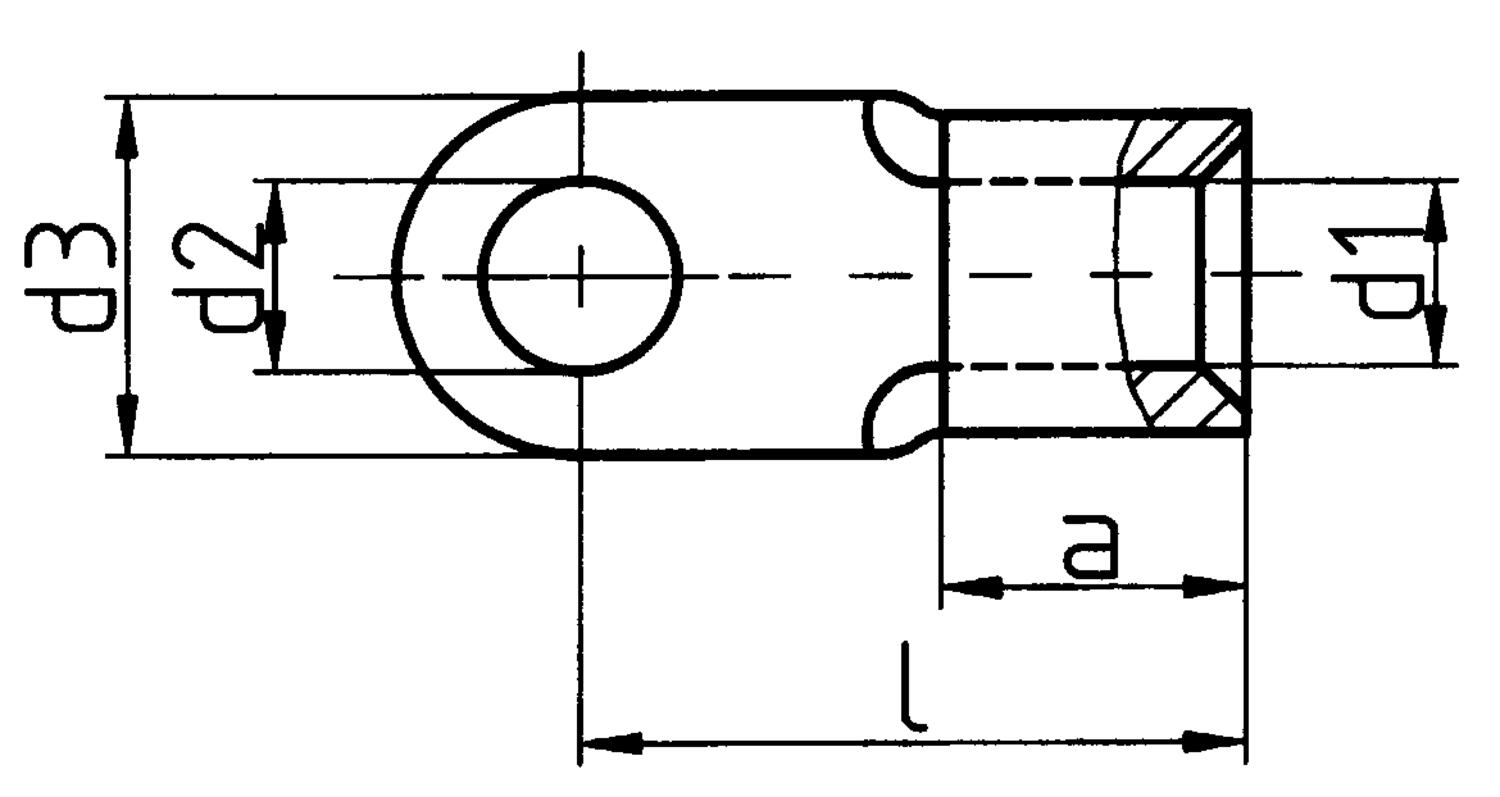

Measurements and connections

Accessories

Related

Harting PUSH-IN & ICC
Product news

New connectors products from Harting

HARTING has introduced a new Push-In connection technology that can reduce assembly times by up to 30% and improve installation flexibility. Read more!

Molex mPm valve connectors
Product news

Molex mPm valve connectors with WSOR cable

Molex mPm valve plug cables are now also available with WSOR cables. Read more!

spring and motor drums for moving installations
Product news

Spring and motor drums for moving installations

Our supplier Stemmann-Technik (Wabtec Corporation) offers customer-specific cable reels for various applications. The selection includes a wide range of spring and motor cable reels for different purposes. The reels are designed according to customer requirements.

Food cable
Product news

New cabling solutions for food and beverage industry applications

The food and beverage industries have placed high expectations on products and packages. OEM Automatic meets these expectations by expanding the range of its cable & connection technology product area with products developed especially for the needs of the food and beverage industry.

Molex Junior Timer
Product news

Updated Molex MPM Junior Timer connector cable

Junior Timer connectors are a popular choice for magnet valve electrical quick connectors. Molex MPM Junior Timer connector cables have been on the market for a long time, but now Molex has also introduced the new Molex MPM Junior Timer connector.

TransTecno gear motors
Product news

Small but very efficient gear motors

Transtecno has developed the MiniTecno product range to better meet the needs of customers using small gear motors in a wide range of industries, up to 90 Nm.

Articles Bore Cross-Section Cross-Section Max Diameter d1 Diameter d2 Lead area min Length a Length l Pack Size Weight Width d3
260606_566.tif
Noninsulated terminal 1,5-2,5 mm² M4
Art:
W-41023 Copied
4.3 mm
2.5 mm²
2.3 mm
4.3 mm
1.5 mm²
5 mm
12 mm
100
0.0008 kg
8 mm
260606_566.tif
Noninsulated terminal 1,5-2,5 mm² M5
Art:
W-41025 Copied
5.3 mm
2.5 mm²
2.3 mm
5.3 mm
1.5 mm²
5 mm
14 mm
100
0.001 kg
10 mm
260606_566.tif
Noninsulated terminal 4-6 mm² M4
Art:
W-41030 Copied
4.3 mm
6 mm²
3.6 mm
4.3 mm
4 mm²
6 mm
14 mm
100
0.0014 kg
8 mm
260606_566.tif
Noninsulated terminal 4-6 mm² M5
Art:
W-41031 Copied
5.3 mm
6 mm²
3.6 mm
5.3 mm
4 mm²
6 mm
15 mm
100
0.0015 kg
10 mm
260606_566.tif
Noninsulated terminal 4-6 mm² M6
Art:
W-41032 Copied
6.5 mm
6 mm²
3.6 mm
6.5 mm
4 mm²
6 mm
16 mm
100
0.0016 kg
11 mm
260606_566.tif
Noninsulated terminal 10 mm² M6
Art:
W-41041 Copied
6.5 mm
10 mm²
4.5 mm
6.5 mm
8 mm
17 mm
100
0.0024 kg
11 mm
260606_566.tif
Noninsulated terminal 10 mm² M8
Art:
W-41042 Copied
8.4 mm
10 mm²
4.5 mm
8.4 mm
8 mm
20 mm
100
0.0029 kg
14 mm
260606_566.tif
Noninsulated terminal 16 mm² M6
Art:
W-41046 Copied
6.5 mm
16 mm²
5.8 mm
6.5 mm
10 mm
20 mm
100
0.0038 kg
11 mm
260606_566.tif
Noninsulated terminal 16 mm² M8
Art:
W-41047 Copied
8.4 mm
16 mm²
5.8 mm
8.4 mm
10 mm
22 mm
100
0.0042 kg
14 mm
260606_566.tif
Noninsulated terminal 25 mm² M8
Art:
W-41052 Copied
8.4 mm
25 mm²
7.5 mm
8.4 mm
11 mm
25 mm
50
0.0076 kg
16 mm
260606_566.tif
Noninsulated terminal 25 mm² M10
Art:
W-41053 Copied
10.5 mm
25 mm²
7.5 mm
10.5 mm
11 mm
26 mm
50
0.0078 kg
18 mm
260606_566.tif
Noninsulated terminal 35 mm² M6
Art:
W-41055 Copied
6.5 mm
35 mm²
9 mm
6.5 mm
12 mm
26 mm
50
0.0097 kg
15 mm
260606_566.tif
Noninsulated terminal 35 mm² M8
Art:
W-41056 Copied
8.4 mm
35 mm²
9 mm
8.4 mm
12 mm
26 mm
50
0.0096 kg
16 mm
260606_566.tif
Noninsulated terminal 35 mm² M10
Art:
W-41057 Copied
10.5 mm
35 mm²
9 mm
10.5 mm
12 mm
27 mm
50
0.01 kg
18 mm
260606_566.tif
Noninsulated terminal 50 mm² M8
Art:
W-41060 Copied
8.4 mm
50 mm²
11 mm
8.4 mm
16 mm
34 mm
50
0.0172 kg
18 mm
260606_566.tif
Noninsulated terminal 50 mm² M10
Art:
W-41061 Copied
10.5 mm
50 mm²
11 mm
10.5 mm
16 mm
34 mm
50
0.0166 kg
18 mm
260606_566.tif
Noninsulated terminal 70 mm² M8
Art:
W-41065 Copied
8.4 mm
70 mm²
13 mm
8.4 mm
18 mm
38 mm
50
0.0234 kg
22 mm
260606_566.tif
Noninsulated terminal 70 mm² M10
Art:
W-41066 Copied
10.5 mm
70 mm²
13 mm
10.5 mm
18 mm
38 mm
50
0.0258 kg
22 mm
260606_566.tif
Noninsulated terminal 95 mm² M10
Art:
W-41071 Copied
10.5 mm
95 mm²
15 mm
10.5 mm
20 mm
42 mm
25
0.0417 kg
24 mm
260606_566.tif
Noninsulated terminal 95 mm² M12
Art:
W-41072 Copied
13 mm
95 mm²
15 mm
13 mm
20 mm
42 mm
25
0.0392 kg
24 mm
260606_566.tif
Noninsulated terminal 120 mm² M10
Art:
W-41076 Copied
10.5 mm
120 mm²
16.5 mm
10.5 mm
22 mm
44 mm
25
0.0567 kg
24 mm
260606_566.tif
Noninsulated terminal 150 mm² M12
Art:
W-41082 Copied
13 mm
150 mm²
19 mm
13 mm
24 mm
50 mm
25
0.0831 kg
30 mm
260606_566.tif
Noninsulated terminal 185 mm² M12
Art:
W-41087 Copied
13 mm
185 mm²
21 mm
13 mm
28 mm
50 mm
25
0.1078 kg
36 mm
260606_566.tif
Noninsulated terminal 240 mm² M12
Art:
W-41092 Copied
13 mm
240 mm²
23.5 mm
13 mm
32 mm
56 mm
25
0.1498 kg
38 mm
