OEM AUTOMATIC

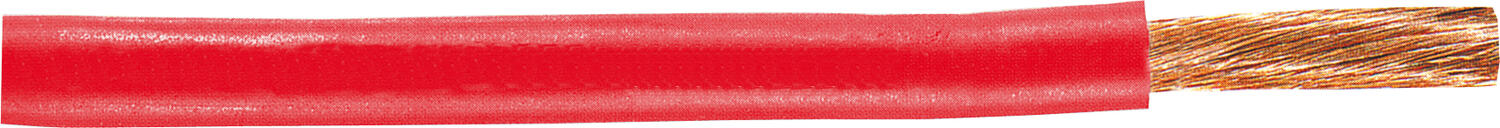

HI-FLEX battery cable

  • Very flexible construct
  • PVC outer jacket
  • Red or black

Selected variant

OEM AUTOMATIC_logo_blue.eps

Save as pdf

Technical data / Documents

Accessories & Related products

Selected variant

Specifications

Number Of leads 1
Cross-Section 10 mm²
Material Outer Jacket PVC
Shielded No
Nominal Voltage Uo/U 450/750 V
Rated voltage U0 / U 450/750
Outer Diameter -10% 7.3 mm
Temperature Range The Use Of -20 °C
Temperature Range For Flexible Use 70 °C
Temperature Range Flexible Use Of 5 °C
Bending Radius Fixed Laying Min. 6 x d
Bending Radius Flexible Use Min. 6 x d
Copper Weight 96 kg/km
Weight 200 kg/km
Core Insulation PVC
Test Voltage 2500 V
Colour Outer Sheath Red
Number Of Poles 1

Accessories

Related products

Articles Nominal Voltage Rated voltage U0 / U
350910_566.tif
HI-FLEX 1x10 mm² red, packaging 100m coil
Art:
KAB02120100/35 Copied
Uo/U 450/750 V
450/750
350910_566.tif
HI-FLEX 1x16 mm² red, packaging 100m coil
Art:
KAB02120160/35 Copied
Uo/U 450/750 V
450/750
350910_566.tif
HI-FLEX 1x25 mm² red, packaging 100m coil
Art:
KAB02120250/35 Copied
Uo/U 450/750 V
450/750
350910_566.tif
HI-FLEX 1x35 mm² red, packaging size 100m coil
Art:
KAB02120350/35 Copied
Uo/U 450/750 V
450/750
350910_566.tif
HI-FLEX 1x50 mm² red, packaging 100m coil
Art:
KAB02120500/35 Copied
Uo/U 450/750 V
450/750
350910_566.tif
HI-FLEX 1x70 mm² red, packaging 50m coil
Art:
KAB02120700/35 Copied
Uo/U 450/750 V
450/750
350910_566.tif
HI-FLEX 1x95 mm² red, packaging 50m coil
Art:
KAB02120950/35 Copied
Uo/U 450/750 V
450/750
350911_566.tif
HI-FLEX 1x10 mm² black, packaging 100m coil
Art:
KAB02130100/35 Copied
Uo/U 450/750 V
450/750
350911_566.tif
HI-FLEX 1x16 mm² black, packaging 100m coil
Art:
KAB02130160/35 Copied
Uo/U 450/750 V
450/750
350911_566.tif
HI-FLEX 1x25 mm² black, packaging 100m coil
Art:
KAB02130250/35 Copied
Uo/U 450/750 V
450/750
350911_566.tif
HI-FLEX 1x35 mm² black, packaging 100m coil
Art:
KAB02130350/35 Copied
Uo/U 450/750 V
450/750
350911_566.tif
HI-FLEX 1x50 mm² black, packaging 100m coil
Art:
KAB02130500/35 Copied
Uo/U 450/750 V
450/750
350911_566.tif
HI-FLEX 1x70 mm² black, packaging 50m coil
Art:
KAB02130700/35 Copied
Uo/U 450/750 V
450/750
350911_566.tif
HI-FLEX 1x95 mm² black, packaging 50m coil
Art:
KAB02130950/35 Copied
Uo/U 450/750 V
450/750
