MOLEX

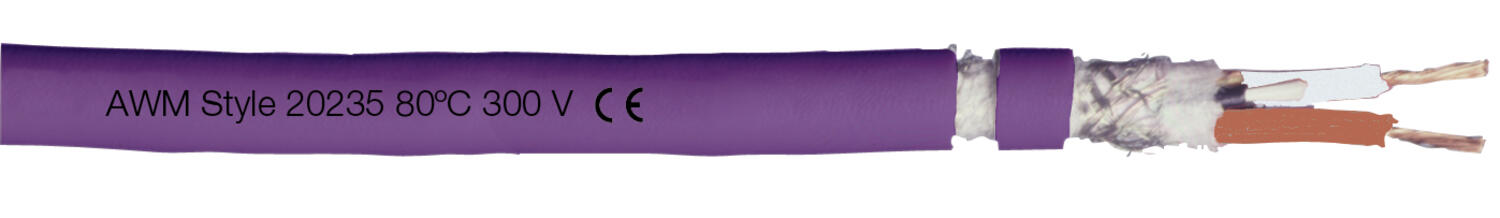

CAN Bus cable
S CB 628 is a halogen-free CAN-Bus cable for cable tracks with UL approval. It is used for the exchange of digital information. CAN-Bus cables are recommended as highly flexible data cables in cable tracks.
- CAN Bus cables for mobile applications
- Color coded cores according to DIN 47100
Selected variant
Specifications
| Number Of leads | 4 |
|---|---|
| Cross-Section | 0.5 mm² |
| Material Outer Jacket | PUR |
| Shielded | Yes |
| Diameter Outer -5% | 8.2 mm |
| Temperature Range The Use Of | -40 °C |
| Temperature Range For Flexible Use | 80 °C |
| Temperature Range Flexible Use Of | -35 °C |
| Bending Radius Fixed Laying | 3xD |
| Bending Radius Flexible Use | 10xD |
| Core Insulation | TPE |
|---|---|
| Core identification | Colour Coded |
| Approvals | UL |
| Halogen | Yes |
| Drag Chain Tested | No |
| Color Jacket | Violet |
| Twister pairs | Yes |
| Number of cores and cross-section mm² | 2 x 2 x 0,5mm² |
Downloads
Product description
S CB 628 is a halogen-free CAN-Bus cable for cable tracks with UL approval. It is used for the exchange of digital information. CAN-Bus cables are recommended as highly flexible data cables in cable tracks.
