OEM AUTOMATIC

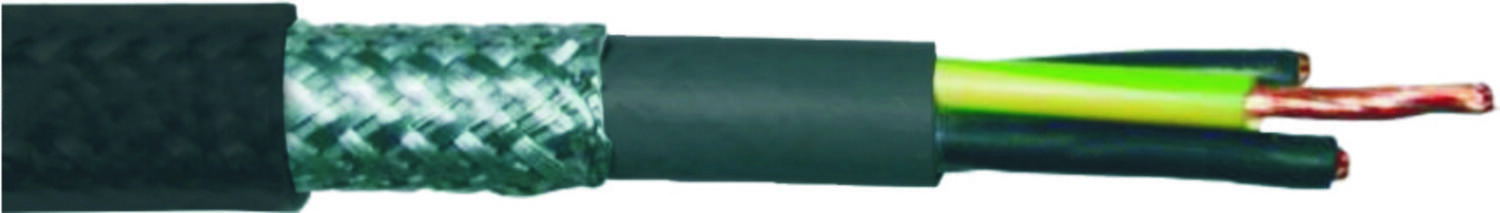

YSLYCY 0,6/1 kV shielded PVC control cable
YSLYCY 0,6/1 kV control and connection cable is suitable for multitude of applications in various industries, such as machining tools, automotive industry, CNC-routers and packaging machines. In order to achieve the optimal EMC-properties the copper screen has to be grounded.
- Oil resistant
- Flexible
- Numbered wires
- Good EMC-properties
Selected variant
Specifications
| Number Of leads | 2 |
|---|---|
| Cross-Section | 0.5 mm² |
| Material Outer Jacket | PVC |
| Shielded | Yes |
| Nominal Voltage | Uo/U 0,6/1 kV |
| Diameter Outer -5% | 8.6 mm |
| Temperature Range The Use Of | -40 °C |
| Temperature Range For Flexible Use | 70 °C |
| Temperature Range Flexible Use Of | -10 °C |
| Bending Radius Fixed Laying | Min. 10 x d |
| Bending Radius Flexible Use | Min. 10 x d |
| Copper Weight | 30 kg/km |
|---|---|
| Weight | 129 kg/km |
| Core Insulation | PVC |
| Core identification | Number Coded |
| Approvals | RoHS |
| Test Voltage | 4000 V |
| Area of application | Flexible use |
| Drag Chain Tested | No |
| Colour Outer Sheath | Black |
Downloads
Product description
YSLYCY 0,6/1 kV control and connection cable is suitable for multitude of applications in various industries, such as machining tools, automotive industry, CNC-routers and packaging machines. In order to achieve the optimal EMC-properties the copper screen has to be grounded.
