SAB BRÖCKSKES

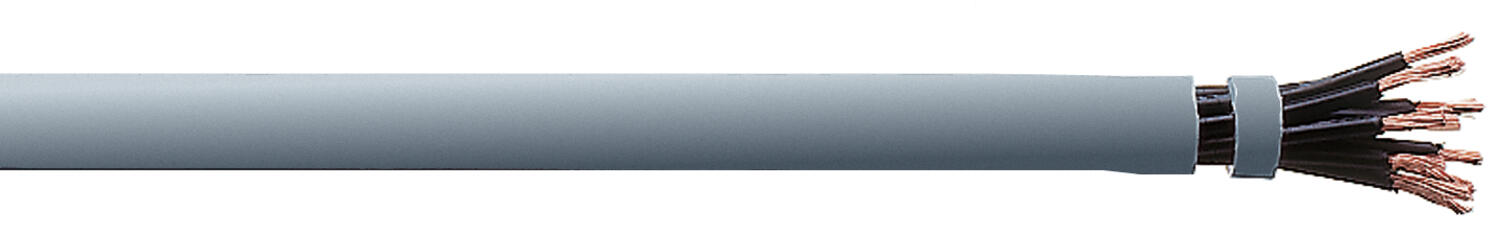

SABIX®A 200 FRNC halogen-free control cable

SABIX®A 200 FRNC is a halogen-free control cable most suitable for use in automation systems, car manufacturing industry and railway technologies. The cable is highly flexible, flame retardant and self-extinguishing and it does not propagate flame. Suitable for areas where development of corrosive conflagration gases threatens the safety of people and equipment such as offices and terminals.

Read more
  • Numbered cores
  • No flame propagation
  • Flame retardant and self-extinguishing
  • Very flexible also in subzero temperatures

Selected variant

Selected variant

Specifications

Number Of leads 2
Cross-Section 0.75 mm²
Material Outer Jacket SABIX®
Shielded No
Nominal Voltage Uo/U 300/500 V
Diameter Outer -5% 5.6 mm
Temperature Range The Use Of -40 °C
Temperature Range For Flexible Use 85 °C
Temperature Range Flexible Use Of -30 °C
Bending Radius Fixed Laying Min. 4 x d
Bending Radius Flexible Use Min. 6 x d
Copper Weight 14.4 kg/km
Weight 48 kg/km
Core Insulation SABIX®
Core identification Number Coded
Approvals RoHS
Halogen Yes
Test Voltage 3000 V
Area of application Flexible use
Drag Chain Tested No
Color Jacket Grey RAL 7000
Twister pairs No

Technical illustrations

Product description

SABIX®A 200 FRNC is a halogen-free control cable most suitable for use in automation systems, car manufacturing industry and railway technologies. The cable is highly flexible, flame retardant and self-extinguishing and it does not propagate flame. Suitable for areas where development of corrosive conflagration gases threatens the safety of people and equipment such as offices and terminals.
