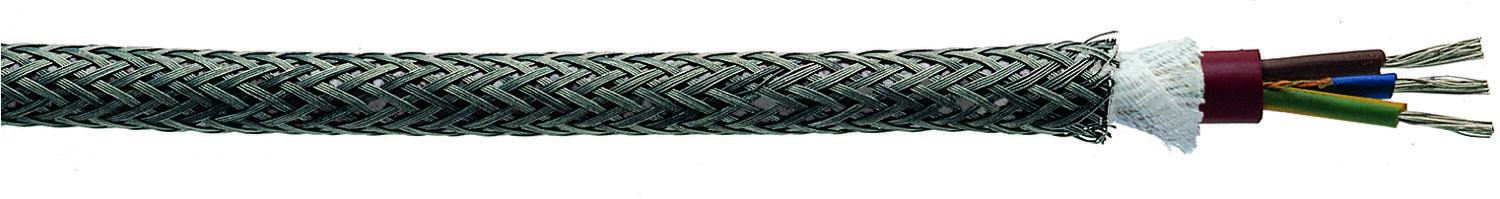

SIHF/GL/P is a heat resistant cable for use as control or connection cable in demanding environments with fluctuating temperatures. Temperature range for mobile operation from -60°C up to +180°C.
Suitable for free, fixed or flexible applications without tensile strength. Must not be exposed to forcible guidance. Protective steel wire mesh ensures greater endurance against mechanical stress.
Applicable for example in metal industry, foundries as well as cement, glass and ceramic manufacturing.
Number Of leads | 2 |
---|---|
Cross-Section | 0.75 mm² |
Material Outer Jacket | Silicone |
Shielded | Yes |
Nominal Voltage | Uo/U 300/500 V |
Diameter Outer -5% | 7.9 mm |
Temperature Range The Use Of | -60 °C |
Temperature Range For Flexible Use | 180 °C |
Temperature Range Flexible Use Of | -60 °C |
Bending Radius Fixed Laying | 10 x d |
Bending Radius Flexible Use | 10 x d |
---|---|
Copper Weight | 14.4 kg/km |
Weight | 90 kg/km |
Core Insulation | Silicone |
Core identification | Colour Coded |
Approvals | RoHS |
Test Voltage | 2000 V |
Area of application | Flexible use |
Drag Chain Tested | No |
SIHF/GL/P is a heat resistant cable for use as control or connection cable in demanding environments with fluctuating temperatures. Temperature range for mobile operation from -60°C up to +180°C.
Suitable for free, fixed or flexible applications without tensile strength. Must not be exposed to forcible guidance. Protective steel wire mesh ensures greater endurance against mechanical stress.
Applicable for example in metal industry, foundries as well as cement, glass and ceramic manufacturing.
Our supplier Stemmann-Technik (Wabtec Corporation) offers customer-specific cable reels for various applications. The selection includes a wide range of spring and motor cable reels for different purposes. The reels are designed according to customer requirements.
Junior Timer connectors are a popular choice for magnet valve electrical quick connectors. Molex MPM Junior Timer connector cables have been on the market for a long time, but now Molex has also introduced the new Molex MPM Junior Timer connector.
The food and beverage industries have placed high expectations on products and packages. OEM Automatic meets these expectations by expanding the range of its cable & connection technology product area with products developed especially for the needs of the food and beverage industry.
DF Electric is specialized in the manufacturing of fuse links, fuse holders and control transformers since 1987. Presently the company is leading the Spanish market and is also very active in many export markets due to its competitive range of products.
Henkel has launched a new solvent-free circuit board protective lacquer developed to meet the stringent requirements of harsh conditions and increasing safety standards.
The Lütze LOCC-Box is an intelligent electronic overcurrent protection device that provides reliable protection for 12/24 V DC systems in a narrow housing measuring just 8.1 mm. Integrated + and - terminals save space on the DIN rail.
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Articles | Nominal Voltage | ||
---|---|---|---|
![]()
SIHF-GL-P-O 2x0,75 mm²
Art:
SAB01430207/04
Copied
|
Uo/U 300/500 V
|
| |
![]()
SIHF-GL-P-J 3G0,75 mm²
Art:
SAB01430307/04
Copied
|
Uo/U 300/500 V
|
| |
![]()
SIHF-GL-P-J 4G0,75 mm²
Art:
SAB01430407/04
Copied
|
Uo/U 300/500 V
|
| |
![]()
SIHF-GL-P-J 5G0,75 mm²
Art:
SAB01430507/04
Copied
|
Uo/U 300/500 V
|
| |
![]()
SIHF-GL-P-J 6G0,75 mm²
Art:
SAB01430607/04
Copied
|
Uo/U 300/500 V
|
| |
![]()
SIHF-GL-P-J 7G0,75 mm²
Art:
SAB01430707/04
Copied
|
Uo/U 300/500 V
|
| |
![]()
SIHF-GL-P-O 2x1 mm²
Art:
SAB01430210/04
Copied
|
Uo/U 300/500 V
|
| |
![]()
SIHF-GL-P-J 3G1 mm²
Art:
SAB01430310/04
Copied
|
Uo/U 300/500 V
|
| |
![]()
SIHF-GL-P-J 4G1 mm²
Art:
SAB01430410/04
Copied
|
Uo/U 300/500 V
|
| |
![]()
SIHF-GL-P-J 5G1 mm²
Art:
SAB01430510/04
Copied
|
Uo/U 300/500 V
|
| |
![]()
SIHF-GL-P-J 6G1 mm²
Art:
SAB01430610/04
Copied
|
Uo/U 300/500 V
|
| |
![]()
SIHF-GL-P-J 7G1 mm²
Art:
SAB01430710/04
Copied
|
Uo/U 300/500 V
|
| |
![]()
SIHF-GL-P-O 2x1,5 mm²
Art:
SAB01430215/04
Copied
|
Uo/U 300/500 V
|
| |
![]()
SIHF-GL-P-J 3G1,5 mm²
Art:
SAB01430315/04K
Copied
|
Uo/U 300/500 V
|
| |
![]()
SIHF-GL-P-J 4G1,5 mm²
Art:
SAB01430415/04
Copied
|
Uo/U 300/500 V
|
| |
![]()
SIHF-GL-P-J 5G1,5 mm²
Art:
SAB01430515/04K
Copied
|
Uo/U 300/500 V
|
| |
![]()
SIHF-GL-P-J 6G1,5 mm²
Art:
SAB01430615/04
Copied
|
Uo/U 300/500 V
|
| |
![]()
SIHF-GL-P-J 7G1,5 mm²
Art:
SAB01430715/04
Copied
|
Uo/U 300/500 V
|
| |
![]()
SIHF-GL-P-J 8G1,5 mm²
Art:
SAB01430815/04
Copied
|
Uo/U 300/500 V
|
| |
![]()
SIHF-GL-P-J 10G1,5 mm²
Art:
SAB01431015/04
Copied
|
Uo/U 300/500 V
|
| |
![]()
SIHF-GL-P-J 12G1,5 mm²
Art:
SAB01431215/04
Copied
|
Uo/U 300/500 V
|
| |
![]()
SIHF-GL-P-J 14G1,5 mm²
Art:
SAB01431415/04
Copied
|
Uo/U 300/500 V
|
| |
![]()
SIHF-GL-P-J 16G1,5 mm²
Art:
SAB01431615/04
Copied
|
Uo/U 300/500 V
|
| |
![]()
SIHF-GL-P-J 18G1,5 mm²
Art:
SAB01431815/04
Copied
|
Uo/U 300/500 V
|
| |
![]()
SIHF-GL-P-J 20G1,5 mm²
Art:
SAB01432015/04
Copied
|
Uo/U 300/500 V
|
| |
![]()
SIHF-GL-P-J 24G1,5 mm²
Art:
SAB01432415/04
Copied
|
Uo/U 300/500 V
|
| |
![]()
SIHF-GL-P-O 2x2,5 mm²
Art:
SAB01430225/04
Copied
|
Uo/U 300/500 V
|
| |
![]()
SIHF-GL-P-J 3G2,5 mm²
Art:
SAB01430325/04
Copied
|
Uo/U 300/500 V
|
| |
![]()
SIHF-GL-P-J 4G2,5 mm²
Art:
SAB01430425/04
Copied
|
Uo/U 300/500 V
|
| |
![]()
SIHF-GL-P-J 5G2,5 mm²
Art:
SAB01430525/04
Copied
|
Uo/U 300/500 V
|
| |
![]()
SIHF-GL-P-J 6G2,5 mm²
Art:
SAB01430625/04
Copied
|
Uo/U 300/500 V
|
| |
![]()
SIHF-GL-P-J 7G2,5 mm²
Art:
SAB01430725/04
Copied
|
Uo/U 300/500 V
|
| |
![]()
SIHF-GL-P-J 12G2,5 mm²
Art:
SAB01431225/04
Copied
|
Uo/U 300/500 V
|
| |
![]()
SIHF-GL-P-O 2x4 mm²
Art:
SAB01430240/04
Copied
|
Uo/U 300/500 V
|
| |
![]()
SIHF-GL-P-J 3G4 mm²
Art:
SAB01430340/04
Copied
|
Uo/U 300/500 V
|
| |
![]()
SIHF-GL-P-J 4G4 mm²
Art:
SAB01430440/04
Copied
|
Uo/U 300/500 V
|
| |
![]()
SIHF-GL-P-J 5G4 mm²
Art:
SAB01430540/04
Copied
|
Uo/U 300/500 V
|
| |
![]()
SIHF-GL-P-J 6G4 mm²
Art:
SAB01430640/04
Copied
|
Uo/U 300/500 V
|
| |
![]()
SIHF-GL-P-J 7G4 mm²
Art:
SAB01430740/04
Copied
|
Uo/U 300/500 V
|
| |
![]()
SIHF-GL-P-O 2x6 mm²
Art:
SAB01430260/04
Copied
|
Uo/U 300/500 V
|
| |
![]()
SIHF-GL-P-J 3G6 mm²
Art:
SAB01430360/04
Copied
|
Uo/U 300/500 V
|
| |
![]()
SIHF-GL-P-J 4G6 mm²
Art:
SAB01430460/04
Copied
|
Uo/U 300/500 V
|
| |
![]()
SIHF-GL-P-J 5G6 mm²
Art:
SAB01430560/04
Copied
|
Uo/U 300/500 V
|
| |
![]()
SIHF-GL-P-J 6G6 mm²
Art:
SAB01430660/04
Copied
|
Uo/U 300/500 V
|
| |
![]()
SIHF-GL-P-J 7G6 mm²
Art:
SAB01430760/04
Copied
|
Uo/U 300/500 V
|
| |
![]()
SIHF-GL-P-J 4G10 mm²
Art:
SAB01430461/04
Copied
|
Uo/U 300/500 V
|
| |
![]()
SIHF-GL-P-J 4G16 mm²
Art:
SAB01430462/04
Copied
|
Uo/U 300/500 V
|
| |
![]()
SIHF-GL-P-J 4G25 mm²
Art:
SAB01430463/04
Copied
|
Uo/U 300/500 V
|
|
