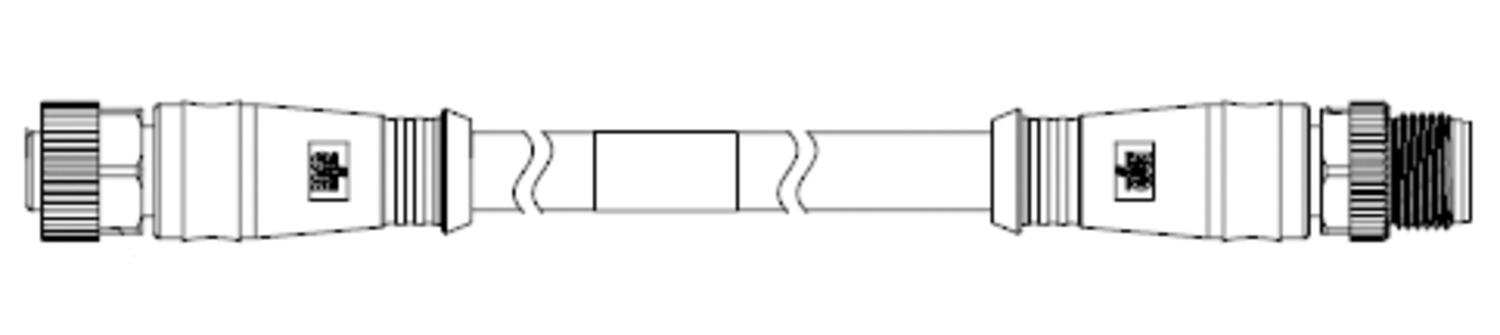

M12 CAN connecting cables BG20208-M005

Cable length	500 mm
Material Cable	PUR
Contact Embodiment	M12
Drag Chain Tested	Yes
Cross-Section	0,5 mm²
Coding	A
IP Class	IP67
Temperature Range For Flexible Use	80 °C

Cable length

500 mm

Material Cable

PUR

Contact Embodiment

M12

Drag Chain Tested

Yes

Cross-Section

0,5 mm²

Coding

IP Class

IP67

Temperature Range For Flexible Use

80 °C

Temperature Range Flexible Use Of	-35 °C
Color Cable	Violet RAL 4001
Bus protocol	CANopen
Cable Diameter Max	8,2 mm
Core identification	Colour Coded
Head 1	Straight male
Head 2	Straight female

Temperature Range Flexible Use Of

-35 °C

Color Cable

Violet RAL 4001

Bus protocol

CANopen

Cable Diameter Max

8,2 mm

Core identification

Colour Coded

Head 1

Straight male

Head 2

Straight female

Articles	Cable length	Material Cable	Contact Embodiment	Drag Chain Tested	Cross-Section	Coding	IP Class	Materials Contacts	Temperature Range For Flexible Use	Temperature Range Flexible Use Of	Color Cable	Bus protocol	Cable Diameter Max	Core identification	Head 1	Head 2	Manufacturer Part No	Color House	Connector
M12 CAN JUMPER STR MA/FE 0,5m 2x2x0,50 Art: BG20208-M005 Copied	500 mm	PUR	M12	Yes	0,5 mm²	A	IP67		80 °C	-35 °C	Violet RAL 4001	CANopen	8,2 mm	Colour Coded	Straight male	Straight female
M12 CAN JUMPER STR MA/FE 1m 2x2x0,50 Art: BG20208-M010 Copied	1000 mm	PUR	M12	Yes	0,5 mm²		IP67		80 °C	-35 °C	Violet RAL 4001	CANopen	8,2 mm	Colour Coded	Straight male	Straight female
M12 CAN jumper str. male-str. female 2m Art: BG20208-M020 Copied	2000 mm	PUR	M12	Yes	0,5 mm²	A	IP67		80 °C	-35 °C	Violet RAL 4001	CANopen	8,2 mm	Colour Coded	Straight male	Straight female
M12 CAN jumper str. male - str. female 3m Art: BG20208-M030 Copied	3000 mm	PUR	M12	Yes	0,5 mm²	A	IP67		80 °C	-35 °C	Violet RAL 4001	CANopen	8,2 mm	Colour Coded	Straight male	Straight female
M12 CAN jumper str. male - str. female 5m Art: BG20208-M050 Copied	5000 mm	PUR	M12	Yes	0,5 mm²	A	IP67		80 °C	-35 °C	Violet RAL 4001	CANopen	8,2 mm	Colour Coded	Straight male	Straight female
M12 CAN jumper str. male-str. female 6m Art: BG20208-M060 Copied	6000 mm	PUR	M12	Yes	0,5 mm²	A	IP67		80 °C	-35 °C	Violet RAL 4001	CANopen	8,2 mm	Colour Coded	Straight male	Straight female
M12 CAN jumper str. male - str. female 10m Art: BG20208-M100 Copied	10000 mm	PUR	M12	Yes	0,5 mm²	A	IP67		80 °C	-35 °C	Violet RAL 4001	CANopen	8,2 mm	Colour Coded	Straight male	Straight female
M12 CAN jumper str. male - str. female 15m Art: BG20208-M150 Copied	15000 mm	PUR	M12	Yes	0,5 mm²	A	IP67		80 °C	-35 °C	Violet RAL 4001	CANopen	8,2 mm	Colour Coded	Straight male	Straight female

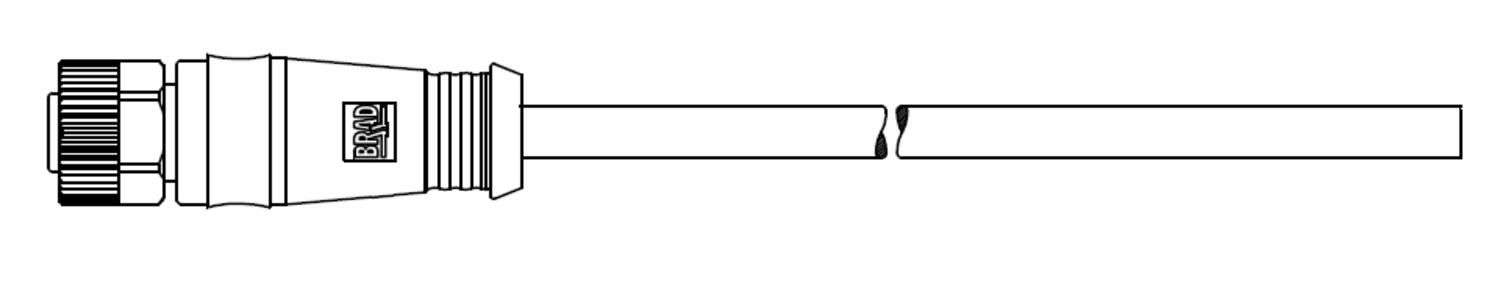

M12 jumper str. female 2x2x0,50 1m Art: BG20967-M010 Copied	1000 mm			Yes		A					Violet	CANopen	6,7 mm	Colour Coded	Straight female	Open
M12 jumper str. female 2x2x0,50 3m Art: BG20967-M030 Copied	3000 mm			Yes		A					Violet	CANopen	6,7 mm	Colour Coded	Straight female	Open
M12 jumper str. female 2x2x0,50 5m Art: BG20967-M050 Copied	5000 mm			Yes		A					Violet	CANopen	6,7 mm	Colour Coded	Straight female	Open
M12 jumper str. female 2x2x0,50 10m Art: BG20967-M100 Copied	10000 mm			Yes		A					Violet	CANopen	6,7 mm	Colour Coded	Straight female	Open
M12 jumper str. female 2x2x0,50 15m Art: BG20967-M150 Copied	15000 mm			Yes		A					Violet	CANopen	6,7 mm	Colour Coded	Straight female	Open

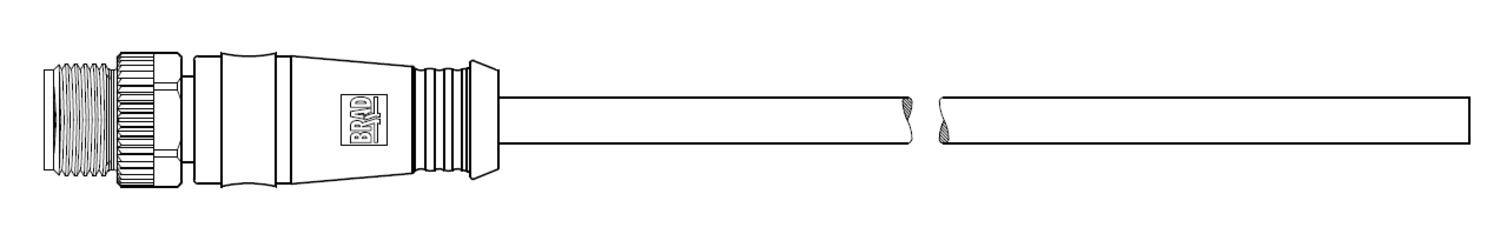

M12 liitinkaap. suora uros 2x2x0,50 0,6m Art: BG20970-M006 Copied	600 mm			Yes	0,5 mm²	A					Violet	CANopen	6,7 mm	Colour Coded	Straight male	Open	120065-9620
M12 jumper str. male 2x2x0,50 3m Art: BG20970-M030 Copied	3000 mm			Yes		A					Violet	CANopen	6,7 mm	Colour Coded	Straight male	Open
M12 jumper str. male 2x2x0,50 5m Art: BG20970-M050 Copied	5000 mm			Yes		A					Violet	CANopen	6,7 mm	Colour Coded	Straight male	Open
M12 jumper str. male 2x2x0,50 10m Art: BG20970-M100 Copied	10000 mm			Yes		A					Violet	CANopen	6,7 mm	Colour Coded	Straight male	Open
M12 CAN jumper str. male 2x2x0,50 15m Art: BG20970-M150 Copied	15000 mm			Yes		A					Violet	CANopen	6,7 mm	Colour Coded	Straight male	Open

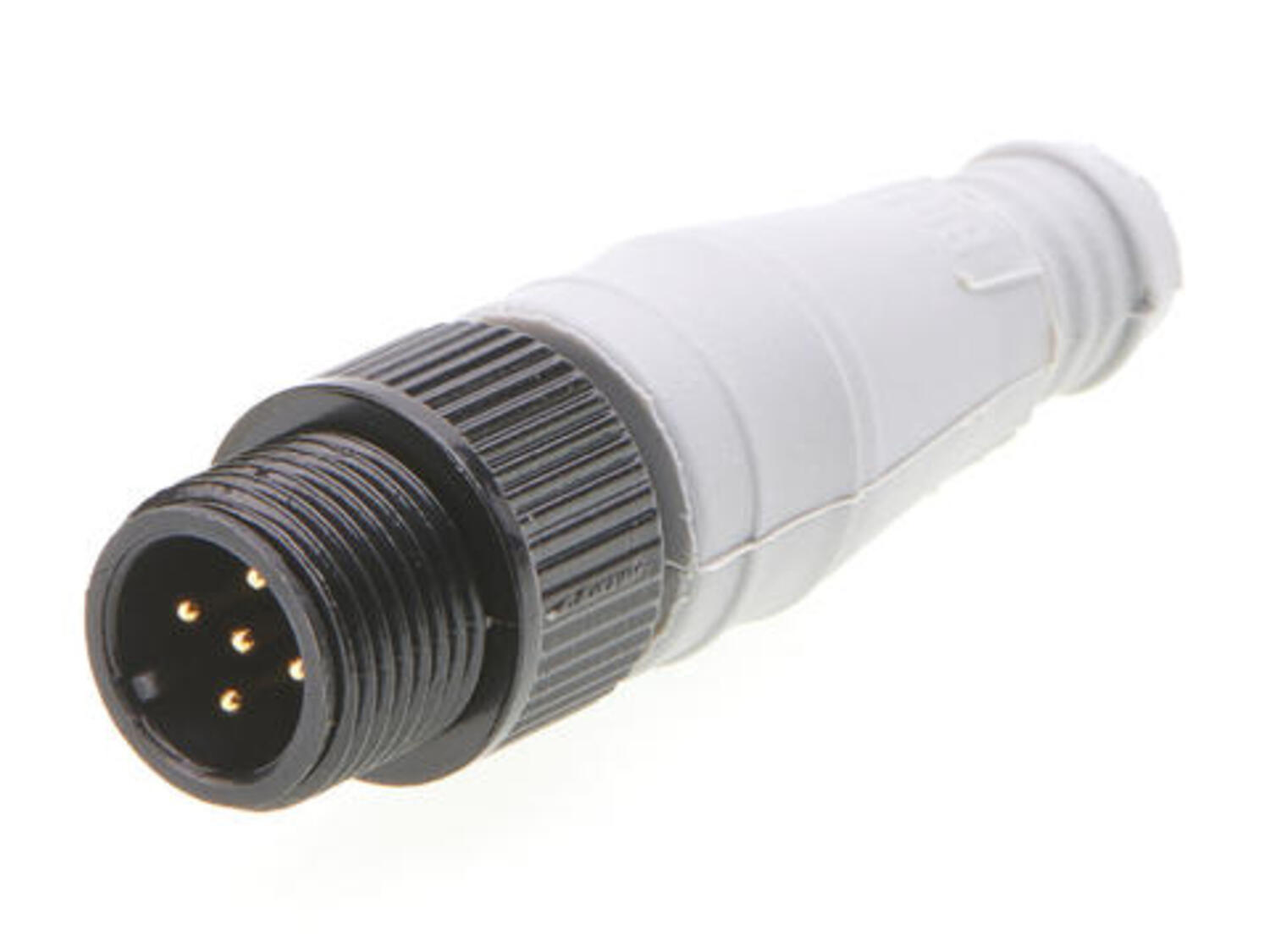

M12 5P MALE TERMINATOR Art: DND100 Copied						A		Gold plated									1300390382	Grey	M12, Male

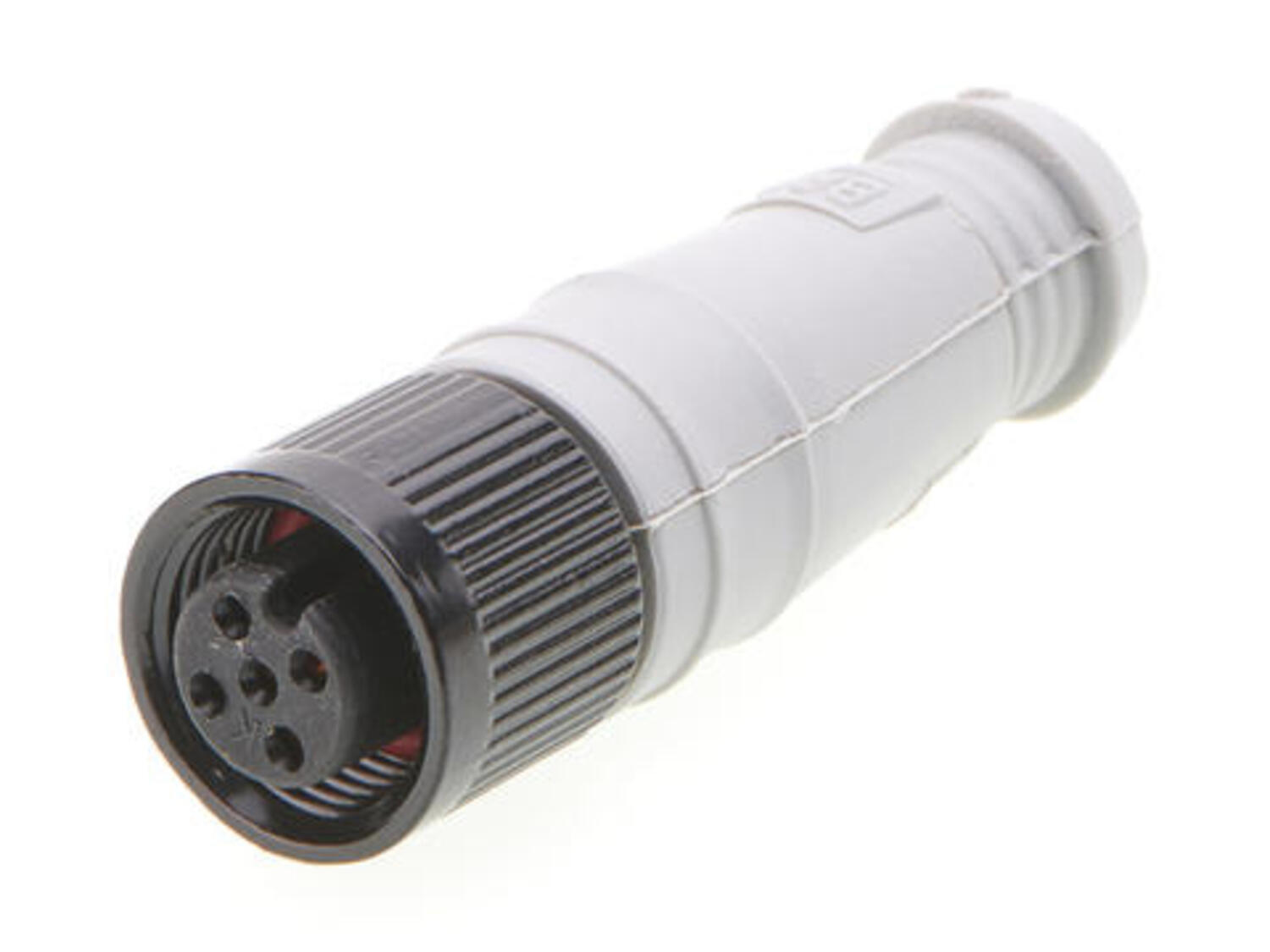

M12 terminator female Art: DND150 Copied						A		Gold plated				CANopen					1300390385	Grey	M12, Female
