Molex - M12 overmoulded connector cables male

  • Screw connection
  • Anti-vibration Nut
  • PVC, PUR / PVC or TPU cable

Selected variant

molex_logo.eps

Save as pdf

Technical data / Documents

Accessories & Related products

Selected variant

Specifications

Cable length 2 m
Number of poles 4
Material Cable TPU (WSOR)
Contact Embodiment Straight male
Shielded No
Drag Chain Tested Yes
Cross-Section 0.34 mm²
Coding A
IP Class IP67
Halogen free No
Materials Contacts Gold plated
LED indicator No
Cable diameter 5,10 +/-0,20 mm
Temperature Range For Use In Chain 60 °C
Temperature Range The Use Of Chain -5 °C
Temperature Range The Use Of -40 °C
Temperature Range For Flexible Use 80 °C
Temperature Range Flexible Use Of -25 °C
Color Cable Black
Approvals CSA 22.2, UL
Manufacturer Part No 1200652276

Downloads

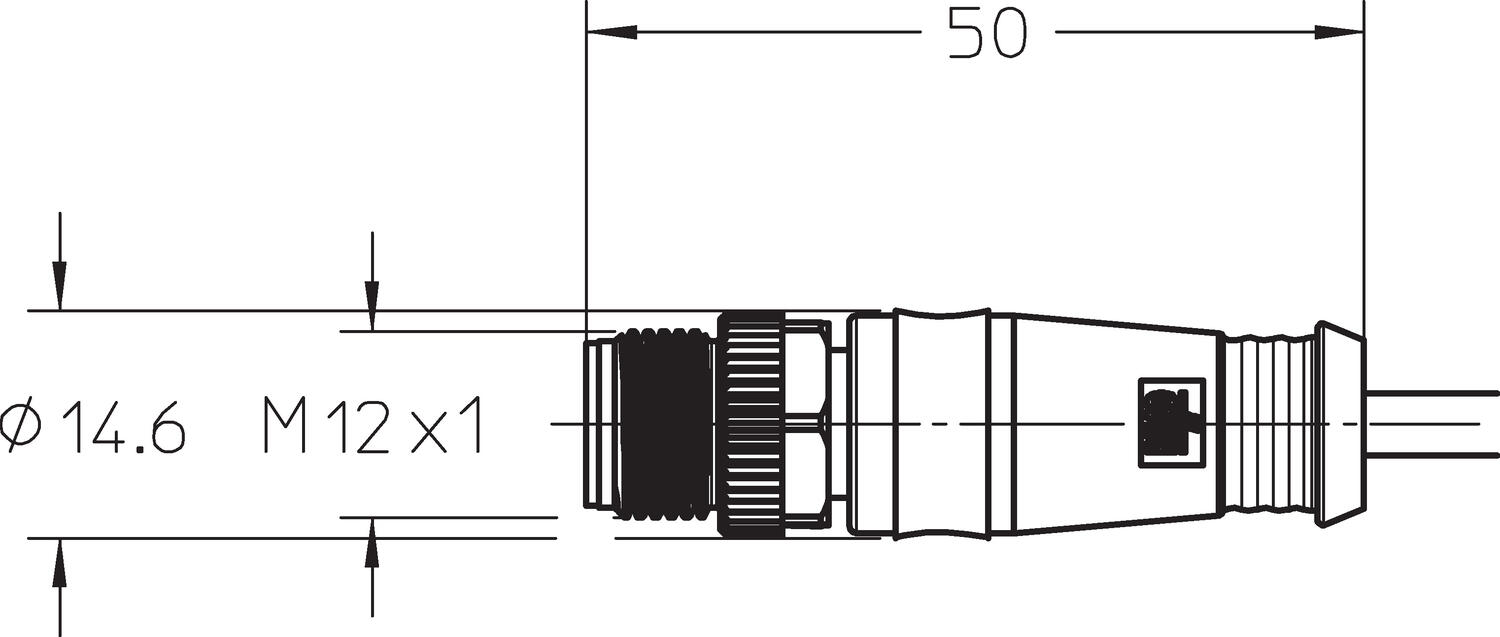

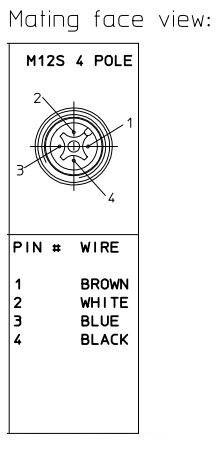

Measurements and connections
