Selected variant
Specifications

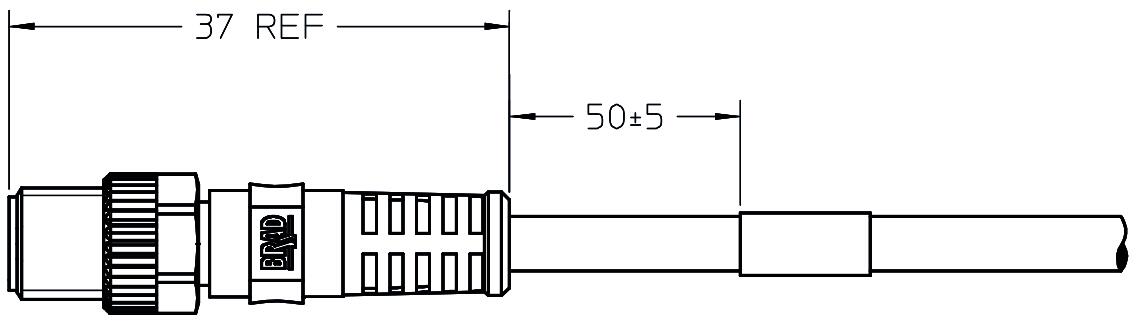

| Cable length | 2 m |
|---|---|

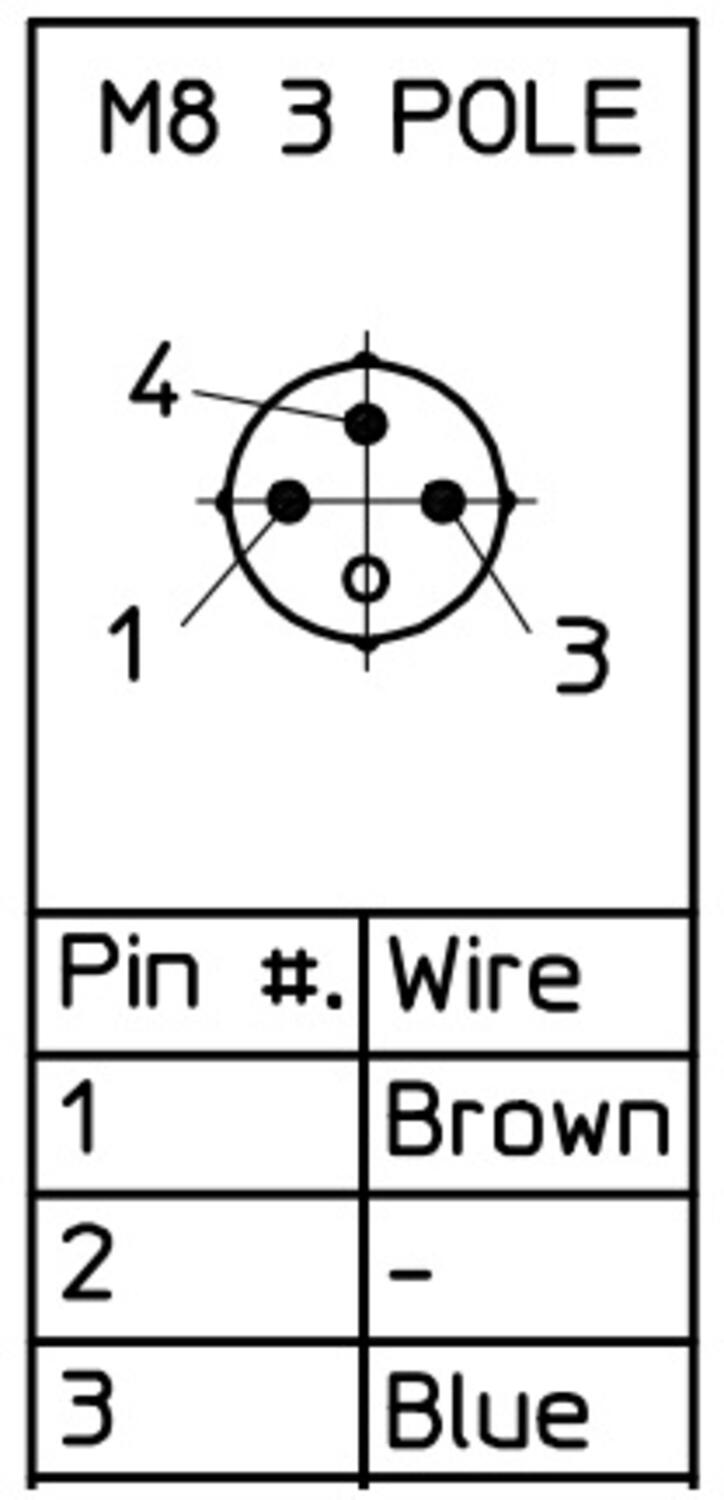

| Number of poles | 3 |
| Material Cable | TPU (WSOR) |
| Connection Thread | M8 |

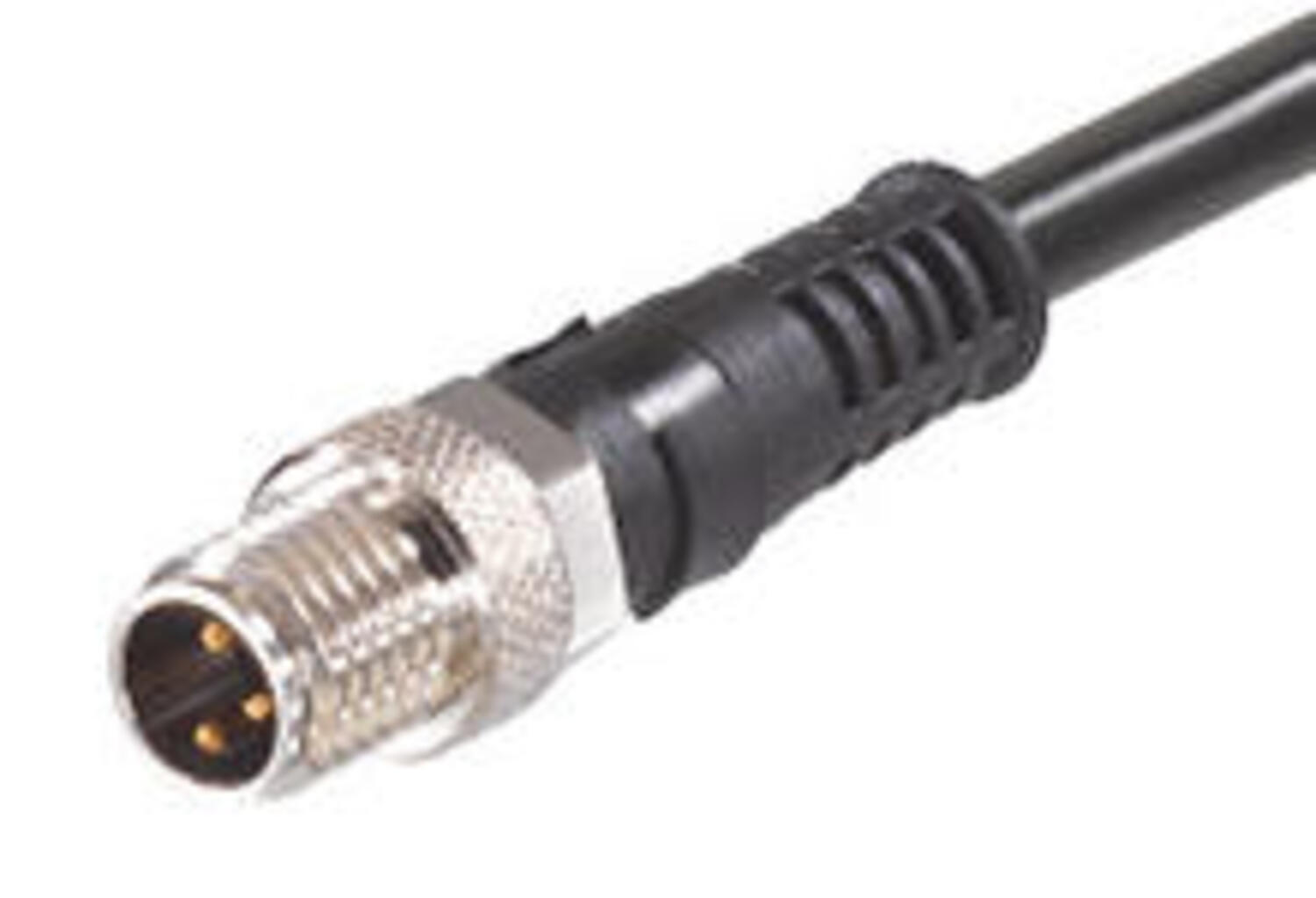

| Contact Embodiment | Straight male |
| Shielded | No |
| Drag Chain Tested | Yes |
| Cross-Section | 0.25 mm² |
| IP Class | IP67 |
| Halogen free | No |
| Materials Contacts | Gold plated |
| LED indicator | No |
| Cable diameter | 4,5 |
|---|---|
| Current max | 3 A |
| Temperature Range The Use Of | -40 °C |
| Temperature Range For Flexible Use | 80 °C |
| Temperature Range Flexible Use Of | -25 °C |
| Color Cable | Black |
| Voltage AC / DC Max | 60 V |
| Approvals | CSA 22.2, UL |
| Color House | Black |
| Manufacturer Part No | 1200868632 |
