MOLEX

Molex - M8 overmoulded cable female

  • M8 connector
  • IP67

Selected variant

molex_logo.eps

Save as pdf

Technical data / Documents

Accessories & Related products

Selected variant

Specifications

Cable length 5 m
Number of poles 3
Material Cable TPU (WSOR)
Connection Thread M8
Contact Embodiment Straight female
Shielded No
Drag Chain Tested Yes
Cross-Section 0.25 mm²
IP Class IP67
Halogen free No
Materials Contacts Gold plated
LED indicator No
Cable diameter 4,5
Current max 3 A
Temperature Range The Use Of -40 °C
Temperature Range For Flexible Use 80 °C
Temperature Range Flexible Use Of -25 °C
Color Cable Black
Voltage AC / DC Max 60 V
Approvals CSA 22.2, UL
Color House Black
Manufacturer Part No 1200868657

Downloads

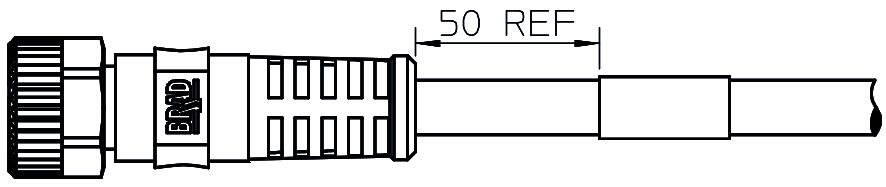

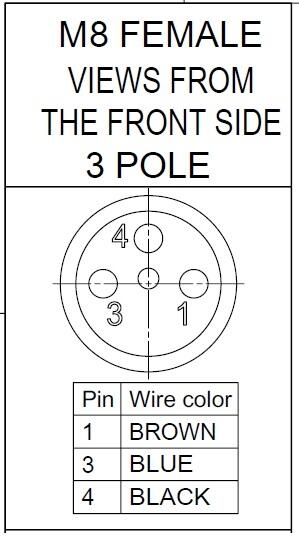

Measurements and connections

Accessories

Related products

Related

Molex Junior Timer
Product news

Updated Molex MPM Junior Timer connector cable

Junior Timer connectors are a popular choice for magnet valve electrical quick connectors. Molex MPM Junior Timer connector cables have been on the market for a long time, but now Molex has also introduced the new Molex MPM Junior Timer connector.

spring and motor drums for moving installations
Product news

Spring and motor drums for moving installations

Our supplier Stemmann-Technik (Wabtec Corporation) offers customer-specific cable reels for various applications. The selection includes a wide range of spring and motor cable reels for different purposes. The reels are designed according to customer requirements.

Food cable
Product news

New cabling solutions for food and beverage industry applications

The food and beverage industries have placed high expectations on products and packages. OEM Automatic meets these expectations by expanding the range of its cable & connection technology product area with products developed especially for the needs of the food and beverage industry.

TER - control stations
Product news

Quality solutions for motion controls

TER - Tecno Elettrica Ravasi, is our Italian supplier specializing in the manufacture of control stations. TER has over 60 years of experience in the manufacture of control stations.

Stego Loop Heater lämmityselementit
Product news

LOOP Heater for optimal heat distribution

Thanks to their loop design, LOOP heating elements offer excellent heating performance and ensure optimal heat distribution. Read more now!

PISA-M
Product news

Compact electronic overcurrent protection PISA-M

PISA-M is a 4-channel electronic fuse for 12 and 24 V DC systems. The smallest 4-channel electronic fuse with a width of only 22.5 mm!

Articles Cable length Number of poles Material Cable Connection Thread Contact Embodiment Shielded Drag Chain Tested Cross-Section IP Class Halogen free Materials Contacts LED indicator Cable diameter Current max Temperature Range The Use Of Temperature Range For Flexible Use Temperature Range Flexible Use Of Color Cable Voltage AC / DC Max Approvals Color House Manufacturer Part No

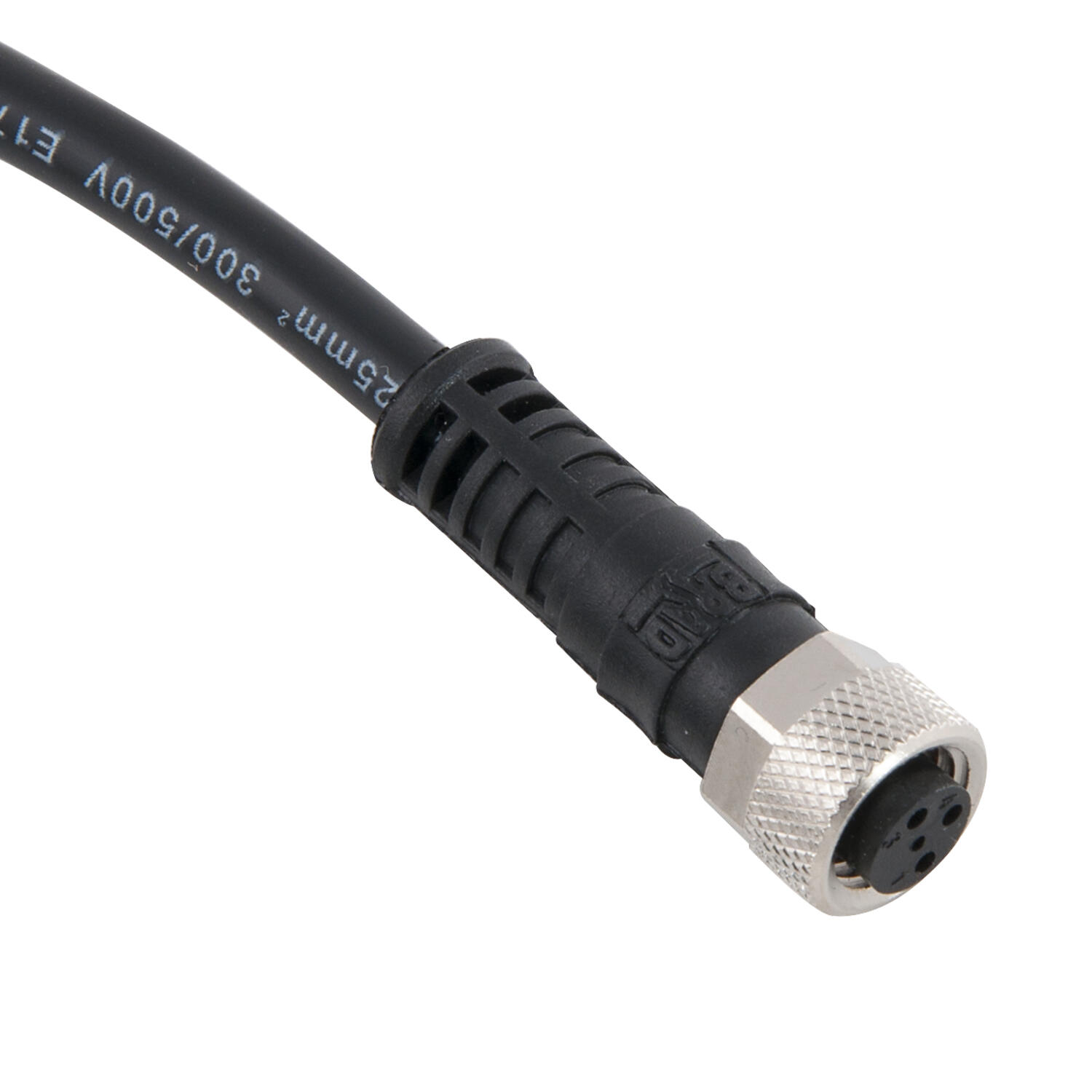

M8_rak_hona_WSOR.tif
M8 cordset str. female 3-pole 5m WSOR
Art:
403000B41M050 Copied
5 m
3
TPU (WSOR)
M8
Straight female
No
Yes
0.25 mm²
IP67
No
Gold plated
No
4,5
3 A
-40 °C
80 °C
-25 °C
Black
60 V
CSA 22.2, UL
Black
1200868657

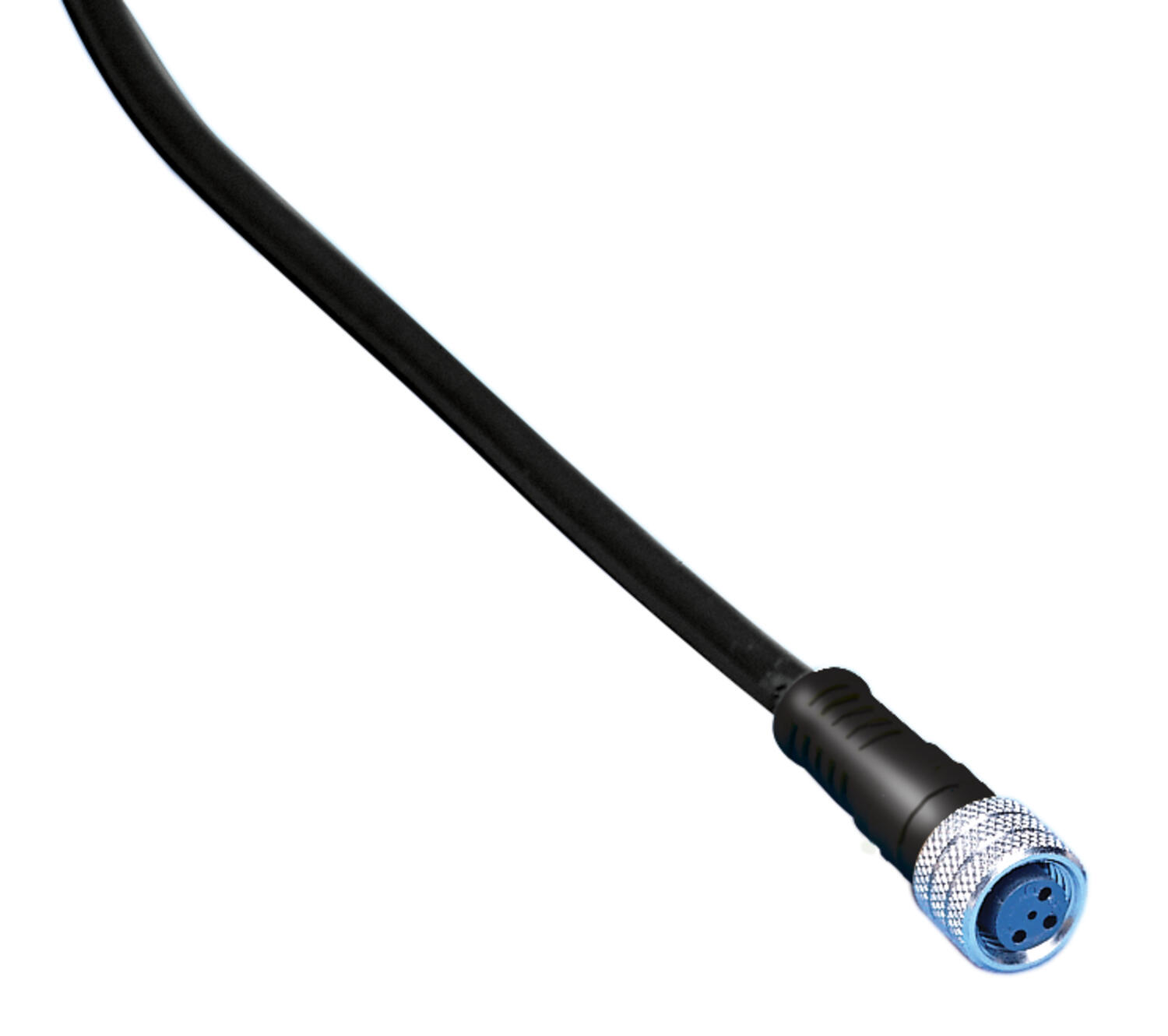

306129_566.tif
M8 cordset female 0º 3p 2m PVC
Art:
403000E02M020 Copied
2 m
3
PVC
M8
Straight female
No
0.25 mm²
IP67
No
Gold plated
No
4,7 mm
3 A
-30 °C
80 °C
-10 °C
Black
60 V
CSA 22.2, UL
Black
120027-0066
306129_566.tif
M8 cordset str fe 3pole 5m PVC
Art:
403000E02M050 Copied
5 m
3
PVC
M8
Straight female
No
0.25 mm²
IP67
No
Gold plated
No
4,7 mm
3 A
-30 °C
80 °C
-10 °C
Black
60 V
CSA 22.2, UL
Black
120027-0066
306129_566.tif
M8 cordset str female 3pole 10m PVC
Art:
403000E02M100 Copied
10 m
3
PVC
M8
Straight female
No
No
0.25 mm²
IP67
No
Gold plated
No
4,7 mm
3 A
-30 °C
80 °C
-10 °C
Black
60 V
CSA 22.2, UL
Black
1200270066
306129_566.tif
M8 CORDSET FE ST-3p 2m
Art:
403000H08M020 Copied
2 m
3
PUR
M8
Straight female
No
Yes
0.25 mm²
IP67
Yes
Gold plated
No
4,7 mm
3 A
-40 °C
80 °C
-25 °C
Black
60 V
CSA 22.2, UL
Black
120086-8045
306129_566.tif
M8 CORDSET 3P FE-ST 5m LSOH PUR
Art:
403000H08M050 Copied
5 m
3
PUR
M8
Straight female
No
Yes
0.25 mm²
IP67
Yes
Gold plated
No
4,7 mm
3 A
-40 °C
80 °C
-25 °C
Black
60 V
CSA 22.2, UL
Black
120086-8045

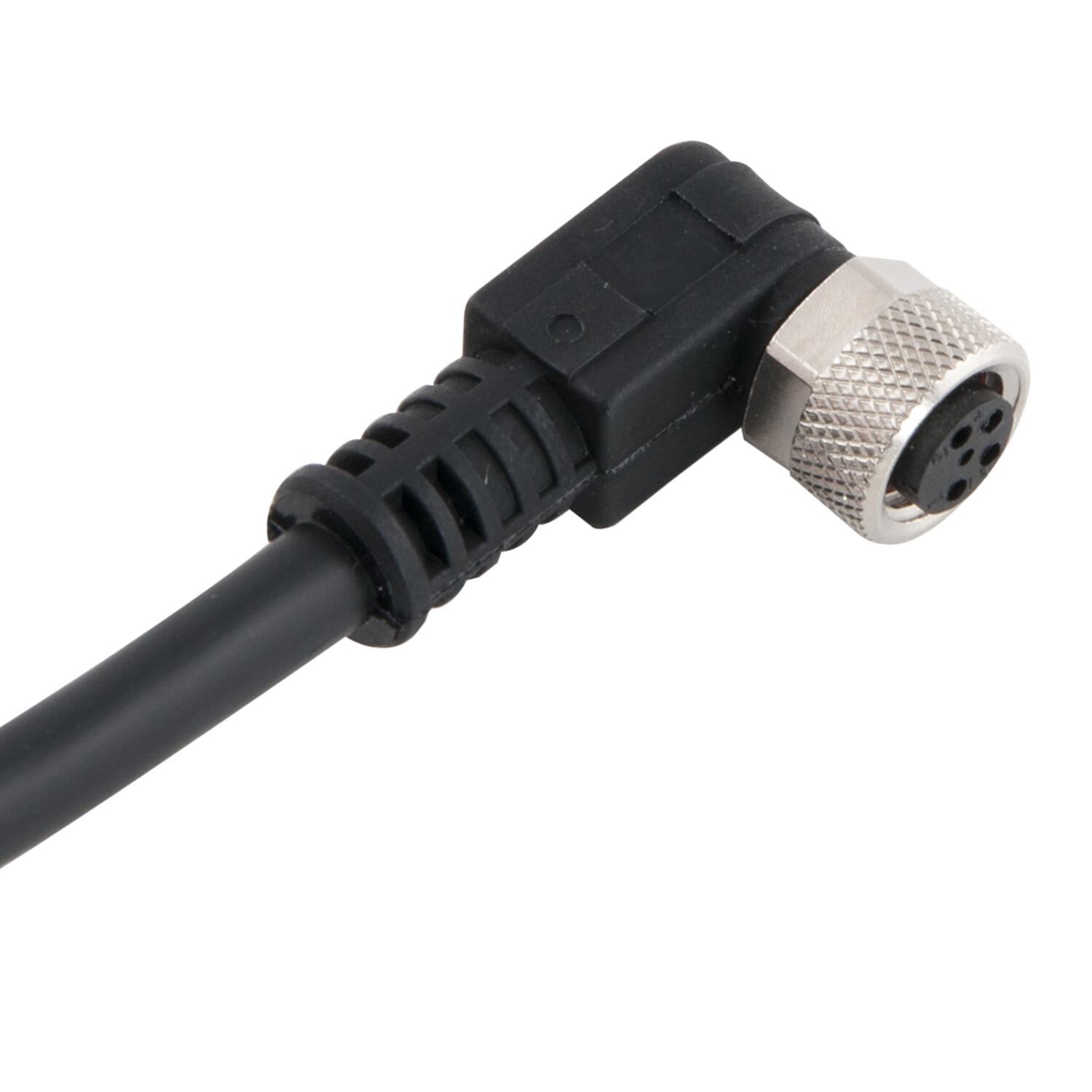

M8_90_hona_WSOR.tif
M8 cordset 90° female 3-pole 2m WSOR
Art:
403001B41M020 Copied
2 m
3
TPU (WSOR)
M8
Angle female
No
Yes
0.25 mm²
IP67
No
Gold plated
No
4,5 mm
3 A
-40 °C
80 °C
-25 °C
Black
60 V
CSA 22.2, UL
Black
1200868668
M8_90_hona_WSOR.tif
M8 cordset 90° female 3-pole 5m WSOR
Art:
403001B41M050 Copied
5 m
3
TPU (WSOR)
M8
Angle female
No
Yes
0.25 mm²
IP67
No
Gold plated
No
4,5 mm
3 A
-40 °C
80 °C
-25 °C
Black
60 V
CSA 22.2, UL
Black
1200868669

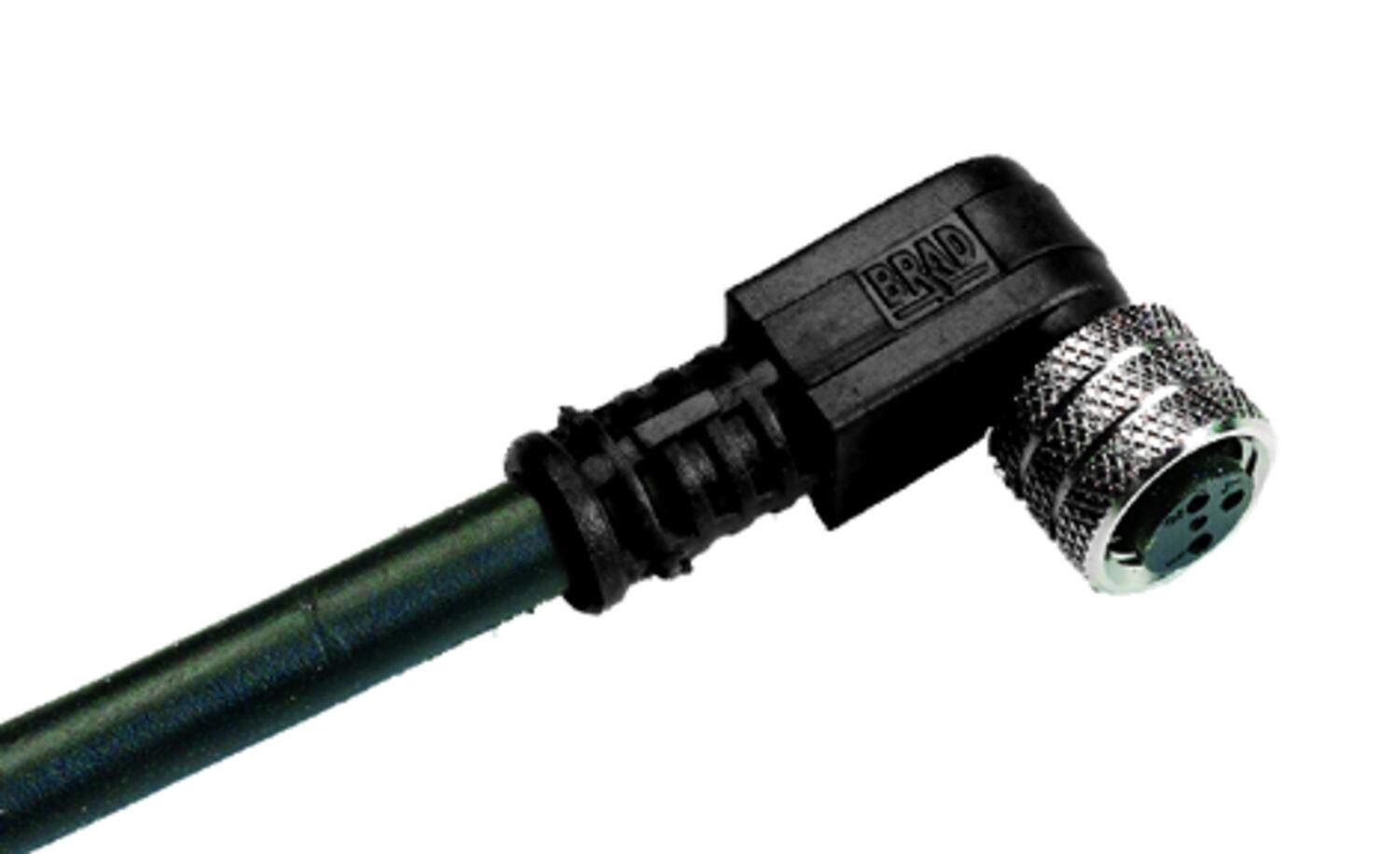

M8 fully groated cabel, angled female
M8 cordset 90º female 3pole 2m PVC
Art:
403001E02M020 Copied
2 m
3
PVC
M8
Angle female
No
0.25 mm²
IP67
No
Gold plated
No
4,7 mm
3 A
-30 °C
80 °C
-10 °C
Black
60 V
CSA 22.2, UL
Black
1200270090
M8 fully groated cabel, angled female
NC-3P-FE-90-5M-PVC-0.25
Art:
403001E02M050 Copied
5 m
3
PVC
M8
Angle female
No
0.25 mm²
IP67
No
Gold plated
No
4,7 mm
3 A
-30 °C
80 °C
-10 °C
Black
60 V
CSA 22.2, UL
Black
1200270092
M8 fully groated cabel, angled female
M8 cordset 90º female 3pole 10m PVC
Art:
403001E02M100 Copied
10 m
3
PVC
M8
Angle female
No
0.25 mm²
IP67
No
Gold plated
No
4,7 mm
3 A
-30 °C
80 °C
-10 °C
Black
60 V
CSA 22.2, UL
Black
1200270093
M8 fully groated cabel, angled female
M8-3P-FE-90-2M-PUR-BLACK-0.25
Art:
403001H08M020 Copied
2 m
3
PUR
M8
Angle female
No
Yes
0.25 mm²
IP67
Yes
Gold plated
No
4,7 mm
3 A
-40 °C
80 °C
-25 °C
Black
60 V
CSA 22.2, UL
Black
1200868045
M8 fully groated cabel, angled female
Cordset M8-F-90-3p-5m
Art:
403001H08M050 Copied
5 m
3
PUR
M8
Angle female
No
Yes
0.25 mm²
IP67
Yes
Gold plated
No
4,7 mm
3 A
-40 °C
80 °C
-25 °C
Black
60 V
CSA 22.2, UL
Black
120086-8045
M8 fully groated cabel, angled female
M8 cordset 90° female 3-pole 10m 3x025
Art:
403001H08M100 Copied
10 m
3
PUR
M8
Angle female
No
Yes
0.25 mm²
IP67
Yes
Gold plated
No
4,7 mm
3 A
-40 °C
80 °C
-25 °C
Black
60 V
CSA 22.2, UL
Black
120086-8045
M8_rak_hona_WSOR.tif
M8 cordset str. female 4-pole 2m WSOR
Art:
404000B41M020 Copied
2 m
4
TPU (WSOR)
M8
Straight female
No
Yes
0.25 mm²
IP67
No
Gold plated
No
4,8
3 A
-40 °C
80 °C
-25 °C
Black
60 V
CSA 22.2, UL
Black
120086-8660
306129_566.tif
M8 cordset str female 4p 2m PVC
Art:
404000E02M020 Copied
2 m
4
PVC
M8
Straight female
No
No
0.25 mm²
IP67
No
Gold plated
No
5mm
3 A
-30 °C
80 °C
-10 °C
Black
60 V
CSA 22.2, UL
Black
1200270066
306129_566.tif
M8 cordset str female 4pole 3m LSOH PUR
Art:
404000H08M030 Copied
3 m
4
PUR
M8
Straight female
No
Yes
0.25 mm²
IP67
Yes
Gold plated
No
4,7 mm
3 A
-40 °C
80 °C
-25 °C
Black
60 V
CSA 22.2, UL
Black
1200868060
M8_rak_hona_WSOR.tif
M8 cordset str. female 4-pole 5m WSOR
Art:
404000B41M050 Copied
5 m
4
TPU (WSOR)
M8
Straight female
No
Yes
0.25 mm²
IP67
No
Gold plated
No
4,8
3 A
-40 °C
80 °C
-25 °C
Black
60 V
CSA 22.2, UL
Black
120086-8661
M8_rak_hona_WSOR.tif
M8 cordset str. female 4-pole 10m WSOR
Art:
404000B41M100 Copied
10 m
4
TPU (WSOR)
M8
Straight female
No
Yes
0.25 mm²
IP67
No
Gold plated
No
4,8
3 A
-40 °C
80 °C
-25 °C
Black
60 V
CSA 22.2, UL
Black
120086-8662
306129_566.tif
M8 cordset str fe 4p 5m 4x0,25mm2 PVC
Art:
404000E02M050 Copied
5 m
4
PVC
M8
Straight female
No
0.25 mm²
IP67
No
Gold plated
No
4,7 mm
3 A
-30 °C
80 °C
-10 °C
Black
60 V
CSA 22.2, UL
Black
1200270129
306129_566.tif
M8 cordset str female 4p 10m PVC
Art:
404000E02M100 Copied
10 m
4
PVC
M8
Straight female
No
0.25 mm²
IP67
No
Gold plated
No
4,7 mm
3 A
-30 °C
80 °C
-10 °C
Black
60 V
CSA 22.2, UL
Black
1200270131
306129_566.tif
M8 cordset 4p str female 5m LSOH PUR
Art:
404000H08M050 Copied
5 m
4
PUR
M8
Straight female
No
Yes
0.25 mm²
IP67
Yes
Gold plated
No
4,7 mm
3 A
-40 °C
80 °C
-25 °C
Black
60 V
CSA 22.2, UL
Black
120086-8045
306129_566.tif
M8 CORDSET 4P-FE-ST-10M-LS0H-NUT
Art:
404000H08M100 Copied
10 m
4
PUR
M8
Straight female
No
Yes
0.25 mm²
IP67
Yes
Gold plated
No
4,7 mm
3 A
-40 °C
80 °C
-25 °C
Black
60 V
CSA 22.2, UL
Black
120086-8045
M8_rak_hona_WSOR.tif
M8 cordset str. female 5-pole 10m WSOR
Art:
405000B41M100 Copied
10 m
5
TPU (WSOR)
M8
Straight female
No
Yes
0.25 mm²
IP67
No
Gold plated
No
4,5
3 A
-40 °C
80 °C
-25 °C
Black
60 V
CSA 22.2, UL
Black
120086-8666
M8_90_hona_WSOR.tif
M8 cordset 90° female 4-pole 2m WSOR
Art:
404001B41M020 Copied
2 m
4
TPU (WSOR)
M8
Angle female
No
Yes
0.25 mm²
IP67
No
Gold plated
No
4,8 mm
3 A
-40 °C
80 °C
-25 °C
Black
30 V
CSA 22.2, UL
Black
120086-8672
M8_90_hona_WSOR.tif
M8 cordset 90º female 4p 5m WSOR
Art:
404001B41M050 Copied
5 m
4
TPU (WSOR)
M8
Angle female
No
Yes
0.25 mm²
IP67
No
Gold plated
No
4,8 mm
3 A
-40 °C
80 °C
-25 °C
Black
30 V
CSA 22.2, UL
Black
120086-8673
M8_90_hona_WSOR.tif
M8 cordset 90º naaras 4nap 10m WSOR
Art:
404001B41M100 Copied
10 m
4
TPU (WSOR)
M8
Angle female
No
Yes
0.25 mm²
IP67
No
Gold plated
No
4,8 mm
3 A
-40 °C
80 °C
-25 °C
Black
30 V
CSA 22.2, UL
Black
120086-8674
M8 fully groated cabel, angled female
M8 CORDSET 4P-FE-90º 2m LS0H PUR
Art:
404001H08M020 Copied
2 m
4
PUR
M8
Angle female
No
Yes
0.25 mm²
IP67
Yes
Gold plated
No
4,7 mm
3 A
-40 °C
80 °C
-25 °C
Black
30 V
CSA 22.2, UL
Black
120086-8045
M8 fully groated cabel, angled female
M8 cordset 90º female 4-pole 5m PUR 4x0,25
Art:
404001H08M050 Copied
5 m
4
PUR
M8
Angle female
No
Yes
0.25 mm²
IP67
Yes
Gold plated
No
4,7 mm
3 A
-40 °C
80 °C
-25 °C
Black
30 V
CSA 22.2, UL
Black
120086-8045
