Molex - mPm M8/M12 to DIN Form A adapter
Number of poles | 2P+earth |
Material in connector | PA (polyamide) |
Max. current | 4 A |
Contact resistance | ≤5 mΩ |
IP-class | IP67 |
Temperature range | -20 °C to +120 °C |
Electronics | C4: LED+VDR |
Gaskets | Nitrile profile gasket+round flat gasket on the screws |
Screw | M3x25 mm |
The connectors are supplied complete with rating plate, screw and profile gasket in nitrile.
Dimensions
With M8 connector |
With M12 connector |

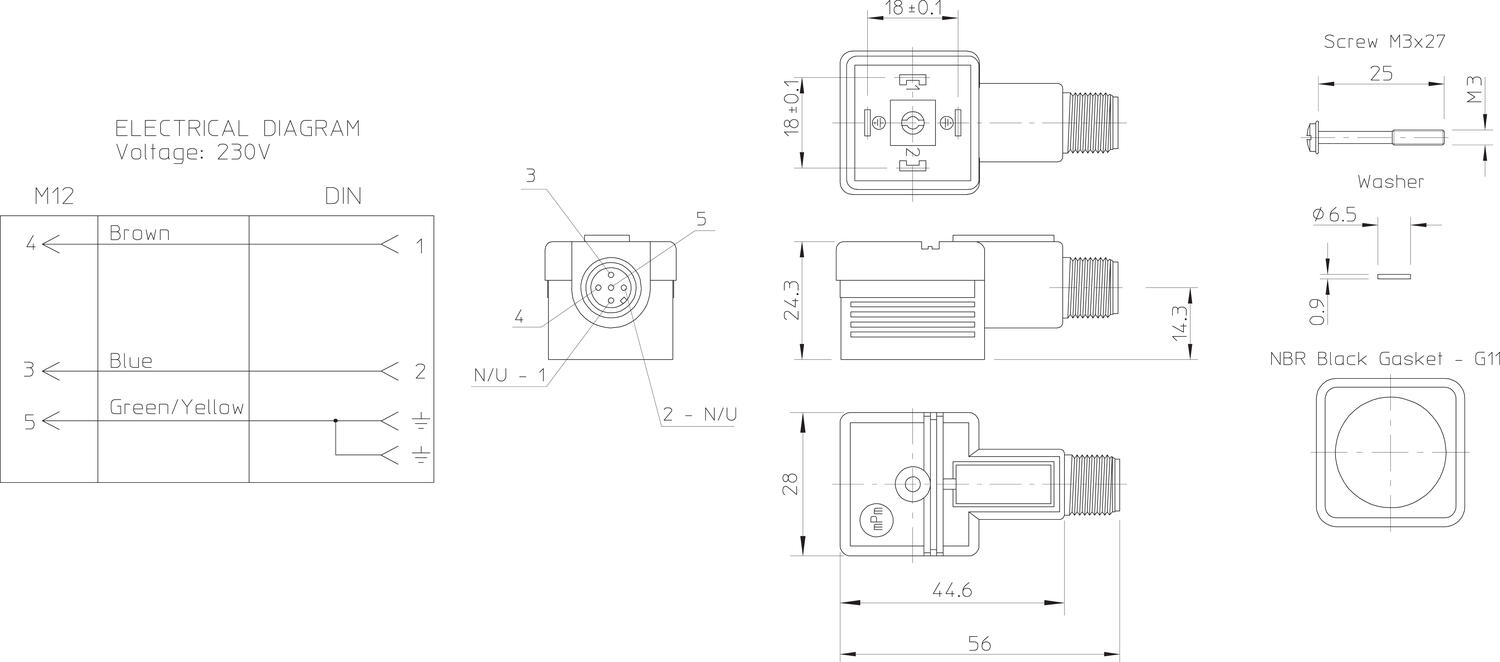

Wiring Diagram
With M8 connector |
1= Not used |
|
With M12 connector |
1= Not used |
Order number
Order no. | Circuit | Connection | Number of poles | Voltage |
E85000 | - | M12 to the rear | 2+earth | 0-115 V |
E85002 | - | M12 angled | 2+earth | 0-115 V |
E850B0 | C4 | M12 to the rear | 2+earth | 24 V AC/DC |
E850B2 | C4 | M12 angled | 2+earth | 24 V AC/DC |
E53000 | - | M8 to the rear | 2+earth | 0-115 V |
E53002 | - | M8 angled | 2+earth | 0-115 V |
E530B0 | C4 | M8 to the rear | 2+earth | 24 V AC/DC |
E530B2 | C4 | M8 angled | 2+earth | 24 V AC/DC |
Special versions
- Other DIN standards: DIN B Industrial, DIN B, DIN C Industrial or DIN C
- Other circuits
- Other pin configuration
Accessories
- Profile gasket nitrile G11
- Profile gasket silicone S11
- Screw M3x25
- Fully overmolded for better protection
- Quick and simple installation with M8 and M12
- With or without LED and transient protection
- IP-class IP67
Selected variant
Specifications
| Circuit | No circuit |
|---|---|
| IP Class | IP65 |
| Contact resistance | ≤5 mΩ |
| Color House | Black |
| LED indicator | No |
| Temperature range to | 90 °C |
| Temperature range from | -40 °C |
| Current max | 5 A |
|---|---|
| Rated voltage | 250 V AC/300 V DC |
| Screw size | M3x27 |
| Packing Materials | NBR |
| Colour LED | No LED |
| Material needle | Brass |
Product description
Number of poles | 2P+earth |
Material in connector | PA (polyamide) |
Max. current | 4 A |
Contact resistance | ≤5 mΩ |
IP-class | IP67 |
Temperature range | -20 °C to +120 °C |
Electronics | C4: LED+VDR |
Gaskets | Nitrile profile gasket+round flat gasket on the screws |
Screw | M3x25 mm |
The connectors are supplied complete with rating plate, screw and profile gasket in nitrile.
Dimensions
With M8 connector |
With M12 connector |
Wiring Diagram
With M8 connector |
1= Not used |
|
With M12 connector |
1= Not used |
Order number
Order no. | Circuit | Connection | Number of poles | Voltage |
E85000 | - | M12 to the rear | 2+earth | 0-115 V |
E85002 | - | M12 angled | 2+earth | 0-115 V |
E850B0 | C4 | M12 to the rear | 2+earth | 24 V AC/DC |
E850B2 | C4 | M12 angled | 2+earth | 24 V AC/DC |
E53000 | - | M8 to the rear | 2+earth | 0-115 V |
E53002 | - | M8 angled | 2+earth | 0-115 V |
E530B0 | C4 | M8 to the rear | 2+earth | 24 V AC/DC |
E530B2 | C4 | M8 angled | 2+earth | 24 V AC/DC |
Special versions
- Other DIN standards: DIN B Industrial, DIN B, DIN C Industrial or DIN C
- Other circuits
- Other pin configuration
Accessories
- Profile gasket nitrile G11
- Profile gasket silicone S11
- Screw M3x25
