MOLEX
Molex - mPm DIN Form A IP67 moulded cable connector
IP67 rated DIN valve connectors with improved strain relief. Cable retention force increased by up to 20% over internal nut styles. Enlarged Cable range that covers the internal thread connector cable range. Conforms to EN 175301-803.
- Fully overmoulded providing a high level of protection
- With or without LED and transient protection

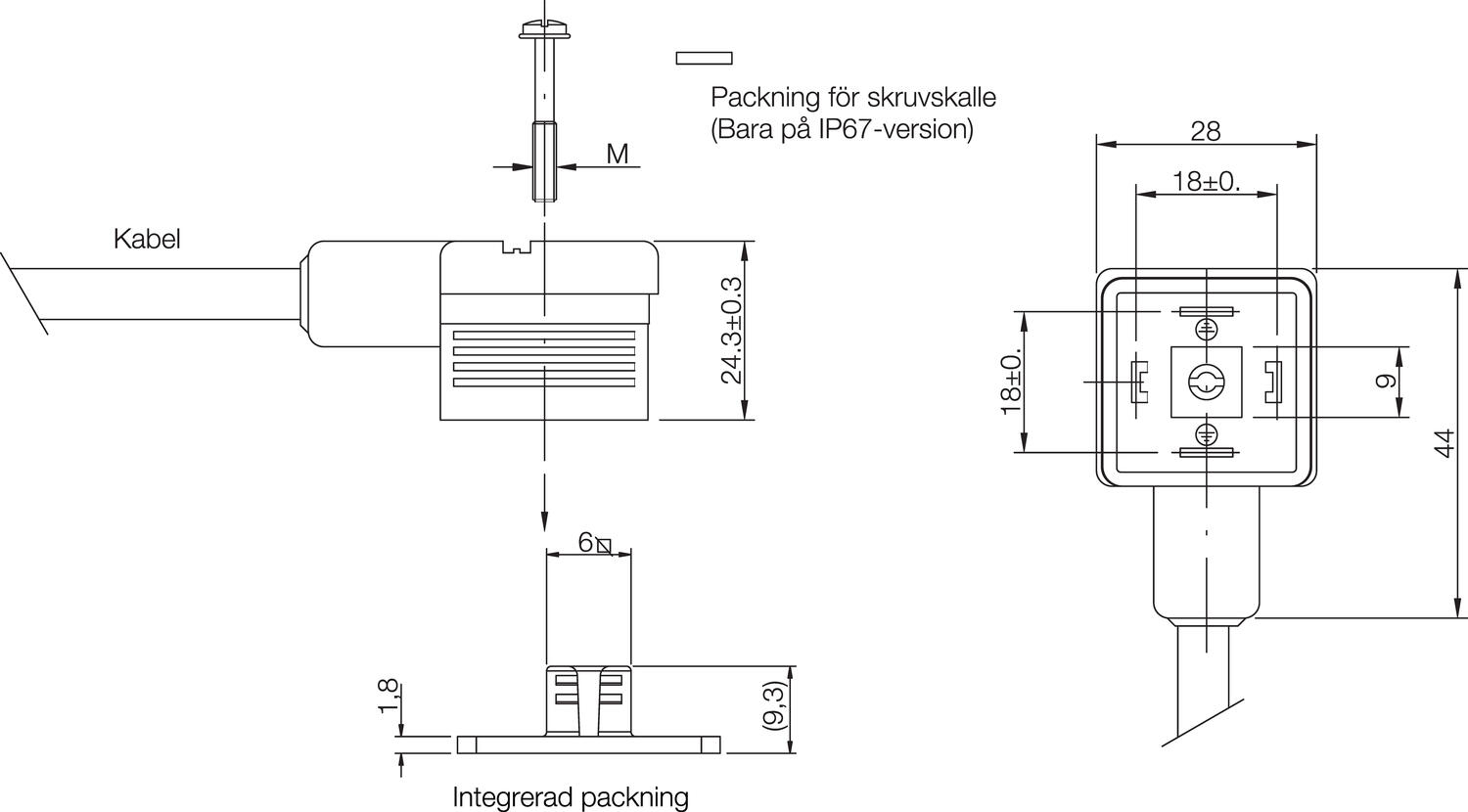

- Integrated gasket and screw, IP67
- EN175301-803 (DIN43650)-A
- 2 pole or 3 pole + earth
Selected variant
Specifications
| Cable length | 3000 mm |
|---|---|
| Material Cable | PUR |
| Circuit | No circuit |
| Halogen free | No |
| IP Class | IP67 |
| Cross-Section | 0.75 mm² |
| Cable diameter | 6,5 |
| Color Cable | Black |
| Color House | Black |
| LED indicator | No |
| Temperature range to | 90 °C |
|---|---|
| Temperature range from | -40 °C |
| Current max | 5 A |
| Rated voltage | 250 V |
| Screw size | M3x27 |
| Packing Materials | NBR |
| Colour LED | No LED |
| Screw and Gasket | NBR integrated gasket assembled + IP67 screw |
| Manufacturer Part No | 1210400818 |
Downloads
Product description
IP67 rated DIN valve connectors with improved strain relief. Cable retention force increased by up to 20% over internal nut styles. Enlarged Cable range that covers the internal thread connector cable range. Conforms to EN 175301-803.
