Indicator lights TB/06/SQ

Connection Thread	Silicone-glass cable, PVC cable, Silicone cable
Diameter Of Hole	6 mm
Hold down	self-locking
Light source	Neon/Fluoro, Incadescent, LED
Operating temperature	90°C Max • 120°C Max • 150°C Max
Operating voltage	2V • 6V • 12V • 24V • 48V • 110V • 250V • 400V
Recommended thickness panel	0,5 mm - 2 mm

Articles	Colour LED	Connection Thread	Diameter Of Hole	Hold down	Hole dimensions	Light source	Operating temperature	Operating voltage	Recommended thickness panel

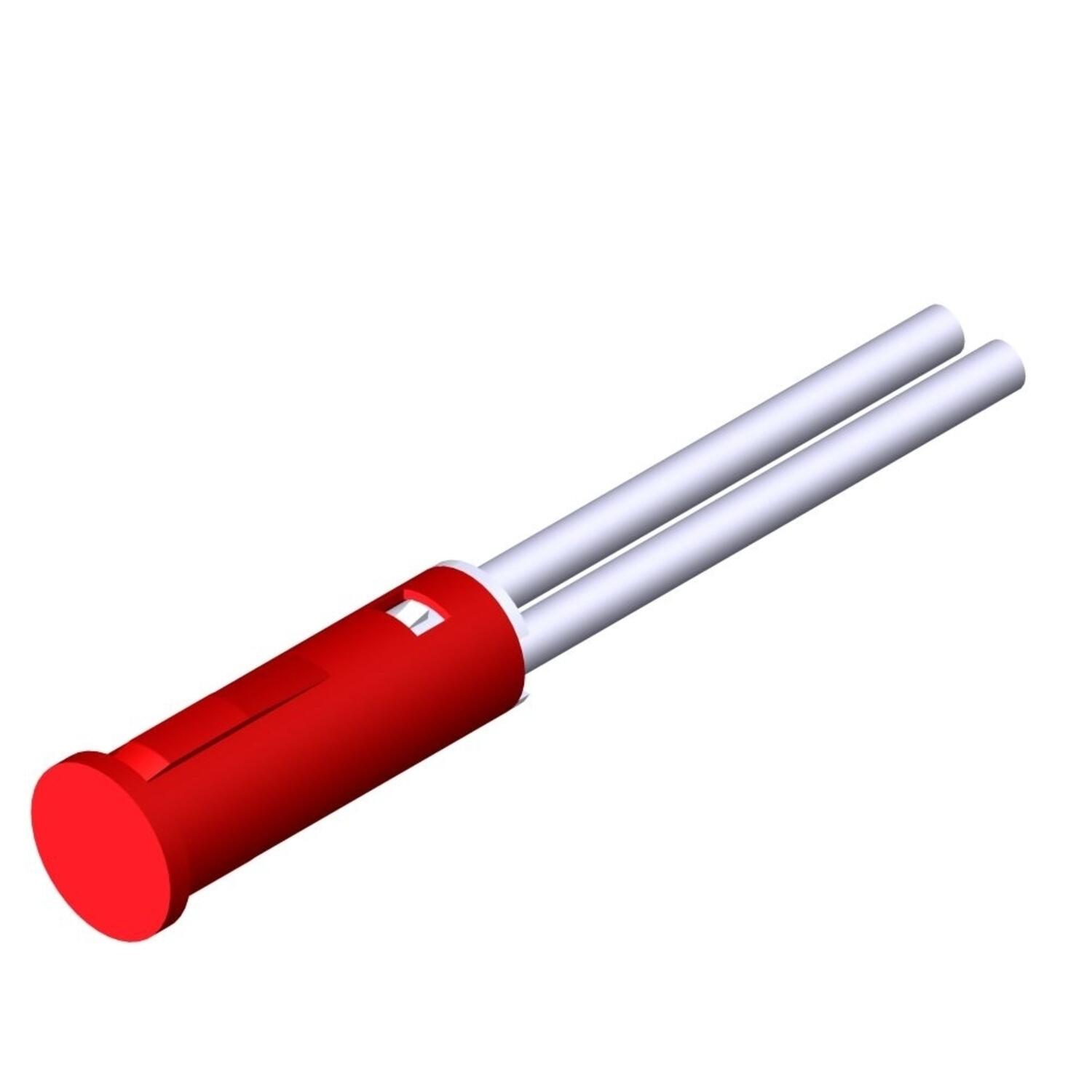

TB/06/SQ indicator lamp ⌀6mm Art: TB/06/SQ Copied		Silicone-glass cable, PVC cable, Silicone cable	6 mm	self-locking		Neon/Fluoro, Incadescent, LED	90°C Max • 120°C Max • 150°C Max	2V • 6V • 12V • 24V • 48V • 110V • 250V • 400V	0,5 mm - 2 mm

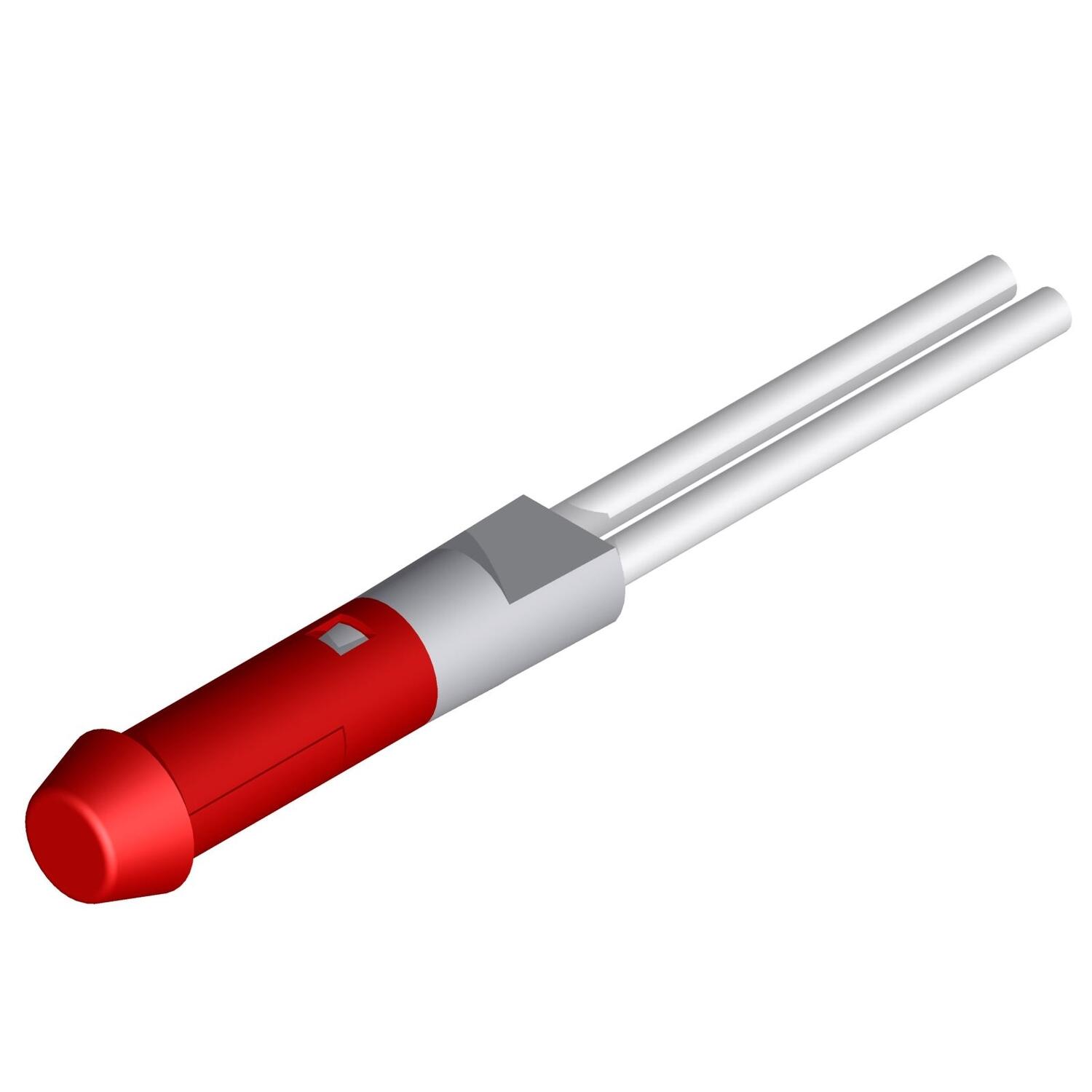

TB/06/SQ-L Indicator lamp ⌀6mm Art: TB/06/SQ-L Copied		Silicone cable, PVC cable, Silicone-glass cable	6 mm	self-locking		Neon/Fluoro, Incadescent, LED	90°C Max • 120°C Max • 150°C Max	2V • 6V • 12V • 24V • 48V • 110V • 250V • 400V	0,5 mm - 2 mm

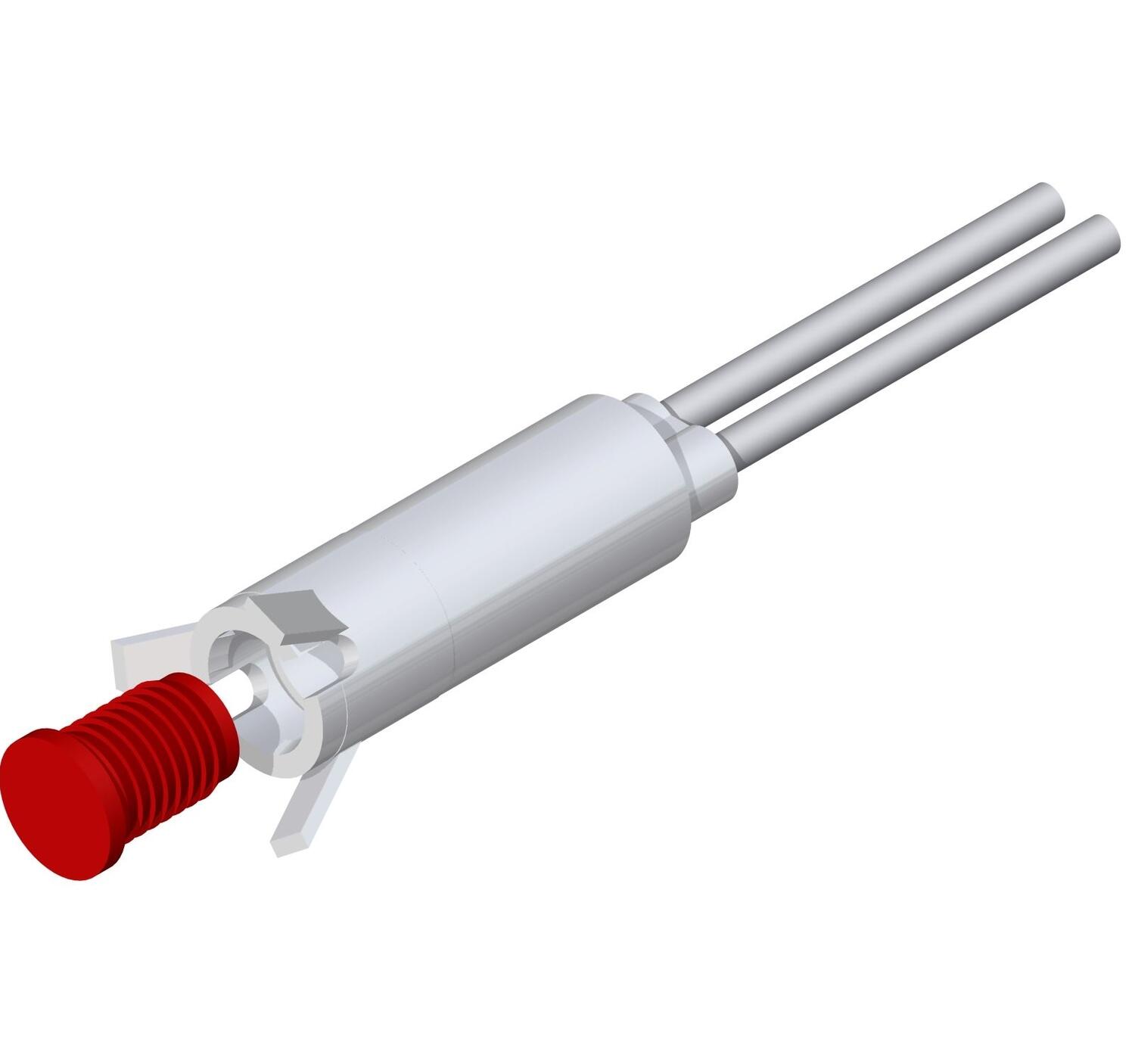

TB/06RC/SU Indicator lamp ⌀6mm Art: TB/06RC/SU Copied		Silicone cable, PVC cable, Silicone-glass cable	6 mm	self-locking		Neon/Fluoro, Incadescent, LED	90°C Max • 120°C Max • 150°C Max	2V • 6V • 12V • 24V • 48V • 110V • 250V • 400V	0,5 mm - 2 mm

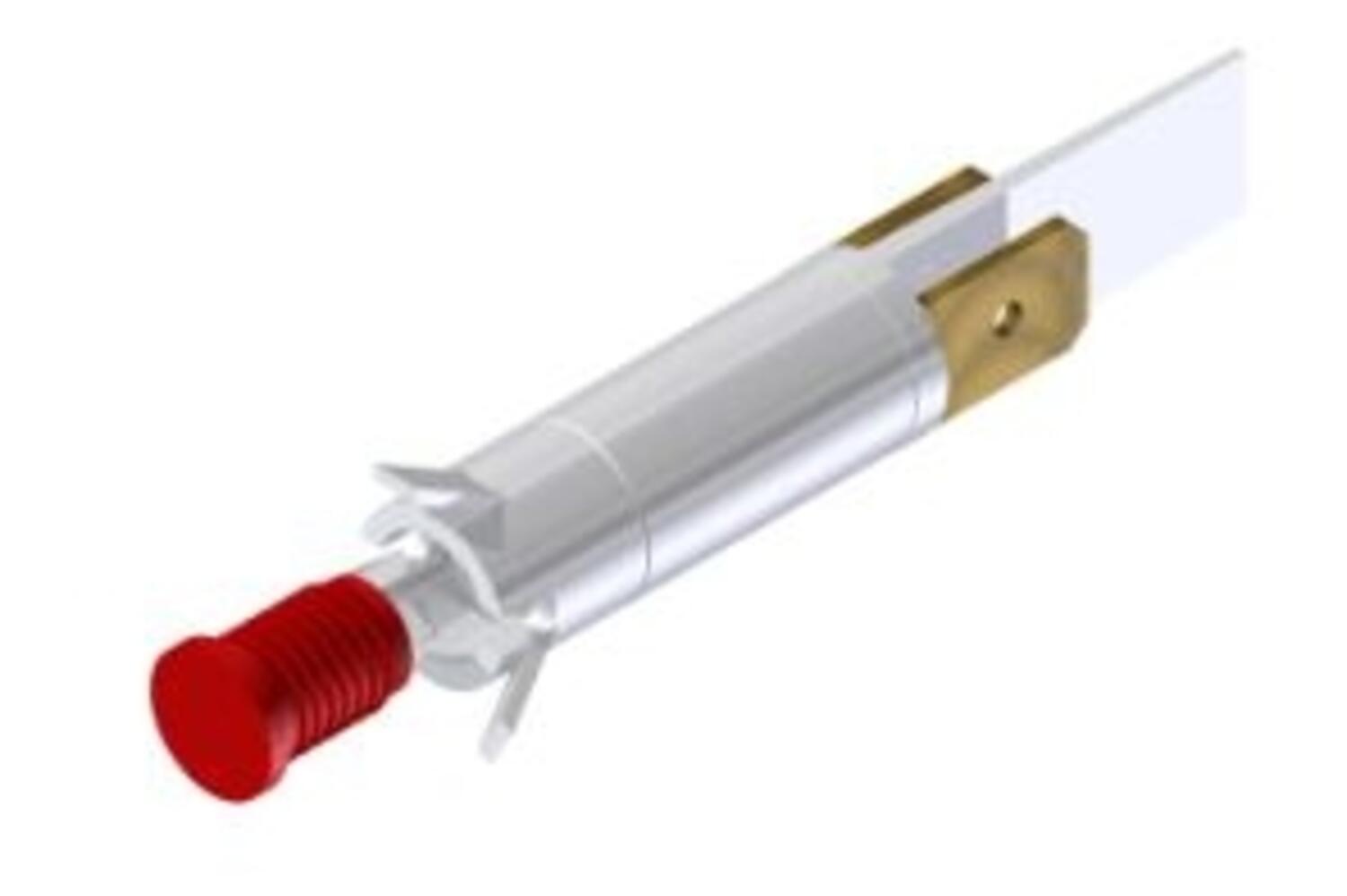

TBF/06RC/SU marker lamp ⌀6mm Art: TBF/06RC/SU Copied		Male faston 6,3x0,8 mm • Male faston 4,8x0,8 mm	6 mm	self-locking		Neon/Fluoro, Incadescent, LED	120°C Max • 150°C Max	2V • 6V • 12V • 24V • 48V • 110V • 250V • 400V	0,5 mm - 2 mm

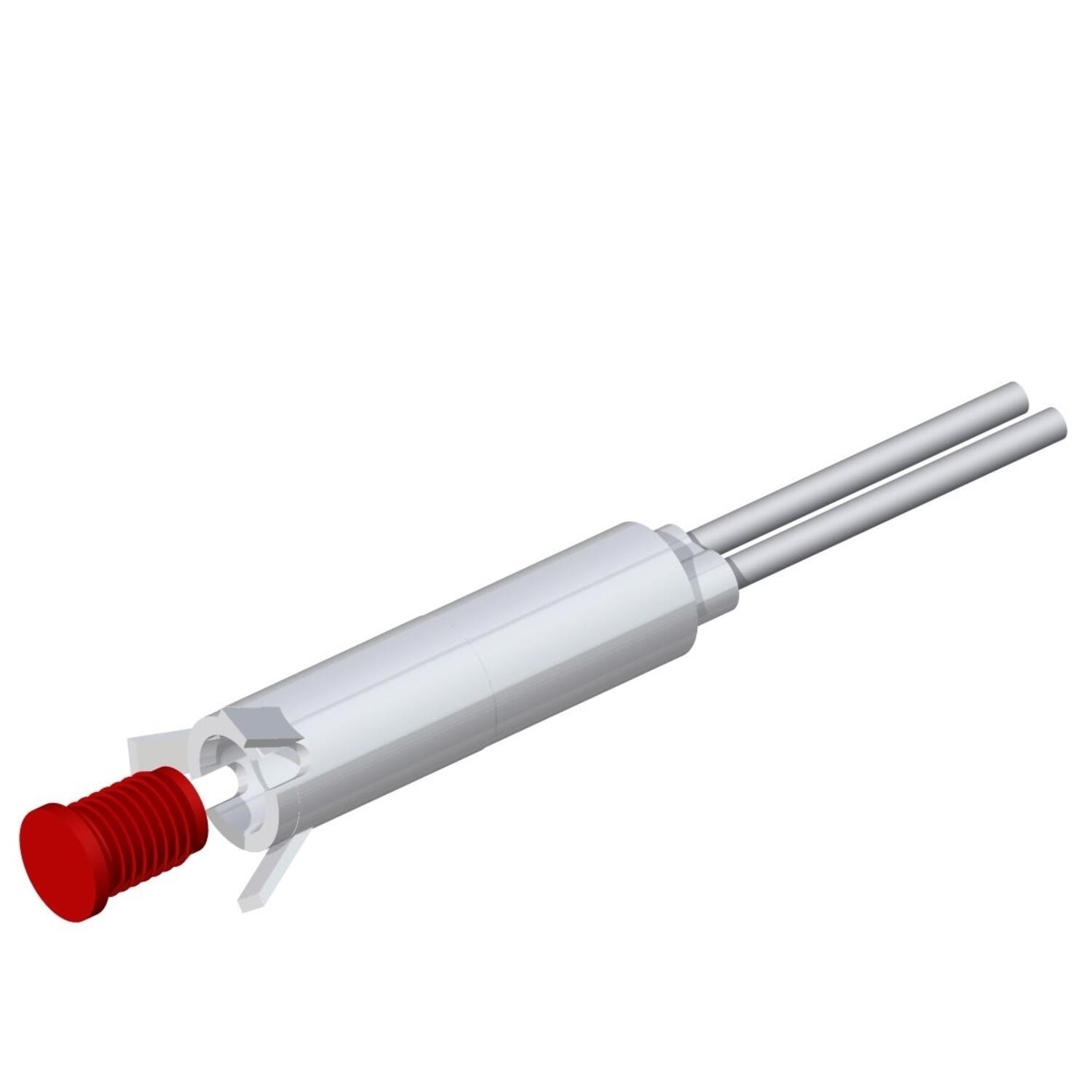

TB/06R/SU marker lamp ⌀6mm Art: TB/06R/SU Copied		Silicone cable, PVC cable, Silicone-glass cable	6 mm	self-locking		Neon/Fluoro, Incadescent, LED	90°C Max • 120°C Max • 150°C Max	2V • 6V • 12V • 24V • 48V • 110V • 250V • 400V	0,5 mm - 2 mm

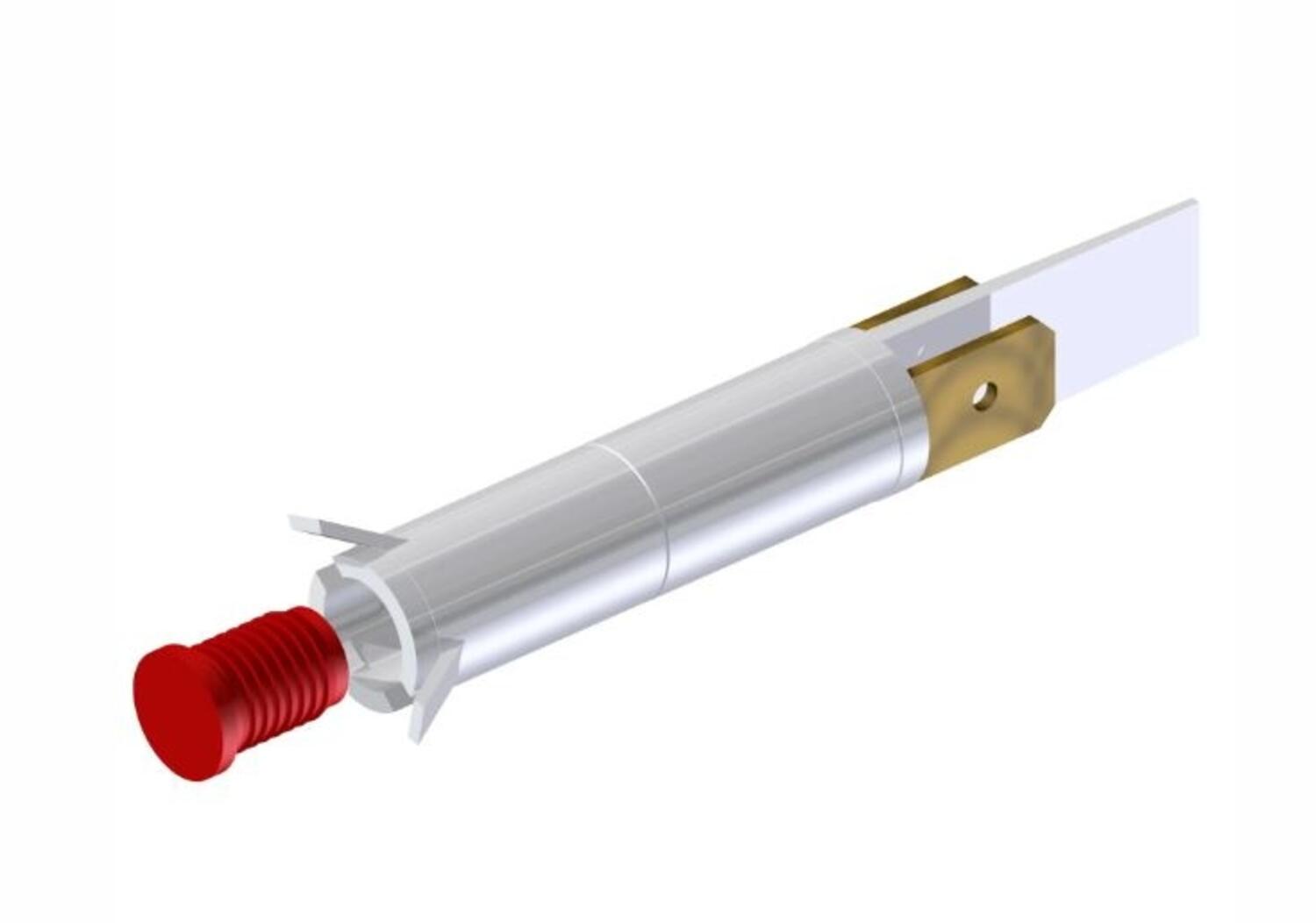

TBF/06R/SU marker lamp ⌀6mm Art: TBF/06R/SU Copied		Male faston 6,3x0,8 mm • Male faston 4,8x0,8 mm	6 mm	self-locking		Neon/Fluoro, Incadescent, LED	120°C Max • 150°C Max	2V • 6V • 12V • 24V • 48V • 110V • 250V • 400V	0,5 mm - 2 mm

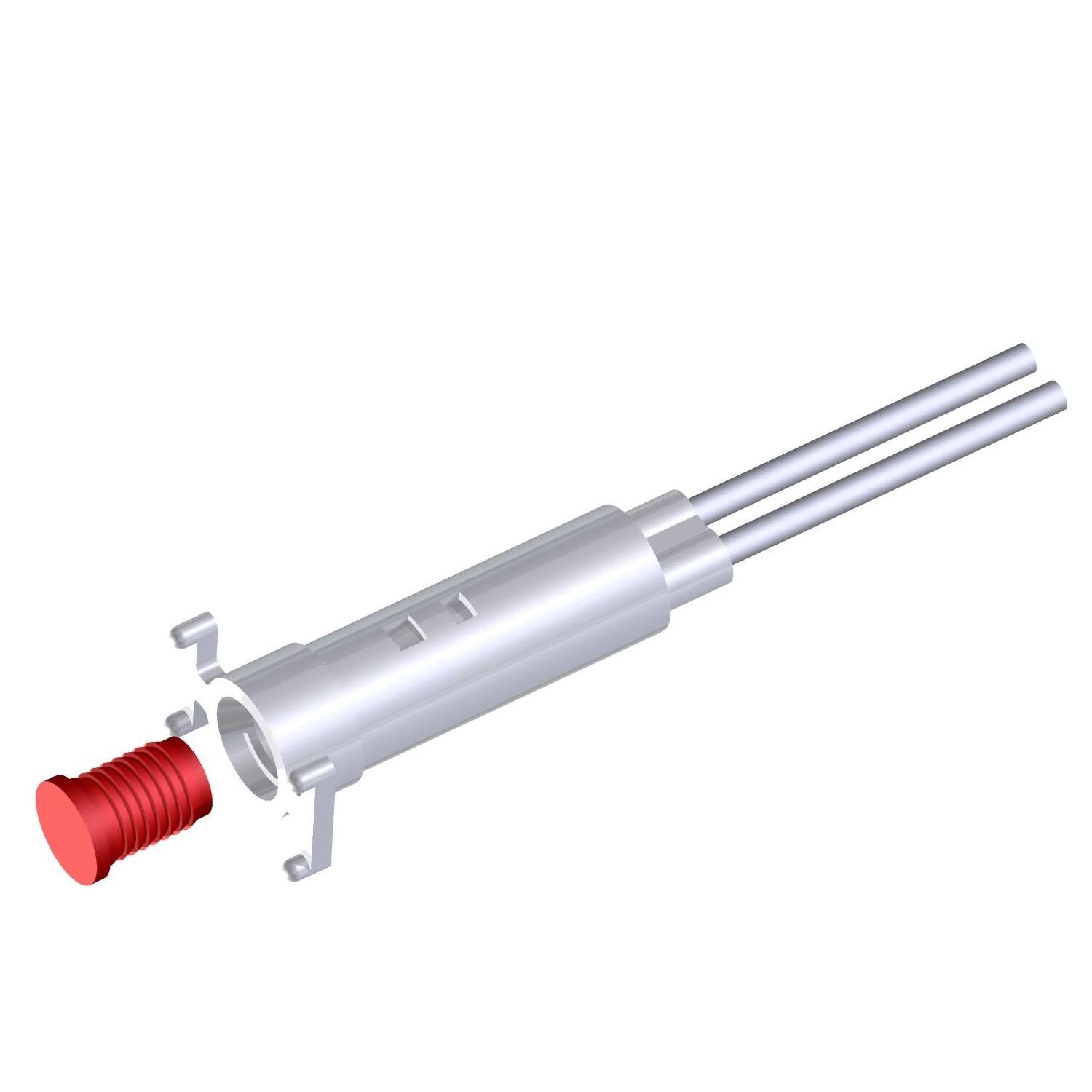

TB/06RN/SU marker lamp ⌀6mm Art: TB/06RN/SU Copied		Silicone cable, PVC cable, Silicone-glass cable	6 mm	self-locking		Neon/Fluoro, Incadescent, LED	90°C Max • 120°C Max • 150°C Max	2V • 6V • 12V • 24V • 48V • 110V • 250V • 400V	0,5 mm - 2 mm

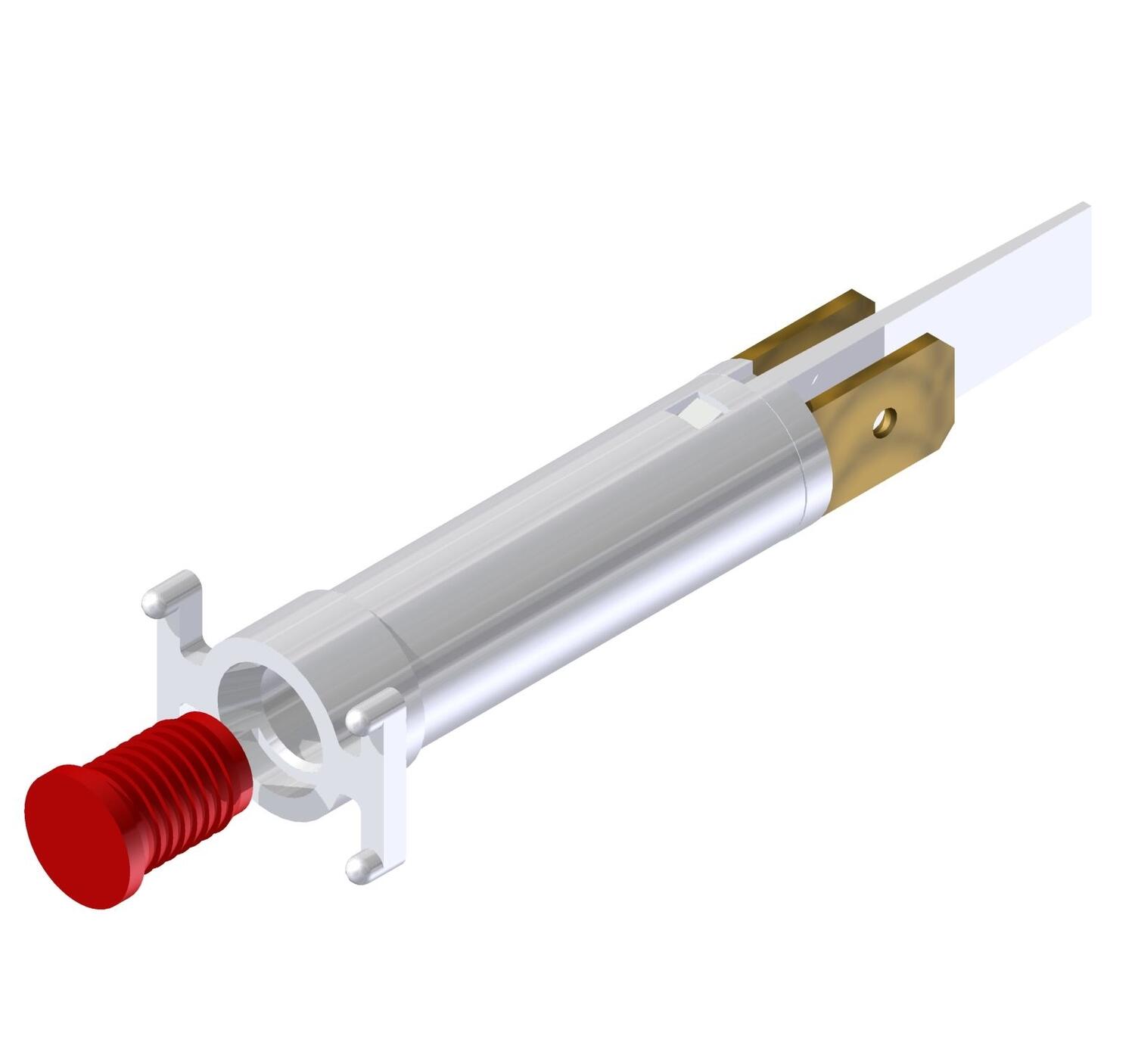

TBF/06RNL/SU marker lamp ⌀6mm Art: TBF/06RNL/SU Copied		Male faston 6,3x0,8 mm • Male faston 4,8x0,8 mm	6 mm	self-locking		Neon/Fluoro, Incadescent, LED	120°C Max • 150°C Max	2V • 6V • 12V • 24V • 48V • 110V • 250V • 400V	0,5 mm - 2 mm

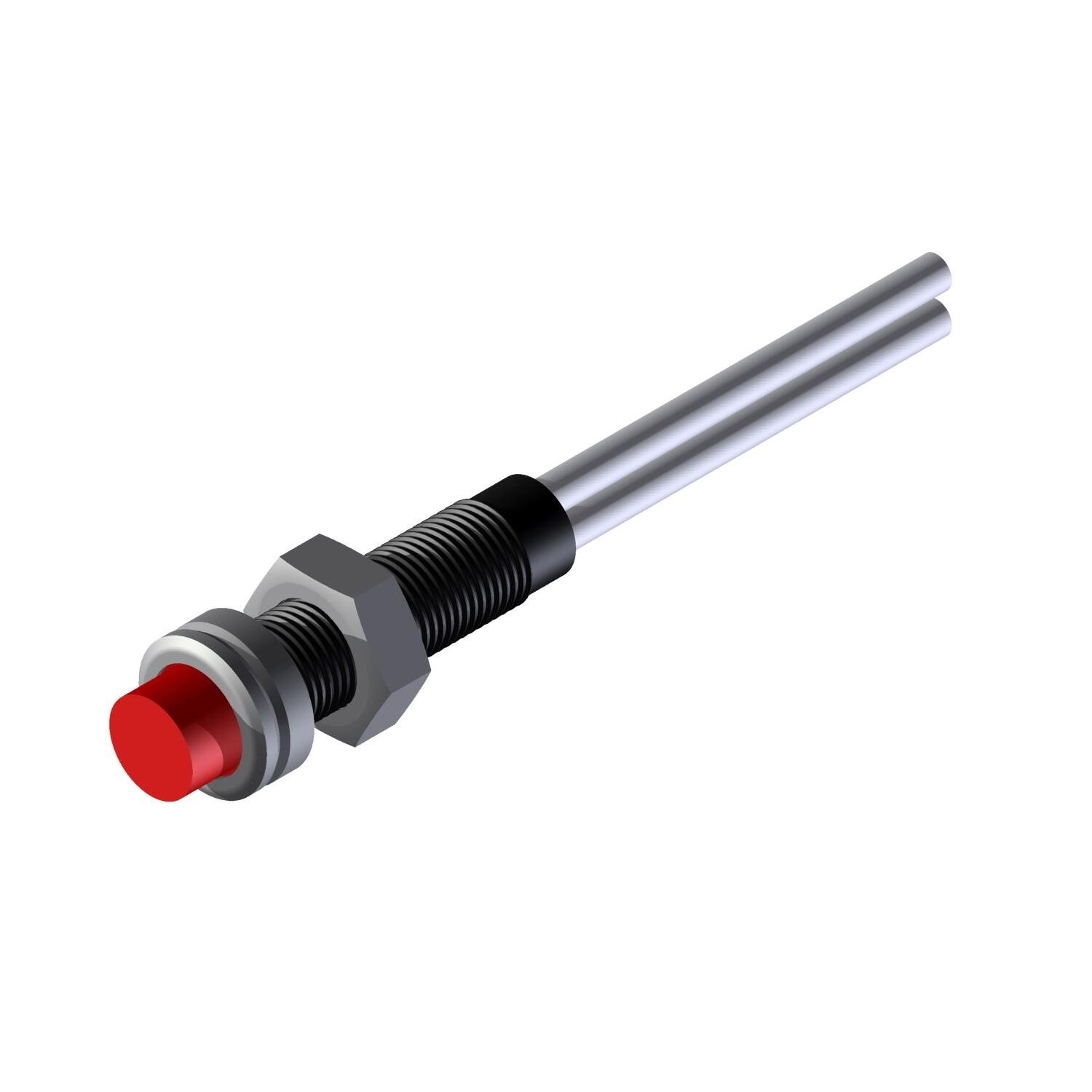

CM/06 marker lamp ⌀6mm Art: CM/06 Copied		Silicone cable, PVC cable, Silicone-glass cable	6 mm	With nut		Neon/Fluoro, Incadescent, LED	90°C Max • 120°C Max • 150°C Max	2V • 6V • 12V • 24V • 48V • 110V • 250V • 400V	0,5 mm - 5 mm

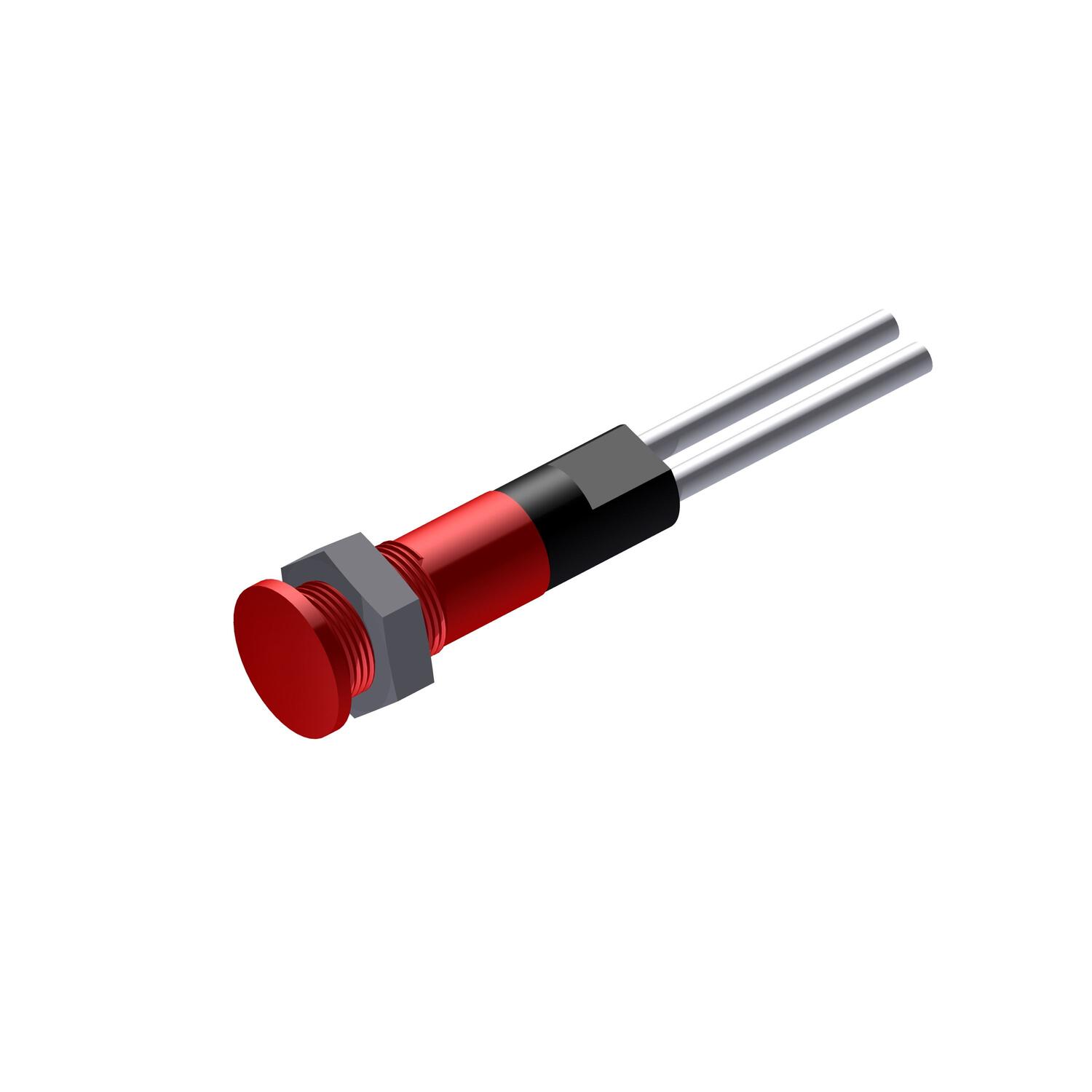

TB/08/SB marker lamp ⌀8mm Art: TB/08/SB Copied		Silicone cable, PVC cable, Silicone-glass cable	8 mm	With nut		Neon/Fluoro, Incadescent, LED	120°C Max • 150°C Max	2V • 6V • 12V • 24V • 48V • 110V • 250V • 400V	0,5 mm - 2 mm

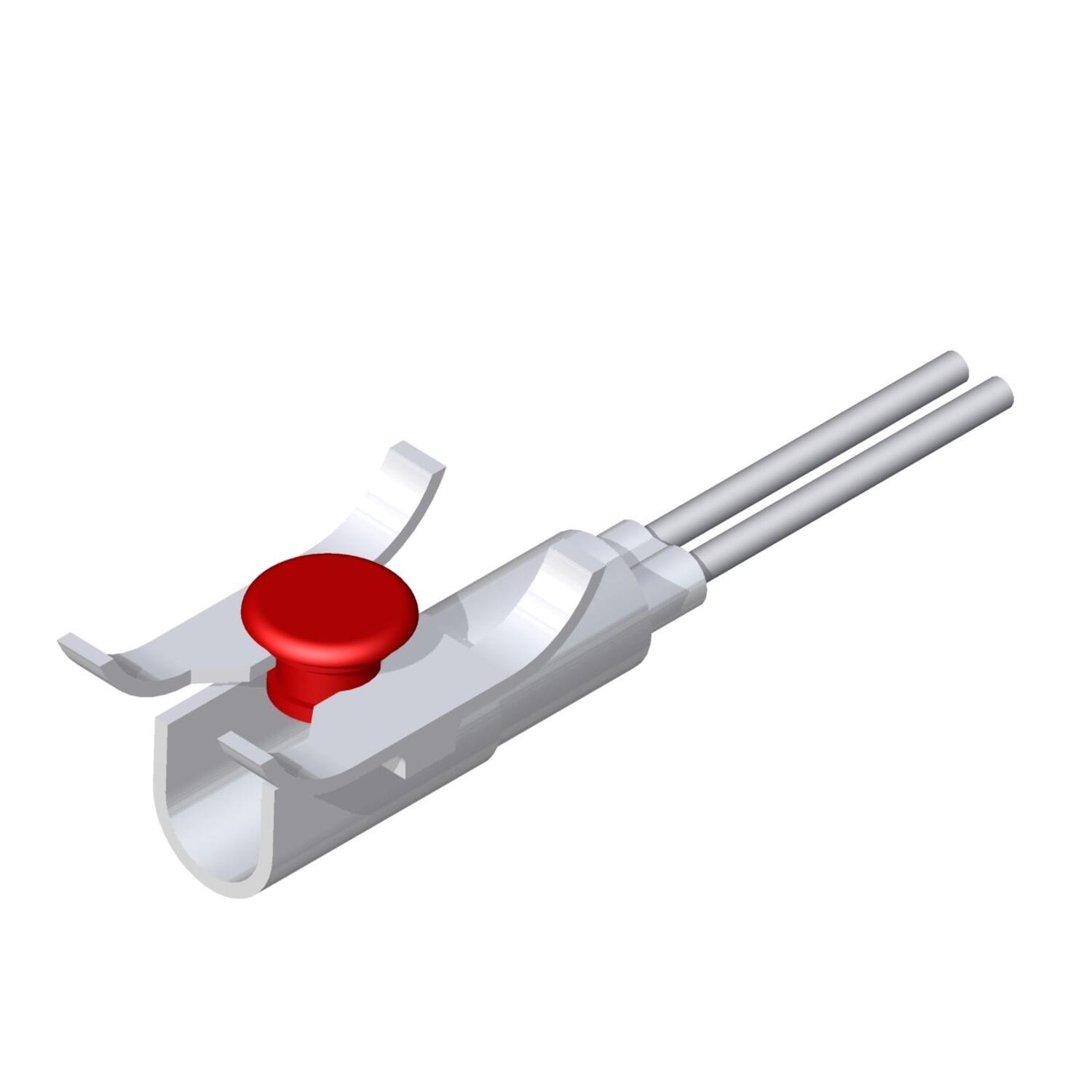

TB/RL Indicator lamp ⌀8mm Art: TB/RL Copied		Silicone cable, PVC cable, Silicone-glass cable	8 mm	self-locking		Neon/Fluoro, Incadescent, LED	90°C Max • 120°C Max • 150°C Max	2V • 6V • 12V • 24V • 48V • 110V • 250V • 400V	0,5 mm - 2 mm

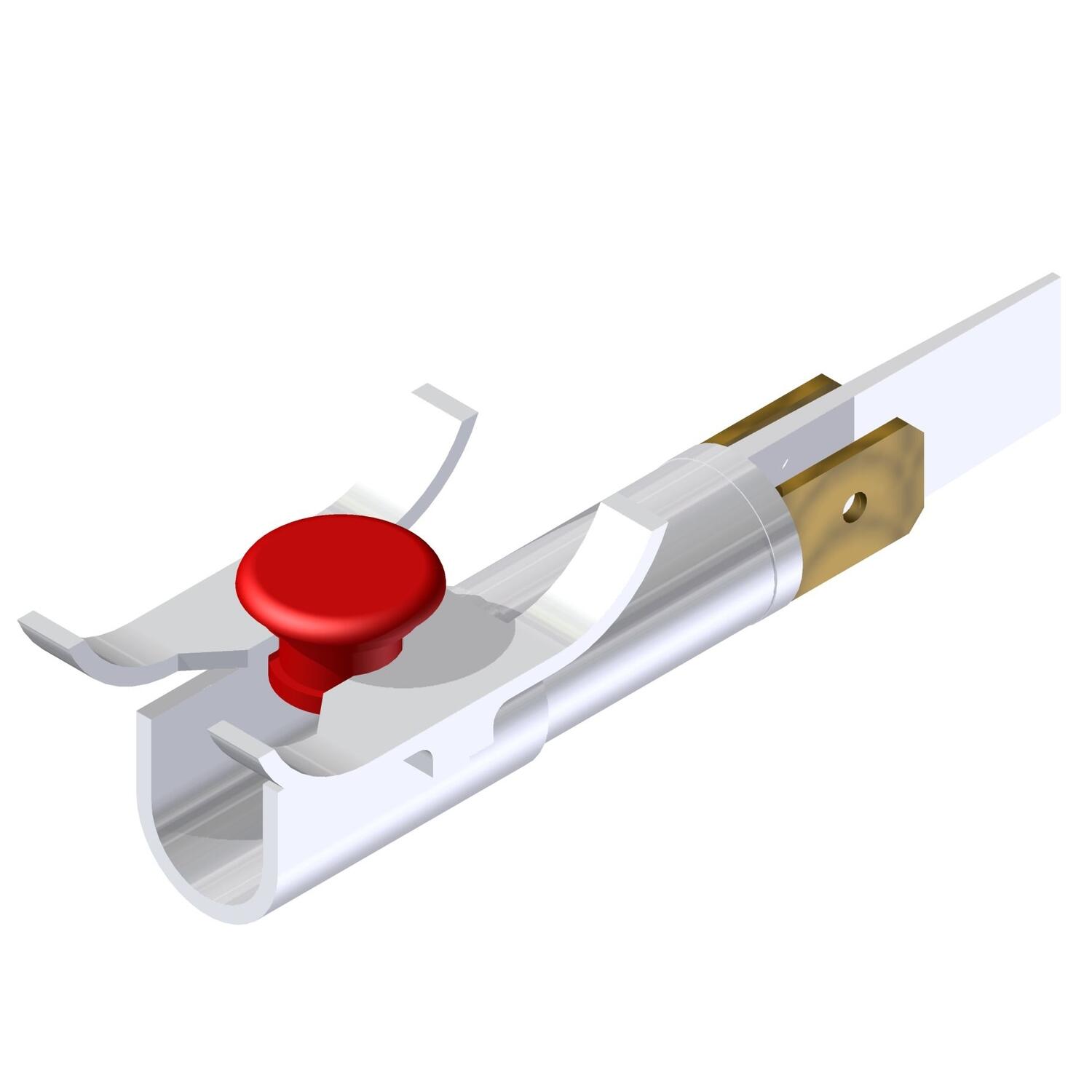

TBF/RL marker lamp ⌀8mm Art: TBF/RL Copied		Male faston 6,3x0,8 mm • Male faston 4,8x0,8 mm	8 mm	self-locking		Neon/Fluoro, Incadescent, LED	120°C Max • 150°C Max	2V • 6V • 12V • 24V • 48V • 110V • 250V • 400V	0,5 mm - 2 mm

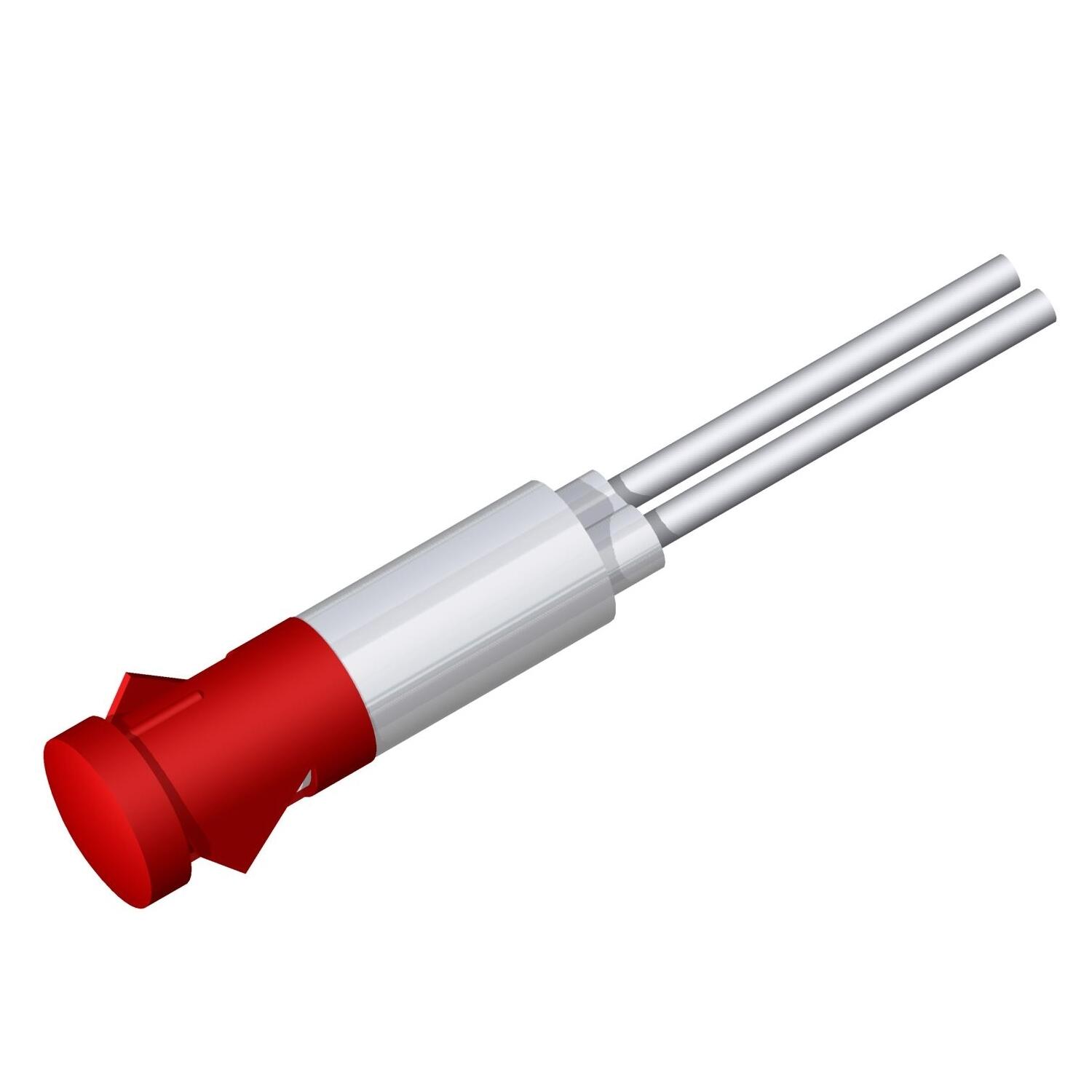

TB/09/SA marker lamp ⌀9mm Art: TB/09/SA Copied		Silicone cable, PVC cable, Silicone-glass cable	9 mm	self-locking		Neon/Fluoro, Incadescent, LED	90°C Max • 120°C Max • 150°C Max	2V • 6V • 12V • 24V • 48V • 110V • 250V • 400V	0,8 mm - 2 mm

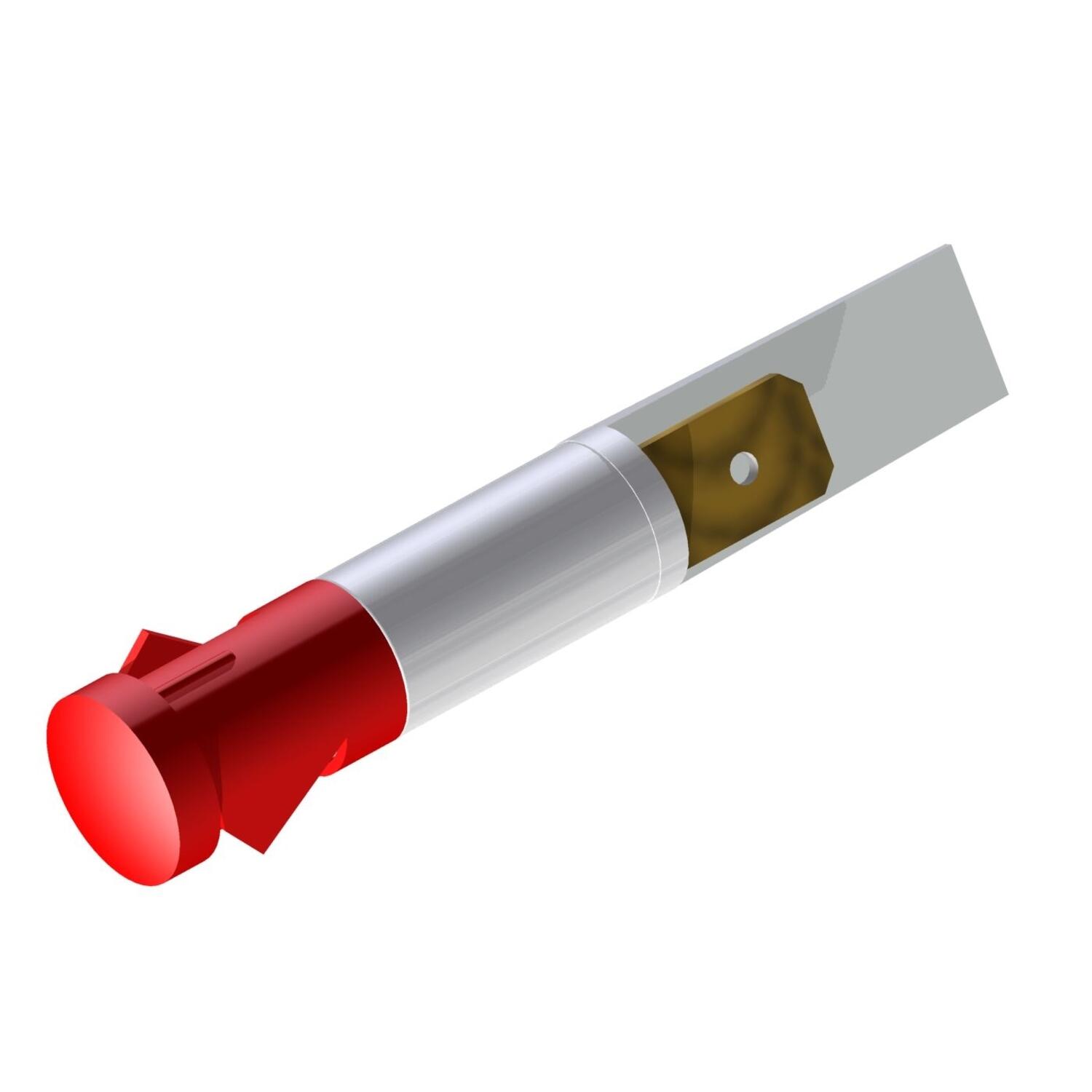

TBF/09/SA marker lamp ⌀9mm Art: TBF/09/SA Copied		Male faston 6,3x0,8 mm • Male faston 4,8x0,8 mm	9 mm	self-locking		Neon/Fluoro, Incadescent, LED	120°C max • 150°C Max	2V • 6V • 12V • 24V • 48V • 110V • 250V • 400V	0,8 mm - 2 mm

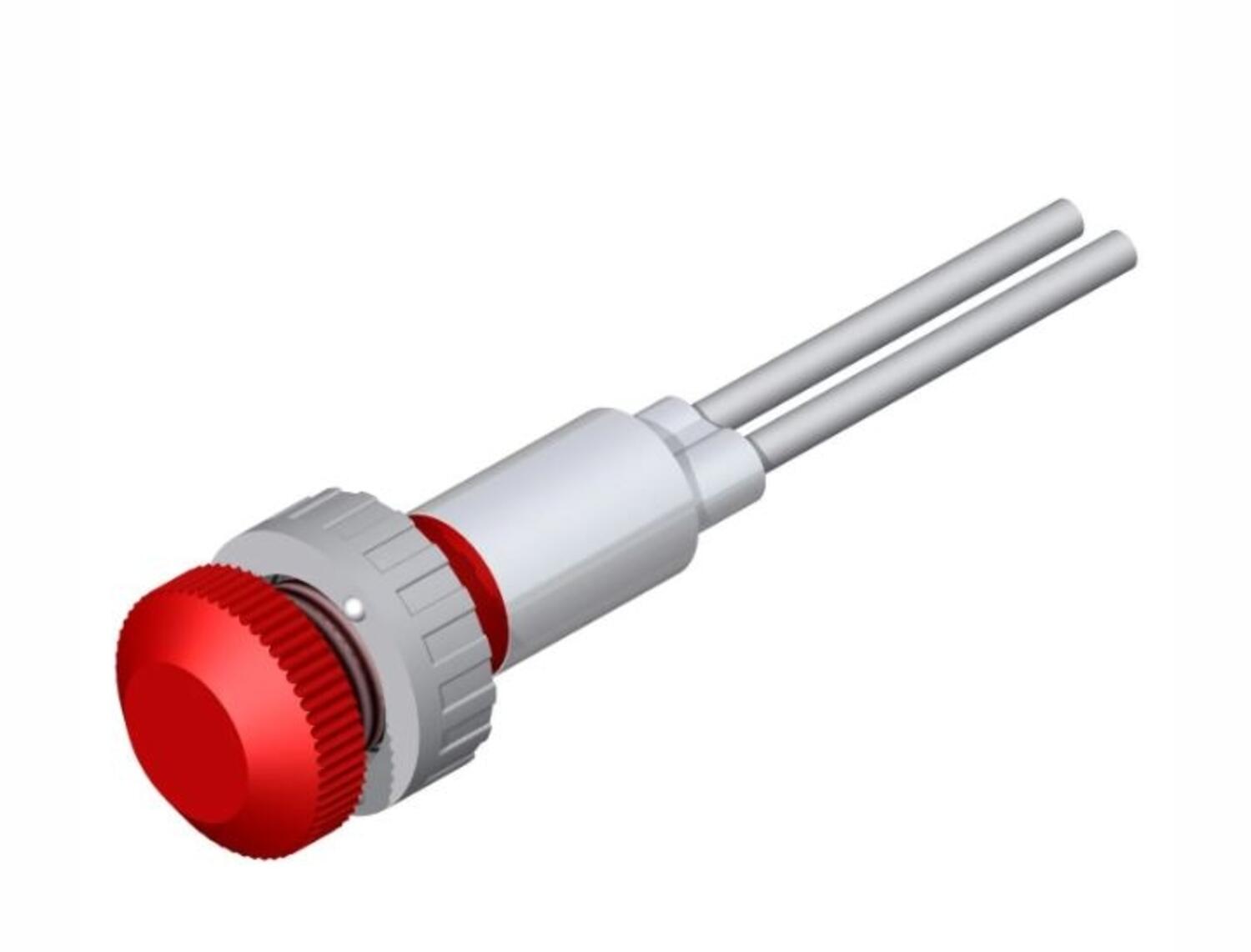

TB/010/SC marker lamp ⌀10mm Art: TB/010/SC Copied		Silicone cable, PVC cable, Silicone-glass cable	10 mm	With nut		Neon/Fluoro, Incadescent, LED	90°C Max • 120°C Max • 150°C Max	2V • 6V • 12V • 24V • 48V • 110V • 250V • 400V	0,5 mm - 5 mm
TBF/010/SC marker lamp ⌀10mm Art: TBF/010/SC Copied		Male faston 6,3x0,8 mm • Male faston 4,8x0,8 mm	10 mm	With nut		Neon/Fluoro, Incadescent, LED	120°C Max • 150°C Max	2V • 6V • 12V • 24V • 48V • 110V • 250V • 400V	0,5 mm - 5 mm

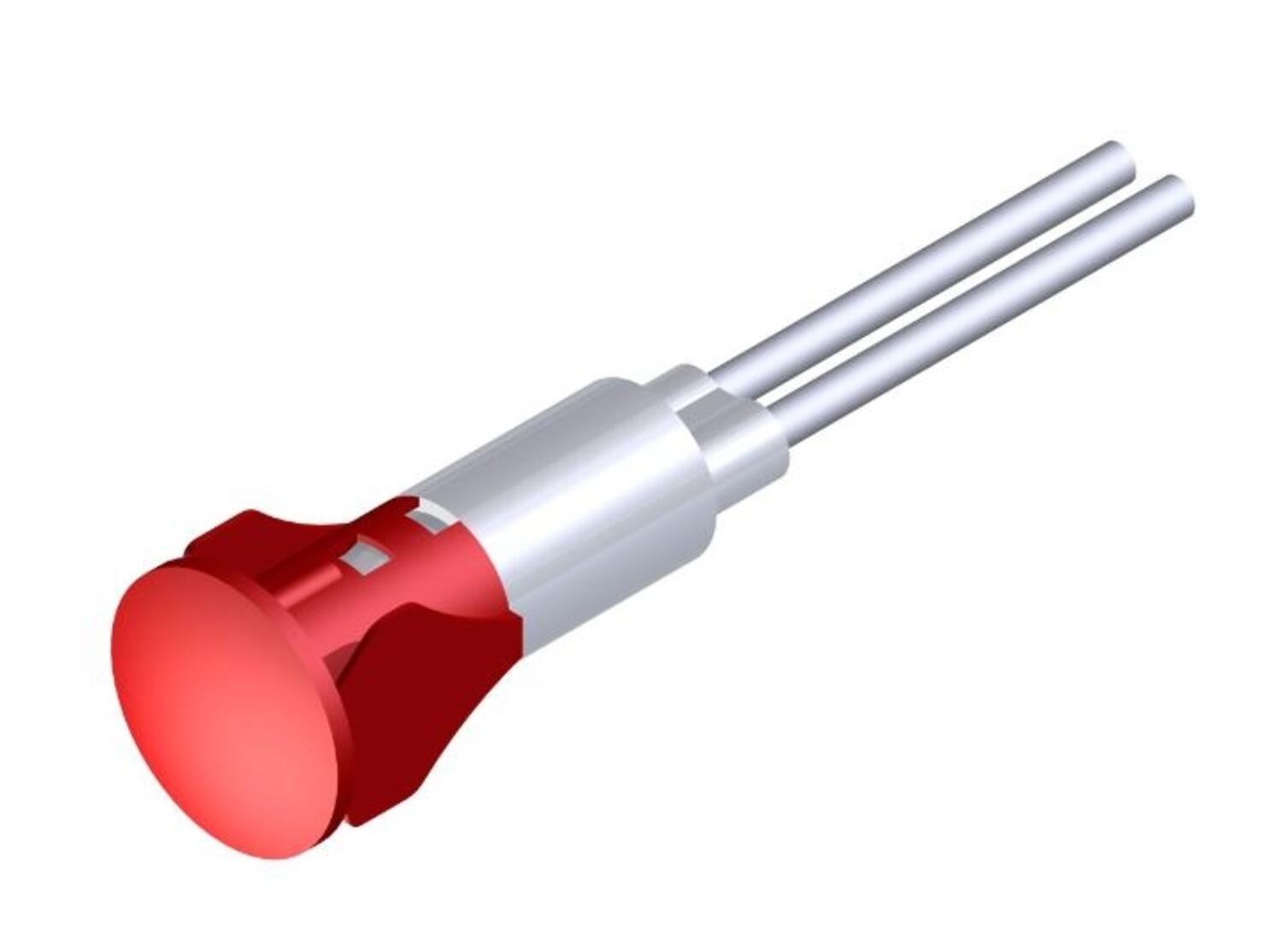

TB/010/SR marker lamp ⌀10mm Art: TB/010/SR Copied		Silicone cable, PVC cable, Silicone-glass cable	10 mm	self-locking		Neon/Fluoro, Incadescent, LED	90°C Max • 120°C Max • 150°C Max	2V • 6V • 12V • 24V • 48V • 110V • 250V • 400V	0,5 mm - 2,5 mm

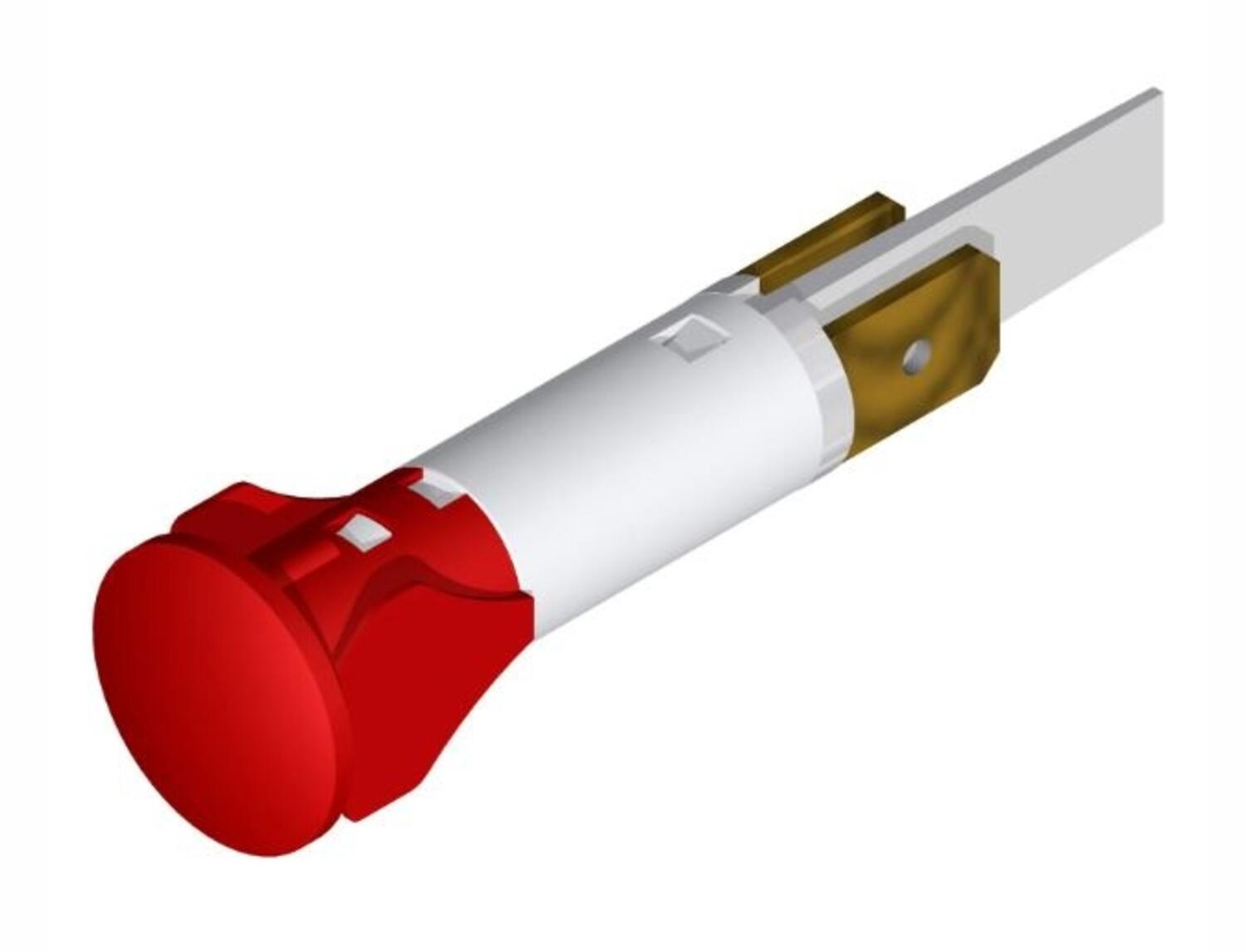

TBF/010/SR marker lamp ⌀10mm Art: TBF/010/SR Copied		Male faston 6,3x0,8 mm • Male faston 4,8x0,8 mm	10 mm	With nut		Neon/Fluoro, Incadescent, LED	120°C Max • 150°C Max	2V • 6V • 12V • 24V • 48V • 110V • 250V • 400V	0,5 mm - 2,5 mm

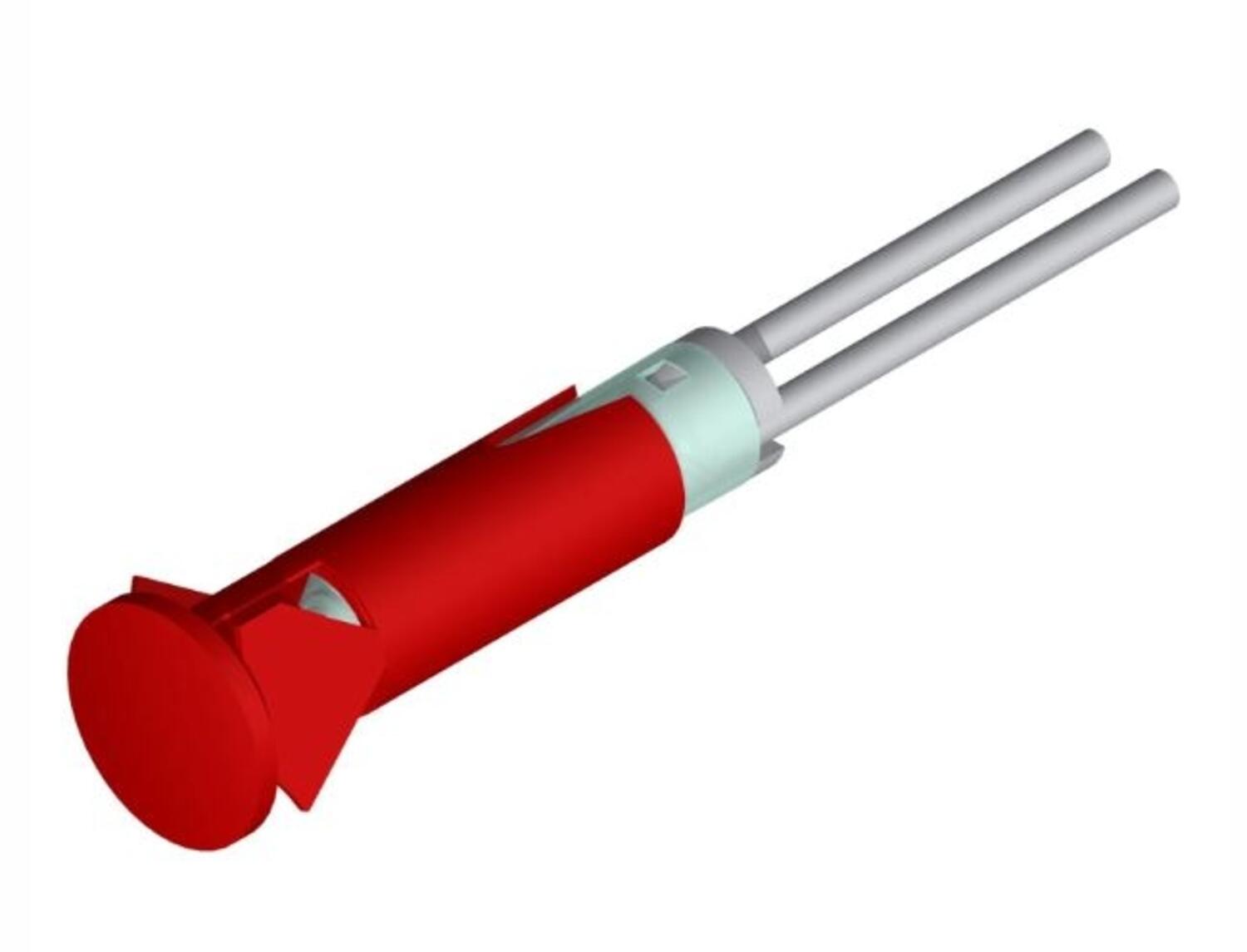

TB/SLTS/SRZ marker lamp ⌀10mm Art: TB/SLTS/SRZ Copied		Silicone cable, PVC cable, Silicone-glass cable	10 mm	self-locking		Neon/Fluoro, Incadescent, LED	90°C Max • 120°C Max • 150°C Max	2V • 6V • 12V • 24V • 48V • 110V • 250V • 400V	0,6 mm - 2 mm

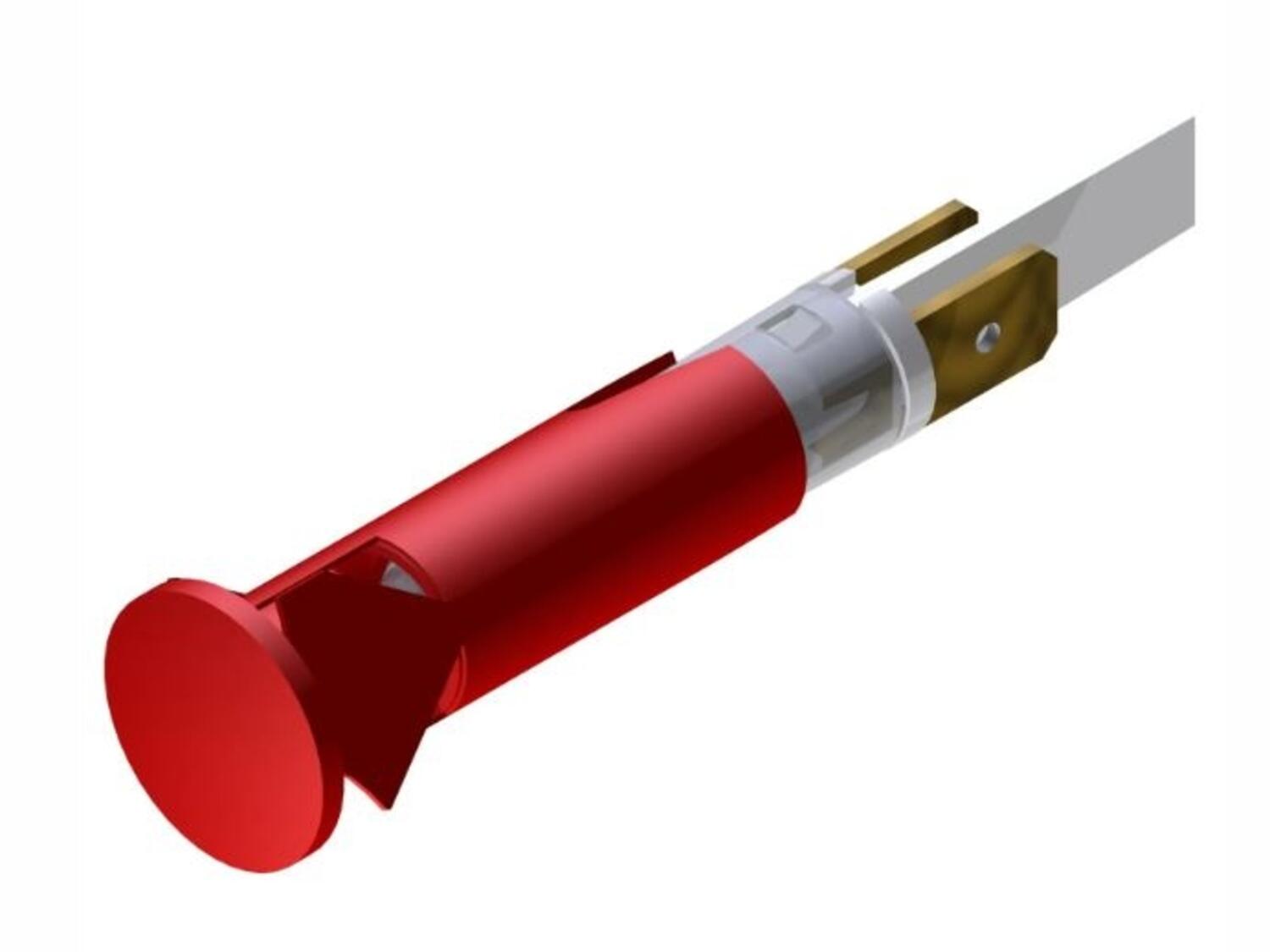

TBF/SLTS/SRZ marker lamp ⌀10mm Art: TBF/SLTS/SRZ Copied		Male faston 6,3x0,8 mm • Male faston 4,8x0,8 mm	10 mm	self-locking		Neon/Fluoro, Incadescent, LED	120°C Max • 150°C Max	2V • 6V • 12V • 24V • 48V • 110V • 250V • 400V	0,6 mm - 2 mm

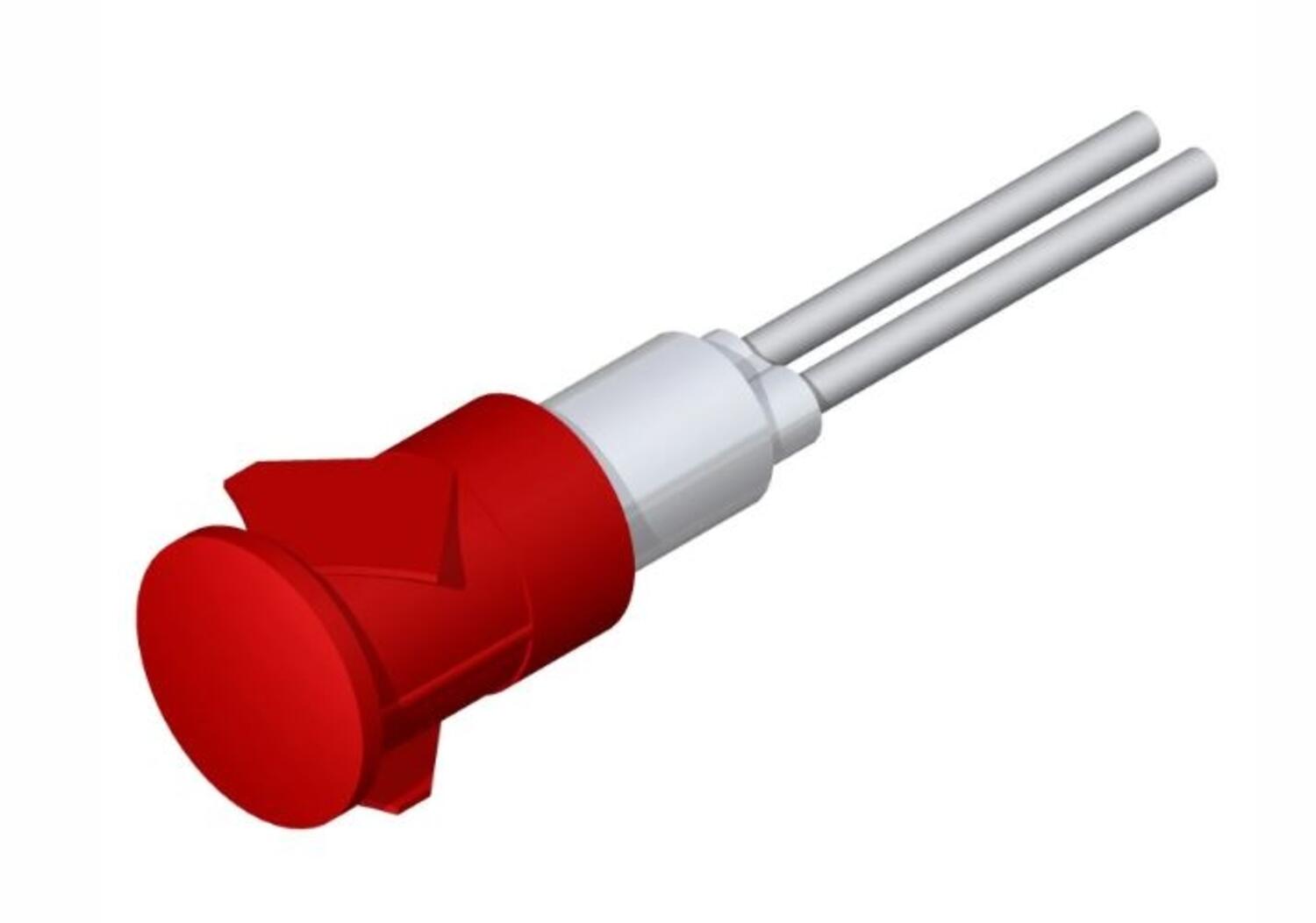

TB/012/SD marker lamp ⌀12mm Art: TB/012/SD Copied		Silicone cable, PVC cable, Silicone-glass cable	12 mm	self-locking		Neon/Fluoro, Incadescent, LED	90°C Max • 120°C Max • 150°C Max	2V • 6V • 12V • 24V • 48V • 110V • 250V • 400V	0,5 mm - 2,5 mm

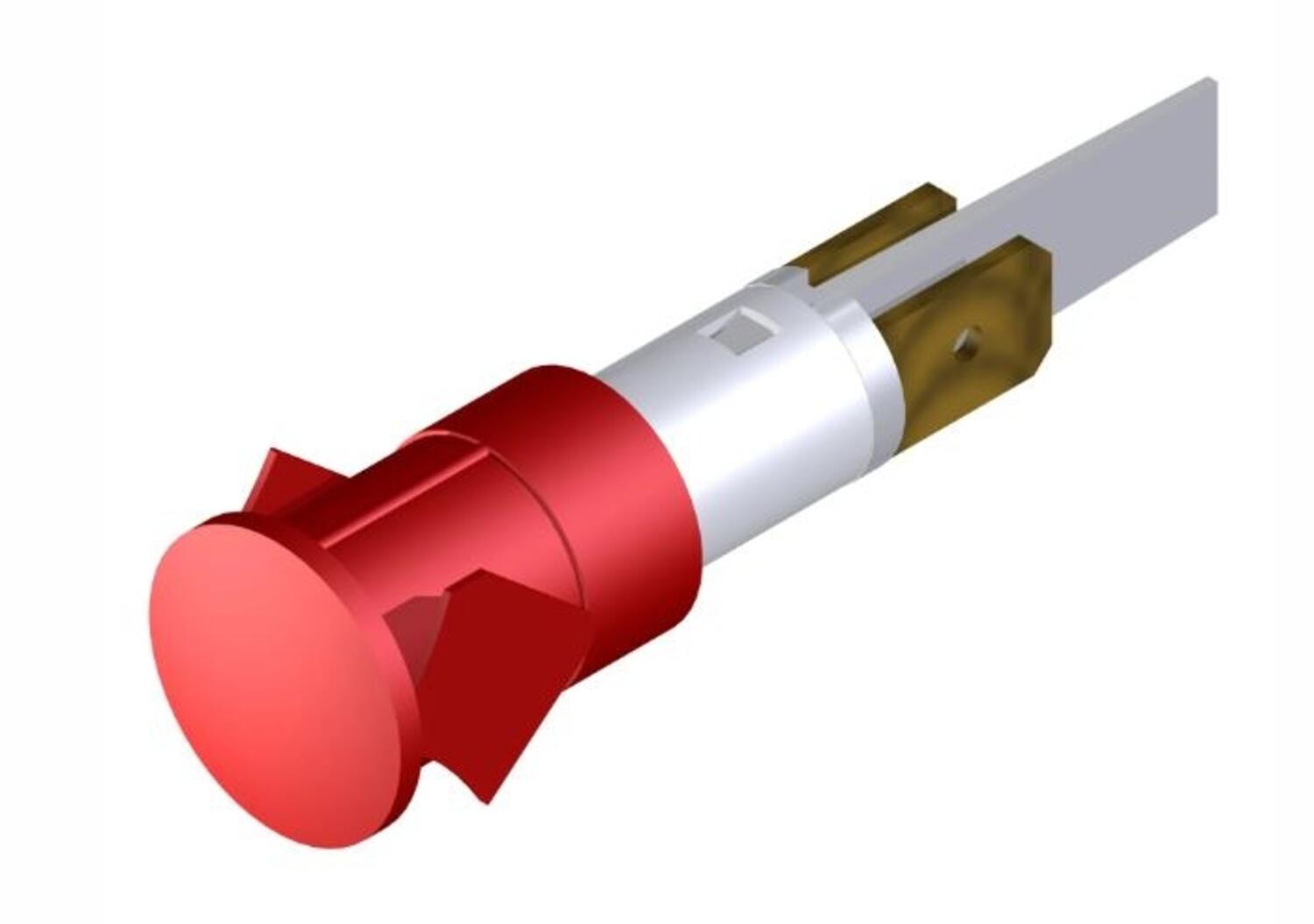

TBF/012/SD marker lamp ⌀12mm Art: TBF/012/SD Copied		Male faston 6,3x0,8 mm • Male faston 4,8x0,8 mm	12 mm	self-locking		Neon/Fluoro, Incadescent, LED	120°C Max • 150°C Max	2V • 6V • 12V • 24V • 48V • 110V • 250V • 400V	0,5 mm - 2,5 mm
TB/012/SDK marker lamp ⌀12mm Art: TB/012/SDK Copied		Silicone cable, PVC cable, Silicone-glass cable	12 mm	With nut		Neon/Fluoro, Incadescent, LED	90°C Max • 120°C Max • 150°C Max	2V • 6V • 12V • 24V • 48V • 110V • 250V • 400V	0,5 mm - 5 mm
TBF/012/SDK marker lamp ⌀12mm Art: TBF/012/SDK Copied		Male faston 6,3x0,8 mm • Male faston 4,8x0,8 mm	12 mm	With nut		Neon/Fluoro, Incadescent, LED	120°C Max • 150°C Max	2V • 6V • 12V • 24V • 48V • 110V • 250V • 400V	0,5 mm - 5 mm

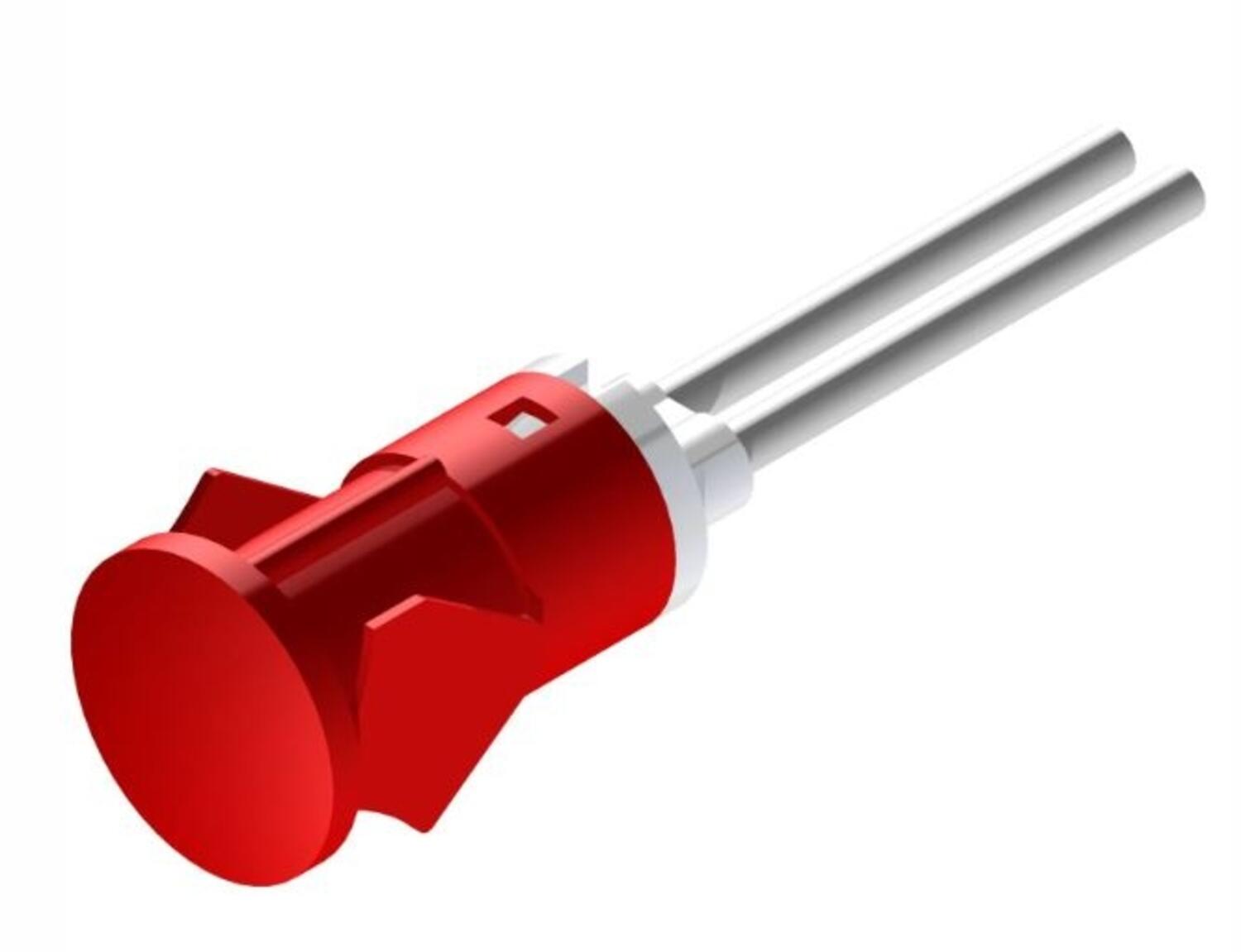

TB/012/SDY marker lamp ⌀12mm Art: TB/012/SDY Copied		Silicone cable, PVC cable, Silicone-glass cable	12 mm	self-locking		Neon/Fluoro, Incadescent, LED	90°C Max • 120°C Max • 150°C Max	2V • 6V • 12V • 24V • 48V • 110V • 250V • 400V	0,8 mm - 2 mm

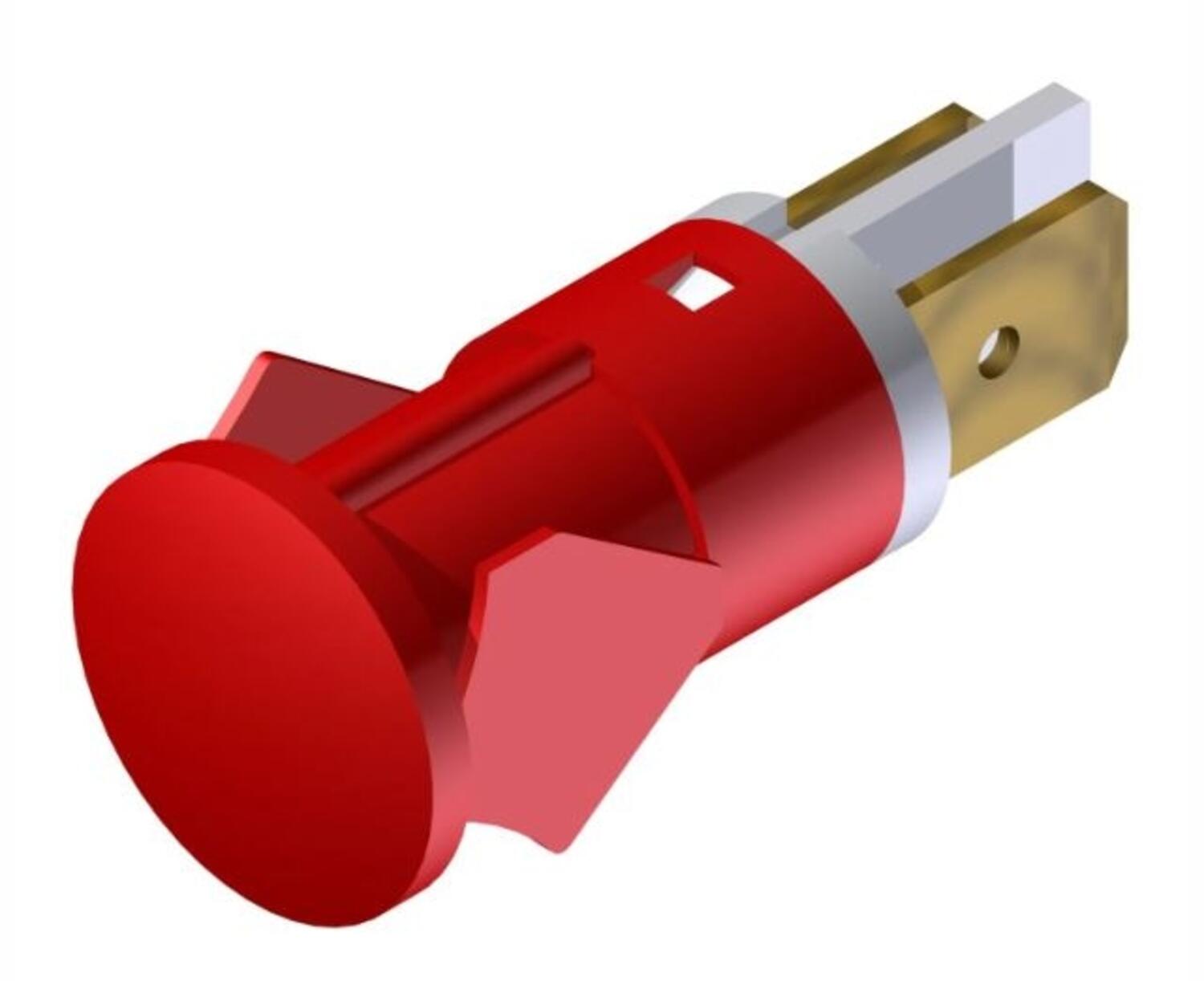

TBF/012/SDY marker lamp ⌀12mm Art: TBF/012/SDY Copied		Male faston 6,3x0,8 mm • Male faston 4,8x0,8 mm	12 mm	self-locking		Neon/Fluoro, Incadescent, LED	120°C Max • 150°C Max	2V • 6V • 12V • 24V • 48V • 110V • 250V • 400V	0,8 mm - 2 mm

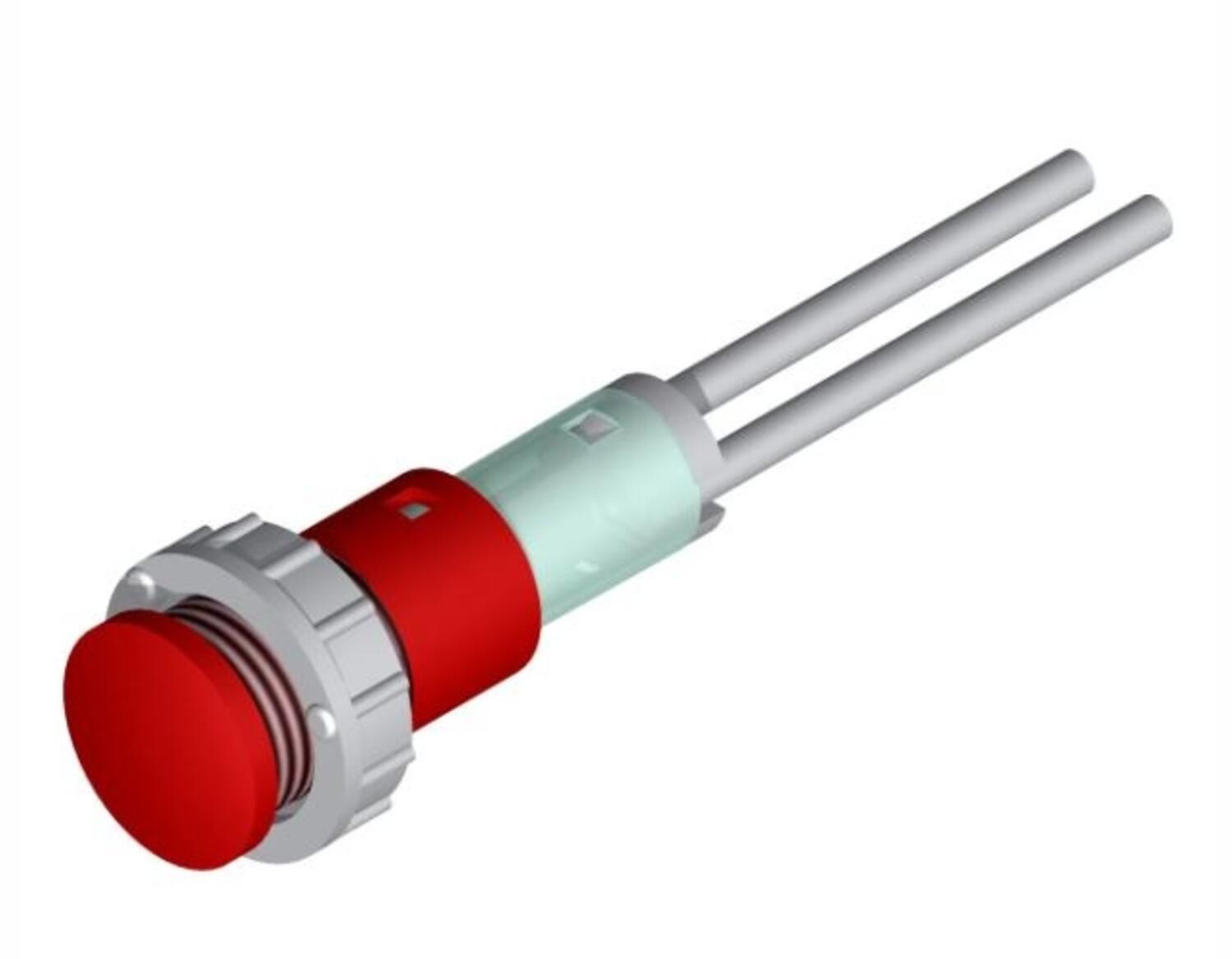

TB/SLTS/SDK marker lamp ⌀12mm Art: TB/SLTS/SDK Copied		Silicone cable, PVC cable, Silicone-glass cable	12 mm	With nut		Neon/Fluoro, Incadescent, LED	90°C Max • 120°C Max • 150°C Max	2V • 6V • 12V • 24V • 48V • 110V • 250V • 400V	0,5 mm - 5 mm

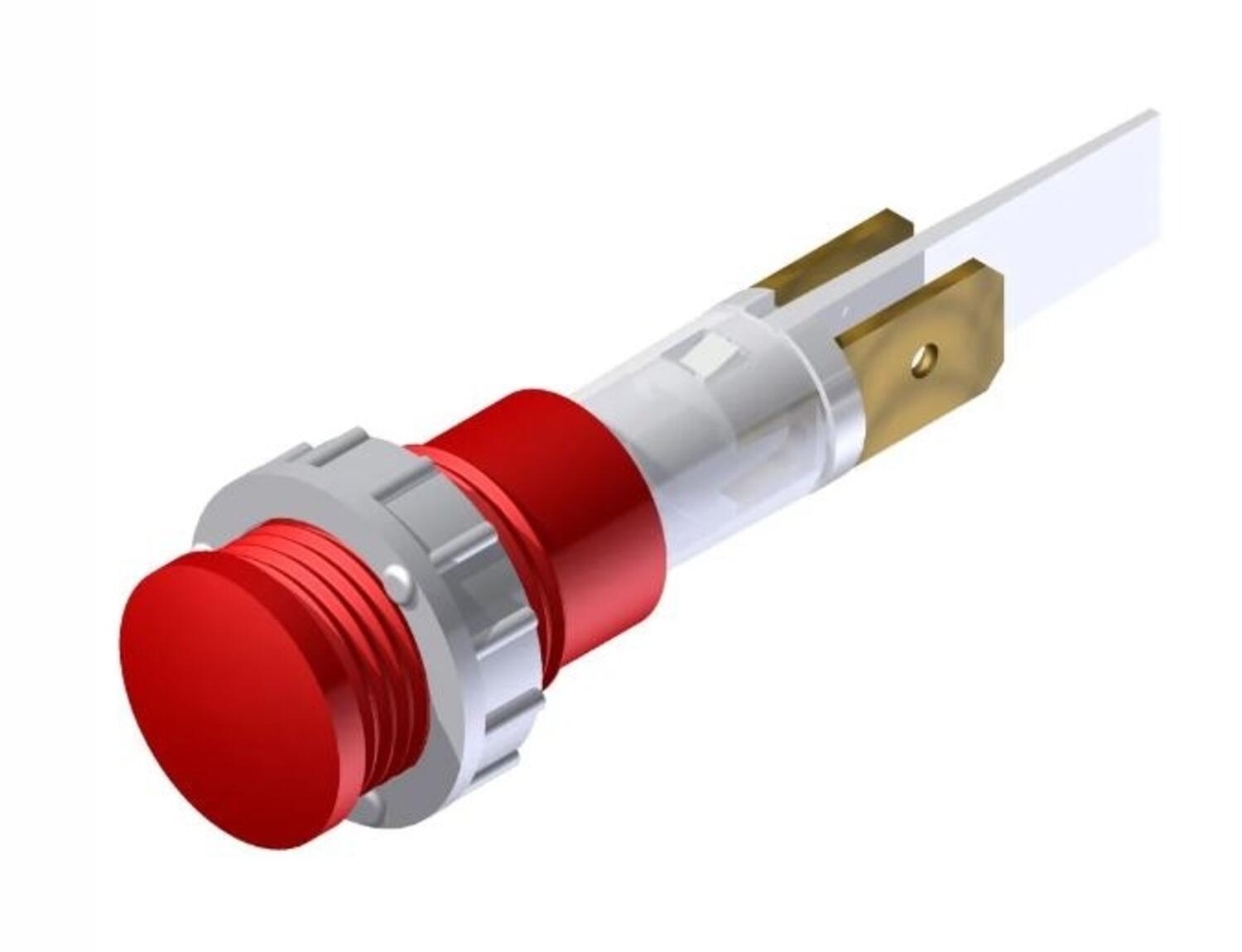

TBF/SLTS/SDK marker lamp ⌀12mm Art: TBF/SLTS/SDK Copied		Male faston 6,3x0,8 mm • Male faston 4,8x0,8 mm	12 mm	With nut		Neon/Fluoro, Incadescent, LED	120°C Max • 150°C Max	2V • 6V • 12V • 24V • 48V • 110V • 250V • 400V	0,5 mm - 5 mm

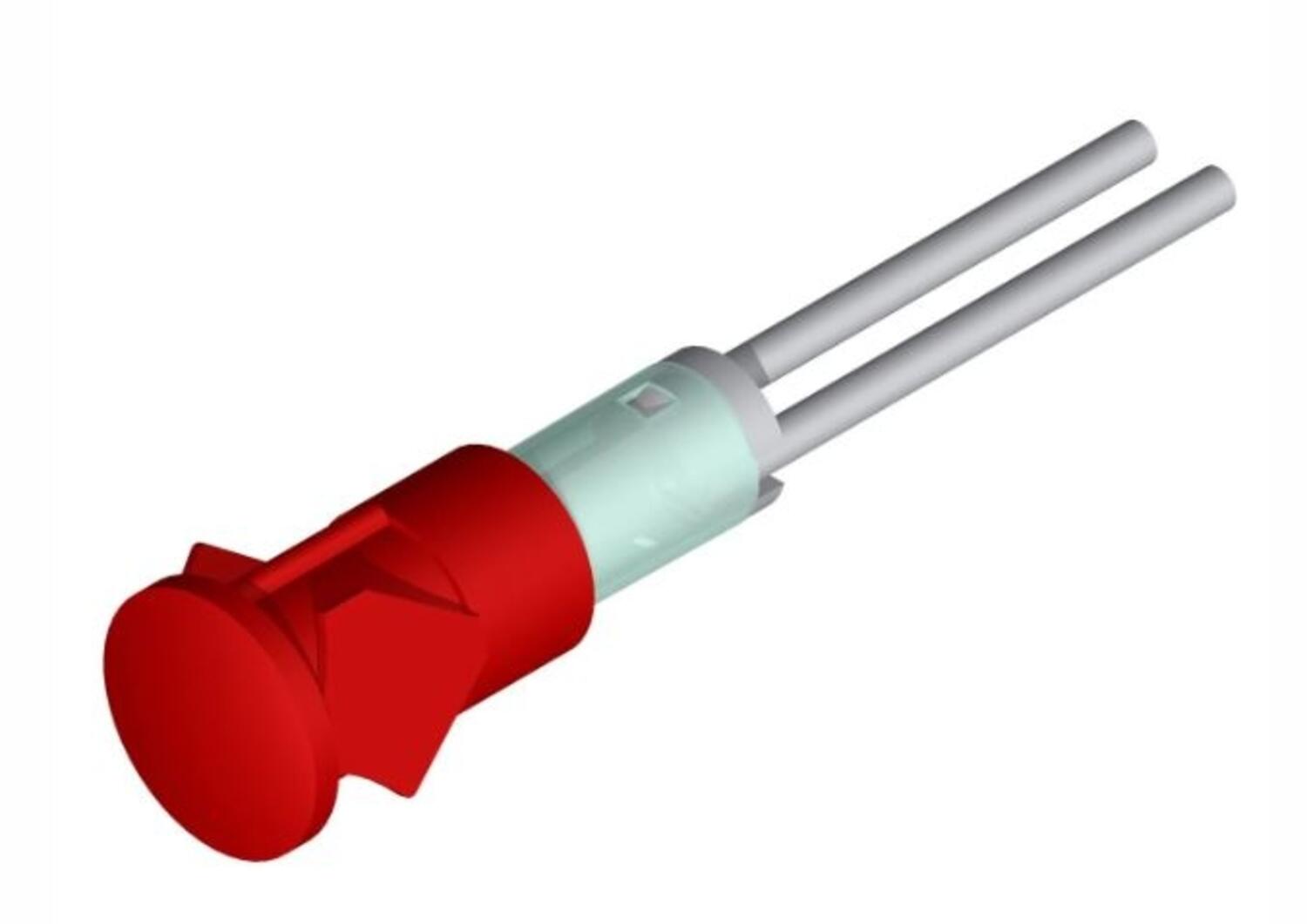

TB/SLTS/SDY marker lamp ⌀12mm Art: TB/SLTS/SDY Copied		Silicone cable, PVC cable, Silicone-glass cable	12 mm	self-locking		Neon/Fluoro, Incadescent, LED	90°C Max • 120°C Max • 150°C Max	2V • 6V • 12V • 24V • 48V • 110V • 250V • 400V	0,8 mm - 2 mm

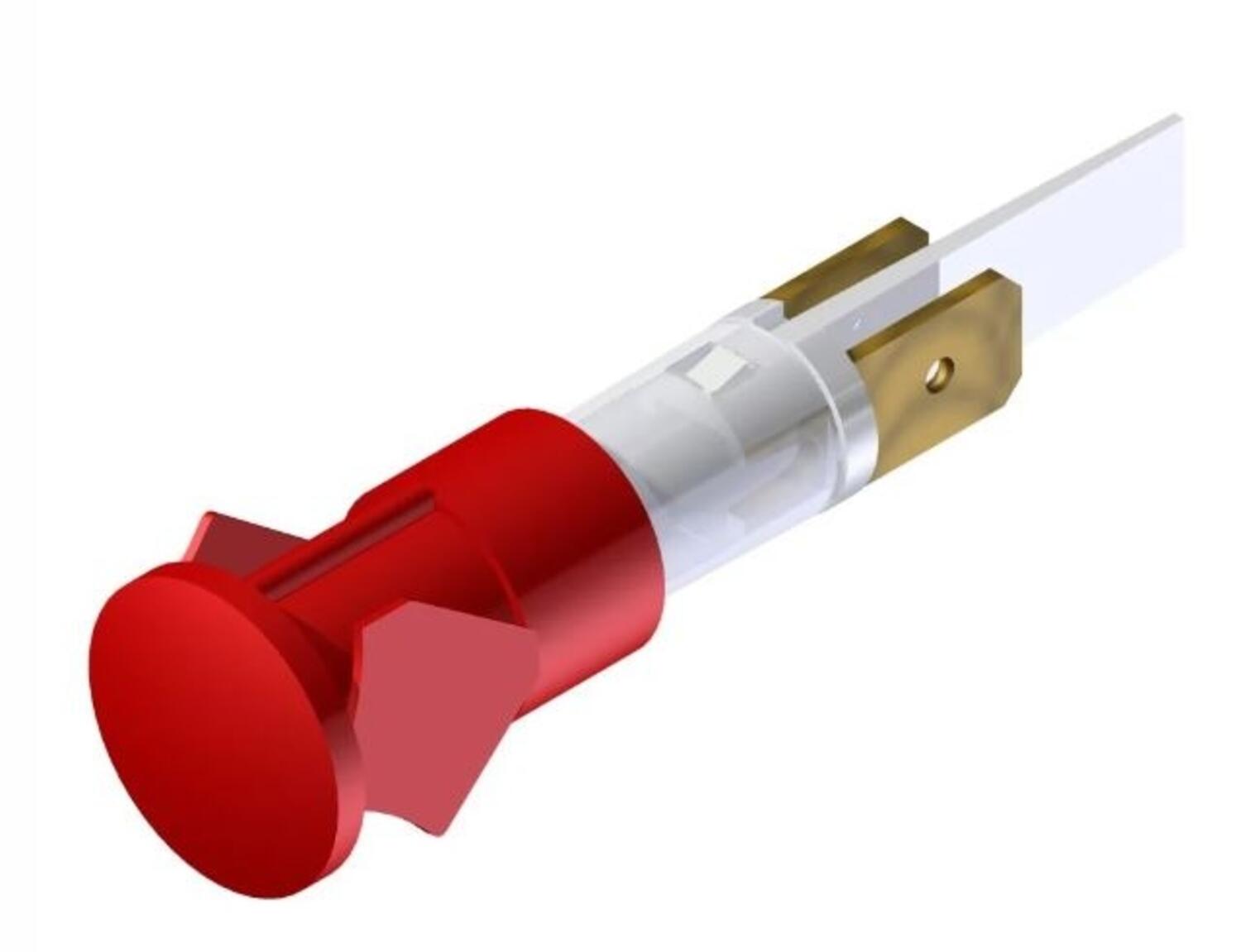

TBF/SLTS/SDY marker lamp ⌀12mm Art: TBF/SLTS/SDY Copied		Male faston 6,3x0,8 mm • Male faston 4,8x0,8 mm	12 mm	self-locking		Neon/Fluoro, Incadescent, LED	120°C Max • 150°C Max	2V • 6V • 12V • 24V • 48V • 110V • 250V • 400V	0,8 mm - 2 mm

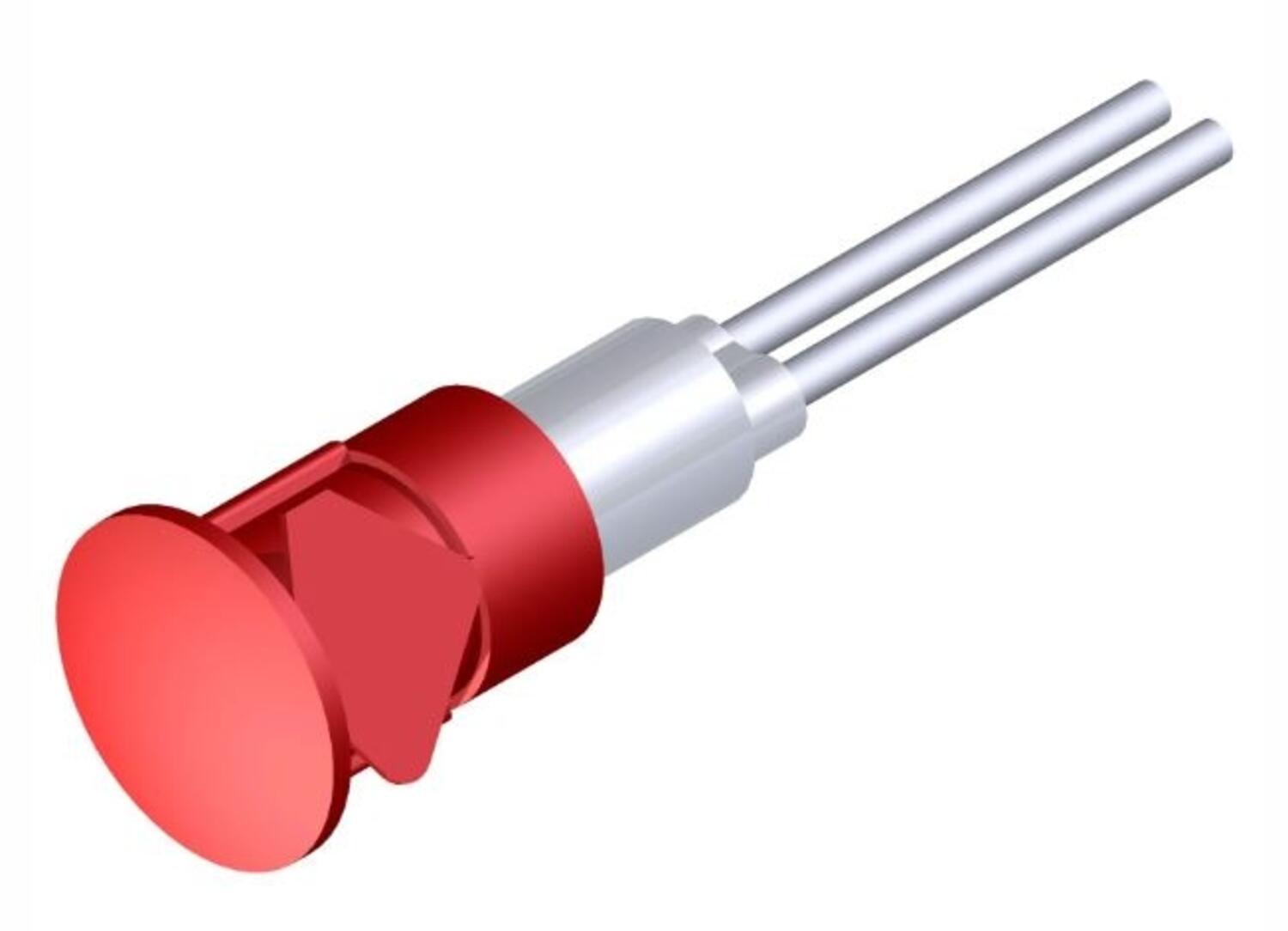

TB/013/SF marker lamp ⌀13mm Art: TB/013/SF Copied		Silicone cable, PVC cable, Silicone-glass cable	13 mm	self-locking		Neon/Fluoro, Incadescent, LED	90°C Max • 120°C Max • 150°C Max	2V • 6V • 12V • 24V • 48V • 110V • 250V • 400V	0,5 mm - 2,5 mm

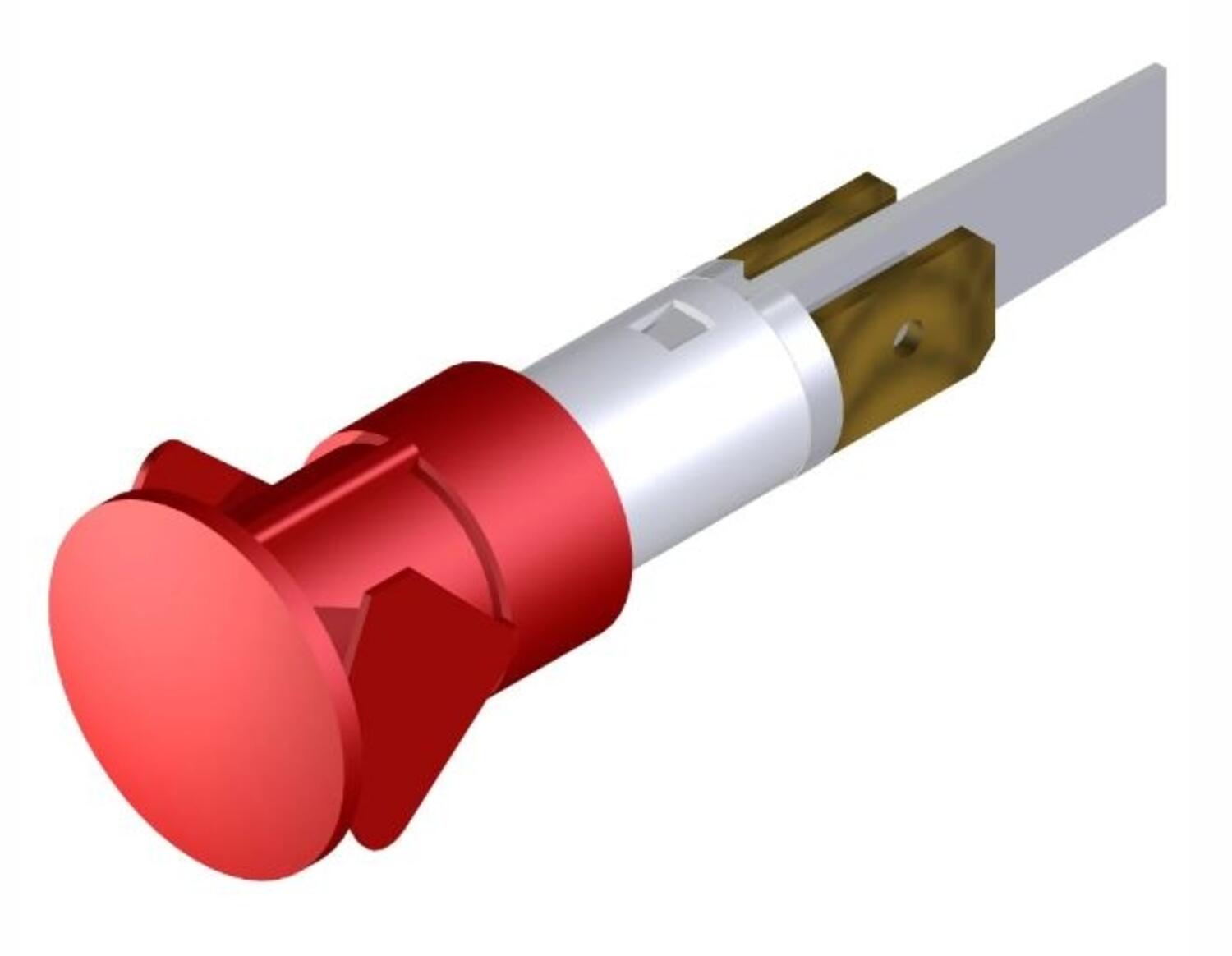

TBF/013/SF marker lamp ⌀13mm Art: TBF/013/SF Copied		Male faston 6,3x0,8 mm • Male faston 4,8x0,8 mm	13 mm	self-locking		Neon/Fluoro, Incadescent, LED	120°C Max • 150°C Max	2V • 6V • 12V • 24V • 48V • 110V • 250V • 400V	0,5 mm - 2,5 mm

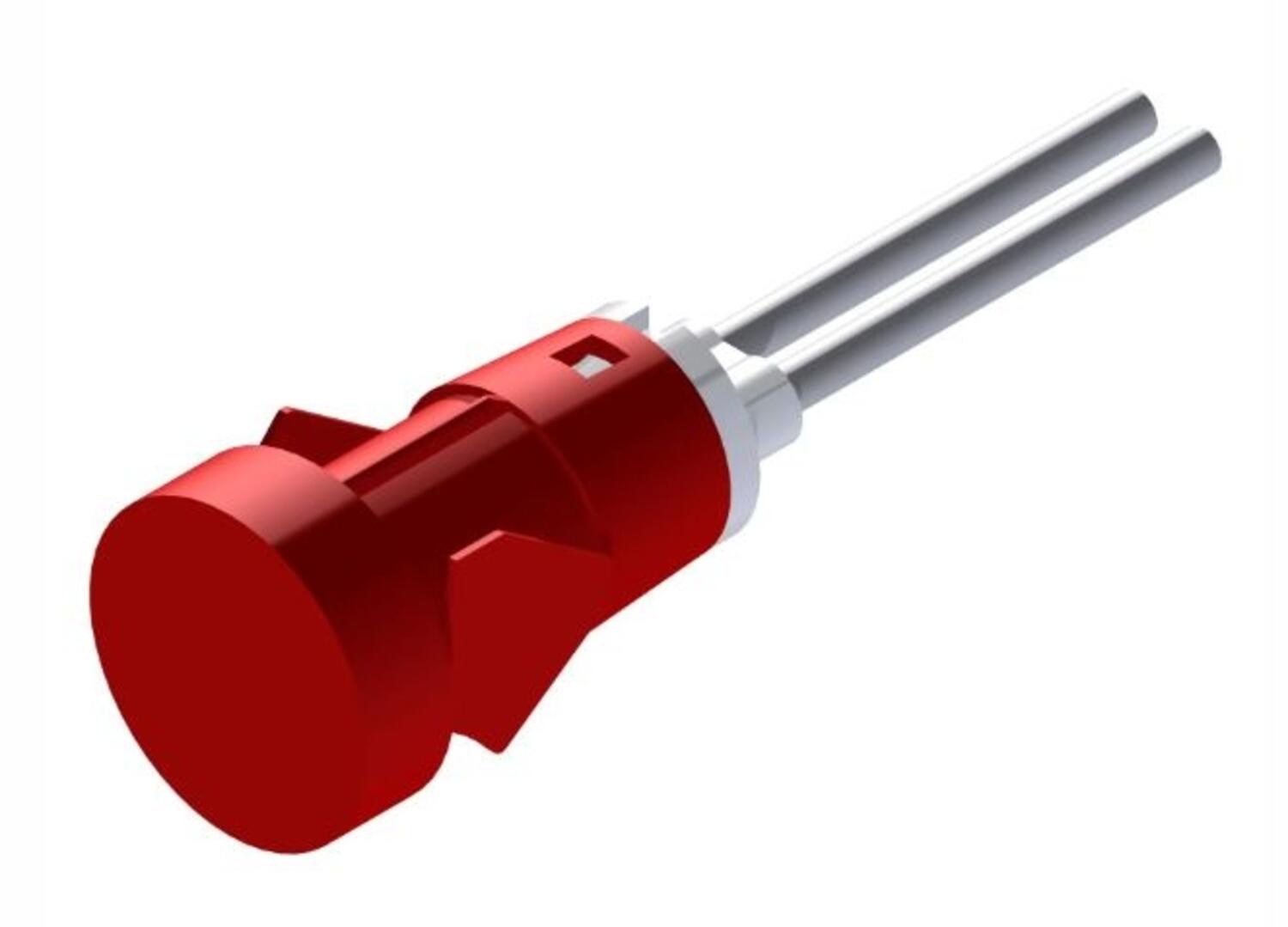

TB/013/SFY marker lamp ⌀13mm Art: TB/013/SFY Copied		Silicone cable, PVC cable, Silicone-glass cable	13 mm	self-locking		Neon/Fluoro, Incadescent, LED	90°C Max • 120°C Max • 150°C Max	2V • 6V • 12V • 24V • 48V • 110V • 250V • 400V	0,8 mm -2 mm

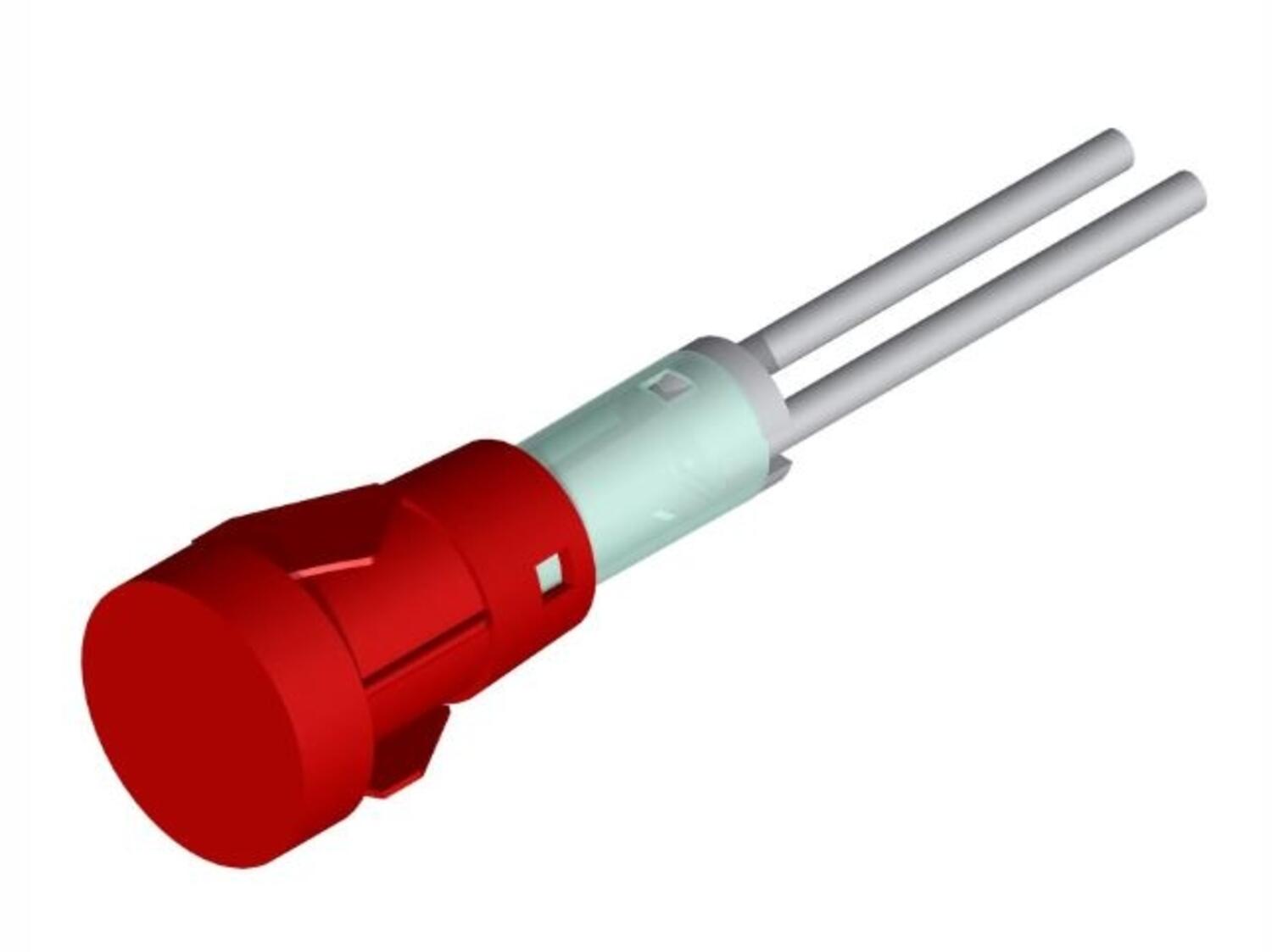

TBF/013/SFY marker lamp ⌀13mm Art: TBF/013/SFY Copied		Male faston 6,3x0,8 mm • Male faston 4,8x0,8 mm	13 mm	self-locking		Neon/Fluoro, Incadescent, LED	120°C Max • 150°C Max	2V • 6V • 12V • 24V • 48V • 110V • 250V • 400V	0,8 mm - 2 mm

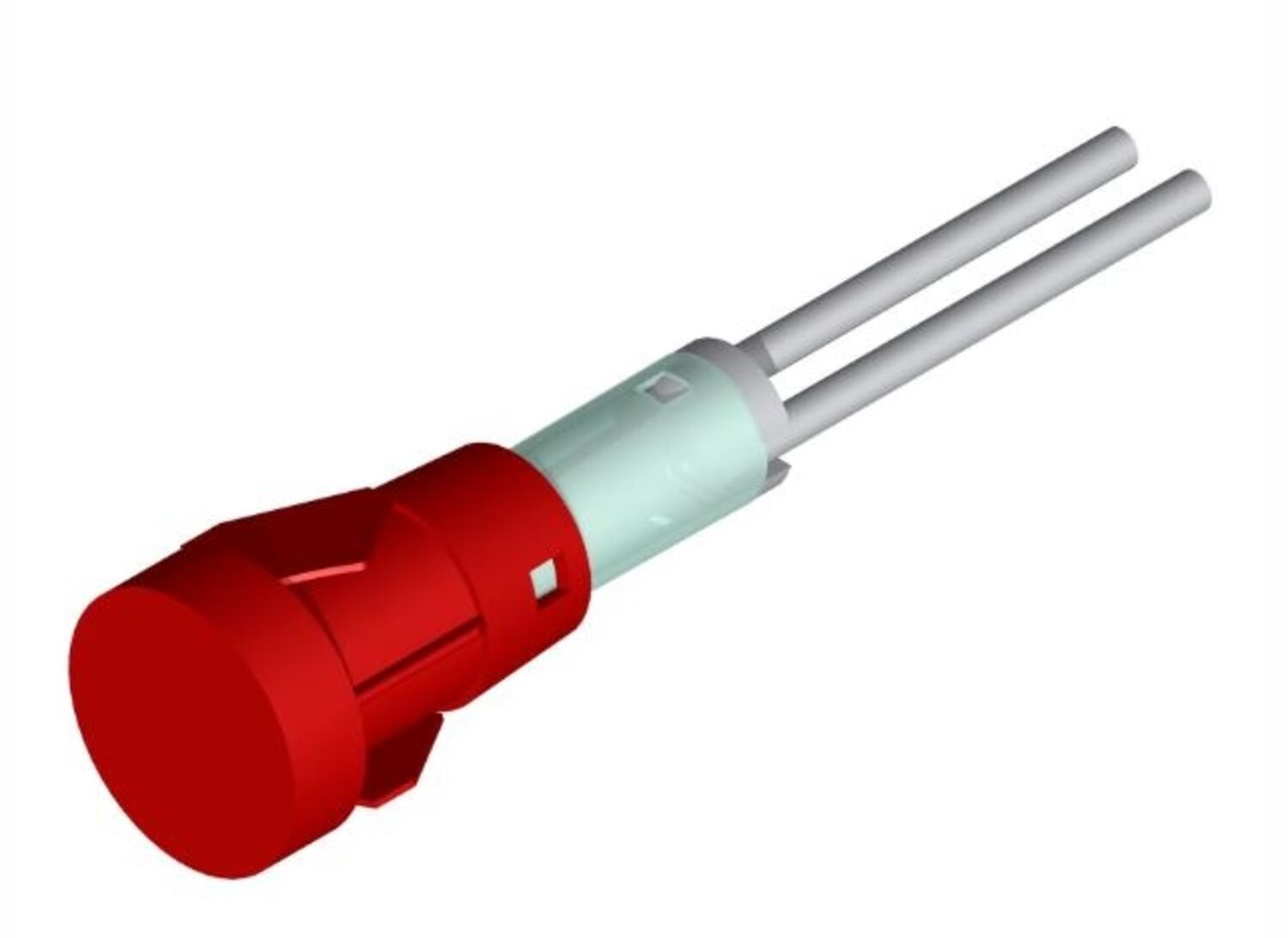

TB/SLTS/SFY marker lamp ⌀13mm Art: TB/SLTS/SFY Copied		Silicone cable, PVC cable, Silicone-glass cable	13 mm	self-locking		Neon/Fluoro, Incadescent, LED	90°C Max • 120°C Max • 150°C Max	2V • 6V • 12V • 24V • 48V • 110V • 250V • 400V	0,8 mm - 2 mm

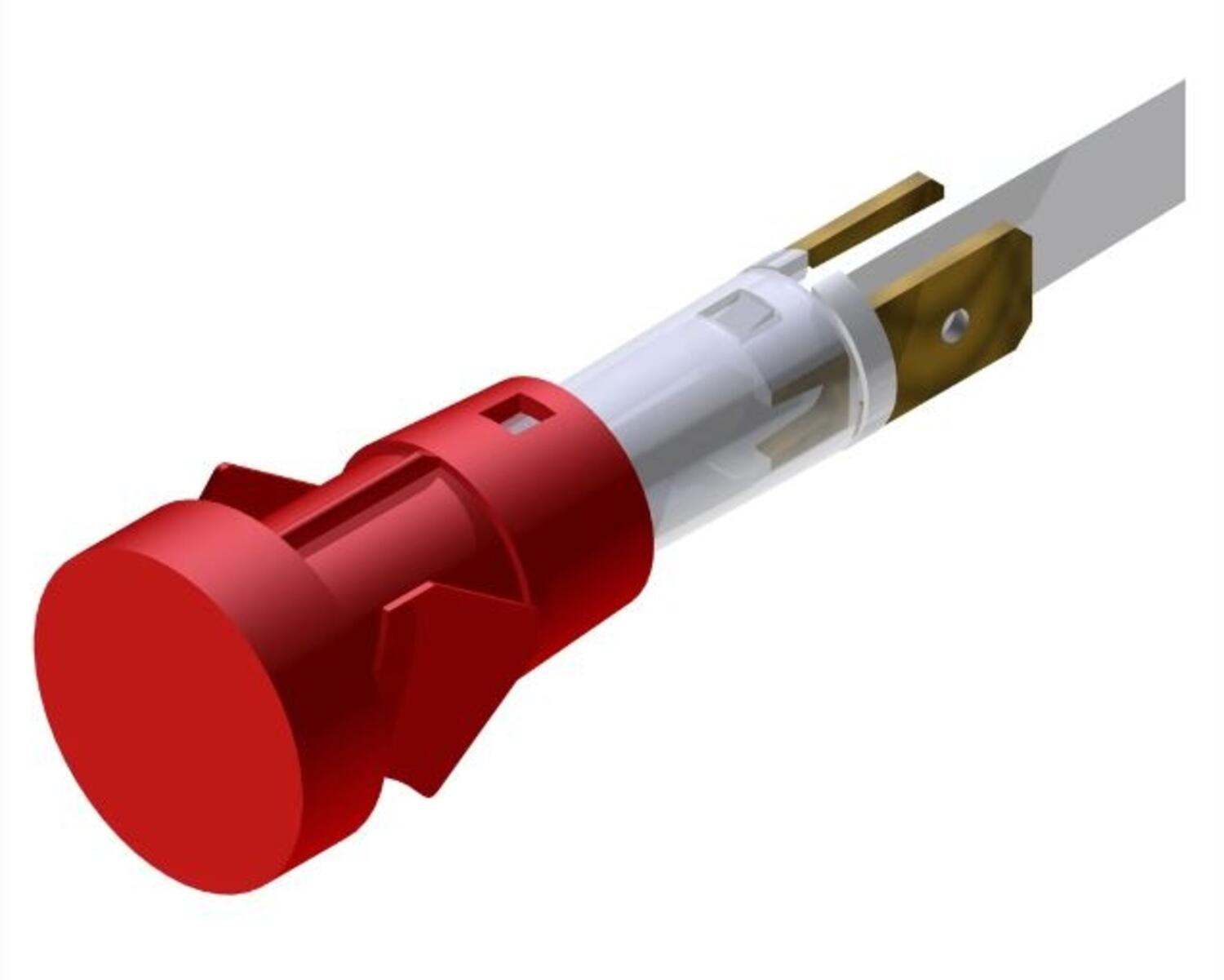

TBF/SLTS/SFY marker lamp ⌀13mm Art: TBF/SLTS/SFY Copied		Male faston 6,3x0,8 mm • Male faston 4,8x0,8 mm	13 mm	self-locking		Neon/Fluoro, Incadescent, LED	120°C Max • 150°C Max	2V • 6V • 12V • 24V • 48V • 110V • 250V • 400V	0,8 mm - 2 mm

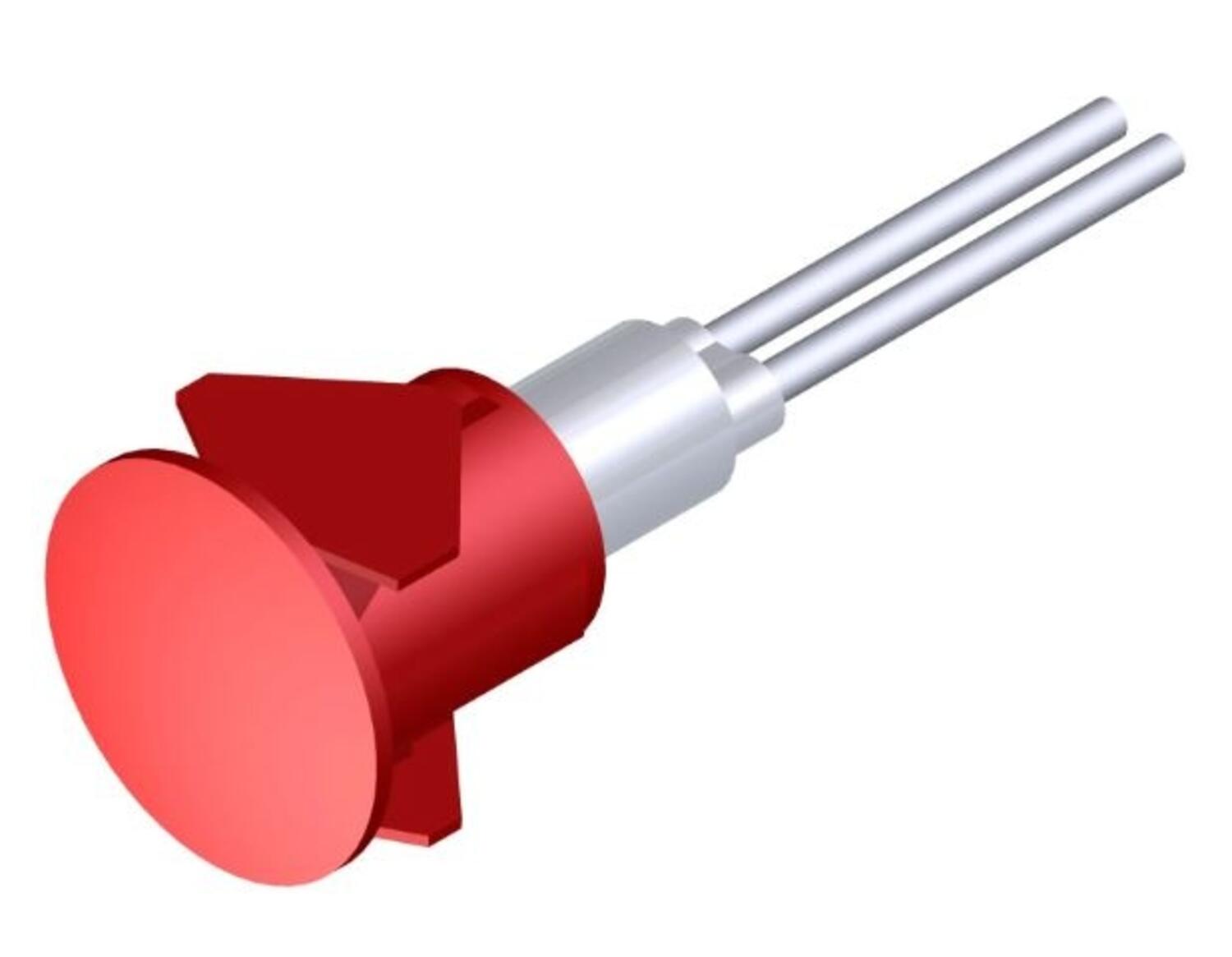

TB/016/SH marker lamp ⌀16mm Art: TB/016/SH Copied		Silicone cable, PVC cable, Silicone-glass cable	16 mm	self-locking		Neon/Fluoro, Incadescent, LED	90°C Max • 120°C Max • 150°C Max	2V • 6V • 12V • 24V • 48V • 110V • 250V • 400V	0,5 mm - 2,5 mm
TBF/016/SH marker lamp ⌀16mm Art: TBF/016/SH Copied		Male faston 6,3x0,8 mm • Male faston 4,8x0,8 mm	16 mm	self-locking		Neon/Fluoro, Incadescent, LED	120°C Max • 150°C Max	2V • 6V • 12V • 24V • 48V • 110V • 250V • 400V	0,5 mm - 2,5 mm

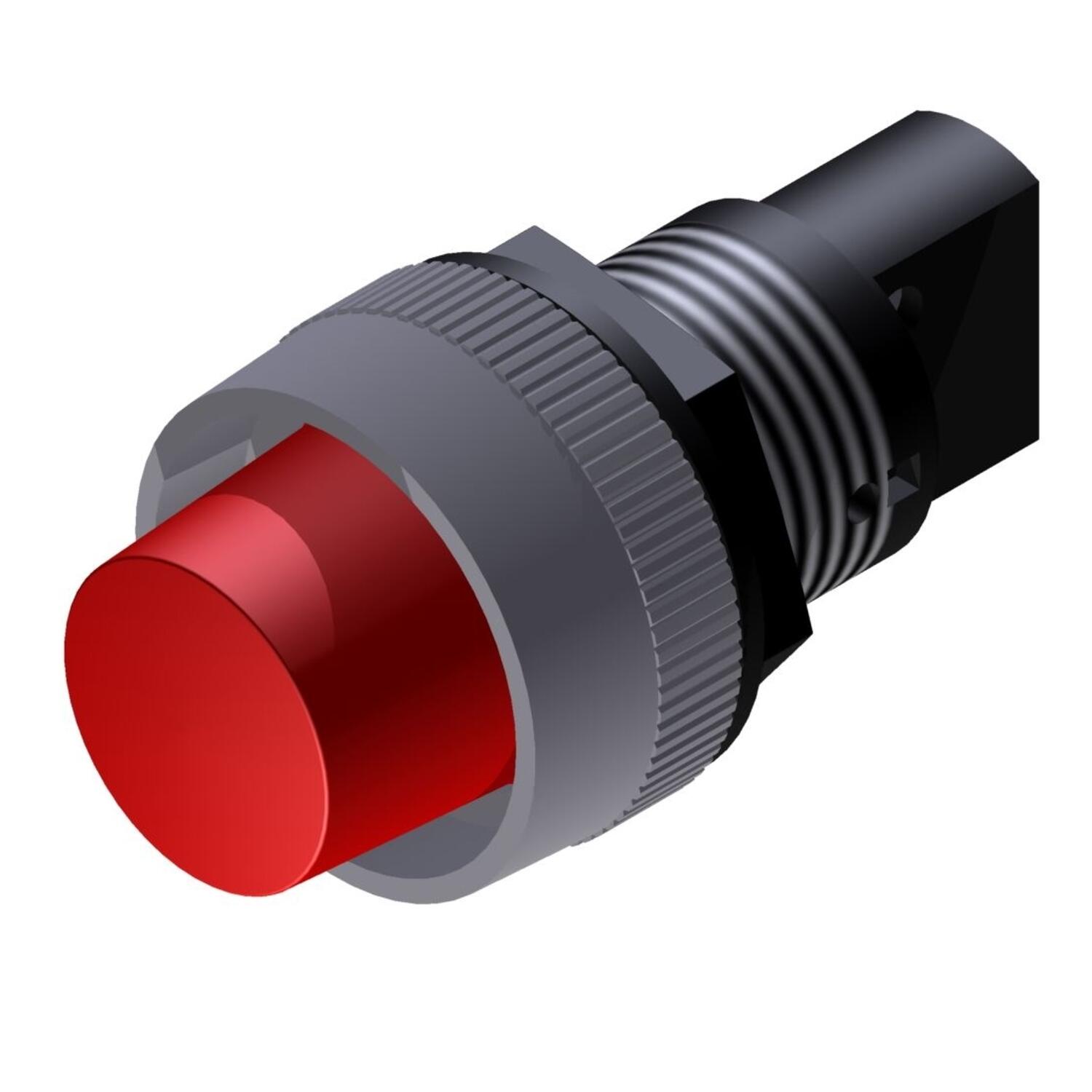

S22 marker lamp ⌀18mm Art: S22 Copied		Screw clamp	18 mm	With nut		Neon/Fluoro, Incadescent, LED	120°C Max • 150°C Max	2V • 6V • 12V • 24V • 48V • 110V • 250V • 400V	0,5 mm - 5 mm

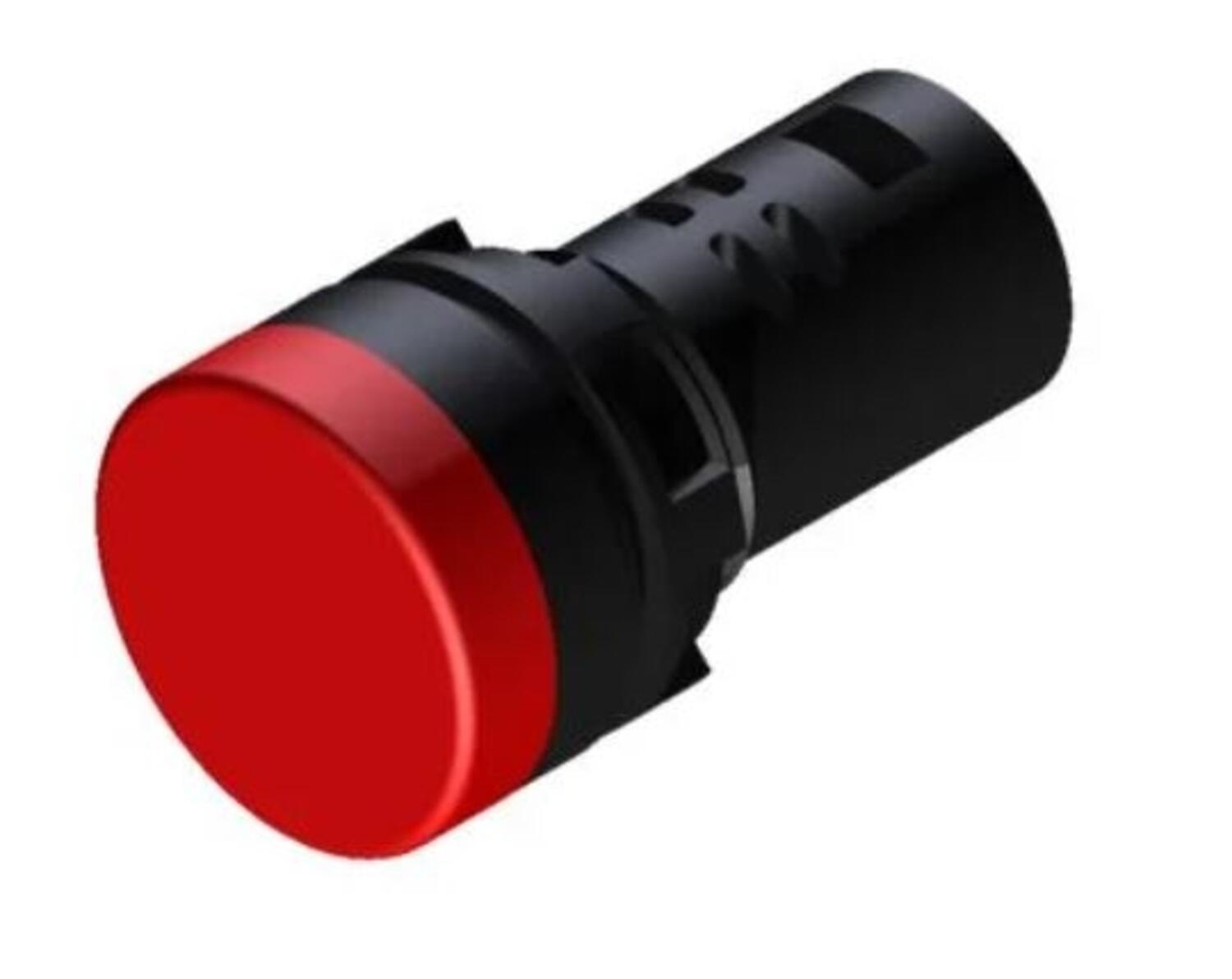

T22 marker lamp ⌀22mm Art: T22 Copied	Amber, Blue, Green, Red, White	Screw clamp	22 mm	With nut		LED	50°C Max	12V • 24V • 110V • 230V	0,5 mm - 7 mm

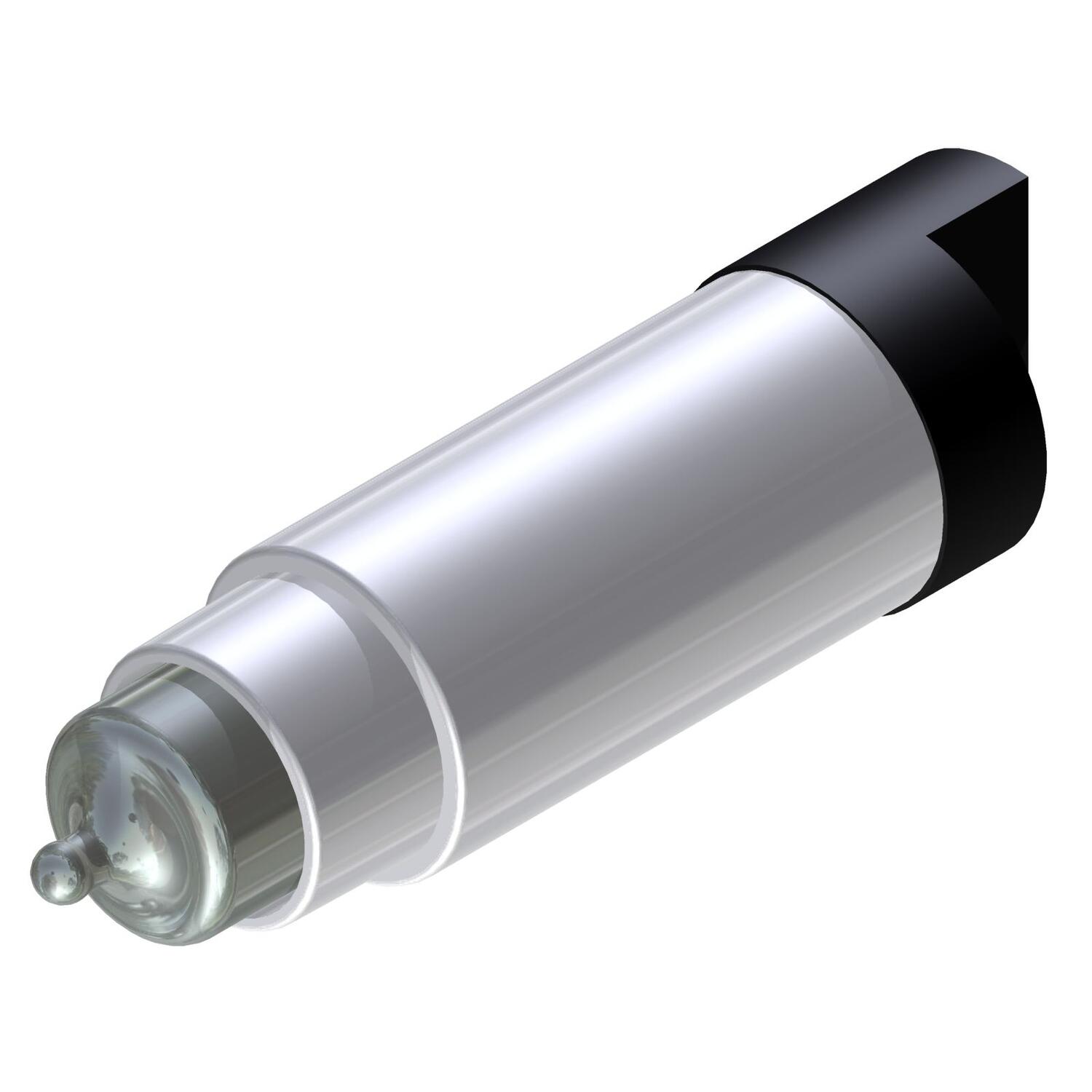

UNITÀ BASE FQ marker lamp Fq Series (Quick Connection) Art: UNITÀ BASE FQ Copied		Quick connection				Neon/Fluoro, Incadescent, LED	120°C Max • 150°C Max	2V • 6V • 12V • 24V • 48V • 110V • 250V • 400V

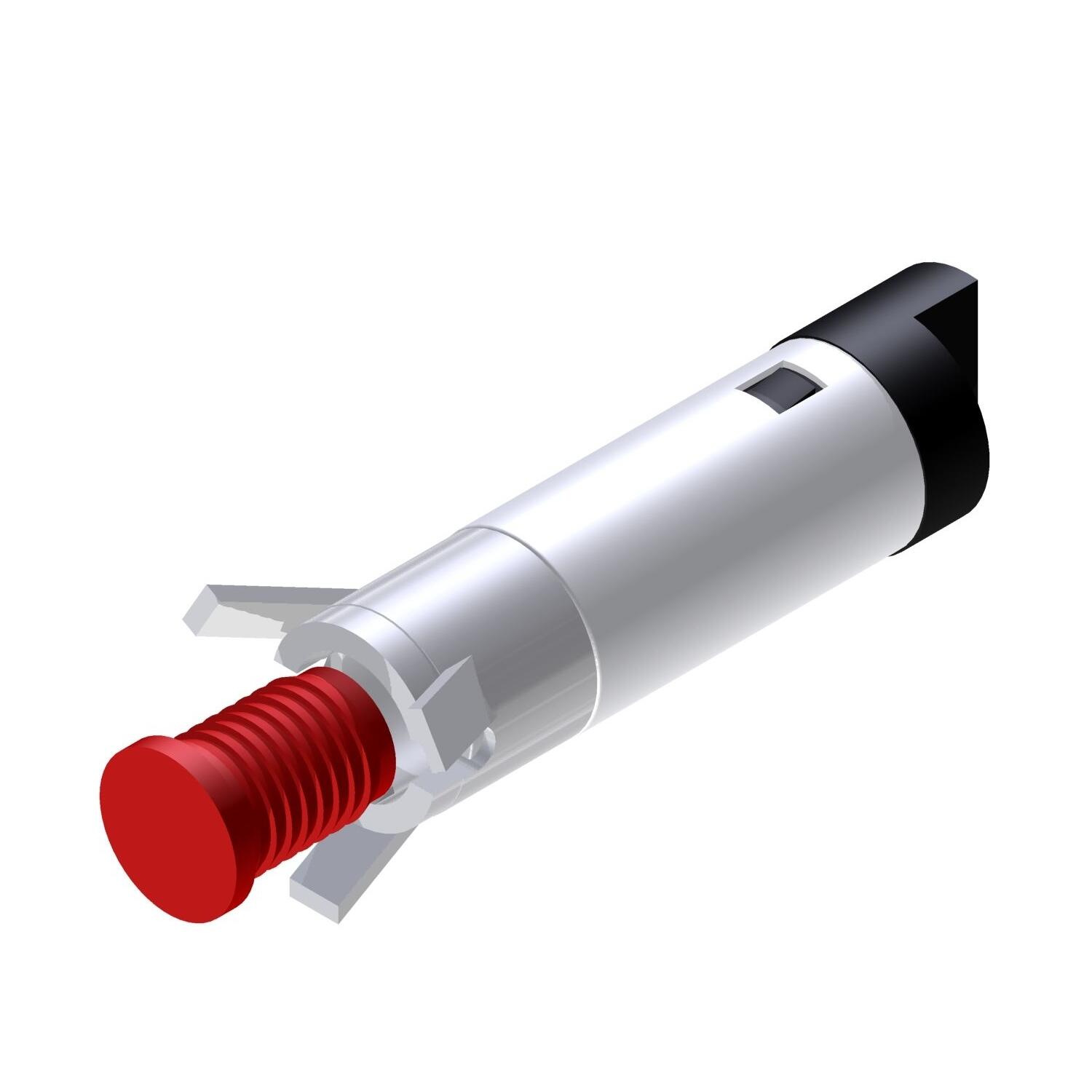

FQ/06R/SU Indicator lamp Fq Series (Quick Connection) Art: FQ/06R/SU Copied		Quick connection	6 mm	self-locking		Neon/Fluoro, Incadescent, LED	120°C Max • 150°C Max	2V • 6V • 12V • 24V • 48V • 110V • 250V • 400V	0,5 mm - 2 mm

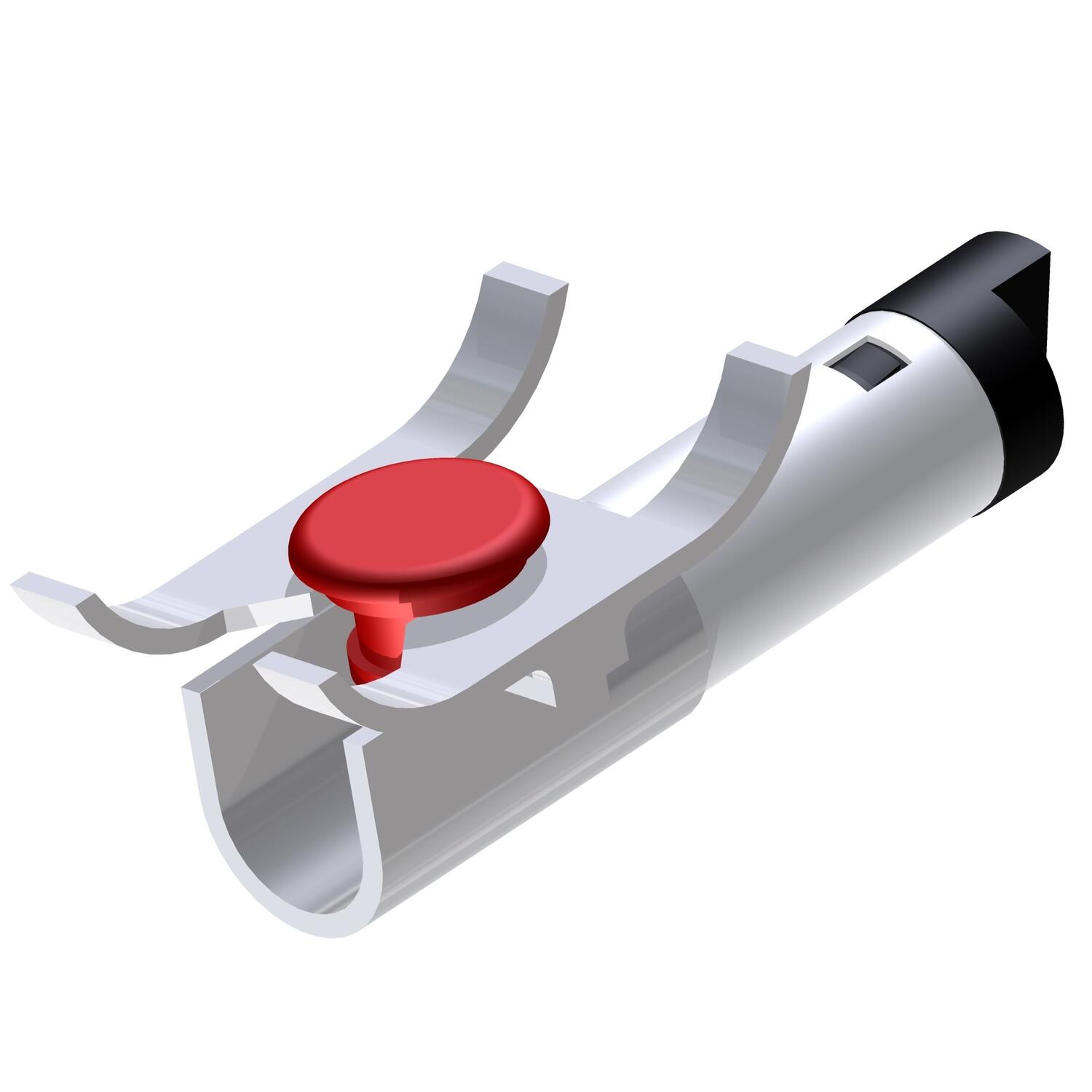

FQ/RL Indicator lamp Fq Series (Quick Connection) Art: FQ/RL Copied		Quick connection	8 mm	self-locking		Neon/Fluoro, Incadescent, LED	120°C Max • 150°C Max	2V • 6V • 12V • 24V • 48V • 110V • 250V • 400V	0,5 mm - 2 mm

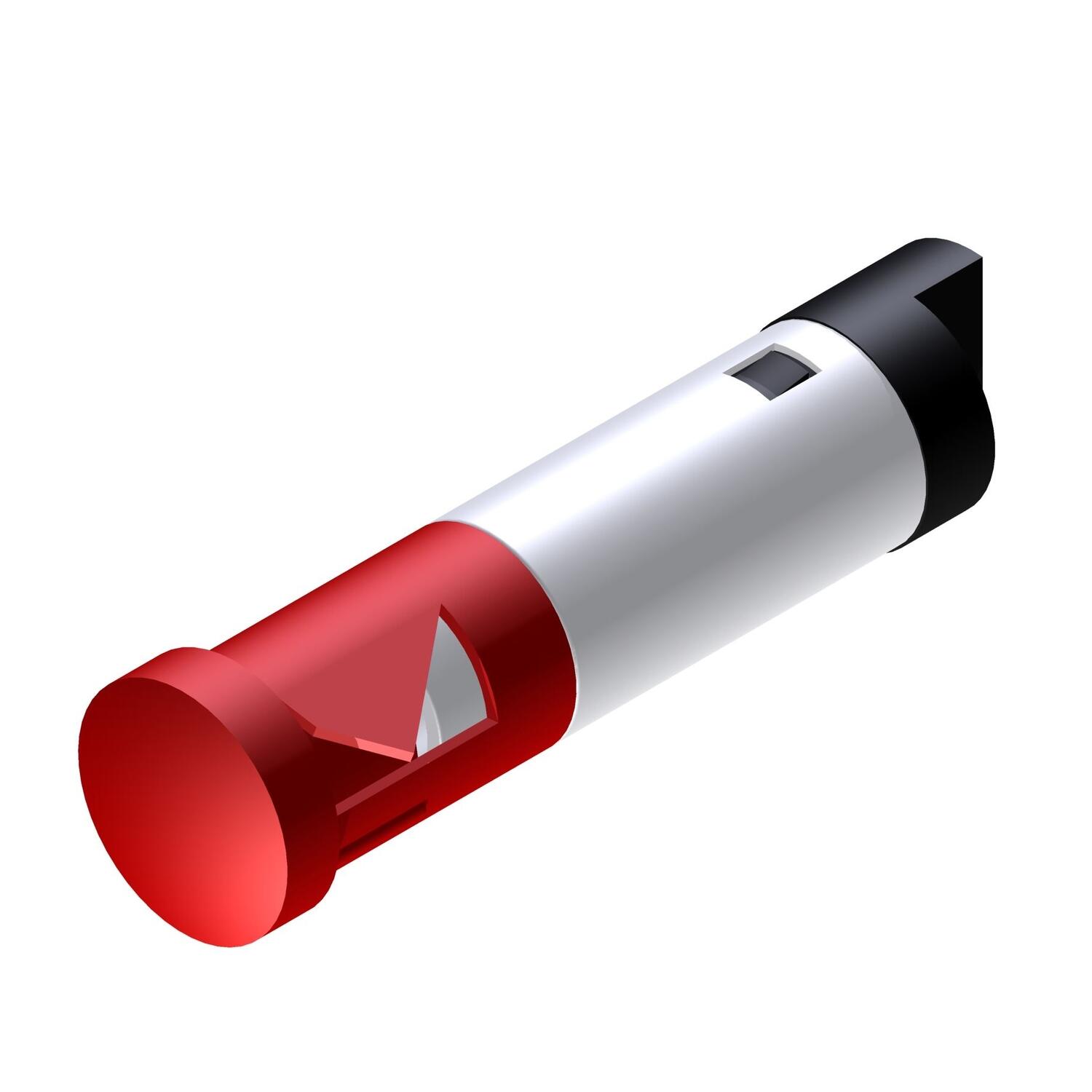

FQ/SA Indicator lamp Fq Series (Quick Connection) Art: FQ/SA Copied		Quick connection	9 mm	self-locking		Neon/Fluoro, Incadescent, LED	120°C Max • 150°C Max	2V • 6V • 12V • 24V • 48V • 110V • 250V • 400V	0,8 mm - 2 mm

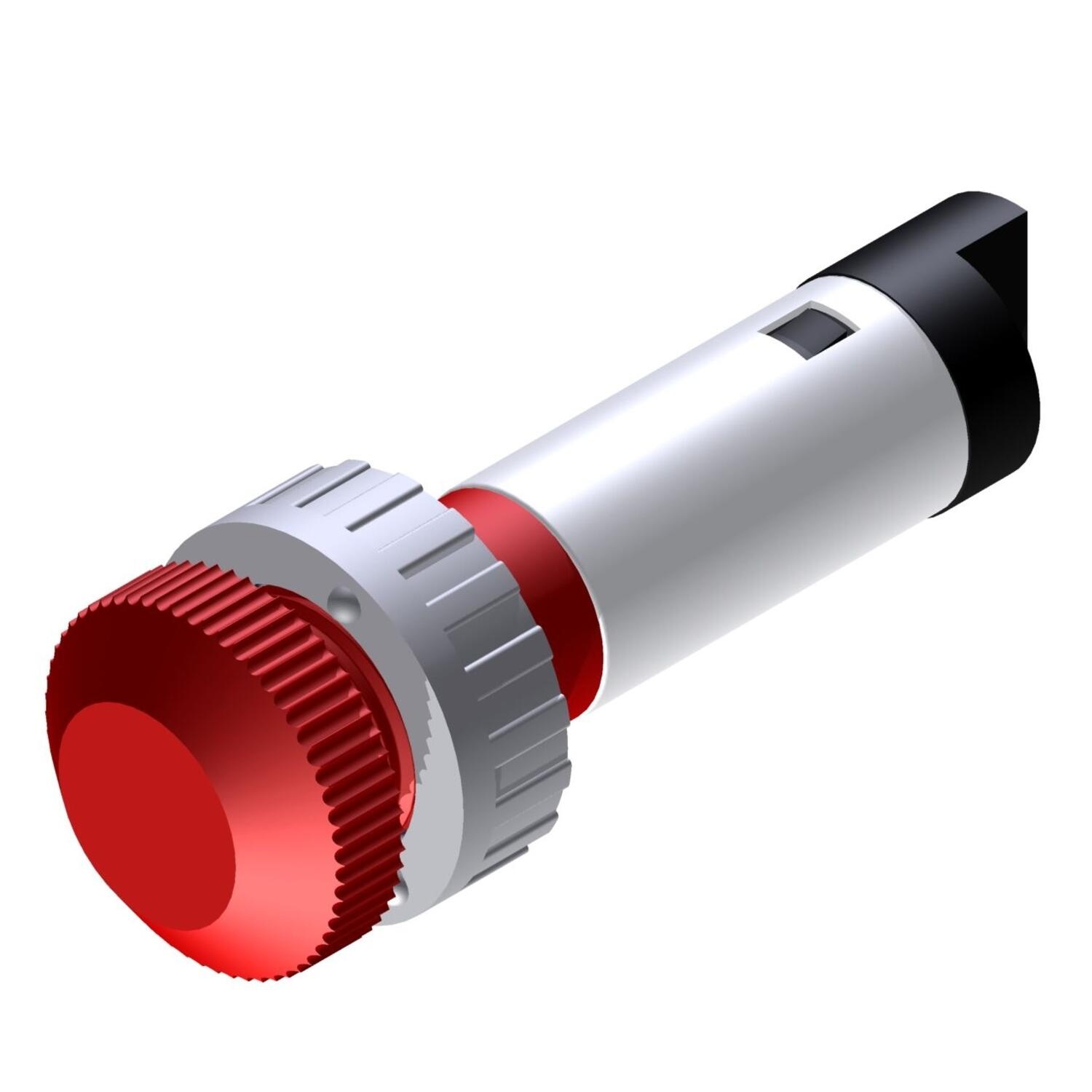

FQ/SC Indicator lamp Fq Series (Quick Connection) Art: FQ/SC Copied		Quick connection	9 mm	self-locking		Neon/Fluoro, Incadescent, LED	120°C Max • 150°C Max	2V • 6V • 12V • 24V • 48V • 110V • 250V • 400V	0,8 mm - 2 mm
FQ/SR Indicator lamp Fq Series (Quick Connection) Art: FQ/SR Copied		Quick connection	10 mm	self-locking		Neon/Fluoro, Bulb, LED	120°C Max • 150°C Max	2V • 6V • 12V • 24V • 48V • 110V • 250V • 400V	0,5 mm - 2,5 mm

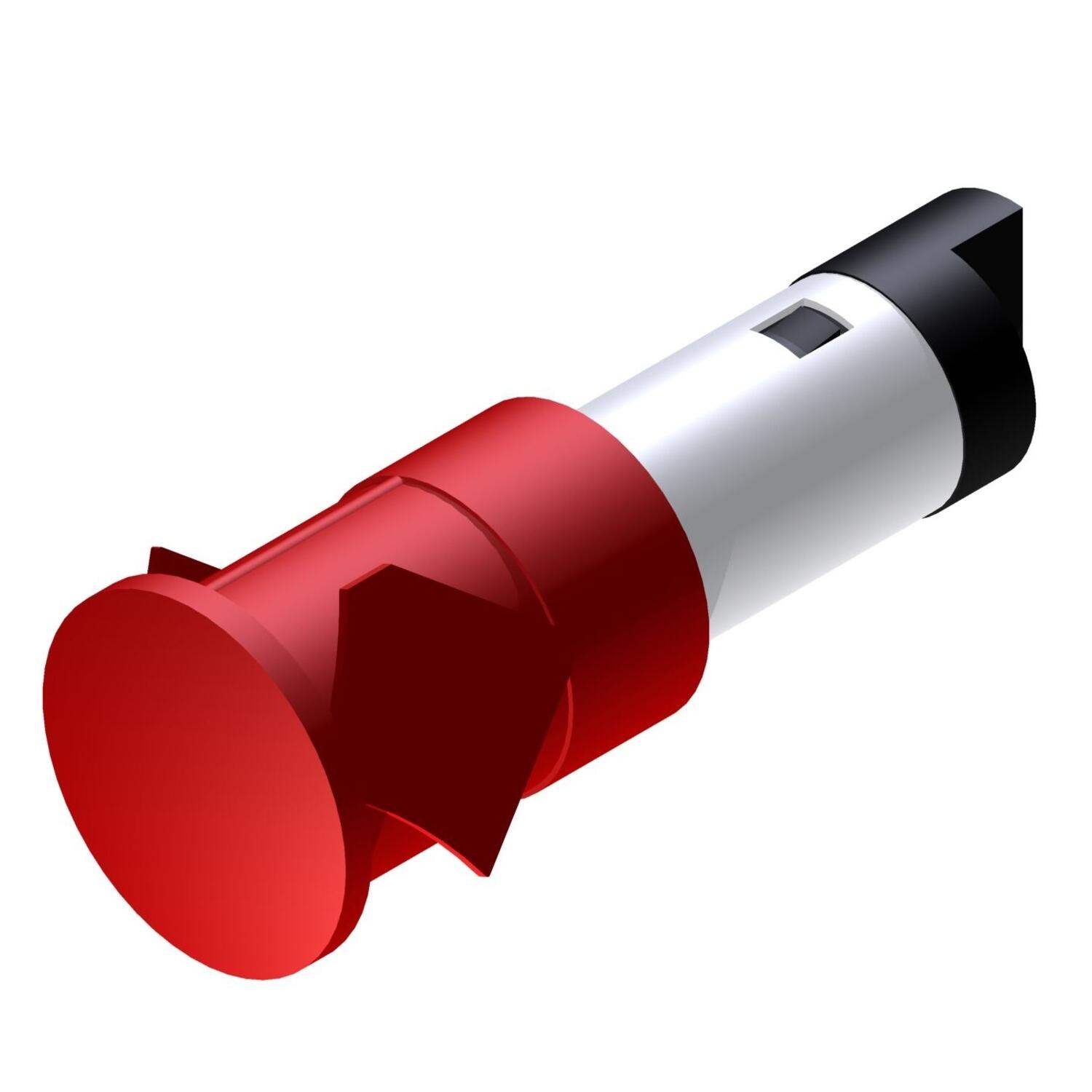

FQ/SD Indicator lamp Fq Series (Quick Connection) Art: FQ/SD Copied		Quick connection	12 mm	self-locking		Neon/Fluoro, Incadescent, LED	120°C Max • 150°C Max	2V • 6V • 12V • 24V • 48V • 110V • 250V • 400V	0,5 mm - 2,5 mm

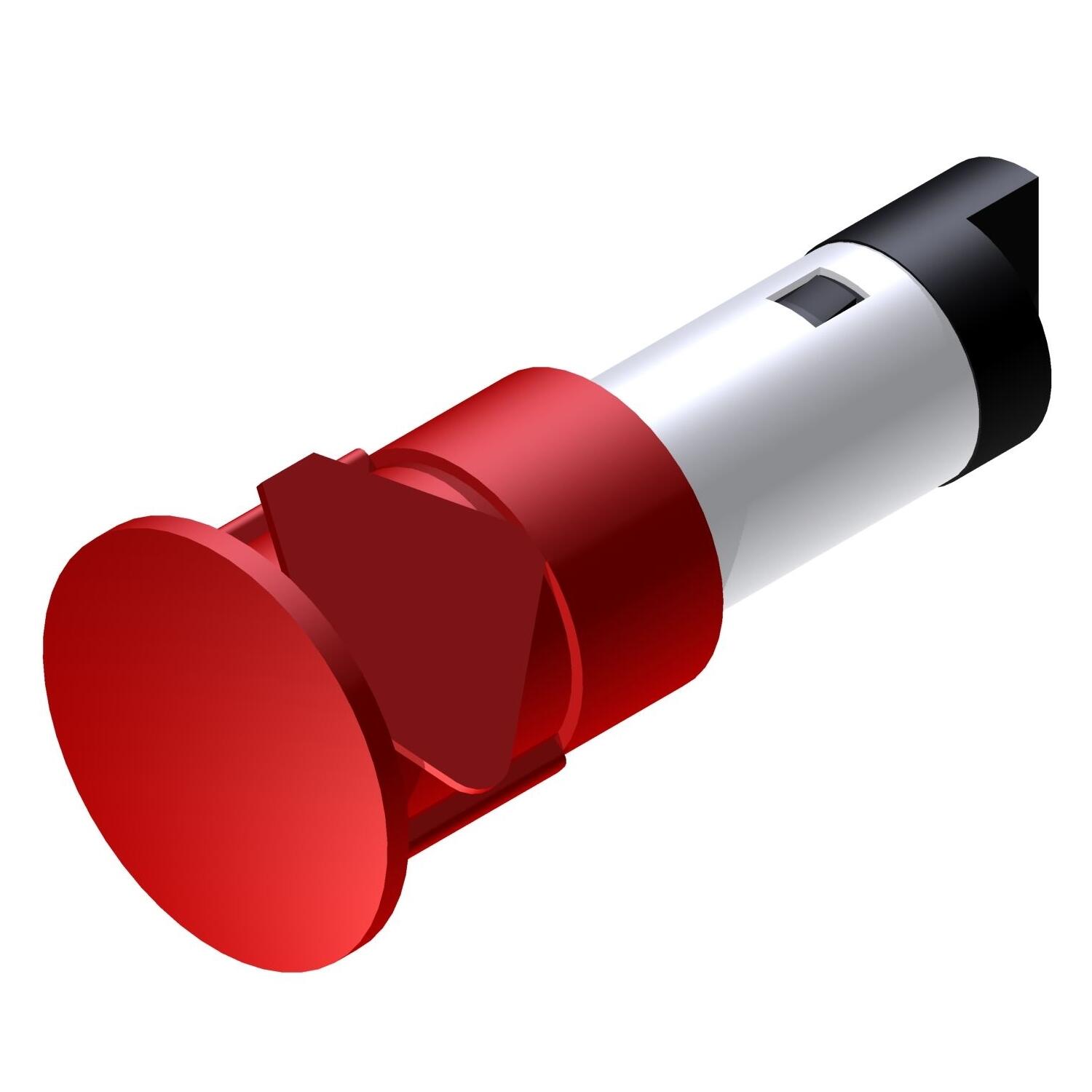

FQ/SF Indicator lamp Fq Series (Quick Connection) Art: FQ/SF Copied		Quick connection	13 mm	self-locking		Neon/Fluoro, Incadescent, LED	120°C Max • 150°C Max	2V • 6V • 12V • 24V • 48V • 110V • 250V • 400V	0,5 mm - 2,5 mm

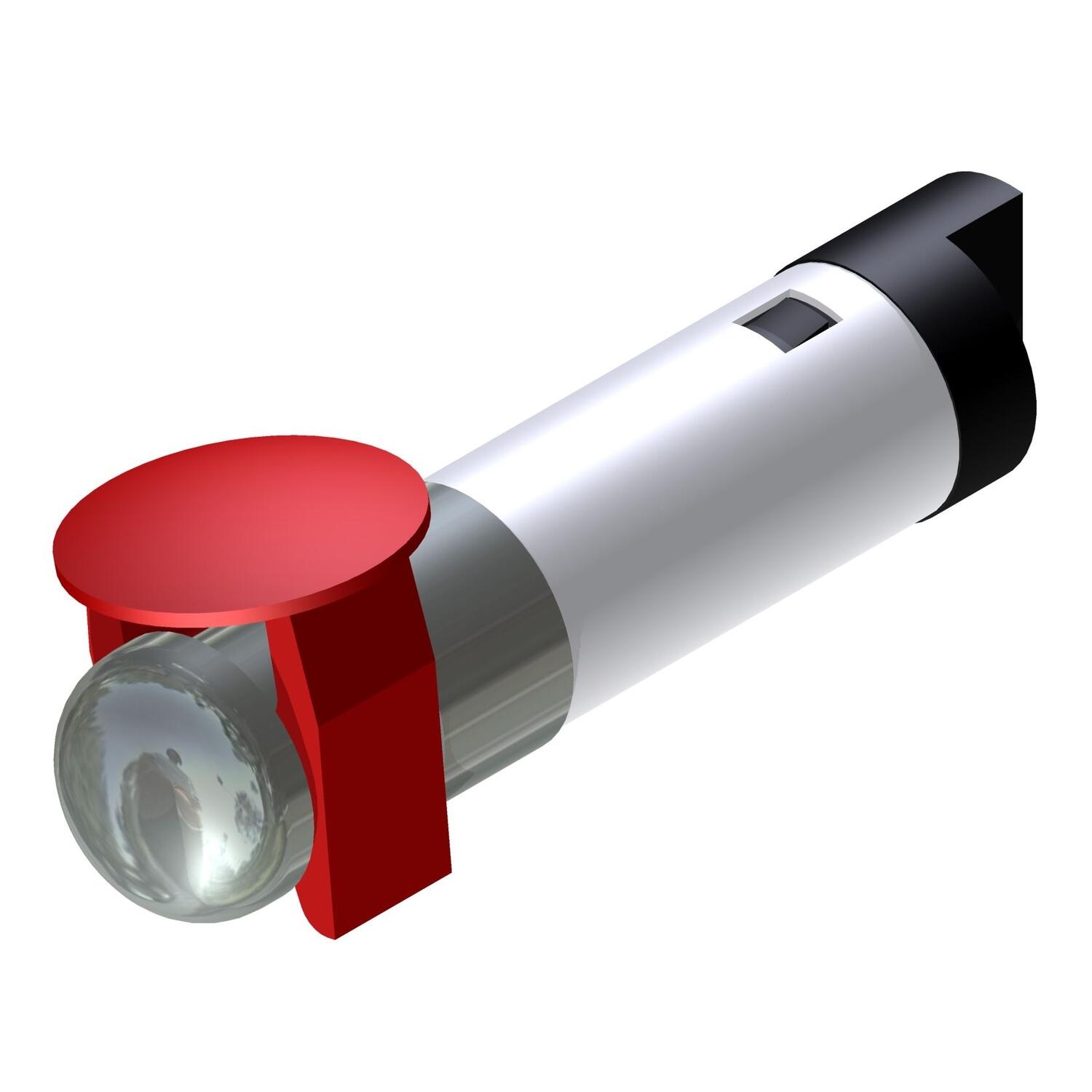

FQ/TP/G Indicator lamp Fq Series (Quick Connection) Art: FQ/TP/G Copied		Quick connection		self-locking	5 mm x 10 mm	Neon/Fluoro, Incadescent, LED	120°C Max • 150°C Max	2V • 6V • 12V • 24V • 48V • 110V • 250V • 400V	0,8 mm - 1,5 mm

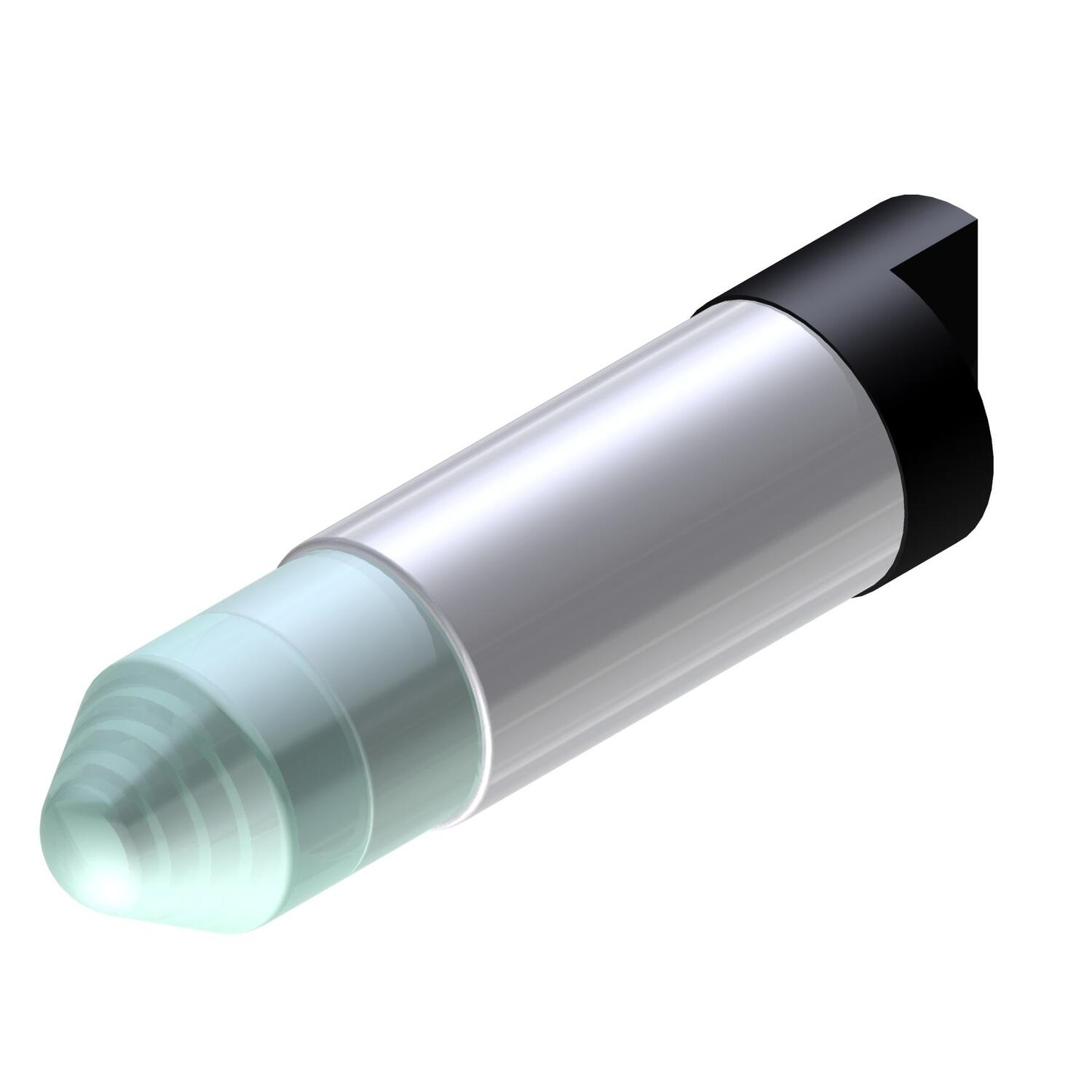

FQ/SLTS Indicator lamp Fq Series (Quick Connection) Art: FQ/SLTS Copied		Quick connection				Neon/Fluoro, Incadescent, LED	120°C Max • 150°C Max	2V • 6V • 12V • 24V • 48V • 110V • 250V • 400V

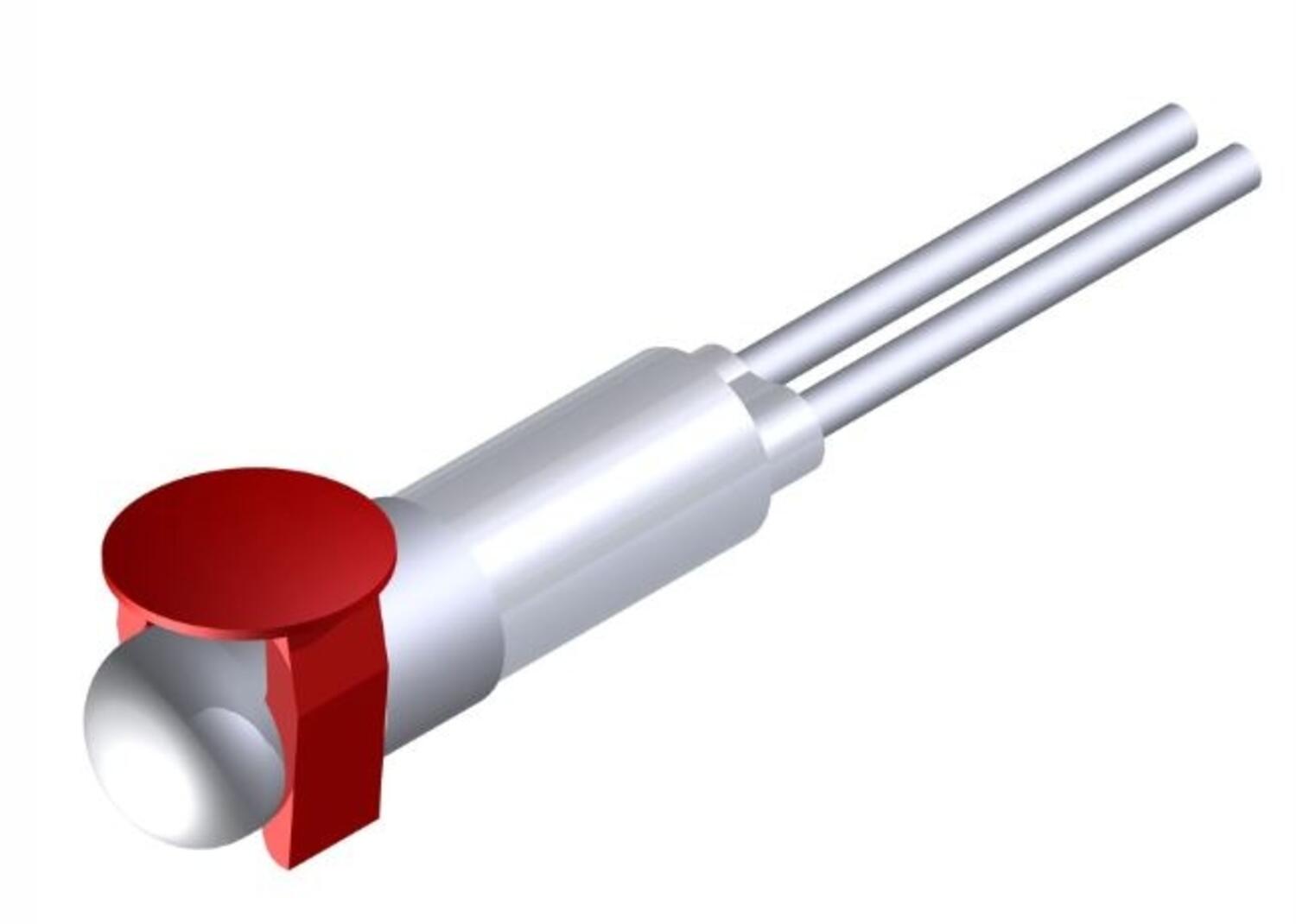

TB/TP/G marker lamp Square Template Art: TB/TP/G Copied		Silicone cable, PVC cable, Silicone-glass cable		self-locking	5 mm x 10 mm	Neon/Fluoro, Bulb, LED	90°C Max • 120°C Max • 150°C Max	2V • 6V • 12V • 24V • 48V • 110V • 250V • 400V	0,8 mm - 1,5 mm

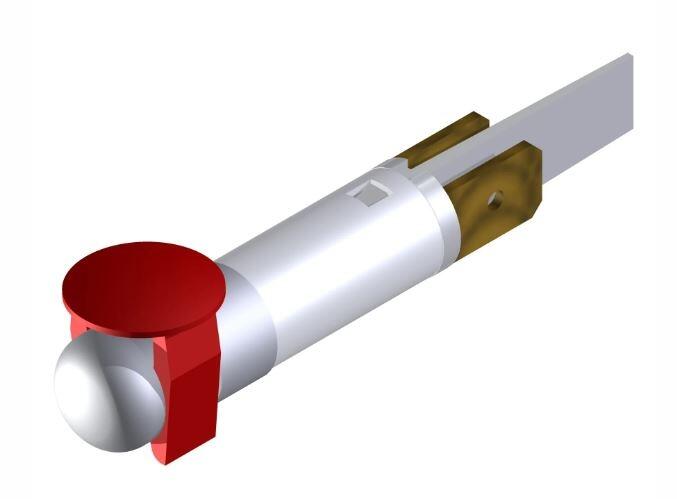

TBF/TP/G marker lamp Square Template Art: TBF/TP/G Copied		Male faston 6,3x0,8 mm • Male faston 4,8x0,8 mm		self-locking	5 mm x 10 mm	Neon/Fluoro, Incadescent, LED	120°C Max • 150°C Max	2V • 6V • 12V • 24V • 48V • 110V • 250V • 400V	0,8 mm - 1,5 mm
UR marker lamp Square Template Art: UR Copied		Silicone cable, PVC cable, Silicone-glass cable		self-locking	34,2 x 10,5	Neon/Fluoro, Incadescent, LED	90°C Max • 120°C Max • 150°C Max	2V • 6V • 12V • 24V • 48V • 110V • 250V • 400V

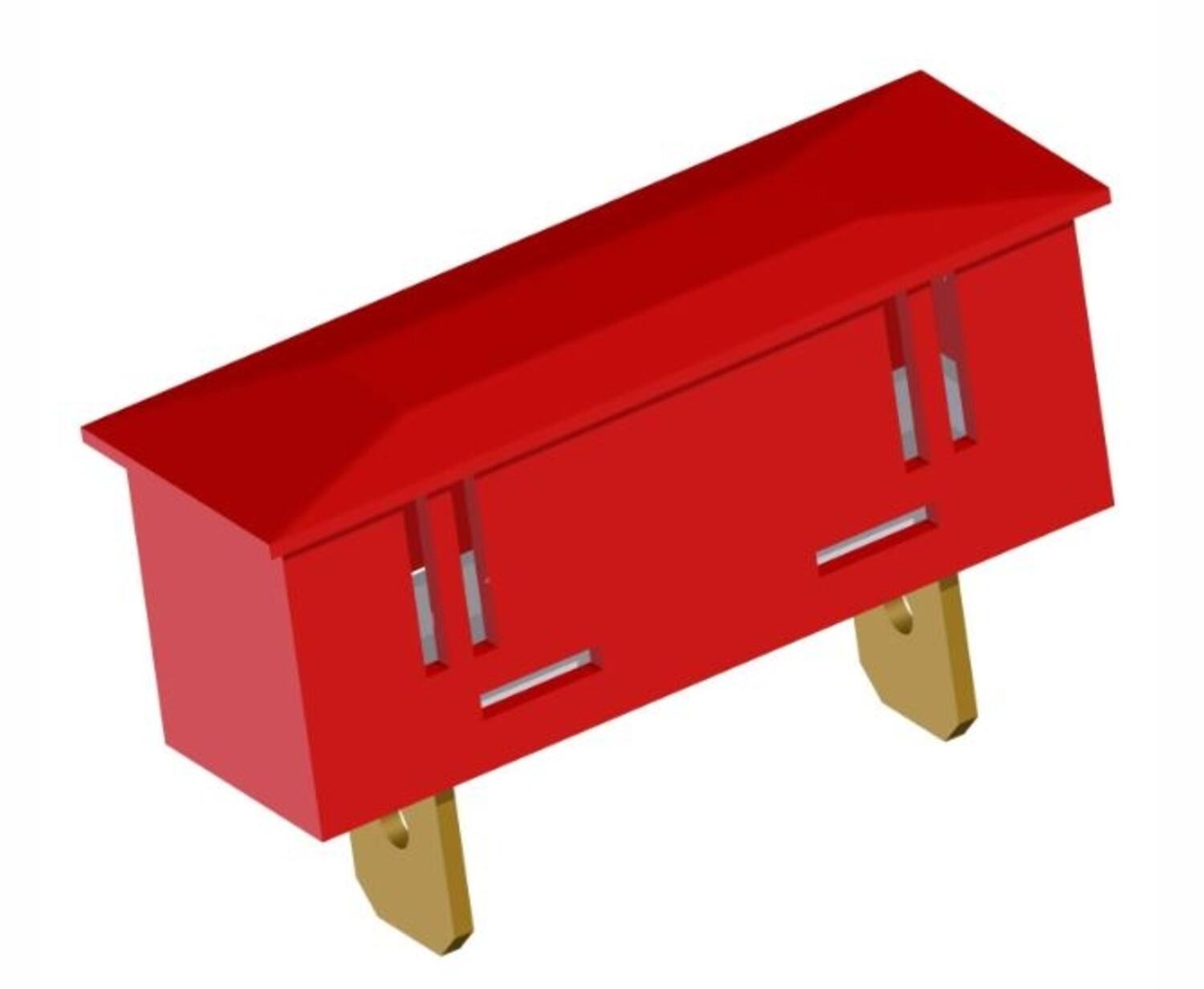

UR/F marker lamp Square Template Art: UR/F Copied		Male faston 6,3x0,8 mm • Male faston 4,8x0,8 mm		self-locking	34,2 x 10,5	Neon/Fluoro, Incadescent, LED	120°C Max • 150°C Max	2V • 6V • 12V • 24V • 48V • 110V • 250V : 400V

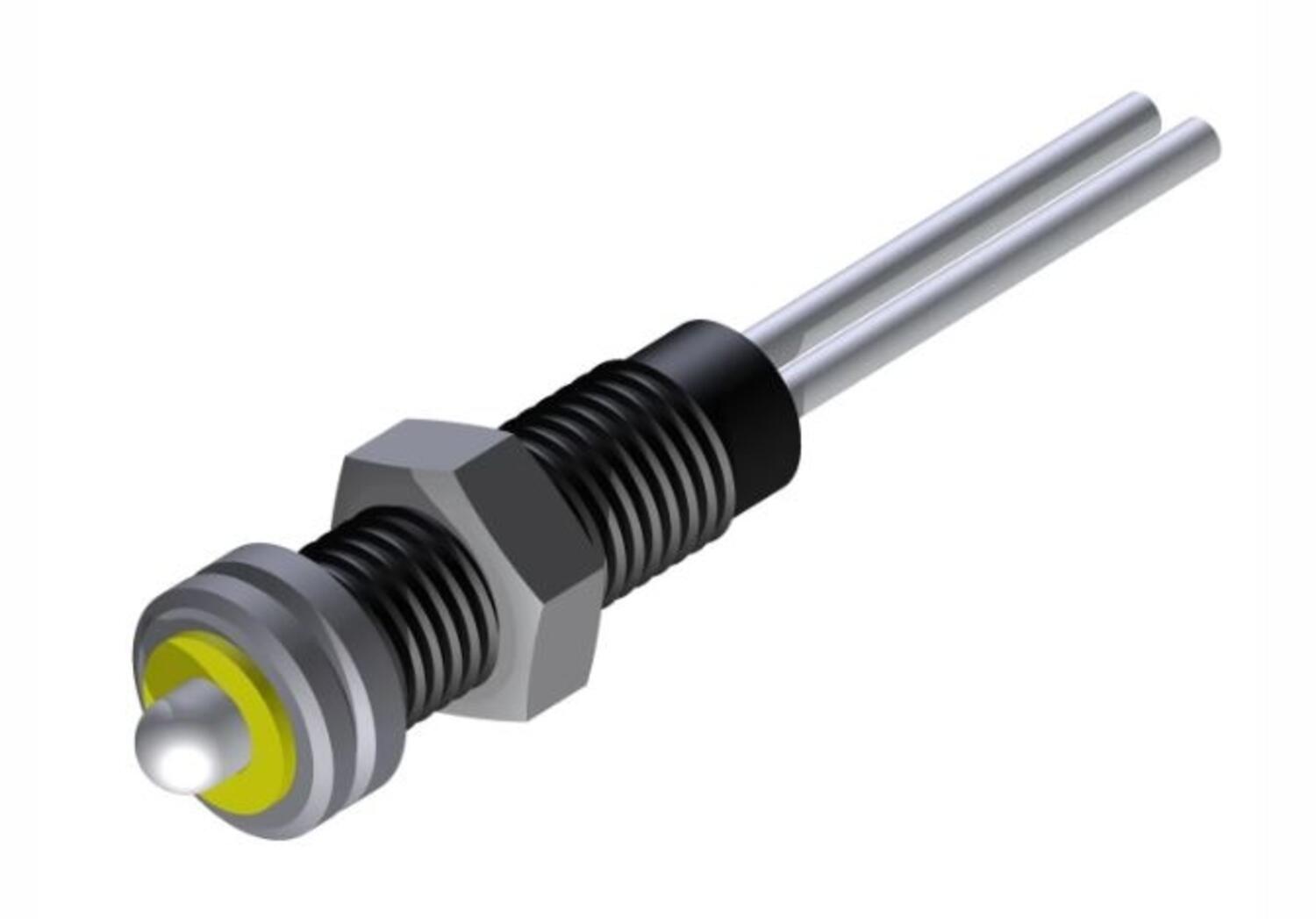

LD/06 Indicator lamp Series Ld (Only With Led) Art: LD/06 Copied		Silicone cable, PVC cable, Silicone-glass cable	6 mm	With nut		LED	90°C Max • 120°C Max	2V • 6V • 12V • 24V • 48V • 110V • 250V • 400V	0,5 mm - 5 mm

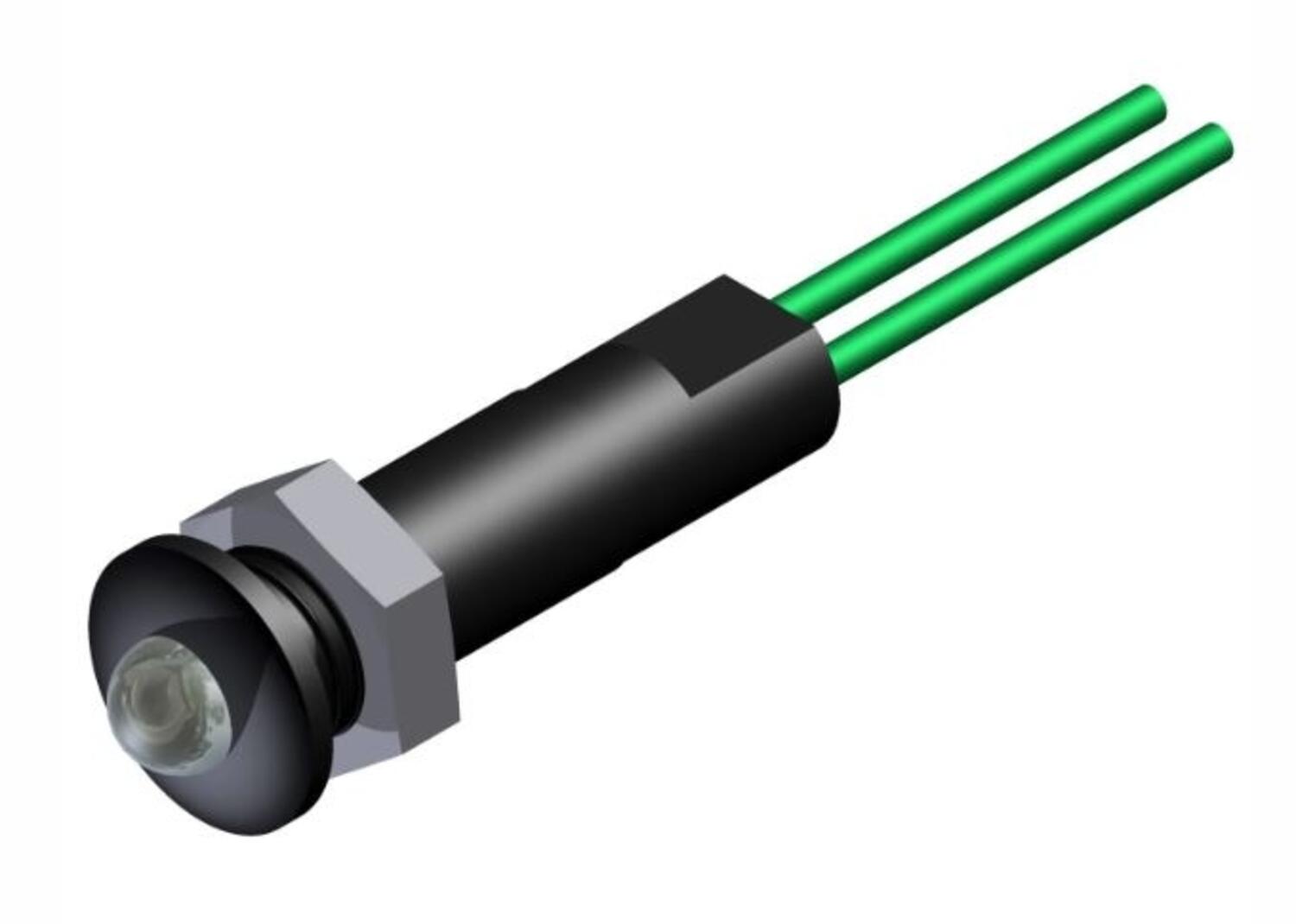

LD/08 Indicator lamp Series Ld (Only With Led) Art: LD/08 Copied		Silicone cable, PVC cable, Silicone-glass cable	8 mm	With nut		LED	90°C Max • 120°C Max	2V • 6V • 12V • 24V • 48V • 110V • 250V • 400V	0,5 mm - 5 mm

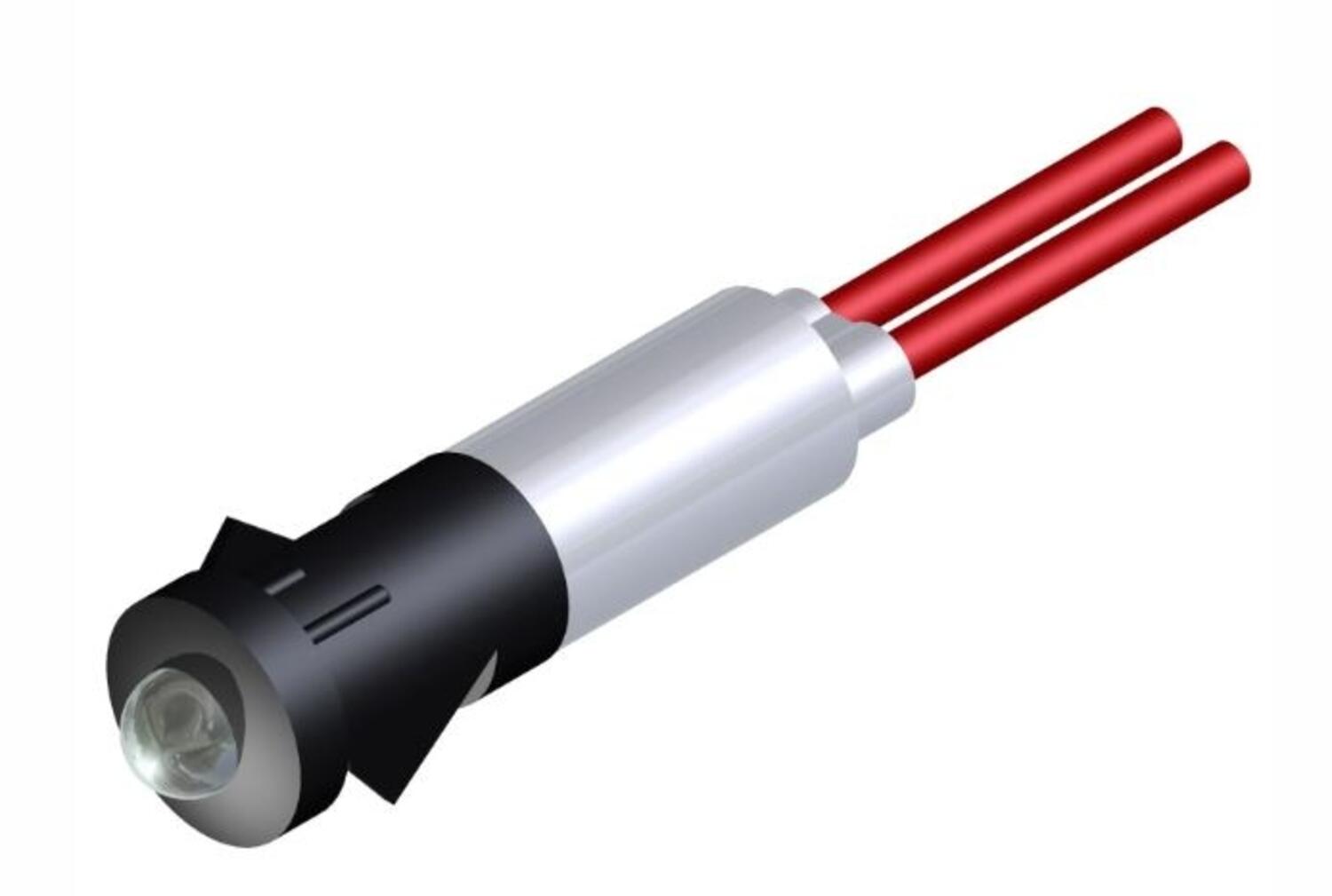

LD/09 Indicator lamp Series Ld (Only With Led) Art: LD/09 Copied		Silicone cable, PVC cable, Silicone-glass cable	9 mm	self-locking		LED	90°C Max • 120°C Max	2V • 6V • 12V • 24V • 48V • 110V • 250V • 400V	0,5 mm - 5 mm

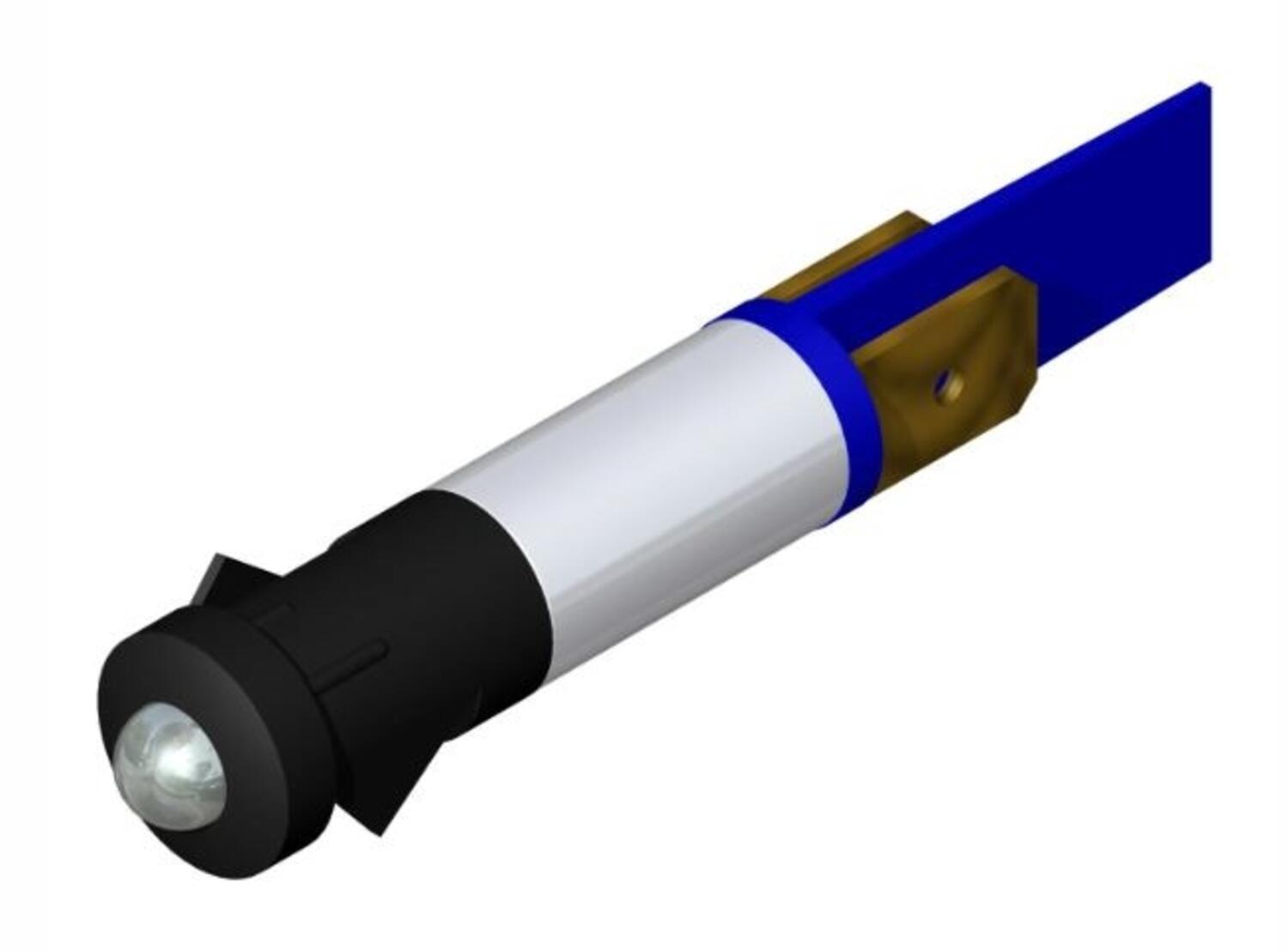

LDF/09 Indicator lamp Series Ld (Only With Led) Art: LDF/09 Copied		Male faston 6,3x0,8 mm • Male faston 4,8x0,8 mm	9 mm	self-locking		LED	120°C Max	2V • 6V • 12V • 24V • 48V • 110V • 250V • 400V	0,5 mm - 5 mm

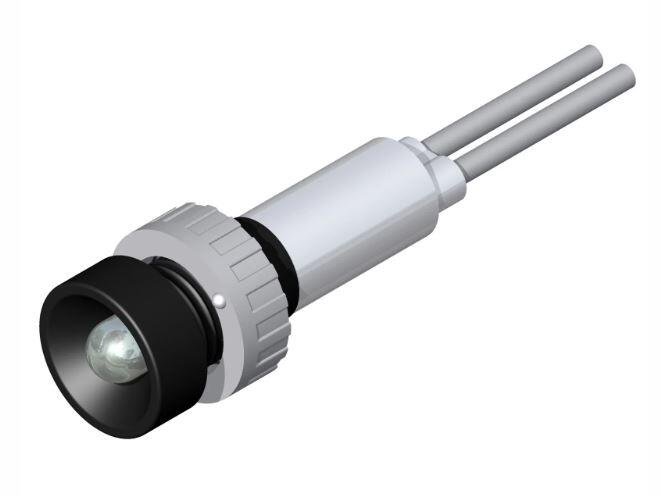

LD/010 Indicator lamp Series Ld (Only With Led) Art: LD/010 Copied		Silicone cable, PVC cable, Silicone-glass cable	10 mm	With nut		LED	90°C Max • 120°C Max	2V • 6V • 12V • 24V • 48V • 110V • 250V • 400V	0,5 mm - 5 mm

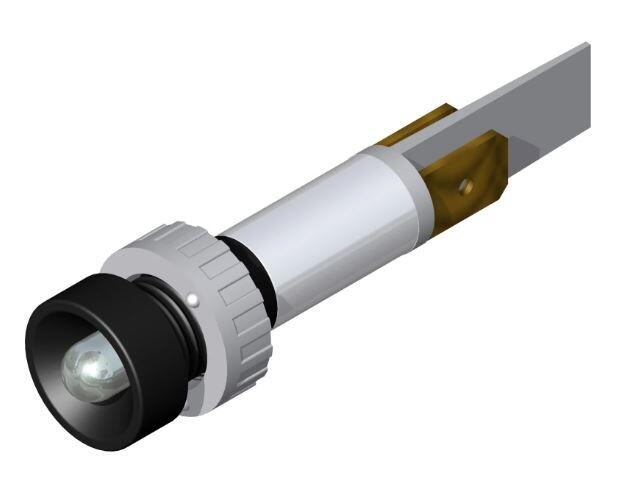

LDF/010 Indicator lamp Series Ld (Only With Led) Art: LDF/010 Copied		Male faston 6,3x0,8 mm • Male faston 4,8x0,8 mm	10 mm	With nut		LED	120°C Max	2V • 6V • 12V • 24V • 48V • 110V • 250V • 400V	0,5 mm - 5 mm

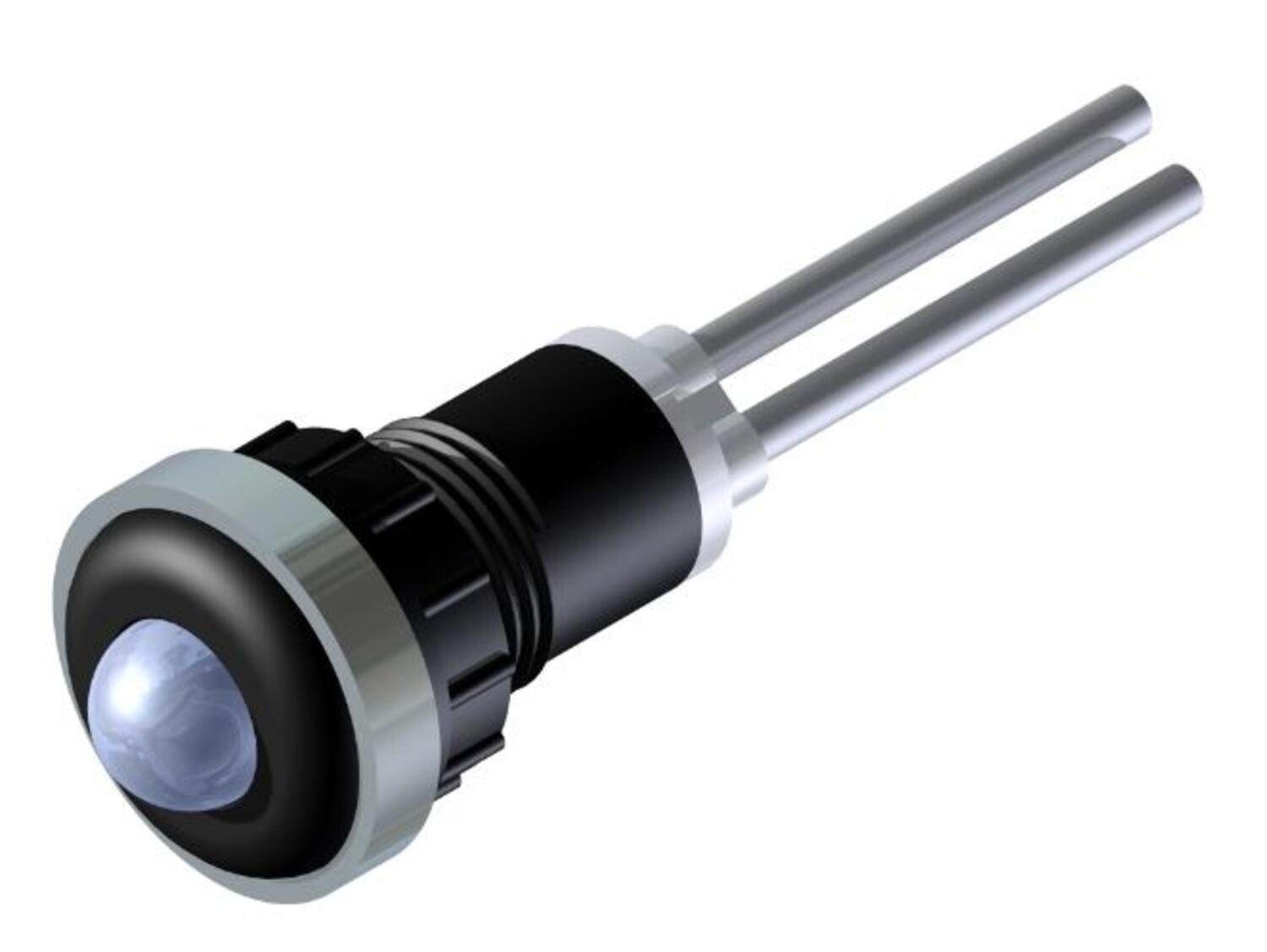

LD/012 Indicator lamp Series Ld (Only With Led) Art: LD/012 Copied		Silicone cable, PVC cable, Silicone-glass cable	12 mm	With nut		LED	90°C Max • 120°C Max	2V • 6V • 12V • 24V • 48V • 110V • 250V • 400V	0,5 mm - 5 mm

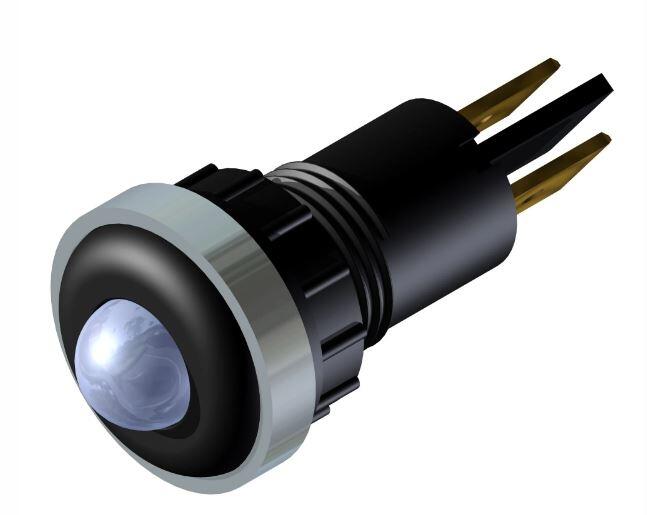

LDF/012 Indicator lamp Series Ld (Only With Led) Art: LDF/012 Copied		Male faston 6,3x0,8 mm • Male faston 4,8x0,8 mm	12 mm	With nut		LED	120°C Max	2V • 6V • 12V • 24V • 48V • 110V • 250V • 400V	0,5 mm - 5 mm
