PUREX

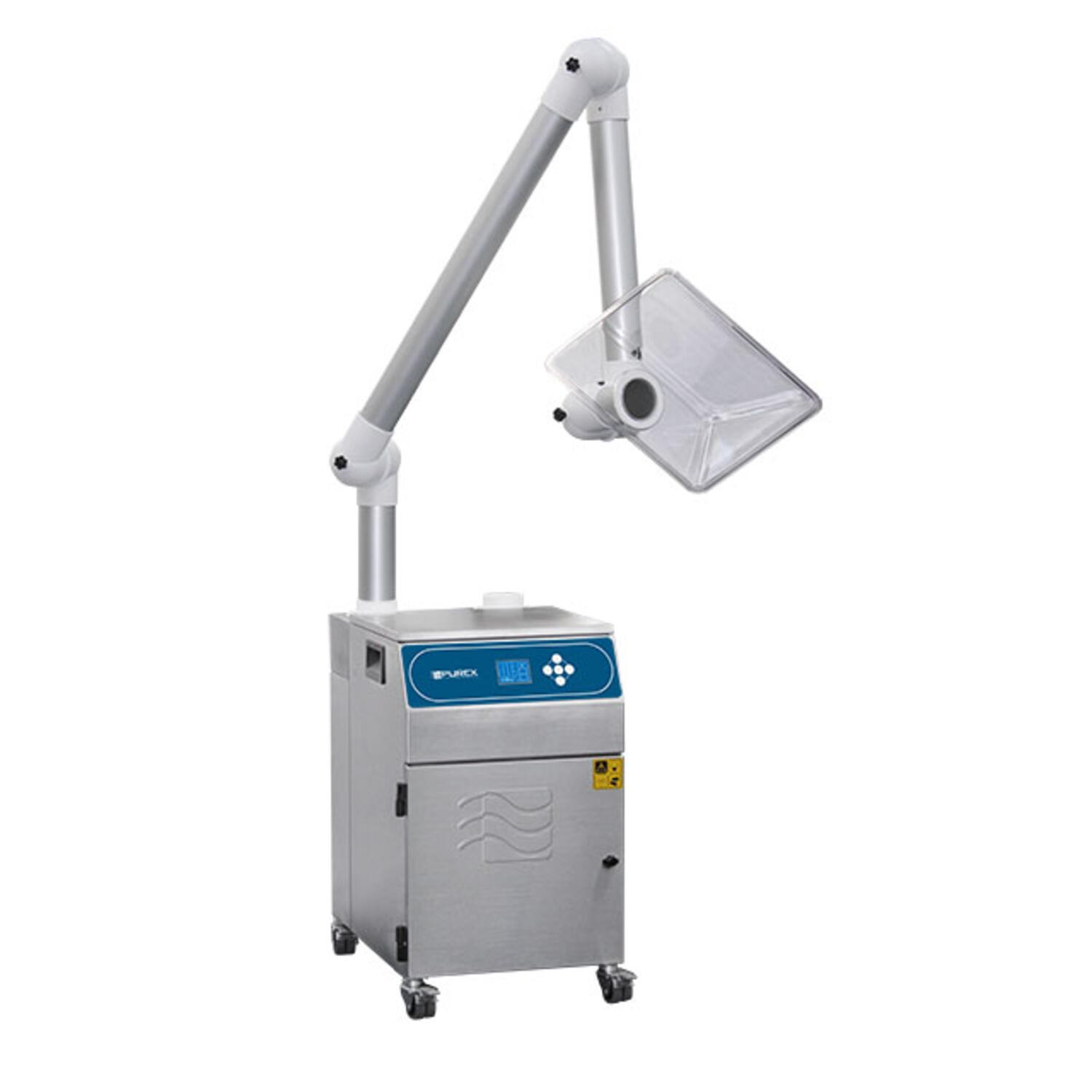

PUREX 650
Fume extractor
Easy to move & Flexible Fume extractor with long extraction arm and clear fume extraction cowl
Purex 650 is designed for mobile work where high flexibility is required from the fume extractor.
The Purex 650 is easy to move due to the wheels under the machine, and the long extraction arm makes it easy to work on even the most demanding objects.

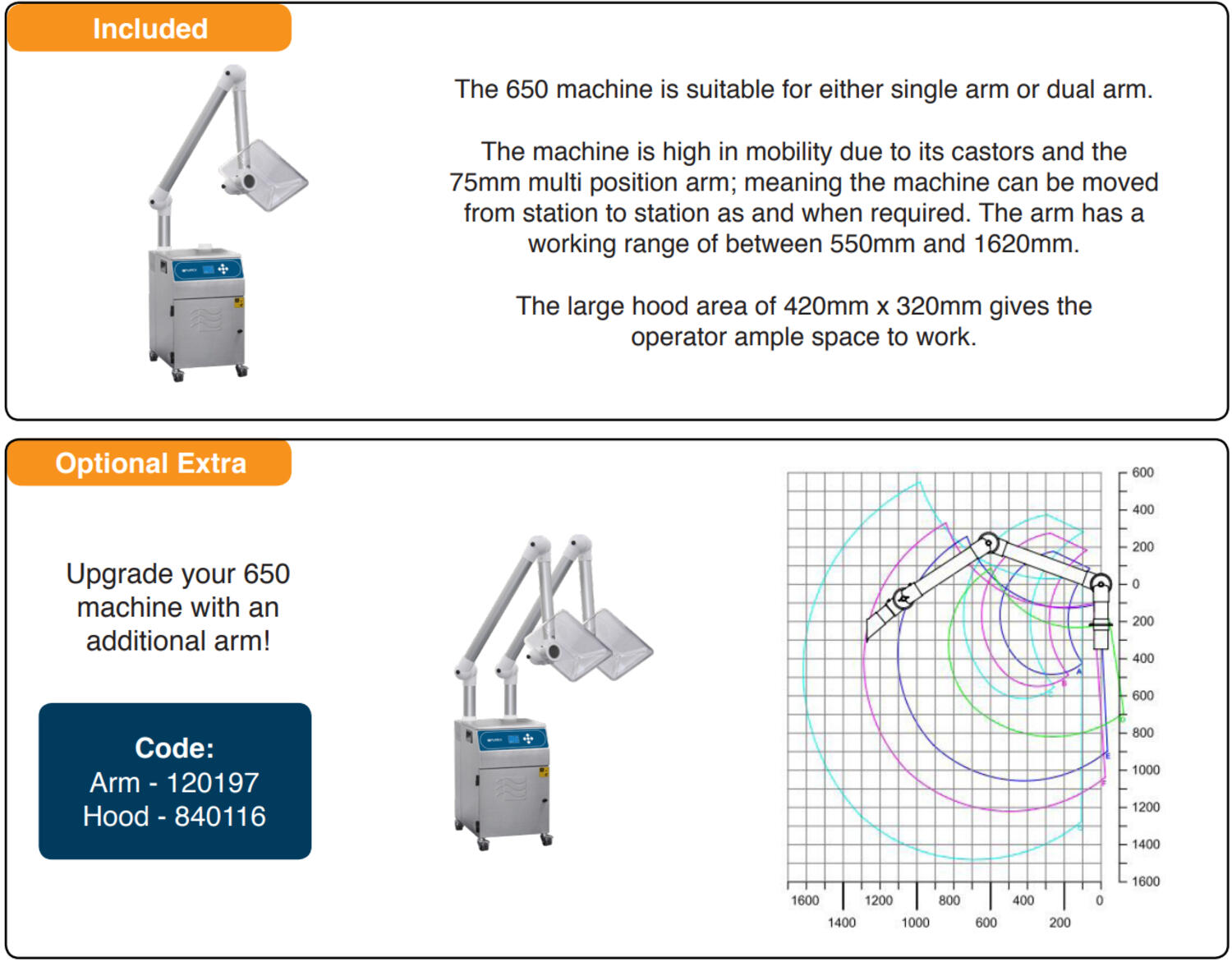

The machine is supplied with one extraction arm, but it is possible to upgrade with another arm and cowl to use on two separate workstations simultaneously, or to extract fumes from a larger working area.
Ominaisuudet:
- Adjustable air flow (Vacuum controlled)
- Electronic pressure sensor maintains constant vacuum level
- Clear and informative graphic display
- Gas & particle sensors after the filtration to warn the operator
- Activated carbon filtration removes harmful chemicals
- HEPA-filtration removes 99.997% of over 0.3µm sized particles
- Assembly and the filter change is easy and fast
- Easy to move due to the wheels under the machine
- Possibility of remote controlling, and possible to get filter status & machine status with a cable for automated processes
- Silent operation
- Brushless motor
- Machine made from stainless steel
There is a wide range of different filters available for the Purex 650 machine. Please refer to the product datasheet found on the bottom of this page.
With an separate cable connection, it is possible to remote control the 650-machine, for example with a push button that can be installed on the workdesk, or from an automated process. You can also get the filter status signal, and machine status signal from the machine to use with an automated process, or building automation.
Link to manufacturers product page
Standard package includes:
- 1 x HEPA/Chemical filter + F5 Pad Pre-filter
- 1 x Extraction arm with clear extraction cowl
- Easy to move fume extractor with 1 or 2 transparent fume hoods
- Adjustable air flow up to 645m³/h
- Standard filters: F5 Pre-filter + HEPA/Activated carbon main filter
- Gas & particle sensors after the filters
- Electronic pressure control
Selected variant
Specifications
| Depth | 610 mm |
|---|---|
| Height | 720 mm |
| Number of inputs | 1 |
| Sound level max | 60 dB |
| Typical Converters | 0.36 kW |
| Weight | 55 kg |
| Width | 445 mm |
| Voltage | 230 V |
Downloads
Product description
Easy to move & Flexible Fume extractor with long extraction arm and clear fume extraction cowl
Purex 650 is designed for mobile work where high flexibility is required from the fume extractor.
The Purex 650 is easy to move due to the wheels under the machine, and the long extraction arm makes it easy to work on even the most demanding objects.
The machine is supplied with one extraction arm, but it is possible to upgrade with another arm and cowl to use on two separate workstations simultaneously, or to extract fumes from a larger working area.
Ominaisuudet:
- Adjustable air flow (Vacuum controlled)
- Electronic pressure sensor maintains constant vacuum level
- Clear and informative graphic display
- Gas & particle sensors after the filtration to warn the operator
- Activated carbon filtration removes harmful chemicals
- HEPA-filtration removes 99.997% of over 0.3µm sized particles
- Assembly and the filter change is easy and fast
- Easy to move due to the wheels under the machine
- Possibility of remote controlling, and possible to get filter status & machine status with a cable for automated processes
- Silent operation
- Brushless motor
- Machine made from stainless steel
There is a wide range of different filters available for the Purex 650 machine. Please refer to the product datasheet found on the bottom of this page.
With an separate cable connection, it is possible to remote control the 650-machine, for example with a push button that can be installed on the workdesk, or from an automated process. You can also get the filter status signal, and machine status signal from the machine to use with an automated process, or building automation.
Link to manufacturers product page
Standard package includes:
- 1 x HEPA/Chemical filter + F5 Pad Pre-filter
- 1 x Extraction arm with clear extraction cowl
