EFORE

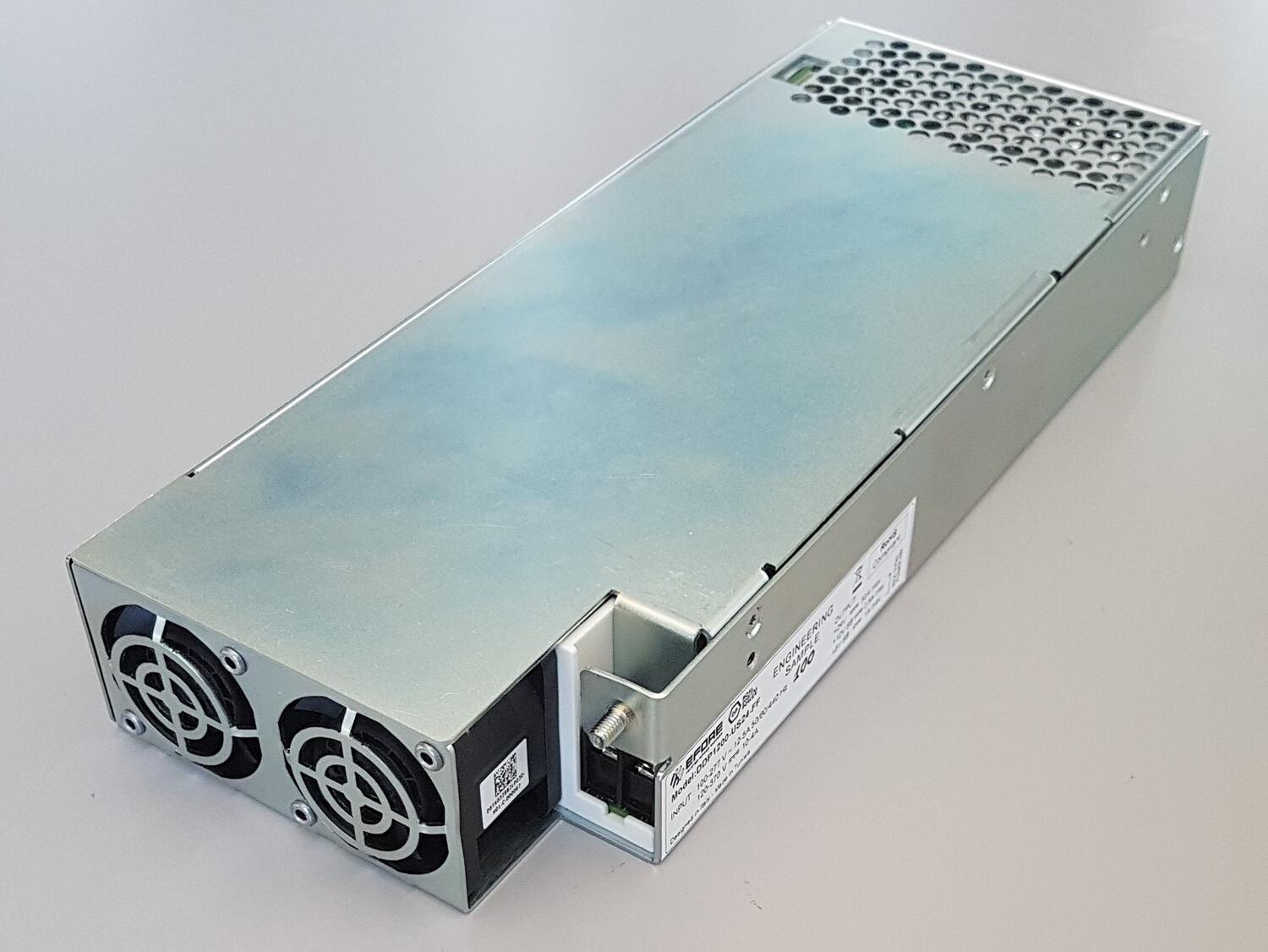

1200W industrial power supplies
Rated for IT/Industrial and LED lighting, the DDP1200 series of AC/DC power supplies packs embedded high power, high energy efficiency and exceptional versatility with the built-in DSP and PMBus™ communications protocols into three (3) very compact packages.
- 24V DC output
- High efficiency 94%
- 5V stand-by and 12V AUX outputs
Selected variant
Specifications
| Input voltage AC | 100-277 V AC |
|---|---|
| Input voltage ac min | 85 V AC |
| Input voltage ac max | 305 V AC |
| Supply Voltage DC Min | 120 V DC |
| Supply Voltage DC Max | 300 V DC |
| Output voltage | 24 V DC |
| Output current max | 50 A |
| Effect | 1200 W |
| Length | 234 mm |
| Width | 101.6 mm |
| Height | 41 mm |
|---|---|
| Weight | 1.15 kg |
| Approvals | CB, CE, CSA 22.2, UL |
| Temperature range from | -20 °C |
| Temperature range to | 60 °C |
| Power Factor at 120 V AC, full load. Typical | 0.95 |
| Power Factor at 230 V AC, full load. Typical | 0.95 |
| Efficiency At 230 V AC, full load. Typical | 94 % |
Downloads
Product description
Rated for IT/Industrial and LED lighting, the DDP1200 series of AC/DC power supplies packs embedded high power, high energy efficiency and exceptional versatility with the built-in DSP and PMBus™ communications protocols into three (3) very compact packages.
