400W industrial power supplies

Reliable, efficient and compact, Efore's DDP400 series of single output AC/DC power supplies are approved to the latest ITE safety standards and offer designers a choice of package types, including open frame, u-chassis, sealed, fan-cooled and perforated covers.

Read more
  • 12V, 24V, 28V, 36V and 48V DC outputs
  • High efficiency 94%
  • Different enclosure types from open to closed
  • 5V stand-by and 12V AUX outputs
  • 440W peak power 10s

Selected variant

EFORE

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Input voltage AC 100-240 V AC
Input voltage ac min 90 V AC
Input voltage ac max 264 V AC
Supply Voltage DC Min 170 V DC
Supply Voltage DC Max 270 V DC
Output voltage 12 V DC
Output current max 33.3 A
Effect 400 W
Length 164.2 mm
Width 76 mm
Height 37.7 mm
Weight 0.41 kg
Approvals CB, CE, CSA 22.2, UL
Temperature range from -20 °C
Temperature range to 50 °C
Power Factor at 120 V AC, full load. Typical 0.95
Power Factor at 230 V AC, full load. Typical 0.95
Efficiency At 230 V AC, full load. Typical 94 %

Downloads

Product description

Reliable, efficient and compact, Efore's DDP400 series of single output AC/DC power supplies are approved to the latest ITE safety standards and offer designers a choice of package types, including open frame, u-chassis, sealed, fan-cooled and perforated covers.

Accessories

Articles Input voltage AC Input voltage ac min Input voltage ac max Supply Voltage DC Min Supply Voltage DC Max Output voltage Output current max Effect Length Width Height Weight IP Class Approvals Temperature range from Temperature range to Power Factor at 120 V AC, full load. Typical Power Factor at 230 V AC, full load. Typical Efficiency At 230 V AC, full load. Typical
Power supply 100-240 V AC/12 V DC, 33,3 A
Art:
DDP400-US12-OF Copied
100-240 V AC
90 V AC
264 V AC
170 V DC
270 V DC
12 V DC
33.3 A
400 W
164.2 mm
76 mm
37.7 mm
0.41 kg
CB, CE, CSA 22.2, UL
-20 °C
50 °C
0.95
0.95
94 %
Power supply 100-240 V AC/24 V DC, 16,7 A
Art:
DDP400-US24-OF Copied
100-240 V AC
90 V AC
264 V AC
170 V DC
270 V DC
24 V DC
16.7 A
400 W
164.2 mm
76 mm
37.7 mm
0.41 kg
CB, CE, CSA 22.2, UL
-20 °C
50 °C
0.95
0.95
94 %
Power supply 100-240 V AC/36 V DC, 11,1 A
Art:
DDP400-US36-OF Copied
100-240 V AC
90 V AC
264 V AC
170 V DC
270 V DC
36 V DC
11.1 A
400 W
164.2 mm
76 mm
37.7 mm
0.41 kg
CB, CE, CSA 22.2, UL
-20 °C
50 °C
0.95
0.95
94 %
Power supply 100-240 V AC/48 V DC, 8,3 A
Art:
DDP400-US48-OF Copied
100-240 V AC
90 V AC
264 V AC
170 V DC
270 V DC
48 V DC
8.3 A
400 W
164.2 mm
76 mm
37.7 mm
0.41 kg
CB, CE, CSA 22.2, UL
-20 °C
50 °C
0.95
0.95
94 %

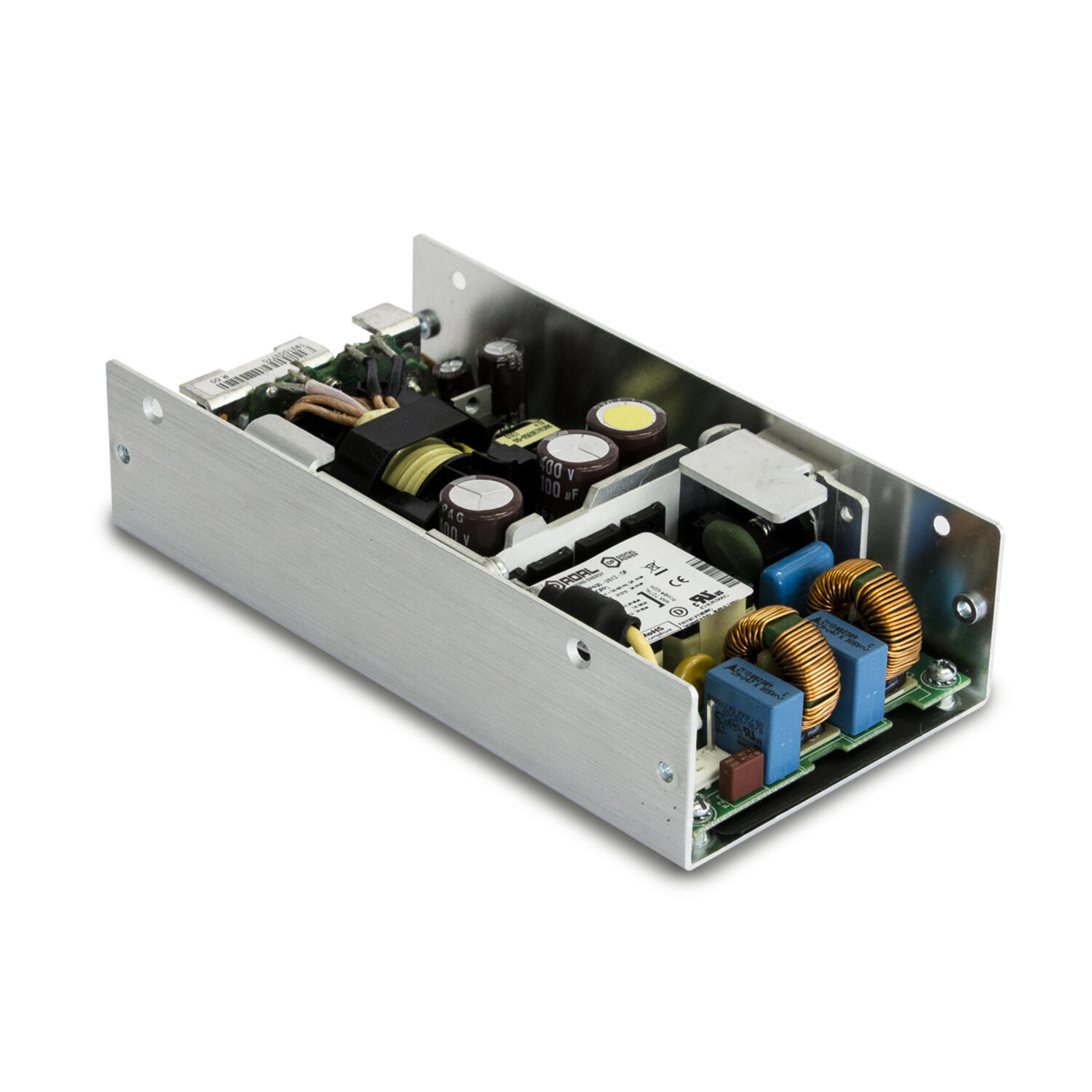

Power supply 100-240 V AC/12 V DC, 33,3 A
Art:
DDP400-US12-UC Copied
100-240 V AC
90 V AC
264 V AC
170 V DC
270 V DC
12 V DC
33.3 A
400 W
166.5 mm
84.4 mm
40 mm
0.525 kg
CB, CE, CSA 22.2, UL
-20 °C
50 °C
0.95
0.95
94 %
Power supply 100-240 V AC/24 V DC, 33,3 A
Art:
DDP400-US24-UC Copied
100-240 V AC
90 V AC
264 V AC
170 V DC
270 V DC
24 V DC
16.7 A
400 W
166.5 mm
84.4 mm
40 mm
0.525 kg
CB, CE, CSA 22.2, UL
-20 °C
50 °C
0.95
0.95
94 %
Power supply 100-240 V AC/36 V DC, 11,1 A
Art:
DDP400-US36-UC Copied
100-240 V AC
90 V AC
264 V AC
170 V DC
270 V DC
36 V DC
11.1 A
400 W
166.5 mm
84.4 mm
40 mm
0.525 kg
CB, CE, CSA 22.2, UL
-20 °C
50 °C
0.95
0.95
94 %
Power supply 100-240 V AC/48 V DC, 8,3 A
Art:
DDP400-US48-UC Copied
100-240 V AC
90 V AC
264 V AC
170 V DC
270 V DC
48 V DC
8.3 A
400 W
166.5 mm
84.4 mm
40 mm
0.525 kg
CB, CE, CSA 22.2, UL
-20 °C
50 °C
0.95
0.95
94 %
Power supply 100-240 V AC/28 V DC, 14,3 A
Art:
DDP400-US28-UC Copied
100-240 V AC
90 V AC
264 V AC
170 V DC
270 V DC
28 V DC
14.3 A
400 W
166.5 mm
84.4 mm
40 mm
0.525 kg
CB, CE, CSA 22.2, UL
-20 °C
50 °C
0.95
0.95
94 %

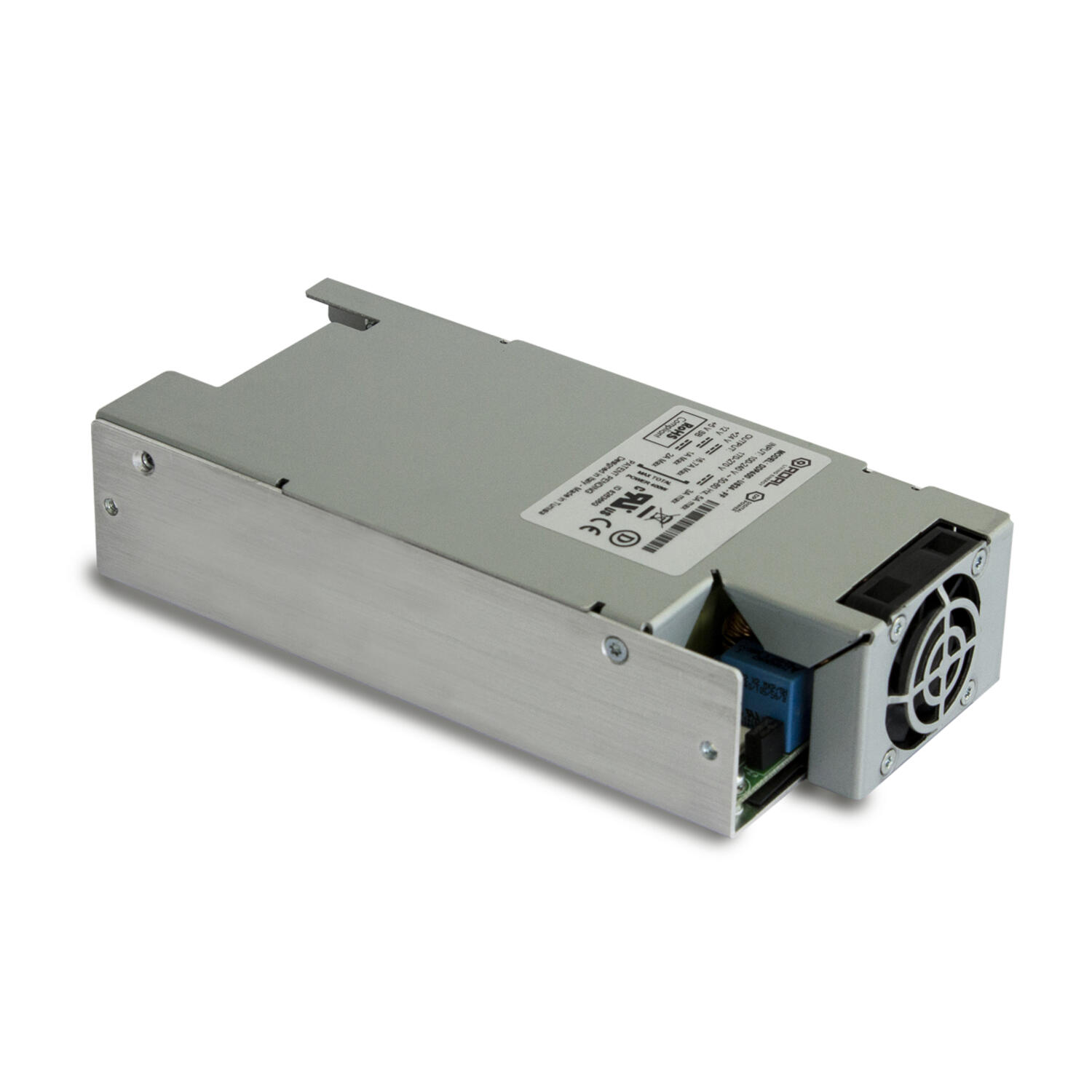

Power supply 100-240 V AC/12V DC, 33,3 A
Art:
DDP400-US12-FF Copied
100-240 V AC
90 V AC
264 V AC
170 V DC
270 V DC
12 V DC
33.3 A
400 W
183 mm
84.4 mm
41 mm
0.685 kg
CB, CE, CSA 22.2, UL
-20 °C
50 °C
0.95
0.95
94 %
Power supply 100-240 V AC/24V DC, 16,7 A
Art:
DDP400-US24-FF Copied
100-240 V AC
90 V AC
264 V AC
170 V DC
270 V DC
24 V DC
16.7 A
400 W
183 mm
84.4 mm
41 mm
0.685 kg
CB, CE, CSA 22.2, UL
-20 °C
50 °C
0.95
0.95
94 %
Power supply 100-240 V AC/36V DC, 11,1 A
Art:
DDP400-US36-FF Copied
100-240 V AC
90 V AC
264 V AC
170 V DC
270 V DC
36 V DC
11.1 A
400 W
183 mm
84.4 mm
41 mm
0.685 kg
CB, CE, CSA 22.2, UL
-20 °C
50 °C
0.95
0.95
94 %
Power supply 100-240 V AC/48V DC, 8,3 A
Art:
DDP400-US48-FF Copied
100-240 V AC
90 V AC
264 V AC
170 V DC
270 V DC
48 V DC
8.3 A
400 W
183 mm
84.4 mm
41 mm
0.685 kg
CB, CE, CSA 22.2, UL
-20 °C
50 °C
0.95
0.95
94 %

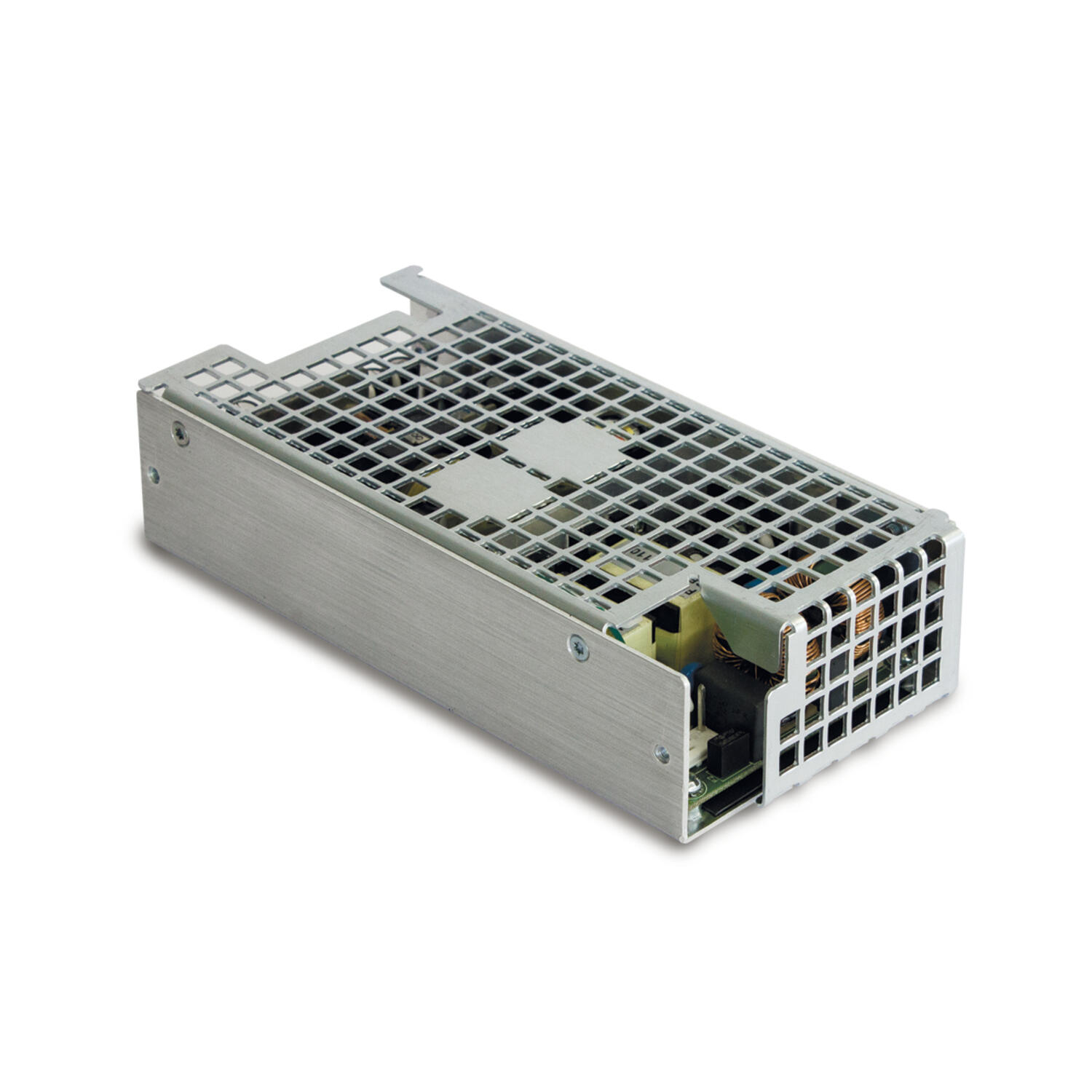

Teholähteet 100-240 V AC/12 V DC, 33,3 A
Art:
DDP400-US12-PC Copied
100-240 V AC
90 V AC
264 V AC
170 V DC
270 V DC
12 V DC
33.3 A
400 W
170.5 mm
84.4 mm
41 mm
0.575 kg
CB, CE, CSA 22.2, UL
-20 °C
50 °C
0.95
0.95
94 %
Teholähteet 100-240 V AC/24 V DC, 16,7 A
Art:
DDP400-US24-PC Copied
100-240 V AC
90 V AC
264 V AC
170 V DC
270 V DC
24 V DC
16.7 A
400 W
170.5 mm
84.4 mm
41 mm
0.575 kg
CB, CE, CSA 22.2, UL
-20 °C
50 °C
0.95
0.95
94 %
Teholähteet 100-240 V AC/36 V DC, 11,1 A
Art:
DDP400-US36-PC Copied
100-240 V AC
90 V AC
264 V AC
170 V DC
270 V DC
36 V DC
11.1 A
400 W
170.5 mm
84.4 mm
41 mm
0.575 kg
CB, CE, CSA 22.2, UL
-20 °C
50 °C
0.95
0.95
94 %
Teholähteet 100-240 V AC/48 V DC, 8,3 A
Art:
DDP400-US48-PC Copied
100-240 V AC
90 V AC
264 V AC
170 V DC
270 V DC
48 V DC
8.3 A
400 W
170.5 mm
84.4 mm
41 mm
0.575 kg
CB, CE, CSA 22.2, UL
-20 °C
50 °C
0.95
0.95
94 %

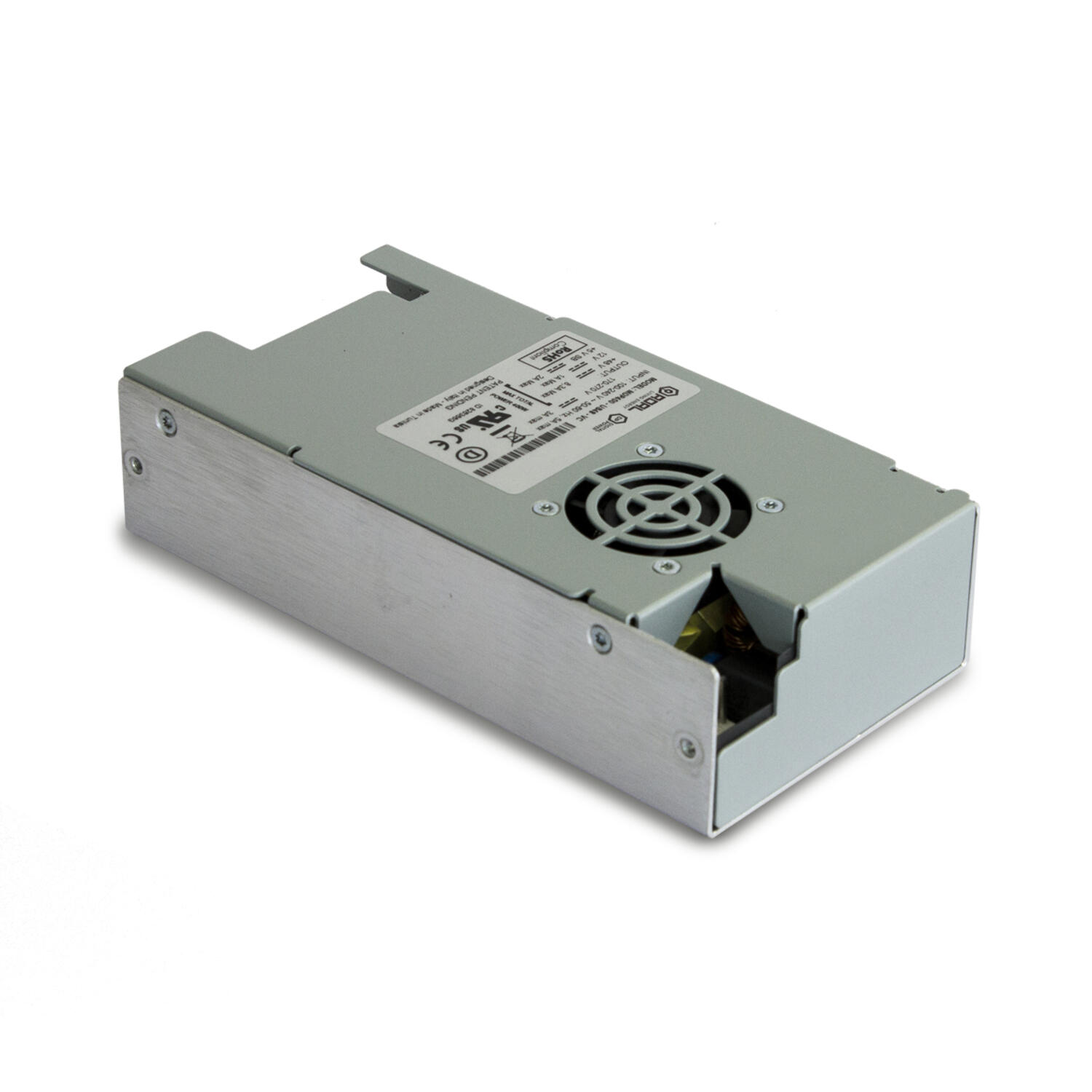

Power supply 100-240 V AC/12 V DC, 33,3 A
Art:
DDP400-US12-VC Copied
100-240 V AC
90 V AC
264 V AC
170 V DC
270 V DC
12 V DC
33.3 A
400 W
166.5 mm
84.4 mm
41 mm
0.67 kg
CB, CE, CSA 22.2, UL
-20 °C
50 °C
0.95
0.95
94 %
Power supply 100-240 V AC/24 V DC, 16,7 A
Art:
DDP400-US24-VC Copied
100-240 V AC
90 V AC
264 V AC
170 V DC
270 V DC
24 V DC
16.7 A
400 W
166.5 mm
84.4 mm
41 mm
0.67 kg
CB, CE, CSA 22.2, UL
-20 °C
50 °C
0.95
0.95
94 %
Power supply 100-240 V AC/36 V DC, 11,1 A
Art:
DDP400-US36-VC Copied
100-240 V AC
90 V AC
264 V AC
170 V DC
270 V DC
36 V DC
11.1 A
400 W
166.5 mm
84.4 mm
41 mm
0.67 kg
CB, CE, CSA 22.2, UL
-20 °C
50 °C
0.95
0.95
94 %
Power supply 100-240 V AC/48 V DC, 8,3 A
Art:
DDP400-US48-VC Copied
100-240 V AC
90 V AC
264 V AC
170 V DC
270 V DC
48 V DC
8.3 A
400 W
166.5 mm
84.4 mm
41 mm
0.67 kg
CB, CE, CSA 22.2, UL
-20 °C
50 °C
0.95
0.95
94 %
Power supply 100-240 V AC/12 V DC, 33,3 A
Art:
DDP400-US12-SC Copied
100-240 V AC
90 V AC
264 V AC
170 V DC
270 V DC
12 V DC
33.3 A
400 W
212 mm
83 mm
42 mm
1.3 kg
IP67
CB, CE, CSA 22.2, UL
-20 °C
70 °C
0.95
0.95
94 %
Power supply 100-240 V AC/24 V DC, 16,7 A
Art:
DDP400-US24-SC Copied
100-240 V AC
90 V AC
264 V AC
170 V DC
270 V DC
24 V DC
16.7 A
400 W
212 mm
83 mm
42 mm
1.3 kg
IP67
CB, CE, CSA 22.2, UL
-20 °C
70 °C
0.95
0.95
94 %
Power supply 100-240 V AC/36 V DC, 11,1 A
Art:
DDP400-US36-SC Copied
100-240 V AC
90 V AC
264 V AC
170 V DC
270 V DC
36 V DC
11.1 A
400 W
212 mm
83 mm
42 mm
1.3 kg
IP67
CB, CE, CSA 22.2, UL
-20 °C
70 °C
0.95
0.95
94 %
Power supply 100-240 V AC/48 V DC, 8,3 A
Art:
DDP400-US48-SC Copied
100-240 V AC
90 V AC
264 V AC
170 V DC
270 V DC
48 V DC
8.3 A
400 W
212 mm
83 mm
42 mm
1.3 kg
IP67
CB, CE, CSA 22.2, UL
-20 °C
70 °C
0.95
0.95
94 %
Power supply 249-528 V AC/24 V DC, 16,7 A
Art:
DDP400HV-US24-SC Copied
277/347/480 V AC
249 V AC
528 V AC
300 V DC
400 V DC
24 V DC
16.7 A
400 W
258 mm
93.6 mm
44.5 mm
1.9 kg
IP67
CE, CSA 22.2, UL
-35 °C
50 °C
Power supply 249-528 V AC/36 V DC, 11,1 A
Art:
DDP400HV-US36-SC Copied
277/347/480 V AC
249 V AC
528 V AC
300 V DC
400 V DC
36 V DC
11.1 A
400 W
258 mm
93.6 mm
44.5 mm
1.9 kg
IP67
CE, CSA 22.2, UL
-35 °C
50 °C
Power supply 249-528 V AC/48 V DC, 8,3 A
Art:
DDP400HV-US48-SC Copied
277/347/480 V AC
249 V AC
528 V AC
300 V DC
400 V DC
48 V DC
8.3 A
400 W
258 mm
93.6 mm
44.5 mm
1.9 kg
IP67
CE, CSA 22.2, UL
-35 °C
50 °C
