EFORE

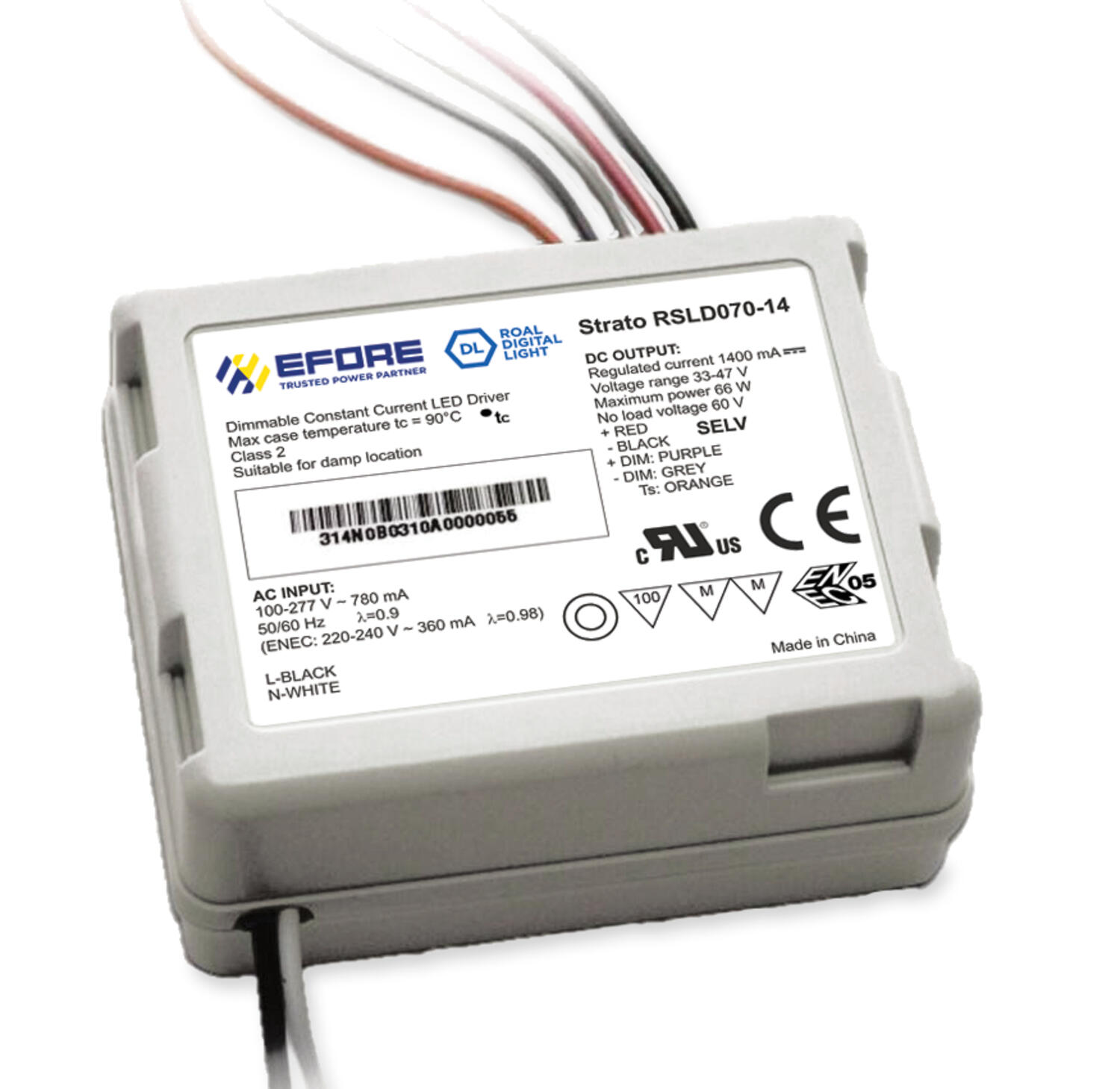

Constant current LED drivers

  • Outputs: 250-1750 mA / 10-74 W
  • Compact encapsulated assembly
  • Long service life (50 000h @ 90 °C Tc)
  • Different dimming options

Selected variant

EFORE

Save as pdf

Technical data / Documents

Accessories & Related products

Selected variant

Specifications

Input voltage AC 230 V
Input voltage ac min 211 V AC
Input voltage ac max 264 V AC
Output voltage (String) 15-42 V DC
Output Current 0.7 A
Power Max 29.4 W
Dimming Vaihekulma
Length 132 mm
Width 40 mm
Height 21 mm
Weight 0.127 kg
Approvals CB, CE, ENEC
Temperature range from -20 °C
Temperature range to 50 °C
Power Factor at 230 V AC, full load. Typical 0.9

Downloads

Accessories

Related

Fiepos
Product news

Fiepos — The power supply of the future

The need for flexible, modular systems shapes machine and system engineering. Decentralization of the system components has proven to be an important factor for success.

PULS Piano PIC
Product news

The recognized Puls quality for an attractive price

The PIANO PIC series is designed for applications that require reliable DIN rail power supplies, which are focused to deliver the most widely required customer functionalities. Our PIC units offer this simplicity without making compromises on PULS’ renowned qualities; efficiency, service lifetime, reliability and size.

PULS redundant
Product news

Redundant systems without redundancy modules

With the CP series, PULS offers a unique feature: Power supplies with an integrated decoupling function based on efficient MOSFET technology. This means there is no need for additional redundancy modules in 1+1 and n+1 redundant systems.

TransTecno gear motors
Product news

Small but very efficient gear motors

Transtecno has developed the MiniTecno product range to better meet the needs of customers using small gear motors in a wide range of industries, up to 90 Nm.

Harting PUSH-IN & ICC
Product news

New connectors products from Harting

HARTING has introduced a new Push-In connection technology that can reduce assembly times by up to 30% and improve installation flexibility. Read more!

Wika hygienic applications
Product news

Products for hygienic applications

WIKA's hygienic products take into account the high hygiene, cleaning, and durability requirements of the food and pharmaceutical industries. Read more!

Articles Input voltage AC Input voltage ac min Input voltage ac max Output voltage (String) Output Current Power Max Dimming Length Width Height Weight IP Class Approvals Temperature range from Temperature range to Power Factor at 120 V AC, full load. Typical Power Factor at 230 V AC, full load. Typical
LED driver 220 - 240 V AC/700 mA, 29,4 W
Art:
RSLM-30A Copied
230 V
211 V AC
264 V AC
15-42 V DC
0.7 A
29.4 W
Vaihekulma
132 mm
40 mm
21 mm
0.127 kg
CB, CE, ENEC
-20 °C
50 °C
0.9

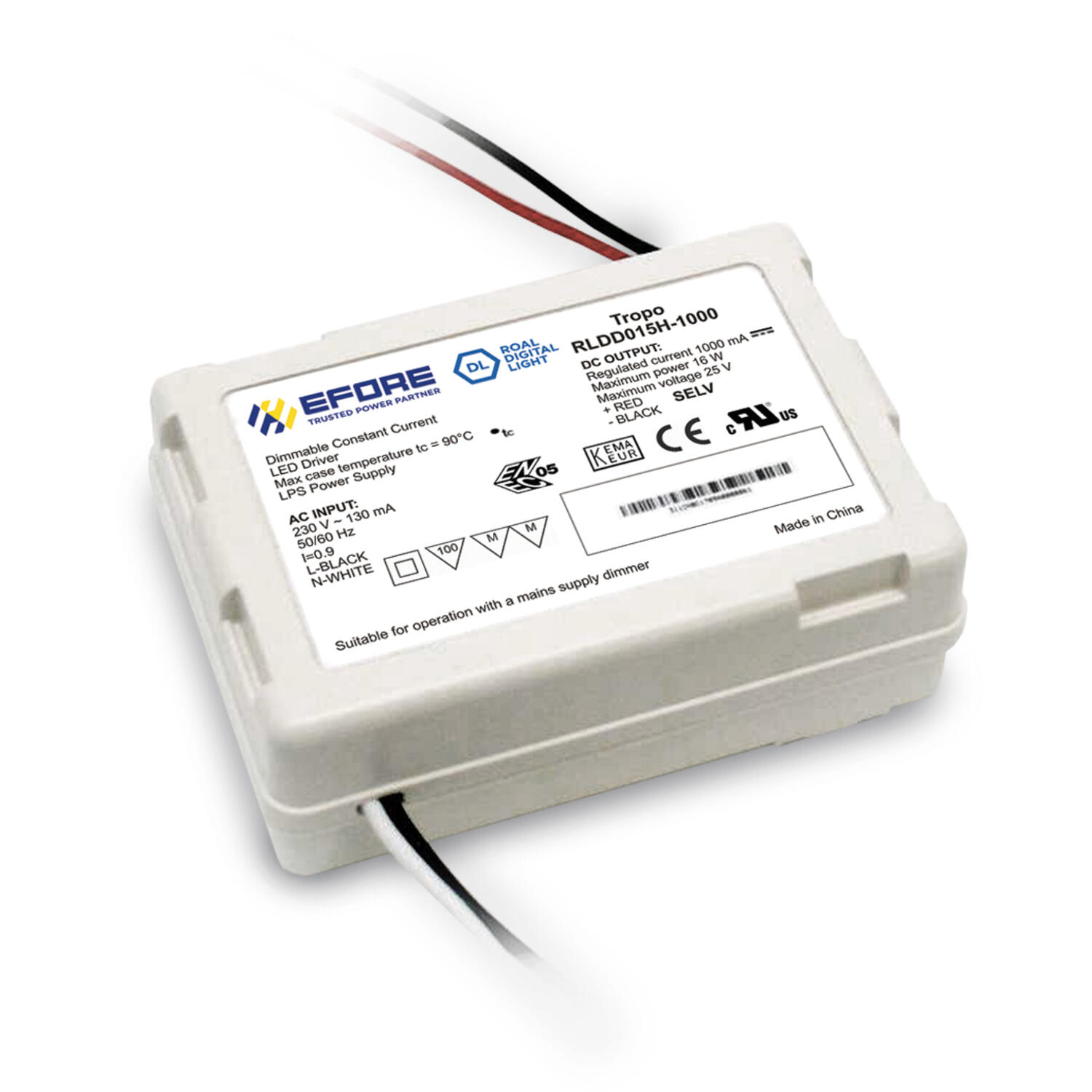

LED driver 176 - 265 V AC/1000 mA, 16,0 W
Art:
RLDD015H-1000 Copied
230 V
176 V AC
265 V AC
15-42 V DC
1 A
16 W
Vaihekulma
82 mm
56 mm
29 mm
0.145 kg
IP20
CE, ENEC, UL
-30 °C
90 °C
0.9
LED driver 176 - 265 V AC/350 mA, 16,8 W
Art:
RLDD015H-350 Copied
230 V
176 V AC
265 V AC
24-48 V DC
0.35 A
16.8 W
Vaihekulma
82 mm
56 mm
29 mm
0.145 kg
IP20
CE, ENEC, UL
-30 °C
90 °C
0.9
LED driver 176 - 265 V AC/350 mA, 7,4 W
Art:
RLDD015H-350H Copied
230 V
176 V AC
265 V AC
12-21 V DC
0.35 A
7.4 W
Vaihekulma
82 mm
56 mm
29 mm
0.145 kg
IP20
CE, ENEC, UL
-30 °C
90 °C
0.9
LED driver 176 - 265 V AC/700 mA, 16,8 W
Art:
RLDD015H-700 Copied
230 V
176 V AC
265 V AC
16-24 V DC
0.7 A
16.8 W
Vaihekulma
82 mm
56 mm
29 mm
0.145 kg
IP20
CE, ENEC, UL
-30 °C
90 °C
0.9
LED driver 120 - 277 V AC/250 mA, 10,5 W
Art:
RCL010-0250A Copied
120-277 V
108 V AC
305 V AC
24-42 V DC
0.25 A
10.5 W
0-10V & vaihekulma (120Vac)
84 mm
40 mm
25.2 mm
0.154 kg
IP20
CE, ENEC, UL
-30 °C
90 °C
0.98
0.97
LED driver 120 - 277 V AC/350 mA, 14,7 W
Art:
RCL015-0350A Copied
120-277 V
108 V AC
305 V AC
24-42 V DC
0.35 A
14.7 W
0-10V & vaihekulma (120Vac)
84 mm
40 mm
25.2 mm
0.154 kg
IP20
CE, ENEC, UL
-30 °C
90 °C
0.98
0.97

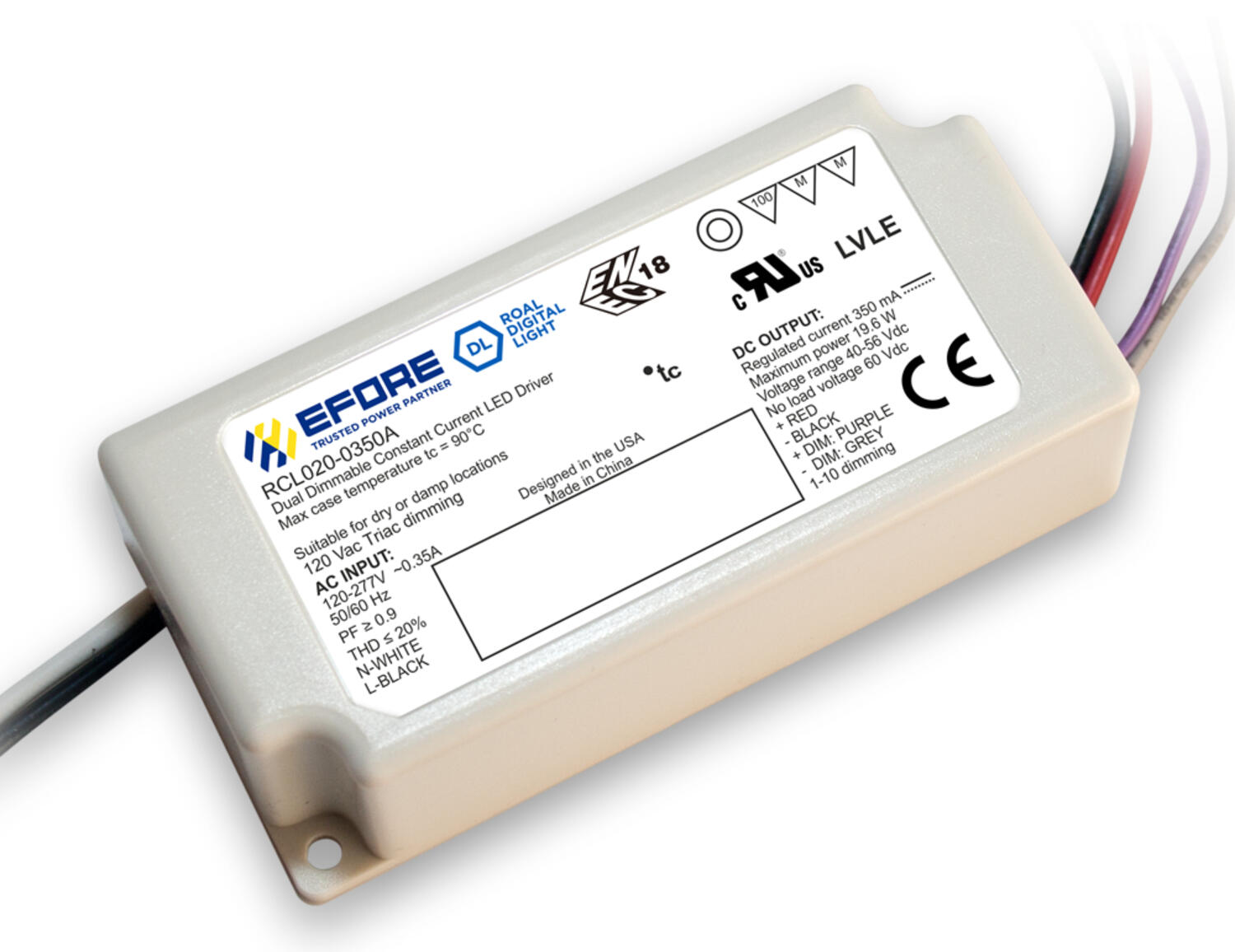

LED driver 120 - 277 V AC/350 mA, 19,6 W
Art:
RCL020-0350A Copied
120-277 V
108 V AC
305 V AC
40-56 V DC
0.35 A
19.6 W
0-10V & vaihekulma (120Vac)
84 mm
40 mm
25.2 mm
0.154 kg
IP20
CE, ENEC, UL
-30 °C
90 °C
0.98
0.97
LED driver 120 - 277 V AC/500 mA, 16,0 W
Art:
RCL020-0500A Copied
120-277 V
108 V AC
305 V AC
21-32 V DC
0.5 A
16 W
0-10V & vaihekulma (120Vac)
84 mm
40 mm
25.2 mm
0.154 kg
IP20
CE, ENEC, UL
-30 °C
90 °C
0.98
0.97
LED driver 120 - 277 V AC/700 mA, 16,8 W
Art:
RCL020-0700A Copied
120-277 V
108 V AC
305 V AC
14-24 V DC
0.7 A
16.8 W
0-10V & vaihekulma (120Vac)
84 mm
40 mm
25.2 mm
0.154 kg
IP20
CE, ENEC, UL
-30 °C
90 °C
0.98
0.97
LED driver 120 - 277 V AC/700 mA, 22,4 W
Art:
RCL030-0700A Copied
120-277 V
108 V AC
305 V AC
21-32 V DC
0.7 A
22.4 W
0-10V & vaihekulma (120Vac)
84 mm
40 mm
25.2 mm
0.154 kg
IP20
CE, ENEC, UL
-30 °C
90 °C
0.98
0.97
LED driver 120 - 277 V AC/900 mA, 24,3 W
Art:
RCL030-0900A Copied
120-277 V
108 V AC
305 V AC
20-27 V DC
0.9 A
24.3 W
0-10V & vaihekulma (120Vac)
84 mm
40 mm
25.2 mm
0.154 kg
IP20
CE, ENEC, UL
-30 °C
90 °C
0.98
0.97

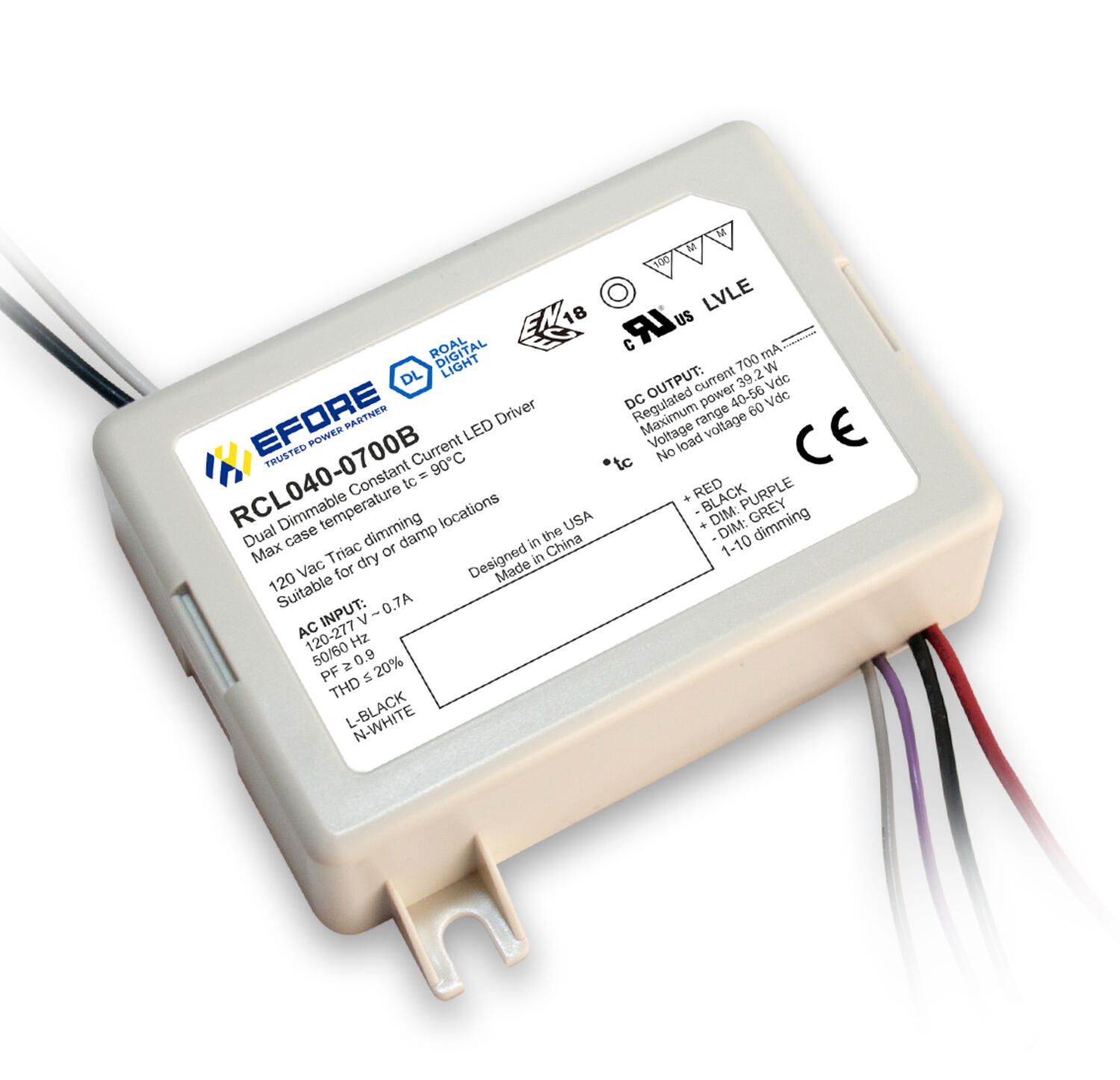

LED driver 120 - 277 V AC/700 mA, 39,2 W
Art:
RCL040-0700B Copied
120-277 V
108 V AC
305 V AC
40-56 V DC
0.7 A
39.2 W
0-10V & vaihekulma (120Vac)
87 mm
60 mm
27.2 mm
0.222 kg
IP20
CE, ENEC, UL
-30 °C
90 °C
0.98
0.97
LED driver 120 - 277 V AC/900 mA, 37,8 W
Art:
RCL040-0900A Copied
120-277 V
108 V AC
305 V AC
24-42 V DC
0.9 A
37.8 W
0-10V & vaihekulma (120Vac)
87 mm
60 mm
27.2 mm
0.222 kg
IP20
CE, ENEC, UL
-30 °C
90 °C
0.98
0.97
LED driver 120 - 277 V AC/1050 mA, 44,1 W
Art:
RCL050-1050A Copied
120-277 V
108 V AC
305 V AC
24-42 V DC
1.05 A
44.1 W
0-10V & vaihekulma (120Vac)
87 mm
60 mm
27.2 mm
0.222 kg
IP20
CE, ENEC, UL
-30 °C
90 °C
0.98
0.97
LED driver 120 - 277 V AC/1400 mA, 44,8 W
Art:
RCL050-1400A Copied
120-277 V
108 V AC
305 V AC
21-32 V DC
1.4 A
44.8 W
0-10V & vaihekulma (120Vac)
87 mm
60 mm
27.2 mm
0.222 kg
IP20
CE, ENEC, UL
-30 °C
90 °C
0.98
0.97
LED driver 120 - 277 V AC/500 mA, 21,0 W
Art:
RCL030-0500A Copied
120-277 V
108 V AC
305 V AC
24-42 V DC
0.5 A
21 W
0-10V & vaihekulma (120Vac)
84 mm
40 mm
25.2 mm
0.154 kg
IP20
CE, ENEC, UL
-30 °C
90 °C
0.98
0.97
LED driver 120 - 277 V AC/1750 mA, 30,6 W
Art:
RSLD035-05 Copied
120-277 V
90 V AC
305 V AC
12,5-17,5 V DC
1.75 A
30.6 W
0-10V
70 mm
40 mm
27 mm
0.142 kg
IP20
CB, CE, ENEC, UL
-30 °C
90 °C
0.9
0.9
LED driver 120 - 277 V AC/1400 mA, 29,4 W
Art:
RSLD035-06 Copied
120-277 V
90 V AC
305 V AC
15,0-21,0 V DC
1.4 A
29.4 W
0-10V
70 mm
40 mm
27 mm
0.142 kg
IP20
CB, CE, ENEC, UL
-30 °C
90 °C
0.9
0.9
LED driver 120 - 277 V AC/1400 mA, 34,3 W
Art:
RSLD035-07 Copied
120-277 V
90 V AC
305 V AC
17,5-24,5 V DC
1.4 A
34.3 W
0-10V
70 mm
40 mm
27 mm
0.142 kg
IP20
CB, CE, ENEC, UL
-30 °C
90 °C
0.9
0.9
LED driver 120 - 277 V AC/1150 mA, 32,2 W
Art:
RSLD035-08 Copied
120-277 V
90 V AC
305 V AC
20,0-28,0 V DC
1.4 A
32.2 W
0-10V
70 mm
40 mm
27 mm
0.142 kg
IP20
CB, CE, ENEC, UL
-30 °C
90 °C
0.9
0.9
LED driver 120 - 277 V AC/1000 mA, 31,5 W
Art:
RSLD035-09 Copied
120-277 V
90 V AC
305 V AC
22,5-31,5 V DC
1 A
31.5 W
0-10V
70 mm
40 mm
27 mm
0.142 kg
IP20
CB, CE, ENEC, UL
-30 °C
90 °C
0.9
0.9
LED driver 120 - 277 V AC/700 mA, 22,1 W
Art:
RSLD035-09A Copied
120-277 V
90 V AC
305 V AC
22,5-31,5 V DC
0.7 A
22.1 W
0-10V
70 mm
40 mm
27 mm
0.142 kg
IP20
CB, CE, ENEC, UL
-30 °C
90 °C
0.9
0.9
LED driver 120 - 277 V AC/700 mA, 24,5 W
Art:
RSLD035-10 Copied
120-277 V
90 V AC
305 V AC
25,0-35,0 V DC
0.7 A
24.5 W
0-10V
70 mm
40 mm
27 mm
0.142 kg
IP20
CB, CE, ENEC, UL
-30 °C
90 °C
0.9
0.9
LED driver 120 - 277 V AC/440 mA, 15,0 W
Art:
RSLD035-10A Copied
120-277 V
90 V AC
305 V AC
26,0-34,0 V DC
0.44 A
15 W
0-10V
70 mm
40 mm
27 mm
0.142 kg
IP20
CB, CE, ENEC, UL
-30 °C
90 °C
0.9
0.9
LED driver 120 - 277 V AC/700 mA, 27,0 W
Art:
RSLD035-11 Copied
120-277 V
90 V AC
305 V AC
27,5-38,5 V DC
0.7 A
27 W
0-10V
70 mm
40 mm
27 mm
0.142 kg
IP20
CB, CE, ENEC, UL
-30 °C
90 °C
0.9
0.9
LED driver 120 - 277 V AC/1050 mA, 39,9 W
Art:
RSLD035-11A Copied
120-277 V
90 V AC
305 V AC
28,5-38,0 V DC
1.05 A
39.9 W
0-10V
70 mm
40 mm
27 mm
0.142 kg
IP20
CB, CE, ENEC, UL
-30 °C
90 °C
0.9
0.9
LED driver 120 - 277 V AC/700 mA, 29,4 W
Art:
RSLD035-12 Copied
120-277 V
90 V AC
305 V AC
30,0-42,0 V DC
0.7 A
29.4 W
0-10V
70 mm
40 mm
27 mm
0.142 kg
IP20
CB, CE, ENEC, UL
-30 °C
90 °C
0.9
0.9
LED driver 120 - 277 V AC/350 mA, 14,7 W
Art:
RSLD035-12A Copied
120-277 V
90 V AC
305 V AC
31,5-42,0 V DC
0.35 A
14.7 W
0-10V
70 mm
40 mm
27 mm
0.142 kg
IP20
CB, CE, ENEC, UL
-30 °C
90 °C
0.9
0.9
LED driver 120 - 277 V AC/450 mA, 18,9 W
Art:
RSLD035-12B Copied
120-277 V
90 V AC
305 V AC
31,5-42,0 V DC
0.45 A
18.9 W
0-10V
70 mm
40 mm
27 mm
0.142 kg
IP20
CB, CE, ENEC, UL
-30 °C
90 °C
0.9
0.9
LED driver 120 - 277 V AC/600 mA, 25,2 W
Art:
RSLD035-12C Copied
120-277 V
90 V AC
305 V AC
31,5-42,0 V DC
0.6 A
25.2 W
0-10V
70 mm
40 mm
27 mm
0.142 kg
IP20
CB, CE, ENEC, UL
-30 °C
90 °C
0.9
0.9
LED driver 120 - 277 V AC/800 mA, 33,6 W
Art:
RSLD035-12E Copied
120-277 V
90 V AC
305 V AC
31,5-42,0 V DC
0.8 A
33.6 W
0-10V
70 mm
40 mm
27 mm
0.142 kg
IP20
CB, CE, ENEC, UL
-30 °C
90 °C
0.9
0.9
LED driver 120 - 277 V AC/550 mA, 23,1 W
Art:
RSLD035-12F Copied
120-277 V
90 V AC
305 V AC
31,5-42,0 V DC
0.55 A
23.1 W
0-10V
70 mm
40 mm
27 mm
0.142 kg
IP20
CB, CE, ENEC, UL
-30 °C
90 °C
0.9
0.9
LED driver 120 - 277 V AC/850 mA, 35,7 W
Art:
RSLD035-12G Copied
120-277 V
90 V AC
305 V AC
31,5-42,0 V DC
0.85 A
35.7 W
0-10V
70 mm
40 mm
27 mm
0.142 kg
IP20
CB, CE, ENEC, UL
-30 °C
90 °C
0.9
0.9
LED driver 120 - 277 V AC/900 mA, 37,8 W
Art:
RSLD035-12H Copied
120-277 V
90 V AC
305 V AC
31,5-42,0 V DC
0.9 A
37.8 W
0-10V
70 mm
40 mm
27 mm
0.142 kg
IP20
CB, CE, ENEC, UL
-30 °C
90 °C
0.9
0.9
LED driver 120 - 277 V AC/500 mA, 21,0 W
Art:
RSLD035-12J Copied
120-277 V
90 V AC
305 V AC
31,5-42,0 V DC
0.5 A
21 W
0-10V
70 mm
40 mm
27 mm
0.142 kg
IP20
CB, CE, ENEC, UL
-30 °C
90 °C
0.9
0.9
LED driver 120 - 277 V AC/700 mA, 31,9 W
Art:
RSLD035-13 Copied
120-277 V
90 V AC
305 V AC
32,5-45,5 V DC
0.7 A
31.9 W
0-10V
70 mm
40 mm
27 mm
0.142 kg
IP20
CB, CE, ENEC, UL
-30 °C
90 °C
0.9
0.9
LED driver 120 - 277 V AC/700 mA, 34,3 W
Art:
RSLD035-14 Copied
120-277 V
90 V AC
305 V AC
35,0-49,0 V DC
0.7 A
34.3 W
0-10V
70 mm
40 mm
27 mm
0.142 kg
IP20
CB, CE, ENEC, UL
-30 °C
90 °C
0.9
0.9
LED driver 120 - 277 V AC/700 mA, 36,8 W
Art:
RSLD035-15 Copied
120-277 V
90 V AC
305 V AC
37,5-52,5 V DC
0.7 A
36.8 W
0-10V
70 mm
40 mm
27 mm
0.142 kg
IP20
CB, CE, ENEC, UL
-30 °C
90 °C
0.9
0.9
LED driver 120 - 277 V AC/700 mA, 39,2 W
Art:
RSLD035-16 Copied
120-277 V
90 V AC
305 V AC
40,0-56,0 V DC
0.7 A
39.2 W
0-10V
70 mm
40 mm
27 mm
0.142 kg
IP20
CB, CE, ENEC, UL
-30 °C
90 °C
0.9
0.9
LED driver 120 - 277 V AC/350 mA, 19,1 W
Art:
RSLD035-16A Copied
120-277 V
90 V AC
305 V AC
41,0-54,5 V DC
0.35 A
19.1 W
0-10V
70 mm
40 mm
27 mm
0.142 kg
IP20
CB, CE, ENEC, UL
-30 °C
90 °C
0.9
0.9
LED driver 120 - 277 V AC/1400 mA, 65,8 W
Art:
RSLD070-14 Copied
120-277 V
90 V AC
305 V AC
33-47 V DC
1.4 A
65.8 W
0-10V
70 mm
57 mm
32 mm
0.17 kg
IP20
CB, CE, ENEC, UL
-30 °C
90 °C
0.9
0.9
LED driver 120 - 277 V AC/700 mA, 61,0 W
Art:
RSLD070-25 Copied
120-277 V
90 V AC
305 V AC
63-88 V DC
0.7 A
61 W
0-10V
70 mm
57 mm
32 mm
0.17 kg
IP20
CB, CE, ENEC, UL
-30 °C
90 °C
0.9
0.9
LED driver 120 - 277 V AC/700 mA, 74,0 W
Art:
RSLD070-30 Copied
120-277 V
90 V AC
305 V AC
75-105 V DC
0.7 A
74 W
0-10V
70 mm
57 mm
32 mm
0.17 kg
IP20
CB, CE, ENEC, UL
-30 °C
90 °C
0.9
0.9
LED driver 120 - 277 V AC/350 mA, 55,0 W
Art:
RSLD070-45 Copied
120-277 V
90 V AC
305 V AC
113-158 V DC
0.35 A
55 W
0-10V
70 mm
57 mm
32 mm
0.17 kg
IP20
CB, CE, ENEC, UL
-30 °C
90 °C
0.9
0.9
LED driver 120 - 277 V AC/350 mA, 61,0 W
Art:
RSLD070-50 Copied
120-277 V
90 V AC
305 V AC
125-175 V DC
0.35 A
61 W
0-10V
70 mm
57 mm
32 mm
0.17 kg
IP20
CB, CE, ENEC, UL
-30 °C
90 °C
0.9
0.9
LED driver 120 - 277 V AC/350 mA, 74,0 W
Art:
RSLD070-60 Copied
120-277 V
90 V AC
305 V AC
150-210 V DC
0.35 A
74 W
0-10V
70 mm
57 mm
32 mm
0.17 kg
IP20
CB, CE, ENEC, UL
-30 °C
90 °C
0.9
0.9

Selected variant

Select a variant in the list

Contact us
Please contact us for more information.
Send e-mail
Do you need help?
Logo

Cookies on oem.ee

Cookies help us improve your experience with us, so in order to be able to handle login information, offer you personalised content and for basic functionality of this website, we use some cookies.

Functional cookies

These cookies are necessary for the website to work and can not be turned off in our systems. They are usually used only in response to actions you have taken in connection with a service request, for example when setting personal preferences, logging in or filling out a form.

Analytics cookies

These cookies allow us to count the number of visits and traffic sources so that we can measure and improve our website performance. They help us know which pages are more or less popular and how visitors navigate around the site. The information that these cookies collect is aggregated and therefore completely anonymous. If you do not allow these cookies, we do not know when you have visited our website.

Marketing cookies

These cookies can be added by our partners. They can use them to create a profile of you, based on your interests, to show you more relevant information. They do not store any personal information - only information about your browser and device. If you do not accept these cookies, you will have a more general and less customized user experience.
