PULS
Redundant module 10 A Miniline Series
DC12-48V

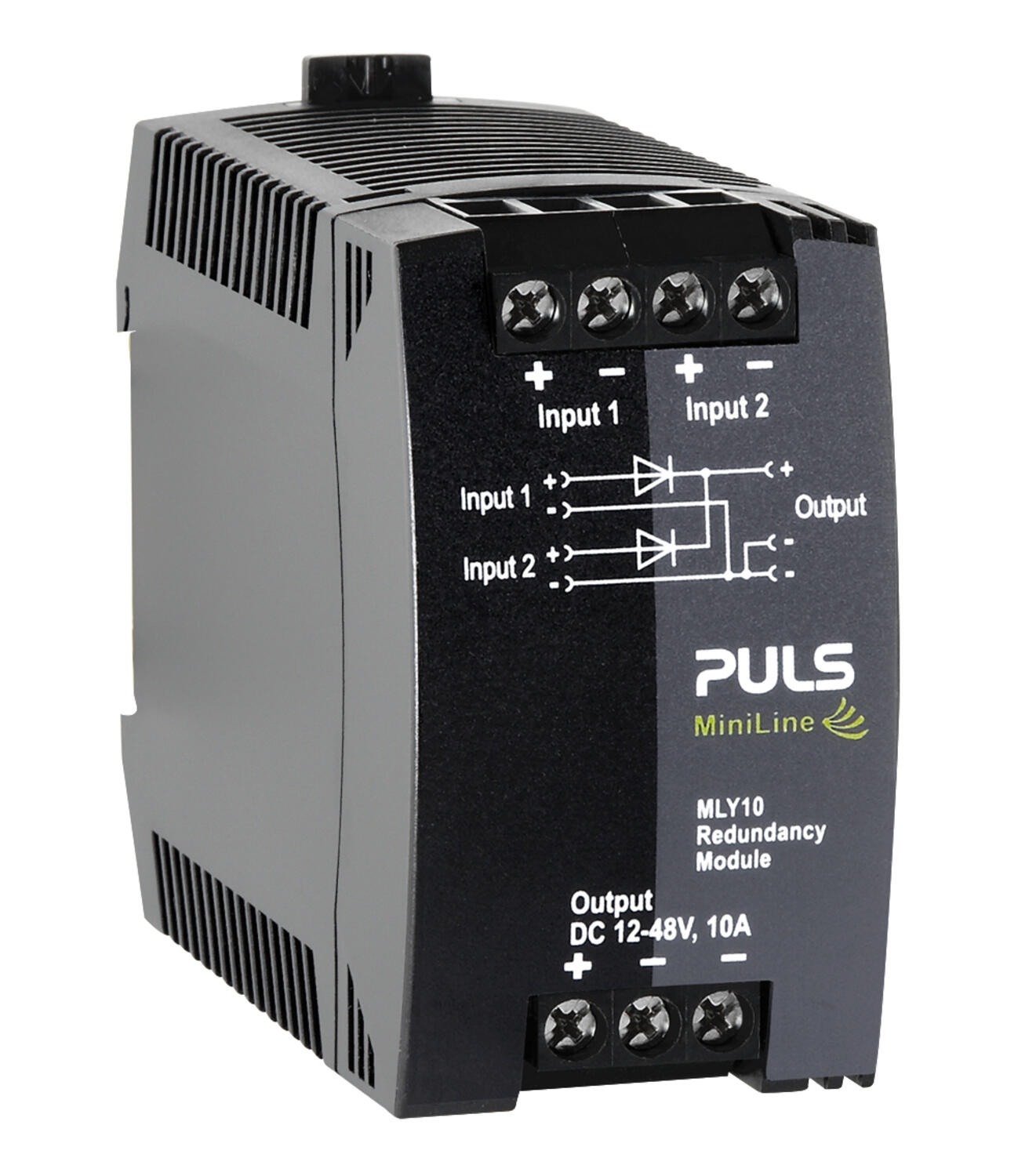

The MLY10.241 is a simple is a redundancy module, which can be used to build 1+1 and N+1 redundant systems. It is equipped with two input channels, which can be connected to power supplies with up to 5A
output current and one output, which can carry nominal currents up to 10A. The module is suitable for
power supplies with constant current overload behavior as well as any kind of “Hiccup” overload behavior.
Large screw terminals allow a safe and fast installation and a large international approval package for a variety of applications makes this unit suitable for nearly every situation.

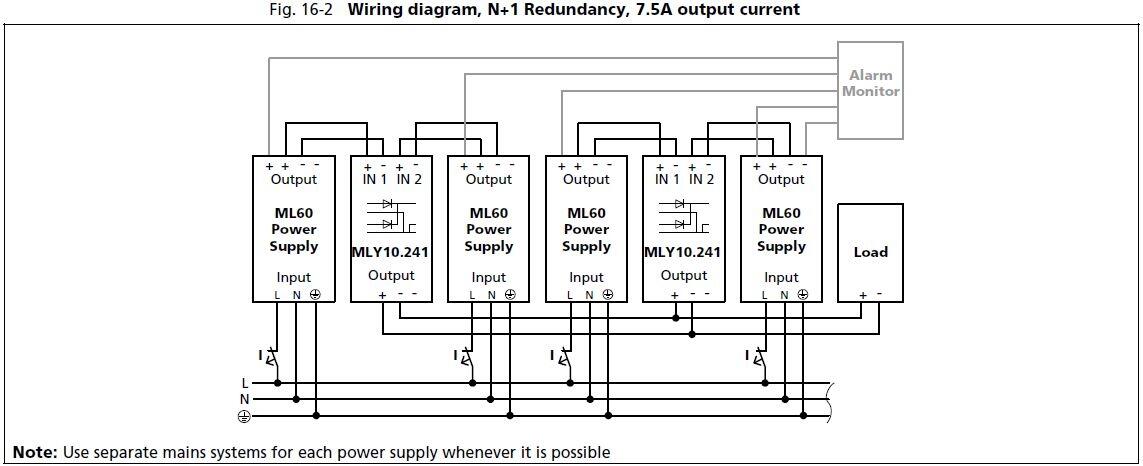

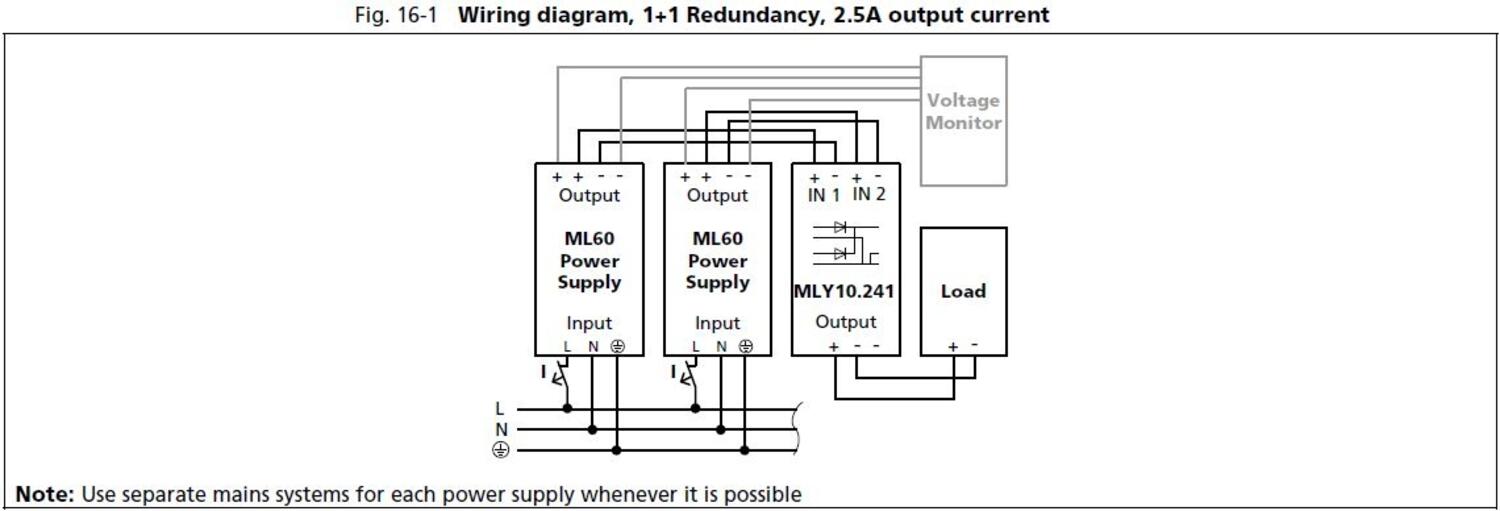

- For 1+1 and N+1 redundant systems
- Dual diodes
- Cost-efficient
Selected variant
Specifications
| Input voltage DC | 12-48 V |
|---|---|
| Input voltage dc min | 9 V DC |
| Input voltage dc max | 60 V DC |
| Input current per channel max | 5 A |
| Output voltage | 24 V DC |
| Output Current | 10 A |
| Output current max | 16 A |
| Temperature Range Without Derating From | -40 °C |
| Temperature Range Without Derating To | 70 °C |

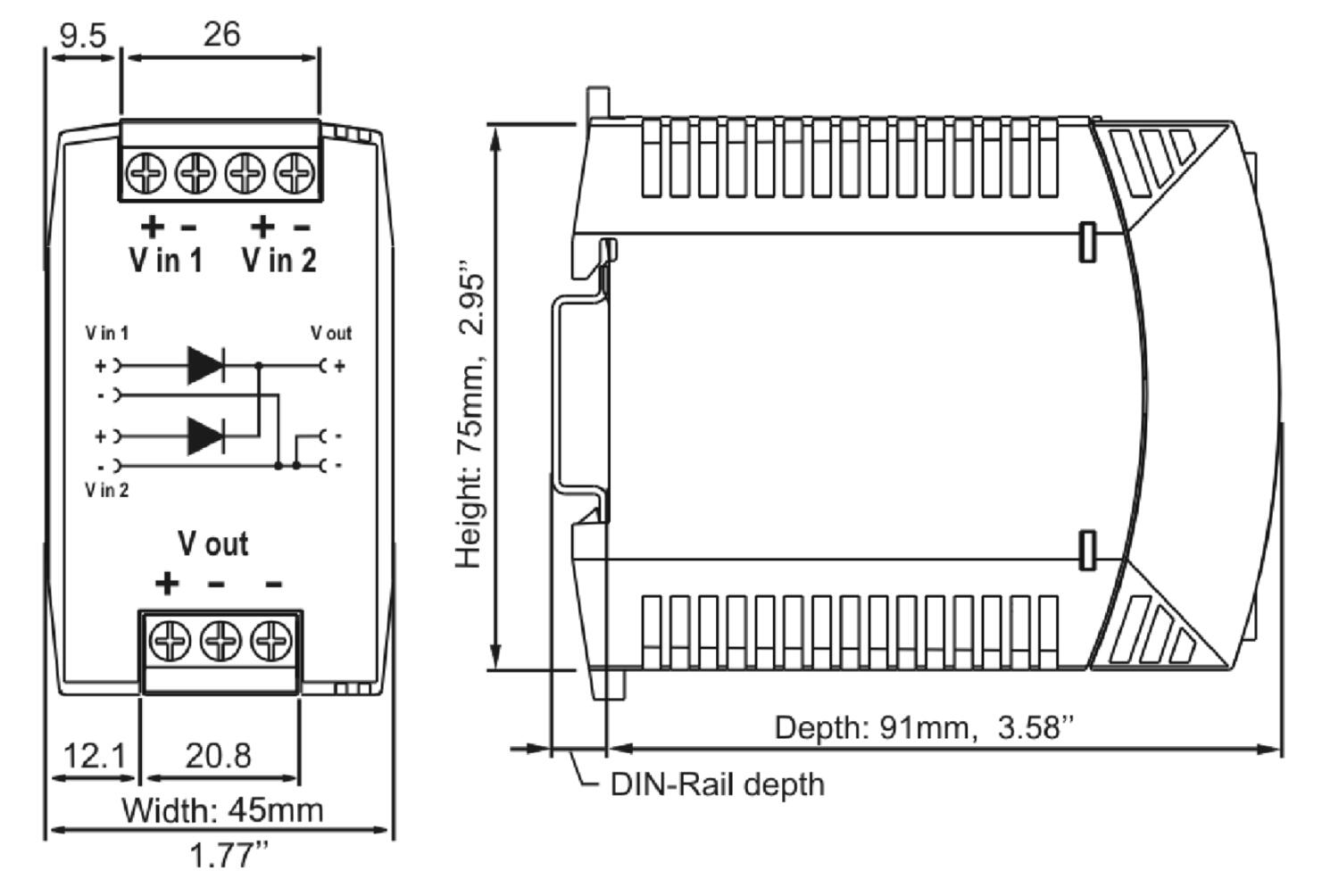

| Width | 45 mm |
| Height | 75 mm |
|---|---|
| Depth | 91 mm |
| Weight | 0.14 kg |
| Series | Miniline |
| Approvals | ATEX, CE, CSA, GL, IECEx, UL |
| Material Protection | ABS plastic |
| IP Class | IP20 |
| Voltage Drop Over The Semi-Conductor | 900 mV |
Product description
The MLY10.241 is a simple is a redundancy module, which can be used to build 1+1 and N+1 redundant systems. It is equipped with two input channels, which can be connected to power supplies with up to 5A
output current and one output, which can carry nominal currents up to 10A. The module is suitable for
power supplies with constant current overload behavior as well as any kind of “Hiccup” overload behavior.
Large screw terminals allow a safe and fast installation and a large international approval package for a variety of applications makes this unit suitable for nearly every situation.
