LBK System. 3D safety radar

A revolutionary volumetric safety radar. LBK is a SIL2 certified safety radar system that creates a 3D virtual safety area to control access and prevent machinery from starting when humans are present.

Radar technology makes it possible to detect objects and people through radio waves, which are harmless to human health. This technology is resistant to disturbances caused by light, dust, swarf and any other environmental factors.

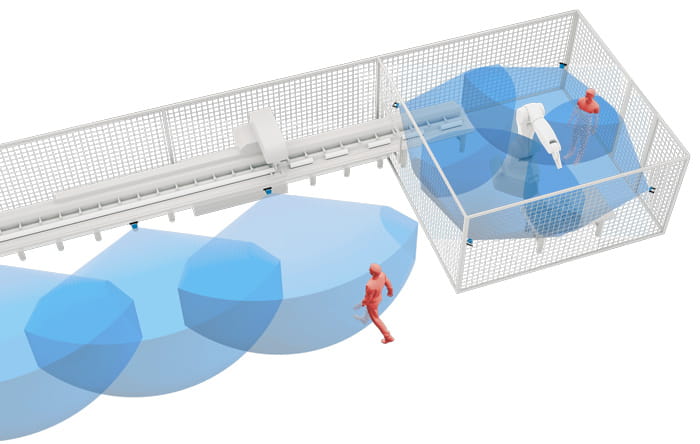

Safety zone

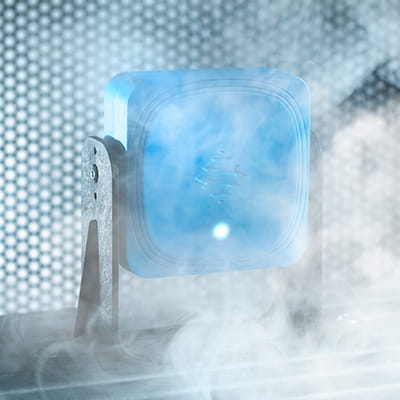

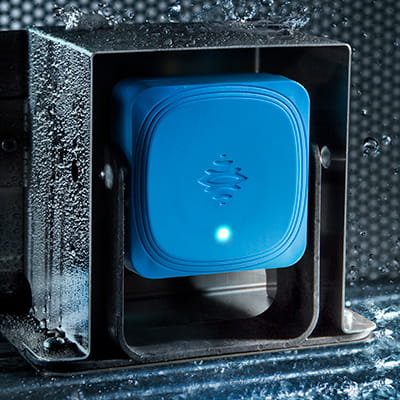

Excellent performance against dust, light, smoke or moisture

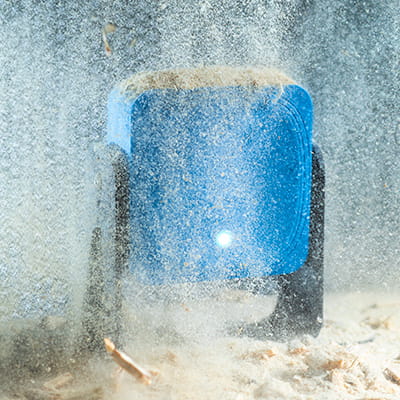

Optical devices often fail in the presence of dust, smoke, water or swarf generated by production processes. The Inxpect team is highly specialized in radar technology, and has designed sophisticated FMCW radar algorithms capable of filtering these types of disturbances to reduce false alarms and increase productivity.

inxpect system

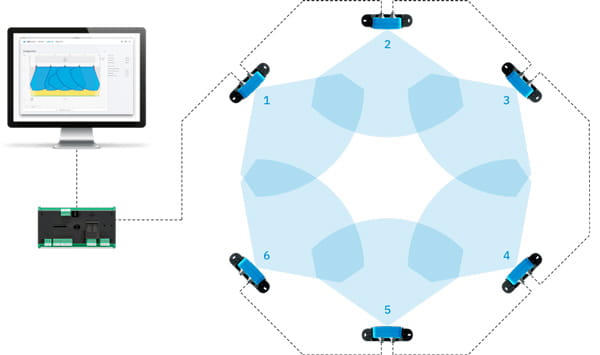

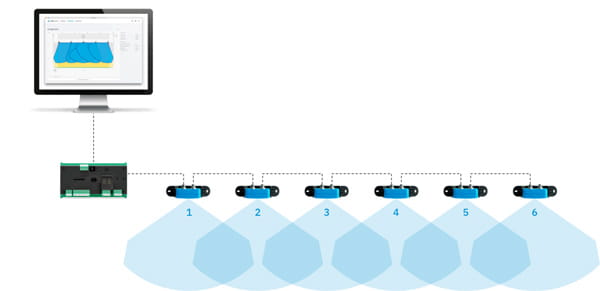

The system is composed of a controller that can be connected to up to 6 LBK-S01 sensors.

  • Perfect alignment among the sensors is not necessary.
  • The software supplied with the system allows for multiple configurations: assisted automatic configuration for regularly-shaped areas and manual configuration for monitoring more complex areas.
  • Programmable muting allows the creation of differentiated intervention areas where operators can gain safe access according to production logic.
Inxpect system
Inxpect system

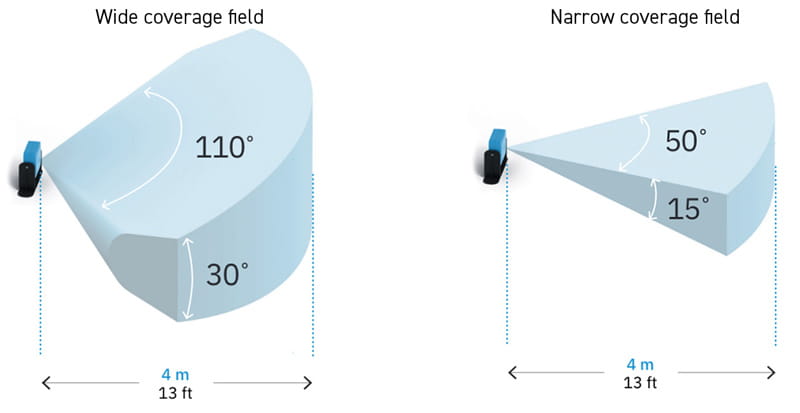

Inxpect sensing field

read More about safety radar
