Datalogic - Vision Sensor DATAVS2 OBJ

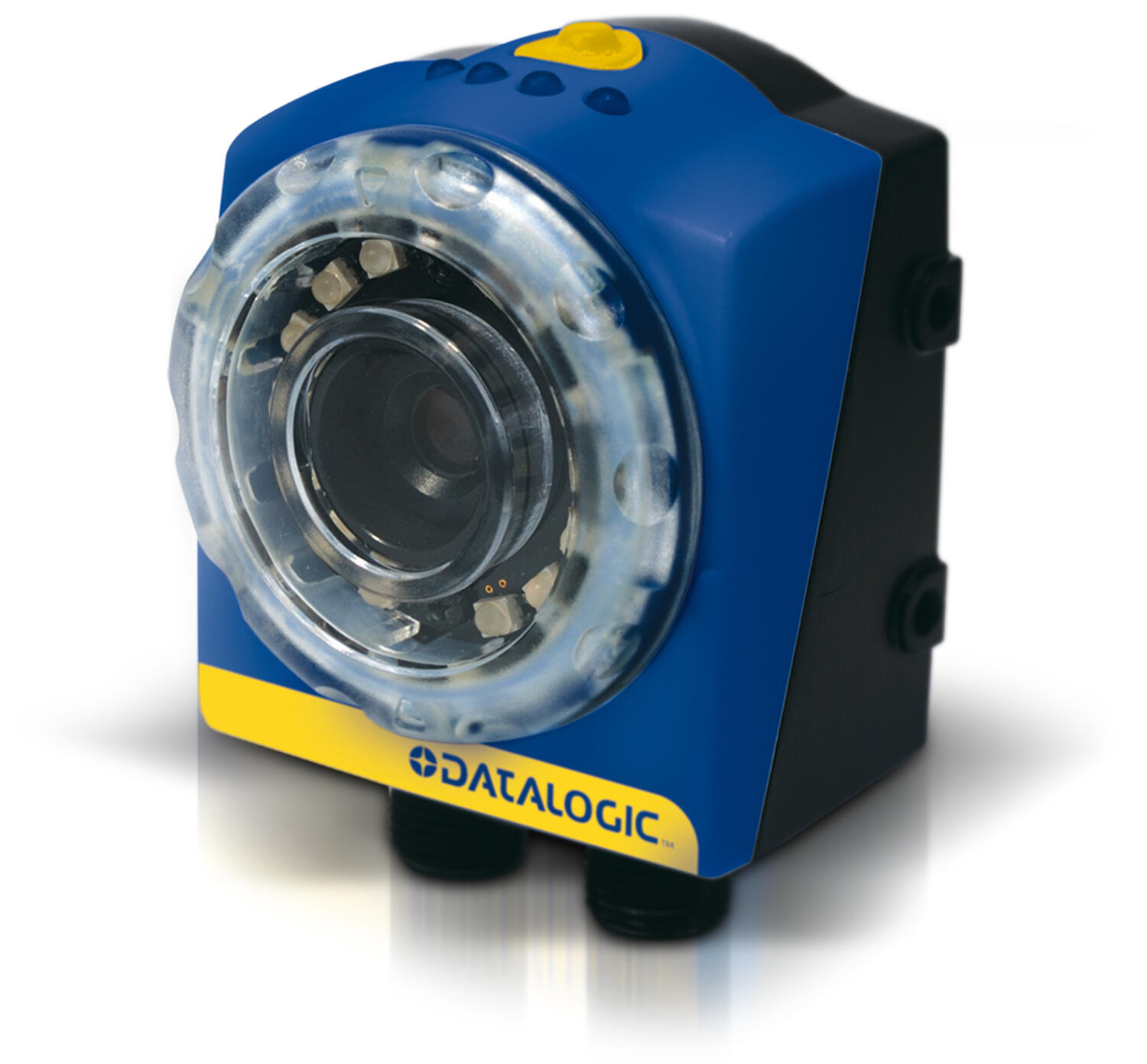

DataVS2 is a series of Vision sensors for flexible solutions for machine applications.

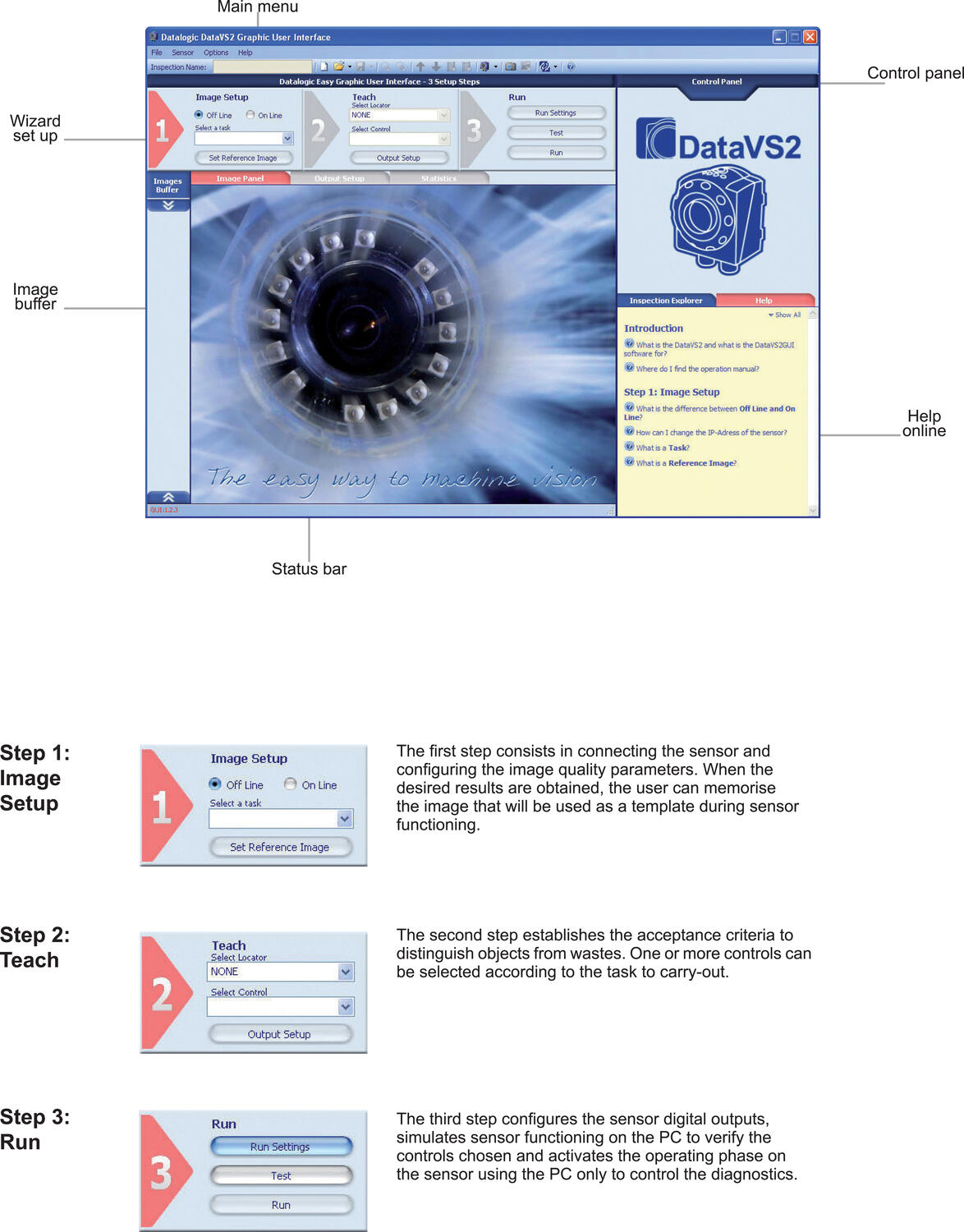

The sensor is complete with optics, red LED lighting and electronics in a compact housing. The parameters in the sensor are set via PC through Ethernet communication. The software comes with the sensor and is developed to lead the user step by step through parameter setting. DataVS2 is available in four different versions with different control instruments.
Object Recognition OBJ - Is the base model and compares parts against a basic image. It has 7 different control instruments to work with.
Technical data
Supply voltage | 24 V DC ±10 % |
Ripple | 1Vpp max. with lighting |
Current consumption | 100 mA at 24 VDC (without lighting) |
Output type | 4 PNP |
Output current | 100 mA max. |
Resolution | 640x480 (VGA) |
Network interface | M12 4-pole Ethernet 10/100 Mbs |
Interface external lighting | Strobe signal (24 V PNP N.O) |
Frame rate | 60 fps |
optics | integrated (6 mm/8 mm/12 mm/16 mm) |
Indication | 4 LED |
Connection | M12 8-pole A-coded |
IP-class | IP50 |
Encapsulation material | Aluminium alloy/ABS |
Weight | 125 g |
Working temperature | -10 to +50 ºC |
Storage temperature | -25 to +70 ºC |
Control instruments
Object recognition
Seven different controls cover most applications | |||
Control | Function | Applications | Image |

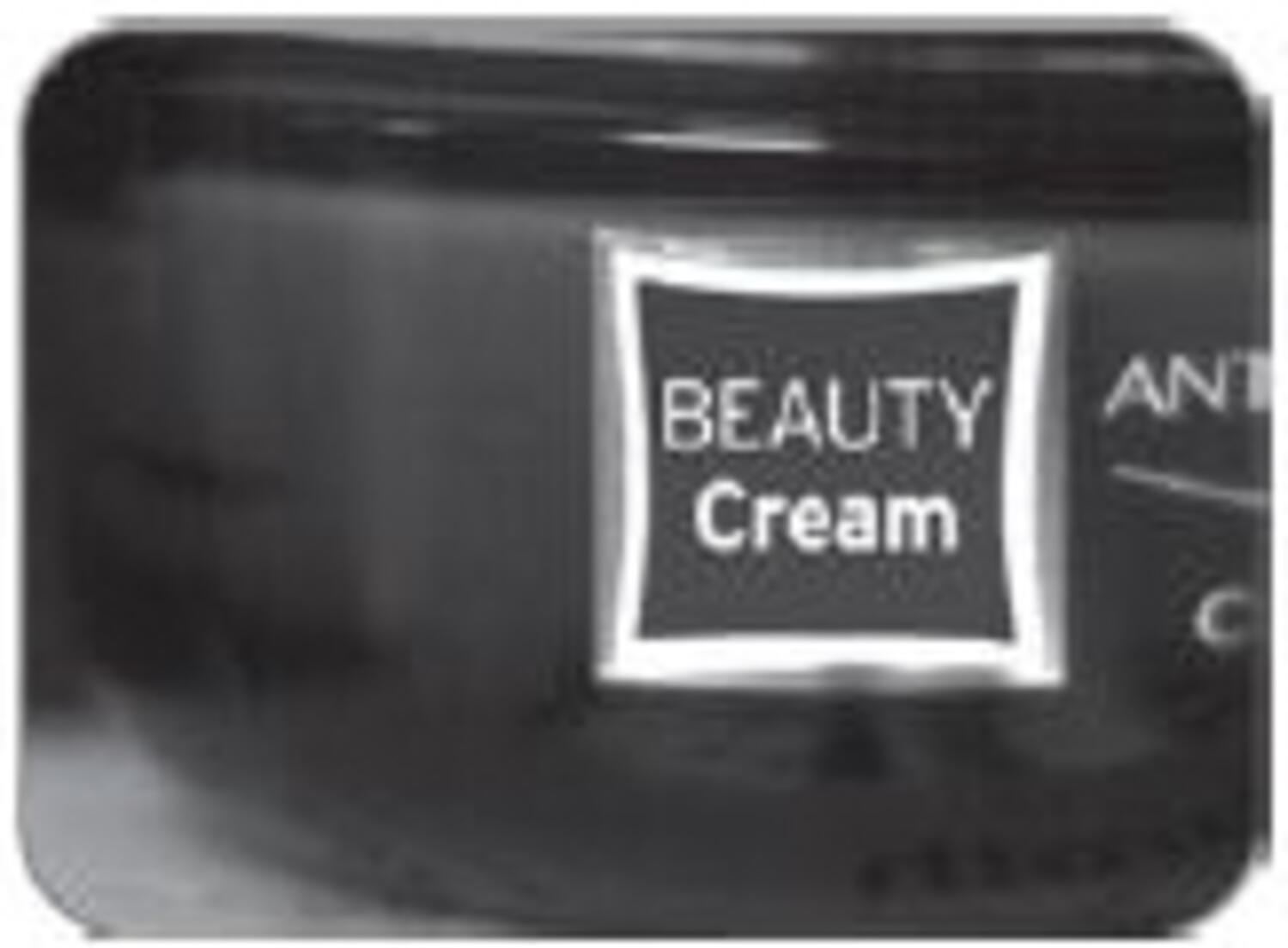

Pattern Match | Search for a sample |
|
|

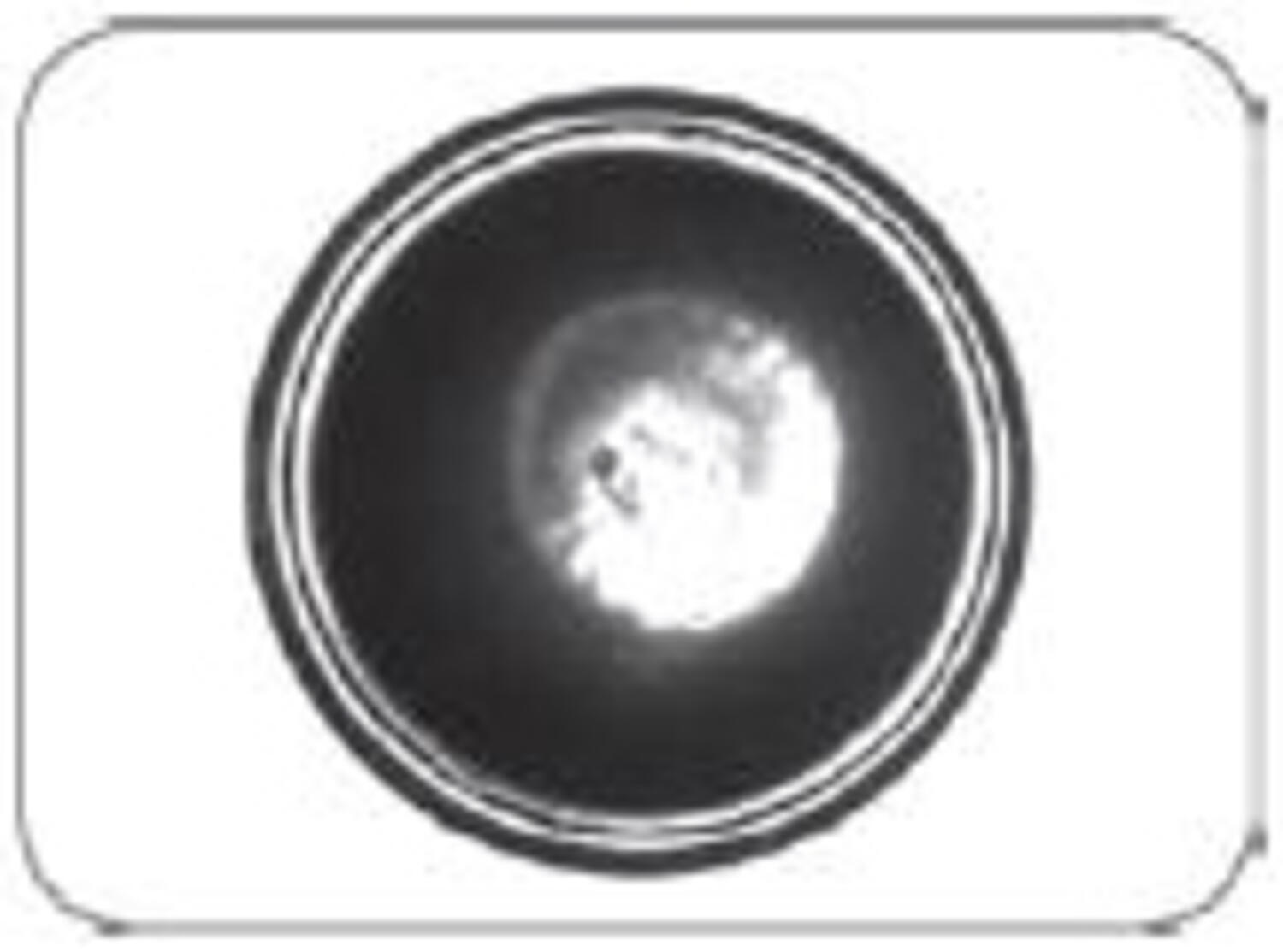

Contour Match | Control of form |
|
|

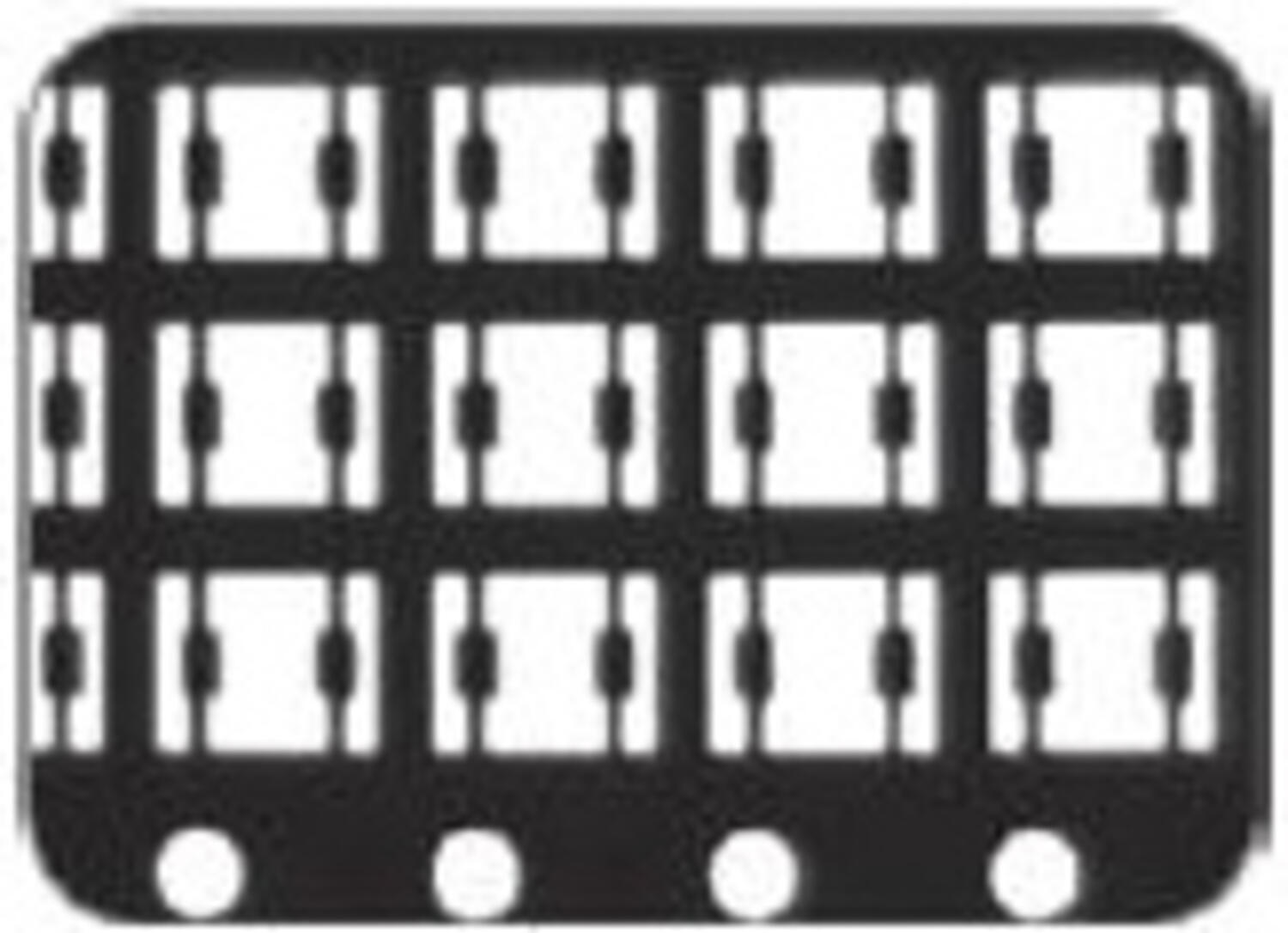

Position | Control of limit position |
|
|

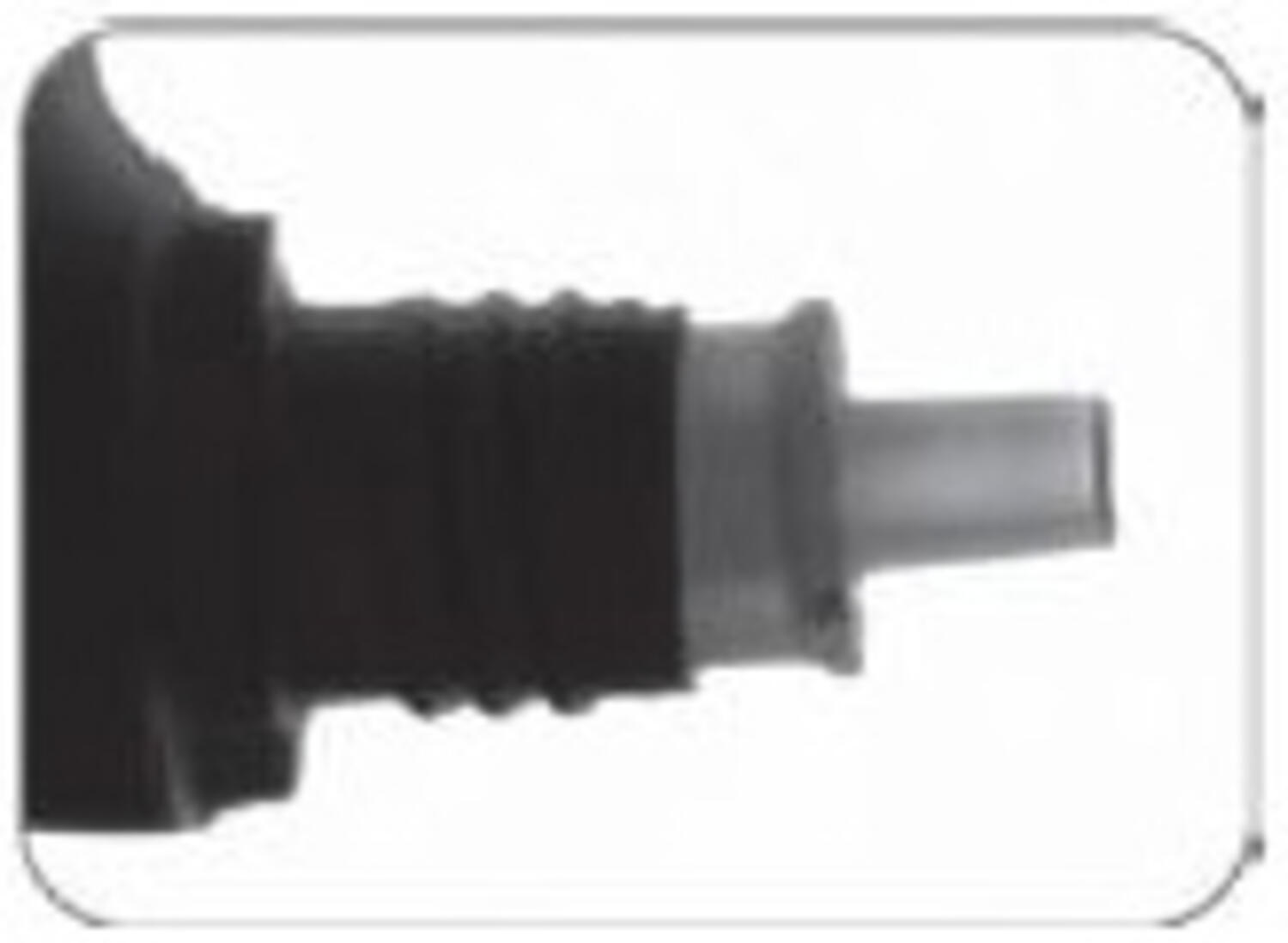

Width | Measures the object's width |
|
|

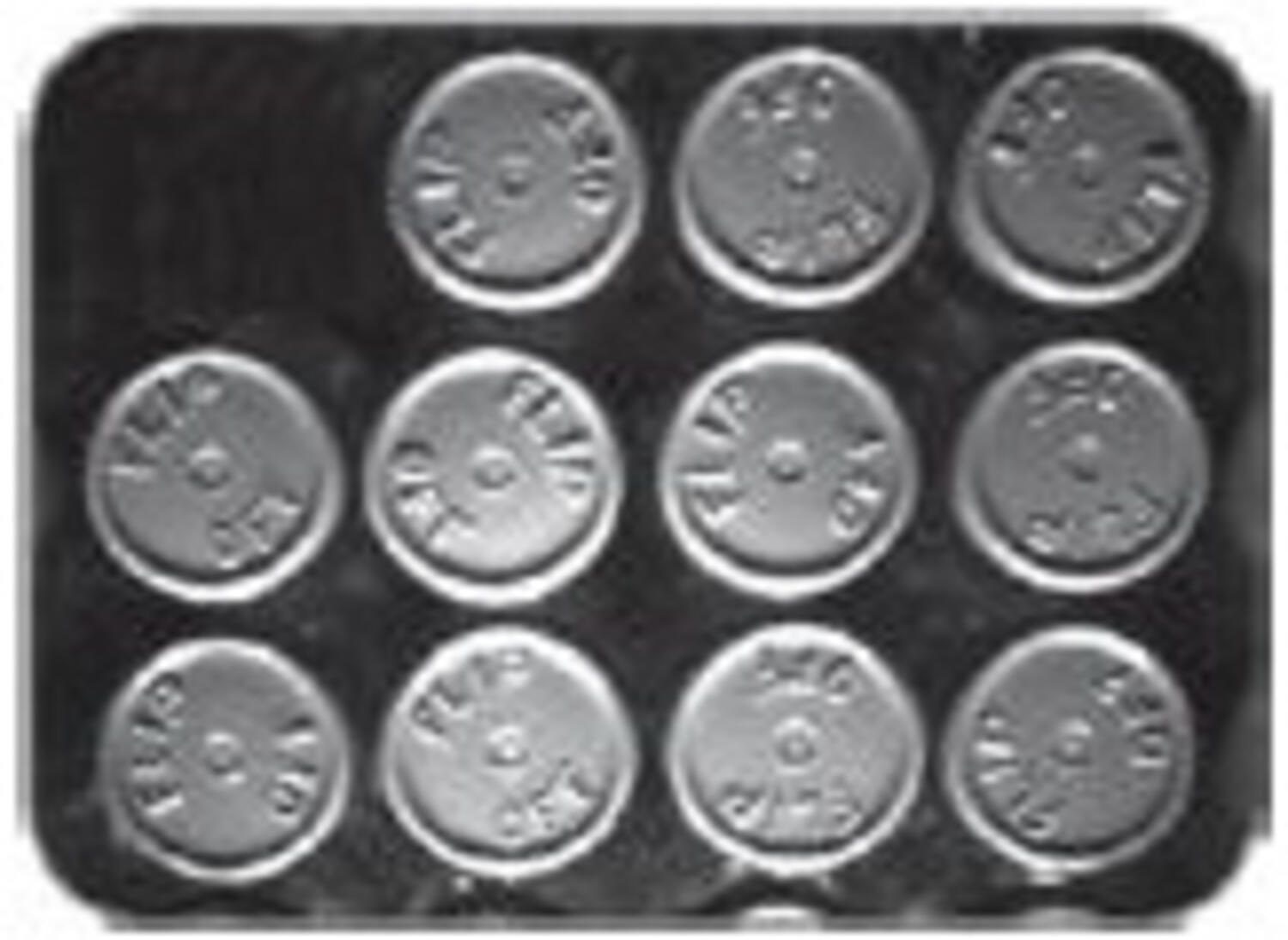

Counting | Counts number of objects |
|
|
Contrast | Calculation of contrast |
|
|
Brightness | Calculation of luminance |
|
|

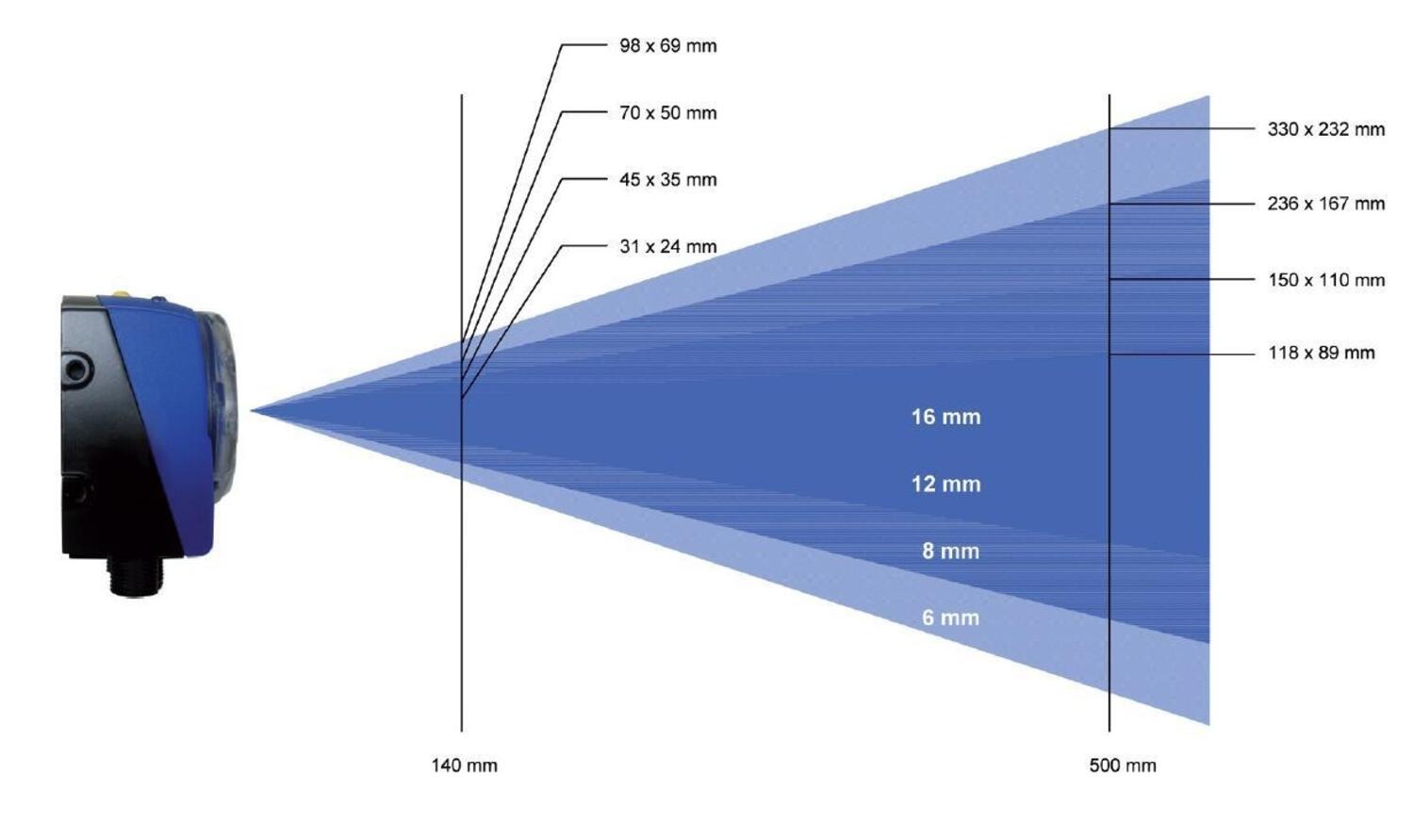

Read field
Read field
Working distance (mm) | Read field (Width x Height) in mm | |||
DATAVS2-16-DE-xxx | DATAVS2-12-DE-xxx | DATAVS2-08-DE-xxx | DATAVS2-06-DE-xxx | |
50 | - | 17 x 12 | 25 x 20 | 42 x 30 |
80 | - | 25 x 20 | 40 x 30 | 60 x 41 |
110 | - | 33 x 25 | 55 x 40 | 80 x 55 |
140 | 31 x 24 | 45 x 35 | 70 x 50 | 98 x 69 |
170 | 39 x 29 | 53 x 38 | 85 x 60 | 118 x 83 |
200 | 46 x 34 | 60 x 50 | 100 x 70 | 138 x 92 |
300 | 70 x 53 | 90 x 65 | 145 x 103 | 201 x 140 |
400 | 94 x 71 | 121 x 82 | 186 x 132 | 265 x 189 |
500 | 118 x 89 | 150 x 110 | 236 x 167 | 330 x 232 |
600 | 143 x 107 | 185 x 130 | 282 x 232 | 385 x 270 |
|

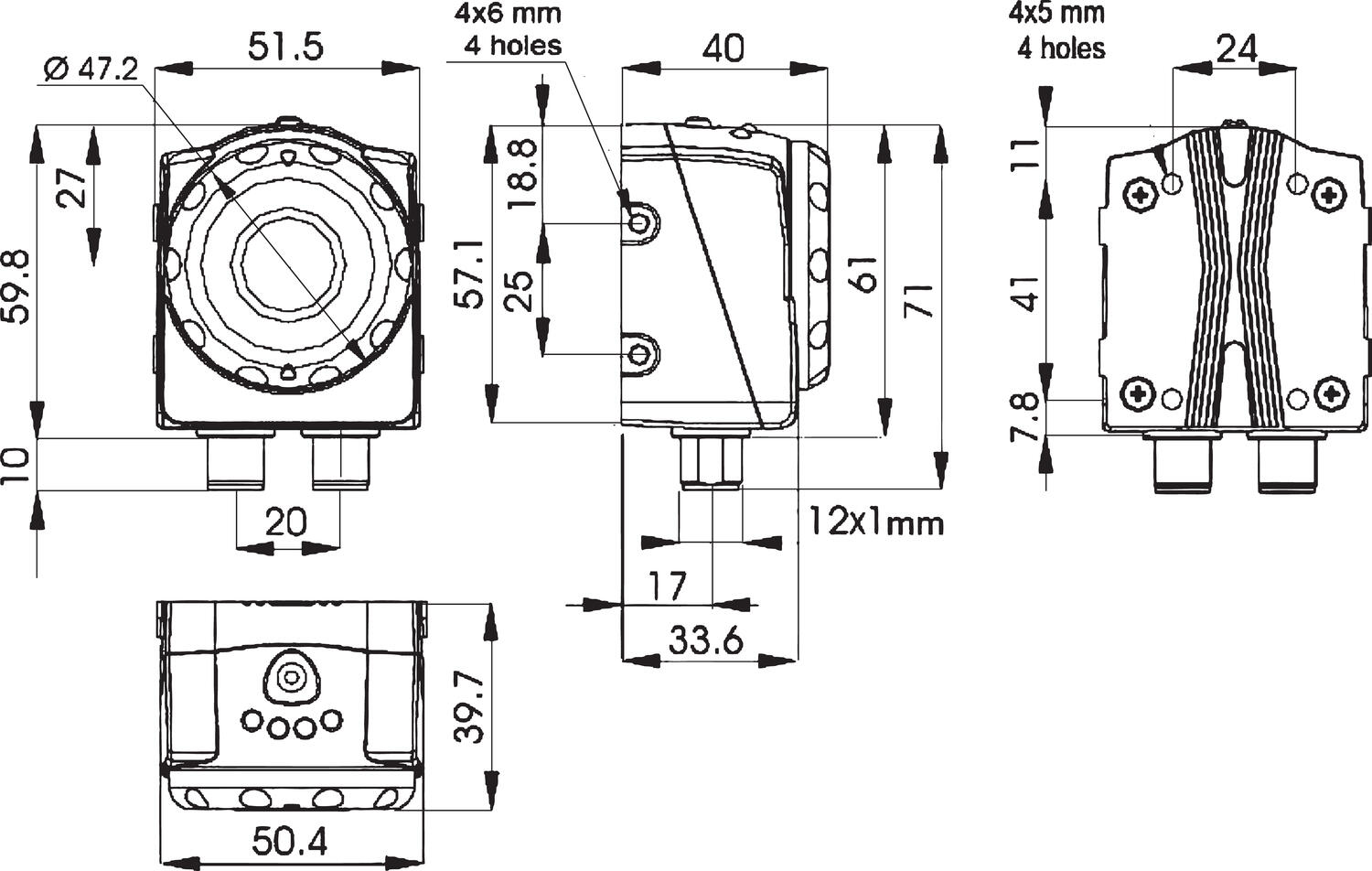

Dimensions
|

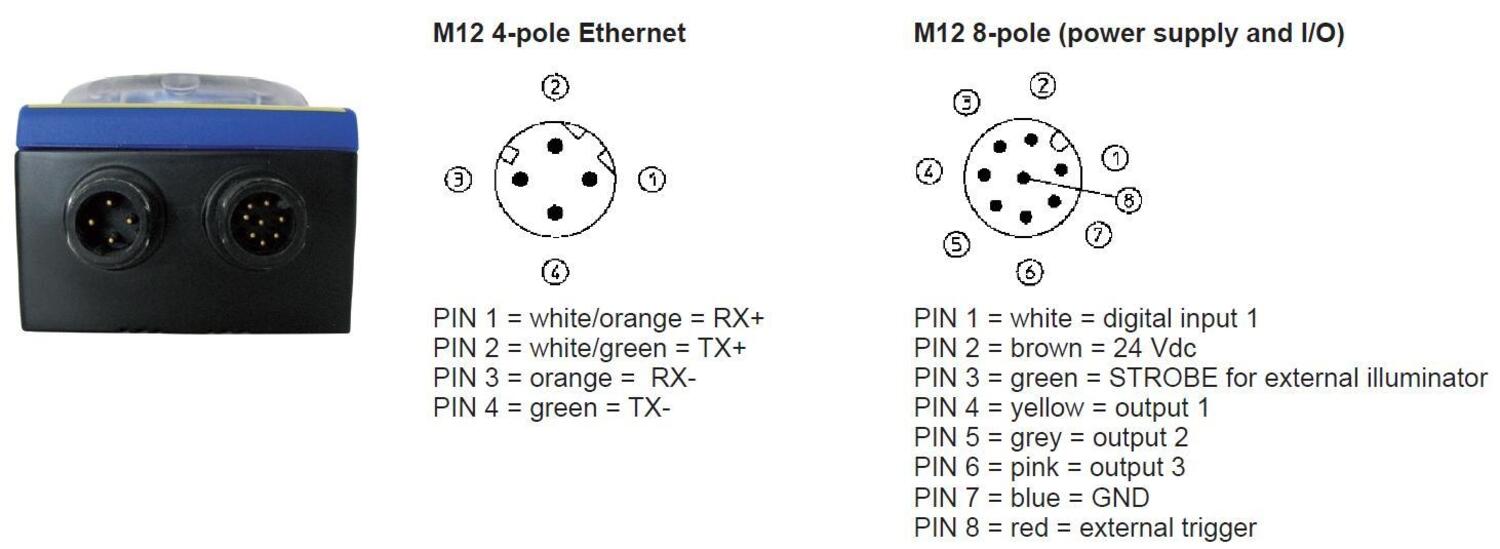

Connection
|
Order number
Order number | Description | Output |
DATAVS2-06DEOBJ | 6 mm lens, OBJ | 4 outputs |
DATAVS2-08DEOBJ | 8 mm lens, OBJ | 4 outputs |
DATAVS2-12DEOBJ | 12 mm lens, OBJ | 4 outputs |
DATAVS2-16DEOBJ | 16 mm lens, OBJ | 4 outputs |
DATAVSCVRJ45D03 | Ethernet cable 3m |
|
Download
Data sheet | |
Manual |
- 7 different controls
- Memory for up to 20 different inspections
- 4 outputs
Selected variant
Specifications
| Electrical connection | M12 4 pole D-coded, M12 8 pole connector |
|---|---|
| Frame Rate | 60 |
| IP Class | IP50 |
| Lens material | ABS plastic |
| Material Protection | Aluminium |
| Output | 4xPNP |
| Output current max | 0.1 A |
| Power consumption max | 0.1 A |
|---|---|
| Temperature range from | -10 °C |
| Temperature range to | 50 °C |
| Voltage DC max | 24 V |
| Voltage DC min | 24 V |
| Voltage Tolerance | 10% |
Product description
DataVS2 is a series of Vision sensors for flexible solutions for machine applications.
The sensor is complete with optics, red LED lighting and electronics in a compact housing. The parameters in the sensor are set via PC through Ethernet communication. The software comes with the sensor and is developed to lead the user step by step through parameter setting. DataVS2 is available in four different versions with different control instruments.
Object Recognition OBJ - Is the base model and compares parts against a basic image. It has 7 different control instruments to work with.
Technical data
Supply voltage | 24 V DC ±10 % |
Ripple | 1Vpp max. with lighting |
Current consumption | 100 mA at 24 VDC (without lighting) |
Output type | 4 PNP |
Output current | 100 mA max. |
Resolution | 640x480 (VGA) |
Network interface | M12 4-pole Ethernet 10/100 Mbs |
Interface external lighting | Strobe signal (24 V PNP N.O) |
Frame rate | 60 fps |
optics | integrated (6 mm/8 mm/12 mm/16 mm) |
Indication | 4 LED |
Connection | M12 8-pole A-coded |
IP-class | IP50 |
Encapsulation material | Aluminium alloy/ABS |
Weight | 125 g |
Working temperature | -10 to +50 ºC |
Storage temperature | -25 to +70 ºC |
Control instruments
Object recognition
Seven different controls cover most applications | |||
Control | Function | Applications | Image |
Pattern Match | Search for a sample |
|
|
Contour Match | Control of form |
|
|
Position | Control of limit position |
|
|
Width | Measures the object's width |
|
|
Counting | Counts number of objects |
|
|
Contrast | Calculation of contrast |
|
|
Brightness | Calculation of luminance |
|
|
Read field
Read field
Working distance (mm) | Read field (Width x Height) in mm | |||
DATAVS2-16-DE-xxx | DATAVS2-12-DE-xxx | DATAVS2-08-DE-xxx | DATAVS2-06-DE-xxx | |
50 | - | 17 x 12 | 25 x 20 | 42 x 30 |
80 | - | 25 x 20 | 40 x 30 | 60 x 41 |
110 | - | 33 x 25 | 55 x 40 | 80 x 55 |
140 | 31 x 24 | 45 x 35 | 70 x 50 | 98 x 69 |
170 | 39 x 29 | 53 x 38 | 85 x 60 | 118 x 83 |
200 | 46 x 34 | 60 x 50 | 100 x 70 | 138 x 92 |
300 | 70 x 53 | 90 x 65 | 145 x 103 | 201 x 140 |
400 | 94 x 71 | 121 x 82 | 186 x 132 | 265 x 189 |
500 | 118 x 89 | 150 x 110 | 236 x 167 | 330 x 232 |
600 | 143 x 107 | 185 x 130 | 282 x 232 | 385 x 270 |
|
Dimensions
|
Connection
|
Order number
Order number | Description | Output |
DATAVS2-06DEOBJ | 6 mm lens, OBJ | 4 outputs |
DATAVS2-08DEOBJ | 8 mm lens, OBJ | 4 outputs |
DATAVS2-12DEOBJ | 12 mm lens, OBJ | 4 outputs |
DATAVS2-16DEOBJ | 16 mm lens, OBJ | 4 outputs |
DATAVSCVRJ45D03 | Ethernet cable 3m |
|
Download
Data sheet | |
Manual |
