Datalogic - Vision Sensor DATAVS2 PRO
DataVS2 is a series of Vision sensors for flexible solutions for machine applications.
The sensor is complete with optics, red LED lighting and electronics in a compact housing. The parameters in the sensor are set via PC through Ethernet communication. The software comes with the sensor and is developed to lead the user step by step through parameter setting. DataVS2 is available in 4 different versions with different control instruments.
The PRO model - handles the functions in the Advanced and ID models.
It manages 360º pattern recognition and also bar code, datamatrix and OCV. It also has 5 new instruments: 3 locators ( Bar code, Datamatrix and 360º contour matching)
2 controls: 360º contour counter, 360º defect finder
Technical data
Supply voltage | 24 V DC ±10 % |
Ripple | 1Vpp max. with lighting |
Current consumption | 100 mA at 24 VDC (without lighting) |
Output type | 3 PNP, 100 mA max. |
| RS232 |
Resolution | 640x480 (VGA) |
Network interface | M12 4-pole Ethernet 10/100 Mbs |
Interface external lighting | Strobe signal (24 V PNP N.O) |
Frame rate | 60 fps |
optics | integrated (6 mm/8 mm/12 mm/16 mm) |
Indication | 4 LED |
Connection | M12 8-pole A-coded |
IP-class | IP50 |
Encapsulation material | Aluminium alloy/ABS |
Weight | 125 g |
Working temperature | -10 to +50 ºC |
Storage temperature | -25 to +70 ºC |

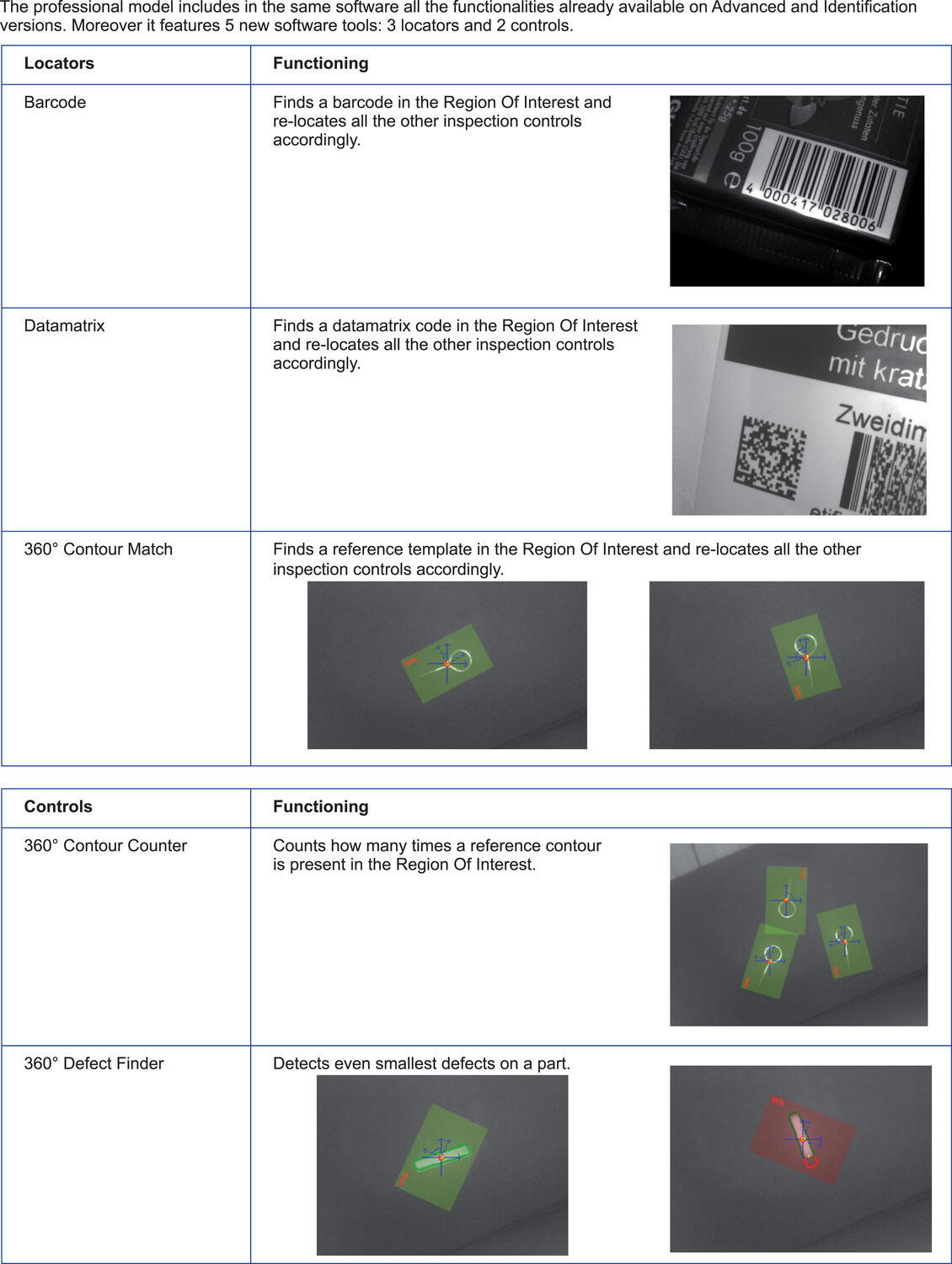

Control instruments
Read field
Read field
Working distance (mm) | Read field (Width x Height) in mm | |||
DATAVS2-16-DE-xxx | DATAVS2-12-DE-xxx | DATAVS2-08-DE-xxx | DATAVS2-06-DE-xxx | |
50 | - | 17 x 12 | 25 x 20 | 42 x 30 |
80 | - | 25 x 20 | 40 x 30 | 60 x 41 |
110 | - | 33 x 25 | 55 x 40 | 80 x 55 |
140 | 31 x 24 | 45 x 35 | 70 x 50 | 98 x 69 |
170 | 39 x 29 | 53 x 38 | 85 x 60 | 118 x 83 |
200 | 46 x 34 | 60 x 50 | 100 x 70 | 138 x 92 |
300 | 70 x 53 | 90 x 65 | 145 x 103 | 201 x 140 |
400 | 94 x 71 | 121 x 82 | 186 x 132 | 265 x 189 |
500 | 118 x 89 | 150 x 110 | 236 x 167 | 330 x 232 |
600 | 143 x 107 | 185 x 130 | 282 x 232 | 385 x 270 |
|
Dimensions
|

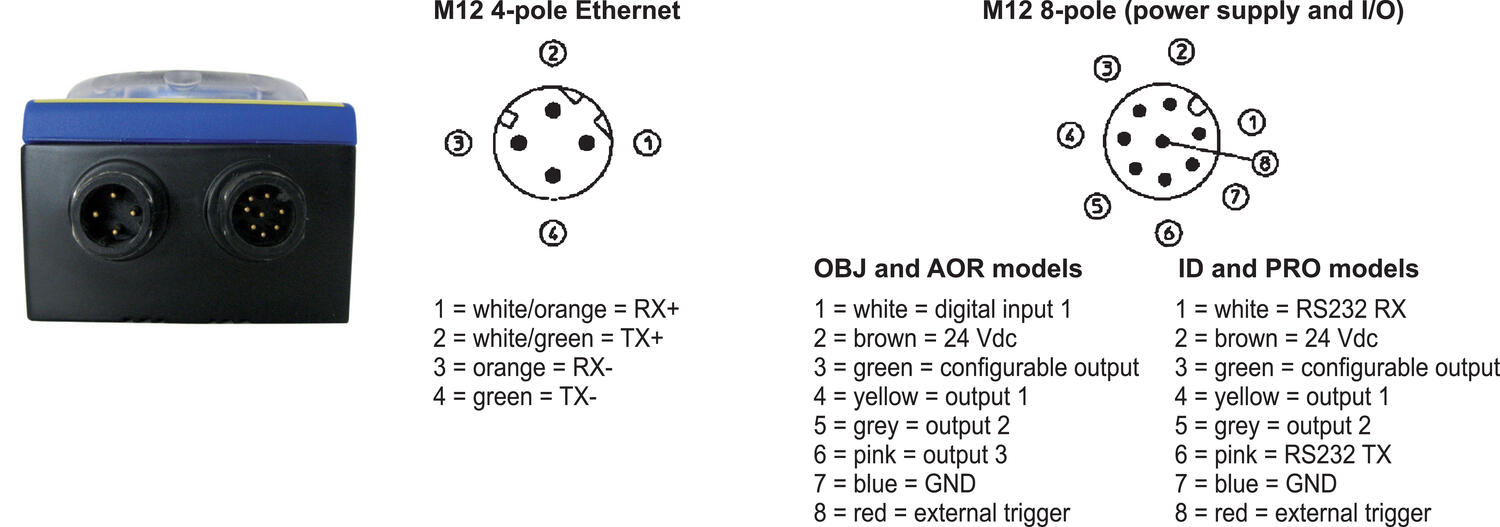

Connection
Order number
Order number | Description | Output |
DATAVS2-06-RE-PRO | 6 mm lens, PRO | 3 outputs, RS232 |
DATAVS2-08-RE-PRO | 8 mm lens, PRO | 3 outputs, RS232 |
DATAVS2-12-RE-PRO | 12 mm lens, PRO | 3 outputs, RS232 |
DATAVS2-16-RE-PRO | 16 mm lens, PRO | 3 outputs, RS232 |
DATAVSCVRJ45D03 | Ethernet cable 3m |
|
Download
Data sheet | |
Manual |
- 360º pattern recognition / Controls for Bar code, Datamatrix
- Memory for up to 20 different inspections
- 3 outputs
- R232 interface
Selected variant
Specifications
| Electrical connection | M12 4 pole D-coded, M12 8 pole connector |
|---|---|
| Frame Rate | 60 |
| IP Class | IP50 |
| Lens material | ABS plastic |
| Material Protection | Aluminium |
| Output | 3xPNP, RS232 |
| Output current max | 0.1 A |
| Power consumption max | 0.1 A |
| Resolution | 640x480 (VGA) |
|---|---|
| Temperature range from | -10 °C |
| Temperature range to | 50 °C |
| Voltage DC max | 24 V |
| Voltage DC min | 24 V |
| Voltage Tolerance | 10% |
Product description
DataVS2 is a series of Vision sensors for flexible solutions for machine applications.
The sensor is complete with optics, red LED lighting and electronics in a compact housing. The parameters in the sensor are set via PC through Ethernet communication. The software comes with the sensor and is developed to lead the user step by step through parameter setting. DataVS2 is available in 4 different versions with different control instruments.
The PRO model - handles the functions in the Advanced and ID models.
It manages 360º pattern recognition and also bar code, datamatrix and OCV. It also has 5 new instruments: 3 locators ( Bar code, Datamatrix and 360º contour matching)
2 controls: 360º contour counter, 360º defect finder
Technical data
Supply voltage | 24 V DC ±10 % |
Ripple | 1Vpp max. with lighting |
Current consumption | 100 mA at 24 VDC (without lighting) |
Output type | 3 PNP, 100 mA max. |
| RS232 |
Resolution | 640x480 (VGA) |
Network interface | M12 4-pole Ethernet 10/100 Mbs |
Interface external lighting | Strobe signal (24 V PNP N.O) |
Frame rate | 60 fps |
optics | integrated (6 mm/8 mm/12 mm/16 mm) |
Indication | 4 LED |
Connection | M12 8-pole A-coded |
IP-class | IP50 |
Encapsulation material | Aluminium alloy/ABS |
Weight | 125 g |
Working temperature | -10 to +50 ºC |
Storage temperature | -25 to +70 ºC |

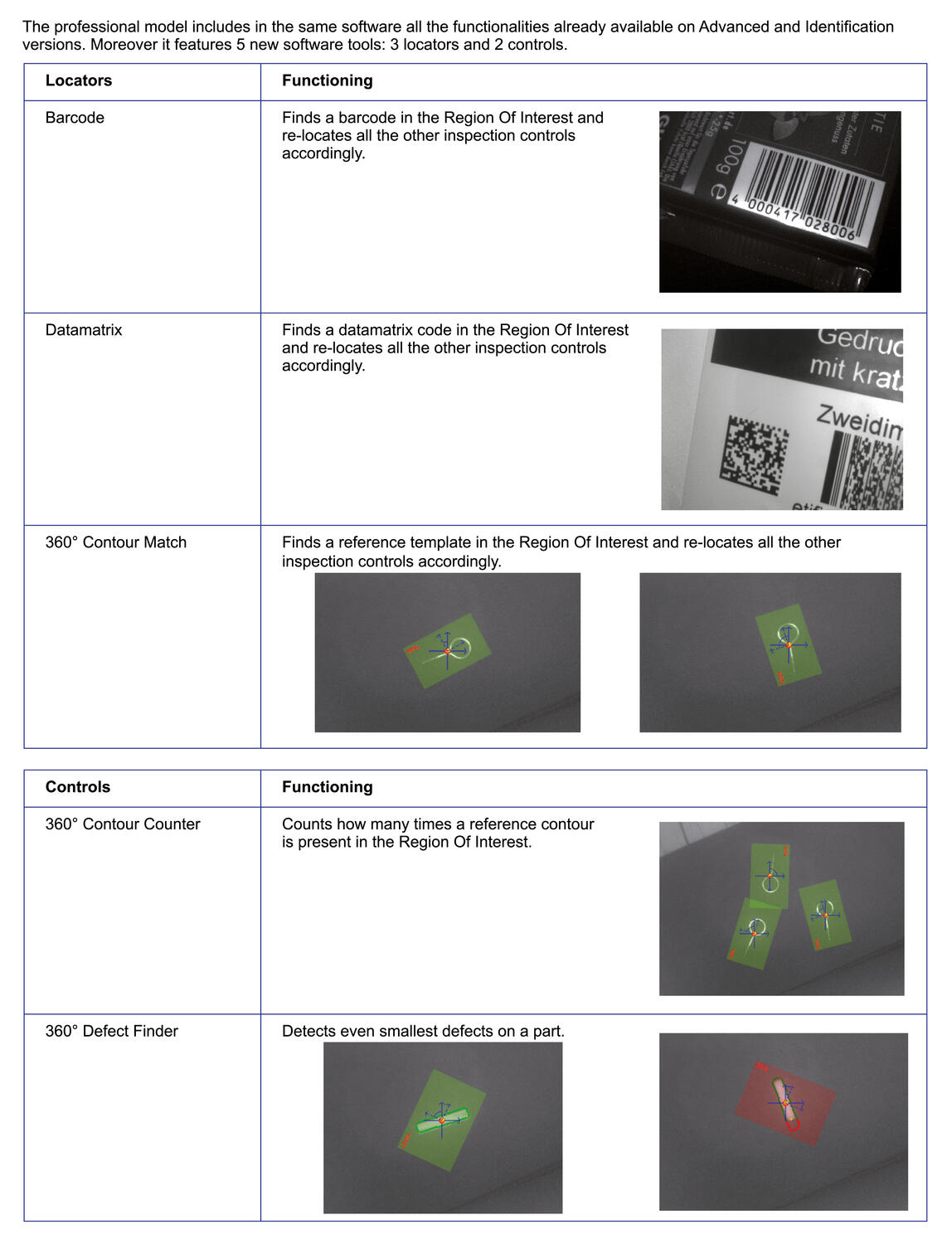

Control instruments
Read field
Read field
Working distance (mm) | Read field (Width x Height) in mm | |||
DATAVS2-16-DE-xxx | DATAVS2-12-DE-xxx | DATAVS2-08-DE-xxx | DATAVS2-06-DE-xxx | |
50 | - | 17 x 12 | 25 x 20 | 42 x 30 |
80 | - | 25 x 20 | 40 x 30 | 60 x 41 |
110 | - | 33 x 25 | 55 x 40 | 80 x 55 |
140 | 31 x 24 | 45 x 35 | 70 x 50 | 98 x 69 |
170 | 39 x 29 | 53 x 38 | 85 x 60 | 118 x 83 |
200 | 46 x 34 | 60 x 50 | 100 x 70 | 138 x 92 |
300 | 70 x 53 | 90 x 65 | 145 x 103 | 201 x 140 |
400 | 94 x 71 | 121 x 82 | 186 x 132 | 265 x 189 |
500 | 118 x 89 | 150 x 110 | 236 x 167 | 330 x 232 |
600 | 143 x 107 | 185 x 130 | 282 x 232 | 385 x 270 |
|
Dimensions
|
Connection
Order number
Order number | Description | Output |
DATAVS2-06-RE-PRO | 6 mm lens, PRO | 3 outputs, RS232 |
DATAVS2-08-RE-PRO | 8 mm lens, PRO | 3 outputs, RS232 |
DATAVS2-12-RE-PRO | 12 mm lens, PRO | 3 outputs, RS232 |
DATAVS2-16-RE-PRO | 16 mm lens, PRO | 3 outputs, RS232 |
DATAVSCVRJ45D03 | Ethernet cable 3m |
|
Download
Data sheet | |
Manual |
