BERNSTEIN

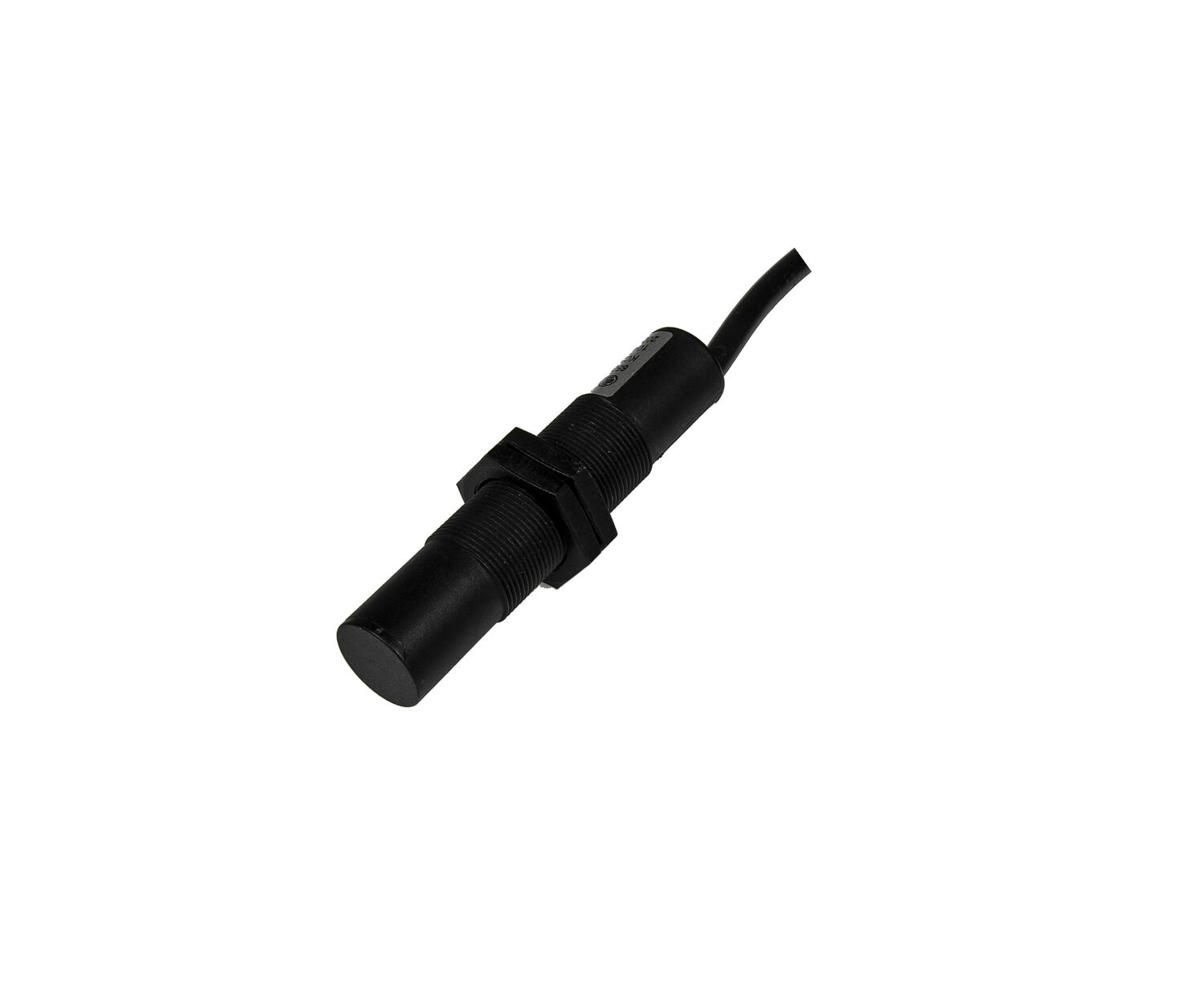

Capacitive sensor M18
- Sensing distance up to 8mm
- Adjustable sensitivity
- 2m connecting cable or M8 connector
- LED indicator
Selected variant
Specifications
| Cable length | 2000 mm |
|---|---|
| IP Class | IP65 |
| LED | Yes |
| Load Max | 200 mA |
| Material of body | Plastic |
| Mounting | Non flush |

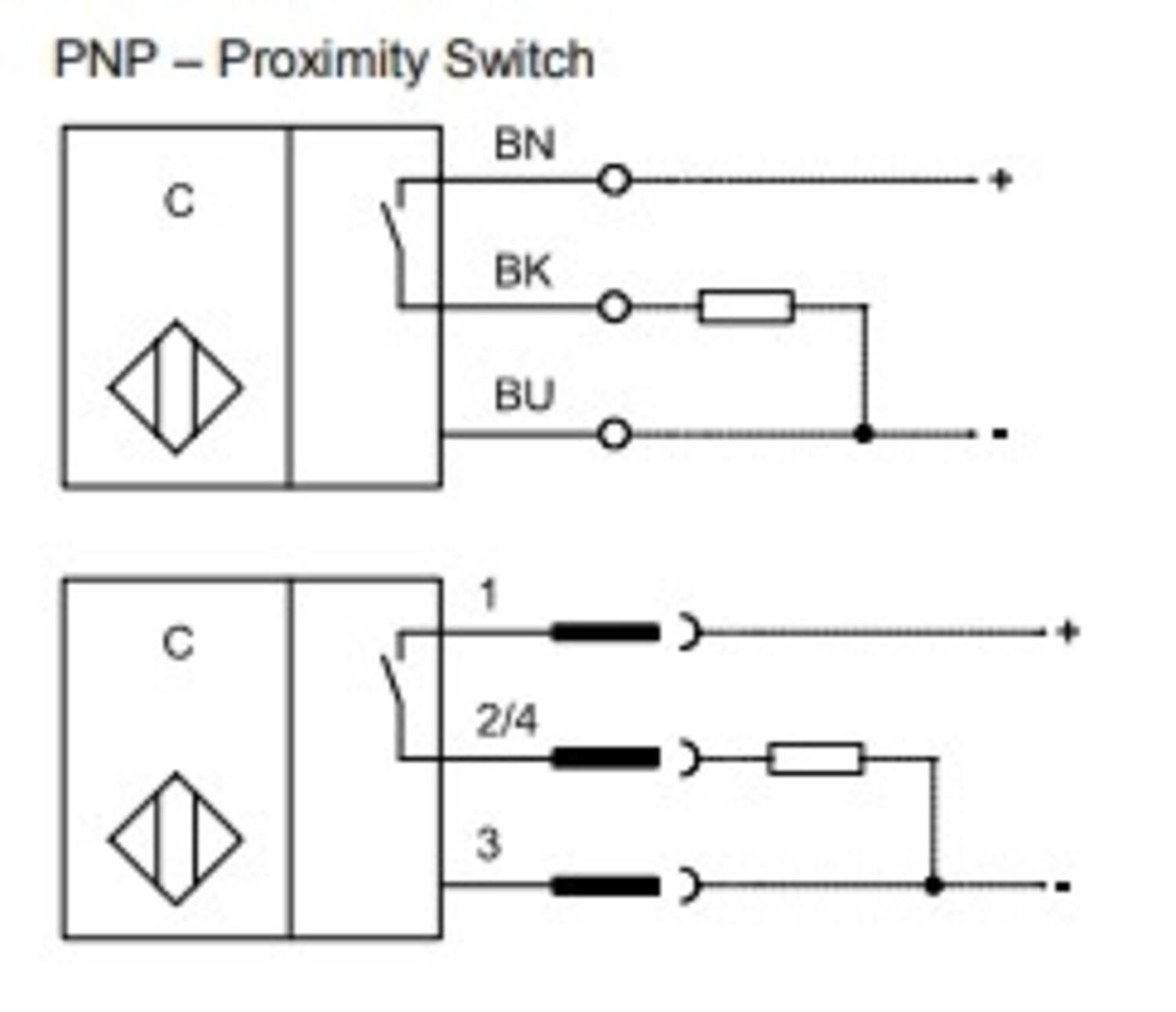

| Output | PNP NO |
| Sensing | 8 mm |
|---|---|
| Temperature range from | -25 °C |
| Temperature range to | 70 °C |
| Voltage DC max | 60 V |
| Voltage DC min | 10 V |
Downloads
