Width	52 mm
Height	50 mm
Depth	35 mm
IP Class	IP66

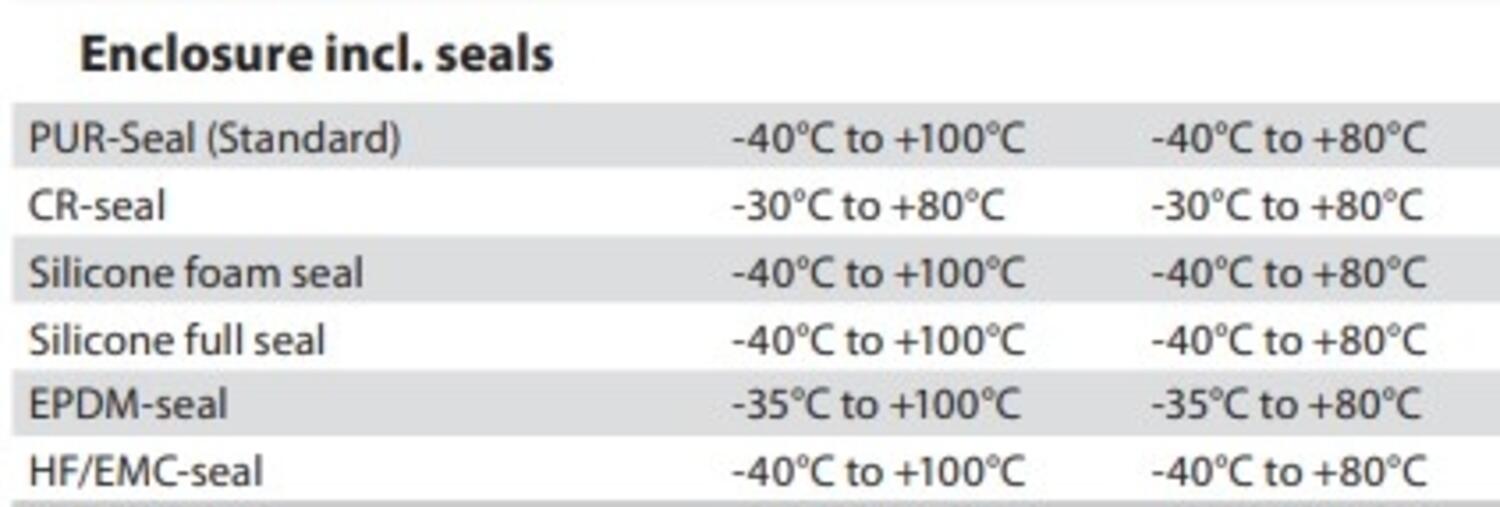

Temperature range from	-40 °C
Temperature range to	80 °C
Color	Grey RAL 7035
Lid	Grey
Material	Polycarbonate

Articles	Width	Height	Depth	IP Class	Temperature range from	Temperature range to	Color	Lid	Material

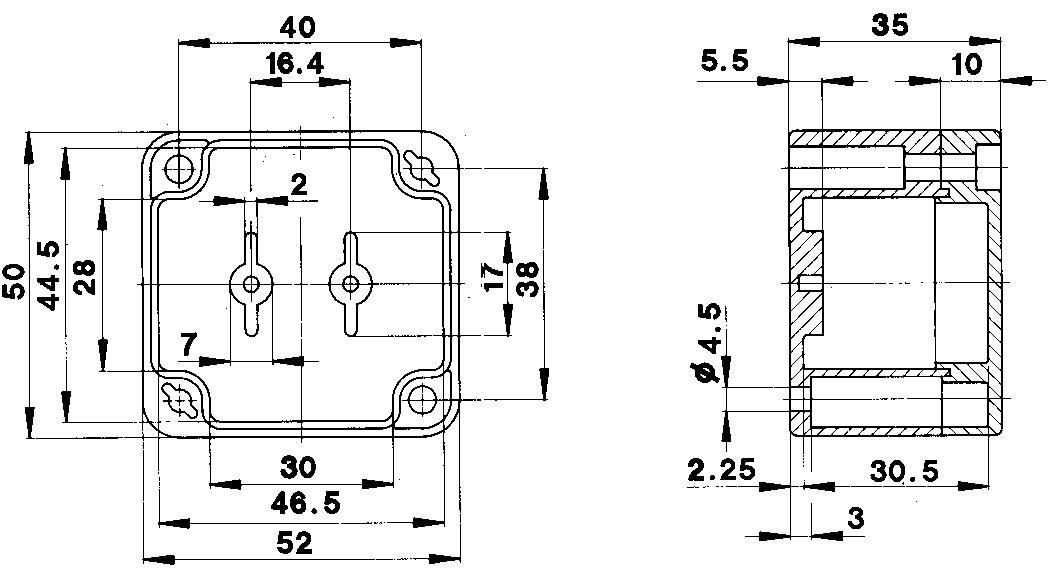

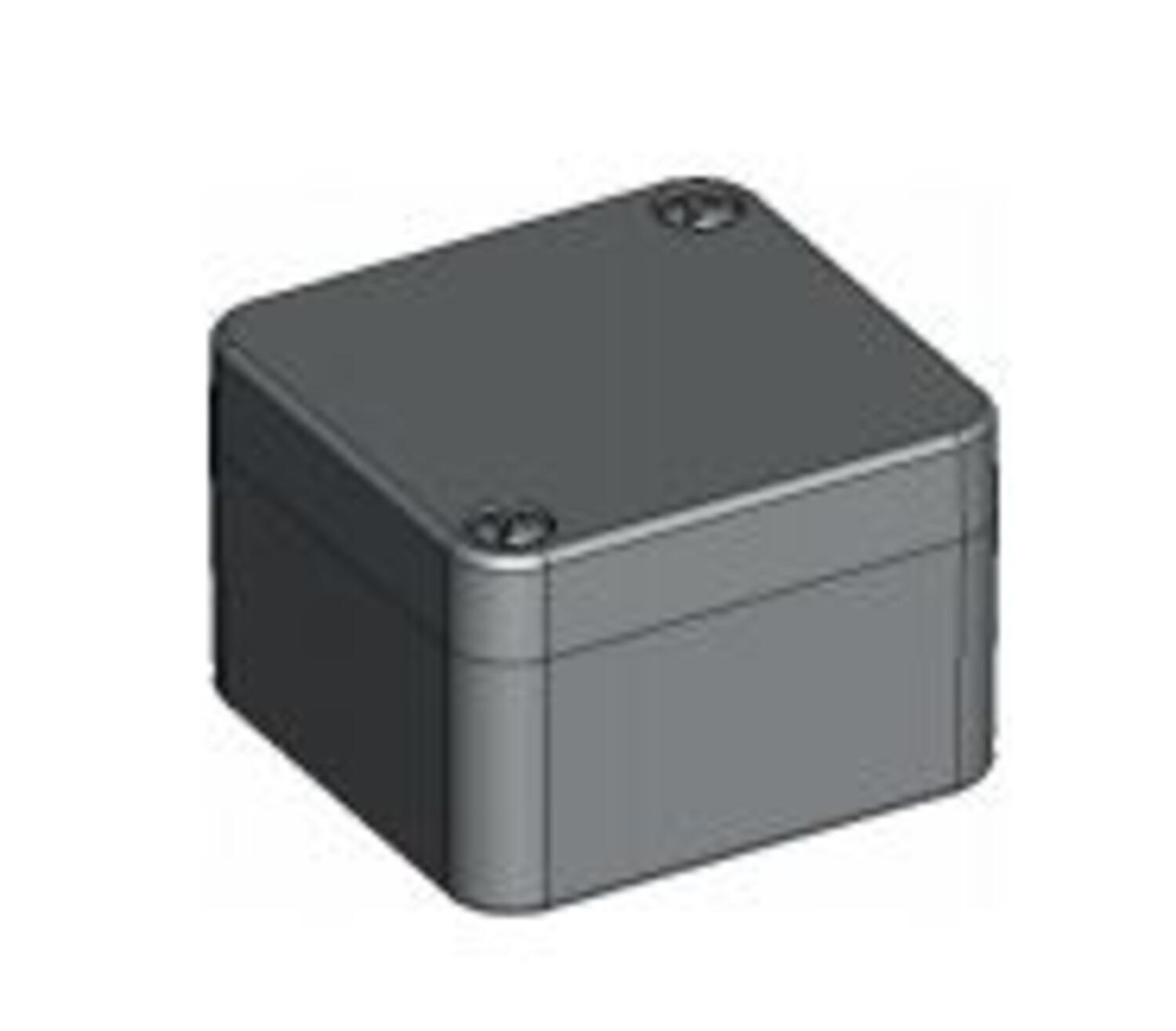

PC Enclosure CT501(52X50X35) Art: 2500000 Copied	52 mm	50 mm	35 mm	IP66	-40 °C	80 °C	Grey RAL 7035	Grey	Polycarbonate
PC-EnclosureCT521 (65X50X35) Art: 2520000 Copied	65 mm	50 mm	35 mm	IP66	-40 °C	80 °C	Grey RAL 7035	Grey	Polycarbonate
PC-Enclosure CT541 (82X80X55) Art: 2540000 Copied	82 mm	80 mm	55 mm	IP66	-40 °C	80 °C	Grey RAL 7035	Grey	Polycarbonate

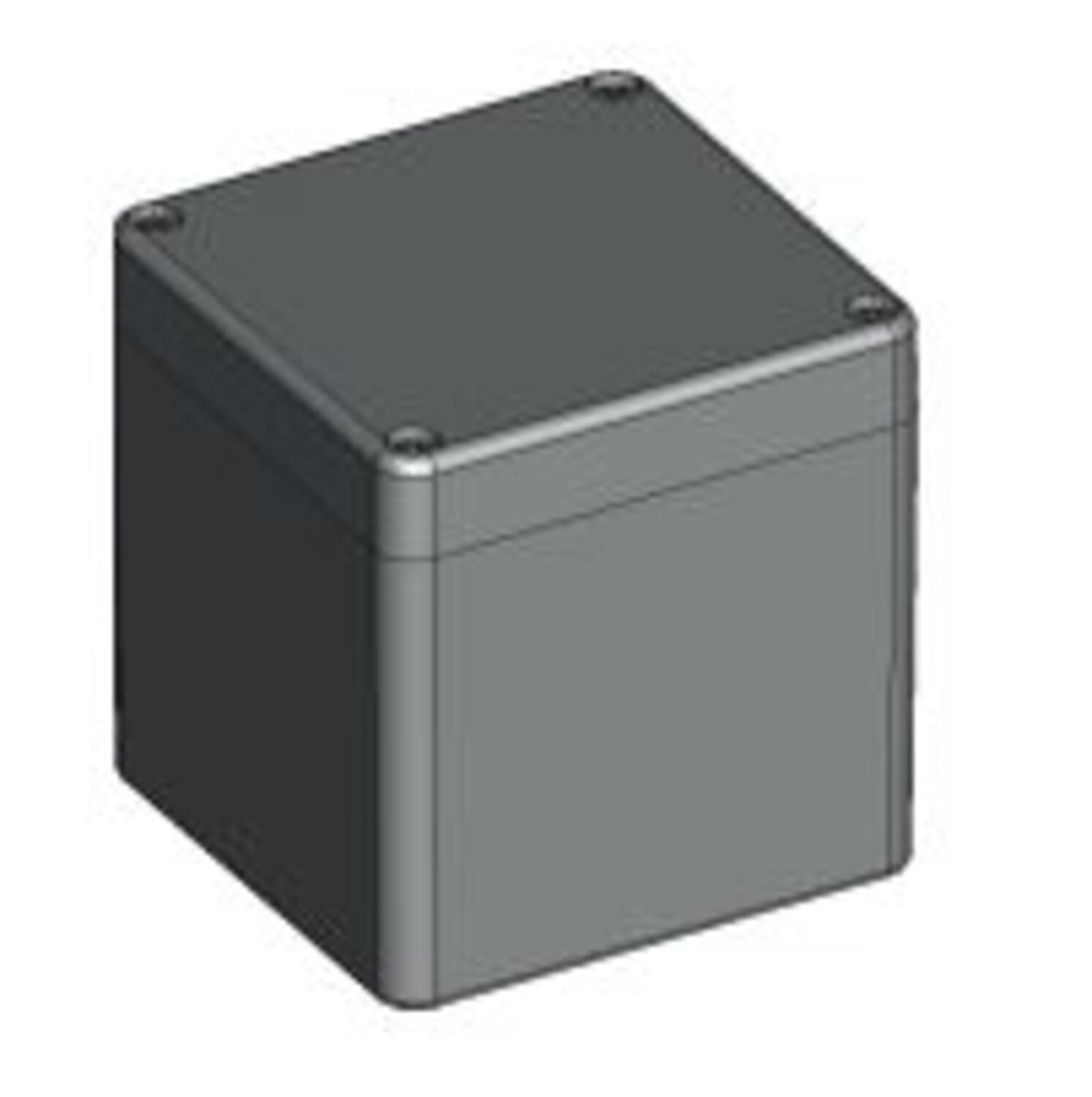

PC-Enclosure CT561 (82X80X85) Art: 2560000 Copied	82 mm	80 mm	85 mm	IP66	-40 °C	80 °C	Grey RAL 7035	Grey	Polycarbonate

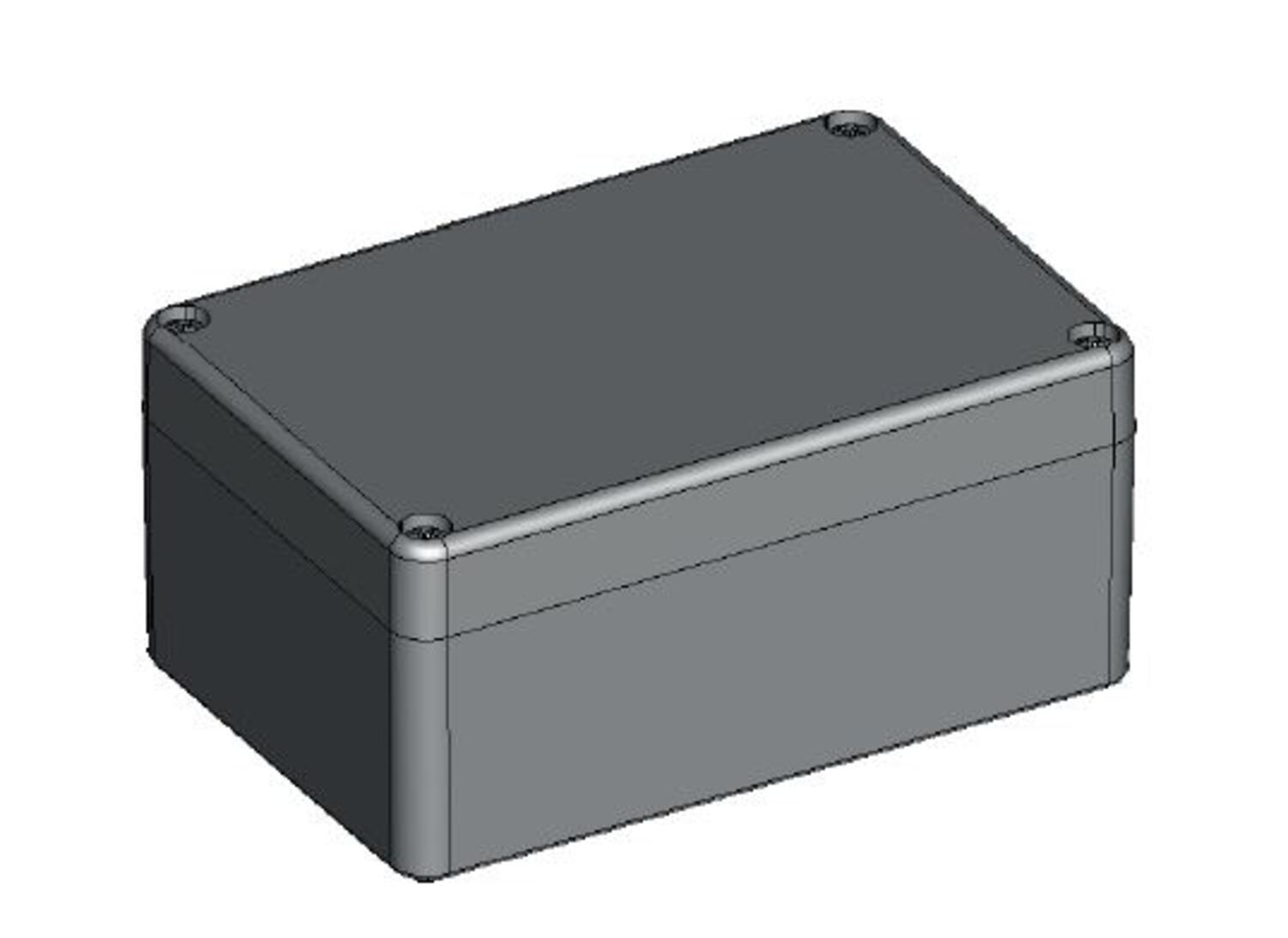

PC-Enclosure CT581 (120X80X55) Art: 2580000 Copied	120 mm	80 mm	55 mm	IP66	-40 °C	80 °C	Grey RAL 7035	Grey	Polycarbonate

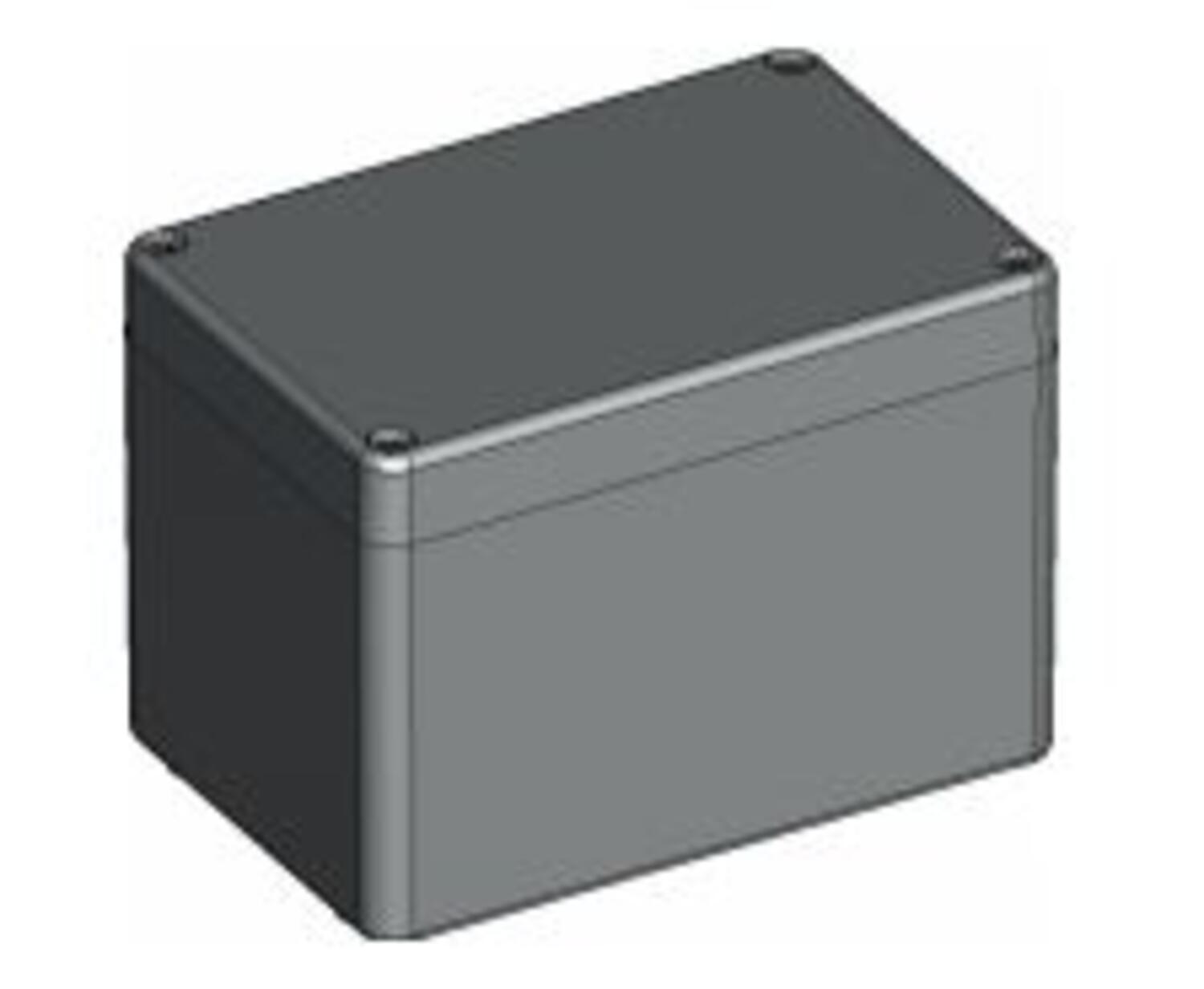

PC-Enclosure CT601 (120X80X85) Art: 2600000 Copied	120 mm	80 mm	85 mm	IP66	-40 °C	80 °C	Grey RAL 7035	Grey	Polycarbonate

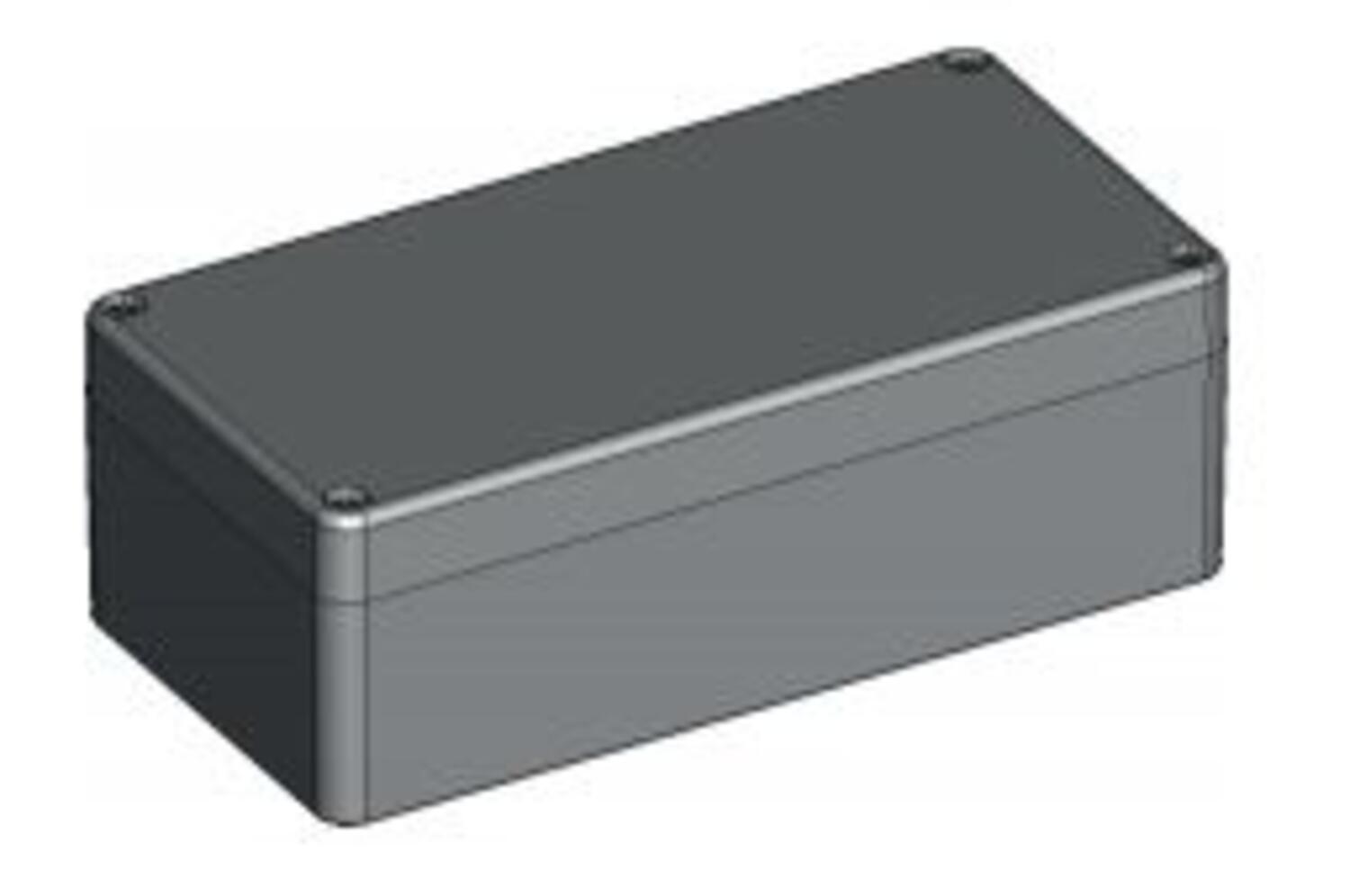

PC-Enclosure CT621 (160X80X55) Art: 2620000 Copied	160 mm	80 mm	55 mm	IP66	-40 °C	80 °C	Grey RAL 7035	Grey	Polycarbonate

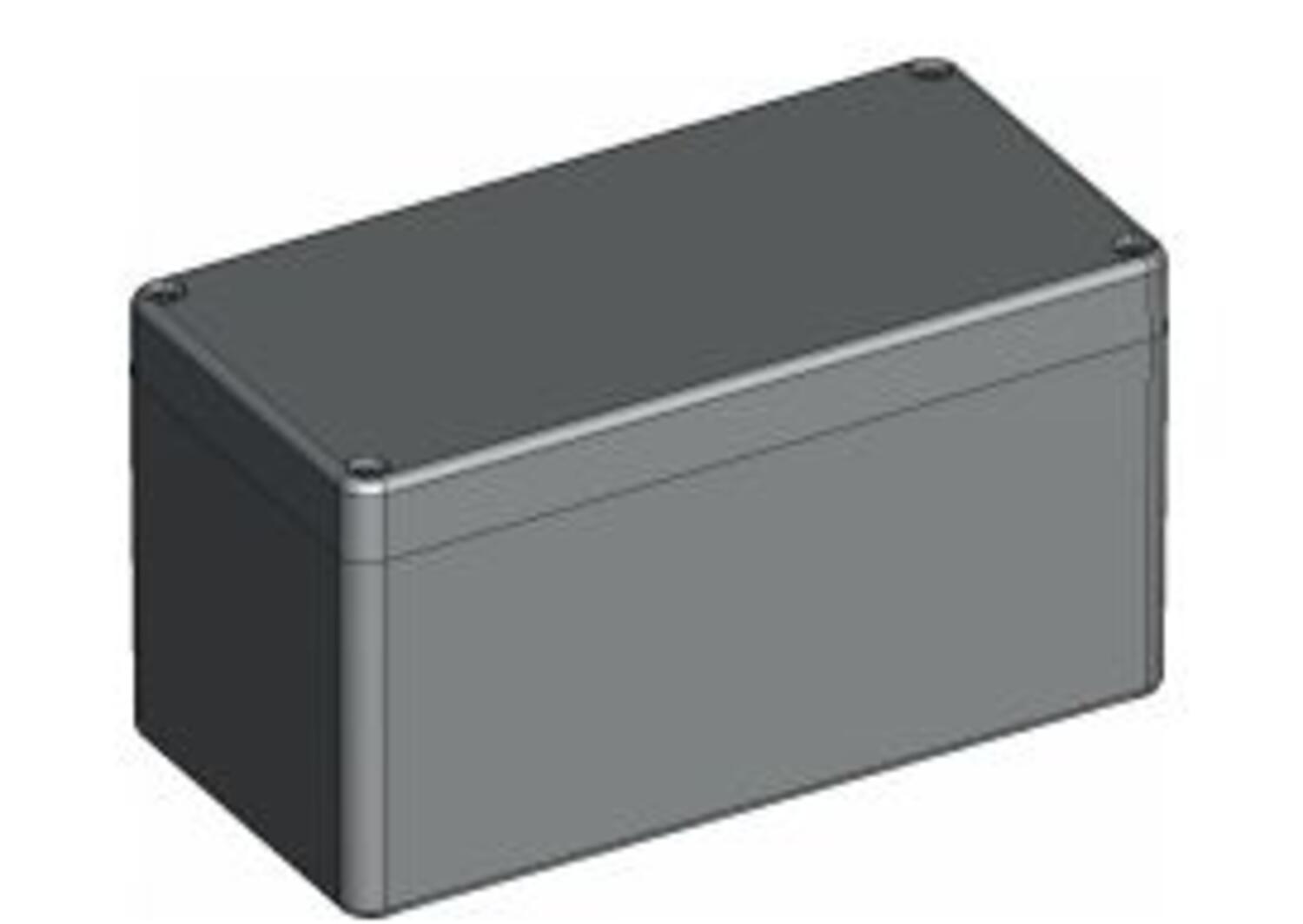

PC-Enclosure CT641 160X80X85 Art: 2640000 Copied	160 mm	80 mm	85 mm	IP66	-40 °C	80 °C	Grey RAL 7035	Grey	Polycarbonate

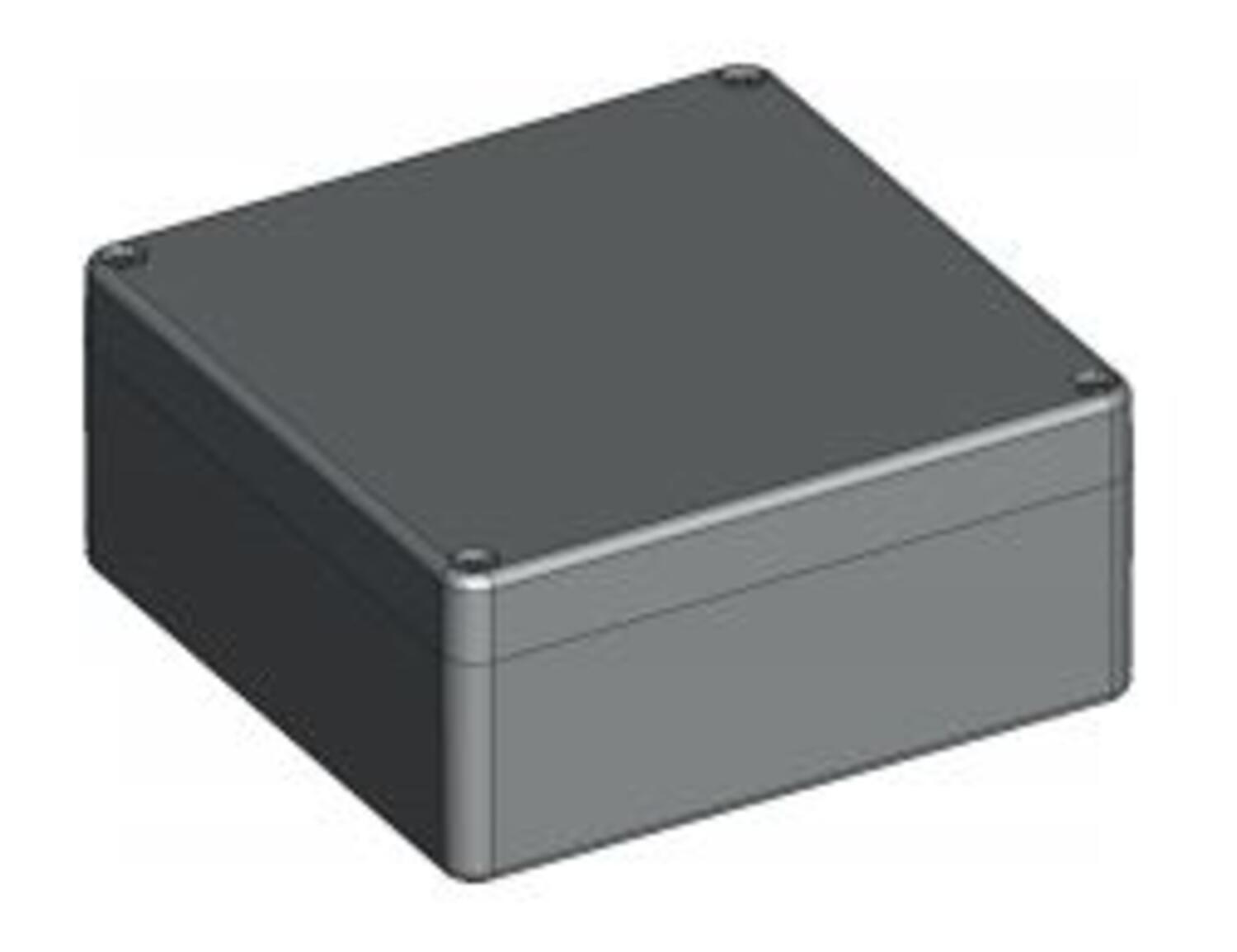

PC-KAPSLING CT661 122X120X55 Art: 2660000 Copied	122 mm	120 mm	55 mm	IP66	-40 °C	80 °C	Grey RAL 7035	Grey	Polycarbonate

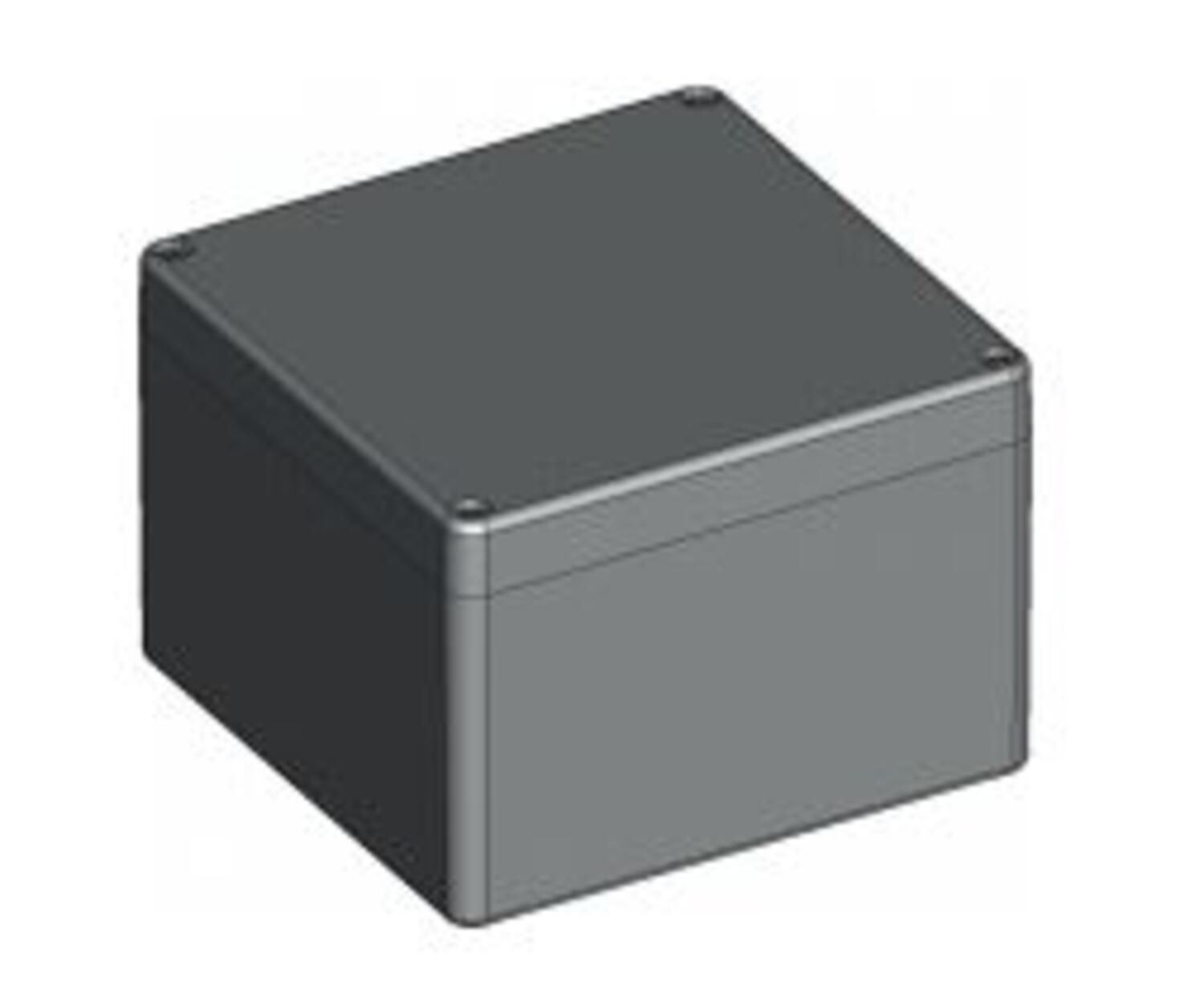

PC-Enclosure CT681 122X120X85 Art: 2680000 Copied	122 mm	120 mm	85 mm	IP66	-40 °C	80 °C	Grey RAL 7035	Grey	Polycarbonate

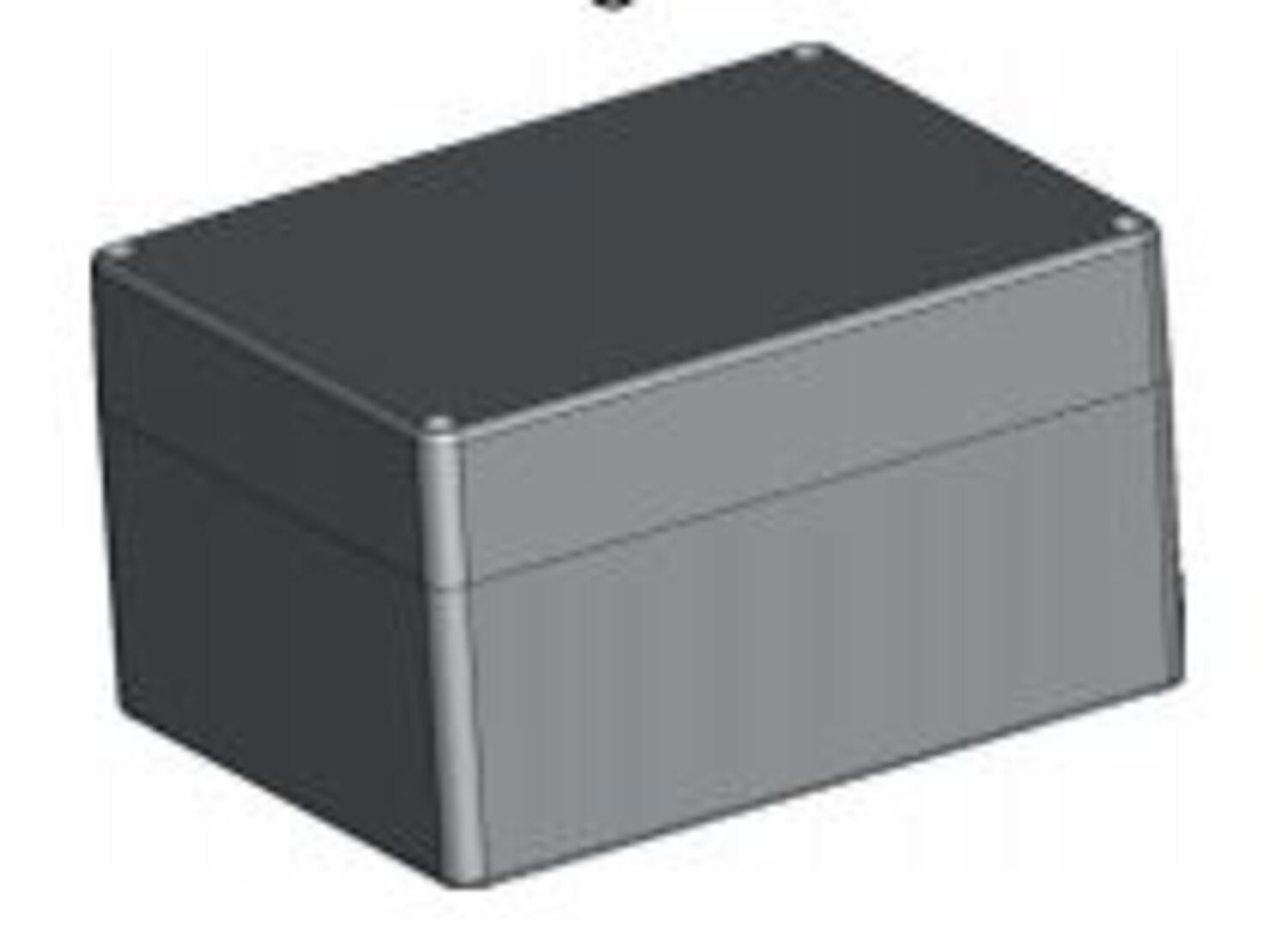

PC-Enclosure CT721 160X120X90 Art: 2720000 Copied	160 mm	120 mm	90 mm	IP66	-40 °C	80 °C	Grey RAL 7035	Grey	Polycarbonate

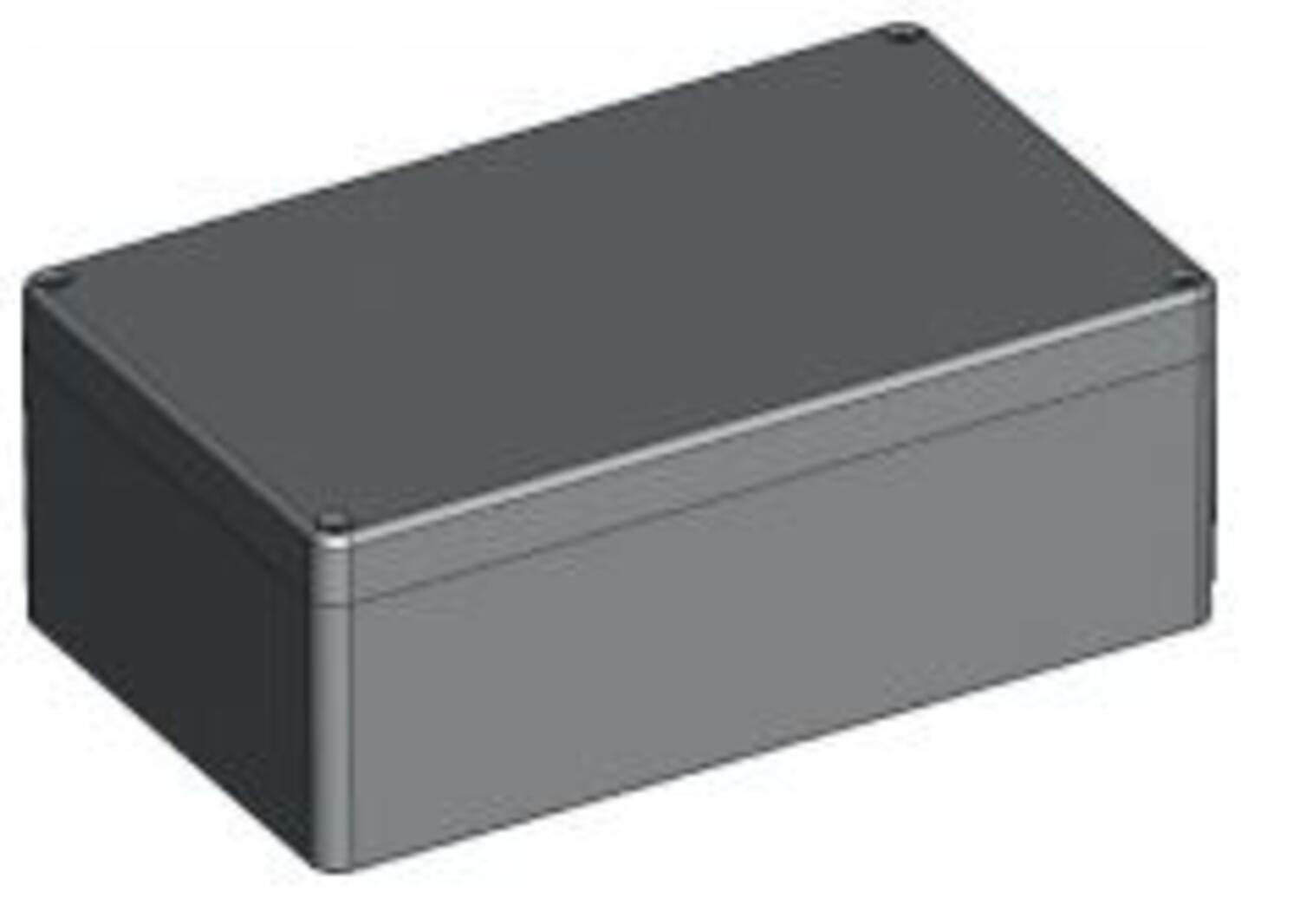

PC-Enclosure CT761 200X120X75 Art: 2760000 Copied	200 mm	120 mm	75 mm	IP66	-40 °C	80 °C	Grey RAL 7035	Grey	Polycarbonate

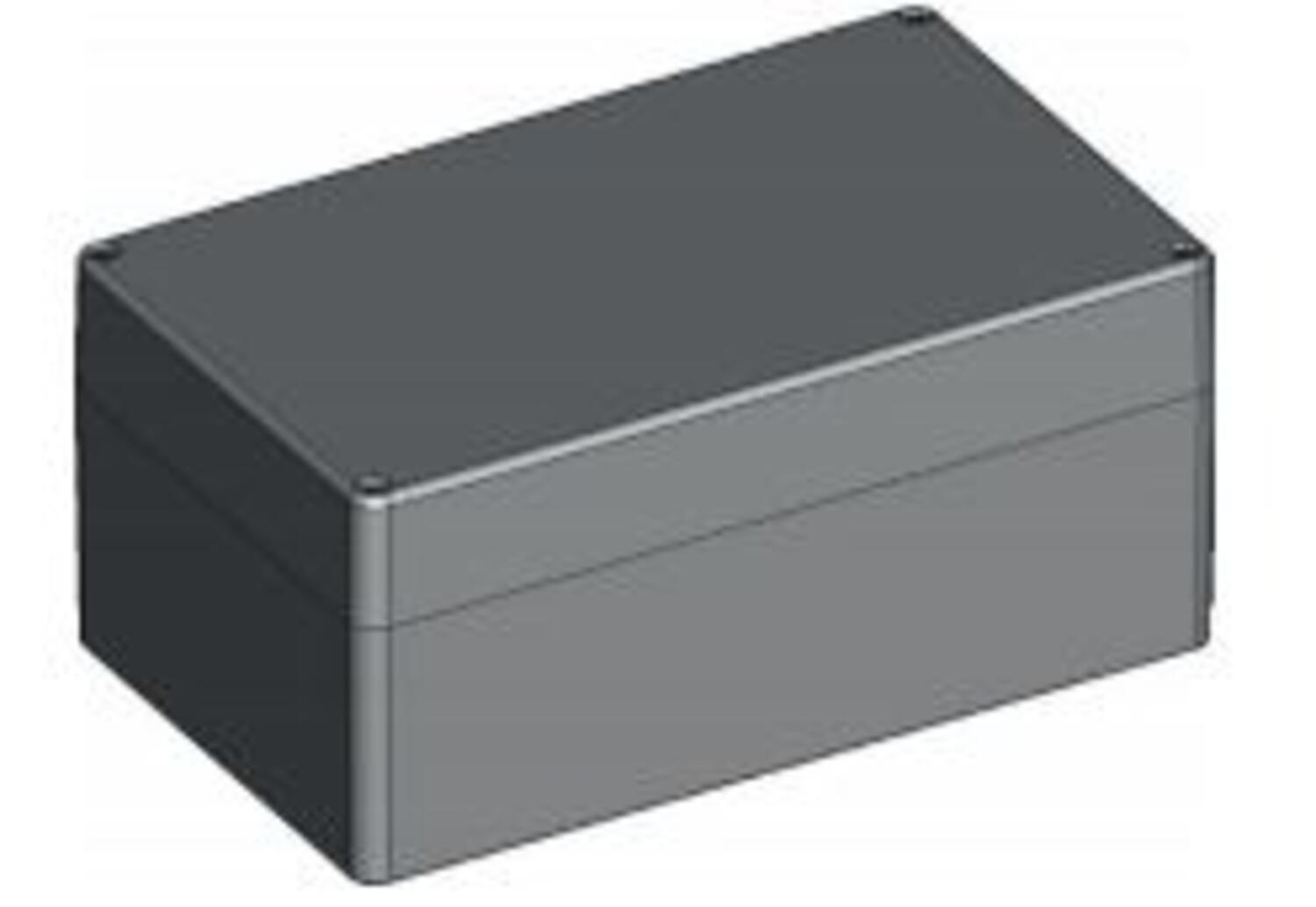

PC-Enclosure CT781 200X120X90 Art: 2780000 Copied	200 mm	120 mm	90 mm	IP66	-40 °C	80 °C	Grey RAL 7035	Grey	Polycarbonate

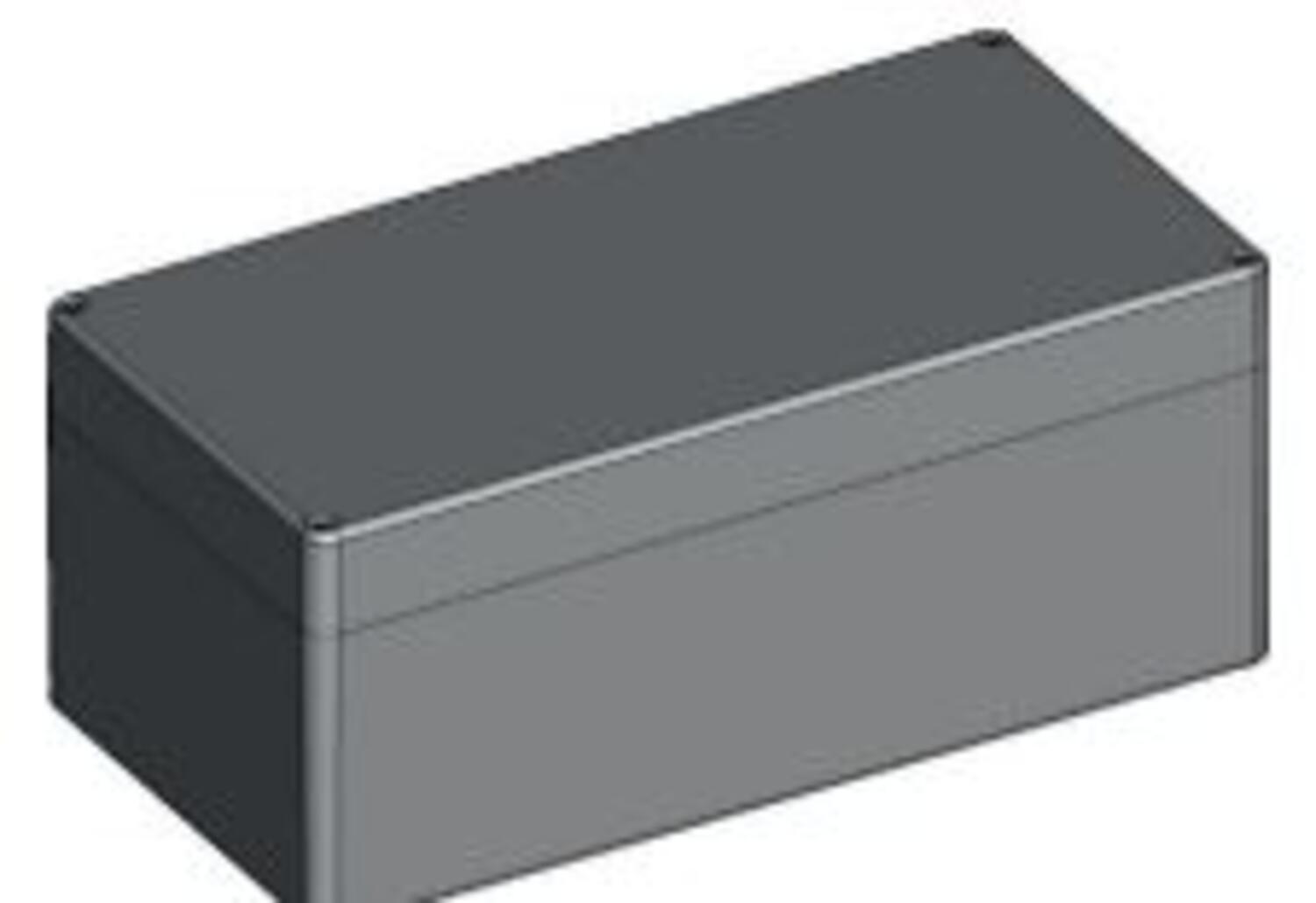

PC-Enclosure CT801 240X120X100 Art: 2800000 Copied	240 mm	120 mm	100 mm	IP66	-40 °C	80 °C	Grey RAL 7035	Grey	Polycarbonate

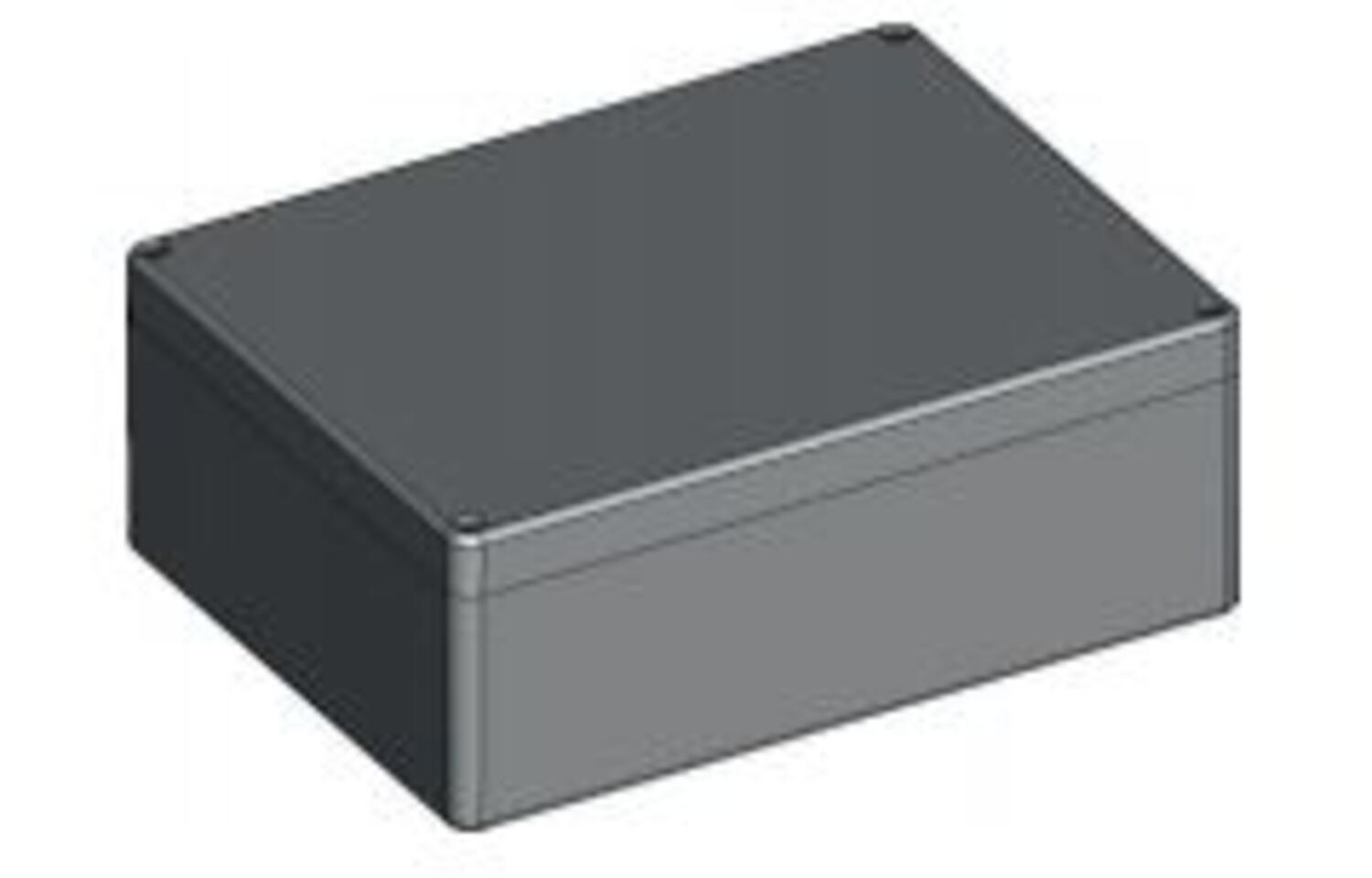

PC-Enclosure CT821 200X150X75 Art: 2820000 Copied	200 mm	150 mm	75 mm	IP66	-40 °C	80 °C	Grey RAL 7035	Grey	Polycarbonate

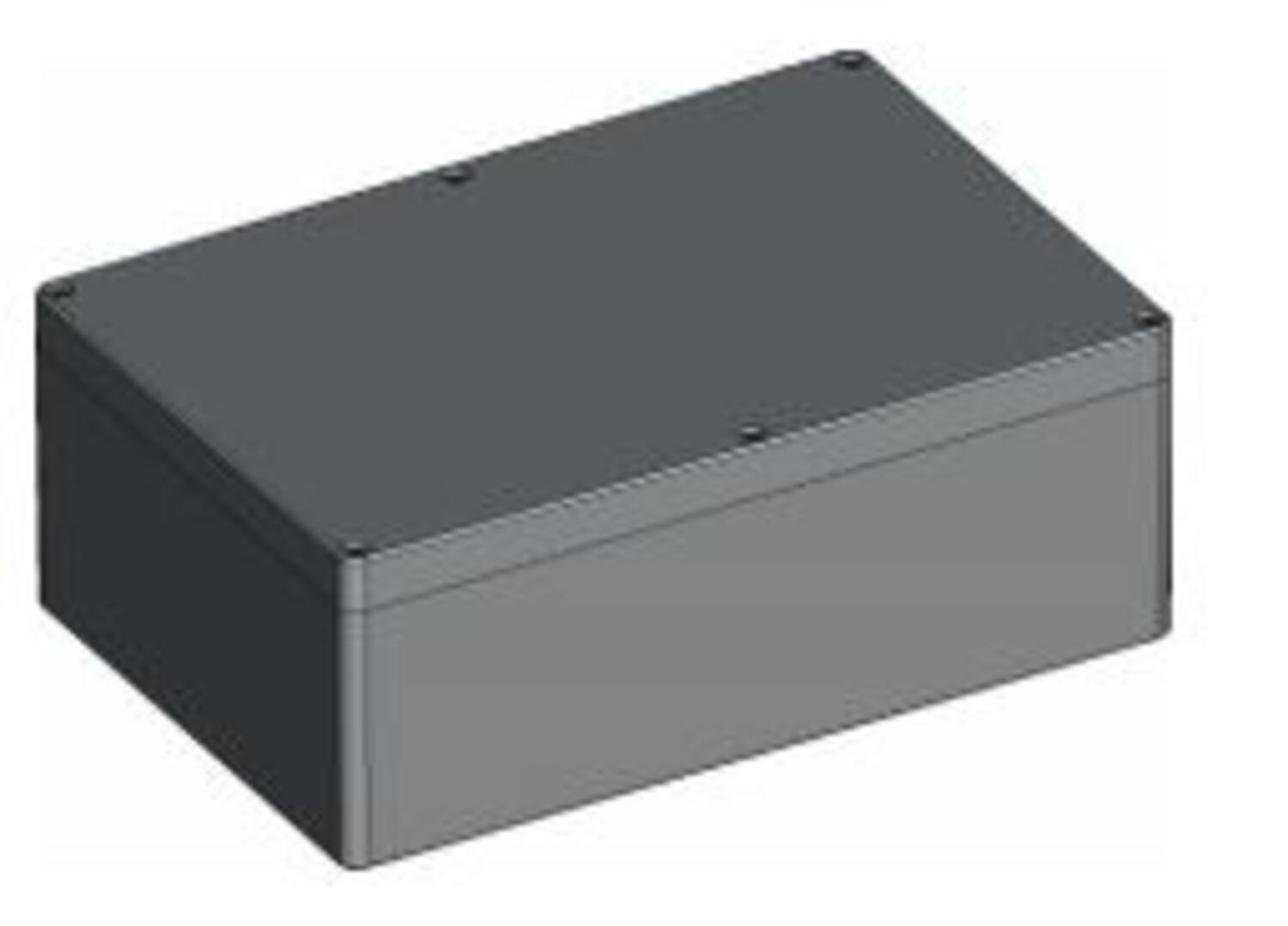

PC-Enclosure CT841 240X160X90 Art: 2840000 Copied	240 mm	160 mm	90 mm	IP66	-40 °C	80 °C	Grey RAL 7035	Grey	Polycarbonate

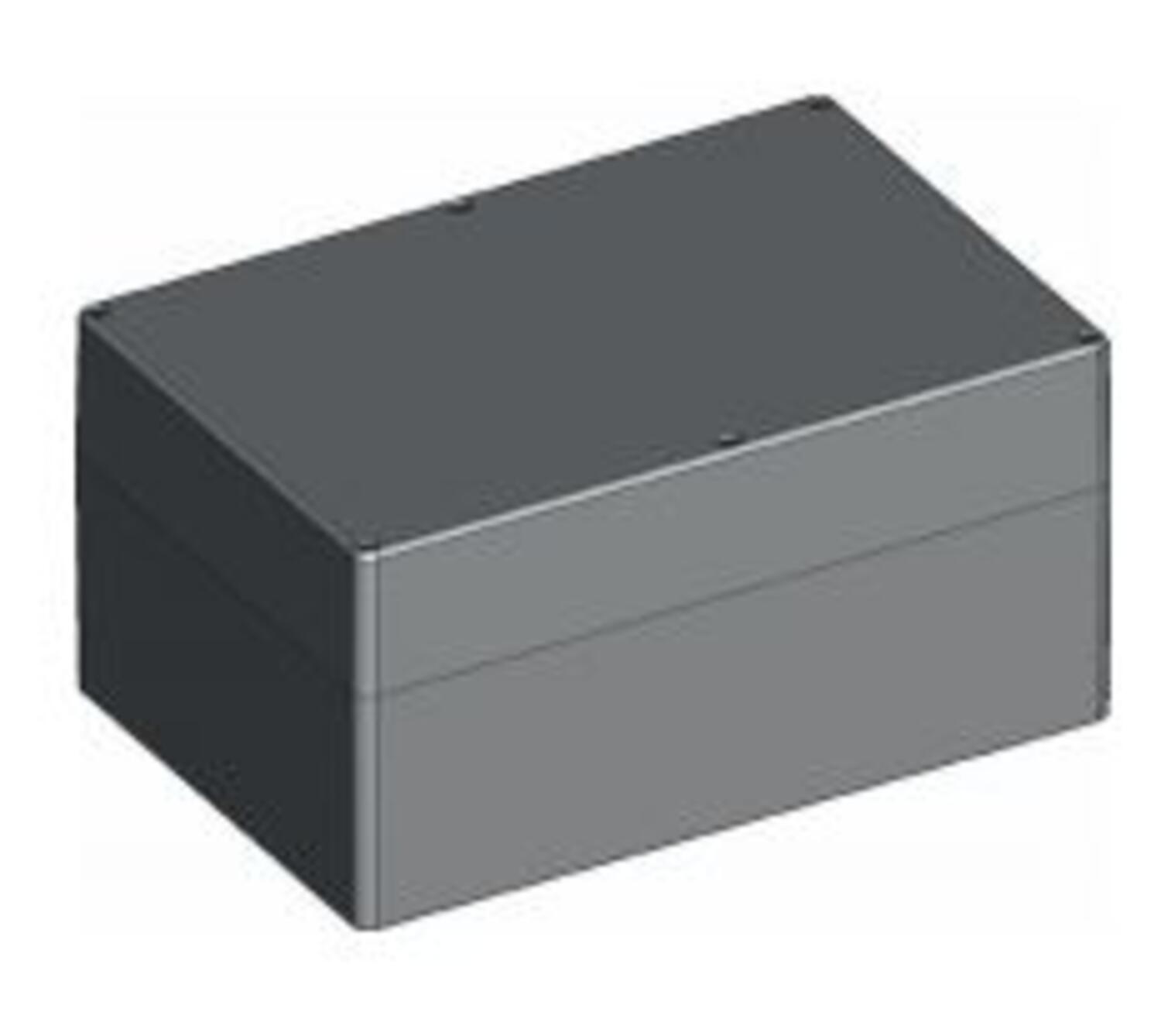

PC-KAPSLING CT861 240x160x120 Art: 2860000 Copied	240 mm	160 mm	120 mm	IP66	-40 °C	80 °C	Grey RAL 7035	Grey	Polycarbonate

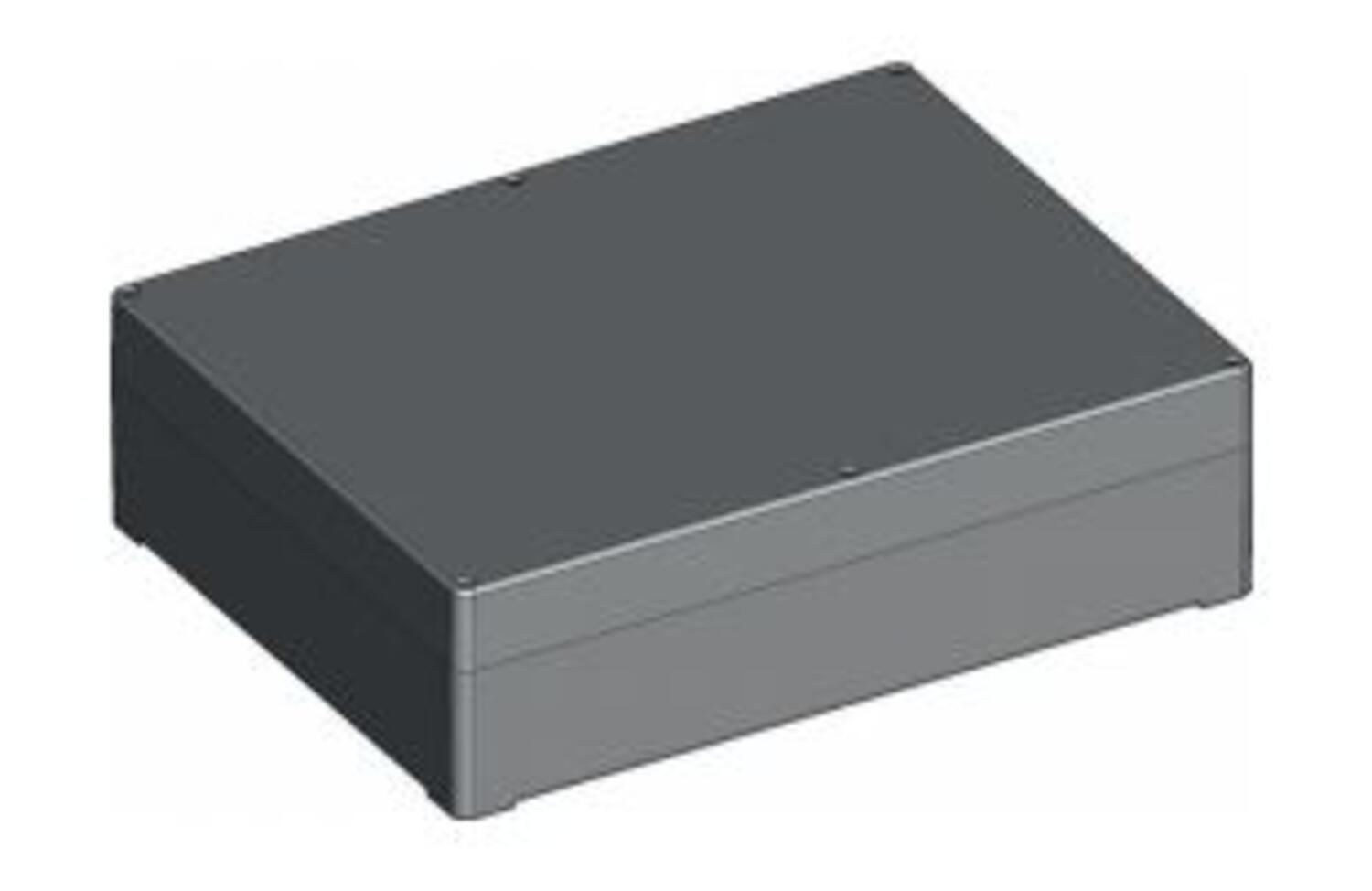

PC-Enclosure CT871 300X230X86 Art: 2870000 Copied	300 mm	230 mm	86 mm	IP66	-40 °C	80 °C	Grey RAL 7035	Grey	Polycarbonate
PC-Enclosure CT881 360X200X150 Art: 2880000 Copied	360 mm	200 mm	150 mm	IP66	-40 °C	80 °C	Grey RAL 7035	Grey	Polycarbonate

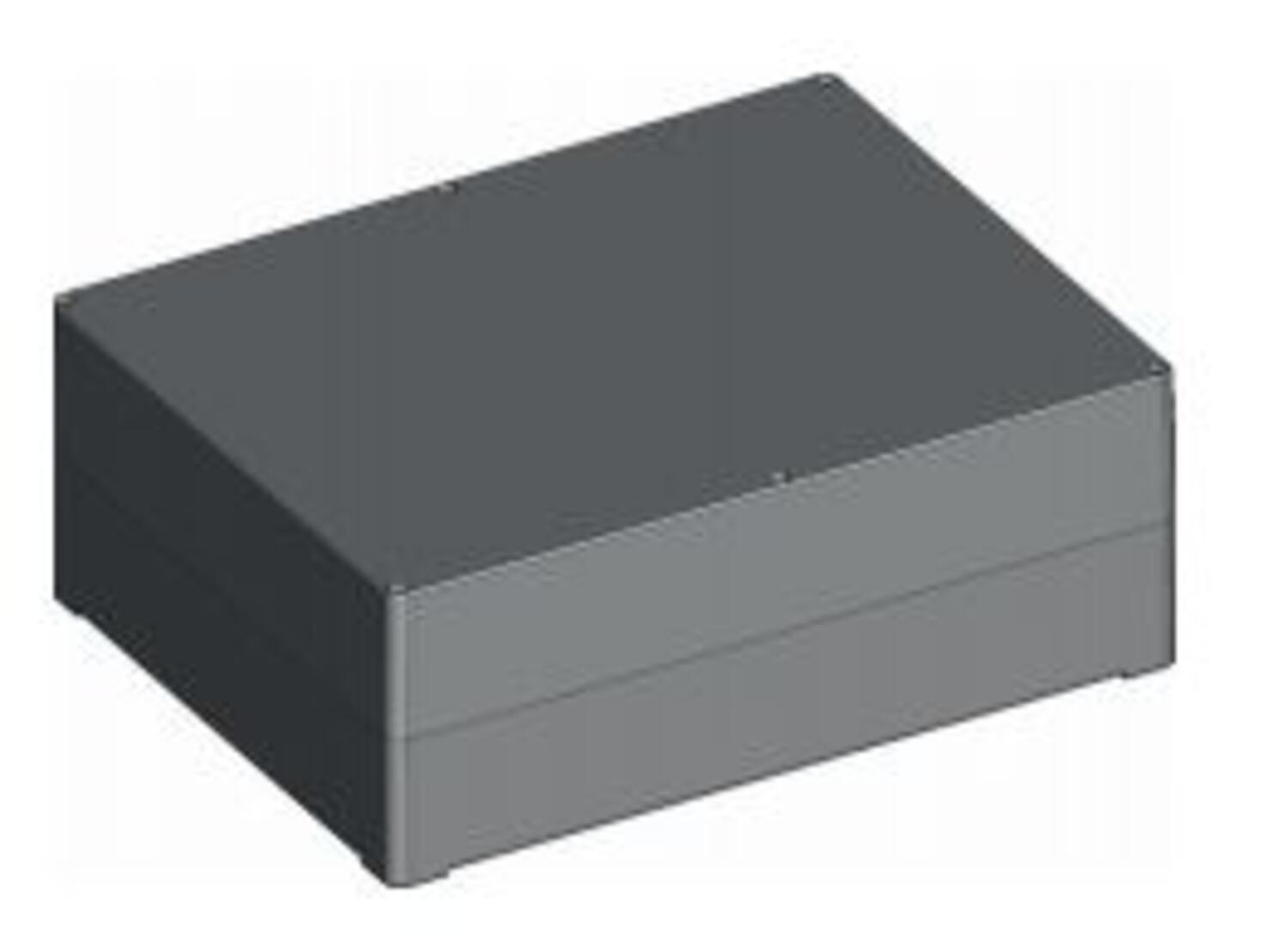

PC-Enclosure CT891 300X230X110 Art: 2890000 Copied	300 mm	230 mm	110 mm	IP66	-40 °C	80 °C	Grey RAL 7035	Grey	Polycarbonate

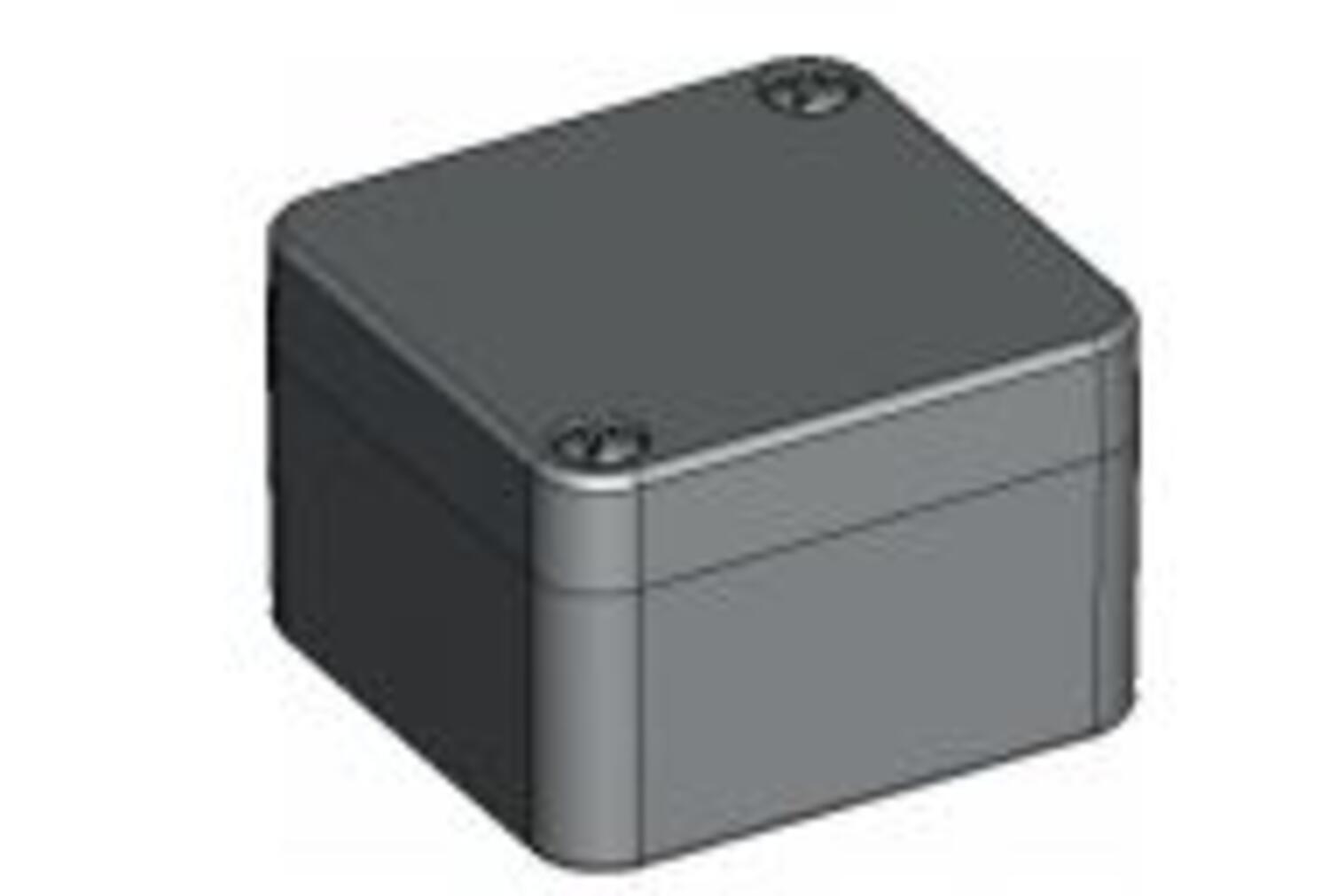

ABS-EnclosureCT502(52X50X35) Art: 3500000 Copied	52 mm	50 mm	35 mm	IP66	-40 °C	80 °C	Grey RAL 7035	Grey	ABS plastic

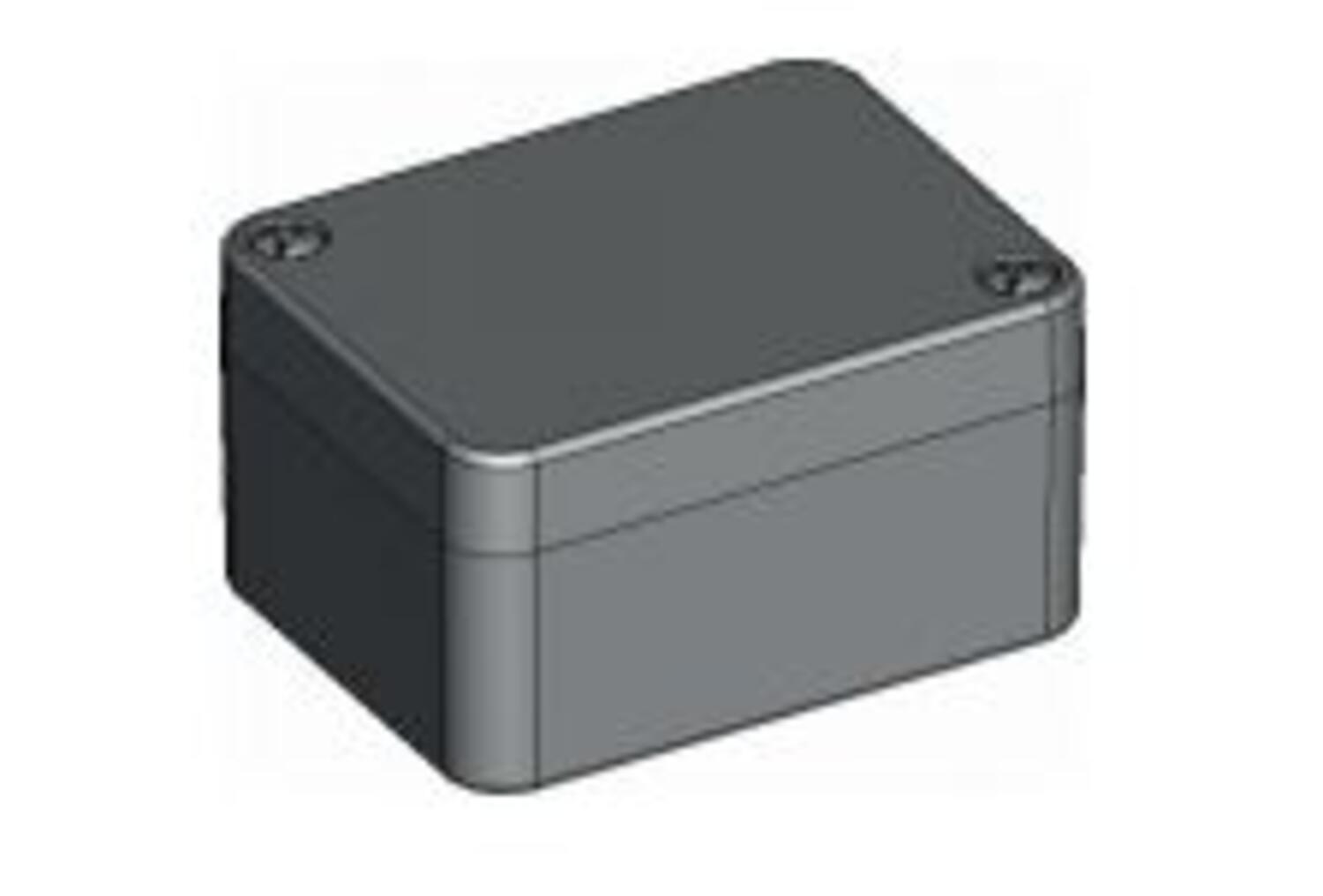

ABS-Enclosure CT522 (65X50X35) Art: 3520000 Copied	65 mm	50 mm	35 mm	IP66	-40 °C	80 °C	Grey RAL 7035	Grey	ABS plastic

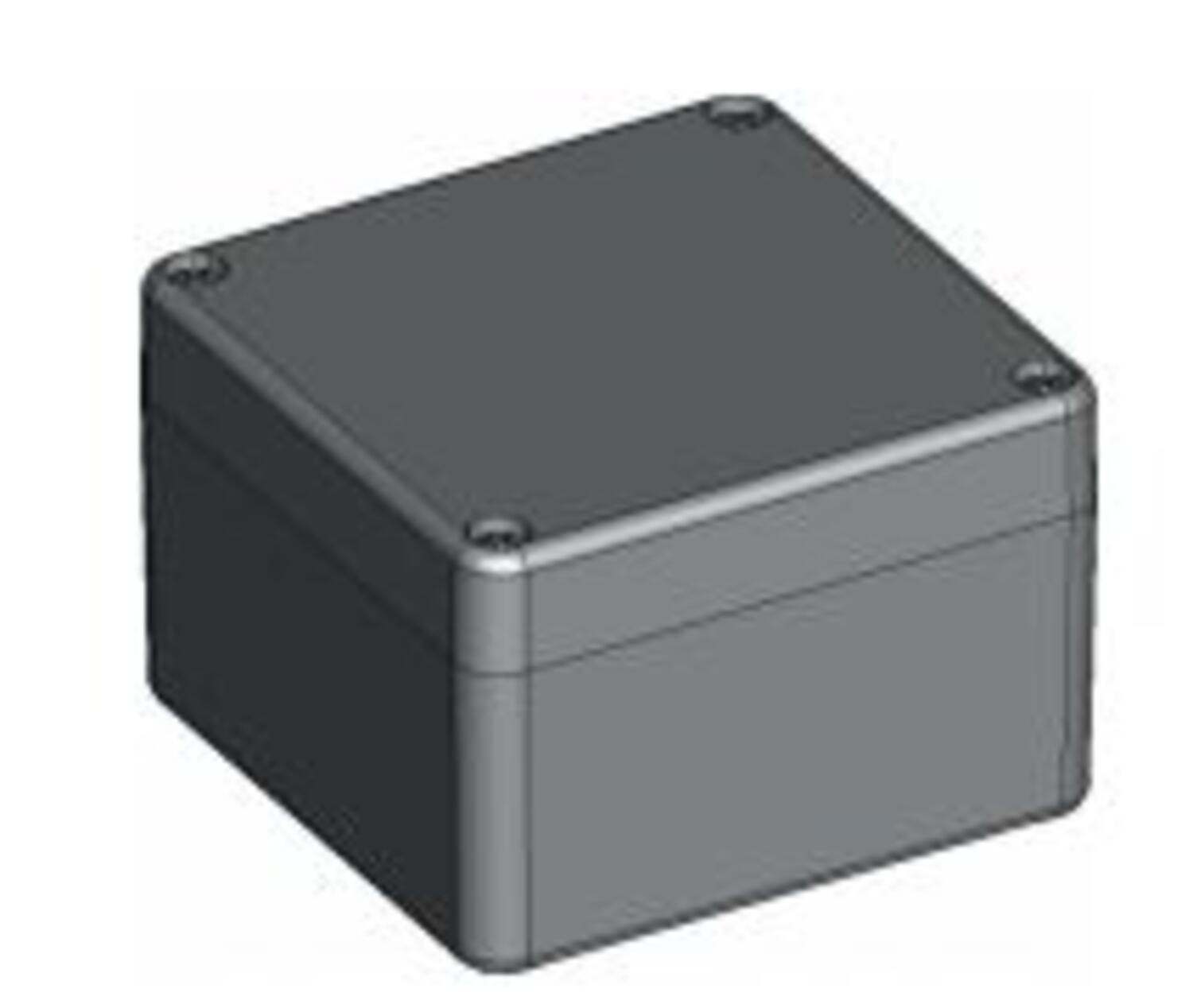

ABS-Enclosure CT542 (82X80X55) Art: 3540000 Copied	82 mm	80 mm	55 mm	IP66	-40 °C	80 °C	Grey RAL 7035	Grey	ABS plastic
ABS-Enclosure CT562 (82X80X85) Art: 3560000 Copied	82 mm	80 mm	85 mm	IP66	-40 °C	80 °C	Grey RAL 7035	Grey	ABS plastic

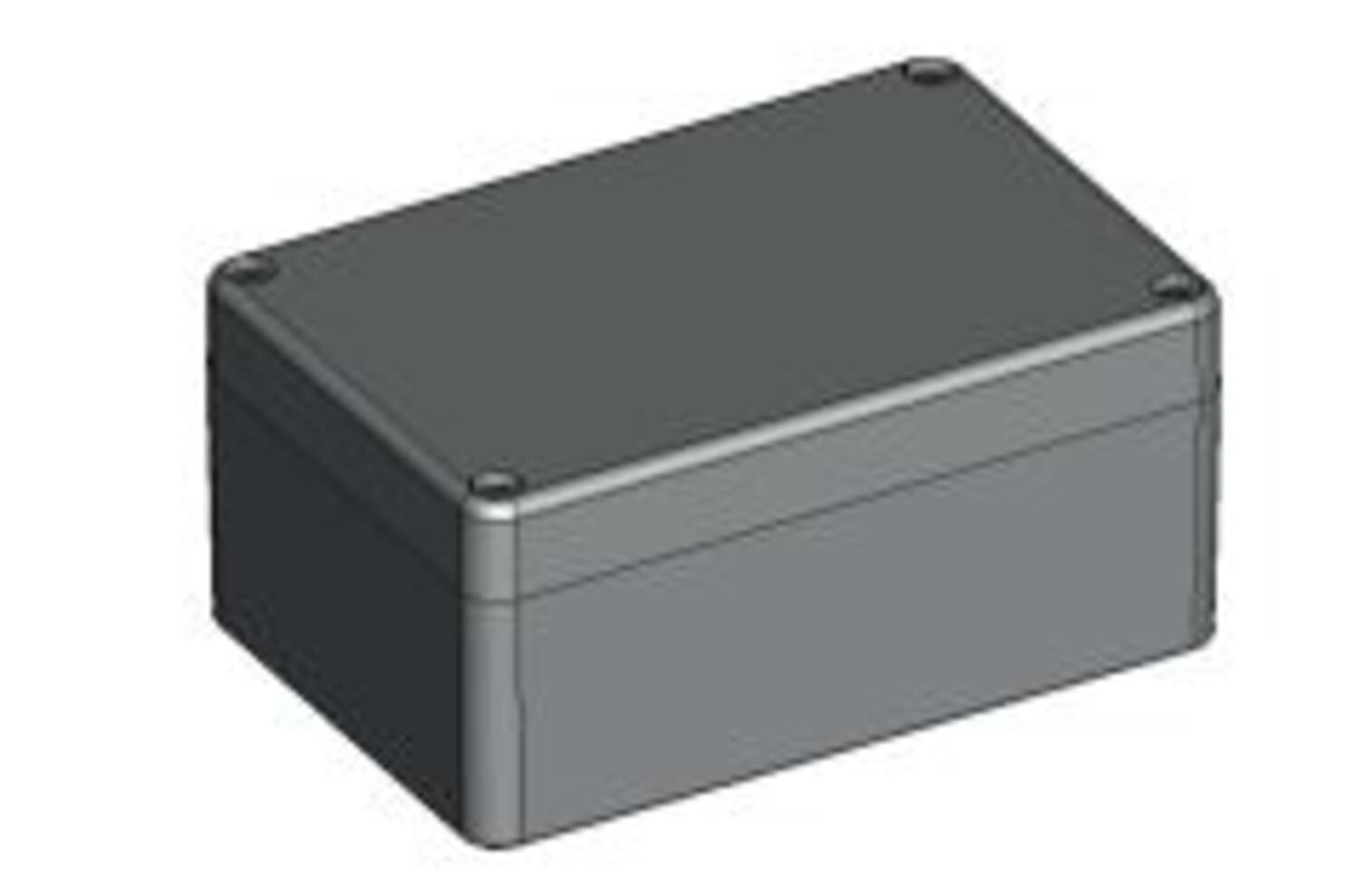

ABS-Enclosure CT582 (120X80X55) Art: 3580000 Copied	120 mm	80 mm	55 mm	IP66	-40 °C	80 °C	Grey RAL 7035	Grey	ABS plastic

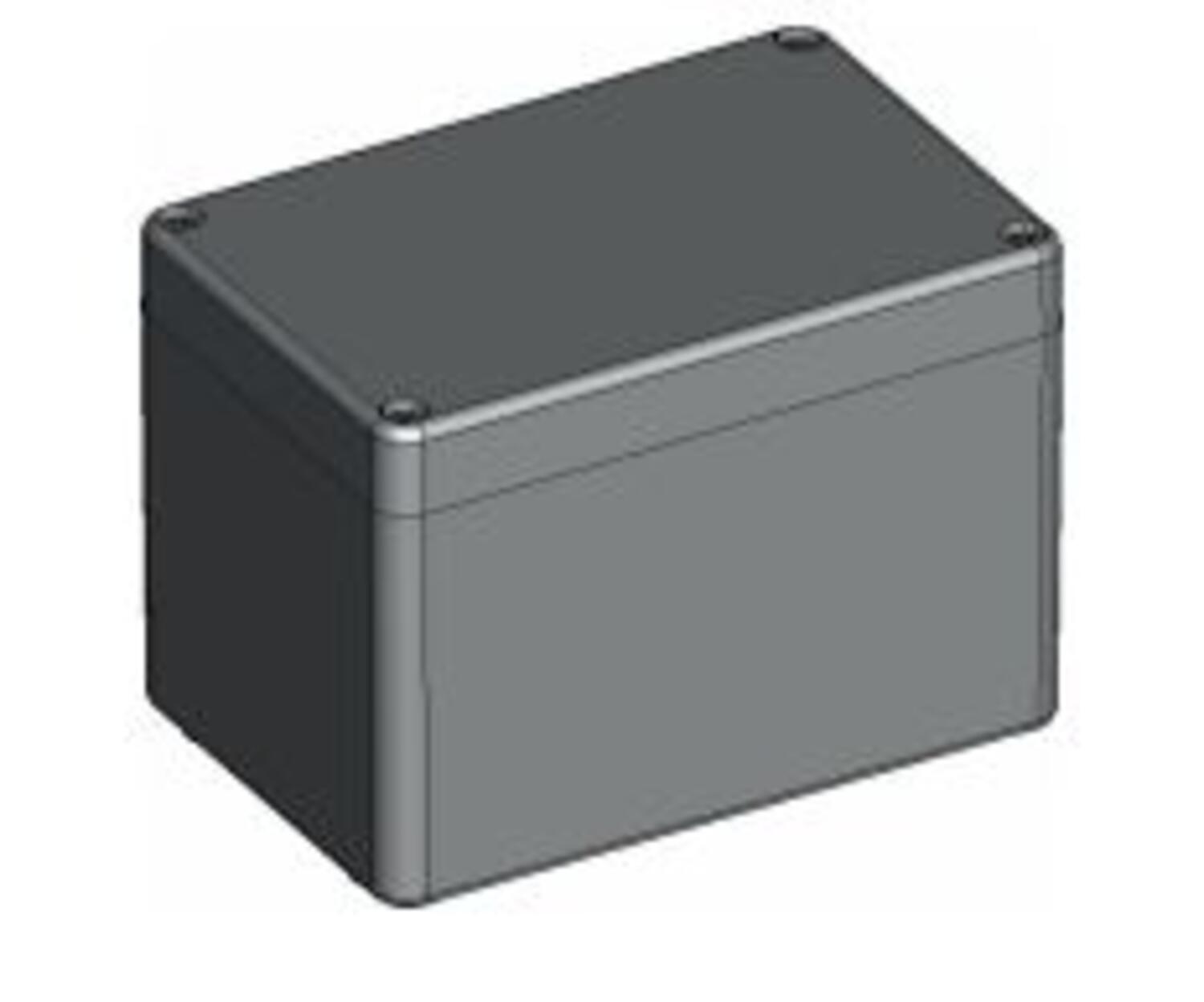

ABS-Enclosure CT602 (120X80X85) Art: 3600000 Copied	120 mm	80 mm	85 mm	IP66	-40 °C	80 °C	Grey RAL 7035	Grey	ABS plastic

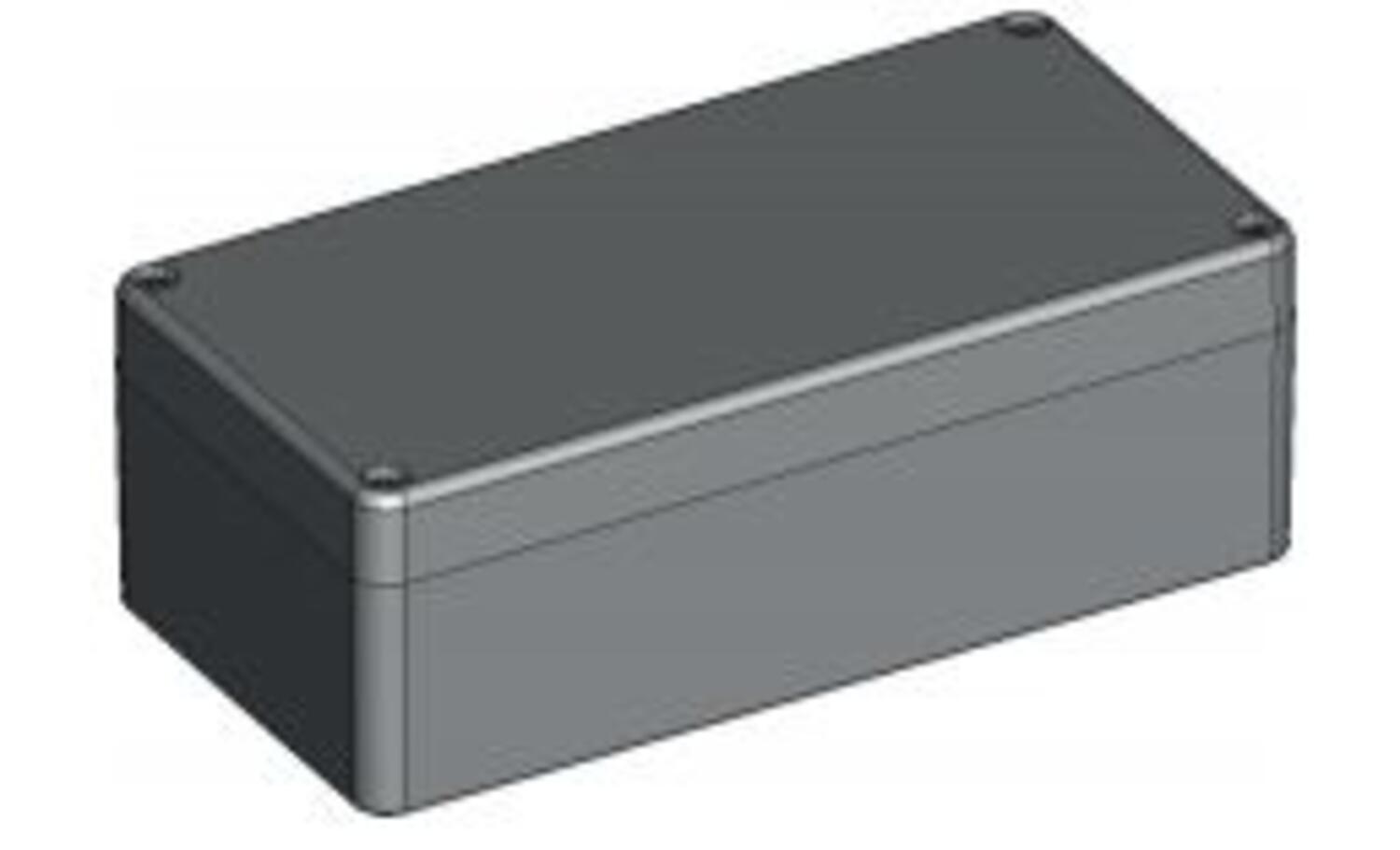

ABS-Enclosure CT622 160X80X55 Art: 3620000 Copied	160 mm	80 mm	55 mm	IP66	-40 °C	80 °C	Grey RAL 7035	Grey	ABS plastic

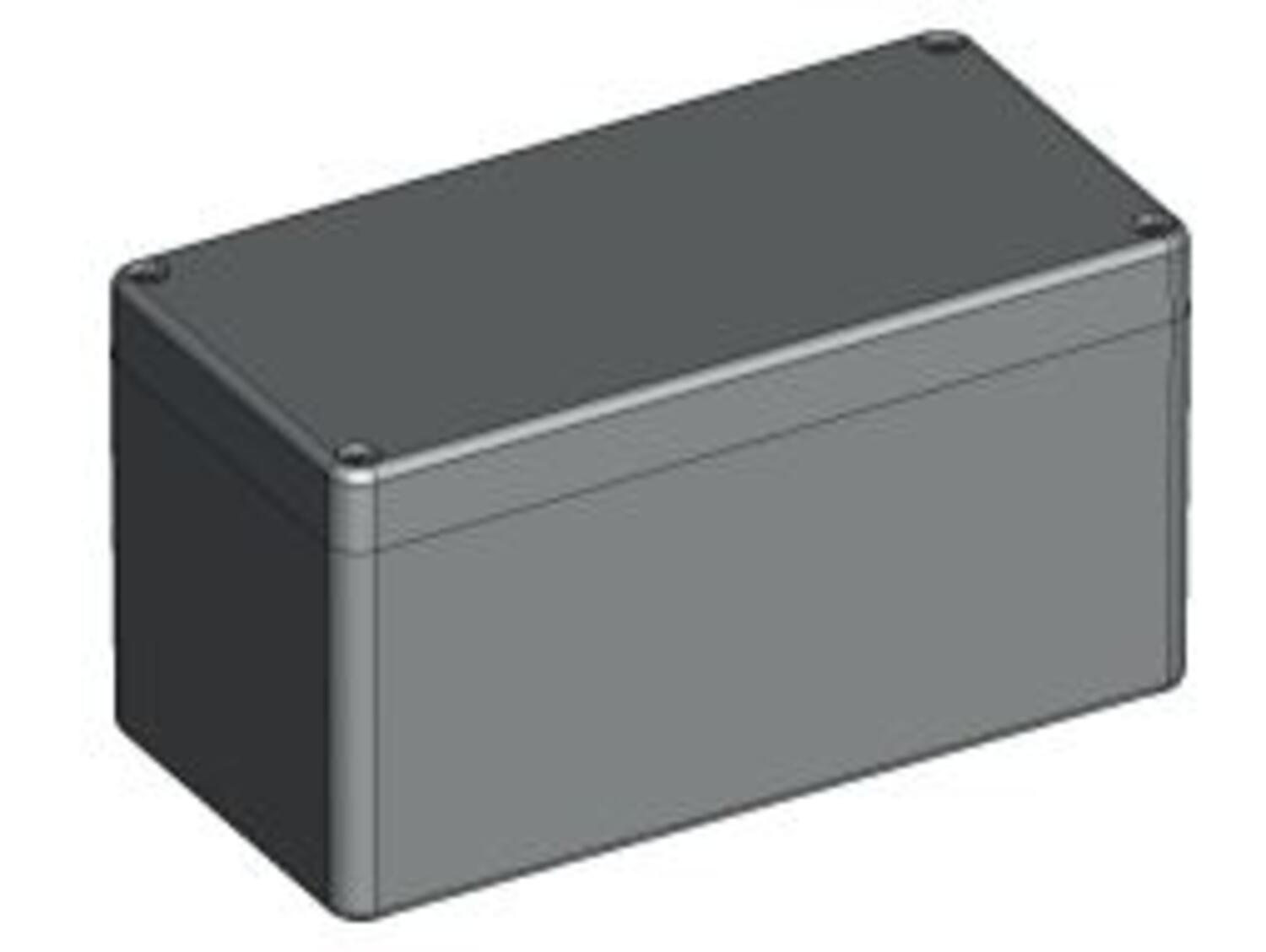

ABS-Enclosure CT642 160X80X85 Art: 3640000 Copied	160 mm	80 mm	85 mm	IP66	-40 °C	80 °C	Grey RAL 7035	Grey	ABS plastic
ABS-Enclosure CT662 122X120X55 Art: 3660000 Copied	122 mm	120 mm	55 mm	IP66	-40 °C	80 °C	Grey RAL 7035	Grey	ABS plastic

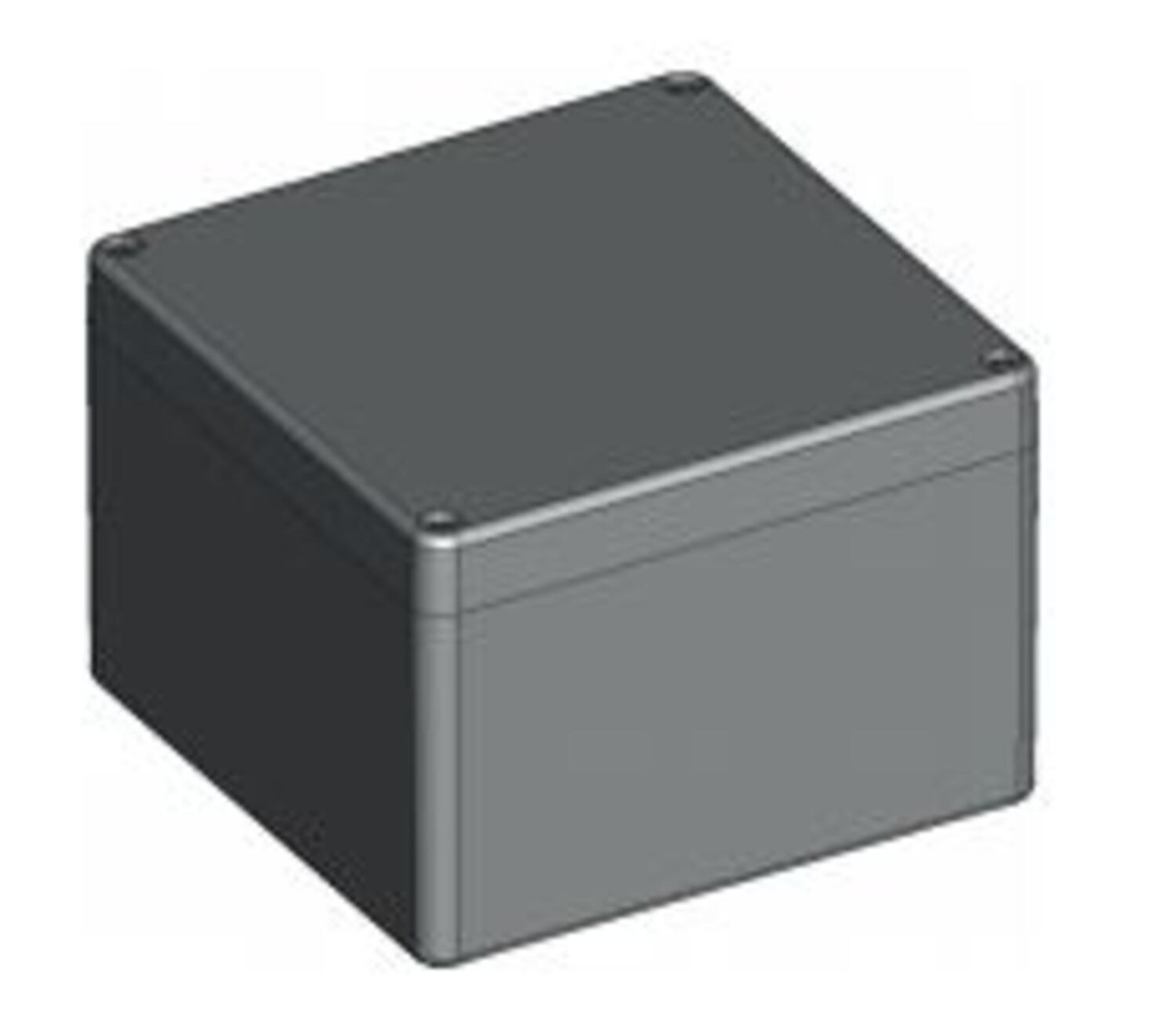

ABS-Enclosure CT682 122X120X85 Art: 3680000 Copied	122 mm	120 mm	85 mm	IP66	-40 °C	80 °C	Grey RAL 7035	Grey	ABS plastic

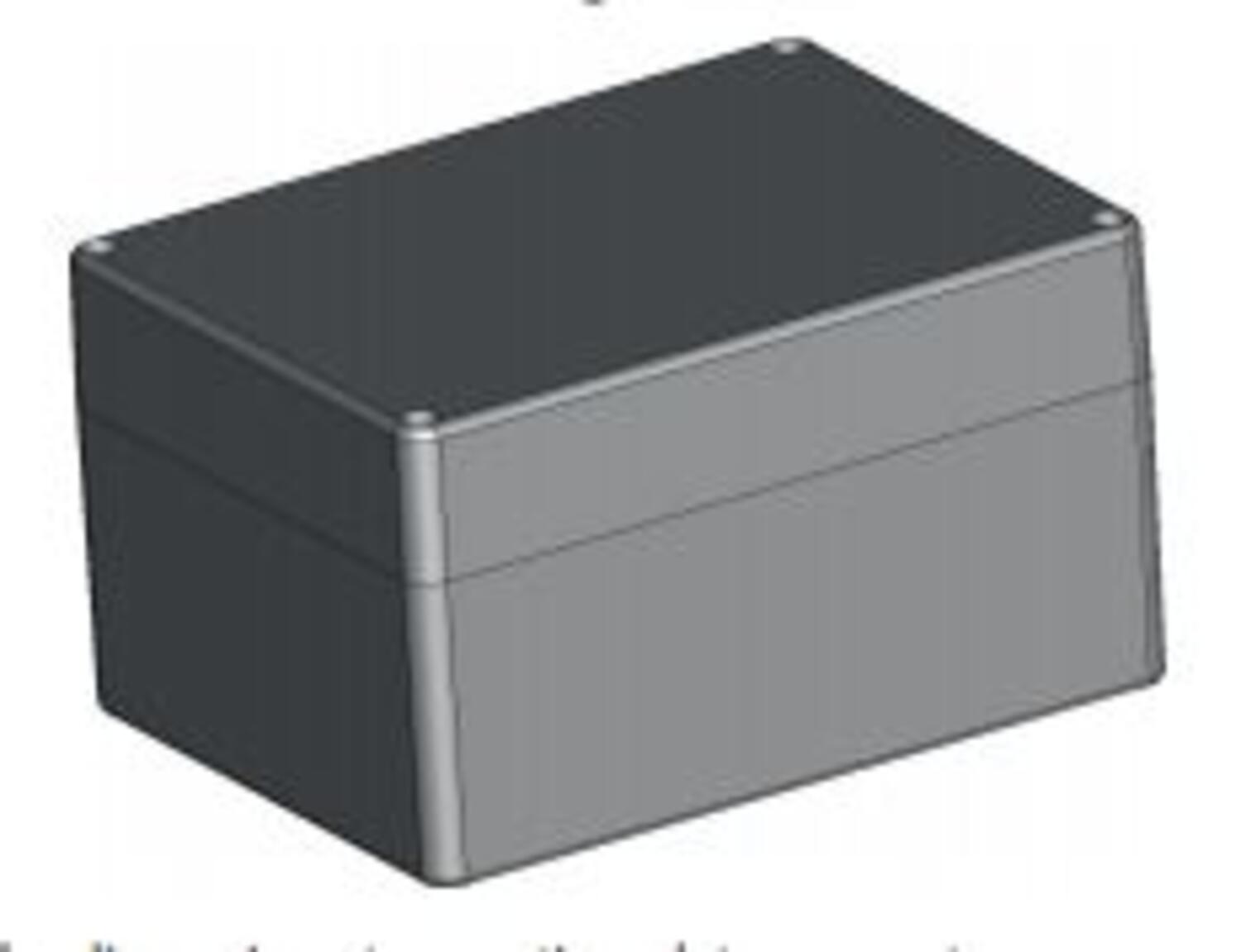

ABS-Enclosure CT722 160X120X90 Art: 3720000 Copied	160 mm	120 mm	90 mm	IP66	-40 °C	80 °C	Grey RAL 7035	Grey	ABS plastic

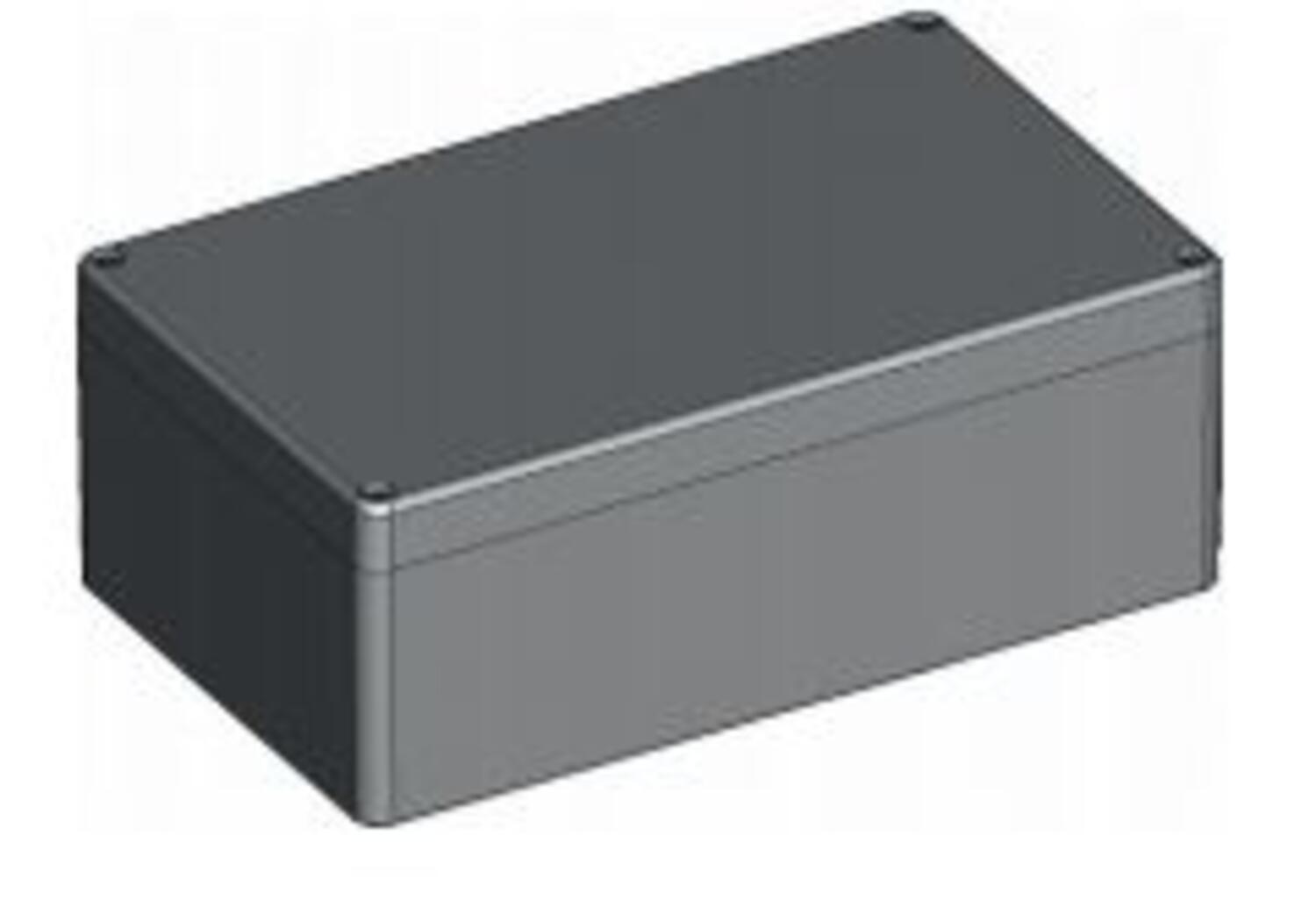

ABS-Enclosure CT762 200X120X75 Art: 3760000 Copied	200 mm	120 mm	75 mm	IP66	-40 °C	80 °C	Grey RAL 7035	Grey	ABS plastic

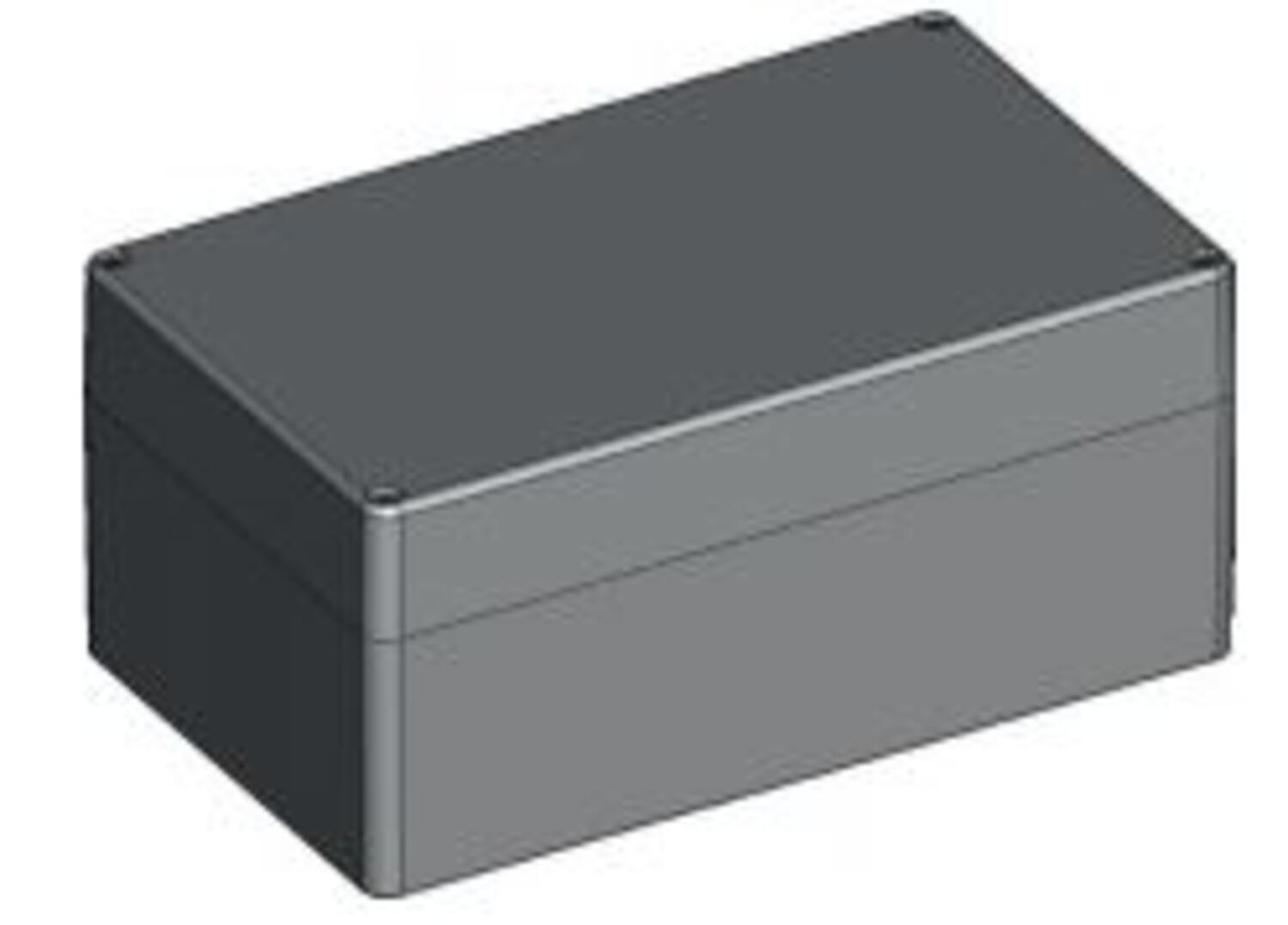

ABS-Enclosure CT782 200X120X90 Art: 3780000 Copied	200 mm	120 mm	90 mm	IP66	-40 °C	80 °C	Grey RAL 7035	Grey	ABS plastic

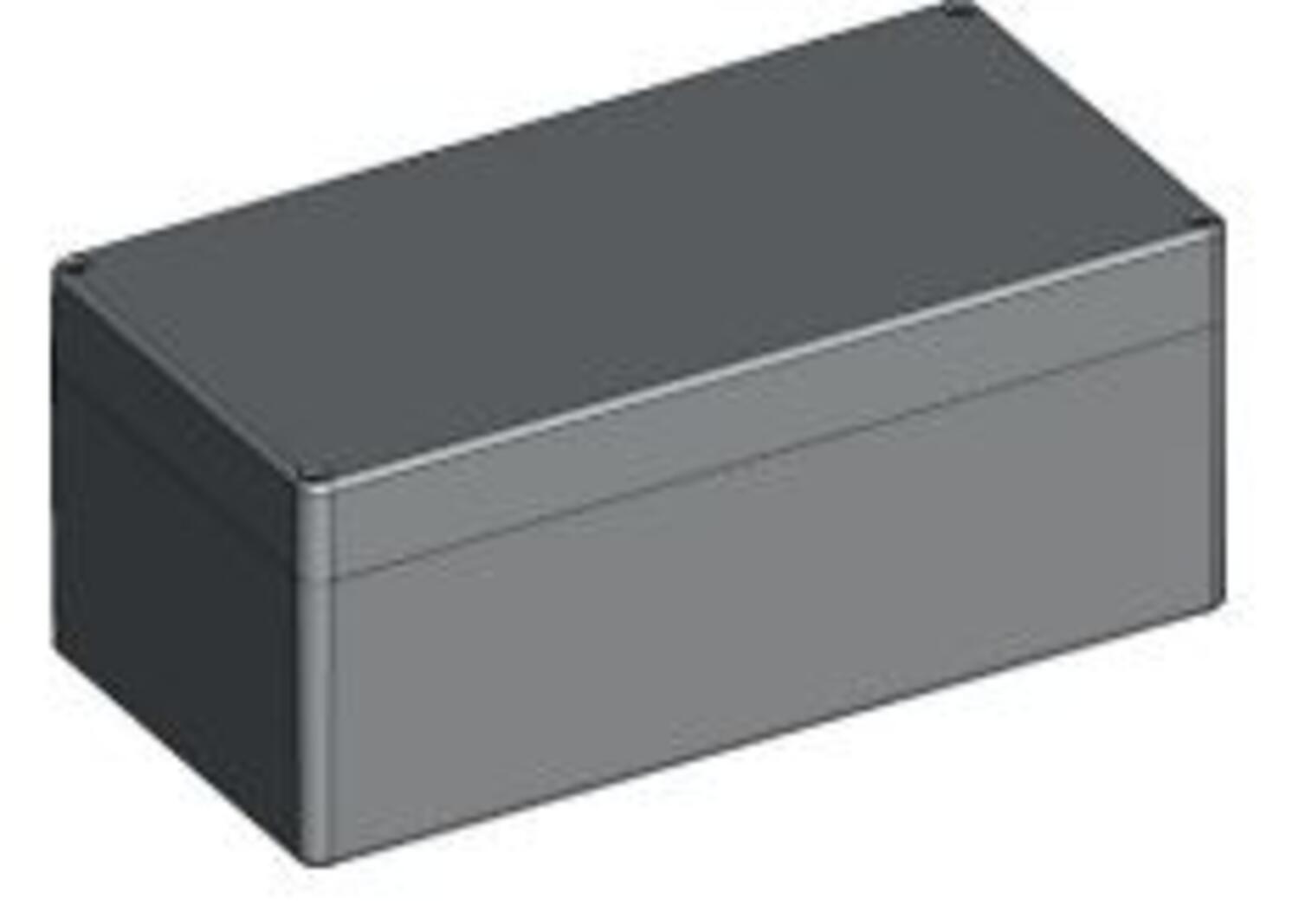

ABS-Enclosure CT802 240X120X100 Art: 3800000 Copied	240 mm	120 mm	100 mm	IP66	-40 °C	80 °C	Grey RAL 7035	Grey	ABS plastic

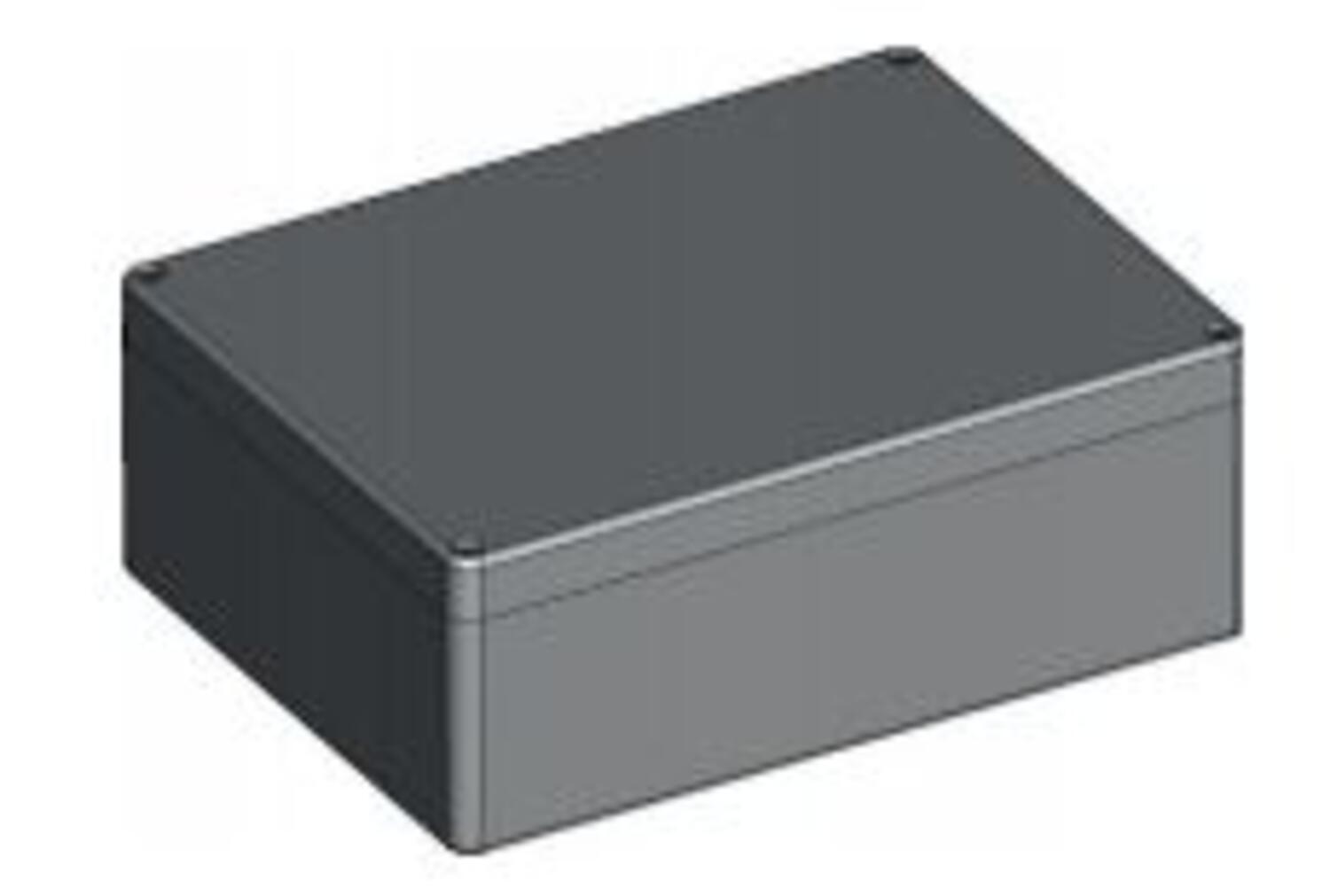

CT-822 ABS ENCLOSURE (200X150X75) Art: 3820000 Copied	200 mm	150 mm	75 mm	IP66	-40 °C	80 °C	Grey RAL 7035	Grey	ABS plastic

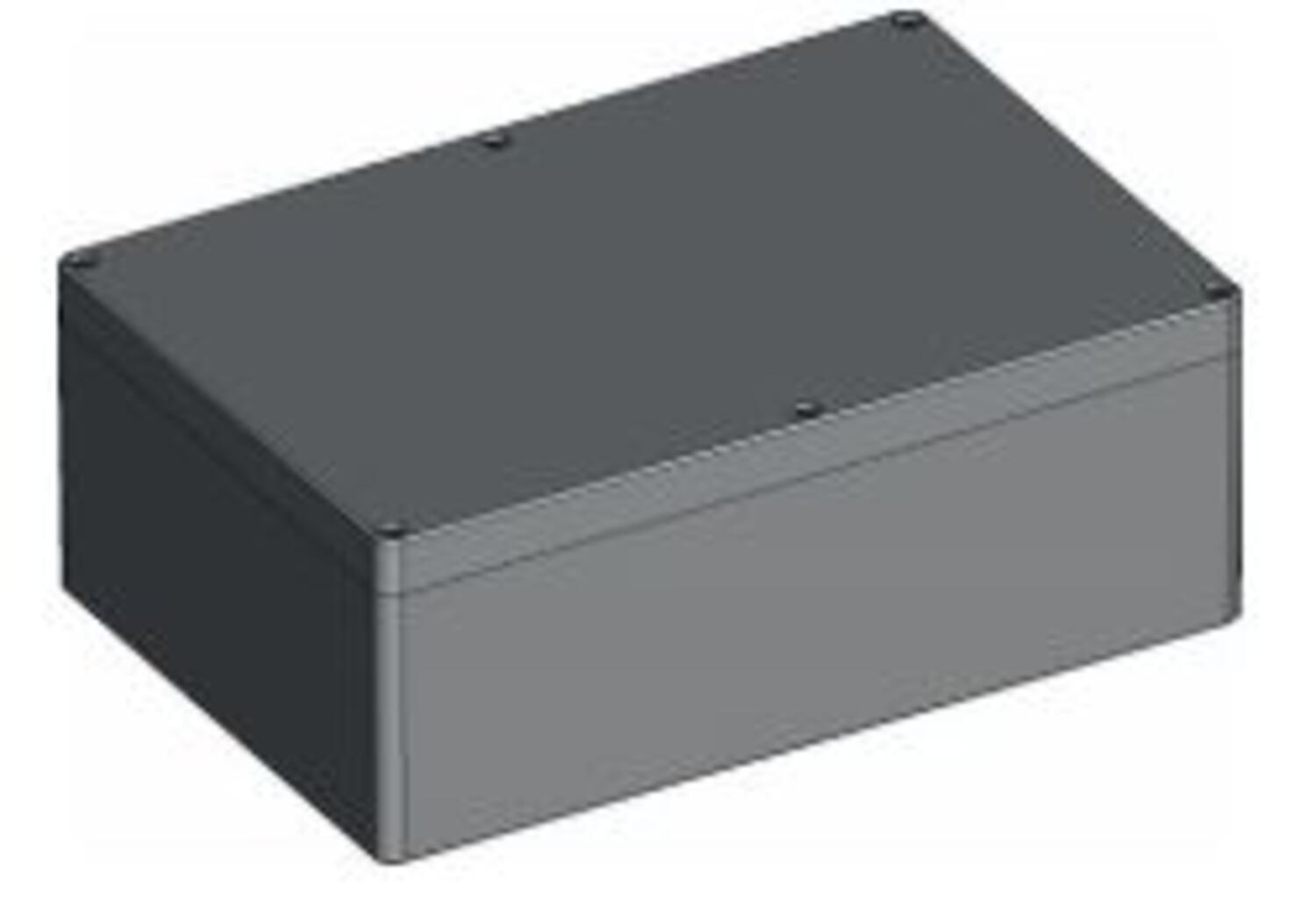

ABS-Enclosure CT842 240X160X90 Art: 3840000 Copied	240 mm	160 mm	90 mm	IP66	-40 °C	80 °C	Grey RAL 7035	Grey	ABS plastic

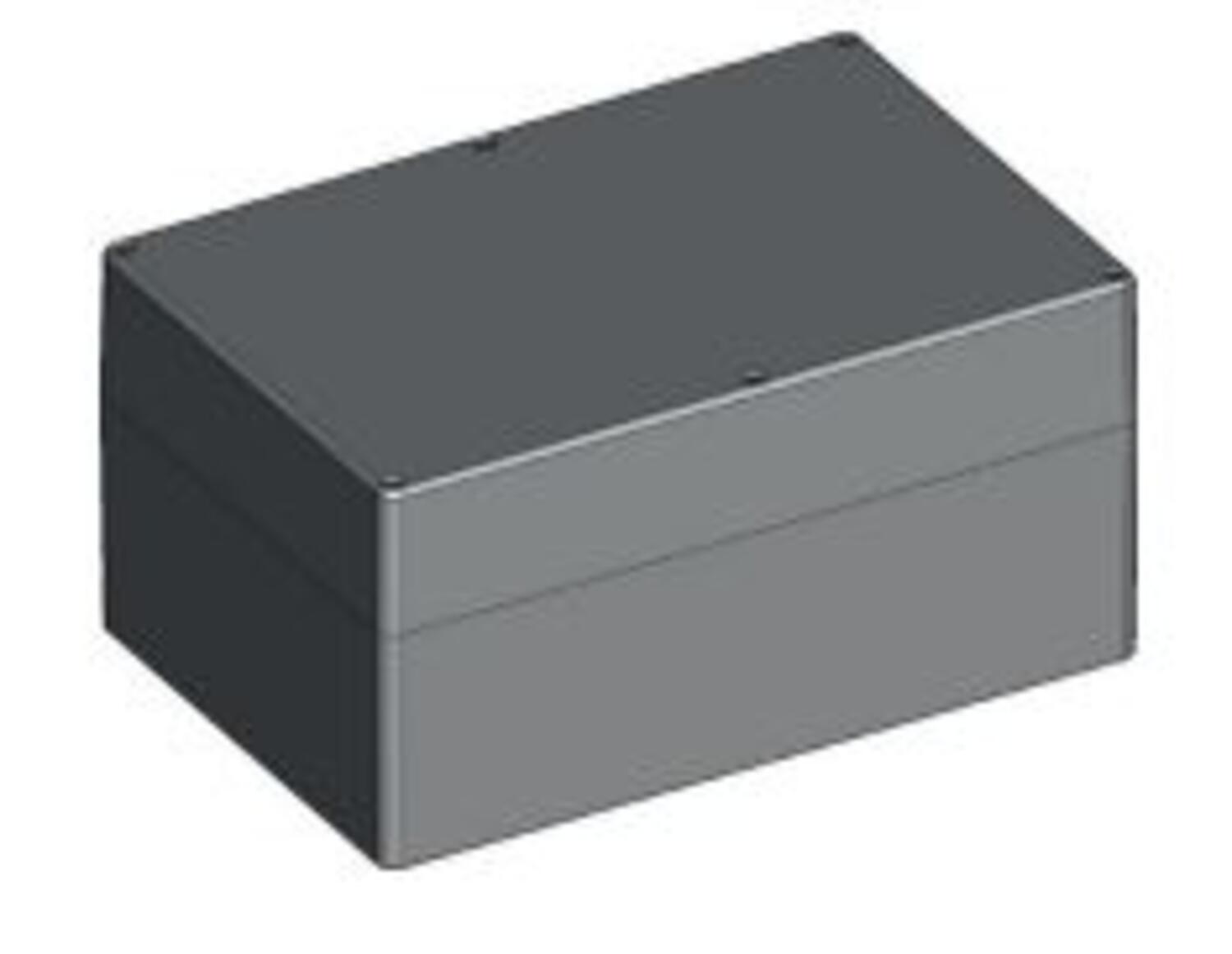

ABS-Enclosure CT862 240X160X120 Art: 3860000 Copied	240 mm	160 mm	120 mm	IP66	-40 °C	80 °C	Grey RAL 7035	Grey	ABS plastic

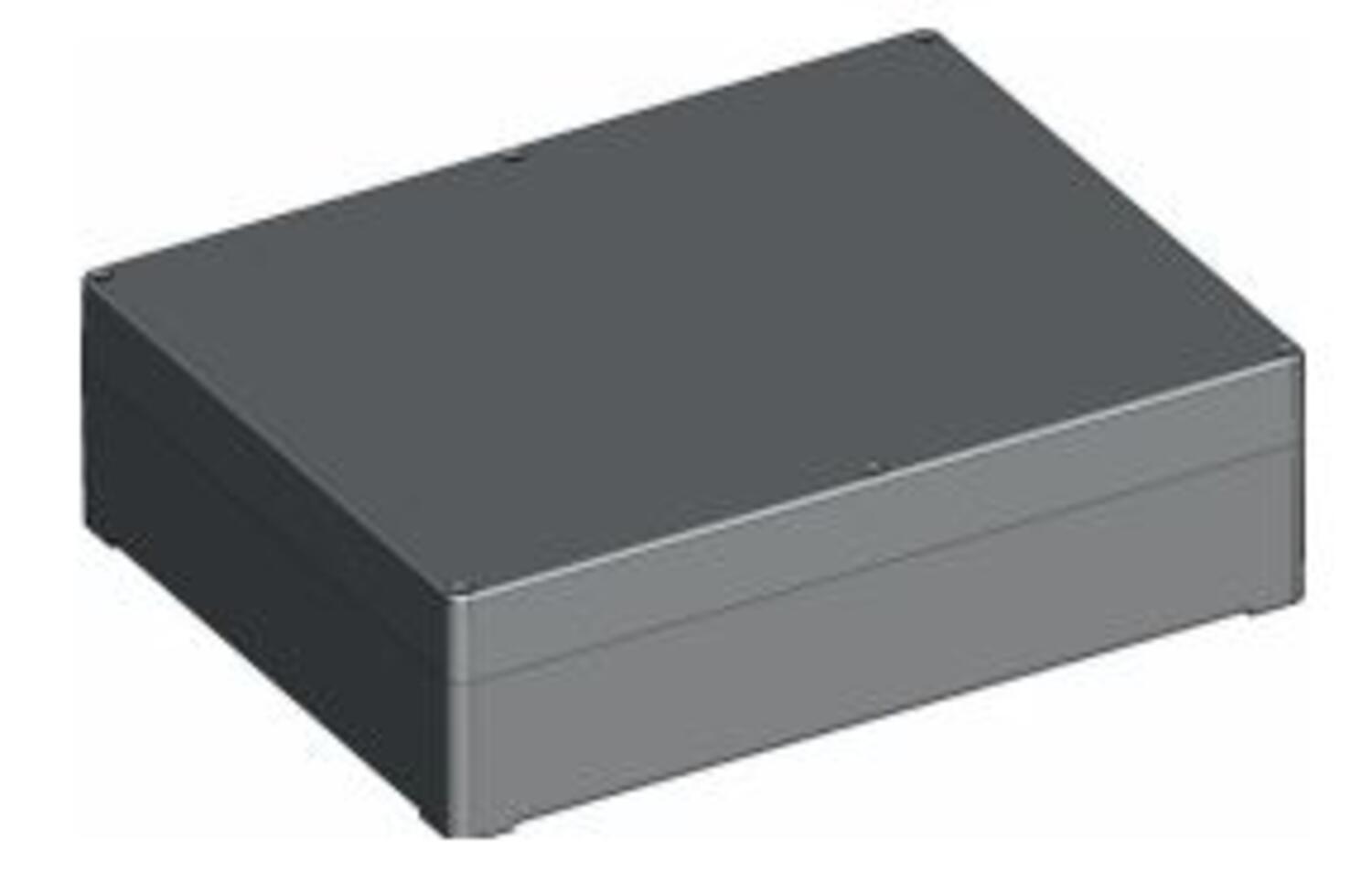

ABS-Enclosure CT872 300X230X86 Art: 3870000 Copied	300 mm	230 mm	86 mm	IP66	-40 °C	80 °C	Grey RAL 7035	Grey	ABS plastic

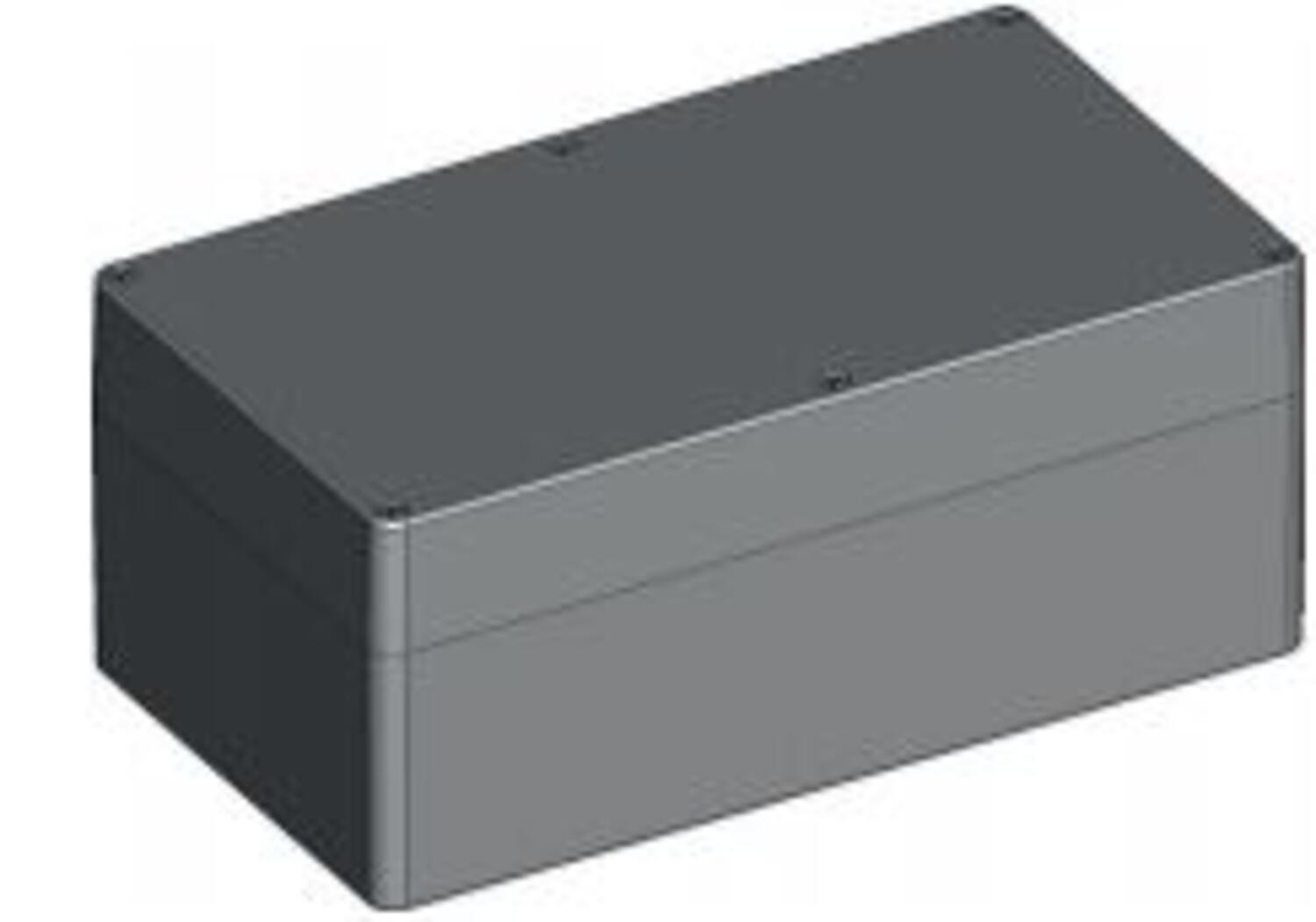

ABS-Enclosure CT882 360X200X150 Art: 3880000 Copied	360 mm	200 mm	150 mm	IP66	-40 °C	80 °C	Grey RAL 7035	Grey	ABS plastic

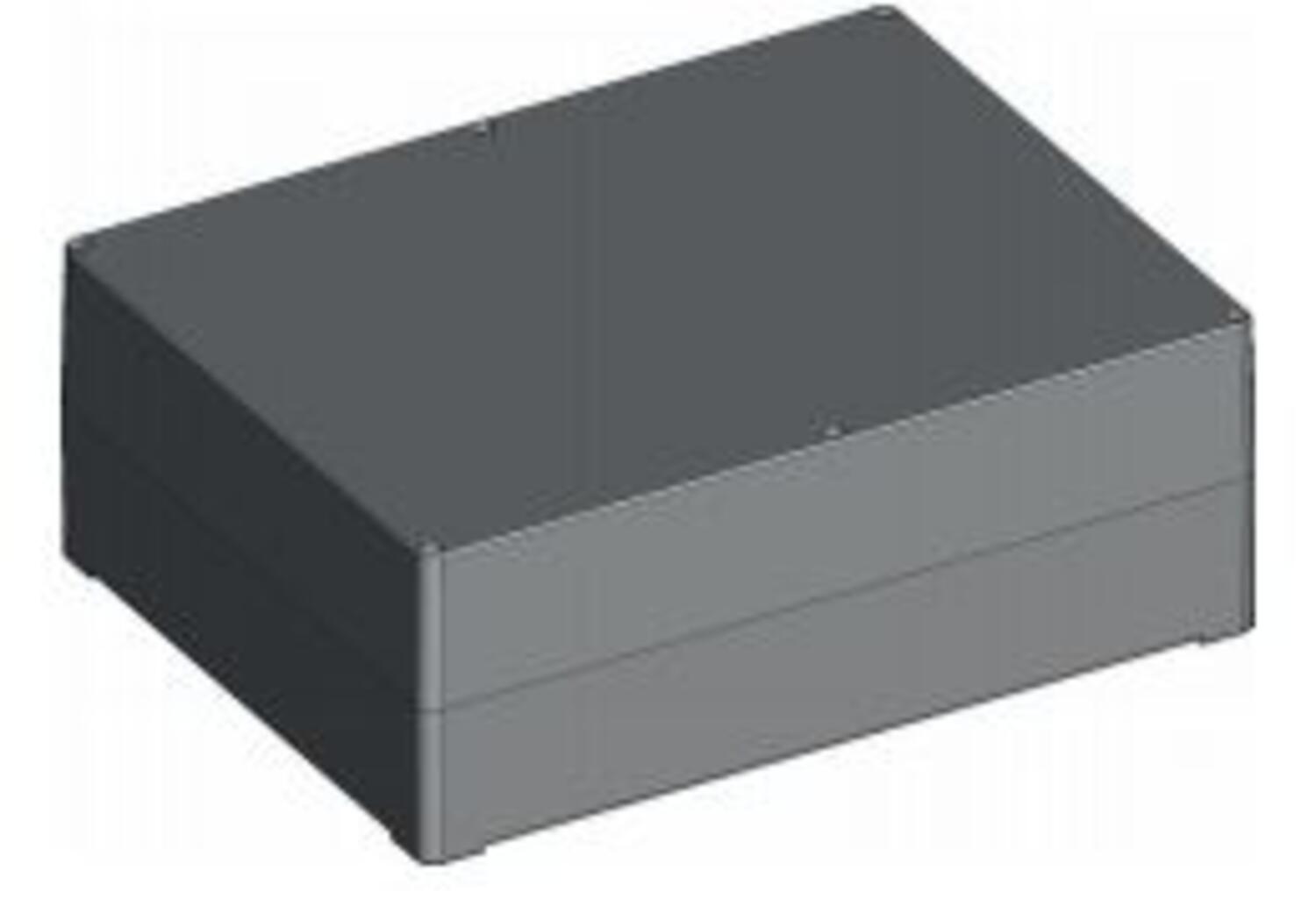

ABS-KAPSLING CT892 300X230X111 Art: 3890000 Copied	300 mm	230 mm	110 mm	IP66	-40 °C	80 °C	Grey RAL 7035	Grey	ABS plastic
