BERNSTEIN

Polyester enclosures

Bernstein CPG and CPS enclosure ranges are manufactured from high-grade glass fibre-reinforced polyester and available in both grey (RAL7000) and black (RAL9005).

Glass reinforced polyester enclosures of very high corrosion resistance and UL94/V0 flammability rating.

Read more
  • Glass fiber reinforced
  • Suitable for demanding environments
  • Shock resistant
  • High protection, IP65 rated

Selected variant

bernstein.eps

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Width 80 mm
Height 75 mm
Depth 55 mm
IP Class IP66
Approvals GL, UL
Temperature range from -40 °C
Temperature range to 80 °C
Color Grey RAL 7000
Material Polyester

Downloads

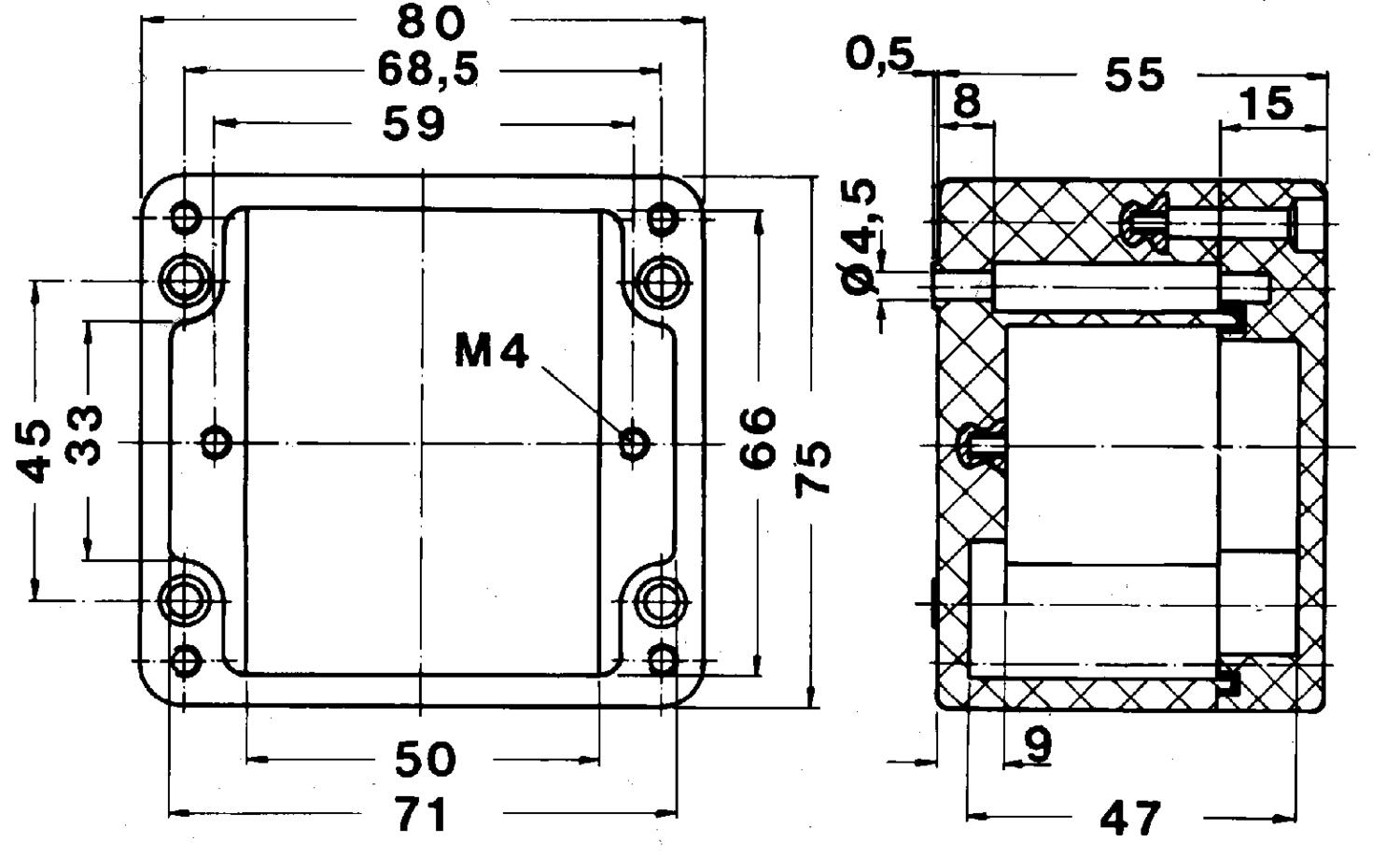

Measurements and connections

Technical illustrations

Product description

Bernstein CPG and CPS enclosure ranges are manufactured from high-grade glass fibre-reinforced polyester and available in both grey (RAL7000) and black (RAL9005).

Glass reinforced polyester enclosures of very high corrosion resistance and UL94/V0 flammability rating.

Accessories

Related products

Articles Width Height Depth IP Class Approvals Temperature range from Temperature range to Color Material
Other claddings. Unsaturated polyester plastic.
Polyester EnclosureCP140 (80X75X55)
Art:
4140000 Copied
80 mm
75 mm
55 mm
IP66
GL, UL
-40 °C
80 °C
Grey RAL 7000
Polyester
Other claddings. Unsaturated polyester plastic.
Polyester Enclosure CP-150 (110X75X55)
Art:
4150000 Copied
110 mm
75 mm
55 mm
IP66
GL, UL
-40 °C
80 °C
Grey RAL 7000
Polyester
Other claddings. Unsaturated polyester plastic.
Polyester EnclosureCP170(160X75X55)
Art:
4170000 Copied
160 mm
75 mm
55 mm
IP66
GL, UL
-40 °C
80 °C
Grey RAL 7000
Polyester
Other claddings. Unsaturated polyester plastic.
Polyester EnclosureCP190(190X75X55)
Art:
4190000 Copied
190 mm
75 mm
55 mm
IP66
GL, UL
-40 °C
80 °C
Grey RAL 7000
Polyester
Other claddings. Unsaturated polyester plastic.
Polyester EnclosureCP220(122X120X90)
Art:
4220000 Copied
122 mm
120 mm
90 mm
IP66
GL, UL
-40 °C
80 °C
Grey RAL 7000
Polyester
Other claddings. Unsaturated polyester plastic.
Polyester EnclosureCP240(220X120X90)
Art:
4240000 Copied
220 mm
120 mm
90 mm
IP66
GL, UL
-40 °C
80 °C
Grey RAL 7000
Polyester
Other claddings. Unsaturated polyester plastic.
POLYES.KAPSL.CP280(160X160X90)
Art:
4280000 Copied
160 mm
160 mm
90 mm
IP66
GL, UL
-40 °C
80 °C
Grey RAL 7000
Polyester
Other claddings. Unsaturated polyester plastic.
Polyester EnclosureCP300(260X160X90)
Art:
4300000 Copied
260 mm
160 mm
91 mm
IP66
GL, UL
-40 °C
80 °C
Grey RAL 7000
Polyester
Other claddings. Unsaturated polyester plastic.
Polyester EnclosureCP320(360X160X90)
Art:
4320000 Copied
360 mm
160 mm
91 mm
IP66
GL, UL
-40 °C
80 °C
Grey RAL 7000
Polyester
Other claddings. Unsaturated polyester plastic.
Polyester enclosure CP-330, 560x160x91 mm
Art:
4330000 Copied
560 mm
160 mm
91 mm
IP66
GL, UL
-40 °C
80 °C
Grey RAL 7000
Polyester
Other claddings. Unsaturated polyester plastic.
Polyester EnclosureCP370(255X250X120
Art:
4370000 Copied
255 mm
250 mm
120 mm
IP66
GL, UL
-40 °C
80 °C
Grey RAL 7000
Polyester
Other claddings. Unsaturated polyester plastic.
Polyester EnclosureCP400(400X250X120
Art:
4400000 Copied
400 mm
250 mm
120 mm
IP66
GL, UL
-40 °C
80 °C
Grey RAL 7000
Polyester
Other claddings. Unsaturated polyester plastic.
POLYESTER-KAPSLING CP450
Art:
4450000 Copied
400 mm
405 mm
120 mm
IP66
GL, UL
-40 °C
80 °C
Grey RAL 7000
Polyester
Other claddings. Unsaturated polyester plastic.
Polyester enclosure CP-460, 400x405x165 mm
Art:
4460000 Copied
400 mm
405 mm
165 mm
IP66
GL, UL
-40 °C
80 °C
Grey RAL 7000
Polyester
