Honsberg - VO & VF Series Flow Switch

Piston

Model VFR/VOR is a flow indicator that is adapted for transparent media. The highly visible scale, along with the switch make it excellent for use in dosing equipment.

Special versions

  • Wetted parts in stainless steel
  • Changeover connector
  • Alternative scale ranges
Read more
  • For transparent liquids and gases up to 16 bar
  • Flow from 5 ml/min. to 150 l/min. water
  • Wetted parts in nickel plated brass and glass

Selected variant


Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Contact Rating Max 20 VA
Flow Max l/min Double 0.06 l/min
Flow Range Max 0.06 l/min
Flow Range Min 0.005 l/min
IP Class IP65
Material of body Eloxerad aluminium
Material of connection Nickel-plated brass
Material of glass tube DURAN 50
Material of seals NBR
Materials Float Nickel-plated brass
Materials Spring Stainless steel 316Ti
Pressure Range Max 16 bar
Temperature range of media to 100 °C
Weight 0.14 kg
Viscosity Max 1 cSt
Voltage AC max 200 V

Downloads

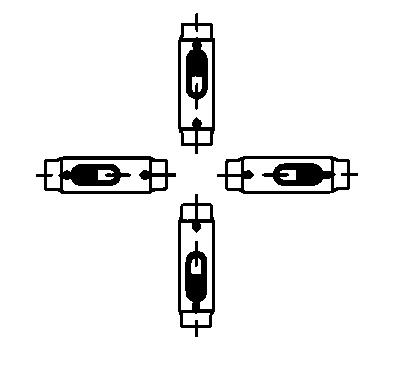

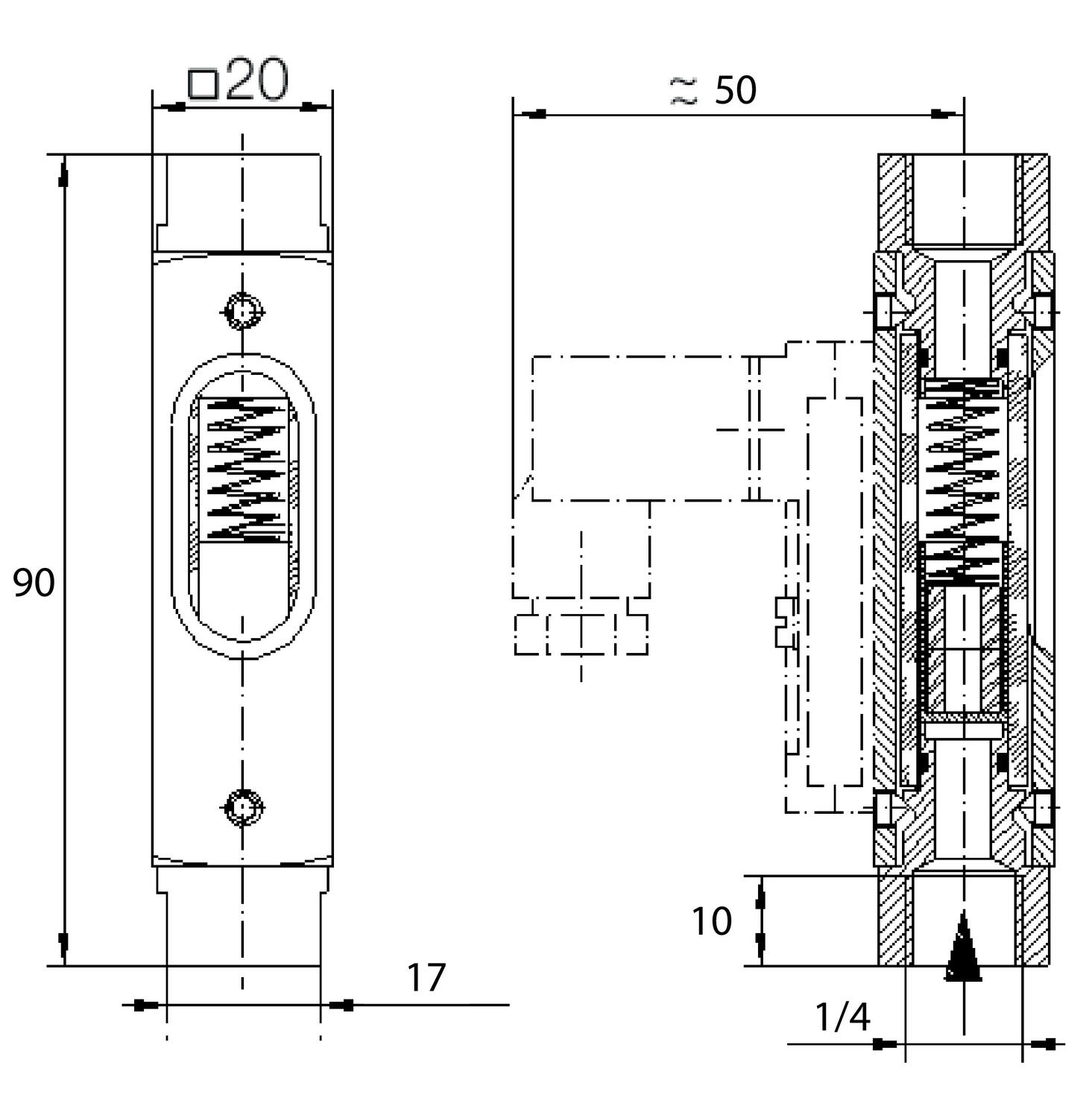

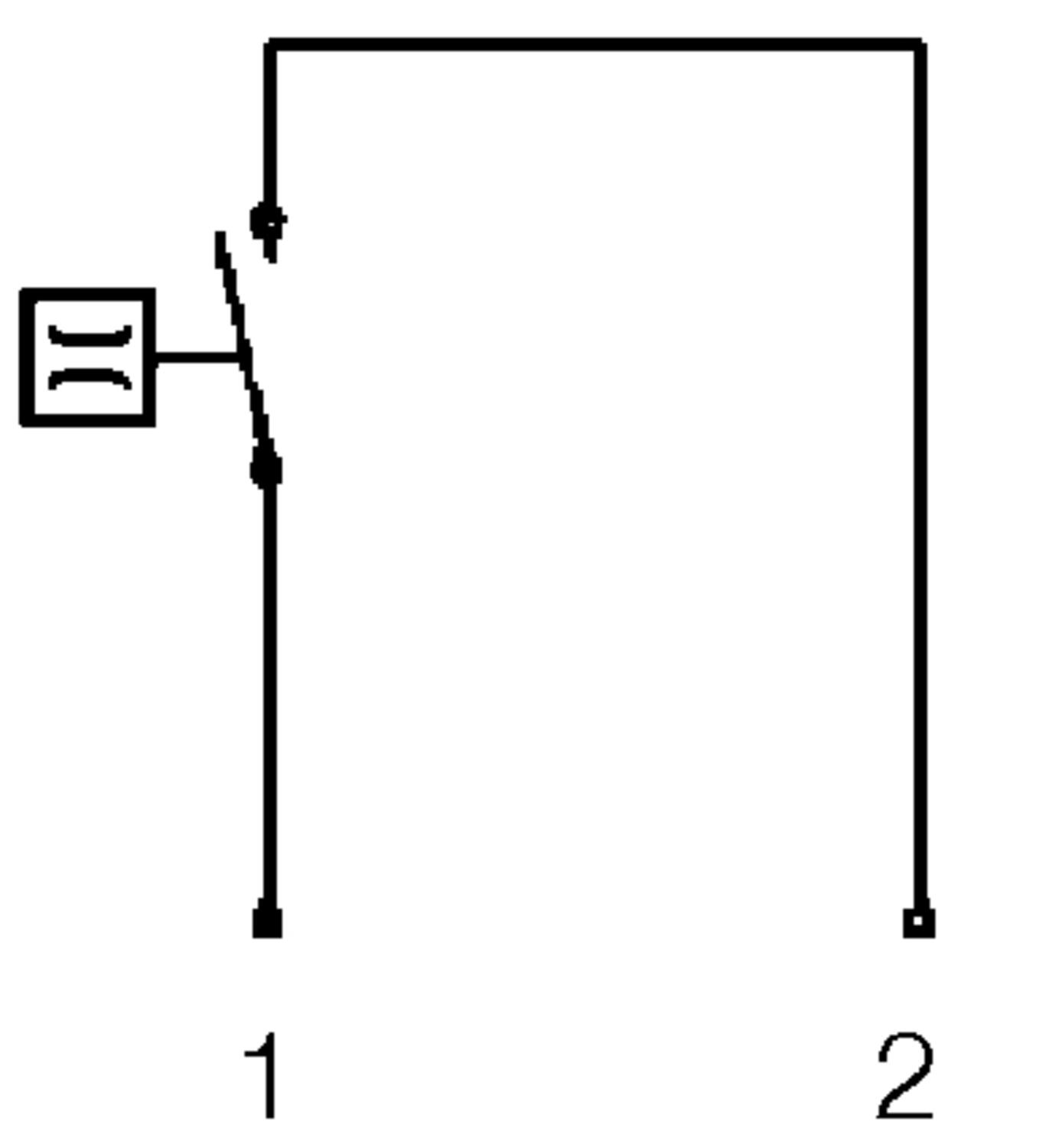

Measurements and connections

Product description

Model VFR/VOR is a flow indicator that is adapted for transparent media. The highly visible scale, along with the switch make it excellent for use in dosing equipment.

Special versions

  • Wetted parts in stainless steel
  • Changeover connector
  • Alternative scale ranges

Accessories

Related

TransTecno gear motors
Product news

Small but very efficient gear motors

Transtecno has developed the MiniTecno product range to better meet the needs of customers using small gear motors in a wide range of industries, up to 90 Nm.

Harting PUSH-IN & ICC
Product news

New connectors products from Harting

HARTING has introduced a new Push-In connection technology that can reduce assembly times by up to 30% and improve installation flexibility. Read more!

Wika hygienic applications
Product news

Products for hygienic applications

WIKA's hygienic products take into account the high hygiene, cleaning, and durability requirements of the food and pharmaceutical industries. Read more!

TFT displays
Product news

TFT-displays for indoor and outdoor solutions

Constantly evolving applications place ever greater demands on user interfaces. A display for presenting information on the device itself is usually the most natural choice. Read more!

Bopla BoVersa IIoT
Product news

Bopla BoVersa: optimal enclosure for IIoT environments

Comprising three parts, BoVersa can be extensively customized in terms of materials, such as metal and plastic, and colors. It is also easy to integrate various stylish display and keyboard solutions.

Molex mPm valve connectors
Product news

Molex mPm valve connectors with WSOR cable

Molex mPm valve plug cables are now also available with WSOR cables. Read more!

Articles Contact Rating Max Flow Max l/min Double Flow Range Max Flow Range Min IP Class Material of body Material of connection Material of glass tube Material of seals Materials Float Materials Spring Pressure Range Max Temperature range of media to Weight Viscosity Max Voltage AC max
Photo of model VFR/VOR.
Flow ind. w. switch head 1/4" 5-60ml/m
Art:
VFR-008GA006 Copied
20 VA
0.06 l/min
0.06 l/min
0.005 l/min
IP65
Eloxerad aluminium
Nickel-plated brass
DURAN 50
NBR
Nickel-plated brass
Stainless steel 316Ti
16 bar
100 °C
0.14 kg
1 cSt
200 V
Photo of model VFR/VOR.
"Flow ind. w.switch head 1/4"" 0,1-0,6 l
Art:
VFR-008GA060 Copied
20 VA
0.6 l/min
0.6 l/min
0.1 l/min
IP65
Eloxerad aluminium
Nickel-plated brass
DURAN 50
NBR
Nickel-plated brass
Stainless steel 316Ti
16 bar
100 °C
0.14 kg
1 cSt
200 V
Photo of model VFR/VOR.
"Flow ind. w. switch head 1/4"" 0,5-3l/m
Art:
VFR-008GA300 Copied
20 VA
3 l/min
3 l/min
0.5 l/min
IP65
Eloxerad aluminium
Nickel-plated brass
DURAN 50
NBR
Nickel-plated brass
Stainless steel 316Ti
16 bar
100 °C
0.14 kg
1 cSt
200 V
Photo of model VFR/VOR.
"Flow ind. w.switch head 1/4"" 1-5l/min"
Art:
VFR-008GA500 Copied
20 VA
5 l/min
5 l/min
1 l/min
IP65
Eloxerad aluminium
Nickel-plated brass
DURAN 50
NBR
Nickel-plated brass
Stainless steel 316Ti
16 bar
100 °C
0.14 kg
1 cSt
200 V
Photo of model VFR/VOR.
"Flow ind. w.switch head 1/2"" 0,2-0,5l/
Art:
VOR-015GA0005 Copied
60 VA
0.5 l/min
0.5 l/min
0.2 l/min
IP65
Eloxerad aluminium
Nickel-plated brass
DURAN 50
NBR
Nickel-plated brass
Stainless steel 316Ti
16 bar
100 °C
0.3 kg
1 cSt
230 V
Photo of model VFR/VOR.
"Flow ind. w.switch head 1/2"" 0,3-1,0l/
Art:
VOR-015GA0010 Copied
60 VA
1 l/min
1 l/min
0.3 l/min
IP65
Eloxerad aluminium
Nickel-plated brass
DURAN 50
NBR
Nickel-plated brass
Stainless steel 316Ti
16 bar
100 °C
0.3 kg
1 cSt
230 V
Photo of model VFR/VOR.
Flow ind. w.switch head 1/2" 0,7-2,0l/
Art:
VOR-015GA0016 Copied
60 VA
2 l/min
2 l/min
0.7 l/min
IP65
Eloxerad aluminium
Nickel-plated brass
DURAN 50
NBR
Nickel-plated brass
Stainless steel 316Ti
16 bar
100 °C
0.3 kg
1 cSt
230 V
Photo of model VFR/VOR.
Flow ind. w.switch head 1/2" 1,6-4,0l/
Art:
VOR-015GA0040 Copied
60 VA
4 l/min
4 l/min
1.6 l/min
IP65
Eloxerad aluminium
Nickel-plated brass
DURAN 50
NBR
Nickel-plated brass
Stainless steel 316Ti
16 bar
100 °C
0.3 kg
1 cSt
230 V
Photo of model VFR/VOR.
Art:
VOR-015GA0080 Copied
Photo of model VFR/VOR.
FLÖDESINDIKATOR 5,0-22,0 1/2"
Art:
VOR-015GA0220 Copied
60 VA
22 l/min
22 l/min
5 l/min
IP65
Eloxerad aluminium
Nickel-plated brass
DURAN 50
NBR
Nickel-plated brass
Stainless steel 316Ti
16 bar
100 °C
0.3 kg
1 cSt
230 V
Photo of model VFR/VOR.
"Flow ind. w.switch head 1"" 15-45 l/m"
Art:
VOR-025GA0450 Copied
100 VA
45 l/min
45 l/min
15 l/min
IP65
Eloxerad aluminium
Nickel-plated brass
DURAN 50
NBR
Nickel-plated brass
Stainless steel 316Ti
10 bar
100 °C
1.02 kg
1 cSt
250 V
Photo of model VFR/VOR.
Flow ind. w.switch head 1" 30-90 l/m
Art:
VOR-025GA0900 Copied
100 VA
90 l/min
90 l/min
30 l/min
IP65
Eloxerad aluminium
Nickel-plated brass
DURAN 50
NBR
Nickel-plated brass
Stainless steel 316Ti
10 bar
100 °C
1.02 kg
1 cSt
250 V
Photo of model VFR/VOR.
Flow ind. w.switch head 1" 60-150 l/m
Art:
VOR-025GA1500 Copied
100 VA
150 l/min
150 l/min
60 l/min
IP65
Eloxerad aluminium
Nickel-plated brass
DURAN 50
NBR
Nickel-plated brass
Stainless steel 316Ti
10 bar
100 °C
1.02 kg
1 cSt
250 V

Selected variant

Select a variant in the list
