Honsberg - Flex-F Series Flow Meter

Calorimetric

Model Flex is a calorimetric flow sensor with analogue output signal and one switching point. It is equipped with LED indication and is simple to set via the magnetic tab.

Read more
  • No moving parts
  • Wetted parts in stainless steel
  • Simple installation of set point

Selected variant


Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Flow Range Max 150 cm/s
Flow Range Min 1 cm/s
IP Class IP67
Load Max 100 mA
Material of body Stainless steel 1,4305
Materials Clips PA6.6
Materials Wetted Parts Stainless steel 316Ti
Power Consumption 100 mA
Pressure Range Max 100 bar
Repeatability 1 %
Temperature range of media to 70 °C
Voltage DC max 24 V

Downloads

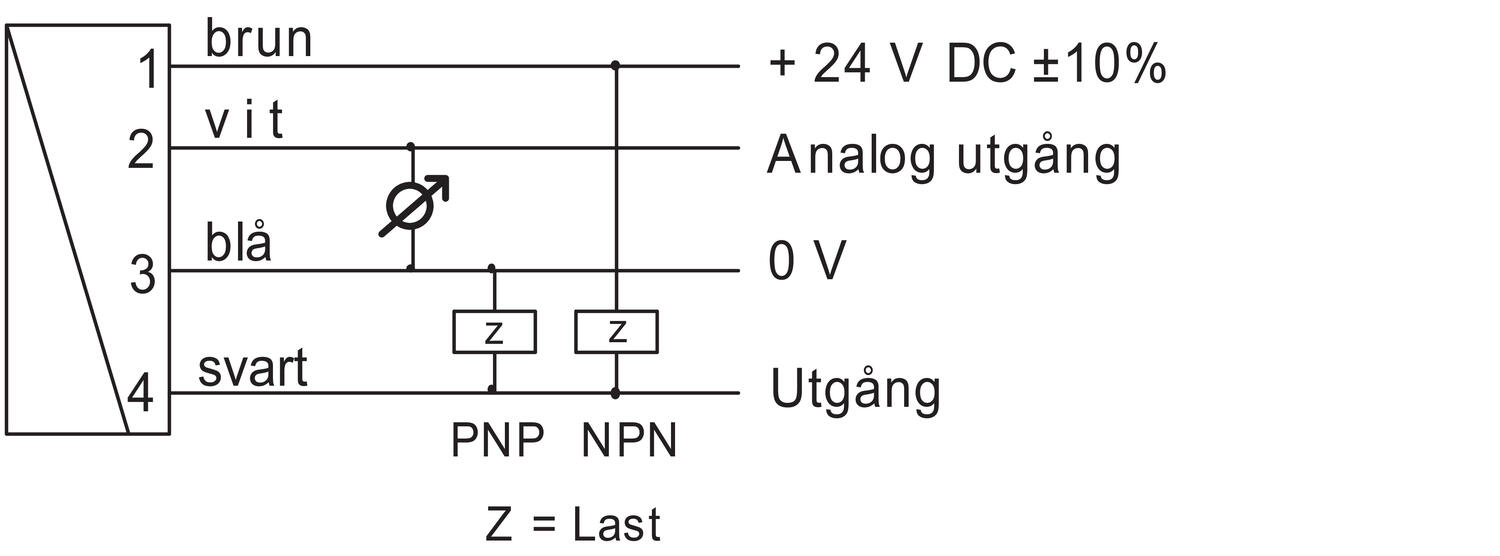

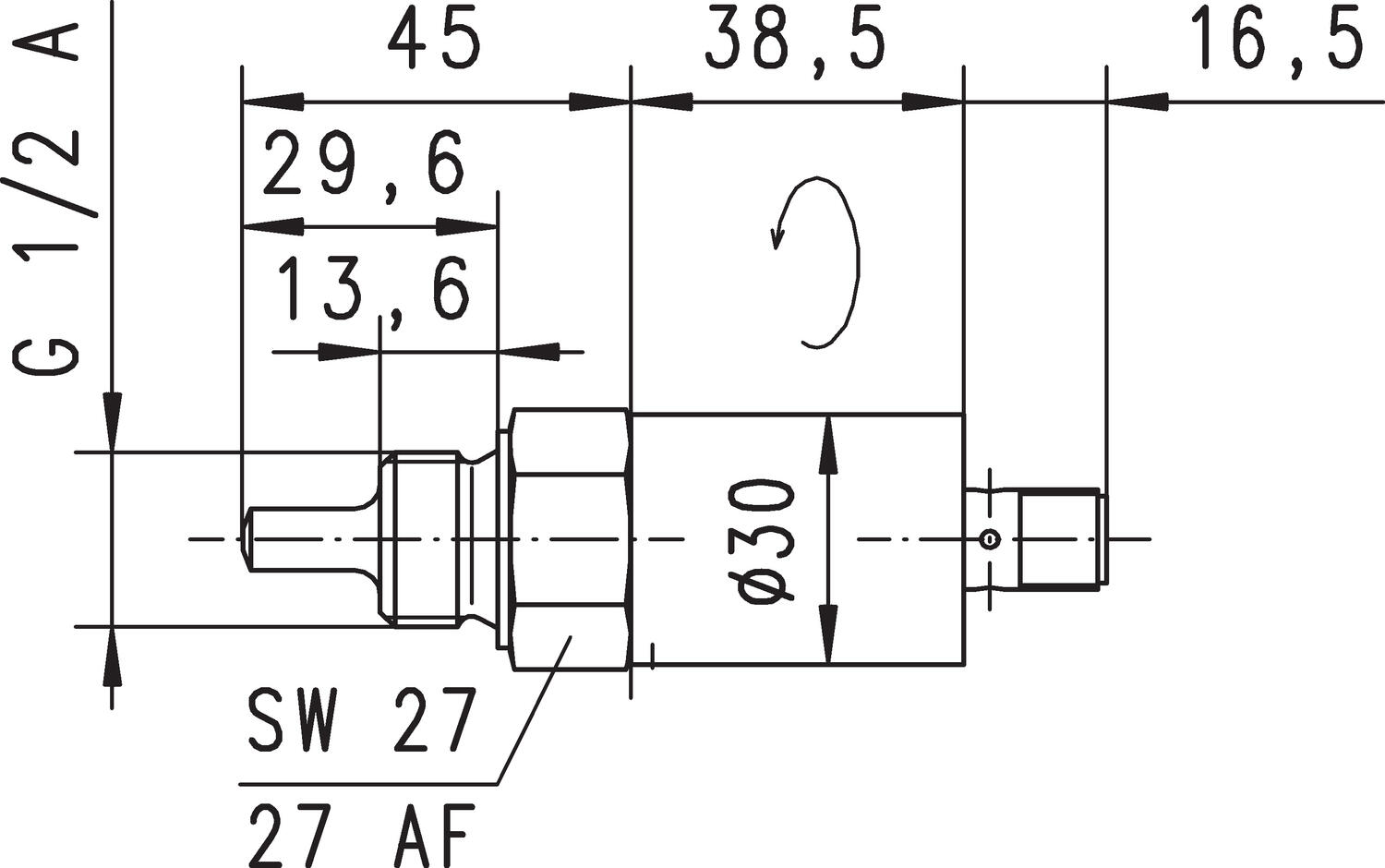

Measurements and connections

Product description

Model Flex is a calorimetric flow sensor with analogue output signal and one switching point. It is equipped with LED indication and is simple to set via the magnetic tab.
