SENSECA

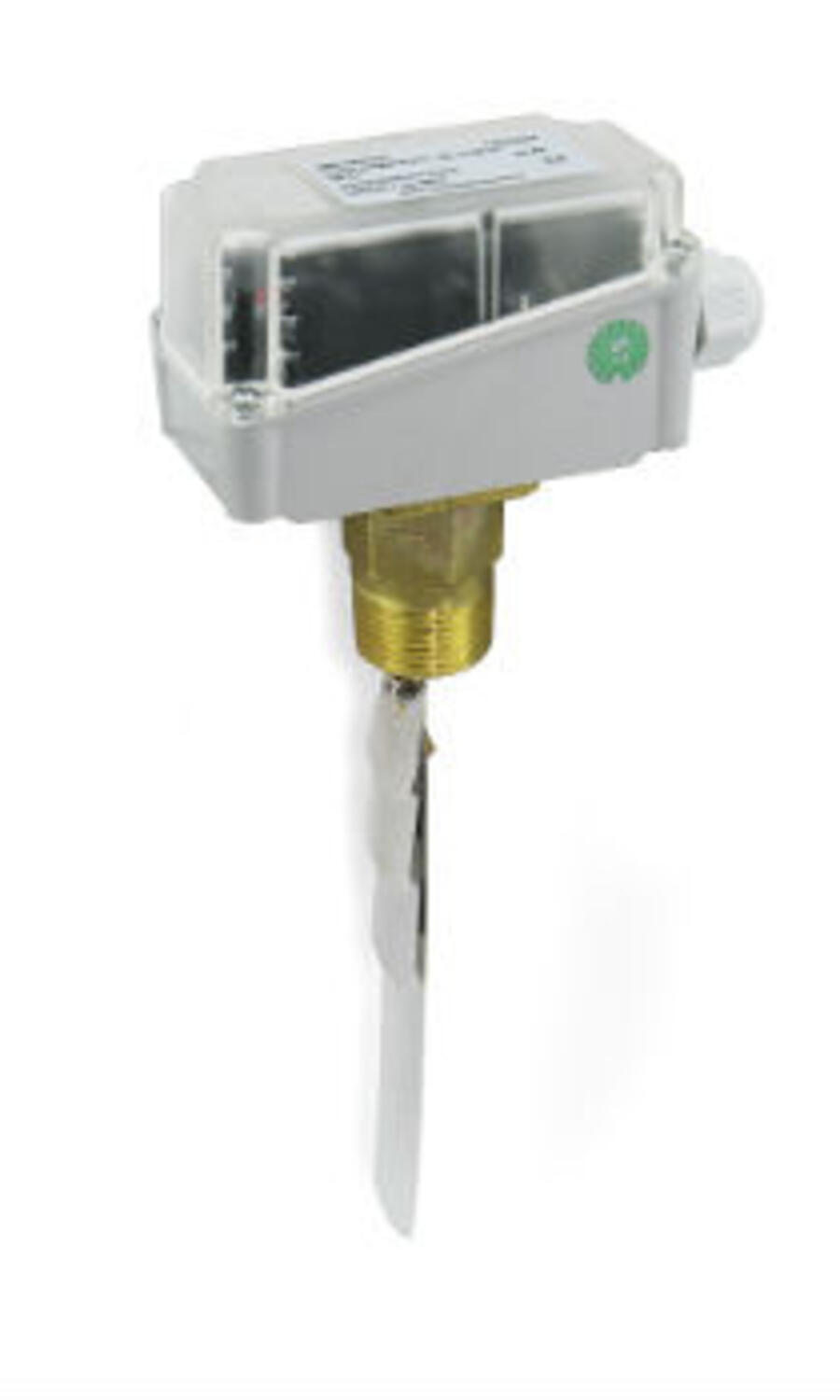

Honsberg - CRG Series Flow Switch
Paddle
Model CRG is a universal flow switch in brass or stainless steel. The same switch can be used for a large number of different pipe dimensions by using one or more paddle lengths. Four different paddle lengths are included.
- Switching Range 0,2...165,7 m3/h
- Water (oils and aggressive media available on request)
- Male Thread R1"
- Brass or Stainless Steel Wetted Parts
- Max Pressure 11 bar
Selected variant
Specifications
| Contact Rating Max | 15 A |
|---|---|
| Deviation max | ±15 % |
| Flow Range Max | 165.7 m³/h |
| Flow Range Min | 0.6 m³/h |
| IP Class | IP65 |
| Material Base | Zink plated steel |
| Material of connection | Brass |
| Materials Bellows | Tombak |
| Materials Cover | ABS plastic |
| Materials Paddle | Stainless steel 316Ti |
| Pipe dimension max | 200 mm |
|---|---|
| Pipe dimension min | 25 mm |
| Pressure Range Max | 11 bar |
| Temperature range of media to | 120 °C |
| Type of flow component | Flow Switches |
| Weight | 0.95 kg |
| Viscosity | 1 cSt |
| Voltage AC max | 250 V |
Product description
Model CRG is a universal flow switch in brass or stainless steel. The same switch can be used for a large number of different pipe dimensions by using one or more paddle lengths. Four different paddle lengths are included.
