Honsberg - VD Series Flow Switch
Piston

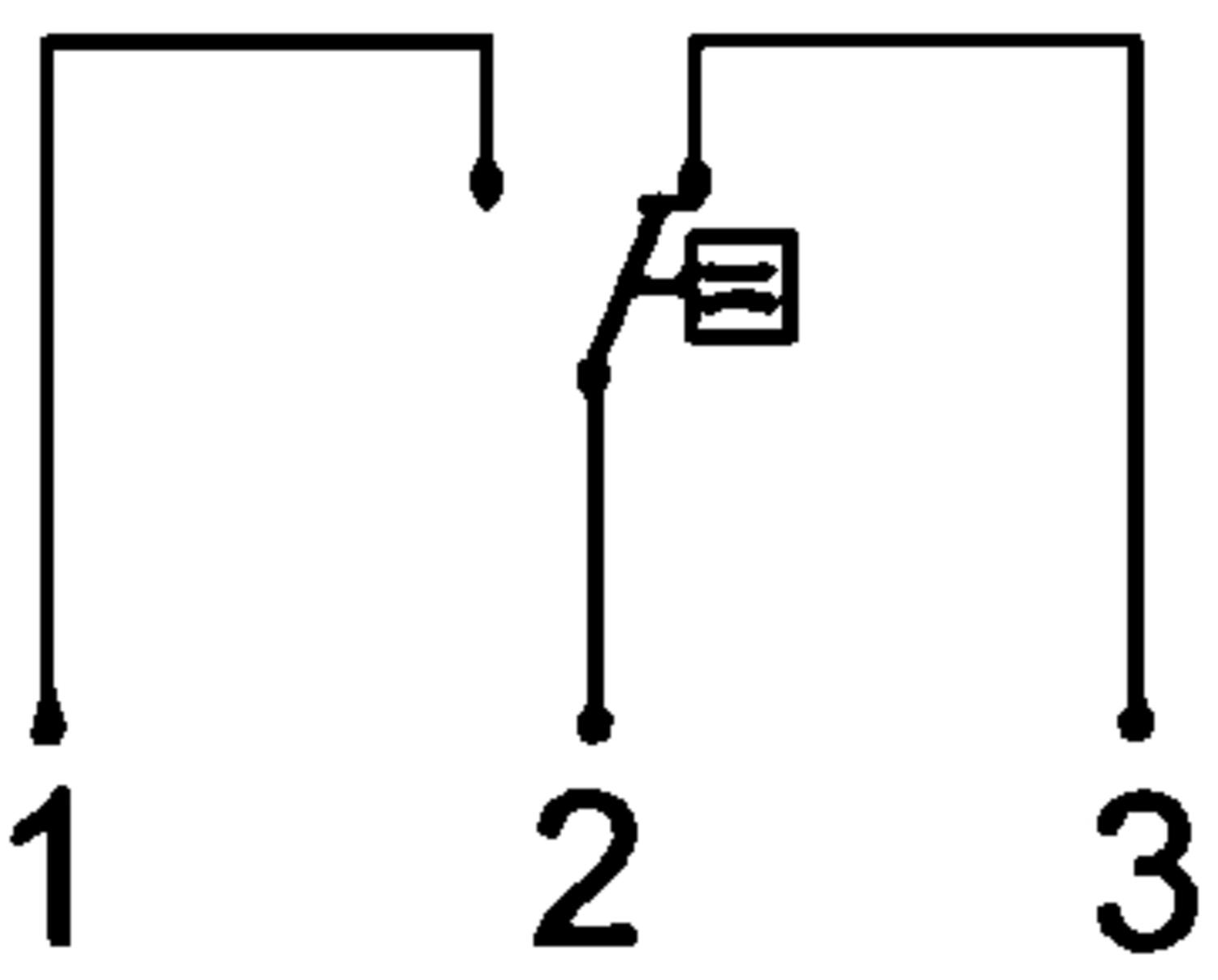

Model VD is a mechanical flow switch in red Bronze with changeover reed switch. It is highly suitable for marine applications and where red Bronze is a requirement.
Special versions
• Ex/ATEX version
• Approved: Germanischer Lloyd, LOBA (sch)
• Housing in stainless steel
• Flange connection
• For media temperature up to +150°C
- Switching Range 1..600 l/min H²O
- Water (oils and gases available on request)

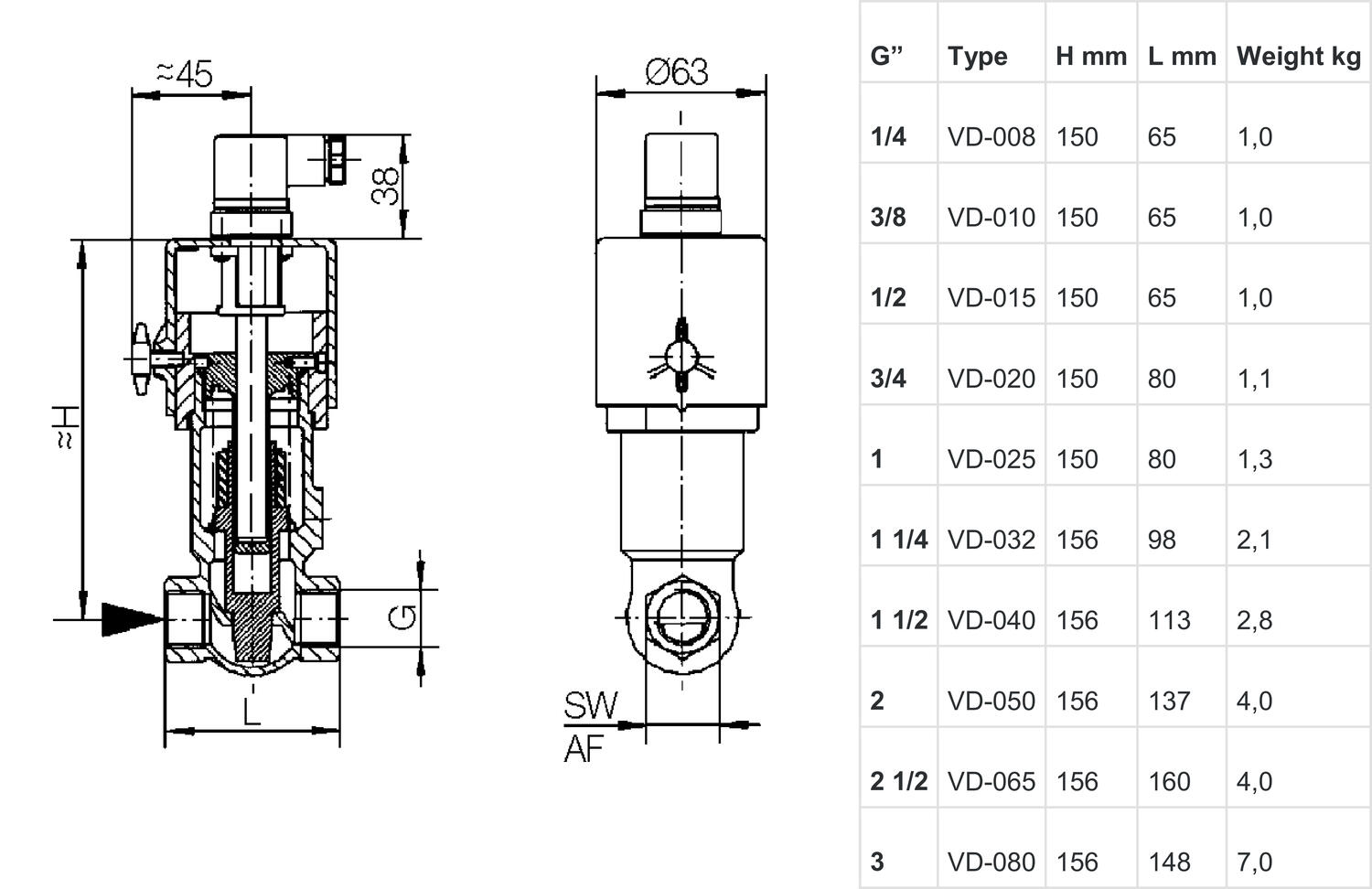

- G¼" up to G3"
- Red Bronze Wetted Parts
- Max Pressure 16 bar
Selected variant
Specifications
| Contact Rating Max | 50 VA |
|---|---|
| Flow Max l/min Double | 15 l/min |
| Flow Range Max | 10 l/min |
| Flow Range Min | 1 l/min |
| IP Class | IP44 |
| Material Bolt | POM |
| Material of body | Bronze |
| Material of seals | NBR |
| Materials Cover | ABS plastic |
| Materials Spring | Stainless steel 301 |
|---|---|
| Pressure Range Max | 25 bar |
| Temperature range of media to | 120 °C |
| Type of flow component | Flow Switches |
| Weight | 1 kg |
| Viscosity Max | 1 cSt |
| Voltage AC max | 250 V |
Product description
Model VD is a mechanical flow switch in red Bronze with changeover reed switch. It is highly suitable for marine applications and where red Bronze is a requirement.
Special versions
• Ex/ATEX version
• Approved: Germanischer Lloyd, LOBA (sch)
• Housing in stainless steel
• Flange connection
• For media temperature up to +150°C
