BERNSTEIN
Foot switch
Common features | |

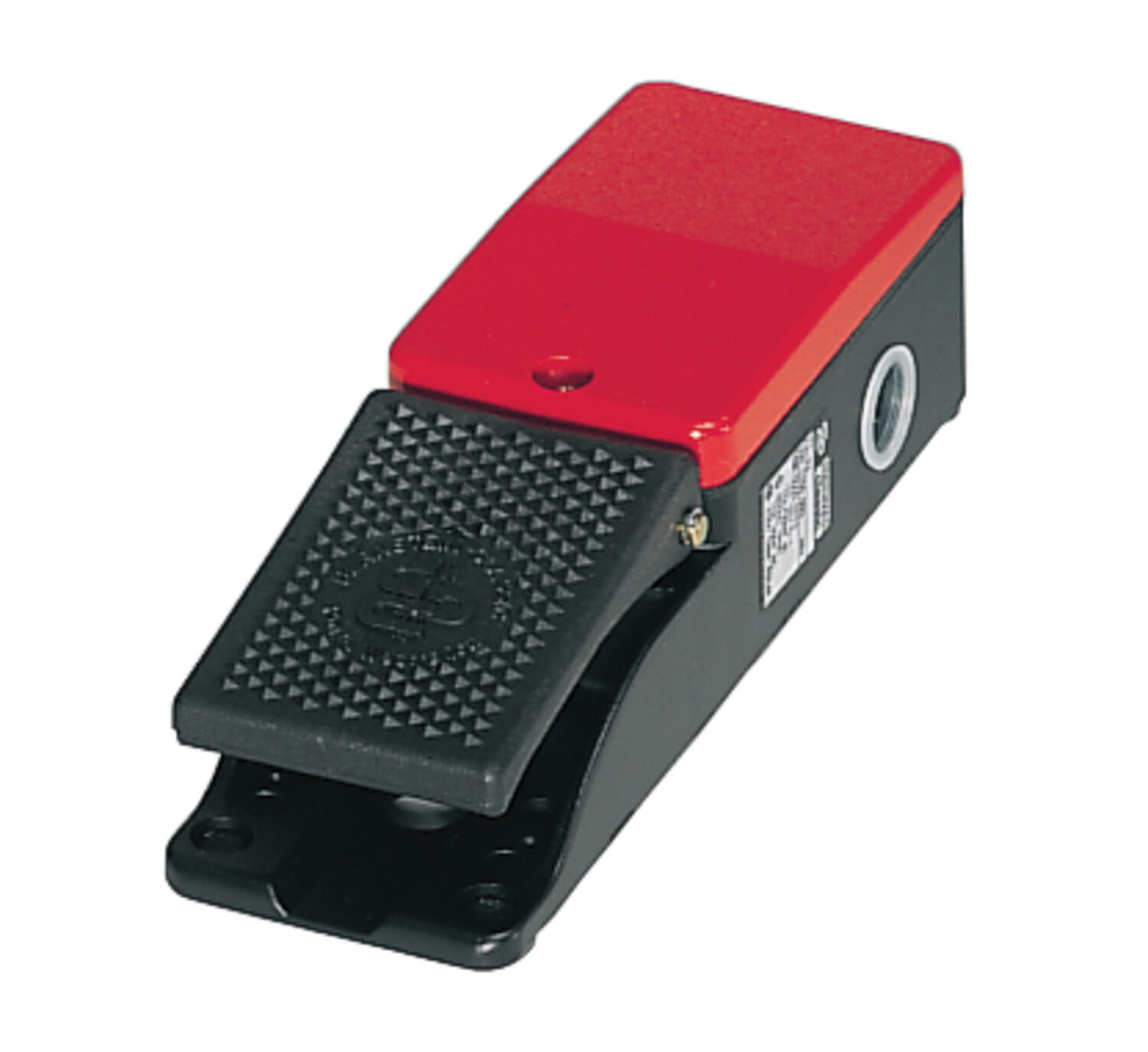

F1 = | 1 pedal |

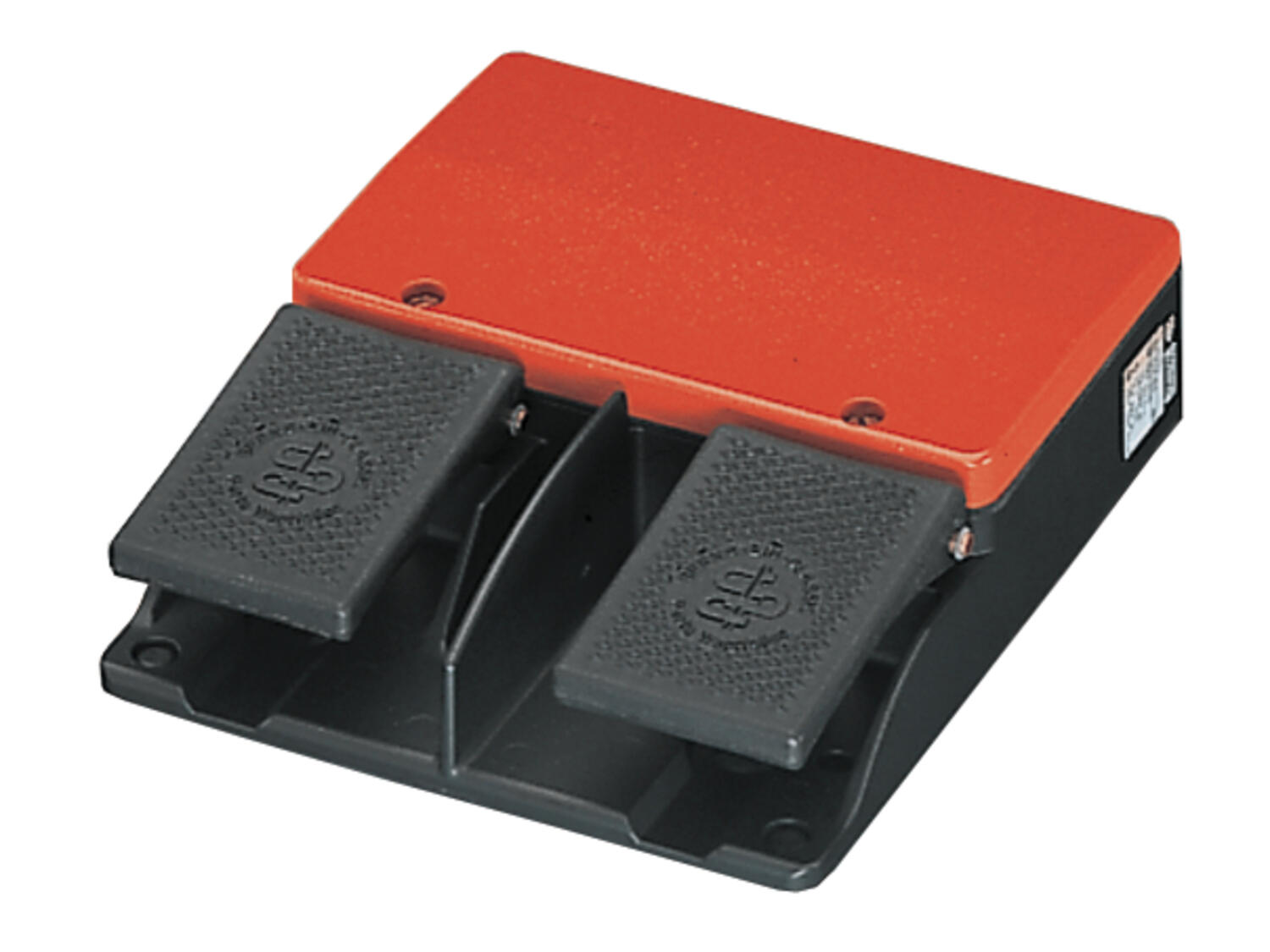

F2 = | Dual pedal |

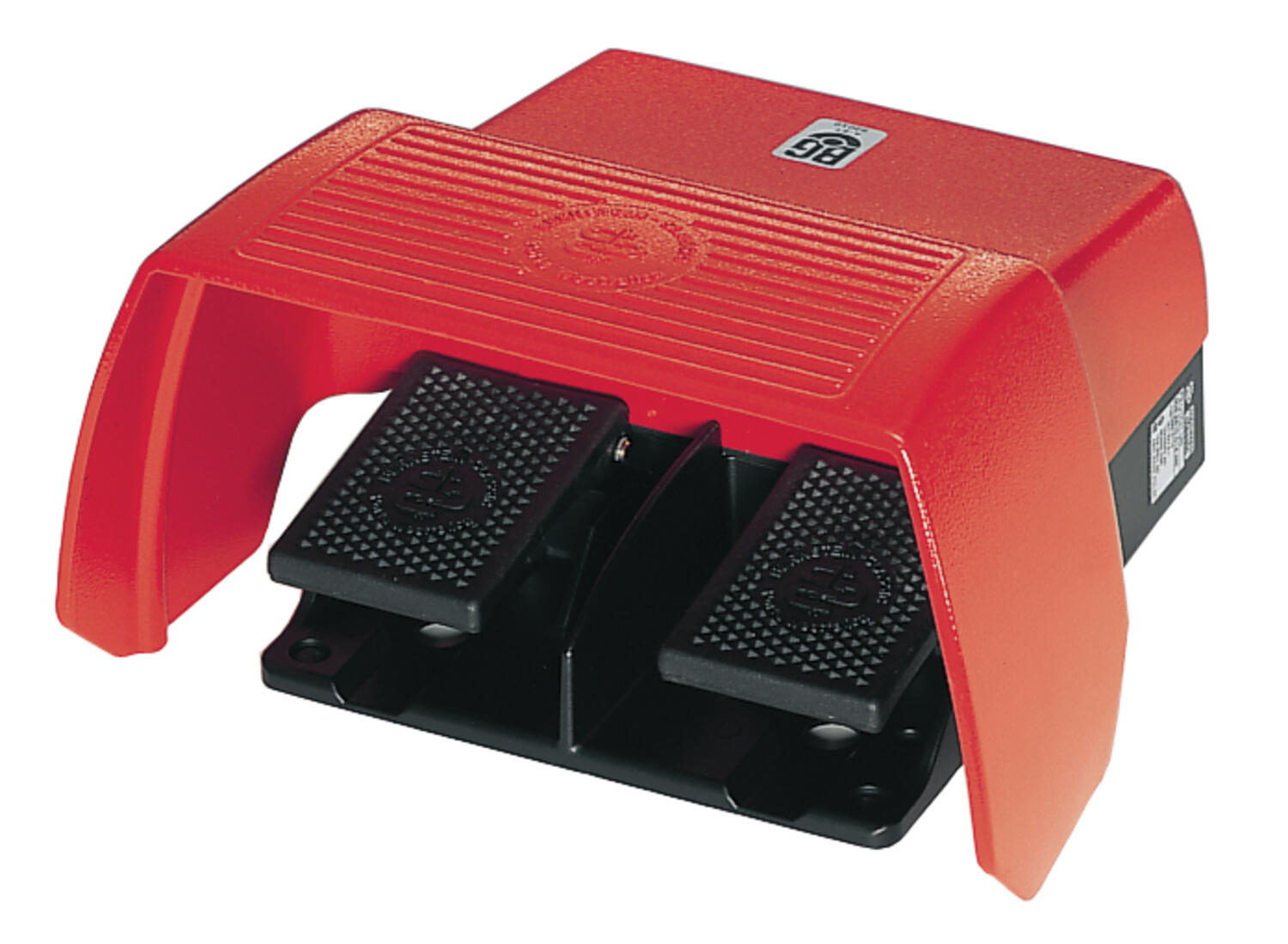

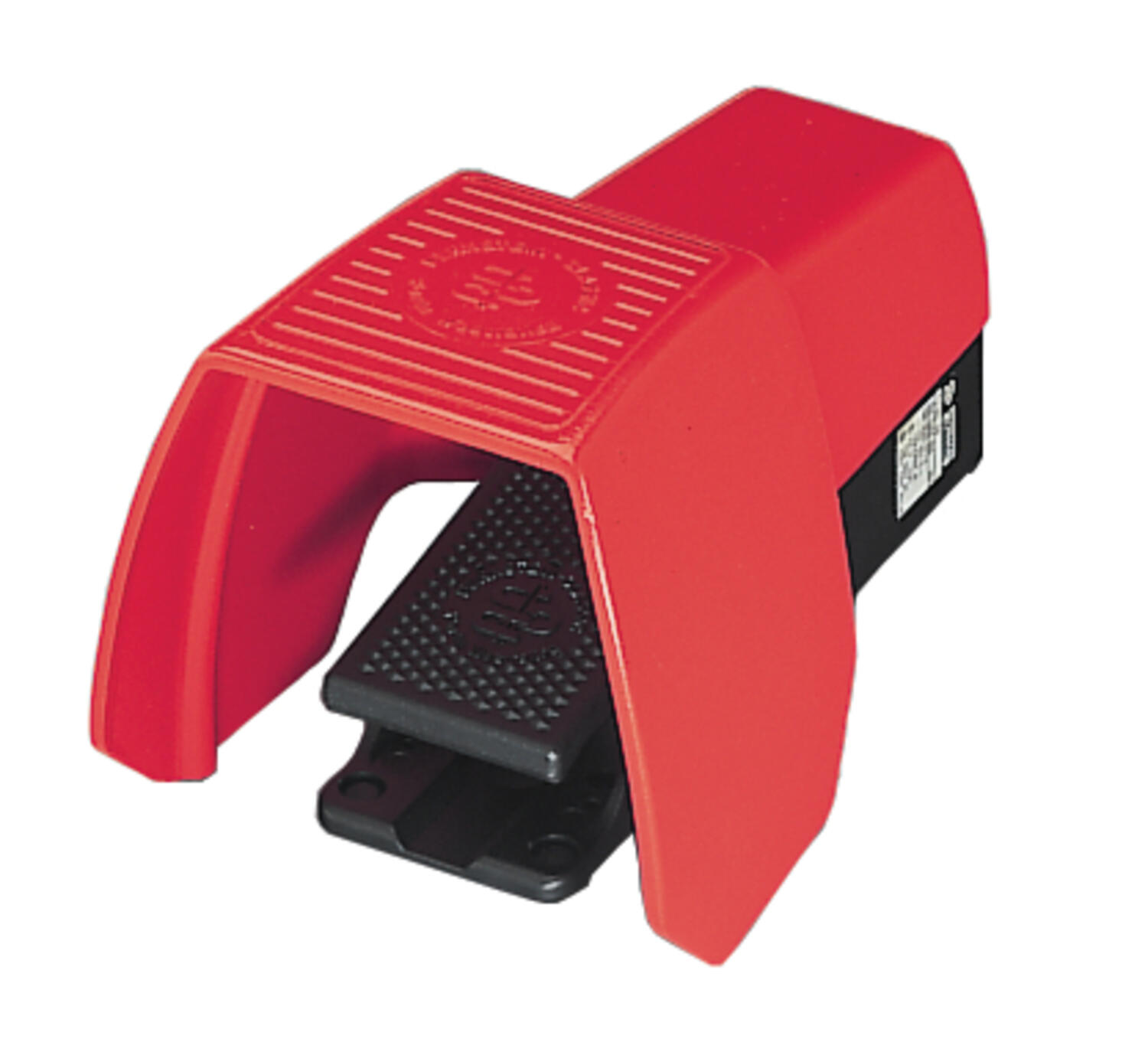

UN = | Protective cover |

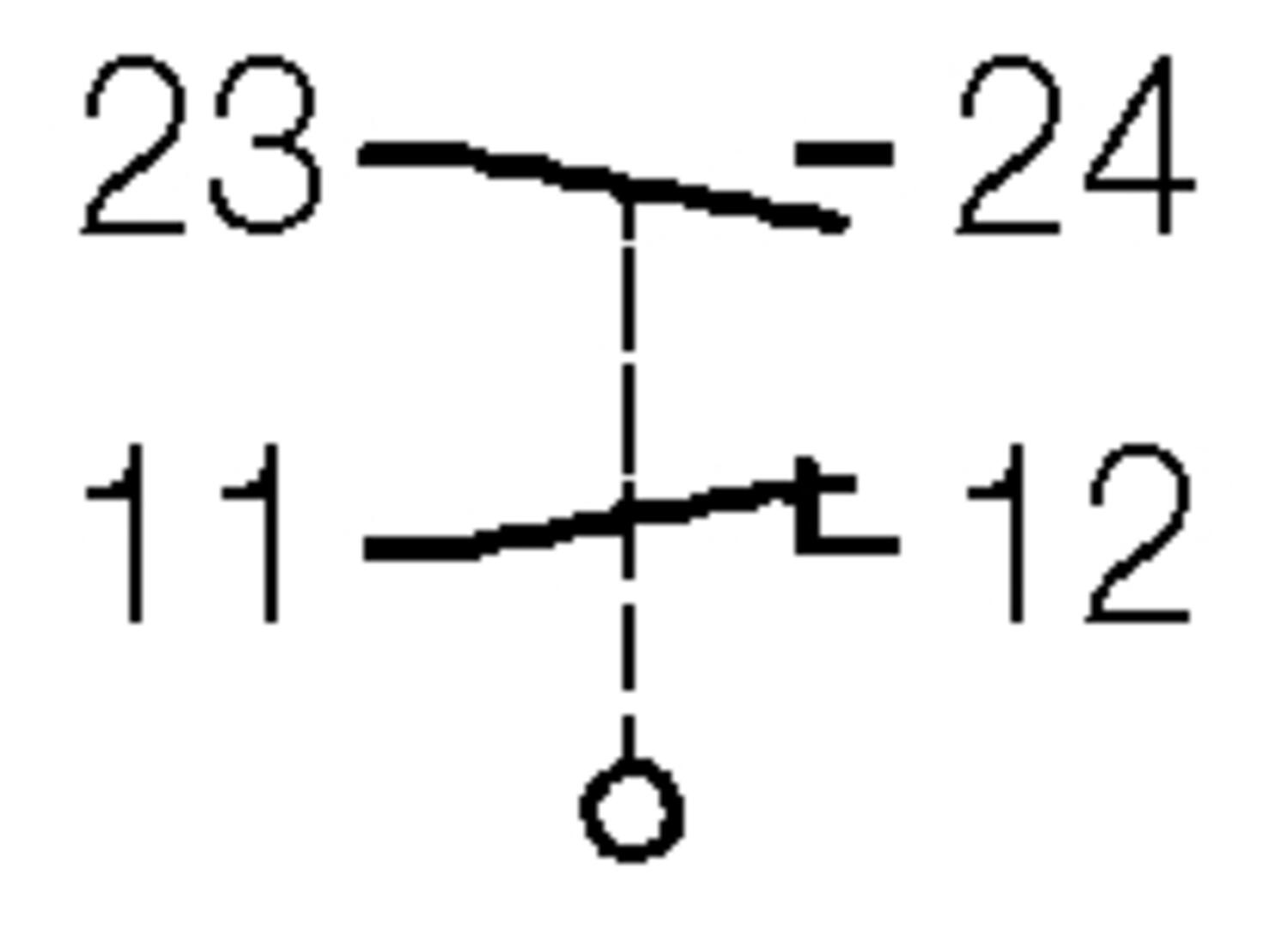

U1Z = | Slow action contact, 1 NO+1 NC |
U2Z = | Slow action contact, 2 NO+2 NC |
SU1Z = | Snap action contact, 1 NO+1 NC (contact executes switching function in constant speed) |
SU2Z = | Snap action contact, 2 NO+2 NC (contact executes switching function in constant speed) |
U1Y = | ”Push-push” -contact. One push executes a switching function, second push resets the contact, 1 NO+1 NC. |
U2ZD = | Dual action: first contact functions when the pedal is pushed up to pressure point, second contact functions when the pedal is pushed beyond pressure point, 2 NO+2 NC. |
- Robust design
- IP65 rated
- Relay, contactor etc. can be installed inside the cover
- Special versions available for various environments such as hospitals
Selected variant

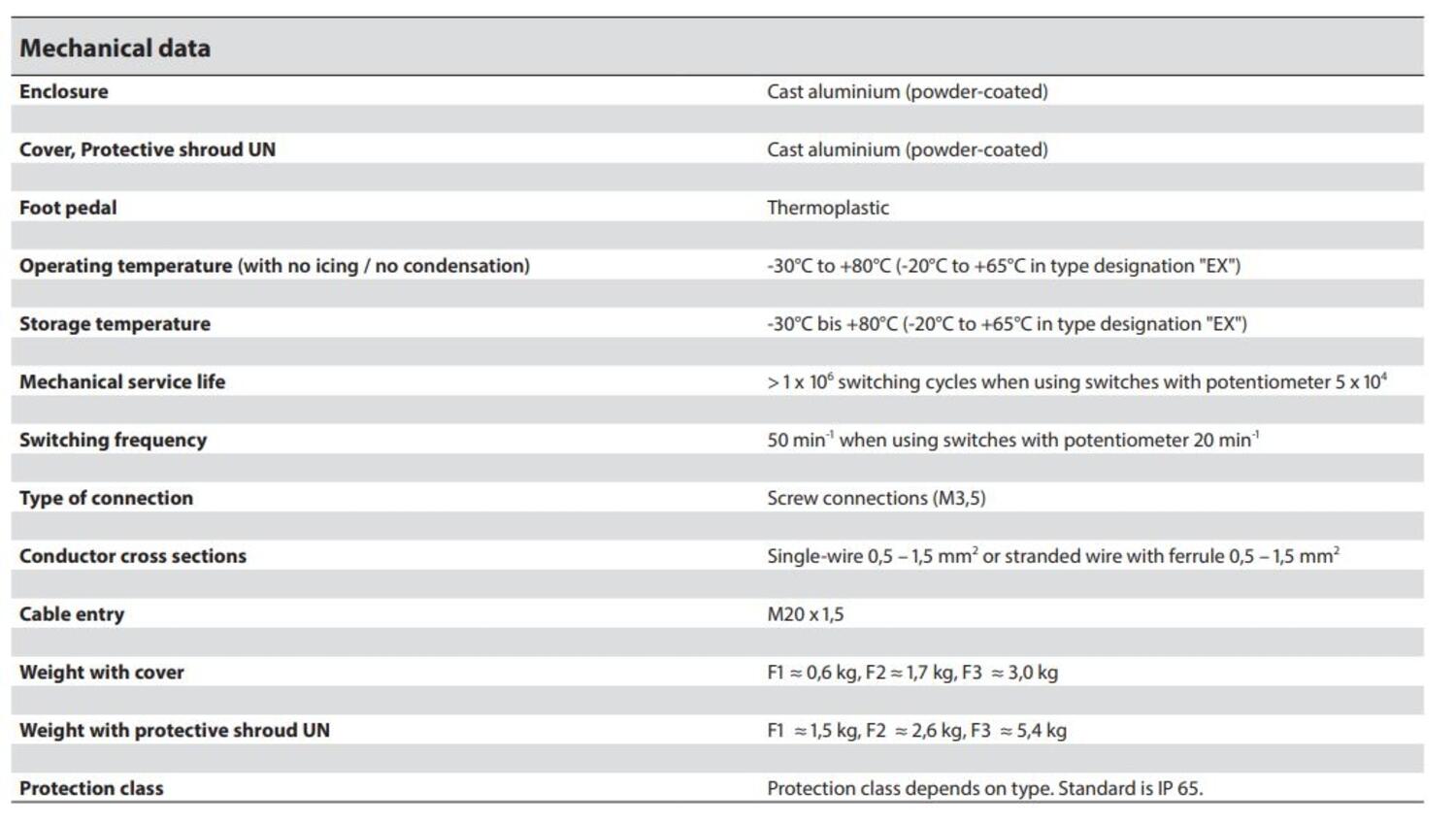

Specifications
| Contact type | 1NO, 1 NC |
|---|---|
| IP Class | IP65 |
| Voltage Max | 240 V |
| Conventional Thermal Current | 10 A |
| Cable entry | 3xM20x1,5 |
| Material of body | Aluminium |
| Number of pedals | 1 |
| Materials Pedal | Plastic |
|---|---|
| Temperature range from | -30 °C |
| Temperature range to | 80 °C |
| Operating Frequency Max | 50 ggr/min |

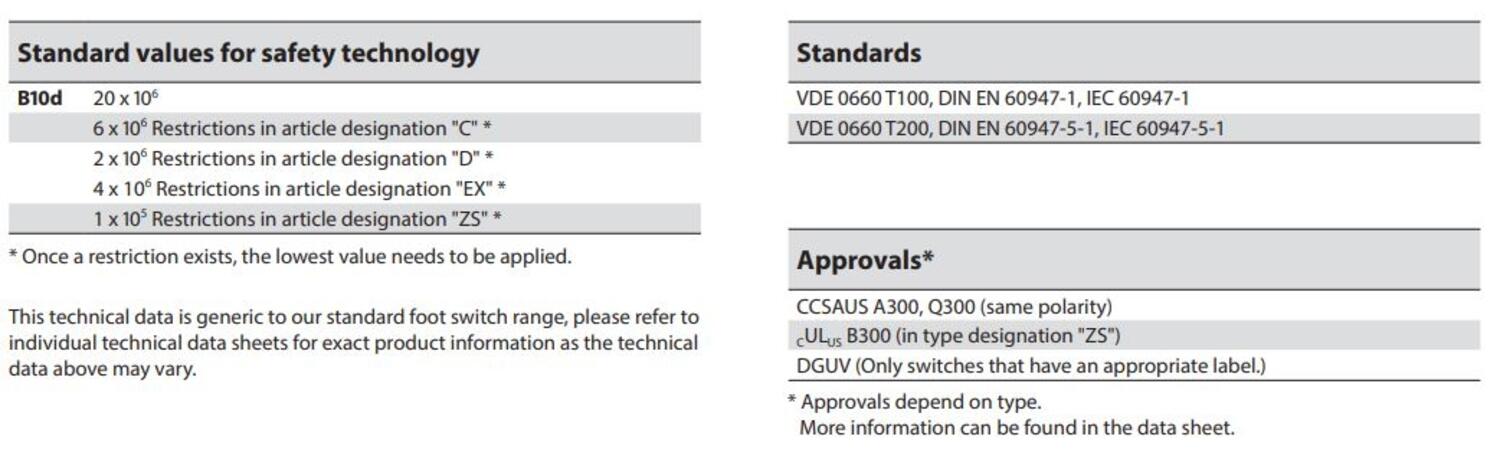

| B10d | 20x10^6 |
| Approvals | CCC, CE, CSA US |
Downloads
Product description
Common features | |
F1 = | 1 pedal |
F2 = | Dual pedal |
UN = | Protective cover |
U1Z = | Slow action contact, 1 NO+1 NC |
U2Z = | Slow action contact, 2 NO+2 NC |
SU1Z = | Snap action contact, 1 NO+1 NC (contact executes switching function in constant speed) |
SU2Z = | Snap action contact, 2 NO+2 NC (contact executes switching function in constant speed) |
U1Y = | ”Push-push” -contact. One push executes a switching function, second push resets the contact, 1 NO+1 NC. |
U2ZD = | Dual action: first contact functions when the pedal is pushed up to pressure point, second contact functions when the pedal is pushed beyond pressure point, 2 NO+2 NC. |
