DIS SENSORS

QG40 acceleration sensor, twin axis

QG-series acceleration sensors measure acceleration in one, two or three axes. These sensors are based on robust MEMS technology and thanks to the modular design easy to adapt to specific requirements. Because these acceleration sensors have a higher bandwidth than inclinometers, they can accurately measure the g-forces of fast movements. Applicable for agricultural machinery, windmills and containers.



Functions include:



  • measurement of acceleration and vibration
  • active vibration damping
  • transport monitoring

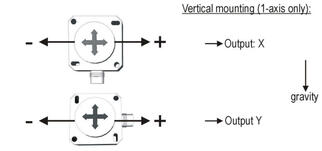

Measurement orientation:



 QGseries_AccelerationSensorHorisontal.tif     QGseries_AccelerationSensorVertical.tif

Read more
  • Twin axis, triple axis version available
  • ±1,5, ±4 or ±16 g
  • Output 0,5-4,5 V or 4-20 mA
  • IP67 rated

Selected variant

DIS_sensors_logotype.eps

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Technical data
Measuring range 1,5 g
Number of axis 2
Output 0,5-4,5 V
Connection Thread M12
Voltage DC max 30 V
Voltage DC min 10 V
IP Class IP67
Central Material Plastic
Width 40 mm

*Invisible Heading*
Length 40 mm
Height 25 mm
Accuracy 0,08 g
Resolution 4 mg
Temperature effect 0,6 mg/K
Temperature range from -25 °C
Temperature range to 85 °C
Approvals CE

Downloads

Measurements and connections

Technical illustrations

Product description

QG-series acceleration sensors measure acceleration in one, two or three axes. These sensors are based on robust MEMS technology and thanks to the modular design easy to adapt to specific requirements. Because these acceleration sensors have a higher bandwidth than inclinometers, they can accurately measure the g-forces of fast movements. Applicable for agricultural machinery, windmills and containers.



Functions include:



  • measurement of acceleration and vibration
  • active vibration damping
  • transport monitoring



Measurement orientation:



 QGseries_AccelerationSensorHorisontal.tif     QGseries_AccelerationSensorVertical.tif

Accessories

Related products

Articles Measuring range Number of axis Output Connection Thread Voltage DC max Voltage DC min IP Class Central Material Width Length Height Accuracy Resolution Temperature effect Temperature range from Temperature range to Approvals
qg40_qgn40anturi.tif
Acceleration sensor, +/-1,5 g, 0,5-4,5 V, 2-axis
Art:
QG40-KAXY-1,5E-AV-CM Copied
1,5 g
2
0,5-4,5 V
M12
30 V
10 V
IP67
Plastic
40 mm
40 mm
25 mm
0,08 g
4 mg
0,6 mg/K
-25 °C
85 °C
CE
qg40_qgn40anturi.tif
Acceleration sensor, +/-1,5 g, 4-20 mA, 2-axis
Art:
QG40-KAXY-1,5E-AI-CM Copied
1,5 g
2
4-20 mA
M12
30 V
10 V
IP67
Plastic
40 mm
40 mm
25 mm
0,08 g
4 mg
0,6 mg/K
-25 °C
85 °C
CE
qg40_qgn40anturi.tif
Acceleration sensor, +/-4,0 g, 0,5-4,5 V, 2-axis
Art:
QG40-KAXY-4,0E-AV-CM Copied
4 g
2
0,5-4,5 V
M12
30 V
10 V
IP67
Plastic
40 mm
40 mm
25 mm
0,15 g
4 mg
0,6 mg/K
-25 °C
85 °C
CE
qg40_qgn40anturi.tif
Acceleration sensor, +/-4,0 g, 4-20 mA, 2-axis
Art:
QG40-KAXY-4,0E-AI-CM Copied
4 g
2
4-20 mA
M12
30 V
10 V
IP67
Plastic
40 mm
40 mm
25 mm
0,15 g
4 mg
0,6 mg/K
-25 °C
85 °C
CE
qg40_qgn40anturi.tif
Acceleration sensor, +/-16,0 g, 0,5-4,5 V, 2-axis
Art:
QG40-KAXY-16,0E-AV-CM Copied
16 g
2
0,5-4,5 V
M12
30 V
10 V
IP67
Plastic
40 mm
40 mm
25 mm
0,5 g
16 mg
1 mg/K
-25 °C
85 °C
CE
qg40_qgn40anturi.tif
Acceleration sensor, +/-16,0 g, 4-20 mA, 2-axis
Art:
QG40-KAXY-16,0E-AI-CM Copied
16 g
2
4-20 mA
M12
30 V
10 V
IP67
Plastic
40 mm
40 mm
25 mm
0,5 g
16 mg
1 mg/K
-25 °C
85 °C
CE
