Datalogic - IS-08 - M8 extended range inductive sensor
The basic and extended line of inductive proximity sensors are made in classic cylindrical nickel-plated brass with housing diameters ranging from 8 to 30 mm. They can detect metal objects from 1.5mm to 20mm apart and are available with either an embedded 2m cable or with M8 or M12 standard industrial connectors.
Features & benefits:
• Nickel-plated Brass housing
• Standard housing length
• Double range operating distance
• Operating distance: 2 and 3mm
• 2m embedded cable, M8 or M12 connector
• 3 or 4 wires
• PNP, NPN, NO, NC
• IP67 protection
Applications:
• Automatic machines
• Packaging lines
• Transportation lines
• Automatic warehouses
• Automotive
- Flush or Non-flush
- 2 ... 3 mm sensing range

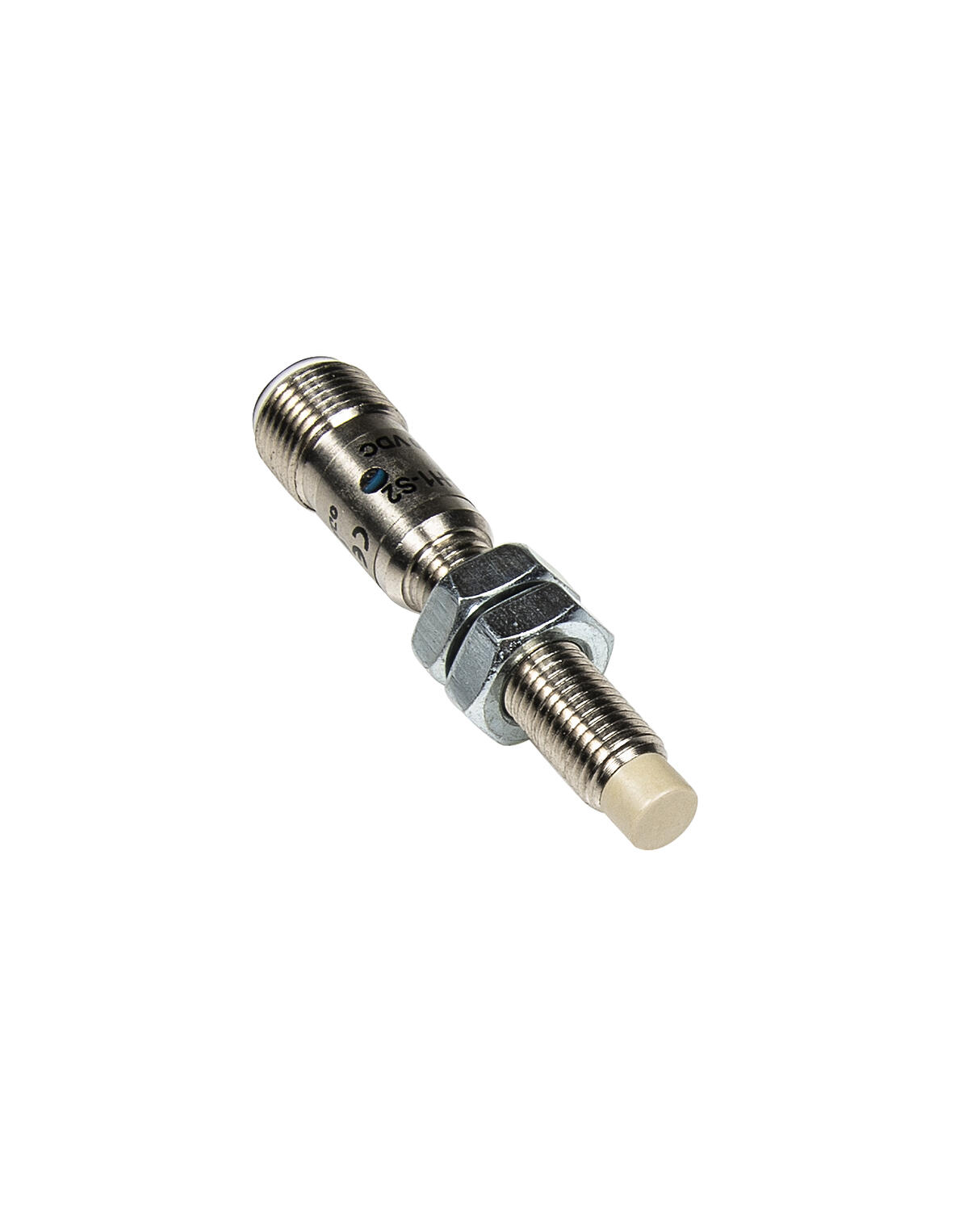

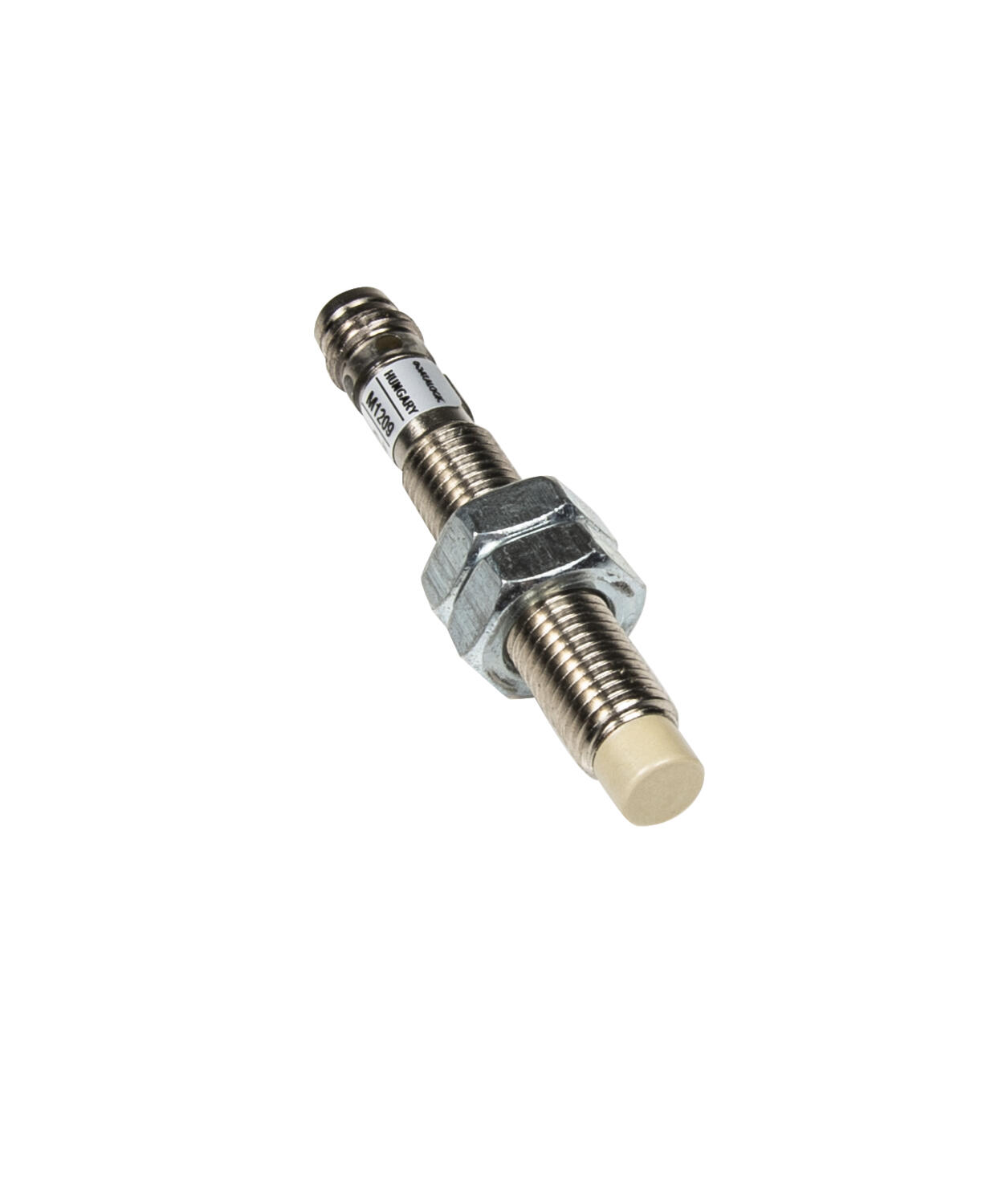

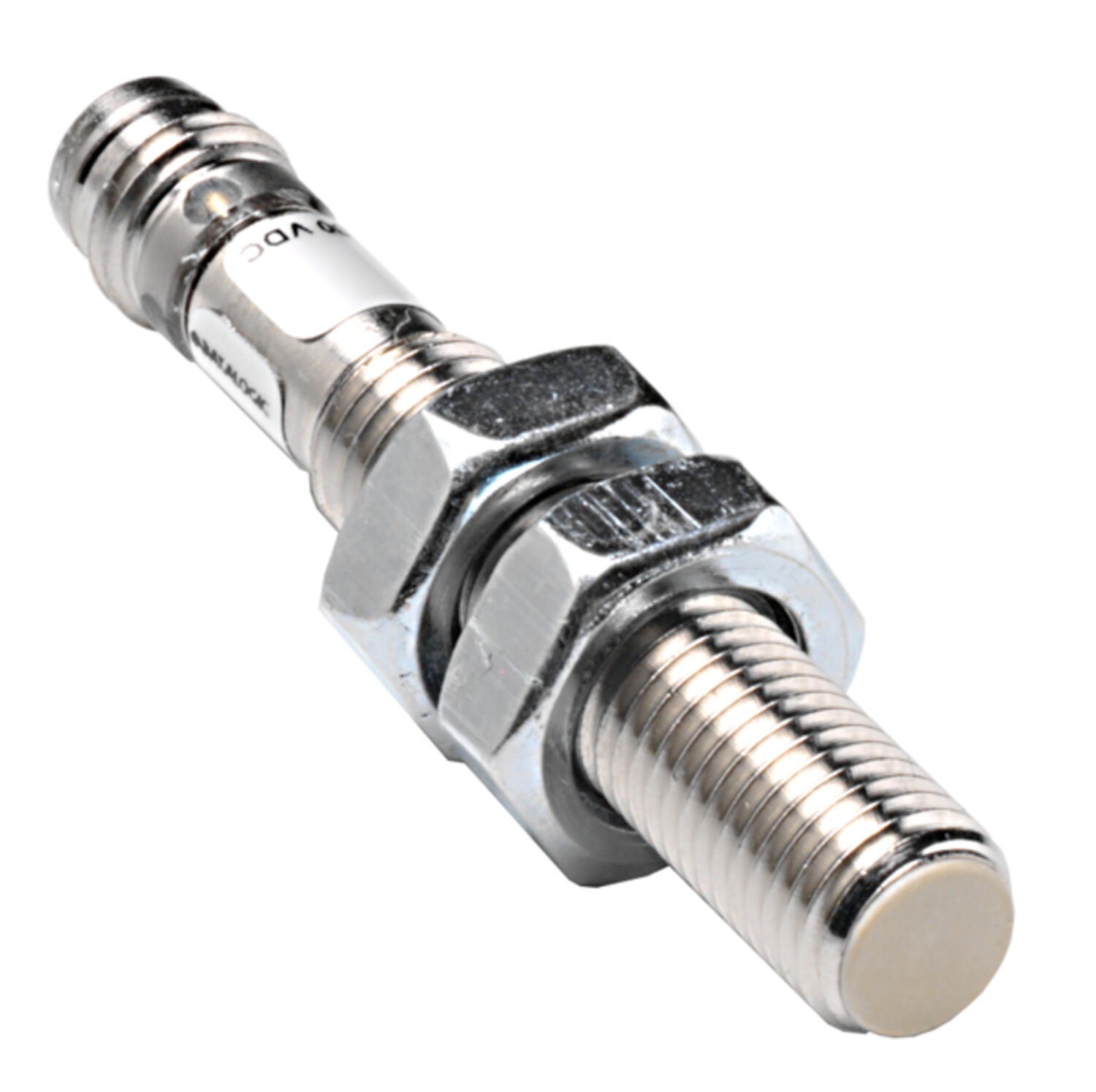

- 2m embedded Cable or M8/M12 connector
- PNP or NPN, NO or NC
Selected variant
Specifications
| 12694_Output function | NO |
|---|---|
| Cable length | 2000 mm |

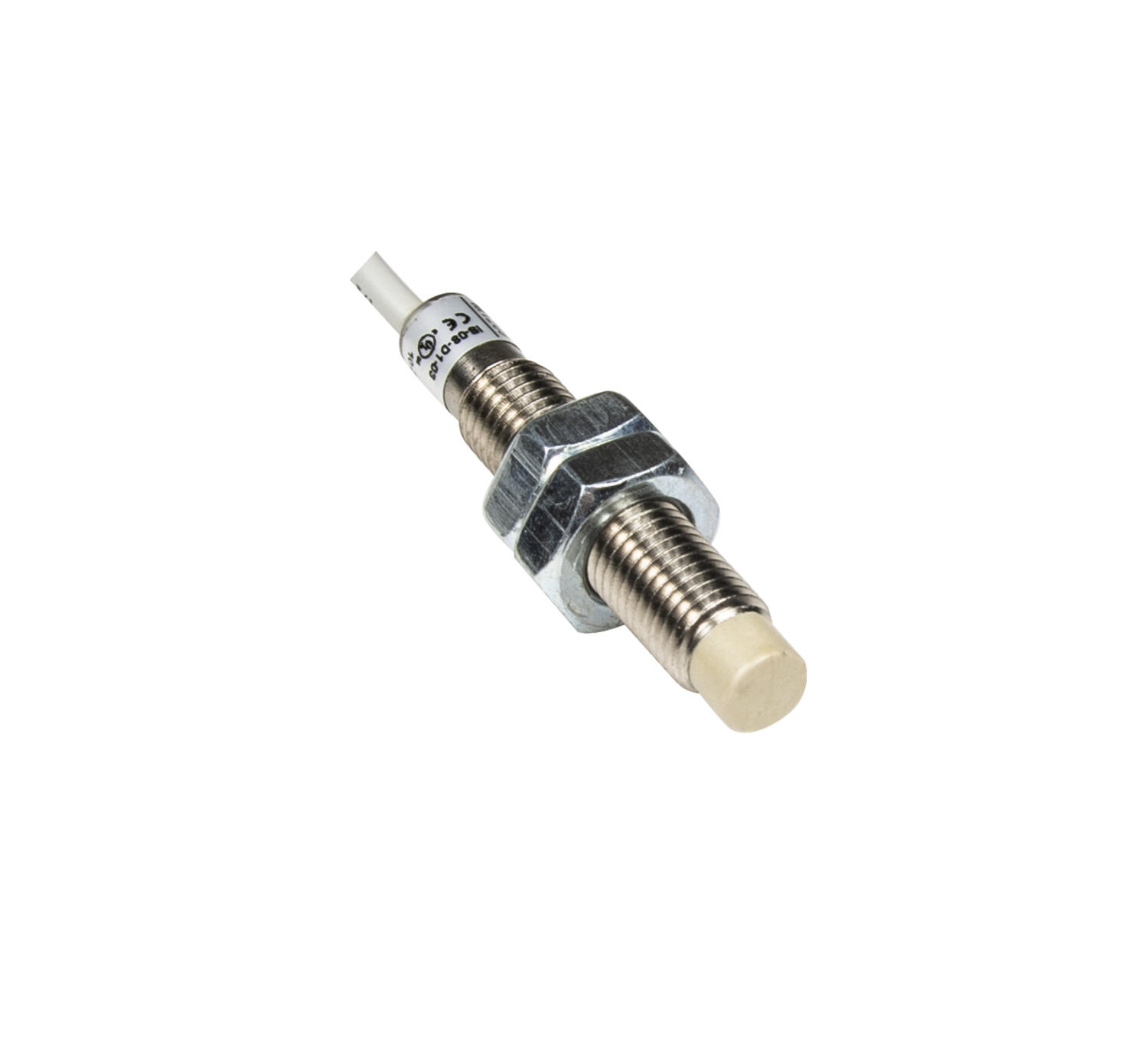

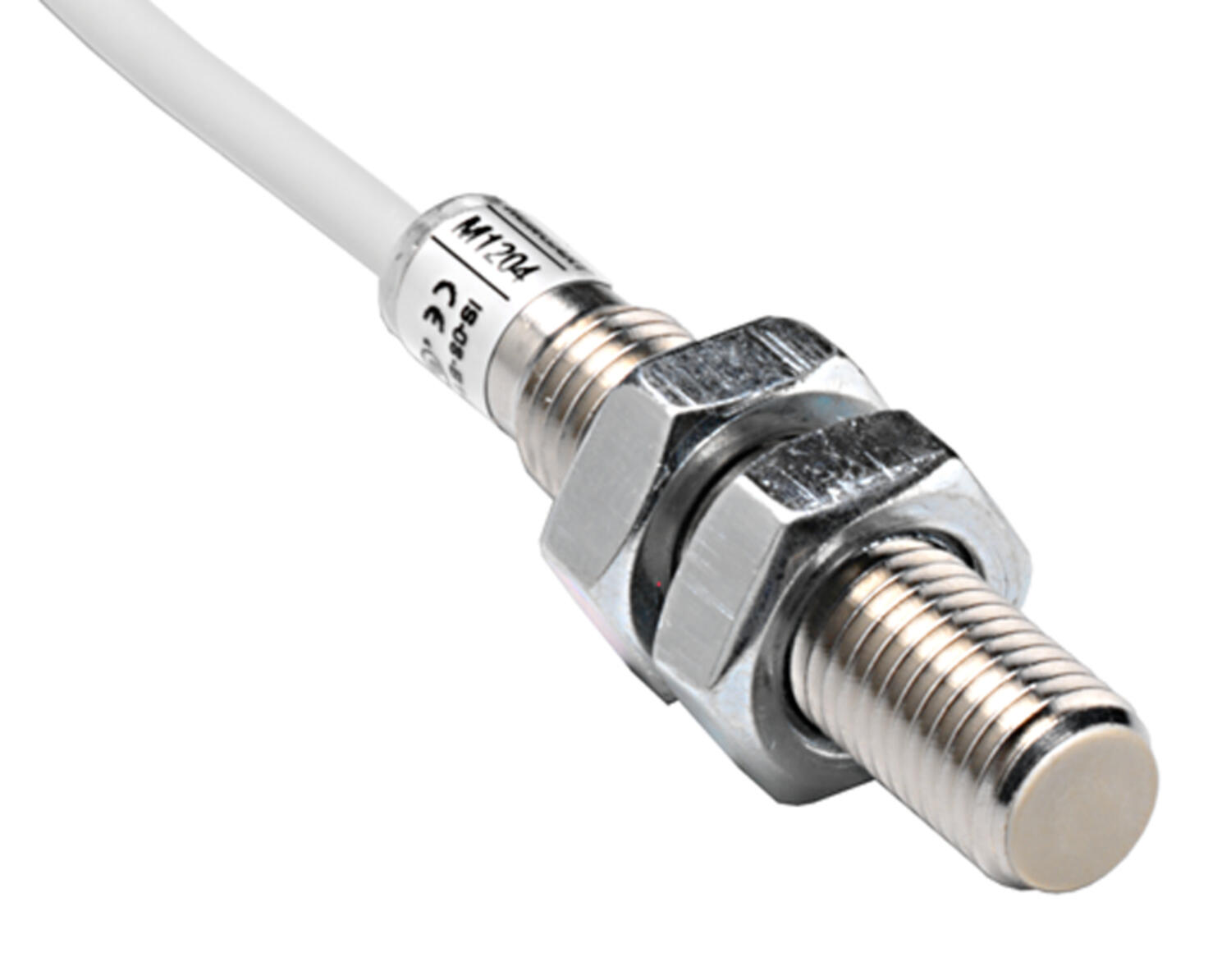

| Electrical connection | Cable 2 m |
| IP Class | IP67 |
| LED indicator | Yes |
| Material of body | Nickel-plated brass |
| Mounting | Flush mounted |

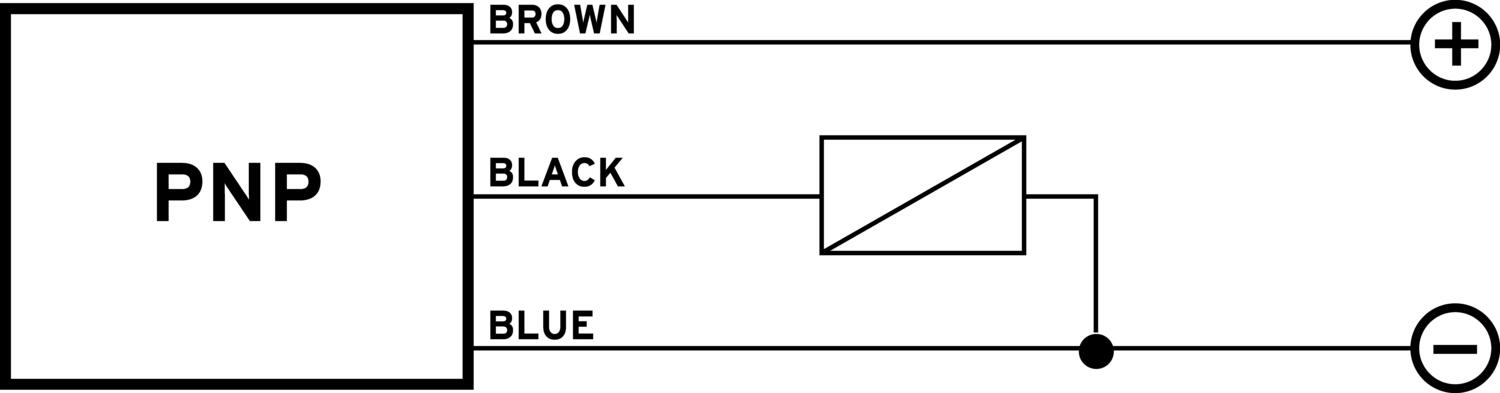

| Output | PNP |
| Output current max | 0.2 A |
| Reaction time | 75 ms |
|---|---|
| Sensing | 2 mm |
| Sensor type | Inductive |

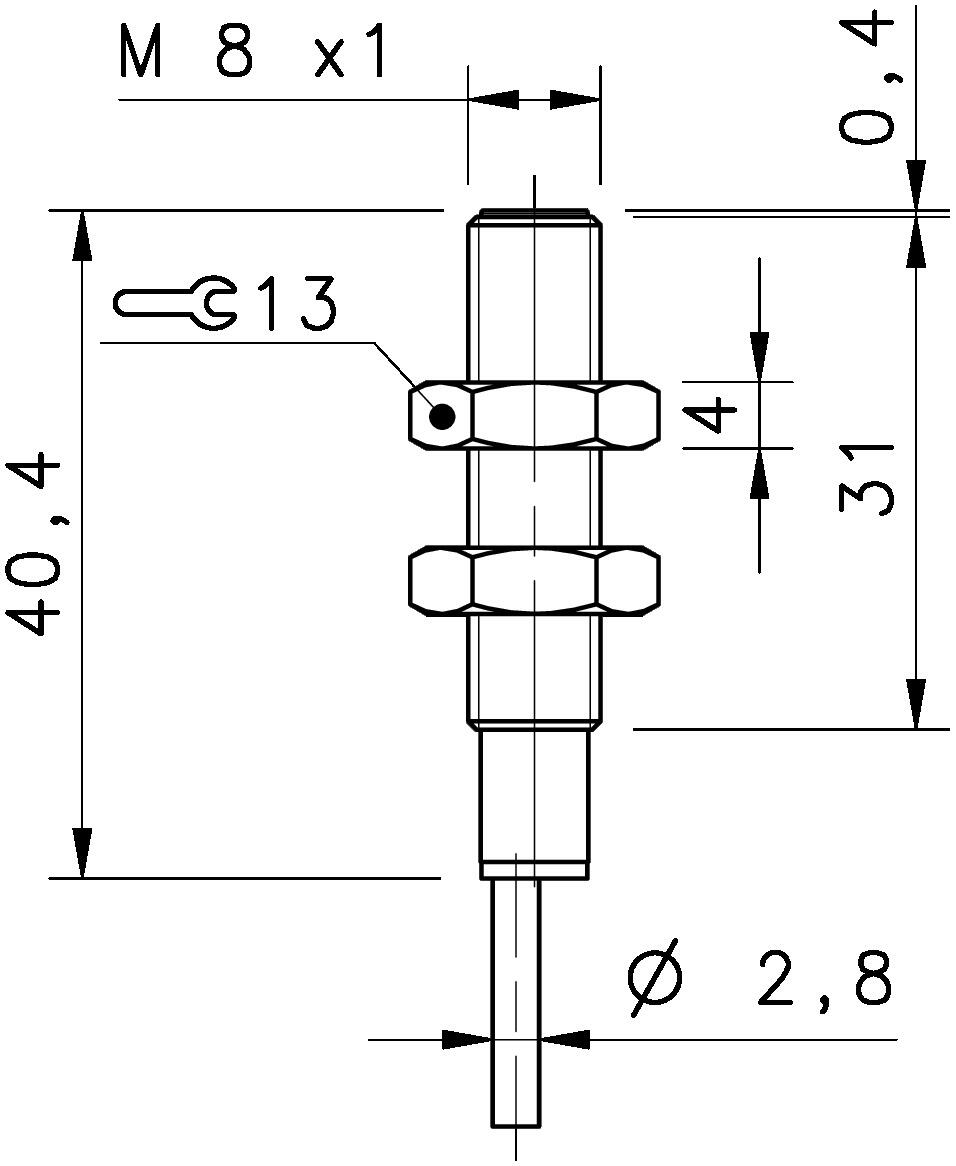

| Size | M8 |
| Supply voltage | 10-30 V DC |
| Temperature range from | -25 °C |
| Temperature range to | 70 °C |
| Weight | 80 g |
Downloads
Product description
The basic and extended line of inductive proximity sensors are made in classic cylindrical nickel-plated brass with housing diameters ranging from 8 to 30 mm. They can detect metal objects from 1.5mm to 20mm apart and are available with either an embedded 2m cable or with M8 or M12 standard industrial connectors.
Features & benefits:
• Nickel-plated Brass housing
• Standard housing length
• Double range operating distance
• Operating distance: 2 and 3mm
• 2m embedded cable, M8 or M12 connector
• 3 or 4 wires
• PNP, NPN, NO, NC
• IP67 protection
Applications:
• Automatic machines
• Packaging lines
• Transportation lines
• Automatic warehouses
• Automotive
