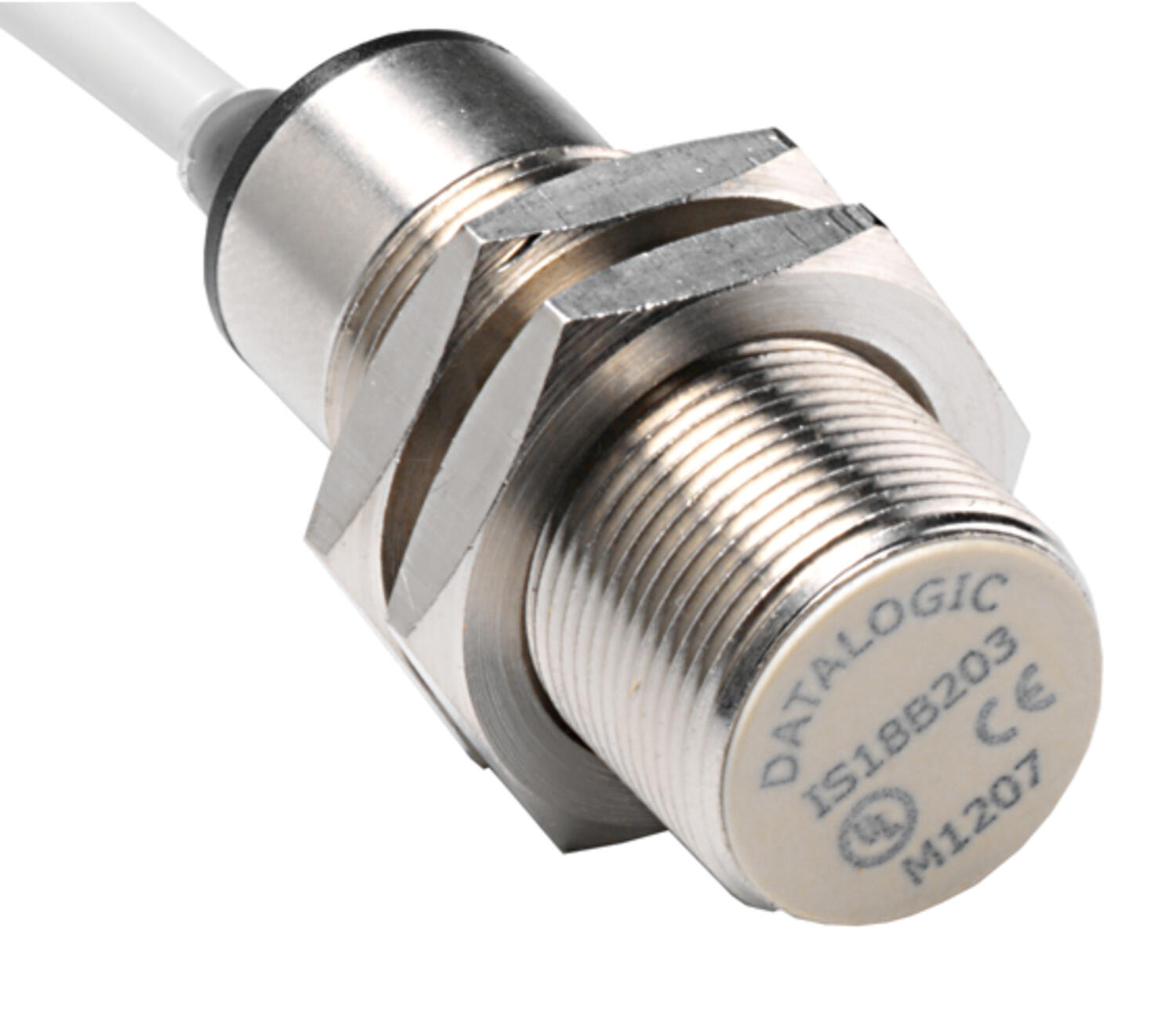

Datalogic - IS-18 - M18 extended range inductive sensor
The basic and extended line of inductive proximity sensors are made in classic cylindrical nickel-plated brass, with housing diameters ranging from 8 to 30 mm. They can detect metal objects from 1.5 mm to 20 mm apart and are available with either an embedded 2m cable or with M8 or M12 standard industrial connectors.
Features & benefits:
• Nickel-plated Brass housing
• Short housing
• Double operating distance: 8 and 14mm
• 2m embedded cable or M12 connector
• 4 wire connection
• Outputs: PNP, NPN, PNP/NPN, NO, NC, NO/NC
• IP67 protection
Applciations:
• Automatic machines
• Packaging lines
• Transportation lines
• Automatic warehouses
• Automotive
- 8 and 14mm sensing range

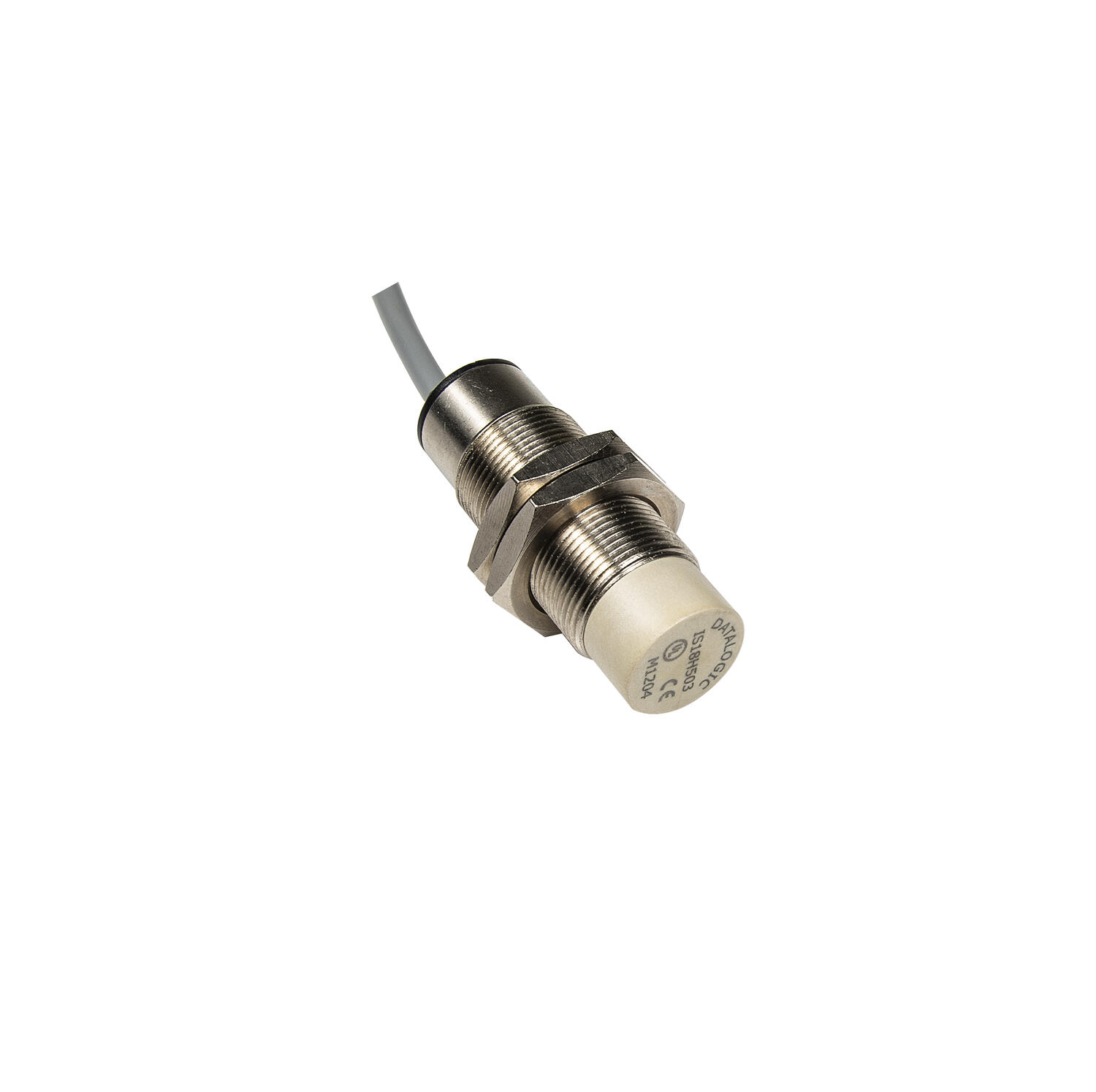

- Flush or Non-flush

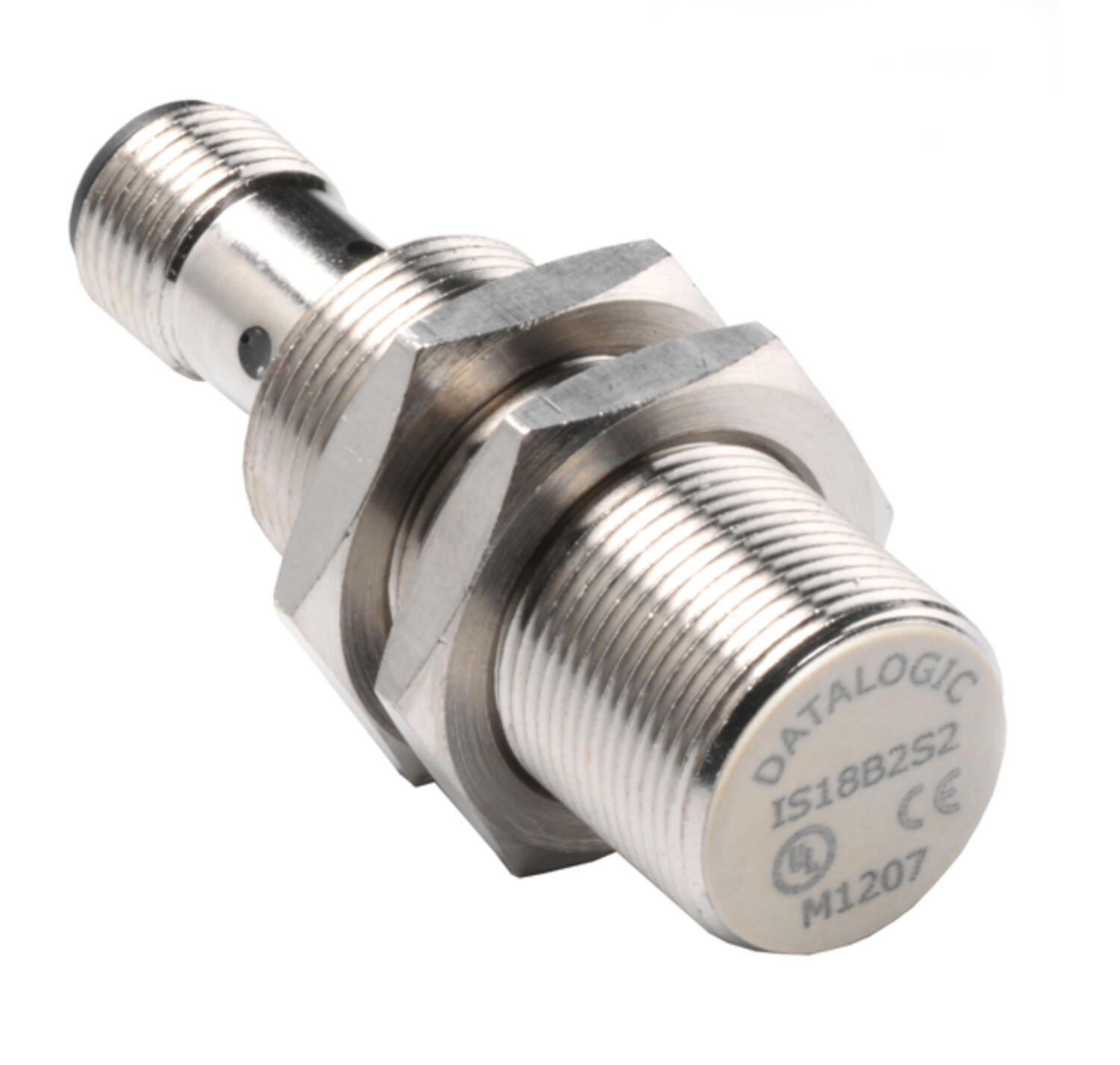

- 2m embedded Cable or M12 connector
- PNP, NPN, PNP/NPN, NO, NC, NO/NC
Selected variant
Specifications
| 12694_Output function | NO |
|---|---|
| Cable length | 2000 mm |
| Electrical connection | Cable 2 m |
| IP Class | IP67 |
| LED indicator | Yes |
| Material of body | Nickel-plated brass |
| Mounting | Flush mounted |
| Output | PNP |
| Output current max | 0.2 A |
| Reaction time | 75 ms |
|---|---|
| Sensing | 8 mm |
| Sensor type | Inductive |
| Size | M18 |
| Supply voltage | 10-30 V DC |
| Temperature range from | -25 °C |
| Temperature range to | 70 °C |
| Weight | 145 g |
Downloads
Product description
The basic and extended line of inductive proximity sensors are made in classic cylindrical nickel-plated brass, with housing diameters ranging from 8 to 30 mm. They can detect metal objects from 1.5 mm to 20 mm apart and are available with either an embedded 2m cable or with M8 or M12 standard industrial connectors.
Features & benefits:
• Nickel-plated Brass housing
• Short housing
• Double operating distance: 8 and 14mm
• 2m embedded cable or M12 connector
• 4 wire connection
• Outputs: PNP, NPN, PNP/NPN, NO, NC, NO/NC
• IP67 protection
Applciations:
• Automatic machines
• Packaging lines
• Transportation lines
• Automatic warehouses
• Automotive
