Selected variant
Specifications

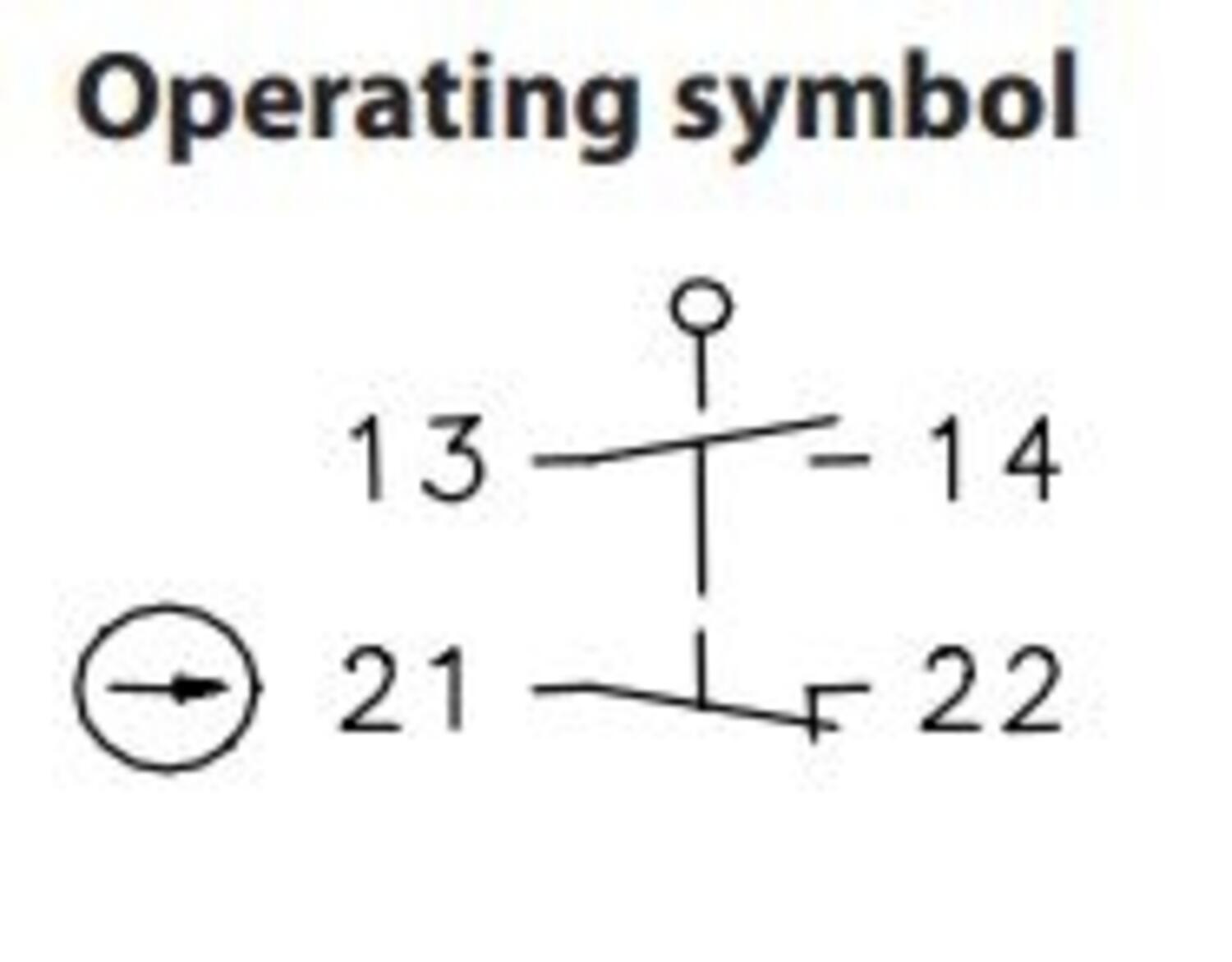

| Contact type | Snap-action, 1NO, 1 NC |
|---|---|
| IP Class | IP66, IP67 |

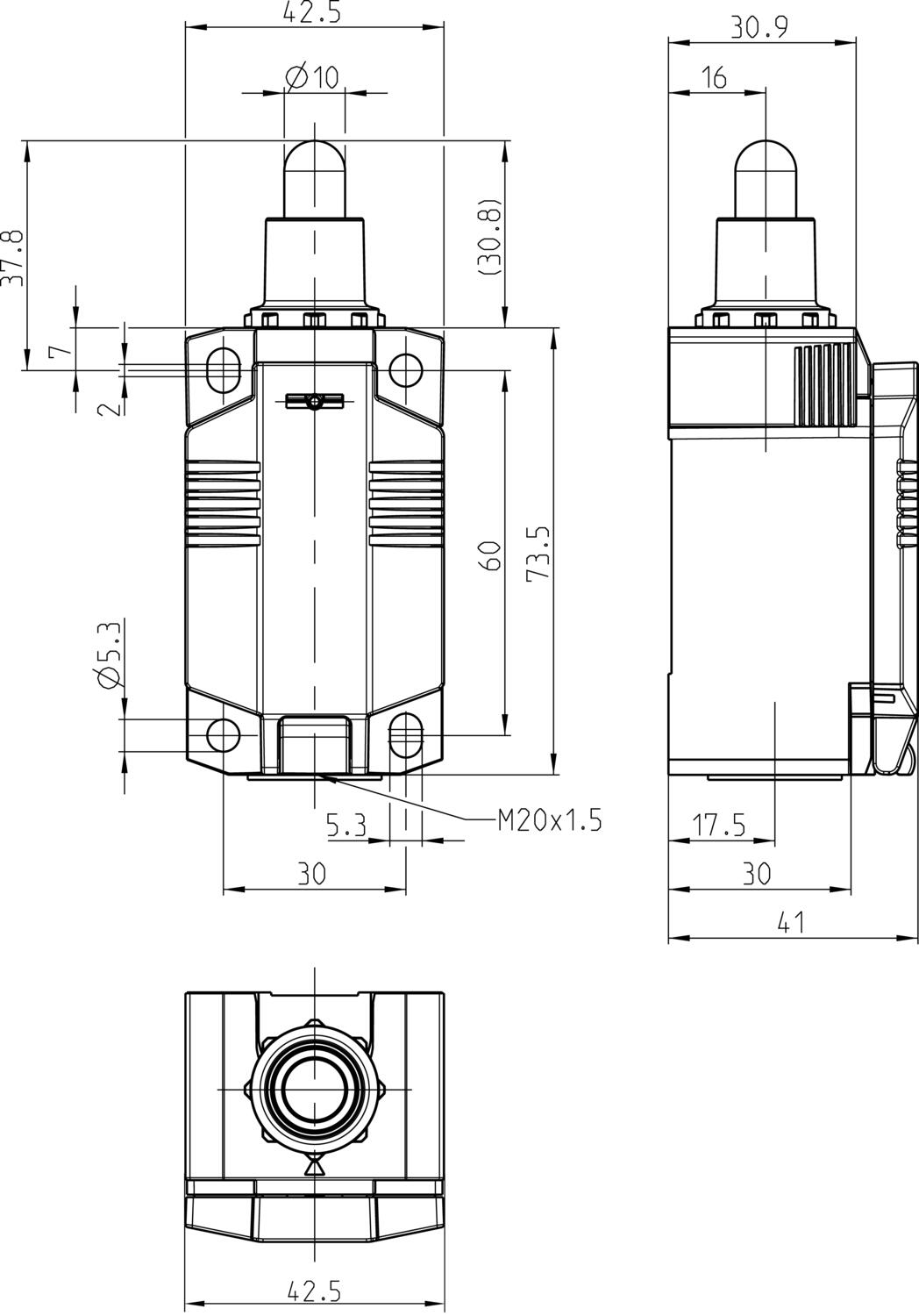

| Cable entry | 1 x M20 x1,5 |
| Connection Thread | Screw terminal |
| Voltage AC max | 240 V |
| Voltage DC max | 24 V |
| Conventional Thermal Current | 5 A |
| Temperature range from | -30 °C |
|---|---|
| Temperature range to | 75 °C |
| Material of body | Plastic |
| Atex approved | No |
| Manufacturer Part No | 6081000001 |
