Selected variant
Specifications

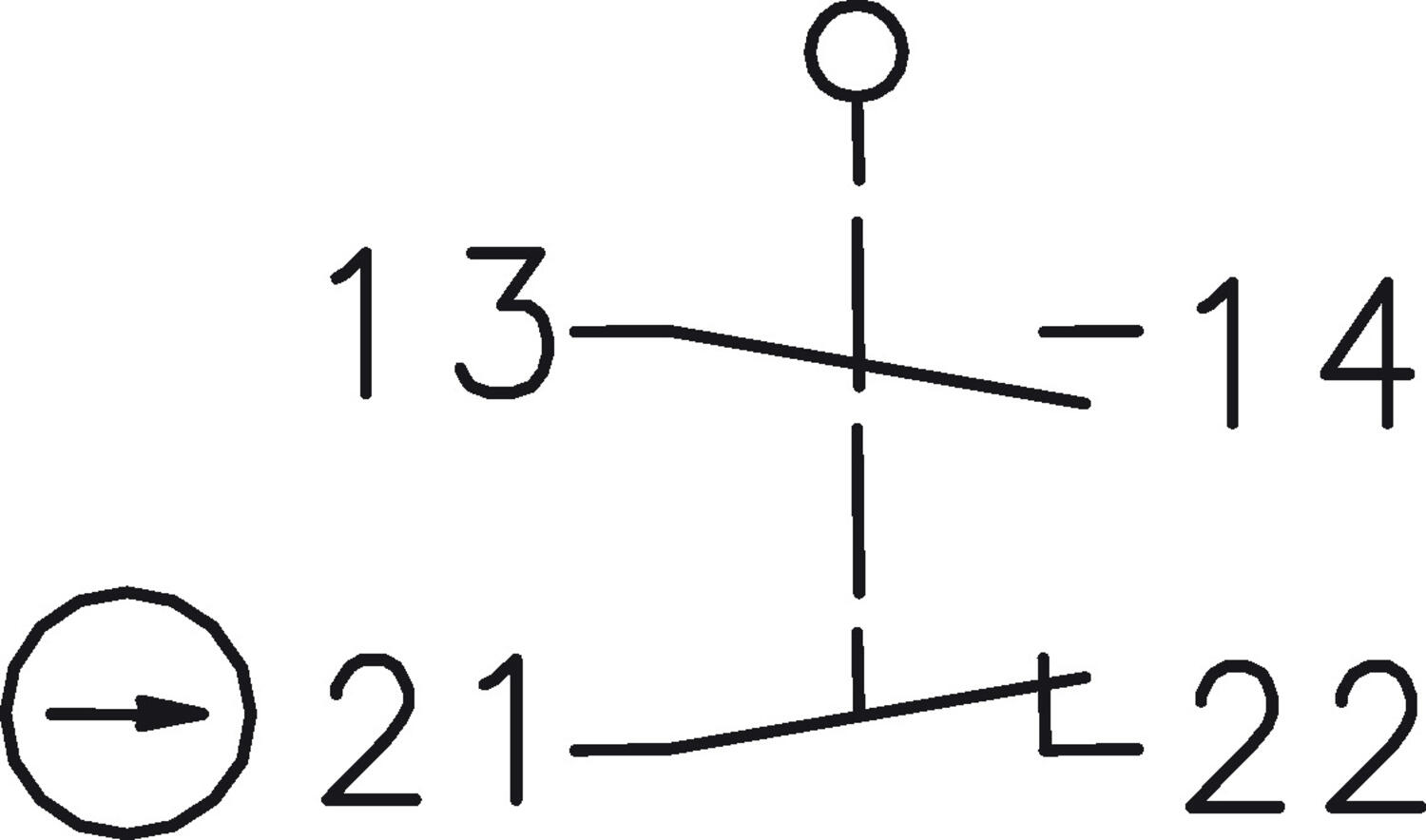

| Contact type | Slow-action, 1NO, 1 NC |
|---|---|
| IP Class | IP65 |

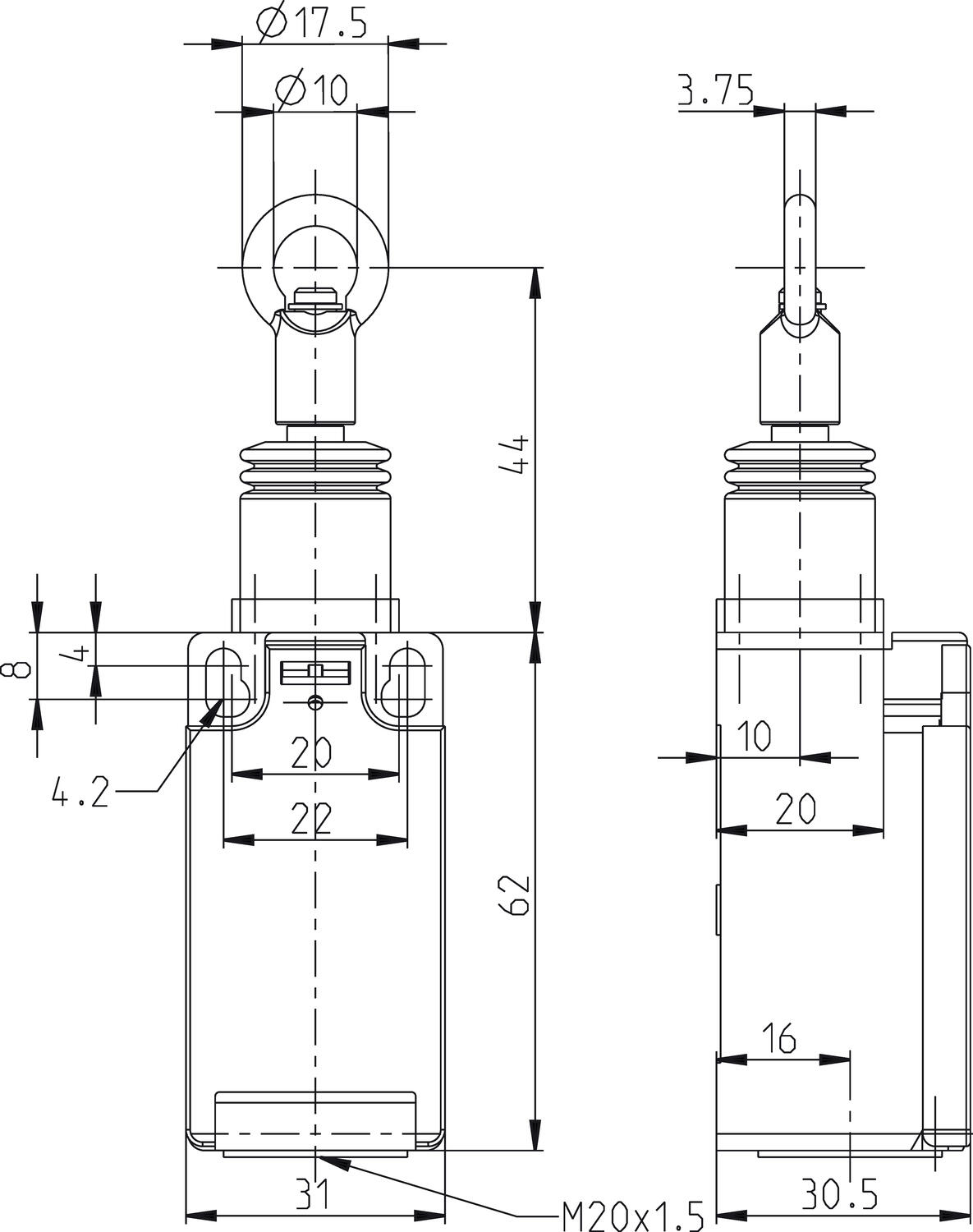

| Cable entry | 1xM20x1,5 |
| Approvals | CE, cCSAus |
| Voltage AC max | 240 V |
| Conventional Thermal Current | 10 A |
| Temperature range from | -30 °C |
| Temperature range to | 80 °C |
| Material of body | Plastic |
| Operating Frequency Max | 50 ggr/min |
