BROOKS INSTRUMENT

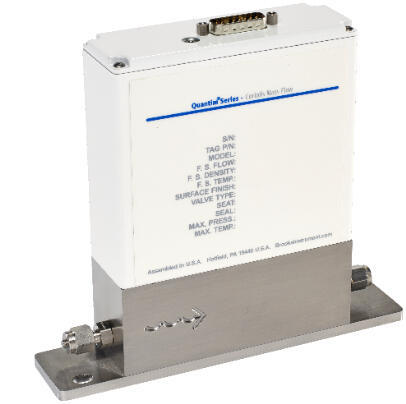

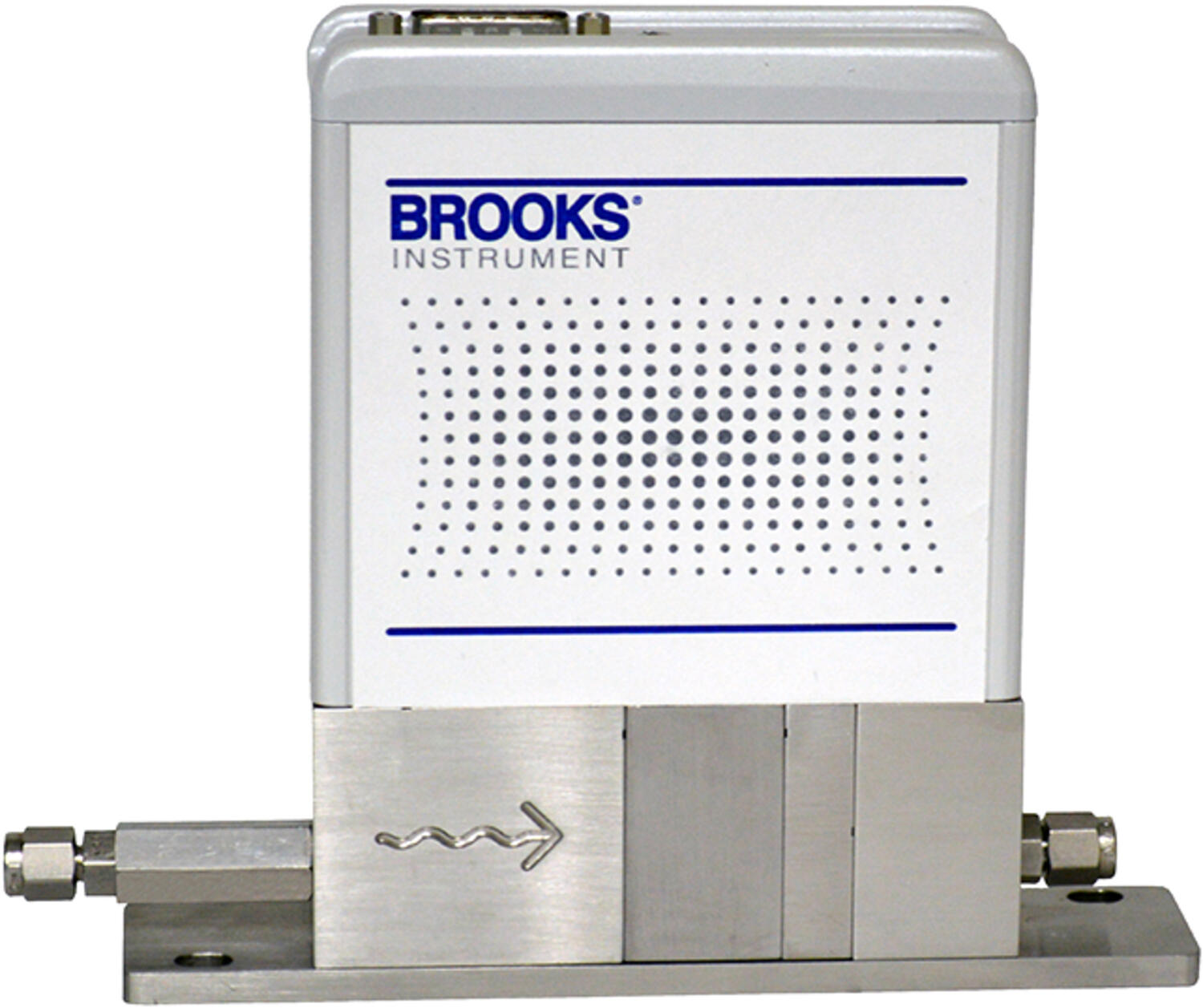

Mass flow controller Quantim, Coriolis
Achieve superior accuracy and unmatched zero stability in ultra-low-flow gas and liquid measurement and control with the Quantim® Coriolis mass flow controllers and meters from Brooks Instrument. With the Quantim® series, Brooks has taken the lead in driving improvements in Coriolis flow technology: Our patented Quantim® Coriolis sensor design measures low flows independent of fluid type or process variables. The result: unsurpassed performance - the most accurate, stable, repeatable and reproducible mass flow measurement and control, even under changing conditions.

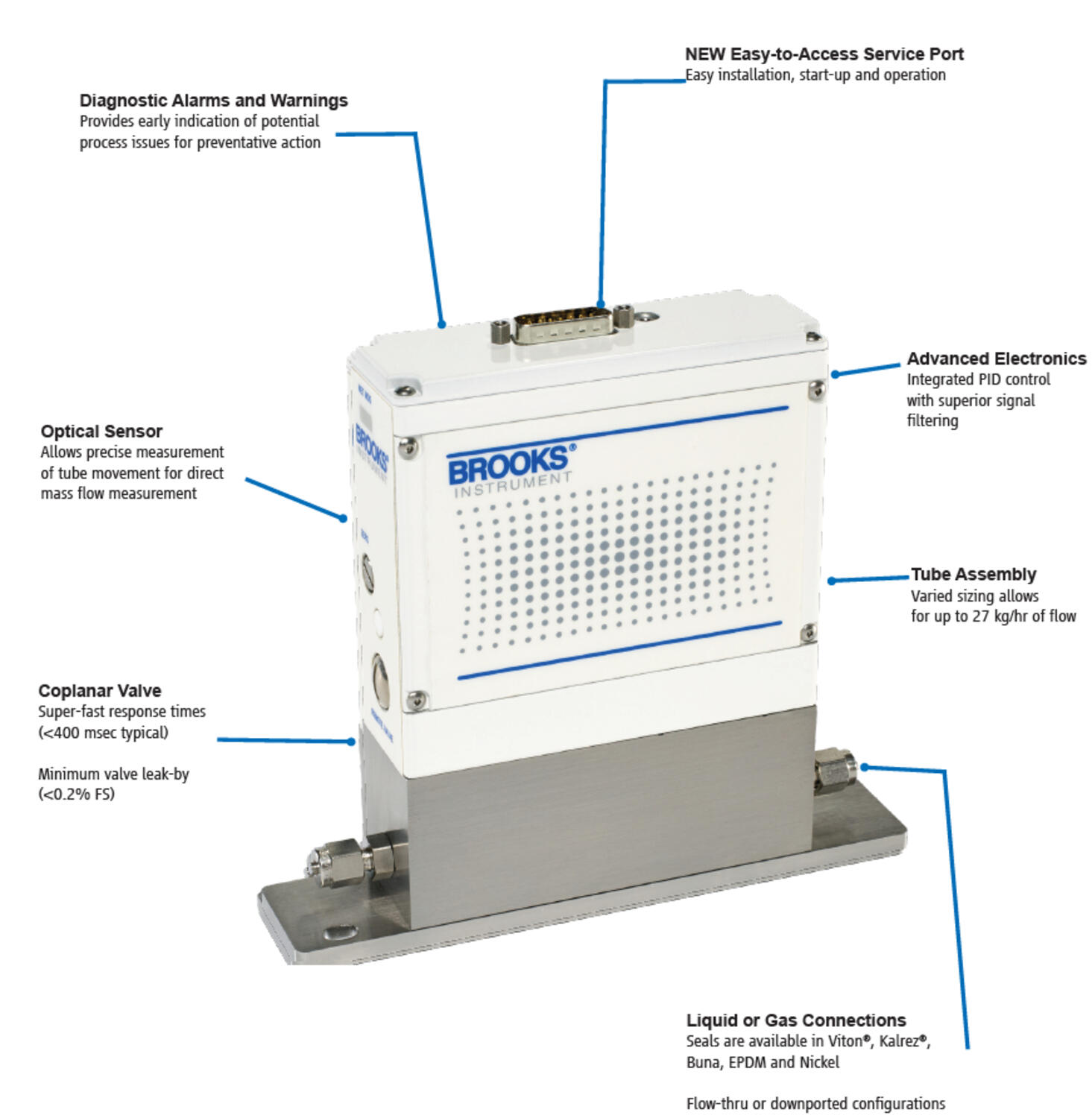

Features:
- True mass flow measurement
- Accurate density measurement
- 100% of fluid flows through low-mass sensor tube (no bypass)
- The Quantim® Coriolis series' proprietary optical sensing technique enables accuracy at extreme low flows
- Measures both liquids and gases over a wide flow range
- Coplanar valve delivers super-fast response times
- The Quantim® Coriolis series' offers the smallest, lowest-flow Coriolis meter and controller available on the market
- Measures and outputs two of four parameters: mass flow, volumetric flow, temperature, density
- Independent diagnostic/service port and user display
- Variety of material options, enclosure types and area classifications available
- For all gases and liquids
- Metal sealed
- Optical sensing technique enables accuracy at extreme low flows
Selected variant
Specifications
| Approvals | EMC Directive 89/336EEC per EN 50081-2 and EN 61326-1, II 2 G EEx d IIB T6 and II 2 D T 85OC per EN 50014, EN 50018 and EN 50281-1-1, II 3 G EEx nA II T4 and II 3D T 135 C per EN 60079-15: 2003 and EN 50281-1-1: 1998 + A1, KEMA 04ATEX1241 X II3G EEx nA II T4 per EN 60070-15: 2003, Pressure Equipment Directive |
|---|---|
| Control range | 1-100 % |
| Density Range Max | 2 g/cm³ |
| Density Range Min | 0.2 g/cm³ |
| IP Class | IP40, IP66, IP66XP |
| Lowest flow | 10-27000 gr/h |
| Material of seals | EPDM, Buna, Kalrez, Neoprene, Viton |
| Materials Wetted Parts | Hastelloy, Stainless steel 17-7 PH, Stainless steel 316 |
| Pressure Range Max | 300 bar |
|---|---|
| Response time | <0.5s - <2 s |
| Temperature range from | 5 °C |
| Temperature range of media to | 65 °C |
| Temperature range to | 65 °C |
| Valve type | NC |
Product description
Achieve superior accuracy and unmatched zero stability in ultra-low-flow gas and liquid measurement and control with the Quantim® Coriolis mass flow controllers and meters from Brooks Instrument. With the Quantim® series, Brooks has taken the lead in driving improvements in Coriolis flow technology: Our patented Quantim® Coriolis sensor design measures low flows independent of fluid type or process variables. The result: unsurpassed performance - the most accurate, stable, repeatable and reproducible mass flow measurement and control, even under changing conditions.
Features:
- True mass flow measurement
- Accurate density measurement
- 100% of fluid flows through low-mass sensor tube (no bypass)
- The Quantim® Coriolis series' proprietary optical sensing technique enables accuracy at extreme low flows
- Measures both liquids and gases over a wide flow range
- Coplanar valve delivers super-fast response times
- The Quantim® Coriolis series' offers the smallest, lowest-flow Coriolis meter and controller available on the market
- Measures and outputs two of four parameters: mass flow, volumetric flow, temperature, density
- Independent diagnostic/service port and user display
- Variety of material options, enclosure types and area classifications available
