BROOKS INSTRUMENT
Whether it’s dust, moisture, temperature extremes or wash-down requirements, the SLAMf Series elastomer sealed thermal mass flow controllers and meters deliver the precise accuracy and long-term stability of our proven SLA5800 family of meters and controllers. A specially engineered NEMA4X/IP66 enclosure protects our advanced digital electronics and ensures stable, accurate measurement and control of your process-critical gas and liquid mass flows.
Features:
Approvals | ATEX, EX, II 3 G EEx nA II T4 and II 3D T 135 C per EN 60079-15: 2003 and EN 50281-1-1: 1998 + A1, KEMA 04ATEX1241 X II3G EEx nA II T4 per EN 60070-15: 2003, PED |
---|---|
External Leakage | 1x10-9 atm cc/sec He |
IP Class | IP66 |
Lowest flow | 0,003-36000 l/min |
Material of connection | Stainless steel 316 |
Material of seals | Buna, EPDM, Kalrez, PTFE, Viton |
Materials O-Ring | Buna, EPDM, Kalrez, PTFE, Viton |
Materials Wetted Parts | Stainless steel 316Ti |
Pressure Range Max | 300 bar |
---|---|
Response time | <1s, dog <3s ved flow over 100l/min |
Supply Voltage | 24 V |
Supply Voltage DC Max | 27 V DC |
Supply Voltage DC Min | 13.5 V DC |
Temperature range of media from | 5 °C |
Temperature range of media to | 65 °C |
Whether it’s dust, moisture, temperature extremes or wash-down requirements, the SLAMf Series elastomer sealed thermal mass flow controllers and meters deliver the precise accuracy and long-term stability of our proven SLA5800 family of meters and controllers. A specially engineered NEMA4X/IP66 enclosure protects our advanced digital electronics and ensures stable, accurate measurement and control of your process-critical gas and liquid mass flows.
Features:
DF Electric is specialized in the manufacturing of fuse links, fuse holders and control transformers since 1987. Presently the company is leading the Spanish market and is also very active in many export markets due to its competitive range of products.
Henkel has launched a new solvent-free circuit board protective lacquer developed to meet the stringent requirements of harsh conditions and increasing safety standards.
The Lütze LOCC-Box is an intelligent electronic overcurrent protection device that provides reliable protection for 12/24 V DC systems in a narrow housing measuring just 8.1 mm. Integrated + and - terminals save space on the DIN rail.
Safety curtains and beams provide effective and reliable personal protection and monitoring in a wide range of industrial environments.
Since 2002, 2J Antennas has become a global supplier of antenna solutions, dedicated to developing innovative technologies for an increasingly networked world. Read more!
You can save space and time during installation with BACO multi-function buttons! Read more.
|
|
|
|
|
||
---|---|---|---|---|---|---|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
Articles | Approvals | Atex Approvals | Control range | Diagnostics / Service Port | Differential Pressure Max | Differential Pressure Min | External Leakage | IP Class | Lowest flow | Material of connection | Material of seals | Materials O-Ring | Materials Wetted Parts | Pressure Range Max | Response time | Supply Voltage DC Min | Temperature range from | Temperature range of media from | Temperature range to | Valve type | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]()

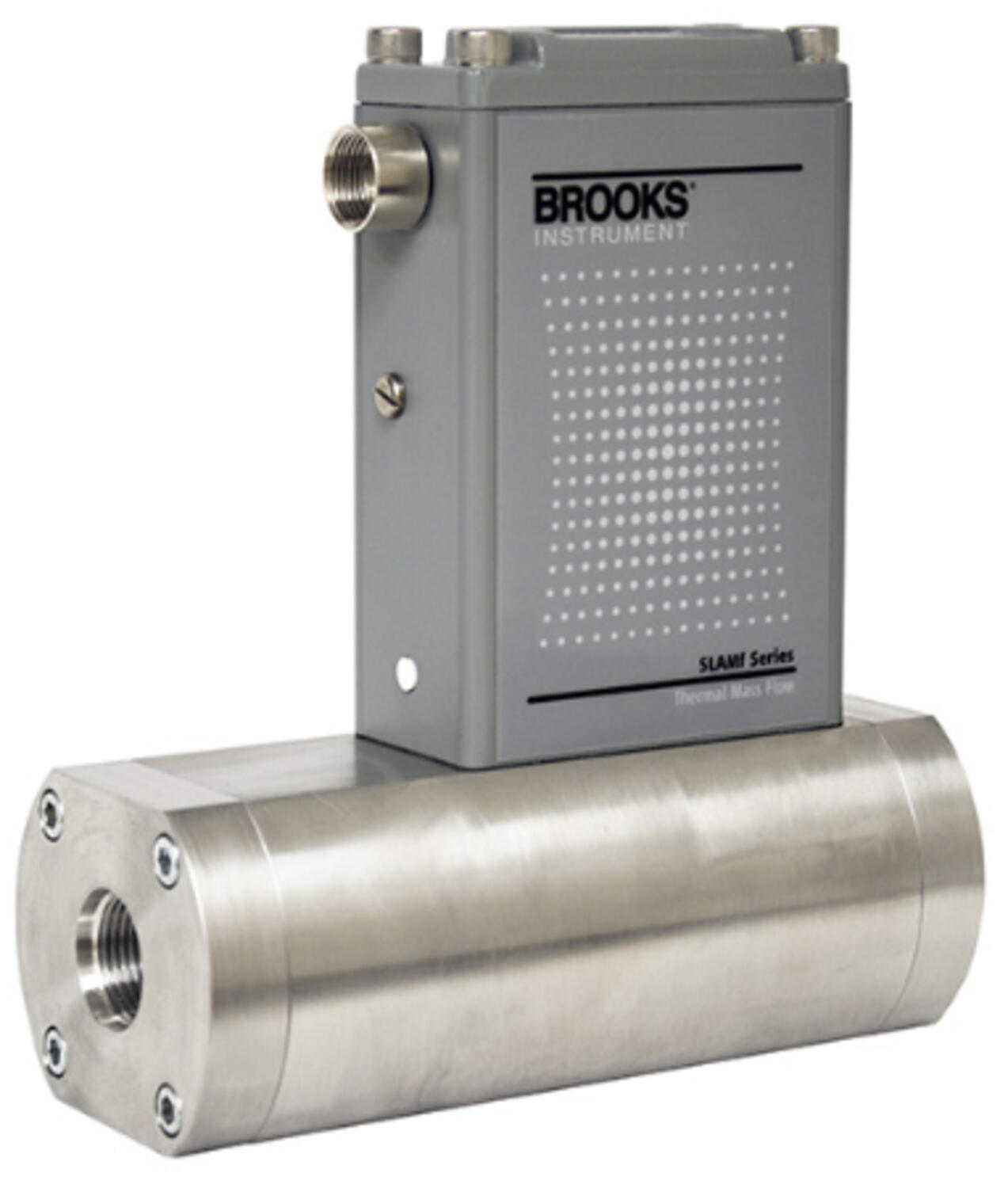

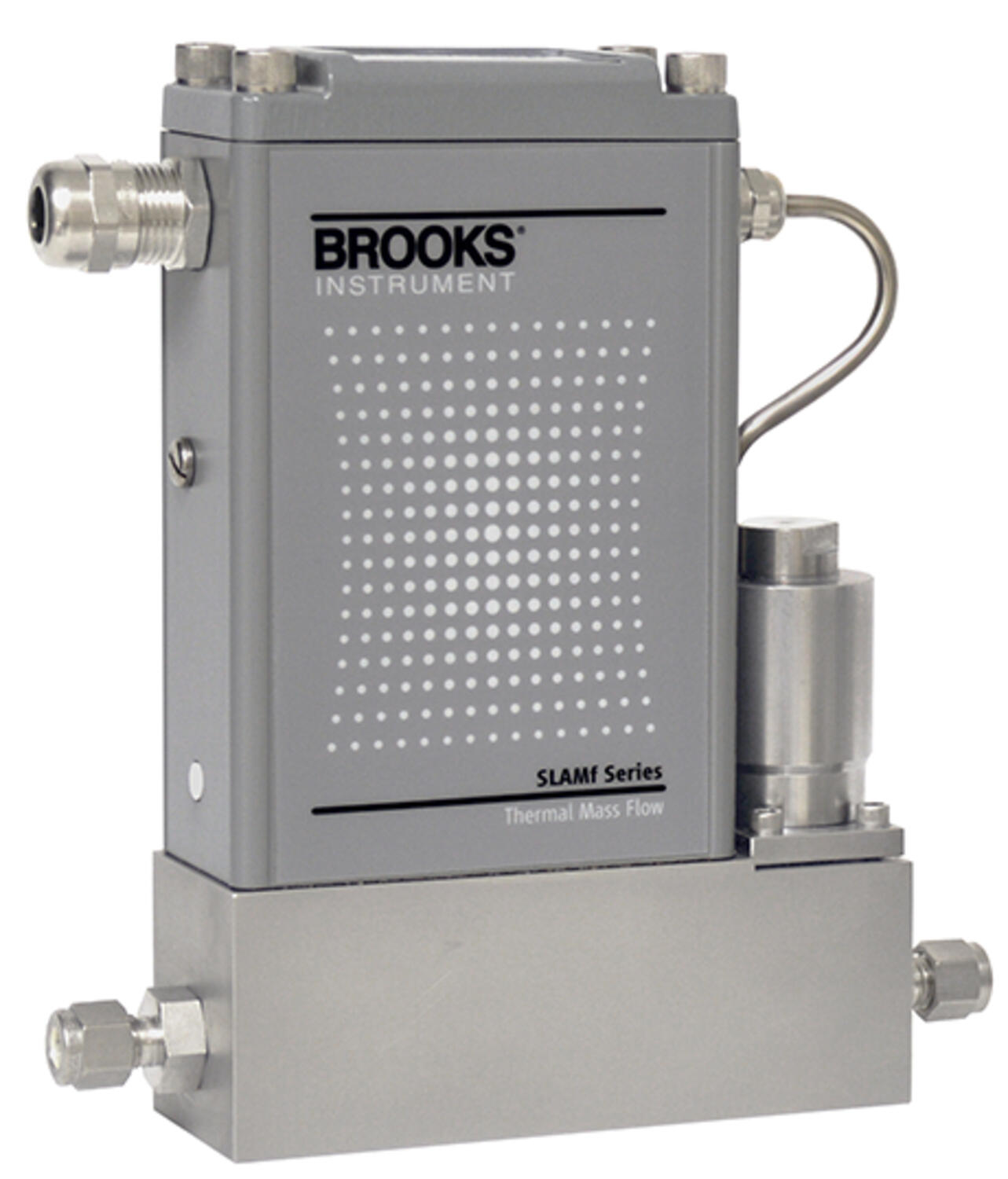

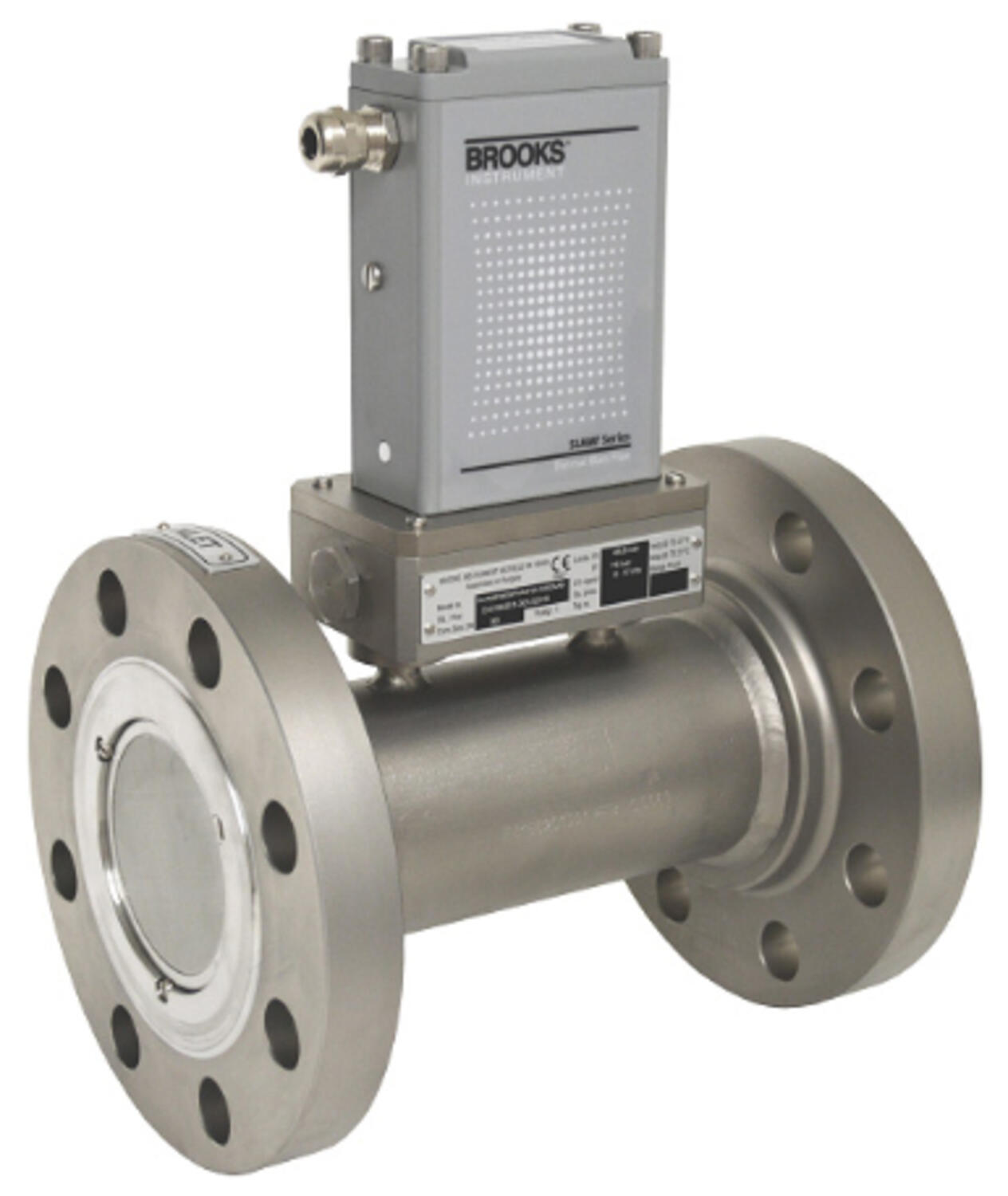

Thermal Mass Flow Controller SLAMF
Art:
SLAMF
Copied
|
ATEX, EX, II 3 G EEx nA II T4 and II 3D T 135 C per EN 60079-15: 2003 and EN 50281-1-1: 1998 + A1, KEMA 04ATEX1241 X II3G EEx nA II T4 per EN 60070-15: 2003, PED
|
|
|
|
|
|
1x10-9 atm cc/sec He
|
IP66
|
0,003-36000 l/min
|
Stainless steel 316
|
Buna, EPDM, Kalrez, PTFE, Viton
|
Buna, EPDM, Kalrez, PTFE, Viton
|
Stainless steel 316Ti
|
300 bar
|
<1s, dog <3s ved flow over 100l/min
|
13.5 V DC
|
|
5 °C
|
|
|
| |
![]()

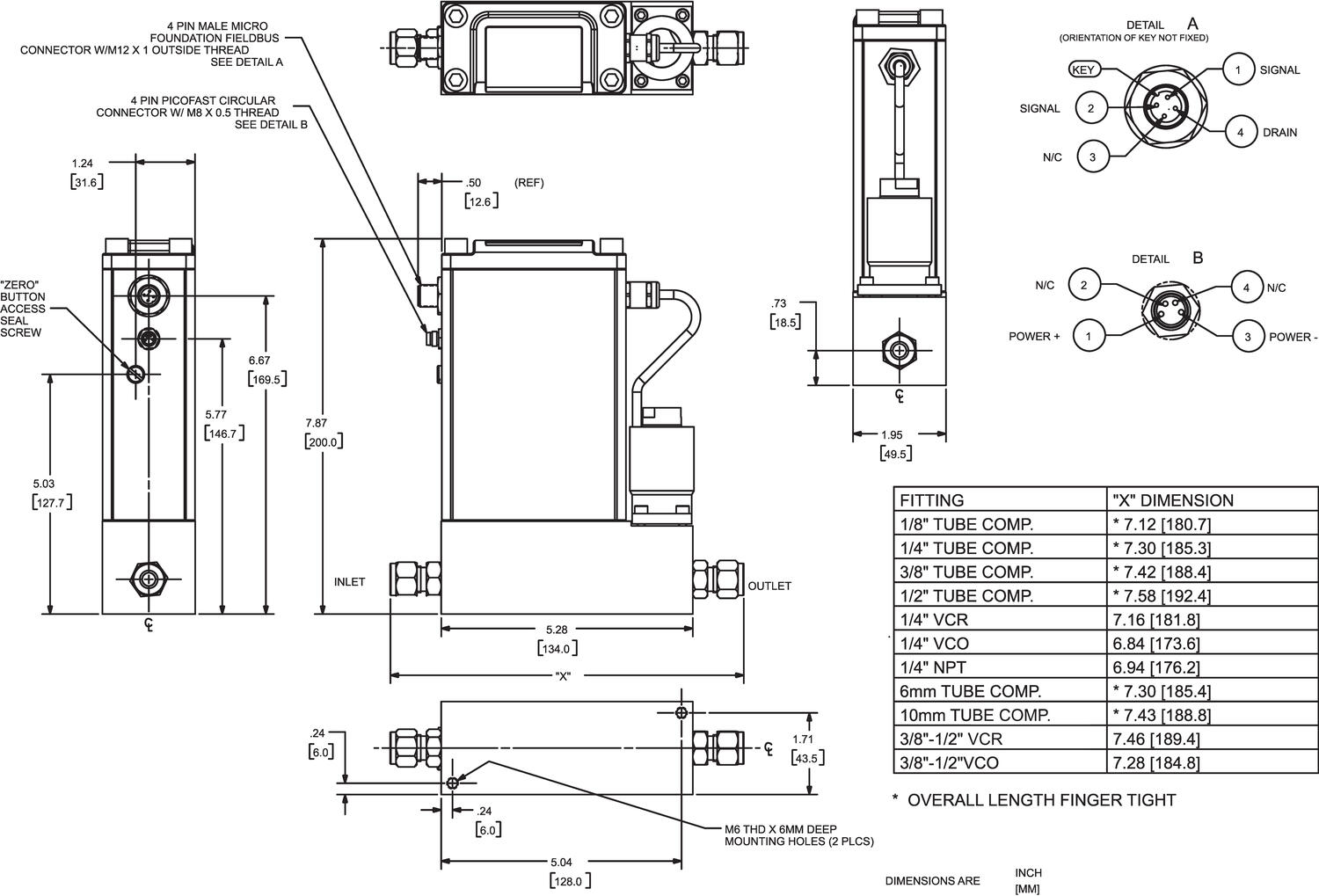

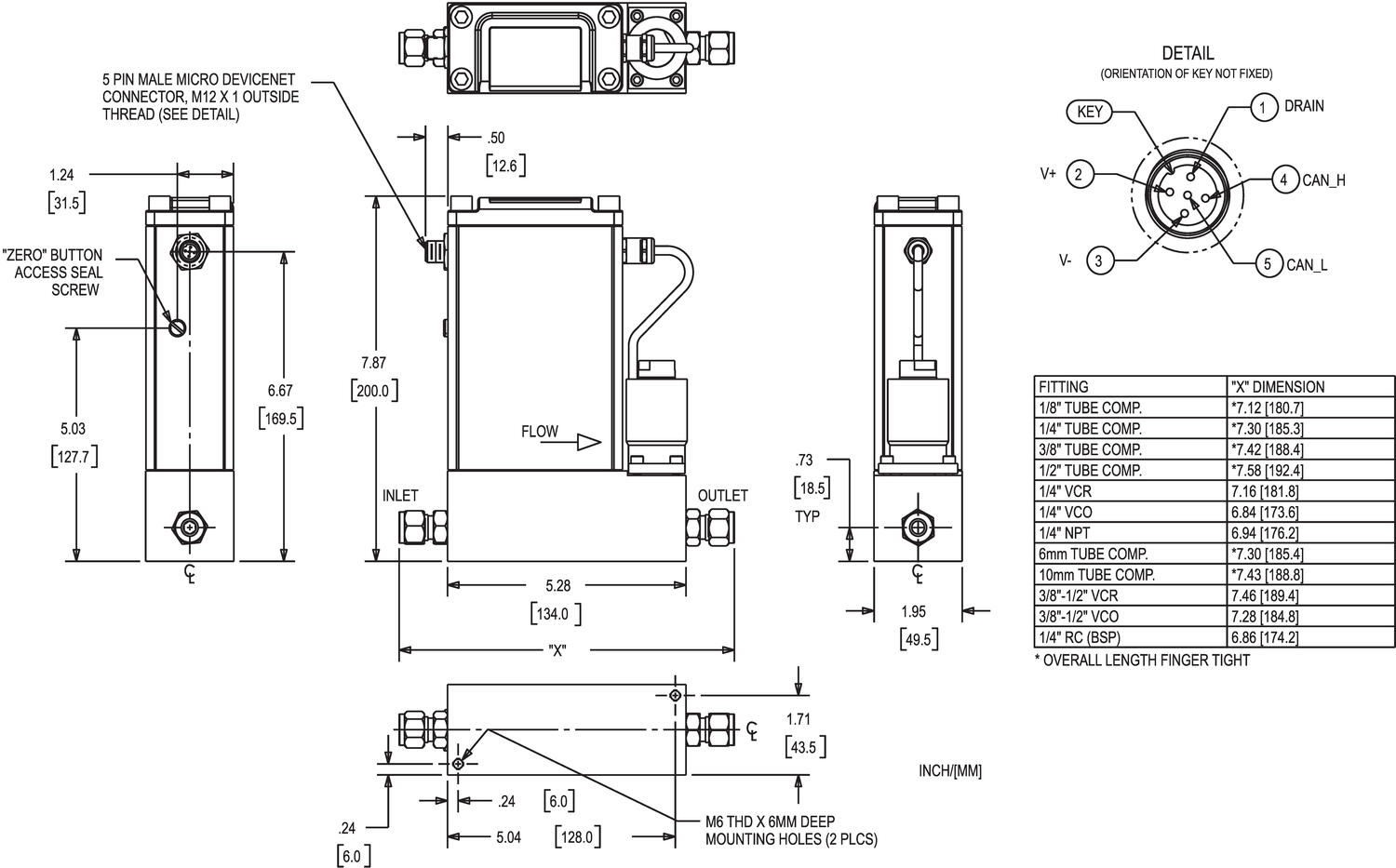

Thermal Mass Flow Controller SLAMF50
Art:
SLAMF50
Copied
|
|
ATEX, IECEx
|
100:1 for FS from 1-50 slpm (50:1 for all other FS flows)
|
RS485 via 2.5mm jack
|
103.4 bar
|
0.35 bar
|
1x10-9 atm. cc/sec He
|
|
|
|
|
|
|
310 bar
|
<1 s
|
11 V DC
|
-14 °C
|
-14 °C
|
65 °C
|
NC/NO
|
| |
![]()

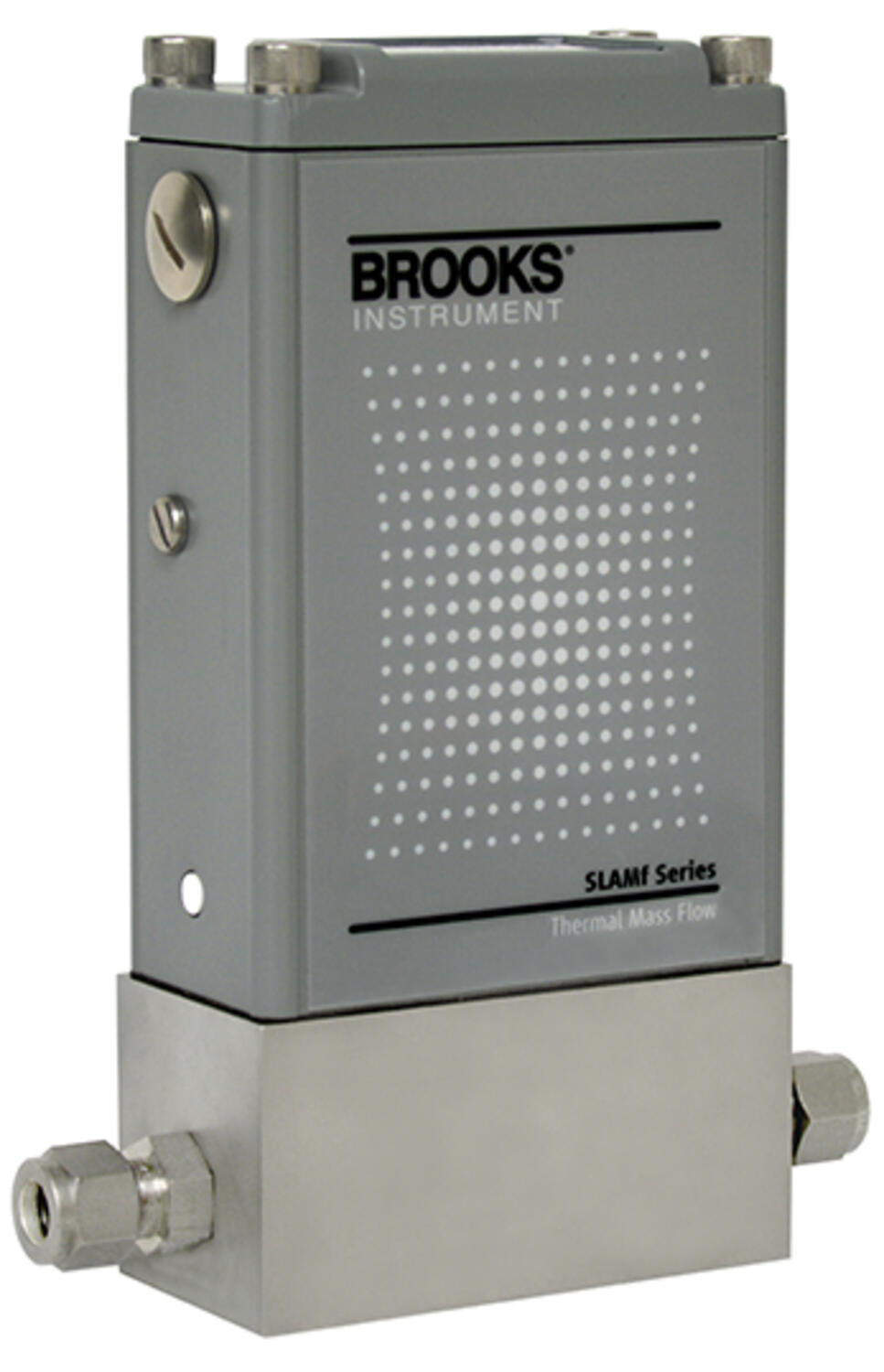

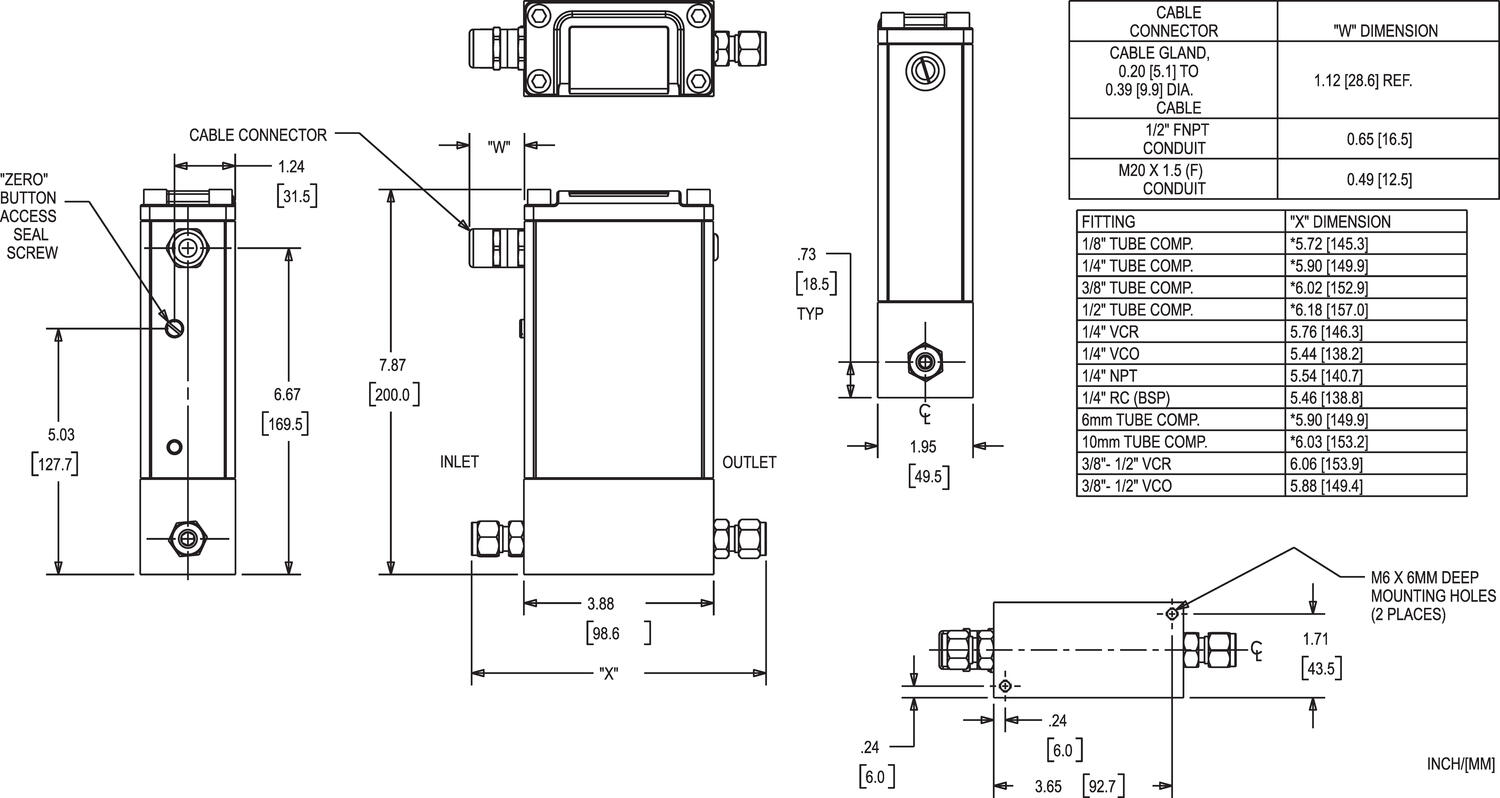

Thermal Mass Flow Controller SLAMF60
Art:
SLAMF60
Copied
|
|
ATEX, IECEx
|
100:1 for FS from 1-50 slpm (50:1 for all other FS flows)
|
RS485 via 2.5mm jack
|
103.4 bar
|
0.35 bar
|
1x10-9 atm. cc/sec He
|
|
|
|
|
|
|
310 bar
|
<1 s
|
11 V DC
|
-14 °C
|
-14 °C
|
65 °C
|
None
|
| |
![]()

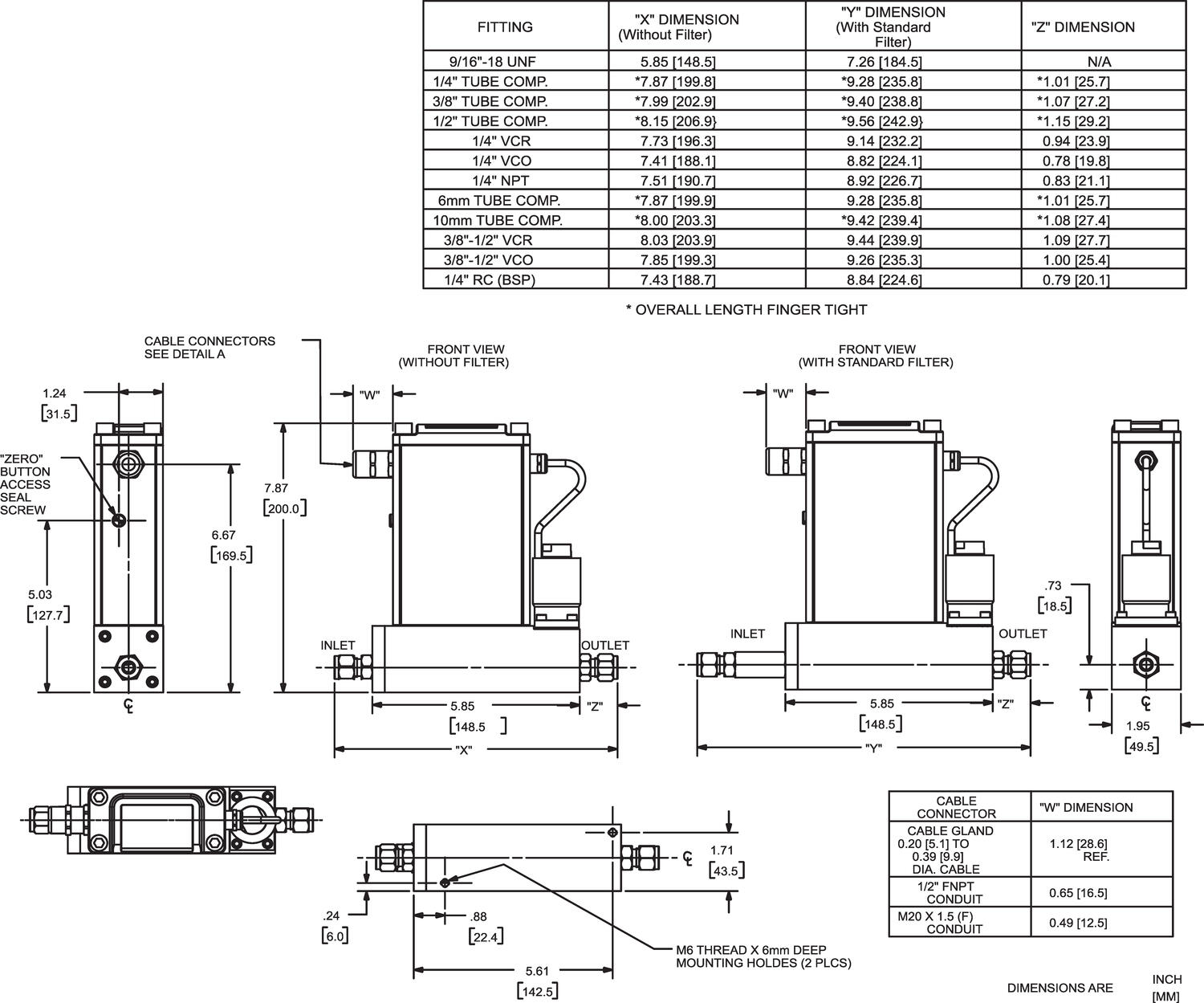

Thermal Mass Flow Controller SLAMF51
Art:
SLAMF51
Copied
|
|
ATEX, IECEx
|
100:1 for FS from 1-50 slpm (50:1 for all other FS flows)
|
RS485 via 2.5mm jack
|
3.45 bar
|
0.69 bar
|
1x10-9 atm. cc/sec He
|
|
|
|
|
|
|
103 bar
|
<1 s
|
11 V DC
|
-14 °C
|
-14 °C
|
65 °C
|
NC/NO
|
| |
![]()
Thermal Mass Flow Controller SLAMF61
Art:
SLAMF61
Copied
|
|
ATEX, IECEx
|
100:1 for FS from 1-50 slpm (50:1 for all other FS flows)
|
RS485 via 2.5mm jack
|
3.45 bar
|
0.69 bar
|
1x10-9 atm. cc/sec He
|
|
|
|
|
|
|
103 bar
|
<1 s
|
11 V DC
|
-14 °C
|
-14 °C
|
65 °C
|
None
|
| |
![]()

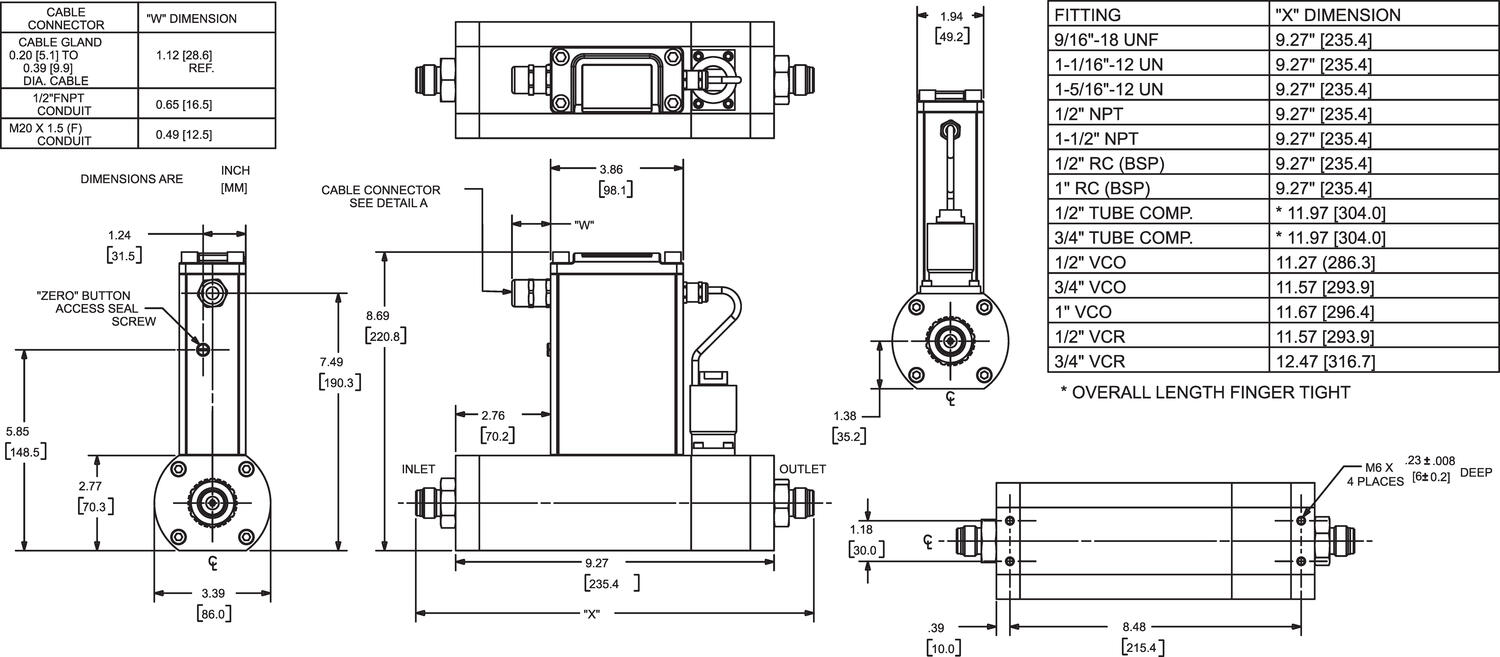

Thermal Mass Flow Controller SLAMF53
Art:
SLAMF53
Copied
|
|
ATEX, IECEx
|
100:1 for FS from 1-50 slpm (50:1 for all other FS flows)
|
RS485 via 2.5mm jack
|
20 bar
|
0.52 bar
|
1x10-9 atm. cc/sec He
|
|
|
|
|
|
|
70 bar
|
<3 s
|
11 V DC
|
-14 °C
|
-14 °C
|
65 °C
|
NC/NO
|
| |
![]()

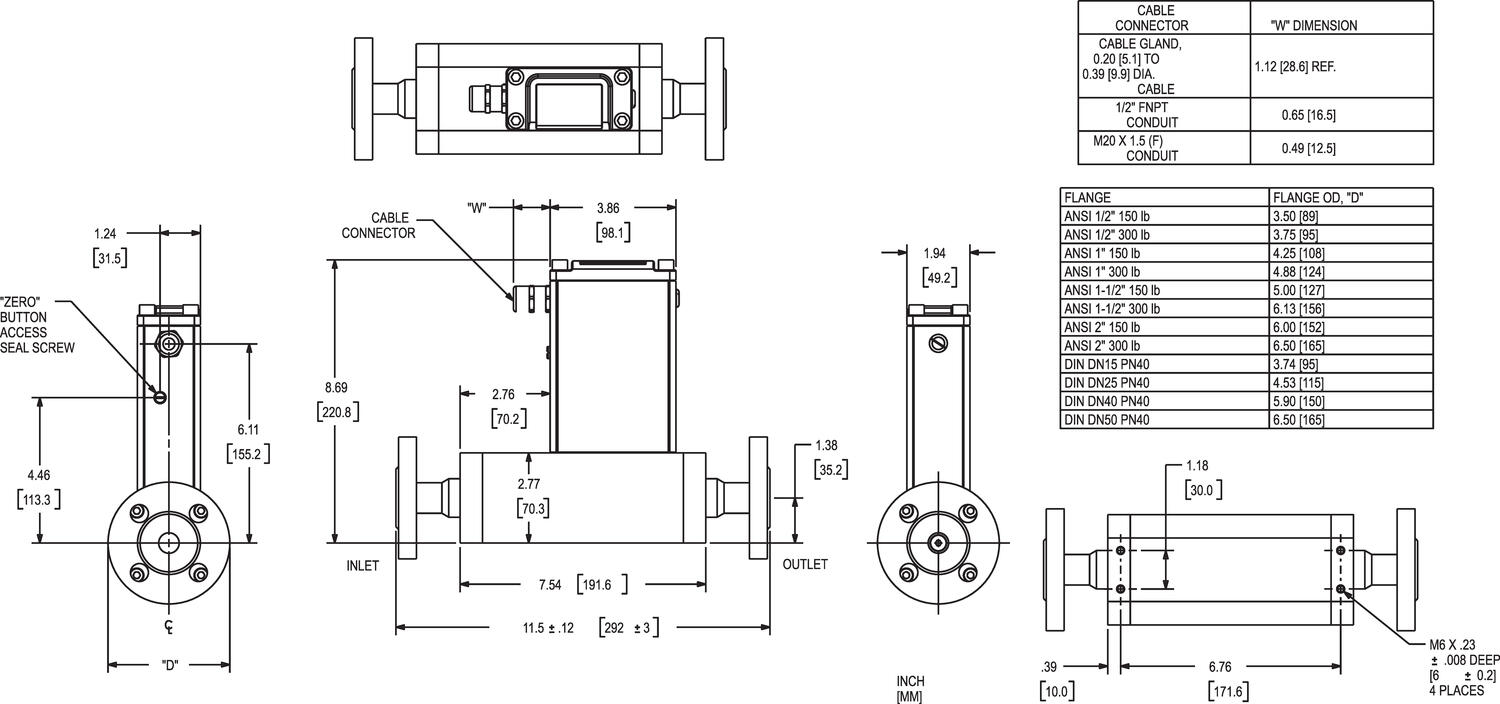

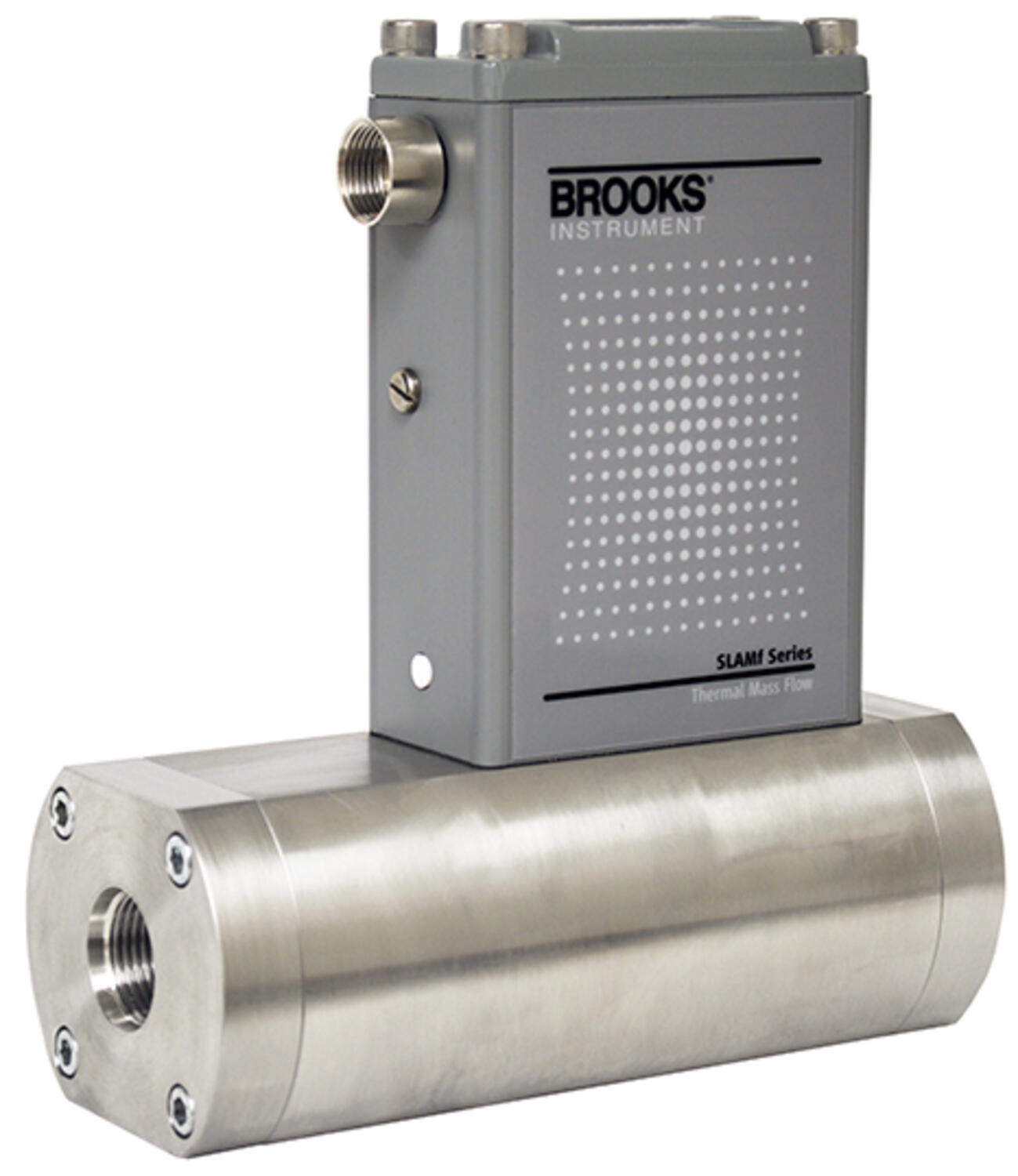

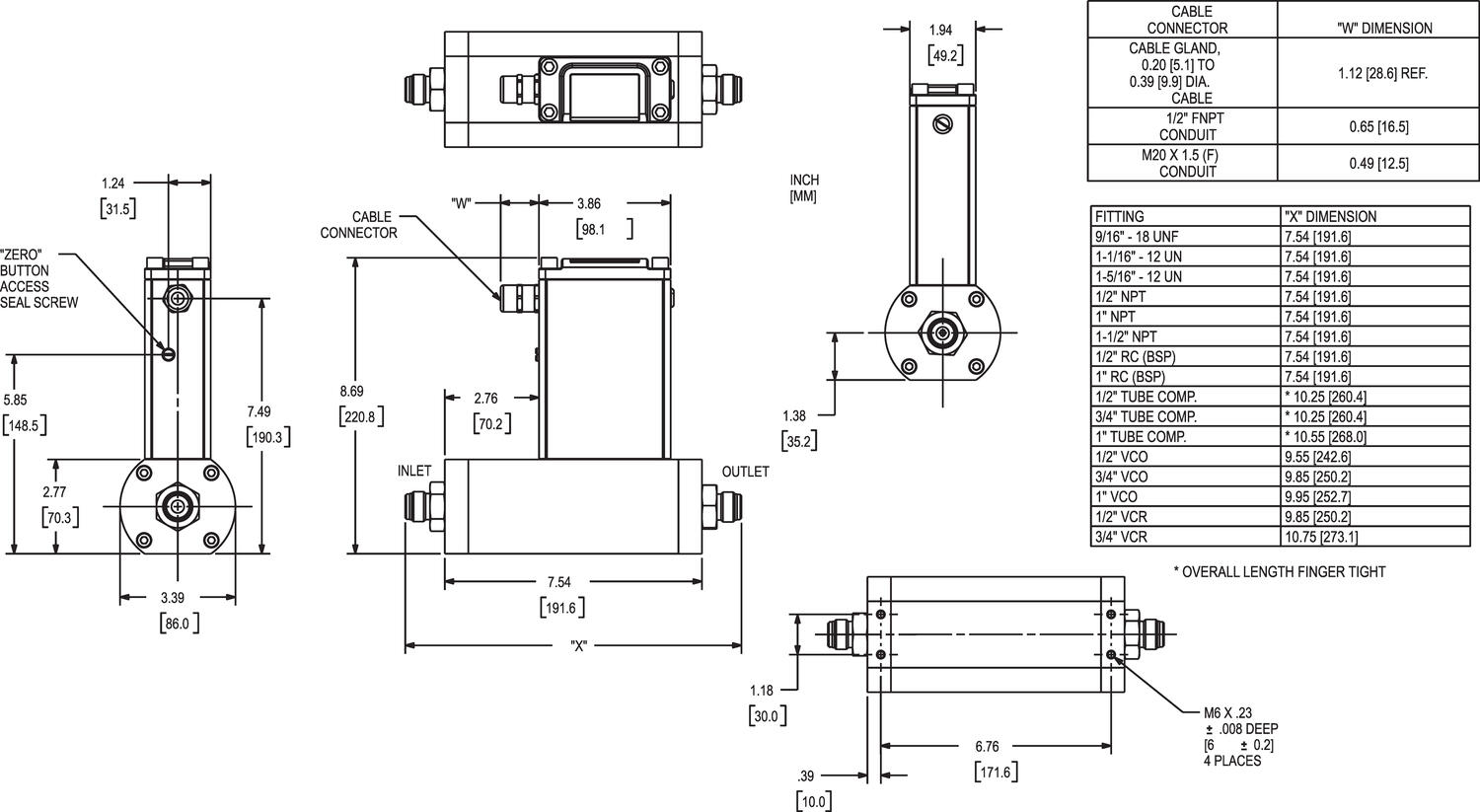

Thermal Mass Flow Controller SLAMF63
Art:
SLAMF63
Copied
|
|
ATEX, IECEx
|
100:1 for FS from 1-50 slpm (50:1 for all other FS flows)
|
RS485 via 2.5mm jack
|
20 bar
|
0.52 bar
|
1x10-9 atm. cc/sec He
|
|
|
|
|
|
|
70 bar
|
<3 s
|
11 V DC
|
-14 °C
|
-14 °C
|
65 °C
|
None
|
| |
![]()

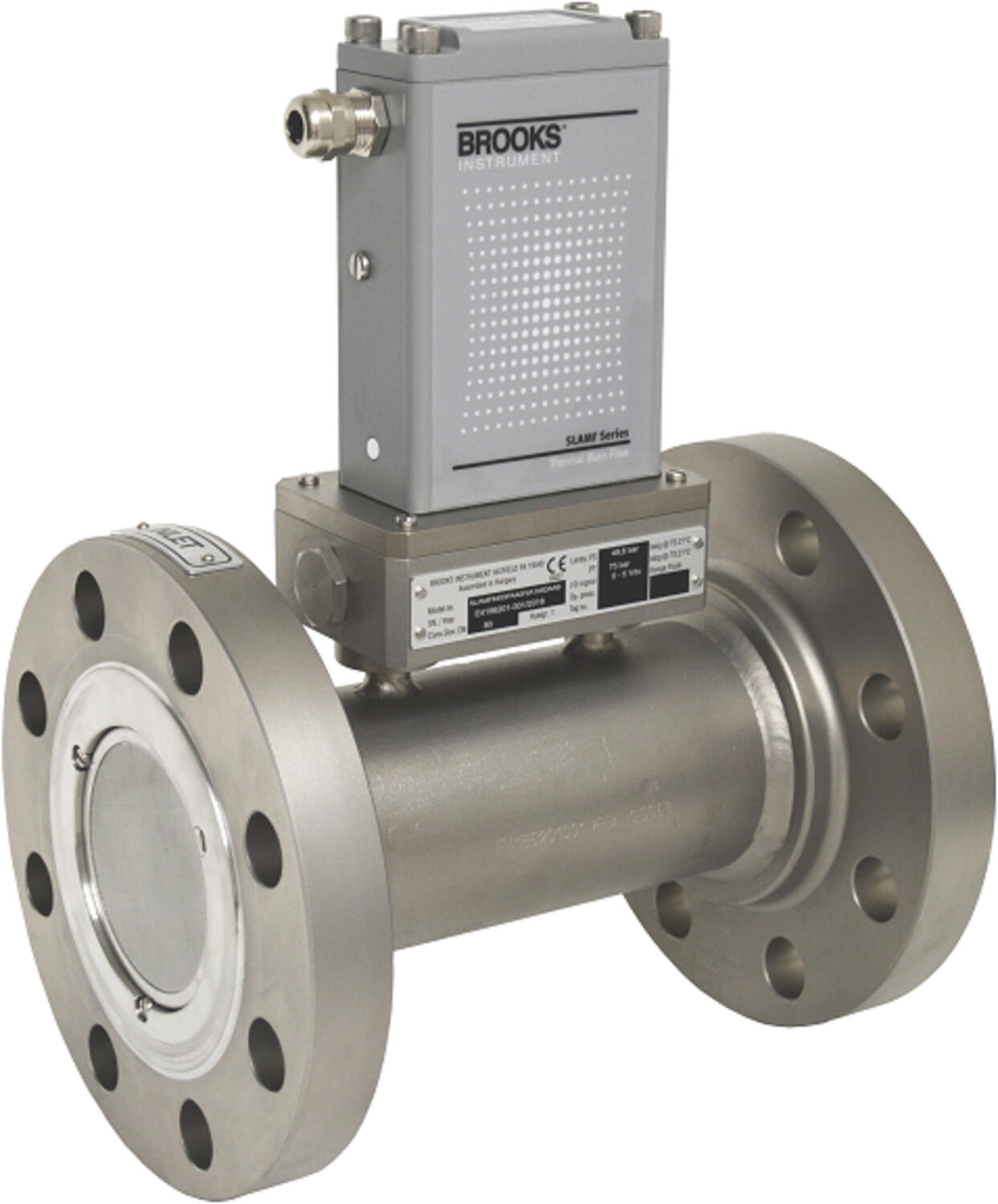

Thermal Mass Flow Controller SLAMF64
Art:
SLAMF64
Copied
|
|
ATEX, IECEx
|
100:1 for FS from 1-50 slpm (50:1 for all other FS flows)
|
RS485 via 2.5mm jack
|
|
|
1x10-9 atm. cc/sec He
|
|
|
|
|
|
|
|
|
|
-14 °C
|
-14 °C
|
65 °C
|
|
|
Select a variant in the list
