Datalogic - S65-M - Distance sensor
S65-M is the new long range background suppressor based on Time Of Flight technology. The S65-M can easily detect objects at a distance up to 5m and is ideal for precise and reliable detection applications.
Innovative system on chip technology and risk-free infrared LED emission deliver valuable cost and safety advantages when compared to laser products. Sensor alignment is quick and easy with the embedded green LED pointer.
The S65-M user interface is simple and intuitive. Product connectivity is flexible and complete with two user configurable outputs driving PNP or NPN loads; models with IO-Link V1.1 connection are also available.
The rugged and compact 50 x 50 x 24 mm housing with IP67 protection makes the S65-M the ideal product for automated warehouses, palletisers, automotive, transport & logistic, packaging applications and conveyor Lines.
FEATURES & BENEFITS
• Long Range background suppression detection up to 5 m
• Cost effective solution for precise and reliable detection
• Risk-free Infrared LED emission and embedded green LED pointer
• Two independent fully programmable outputs
• NPN/PNP or IO-Link connection models
• Rugged plastic housing in compact 50 x 50 x 24mm format
APPLICATIONS
• Presence of all medium and large sized objects on conveyors
• Critical object detection in front of problematic background
• Positioning tasks in palletizing
• Position limiter for deck and robot in automotive manufacturing
• Collision prevention limit switch for AGV applications
- Range up to 5m with Time of Flight technology

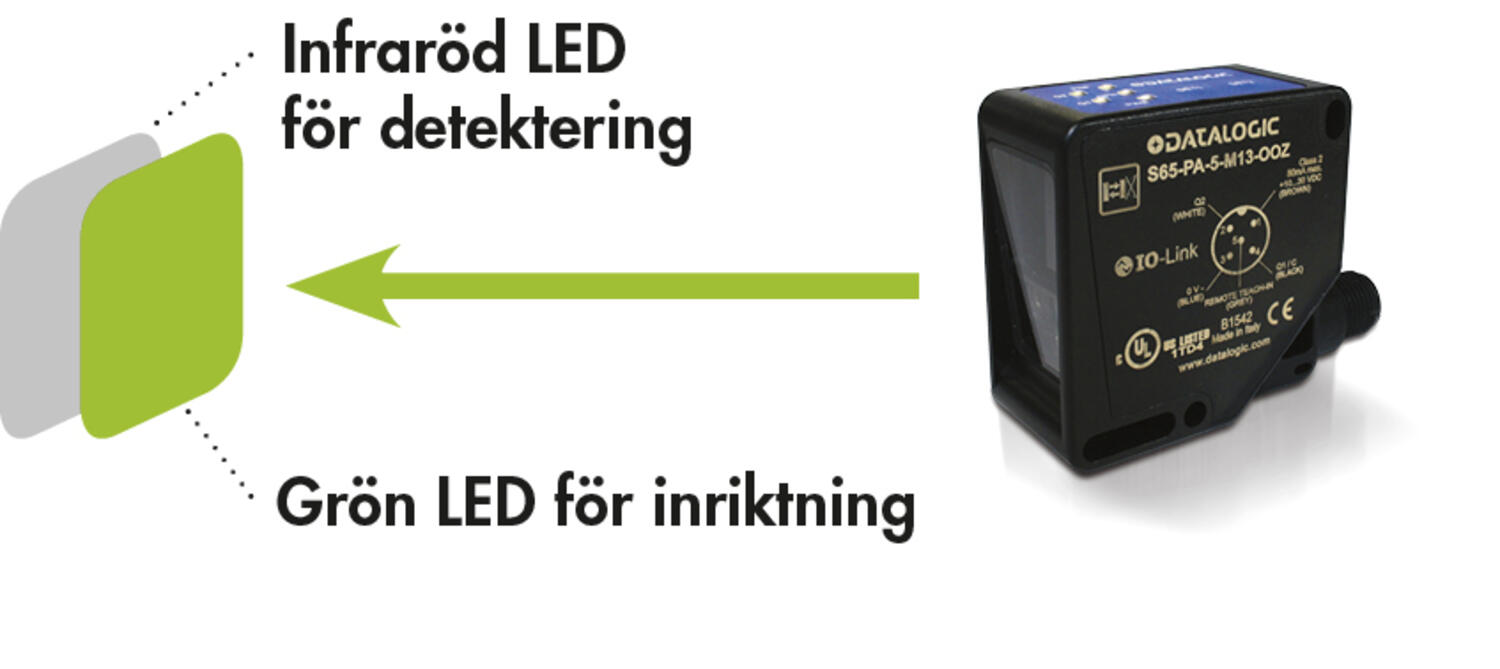

- Infrared LED for detection, green LED for alignment
- PNP/NPN outputs
- I/O link models available
- IP67 protection
Selected variant
Specifications
| Approvals | CE, UL |
|---|---|

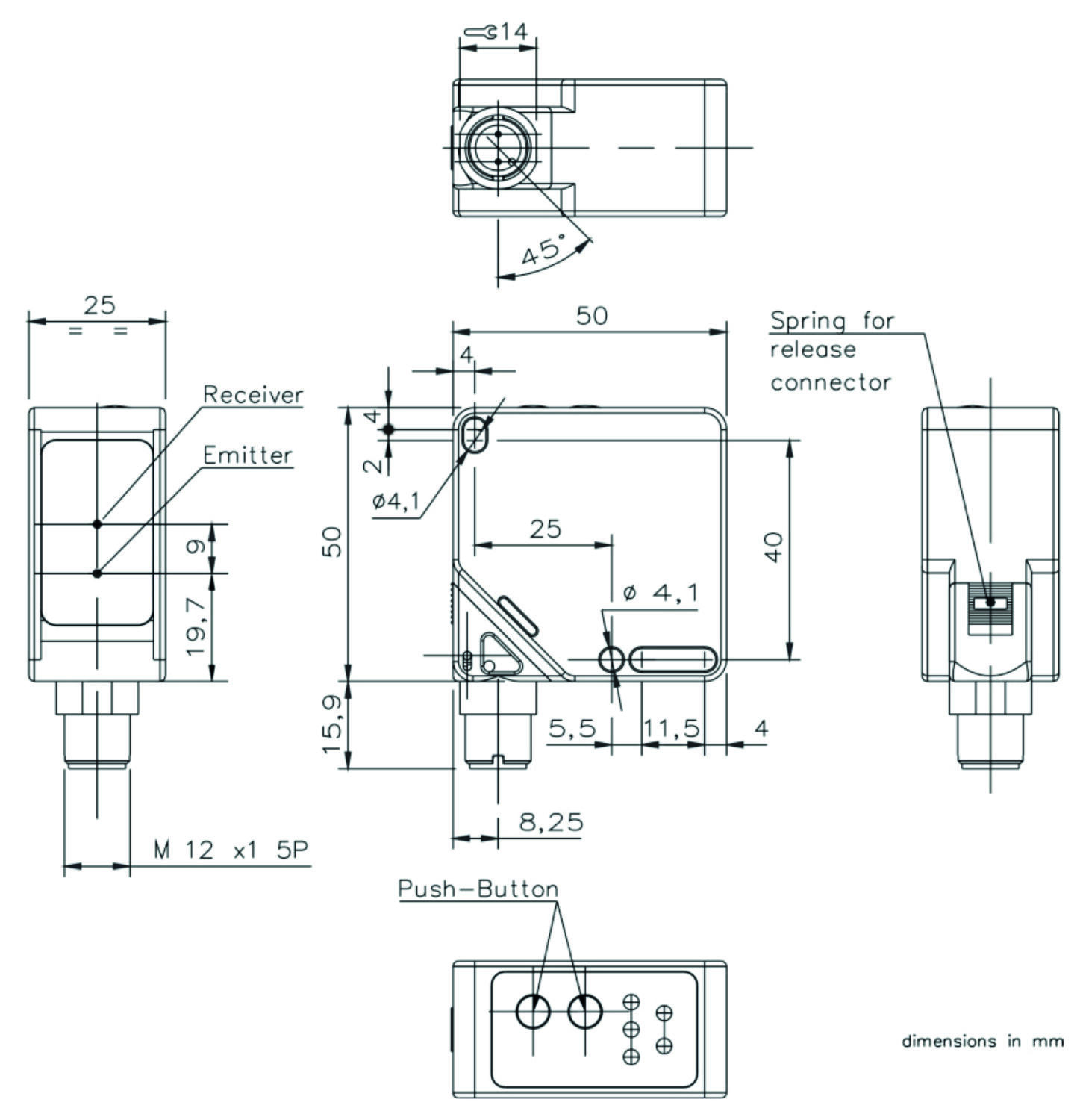

| Dimension (mm) | 50 x 50 x 25 mm |
| Distance Max | 5000 mm |
| Distance Min | 300 mm |

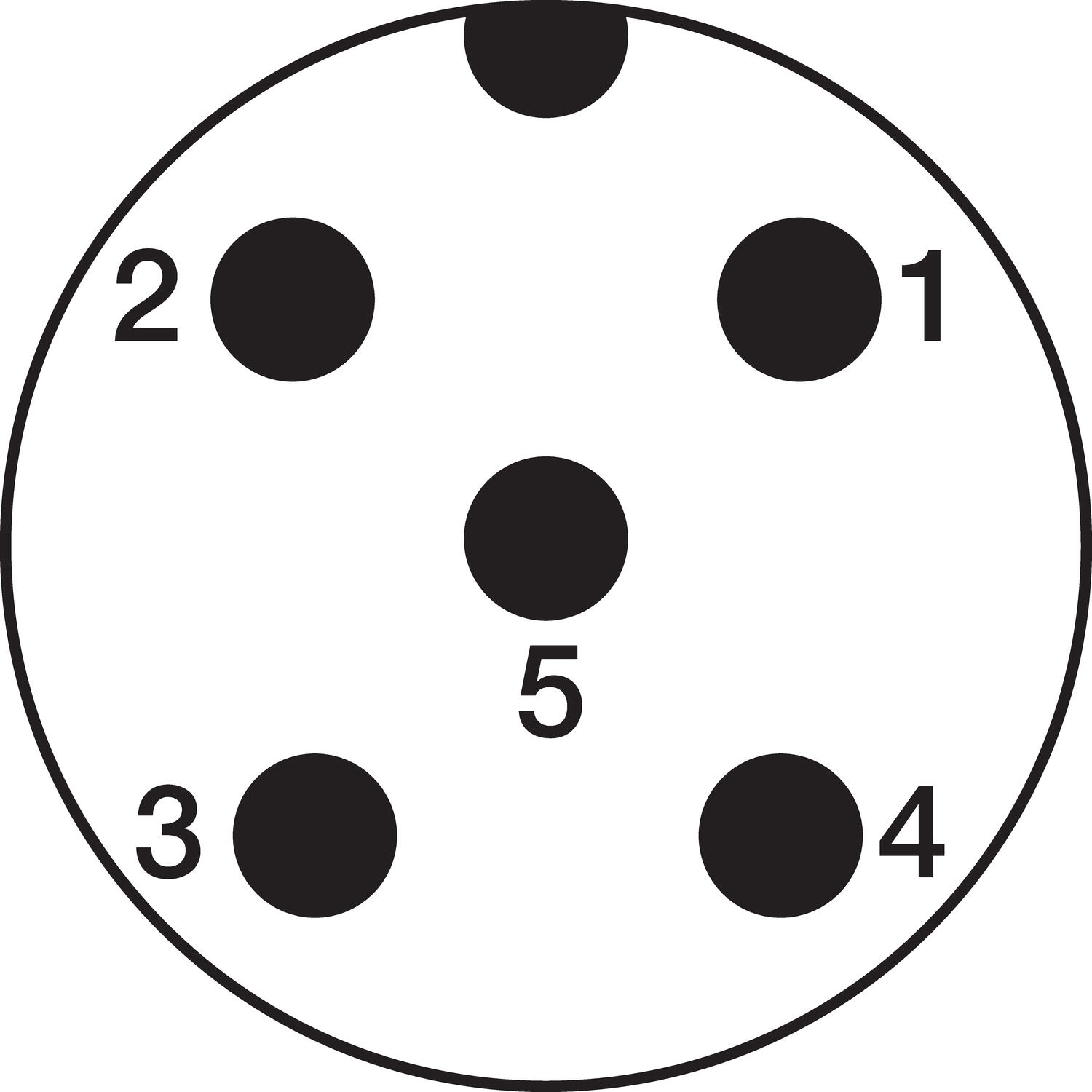

| Electrical connection | M12 5 pole connector |
| Function | Dark On/Light On |
| IP Class | IP67 |
| LED indicator | Yes |
| Lens material | PMMA |
| Light type | Green LED, IR LED |
| Material of body | ABS plastic |
| Output | NPN, PNP |
| Output current max | 0.1 A |
|---|---|
| Photocell technology | Background suppression |
| Reaction time | 8.5 ms |
| Supply voltage | 24 V DC |
| Temperature range bearing, from | -25 °C |
| Temperature range bearing, to | 70 °C |
| Temperature range from | -15 °C |
| Temperature range to | 55 °C |
| Type of light | LED |
| Weight | 50 g |
Product description
S65-M is the new long range background suppressor based on Time Of Flight technology. The S65-M can easily detect objects at a distance up to 5m and is ideal for precise and reliable detection applications.
Innovative system on chip technology and risk-free infrared LED emission deliver valuable cost and safety advantages when compared to laser products. Sensor alignment is quick and easy with the embedded green LED pointer.
The S65-M user interface is simple and intuitive. Product connectivity is flexible and complete with two user configurable outputs driving PNP or NPN loads; models with IO-Link V1.1 connection are also available.
The rugged and compact 50 x 50 x 24 mm housing with IP67 protection makes the S65-M the ideal product for automated warehouses, palletisers, automotive, transport & logistic, packaging applications and conveyor Lines.
FEATURES & BENEFITS
• Long Range background suppression detection up to 5 m
• Cost effective solution for precise and reliable detection
• Risk-free Infrared LED emission and embedded green LED pointer
• Two independent fully programmable outputs
• NPN/PNP or IO-Link connection models
• Rugged plastic housing in compact 50 x 50 x 24mm format
APPLICATIONS
• Presence of all medium and large sized objects on conveyors
• Critical object detection in front of problematic background
• Positioning tasks in palletizing
• Position limiter for deck and robot in automotive manufacturing
• Collision prevention limit switch for AGV applications
