TAKEX

Takex - Photoelectric background suppression sensor

  • Detects different objects at the “same” distance
  • Terminal connection
  • Operates in dusty and dirty environments
  • IP66

Selected variant

TAKEX.eps

Save as pdf

Technical data / Documents

Accessories & Related products

Selected variant

Specifications

Approvals CE
Distance Max 1000 mm
Distance Min 200 mm
Electrical connection Terminal
Function Dark On/Light On
IP Class IP66
Light / Dark Switching Yes
Light type IR LED
Material of body Polycarbonate
Output Relay
Photocell technology Background suppression
Reaction time 20 ms
Temperature range from -25 °C
Temperature range to 55 °C
Voltage AC / DC Max 240 V
Voltage AC / DC Min 24 V

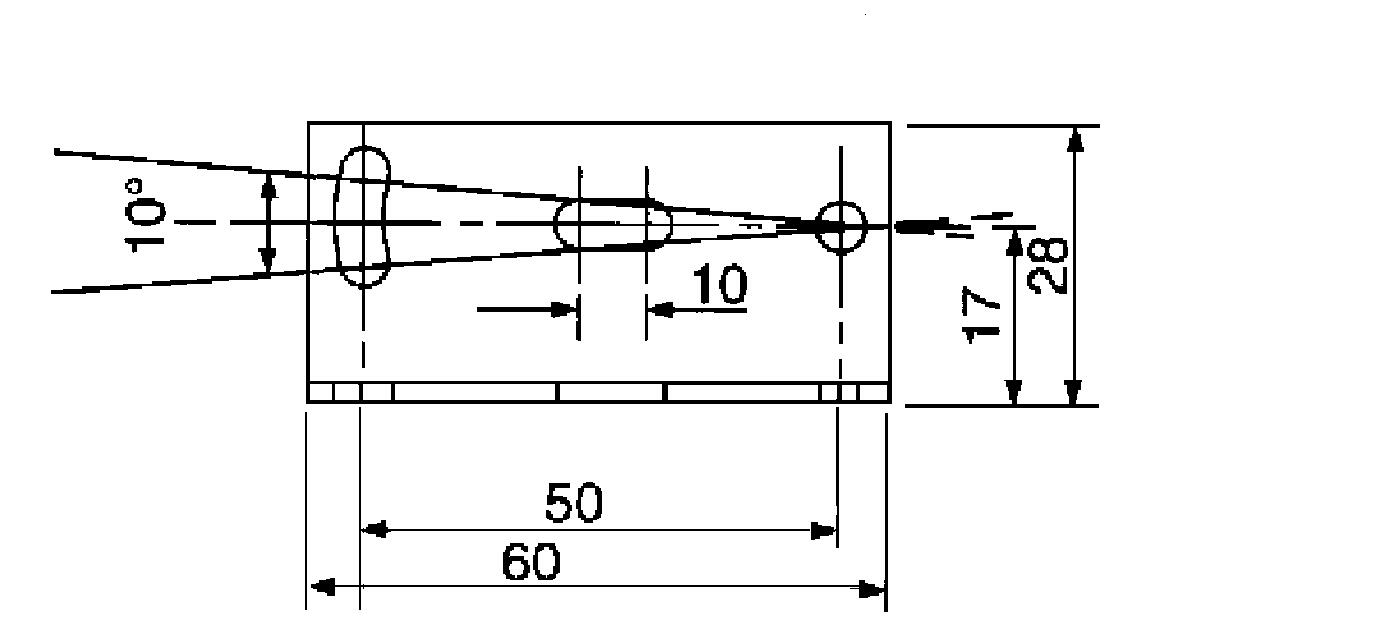

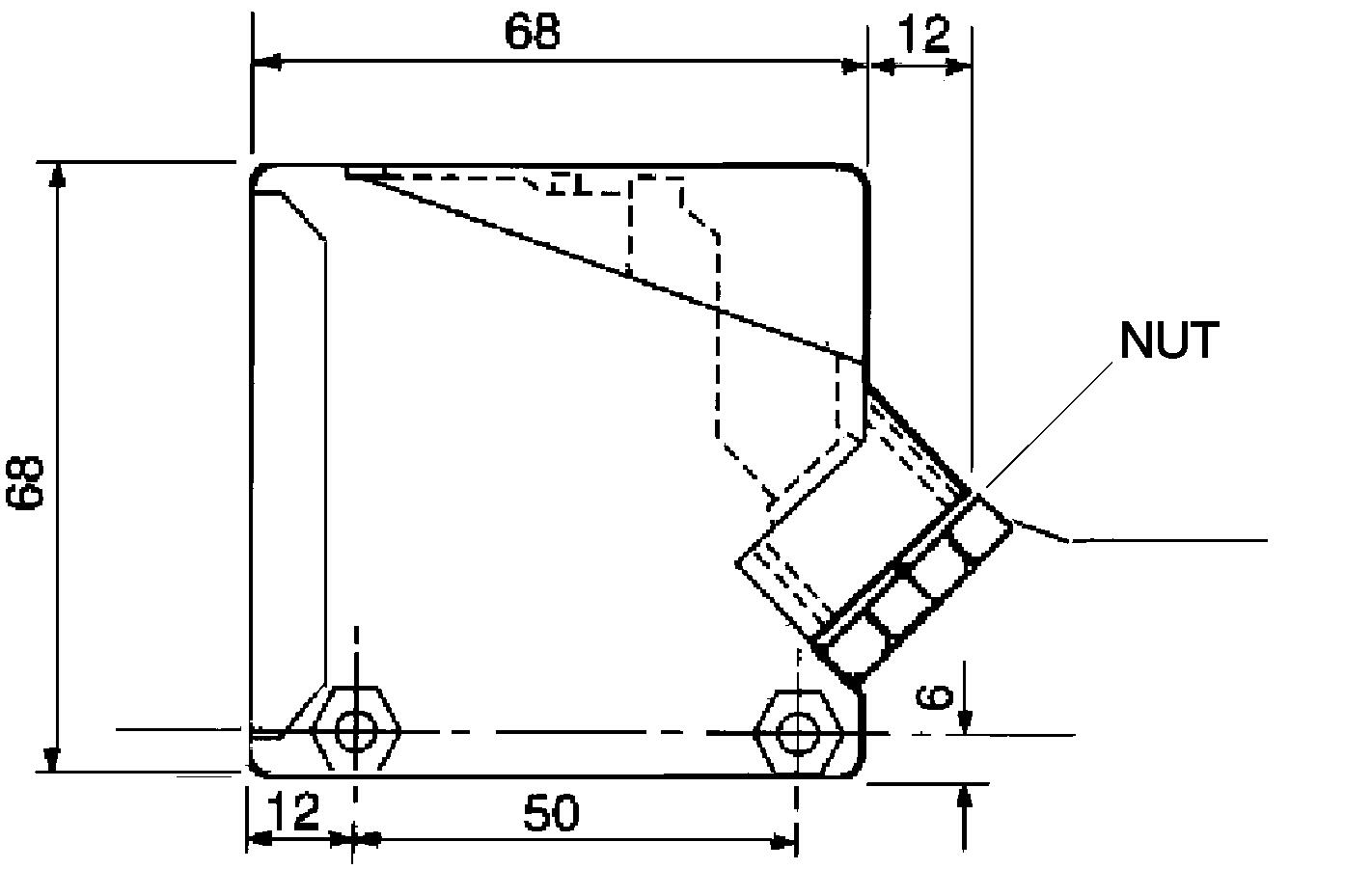

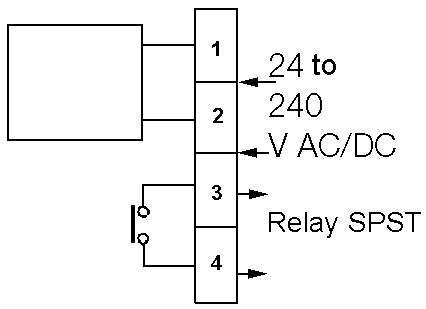

Measurements and connections

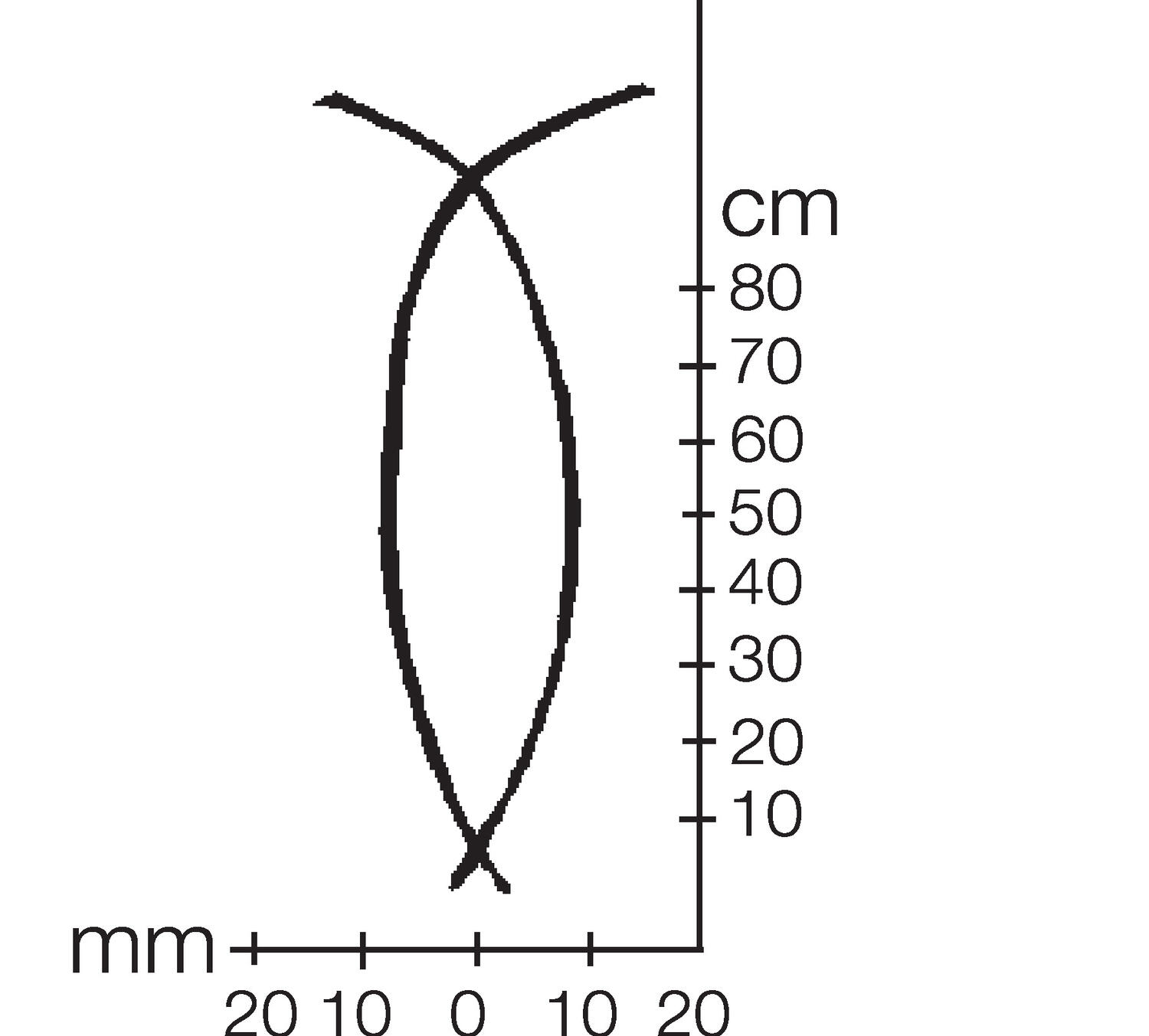

Technical illustrations

Accessories

Articles Distance Max Output Output current max Reaction time Voltage AC / DC Max Voltage AC / DC Min Voltage DC max Voltage DC min
Photocell backgroundanti-dazzled and colourinsensitive
PHOTOSENSOR .2-1M RANGE RELAY
Art:
DLS100P Copied
1000 mm
Relay
20 ms
240 V
24 V
Photocell backgroundanti-dazzled and colourinsensitive
PHOTOSENSOR .2-1M RANGEPNP/NPN
Art:
DLS100TC Copied
1000 mm
NPN, PNP
0,1 A
5 ms
24 V
12 V
Photocell backgroundanti-dazzled and colourinsensitive
PHOTOSENSOR .2-2M RANGE RELAY
Art:
DLS200P Copied
2000 mm
Relay
20 ms
240 V
24 V
Photocell backgroundanti-dazzled and colourinsensitive
PHOTOSENSOR .2-2M RANGENPN/PNP
Art:
DLS200TC Copied
2000 mm
NPN, PNP
0,1 A
5 ms
24 V
12 V
