TECSIS
High & extreme pressure transducer
Sensor for extremely high pressure, with very good accuracy. For applications within, for example, ultra-high pressure hydraulics and liquid cutting. Highly resistant to rapid pressure fluctuations. Extra adapters are available to cope with extreme cavitations and pressure peaks.
Special versions
• Alternative connections, 9/16-18 UNF, M14x1.5 LH, 1/4-28 UNFLH
• M12x1 or cable electrical connection
• Alternative working ranges and output signals
- Accuracy 0.5%
- For relative pressure
- High pressure peak resistance
- Pressure range 0...15,000 bar
Selected variant
Specifications

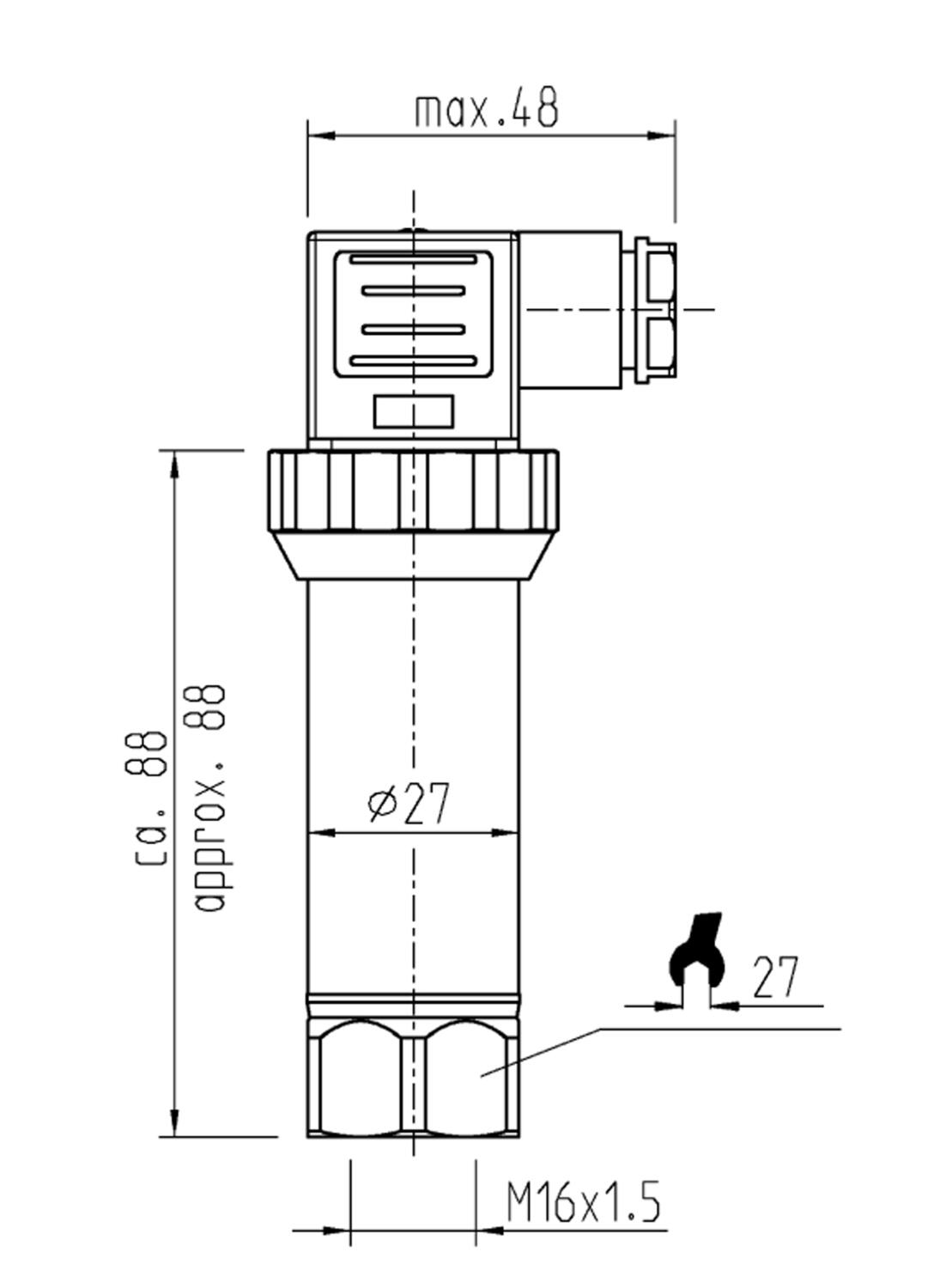

| Connection | Female thread |
|---|---|
| Connection Thread | M16x1.5 |
| EMC | Emission EN61326 |
| IP Class | IP65 |
| Material of body | Stainless steel SIS2333 |
| Materials Wetted Parts | Stainless steel SIS2350 (316) |
| Pressure Range Max | 1600 bar |
| Pressure Range Min | 0 bar |
| Response Time | 1 ms |
| Supply Voltage DC Max | 30 V DC |
|---|---|
| Supply Voltage DC Min | 10 V DC |
| Temperature ambient from | -20 °C |
| Temperature ambient to | 80 °C |
| Temperature range of media from | -20 °C |
| Temperature range of media to | 80 °C |
| Weight | 30 g |
Product description
Sensor for extremely high pressure, with very good accuracy. For applications within, for example, ultra-high pressure hydraulics and liquid cutting. Highly resistant to rapid pressure fluctuations. Extra adapters are available to cope with extreme cavitations and pressure peaks.
Special versions
• Alternative connections, 9/16-18 UNF, M14x1.5 LH, 1/4-28 UNFLH
• M12x1 or cable electrical connection
• Alternative working ranges and output signals
